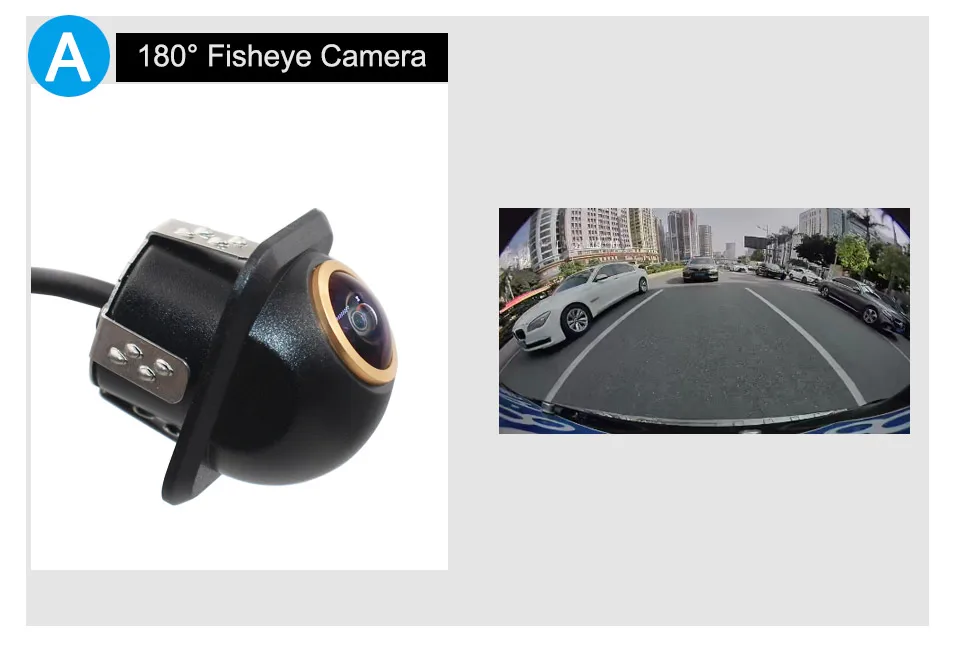

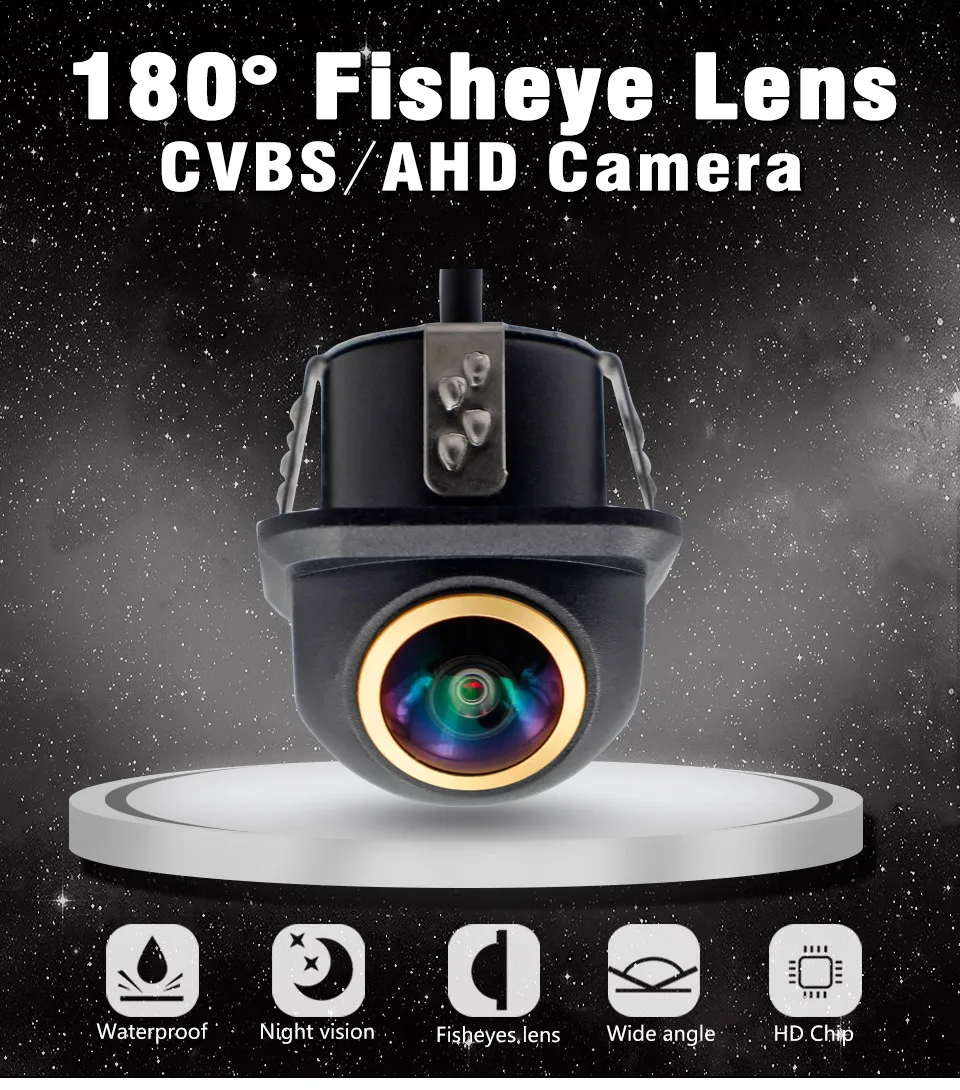

Universal CCD AHD/CVBS Car Parking Rear View Camera 180 Degree Fisheye Night Vision Waterproof Reverse Auto Backup Camera

AHD Camera Feature :

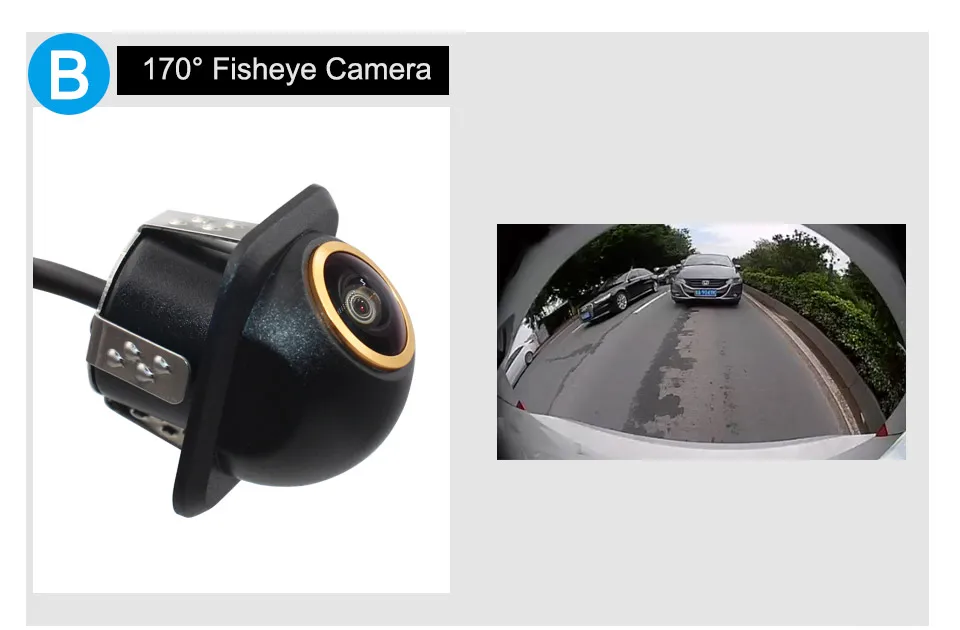

* Viewing angle: Real 180/170Degrees Visible Range .

* Signal format: NTSC

* Image resolution: 200W pixels

* Video output: AHD Video Signal or CVBS Signal .

* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.

* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation

* Lens : Fisheye 6 glass Lens .

* Low illumination: 0.01Lux

* Signal to noise ratio: ≥69dB

* Working power supply: DC12V/2A

* Working temperature: -45 °C ~ +70°C

* Maximum power: 3W

Please check whether the Android unit supports AHD 720P camera!

If AHD 720P or AHD 25 cannot be selected, Please select cvbs mode

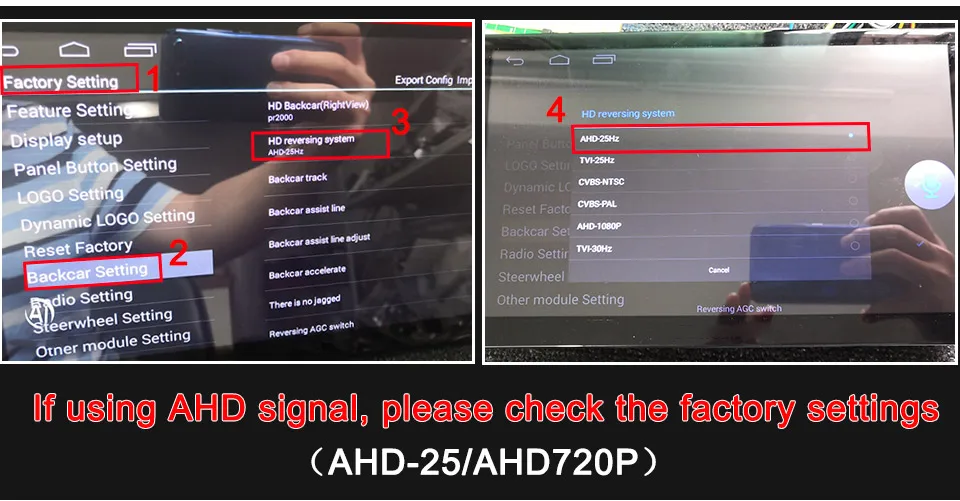

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD720P/AHD 25

↑↑ Support video signal control AHD/CVBS

Through signal control, it can support CVBS and AHD displays.

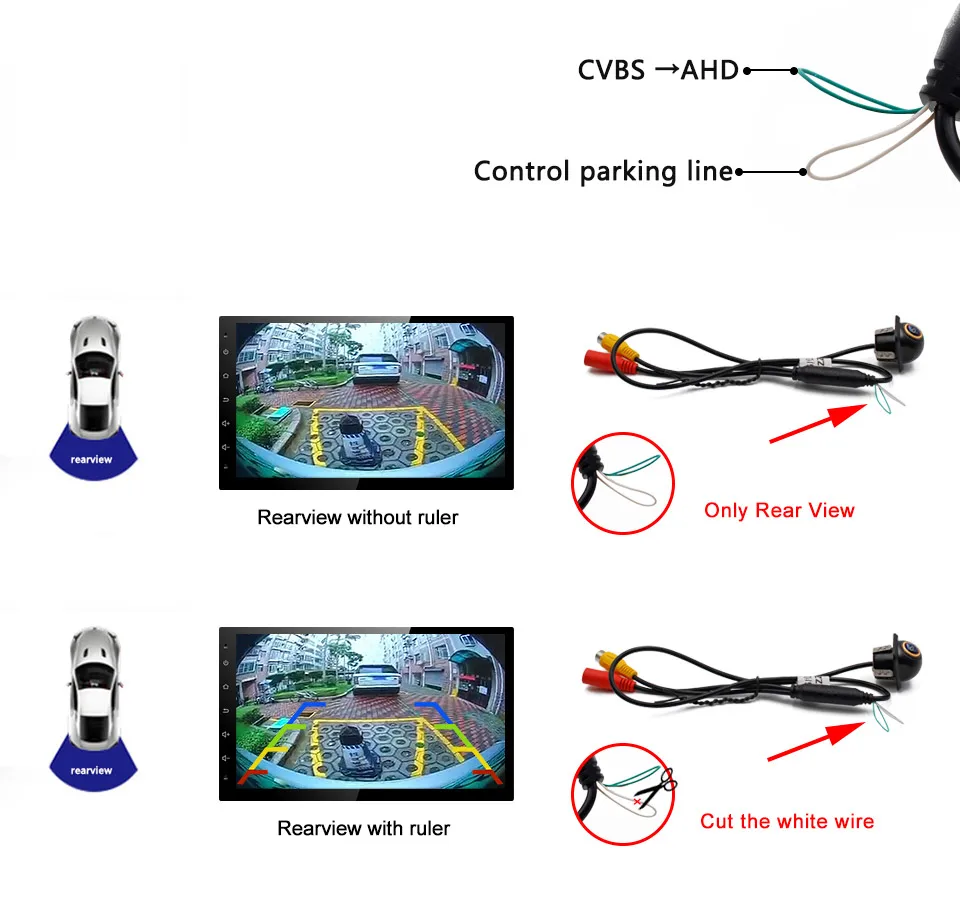

• Default

( CVBS )+( Rear view)+（No ruler line）

1.Cut the White cable→( CVBS )+( Rear view)+（With ruler line）

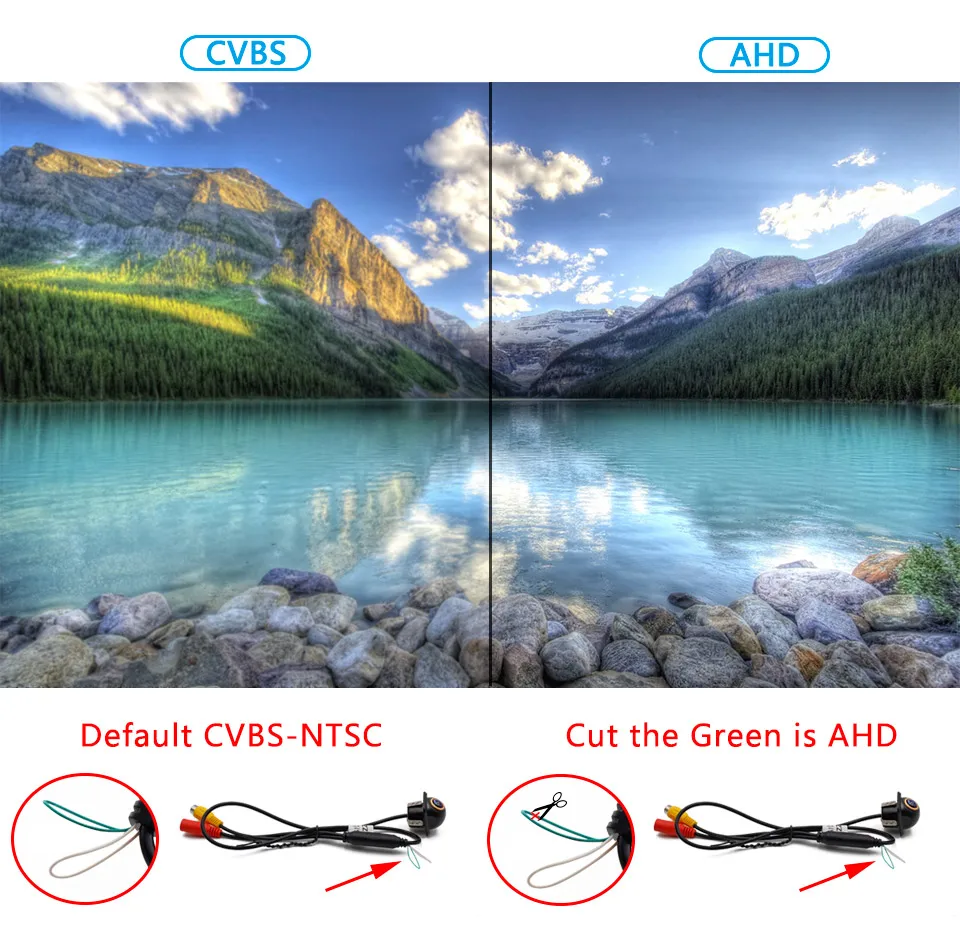

2.Cut the Green cable→( AHD )+( Rear view)+（NO ruler line）

3.Cut the White cable and Green cable→( AHD )+( Rear view)+（NO ruler line）
