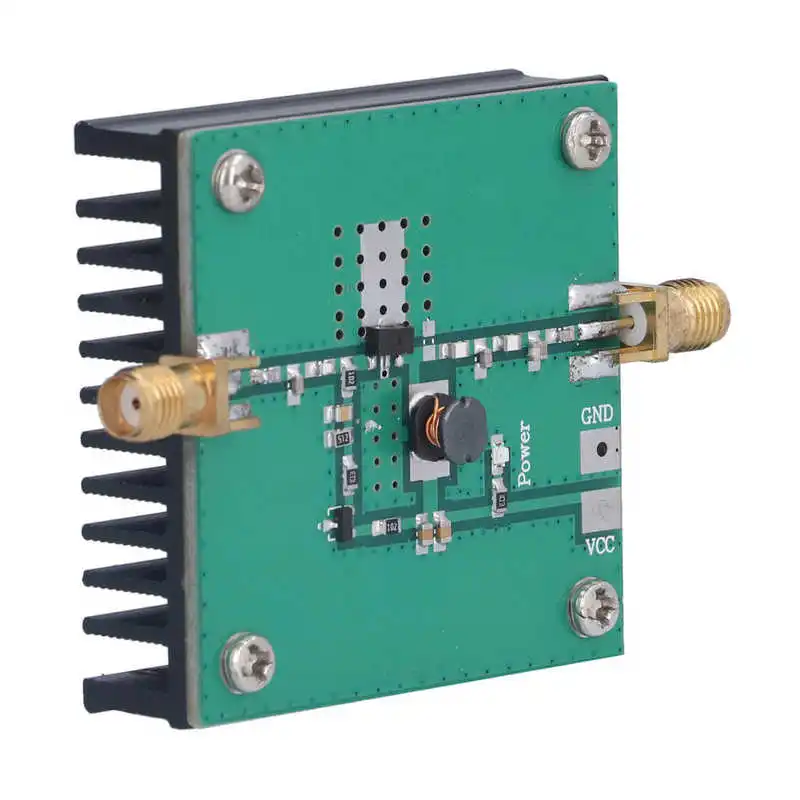

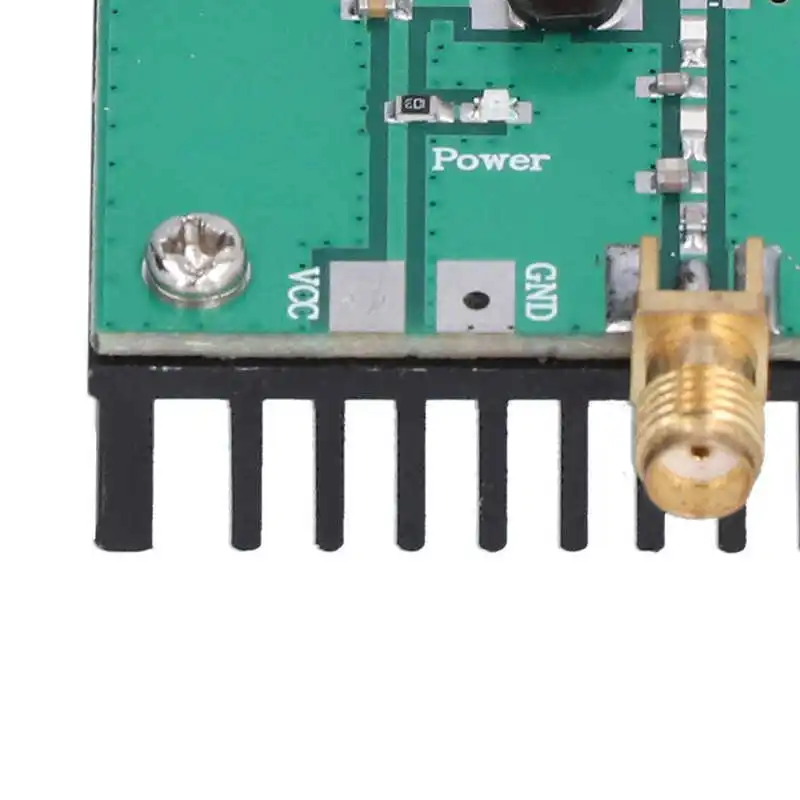

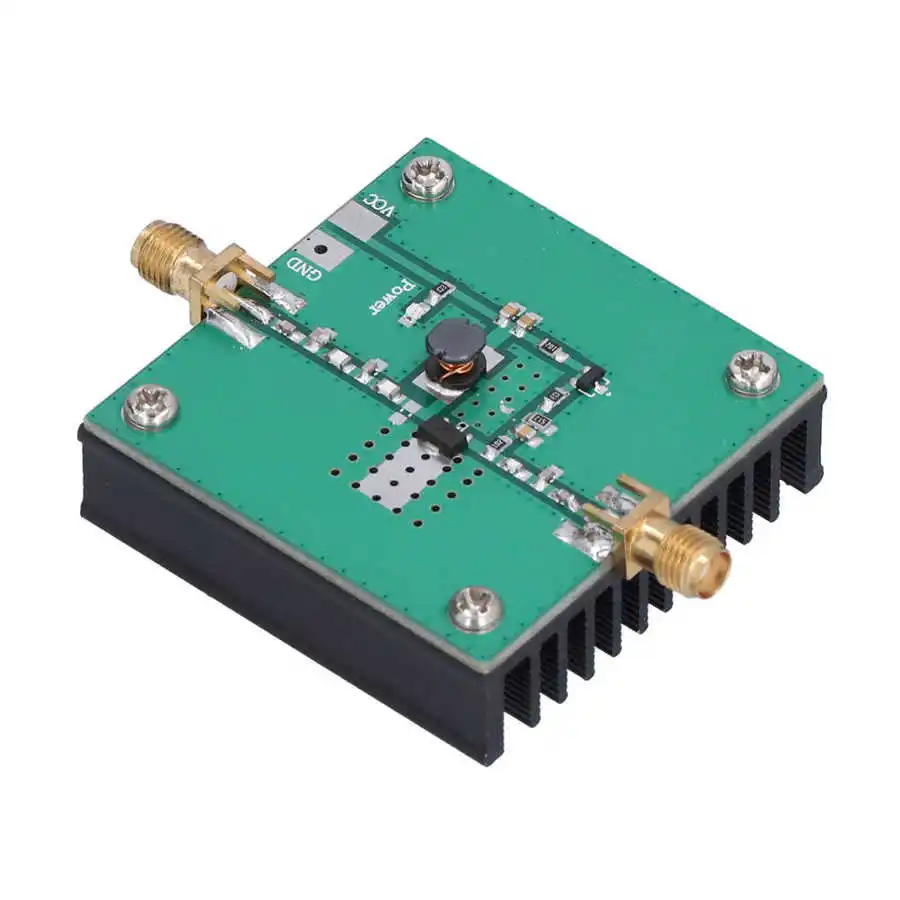

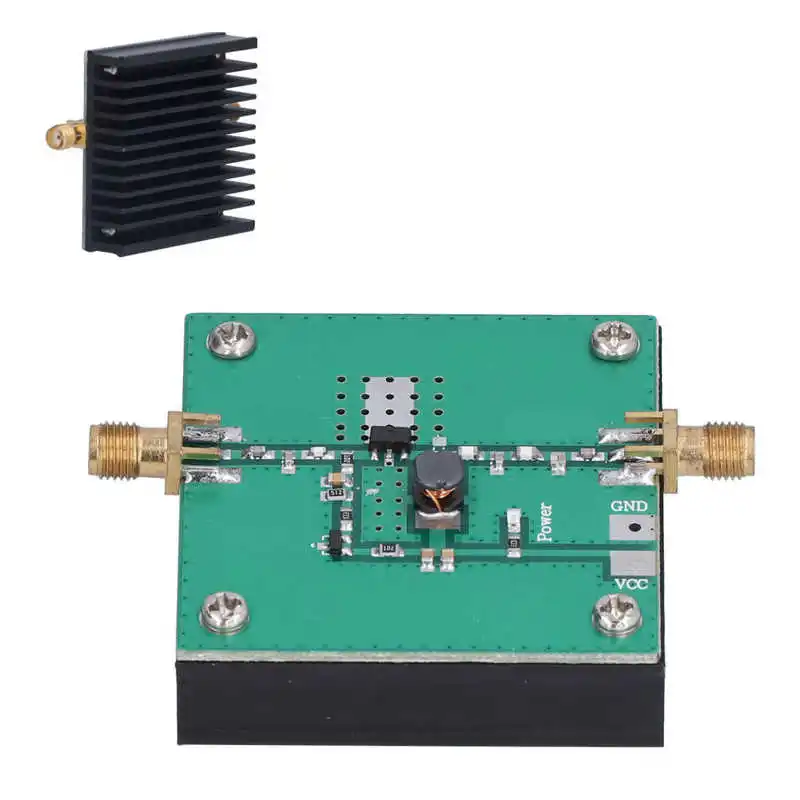

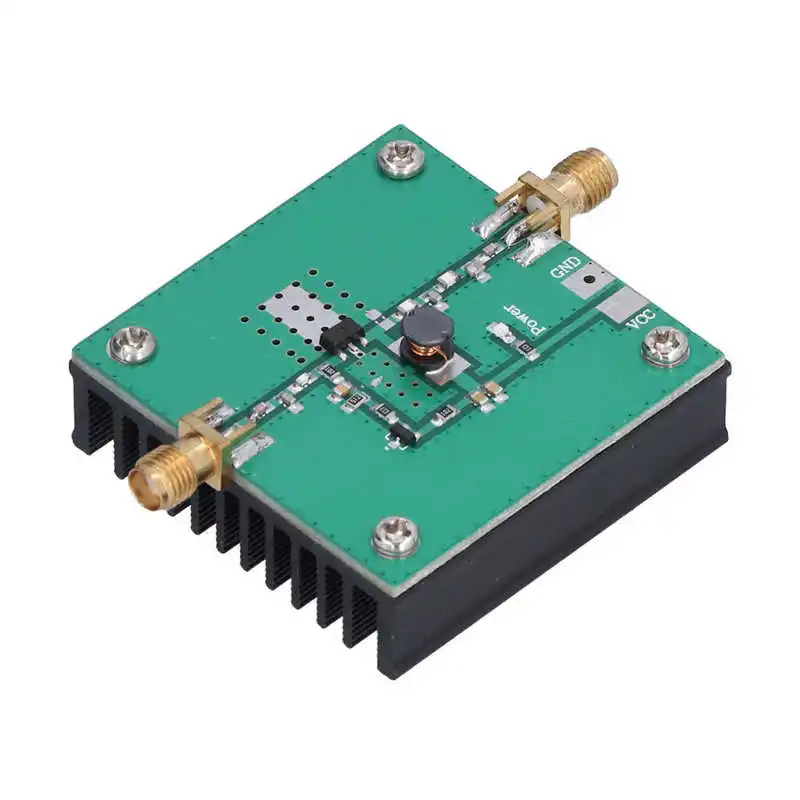

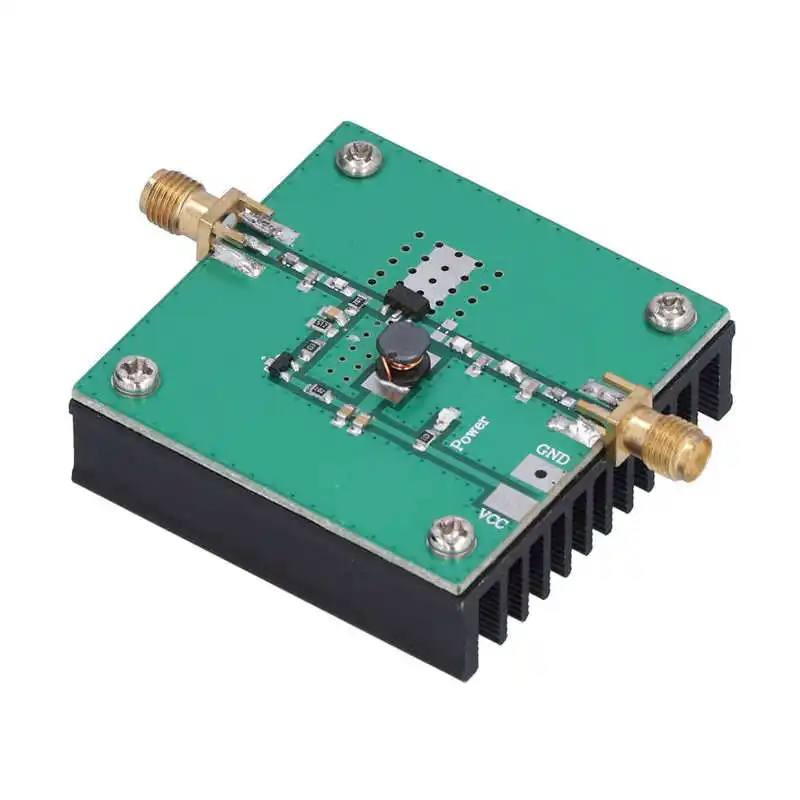

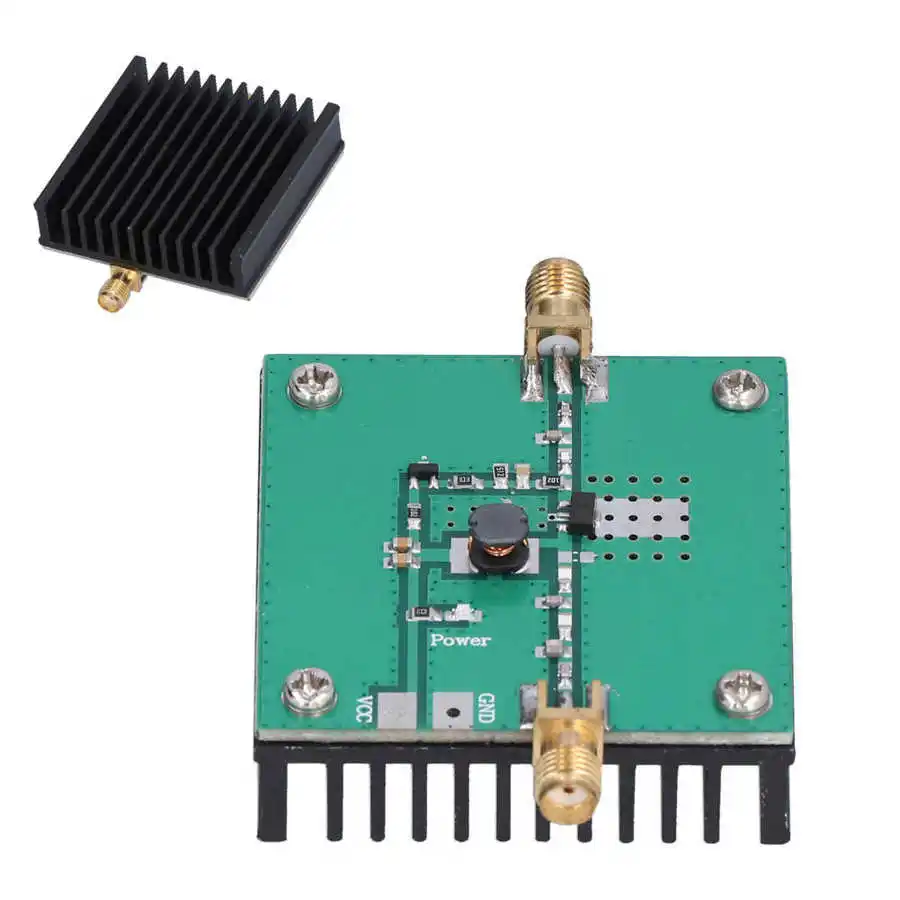

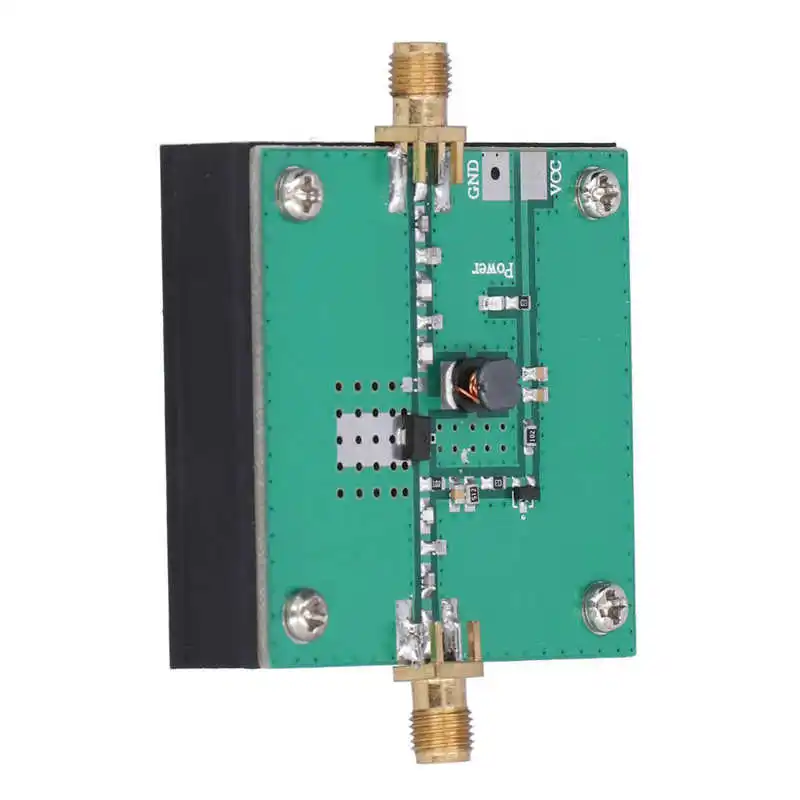

Power Amplifier Standard SMA Female RF Transmitter for Remote Control Radio Transmission | Инструменты

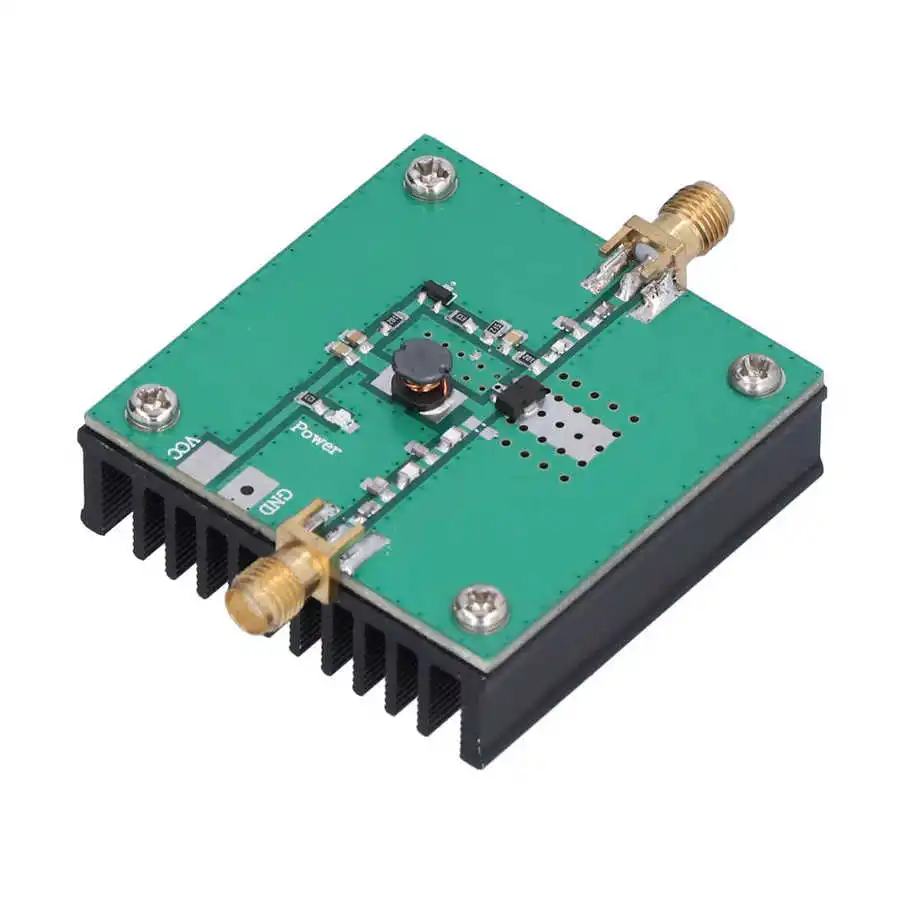

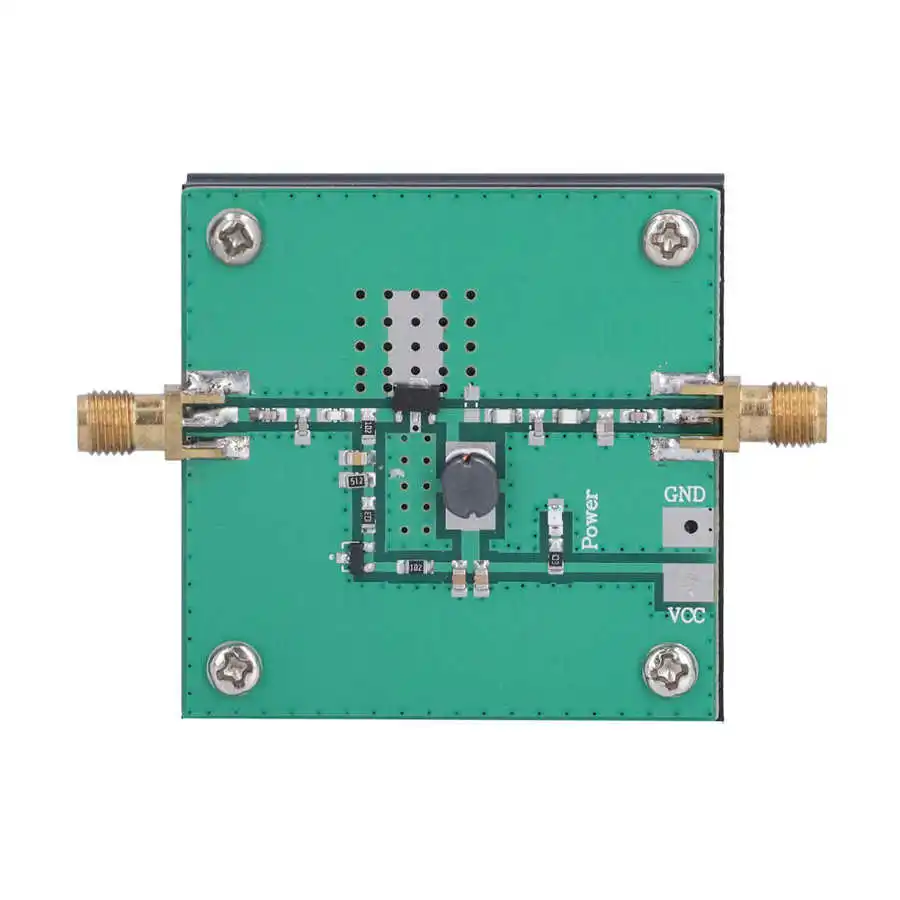

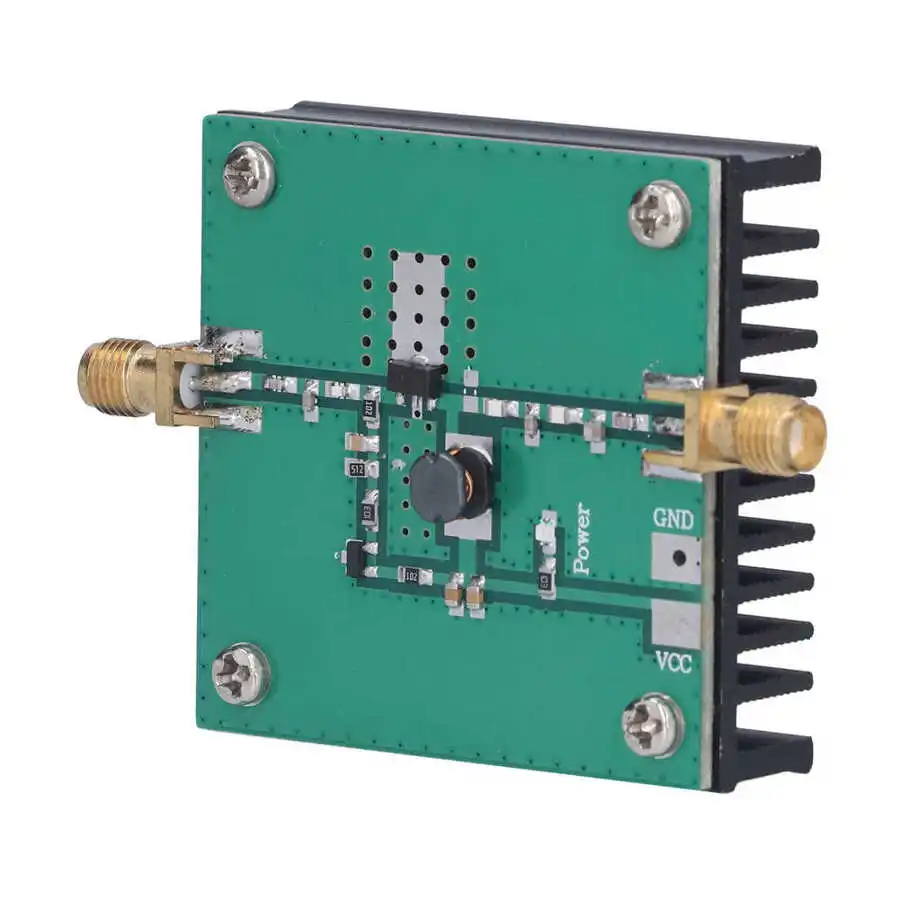

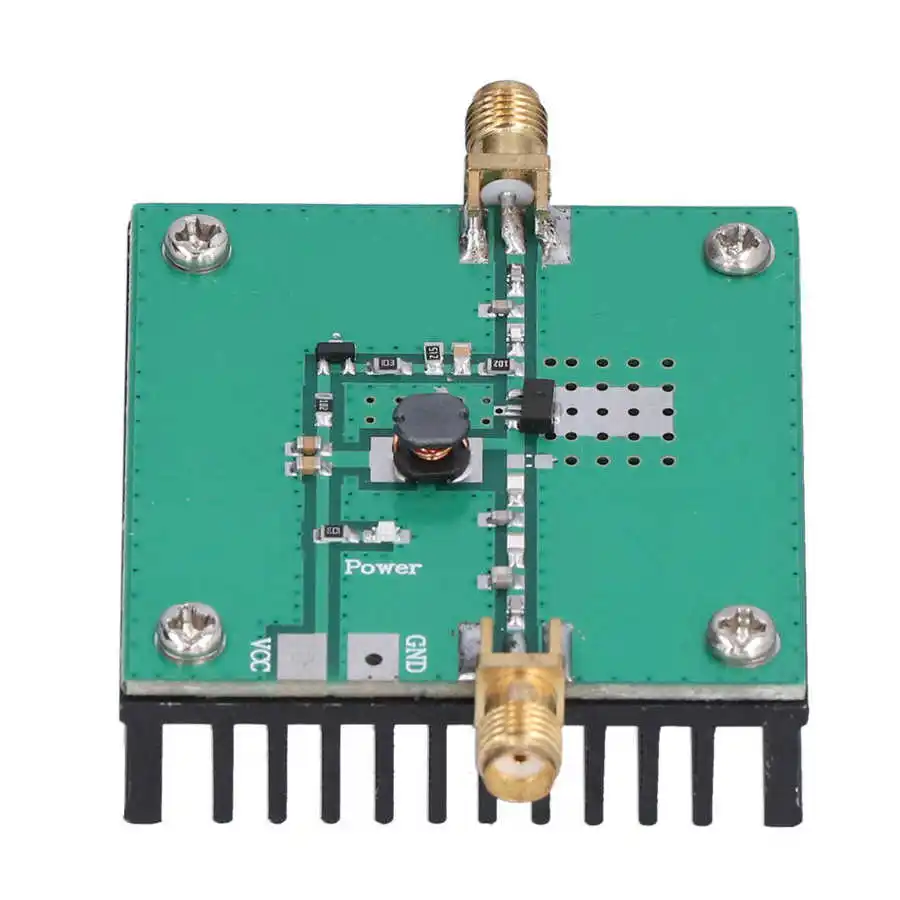

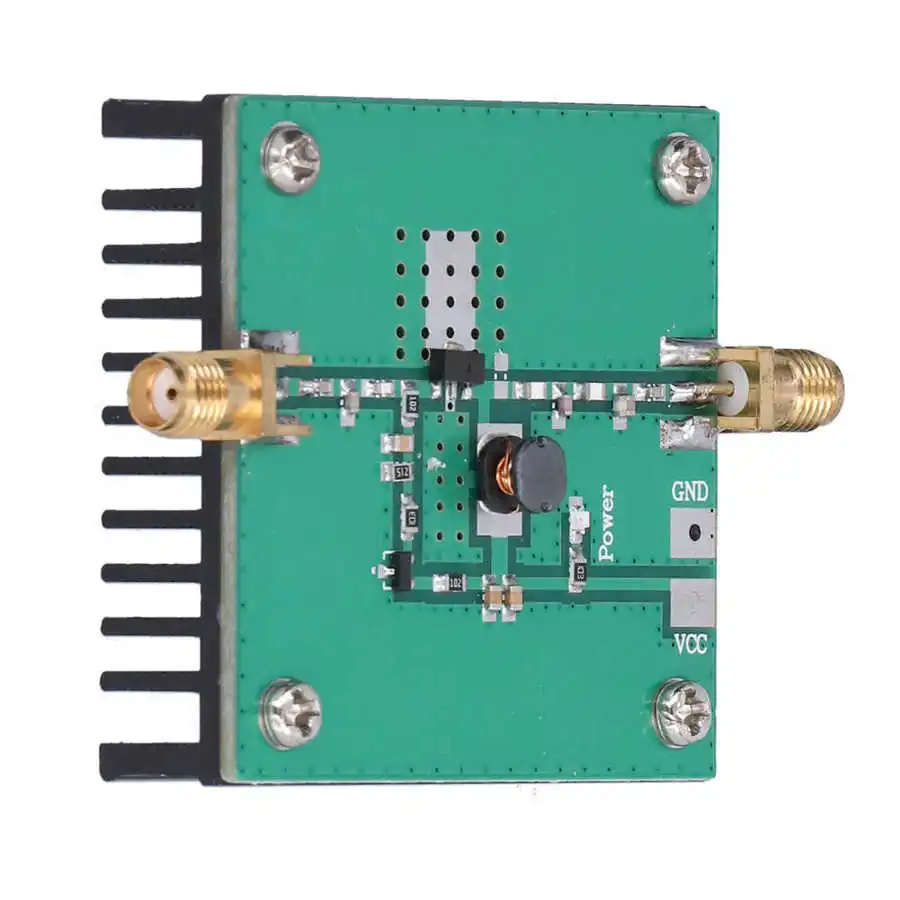

Power Amplifier Standard SMA Female RF Transmitter Amplifier for RF Remote Control for Radio Transmission

Feature:

1. Good wiring and heat sink design to maintain long‑term stability and good heat dissipation.
2. Broadband RF low‑power amplifier, suitable for 144MHz (130‑180MHz) radio transmitter learning and use.
3. Easy to use, no particularly complicated operation is required, the installation of this amplifier is very simple.
4. Suitable for all kinds of 380‑450MHz transmission use, such as radio frequency remote control, radio and other transmission use.
5. Input 0.1W (20dBm) can output 5.0W 7.2V power, with high gain and efficiency, especially suitable for small power amplifiers.

Specification:

Item Type: Power Amplifier
Commodity Material: Printed Circuit Board
Working Frequency: 130-180MHz
Input Power: 0.1W (20dBm)
Maximum Output:
2.5W (34dBm) 5.0V Power Supply
5.0W (37dBm) 7.2V Power Supply
8.0W (39dBm) 10.0V Power Supply (Not Recommended))
Working Voltage: DC5-7.2V
Working Current: 1-2A (Determined by Output Power)
RF Connector: Standard SMA Female
Size: Approx. 50 x 50 x 15mm / 2.0 x 2.0 x 0.6in

Package List:

1 x Power Amplifier

Note:

Before using the RF amplifier module, please make sure that all instruments and equipment share the same ground (no storage) (in the potential difference), and then connect with the RF cable. The load must be connected, and no‑load use is strictly prohibited. Pay attention, especially the amplifier.
