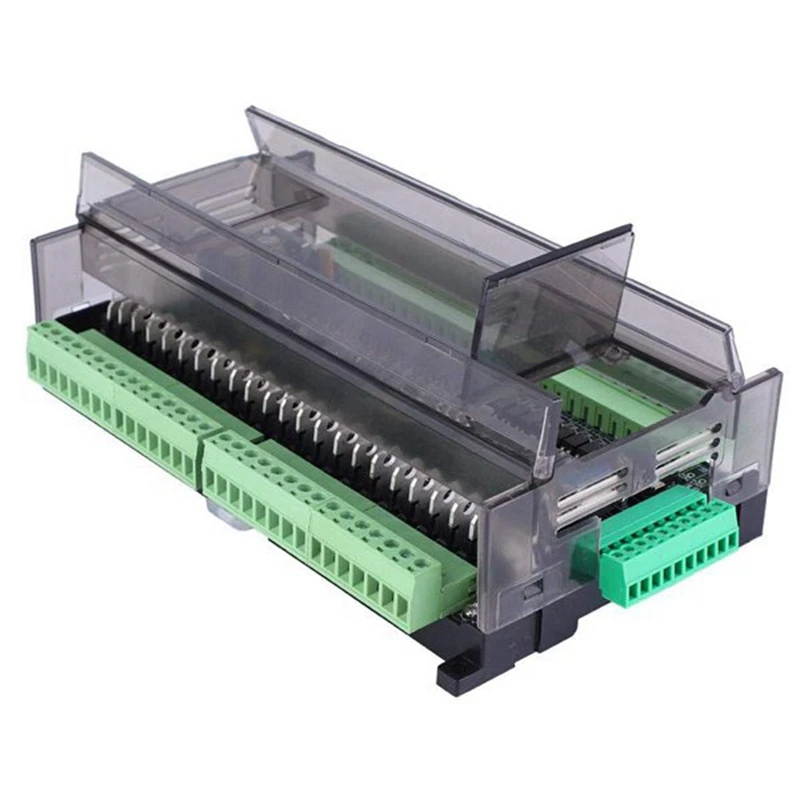

LE3U FX3U 48MR RS485 RTC (Real Time Clock) 24 Input 24 Relay Output 6 Analog Input 2 Analog Output Plc Controller

1. 3 channel AB input,
2. Support 1N, 2N, 3U instruction
3. Program 8,000 steps,
4. The download speed 38400
5. Support for Mitsubishi GX-Develoer, GX-WORK2

6. Support HMI
connection, the application is completely identical to the for Mitsubishi FX3U.
The PLC with industrial-grade 32-bit MCU, and run much faster than Mitsubishi FX3U.
The PLC baud rate to 38400
The clock module explains: when setting the clock, the M8015 should be set and restores the M8015 reset. D8018 is for year, D8017 is month, D8016 is day, D8019 is week, D8015 is hour, D8014 is minute, D8013 is second. The clock data can be read by the clock data TRD to read the clock data to the general register, or to modify the clock with the clock writing instruction TWR, using this instruction without the position M8015
Colour:black green
Material:plastic

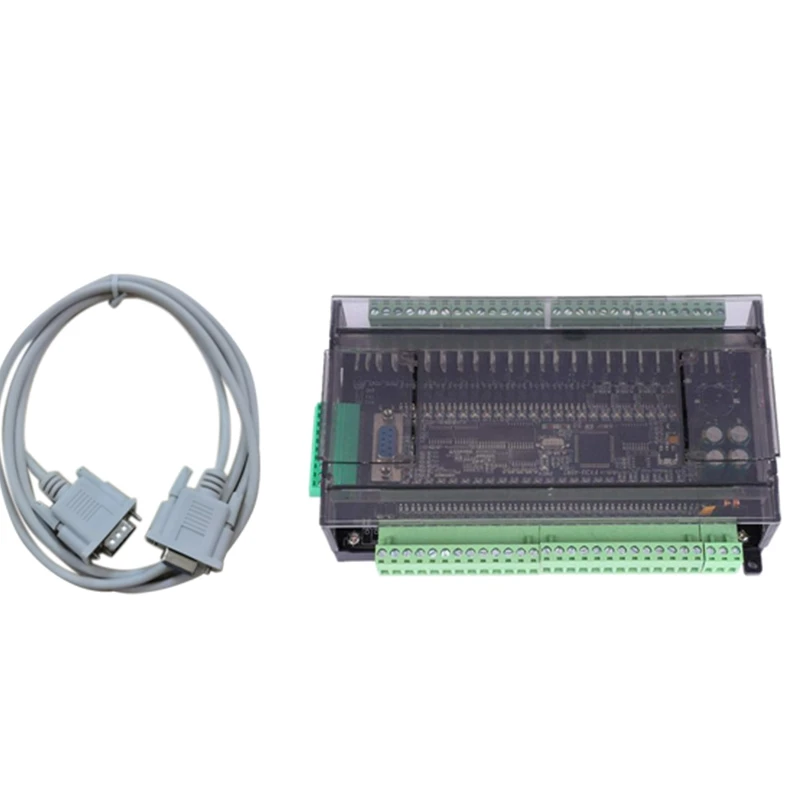

Package Contents:
1 * Controller
1 * Cable

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
