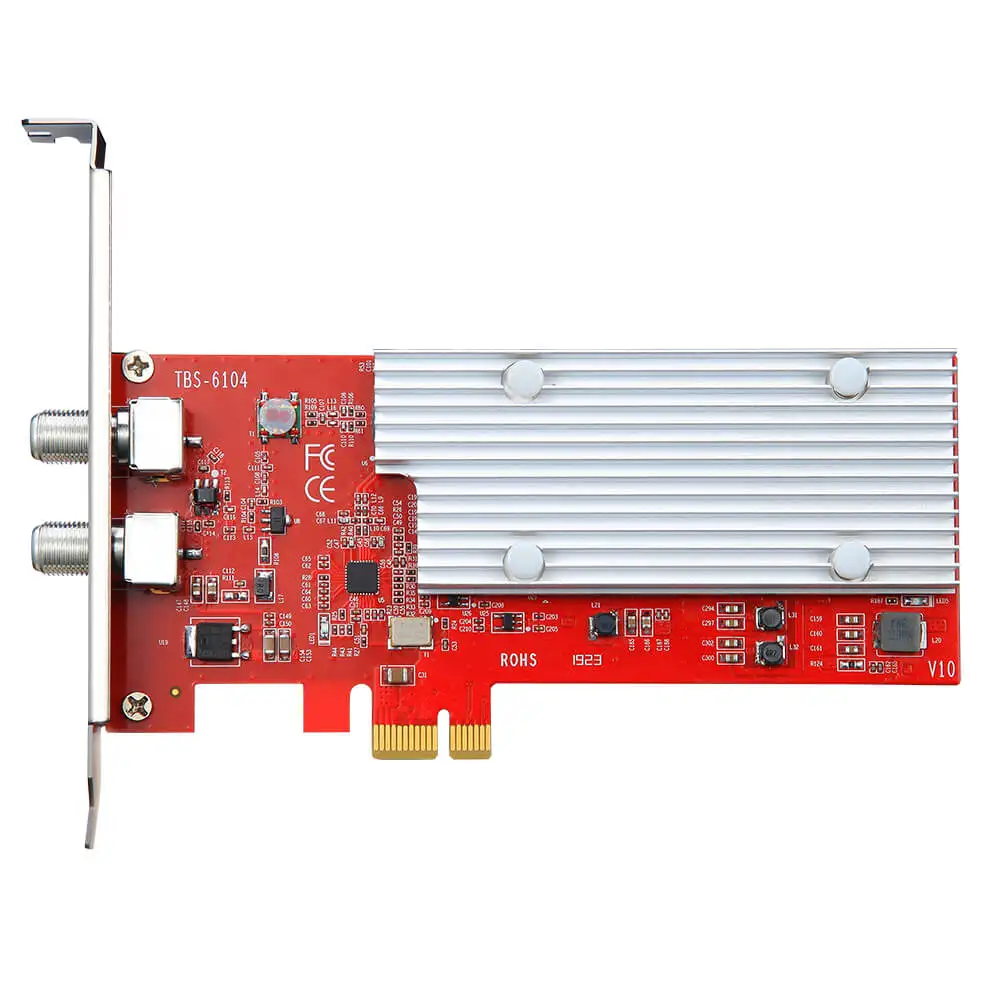

TBS6104 DVB-T Модулятор PCIe Карта Четыре Частоты DVB-T Вывода.

TBS6104 DVB-T Модулятор PCIe Карта Четыре Частоты Вывода.

This is a DVB-T modulator card, it works as a DVB-T signal generator and supports 4- frequencies DVB-T transmission.This quad card can convert transport stream to DVB-T signal, for example, you can use a TBS DVB-S2 TV tuner card to receive satellite TV channels and use this modulator card to convert the DVB-S2 TS to DVB-T signal  at the same time, a modern TV or Set-Top-Box with DVB-T tuner integrated can be used to receive the terrestrial signal easily from the modulator card.

This card provides a very cost-effective solution to transfer other digital resources, like DVB-S2/S, DVB-C, ISDB-T, ATSC or even IPTV resources into an existing DVB-T system in hotels, hospitals, or dormitories.

Specifications

Possible Inputs

DVB-S2/S, DVB-C, ISDB-T, ATSC or IPTV resources

Outputs

DVB-T in 4 frequencies

Frequency range

50 ~ 950 MHz

Channel bandwidth

6,7,8 MHz

Level

5-120

FFT

2K,8K

FEC

QPSK,16QAM,64QAM

Code rate

1/2,2/3,3/4,5/6,7/8

Guard interval:

1/4,1/8,1/16,1/32

Max bit rate

27Mbps/per channel

Working Temperature

-40°~85°

Power

10W

System Requirements

Linux

Available PCI Express x1, x4, x8 or x16 slot

Package Contents

1 x TBS6104 DVB-T Quad Modulator Card

1 x low profile bracket

F-IEC connector

Card Size

Gift Box Size

Gross Weight

130mm * 68.7mm

200*138*50mm

0.5kg
