Description:

Forum: http://forum.mhetlive.com/

1. Product introduction

MH-M18/M28/M38 is a low-power Bluetooth design solution that supports the latest Bluetooth 4.2 transmission, two-channel stereo lossless playback, and the module supports Bluetooth-compatible wireless transmission when connected to Bluetooth, which is very convenient. In an open environment, the Bluetooth-compatible connection distance can reach up to 20 meters.

It is widely used in various Bluetooth-compatible audio receivers and various audio DIY modification.

For your different needs, we provide 3 versions for you to choose:

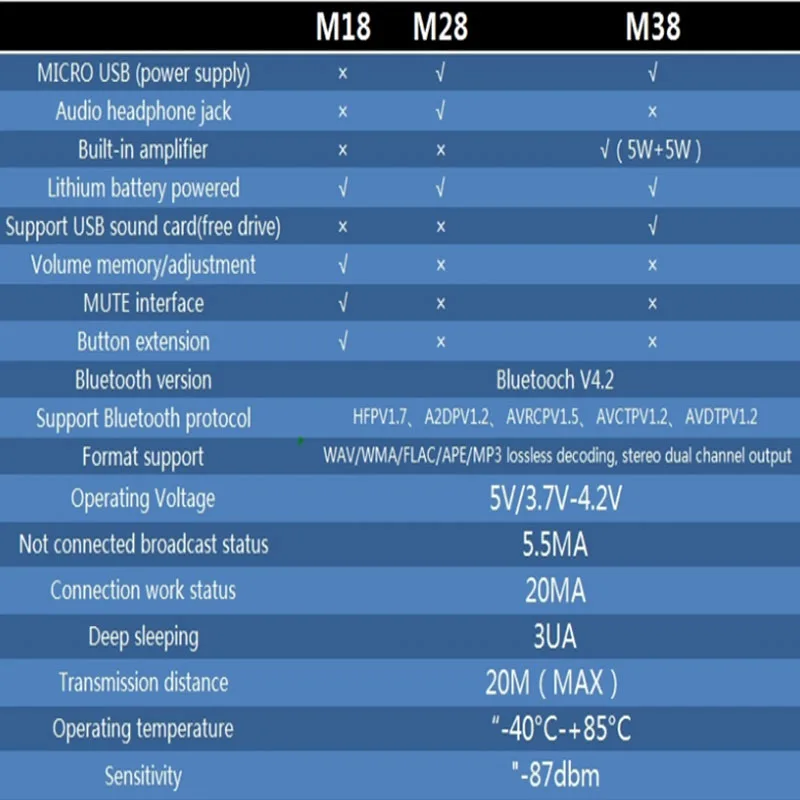

Specifications:

2. Function/Pin Definition

1. Bluetooth-compatible V4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual-channel output.

2. After the module is powered on, the mobile phone searches for the Bluetooth name MH-M18/MH-M28/MH-M38, and connects to the Bluetooth to play music.

3. Module blue indicator light:

When Bluetooth-compatible is not connected, the indicator light flashes quickly;

When Bluetooth-compatible is connected, the indicator light is always on;

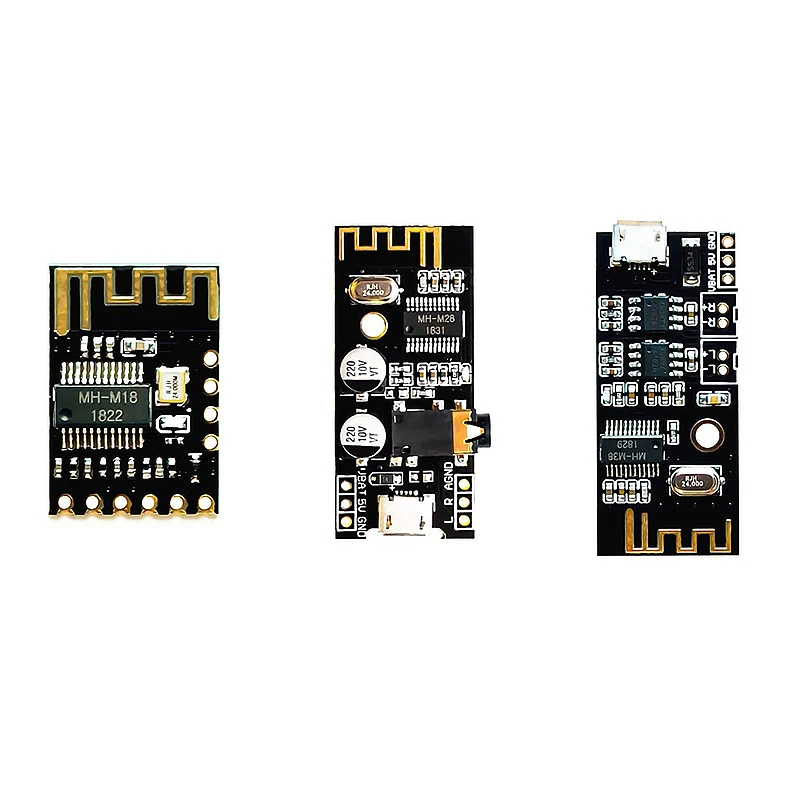

The following is an introduction to each version:

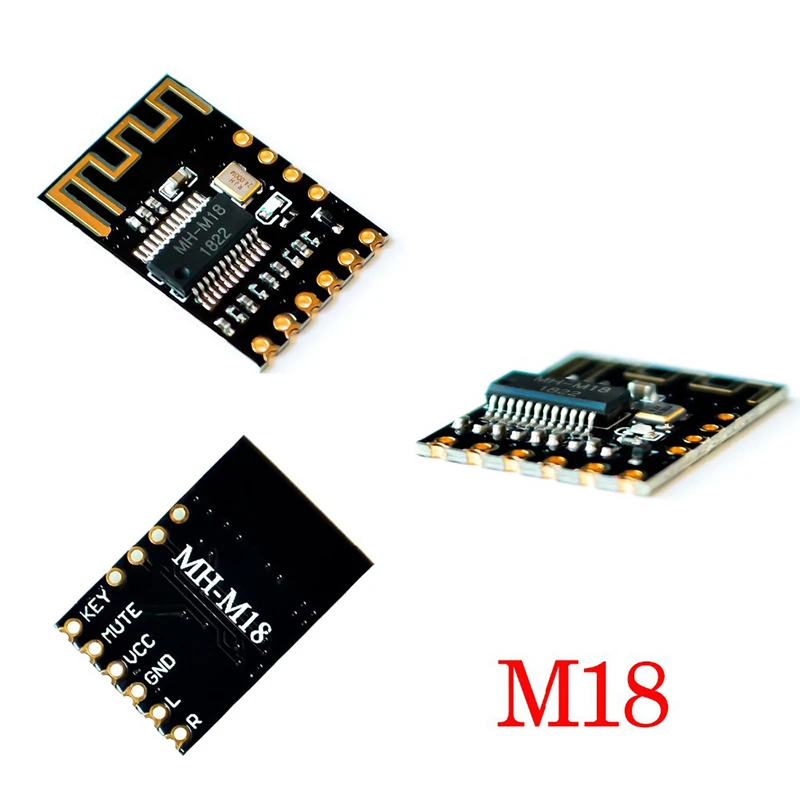

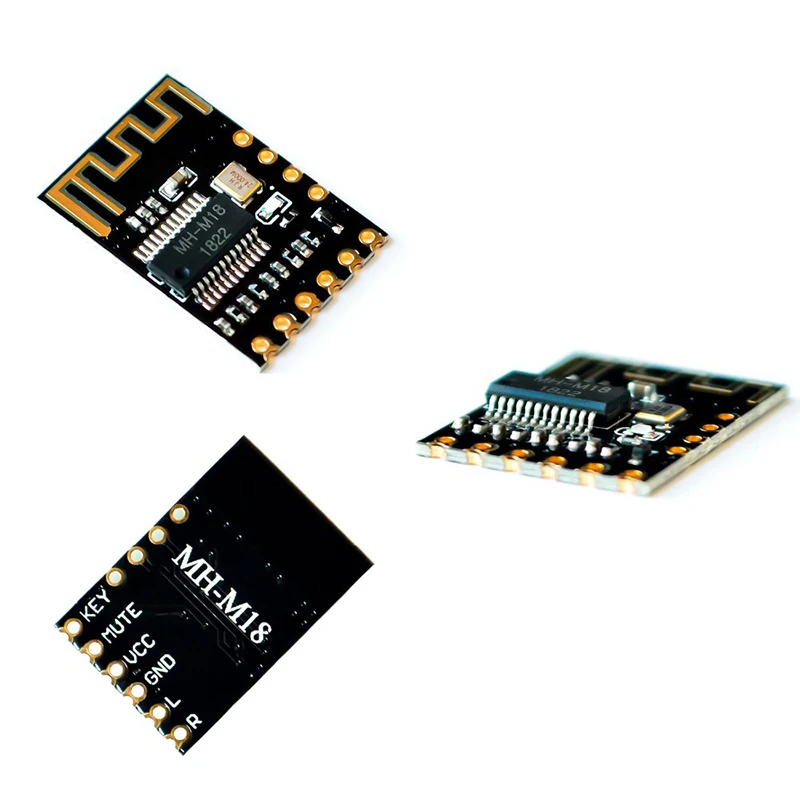

MH-M18:

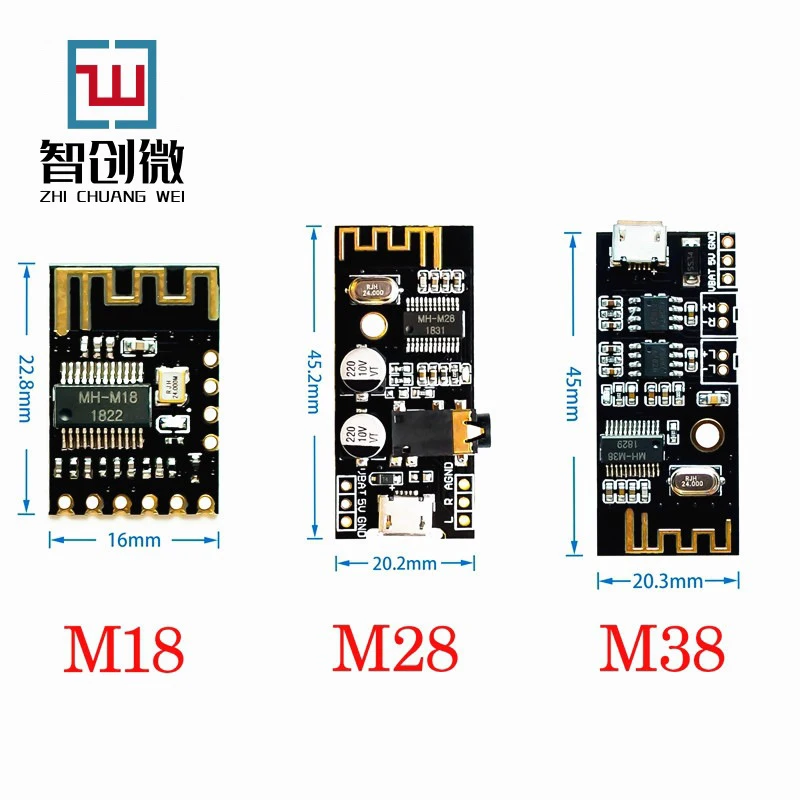

PCB size: 23*16*2.5mm (length, width and height)

Pin spacing: 2.54mm (can be directly mounted or soldered)

Package Included:

1*audio board
