MLX90640 USB Power Supplys 1.8Inch TFT Display Infrared Temperature Sensors Thermal Imager Multipurpose Detection Tool |

MLX90640 USB Power Supplys 1.8Inch TFT Display Infrared Temperature Sensors Thermal Imager Multipurpose Detection Tool |

This is a handheld and multifunctional thermal imager, compact and lightweight, with 1.8inch TFT display screen, you can see the data more clearly. It can be used in a variety of situations and is an indispensable tool for household and industry use. Come on and try it, it will not let you down.

Features:

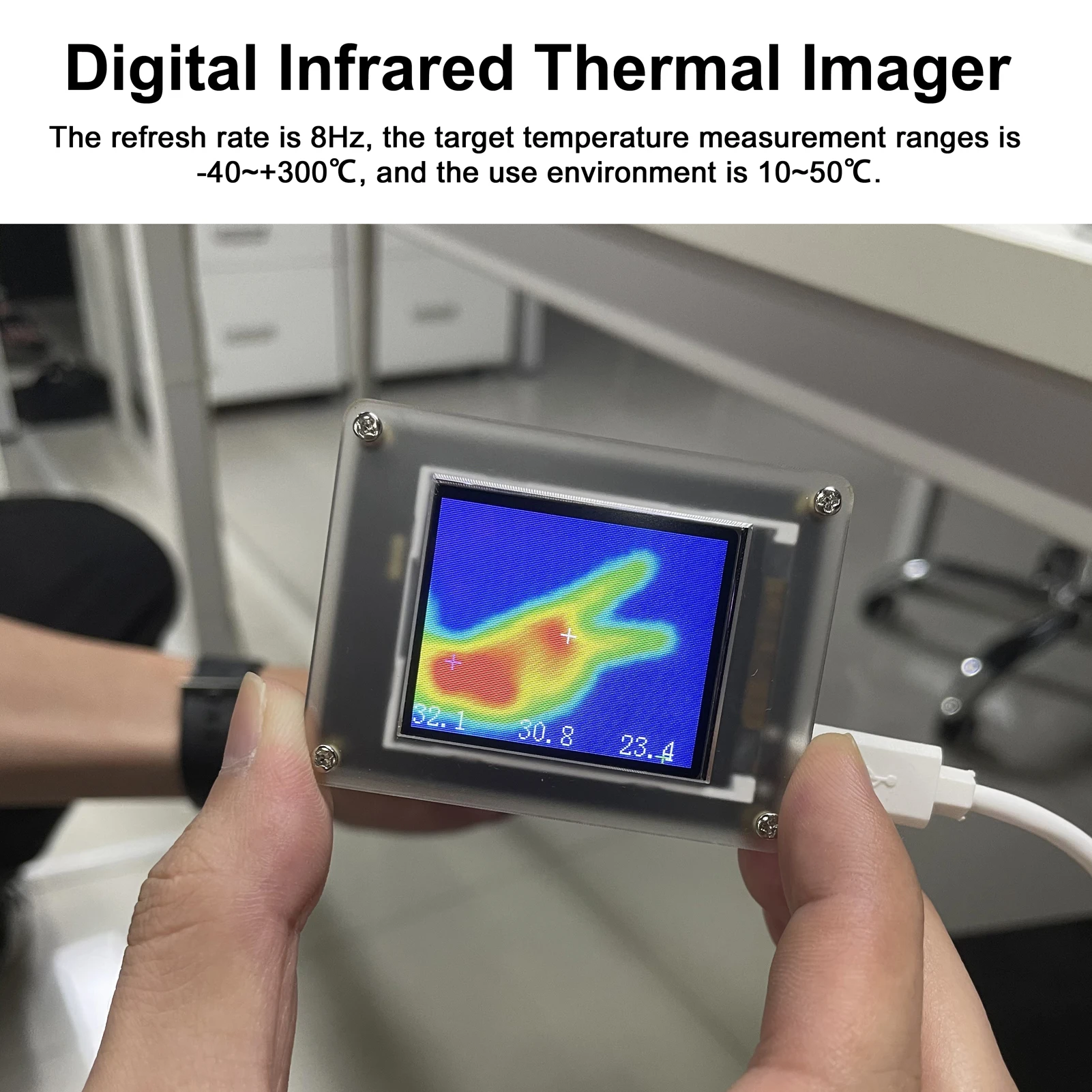

The refresh rate is 8Hz, the target temperature measurement ranges is -40~+300℃, and the use environment is 10~50℃.

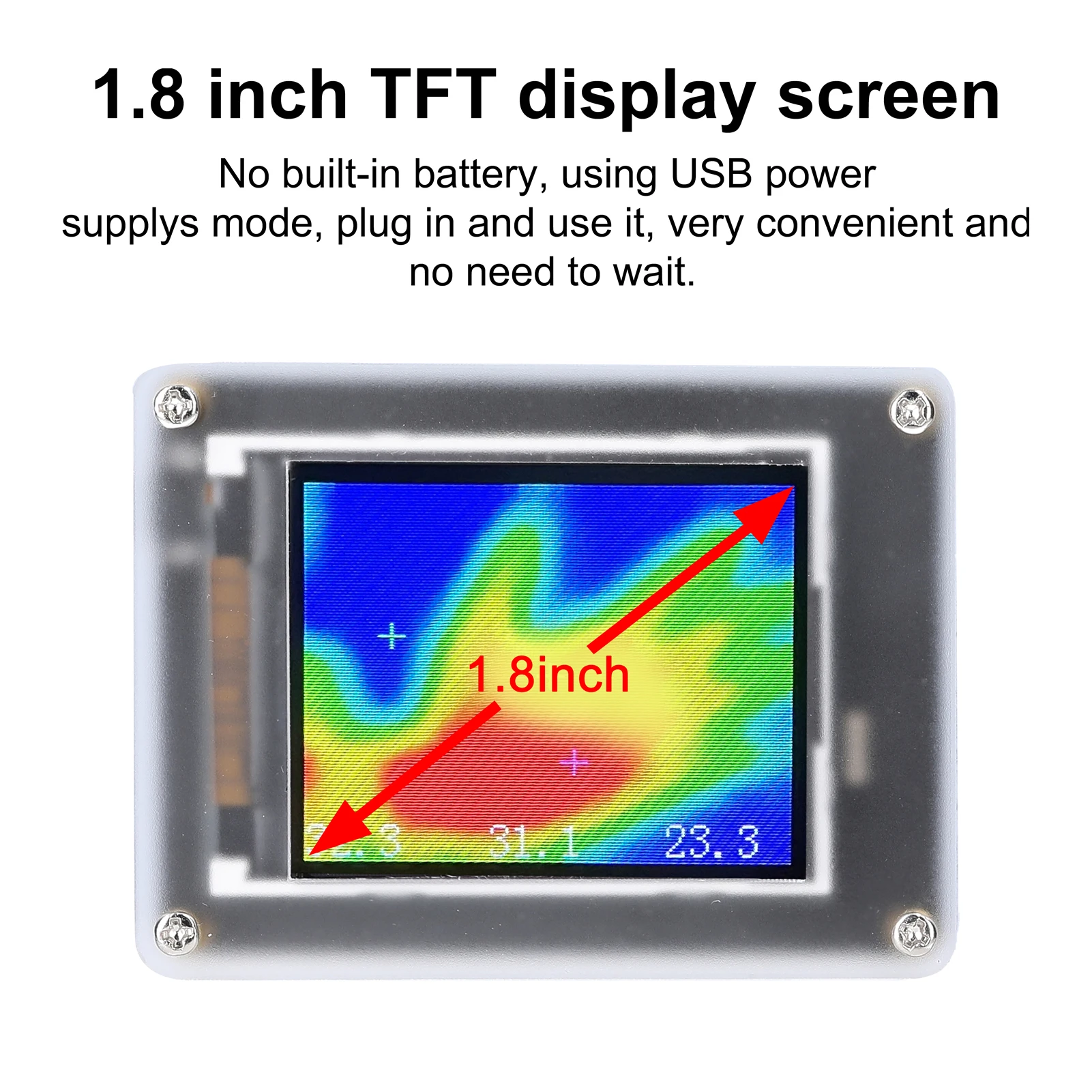

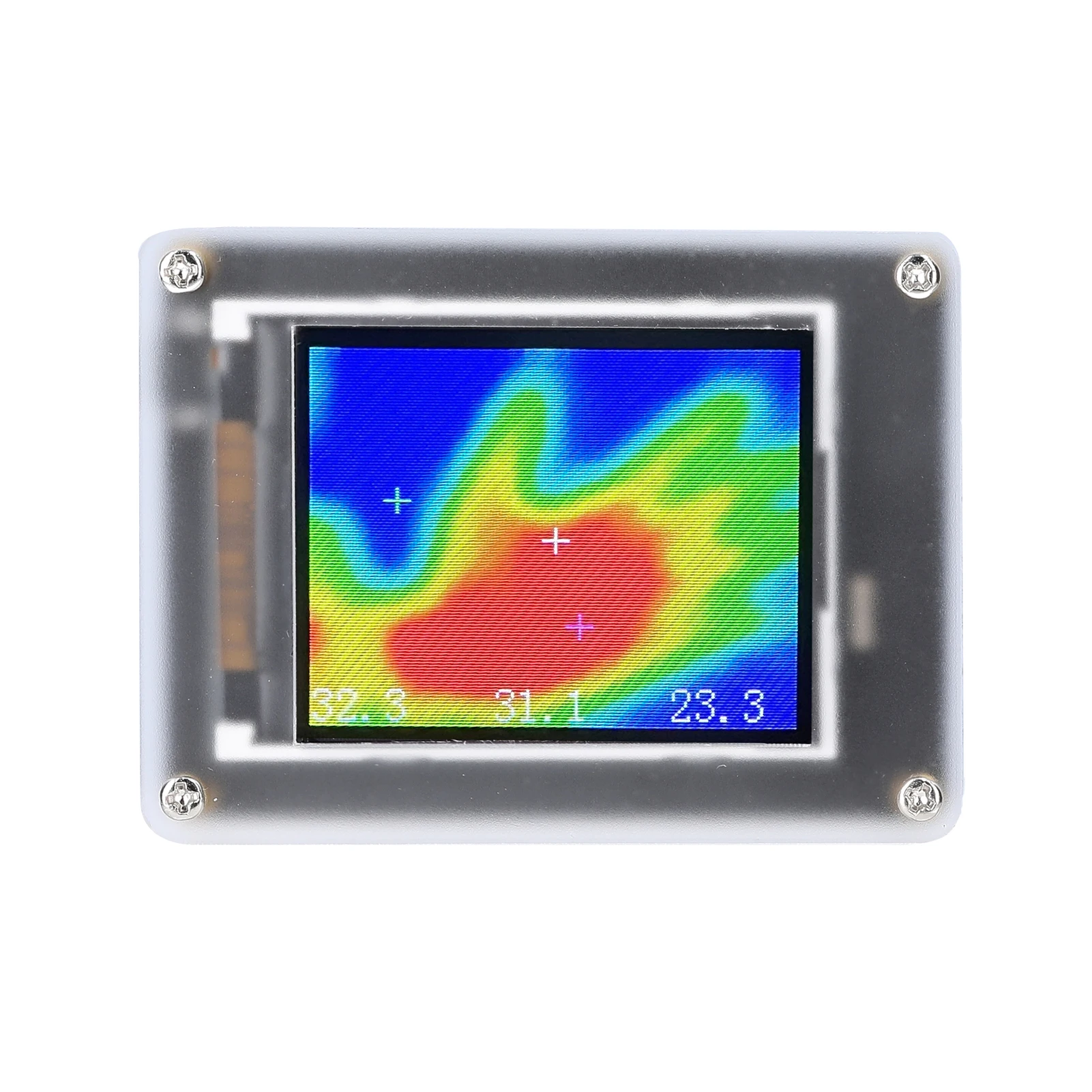

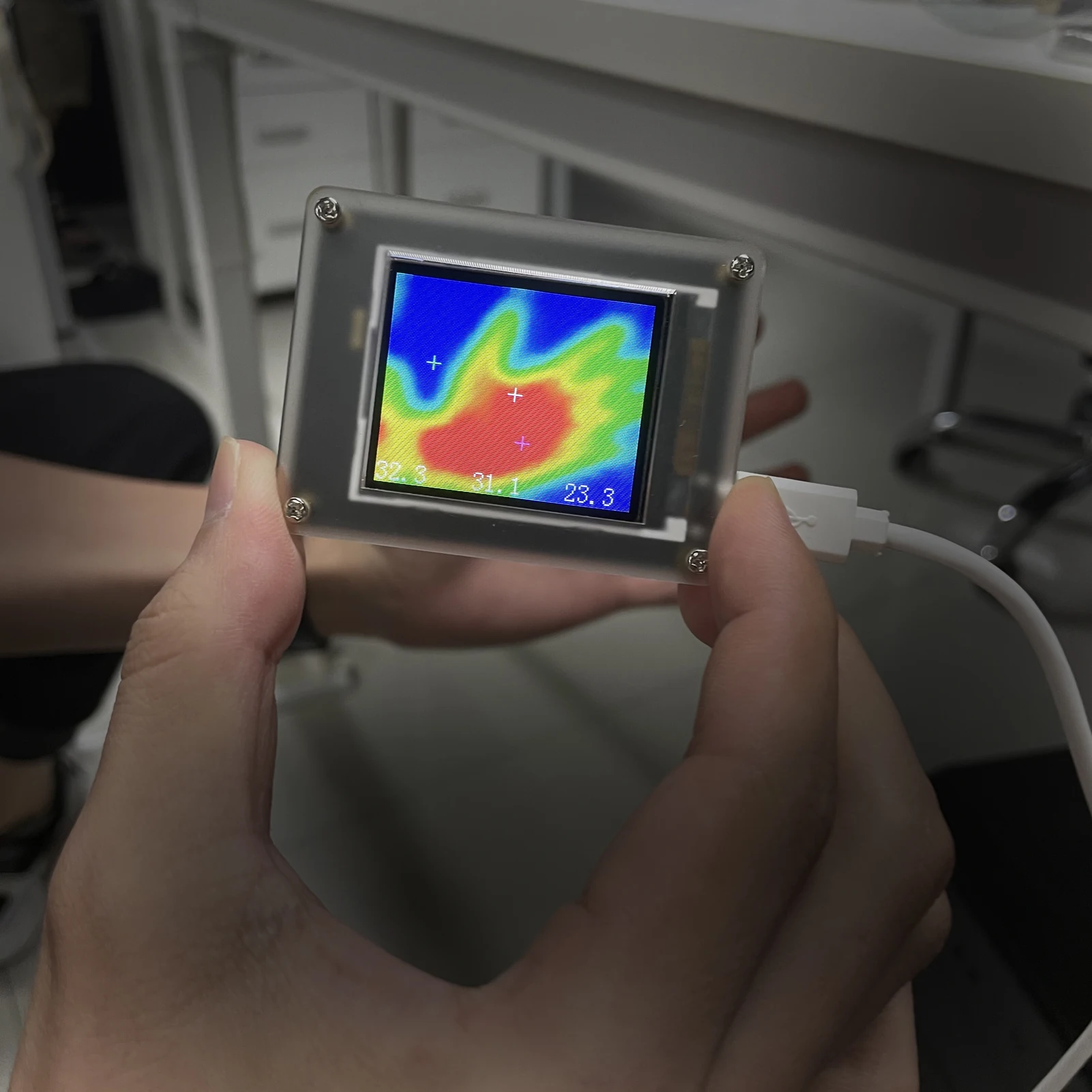

1.8 inch TFT screen resolution is 160*120, the screen shows the highest temperature, the lowest temperature, the center point.

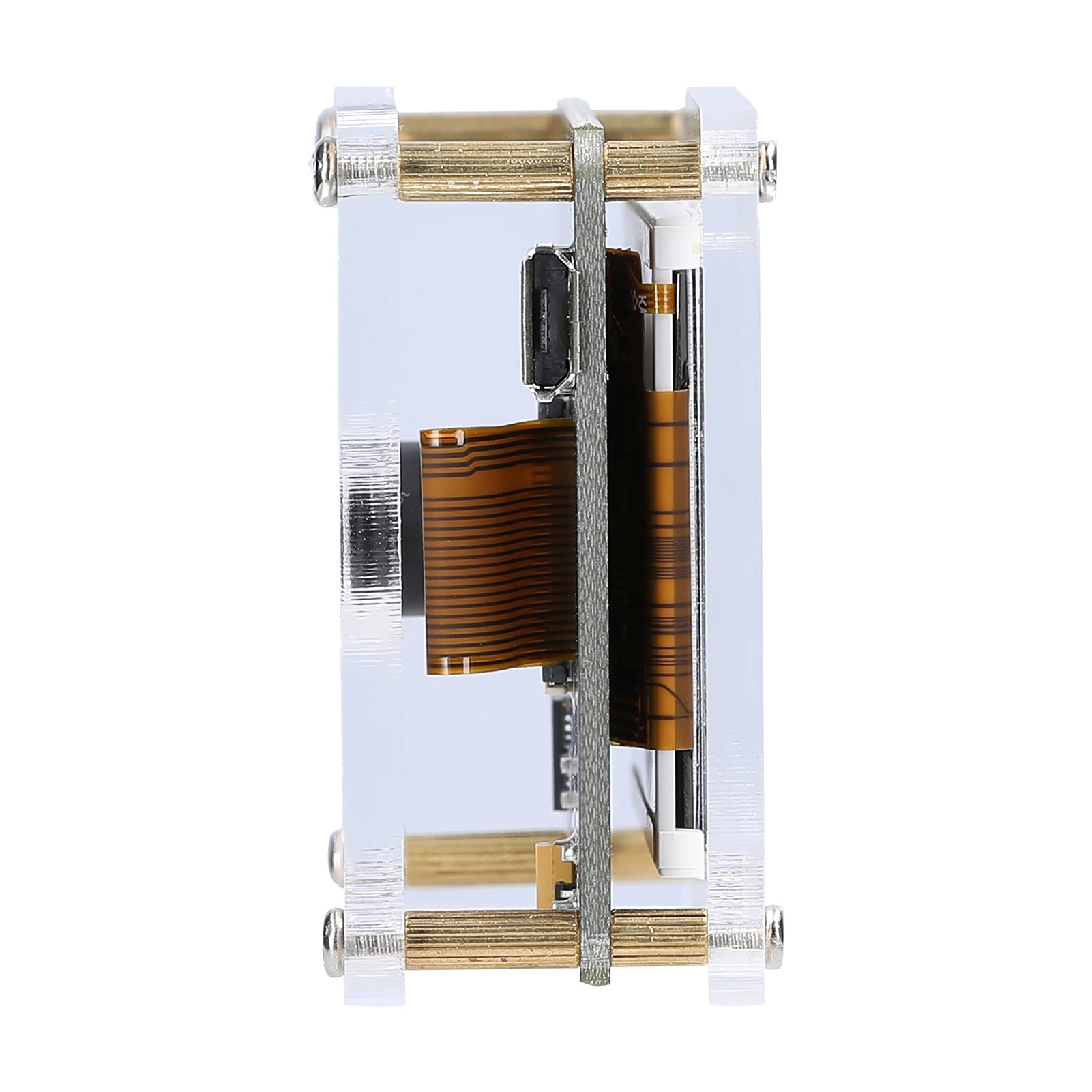

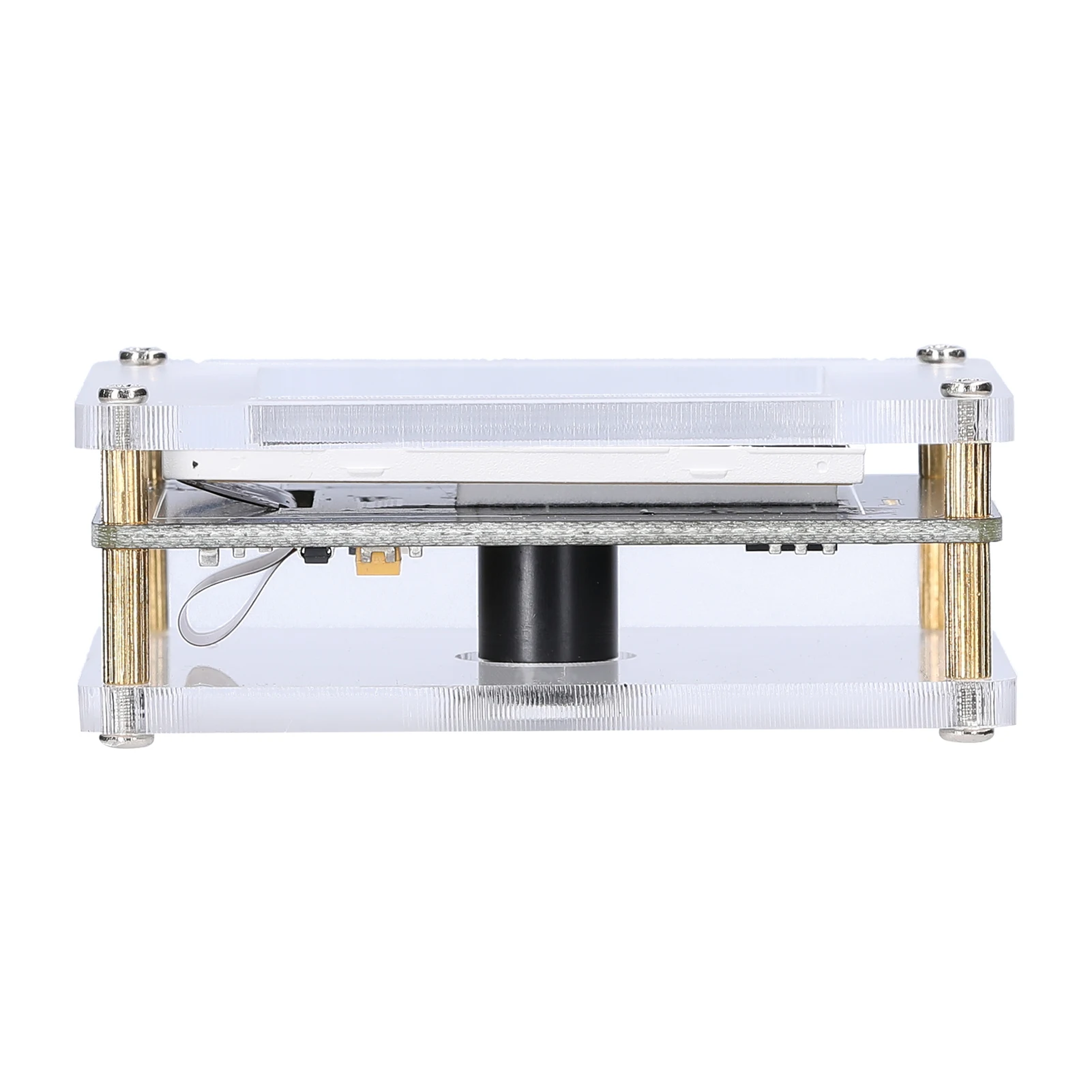

Using acrylic cover, which can better protect the tool and not easy to be damaged, with a long service time.
Small in size and easy to carry, you can take it with you to anywhere you want to use it.
No built-in battery, using USB power supplys mode, plug in and use it, very convenient and no need to wait.

Specifications:
Material: acrylic+printed circuit board
Module: MLX90640_CS
Infrared sensors: MLX90640ESF‐BAB/MLX90640ESF‐BAA
Resolution: 32*24
Temperature measurement ranges: ‐40℃~300℃
Measurement accuracy: ±2℃(Central point,20~50℃)
Operate temperature: 10℃~50℃
Operate humidity: ≤70%
Refresh rate: 8Hz
FOV: MLX90640ESF‐BAB (55°x35°), MLX90640ESF‐BAA(110°x75°)
Emissivity: 0.95

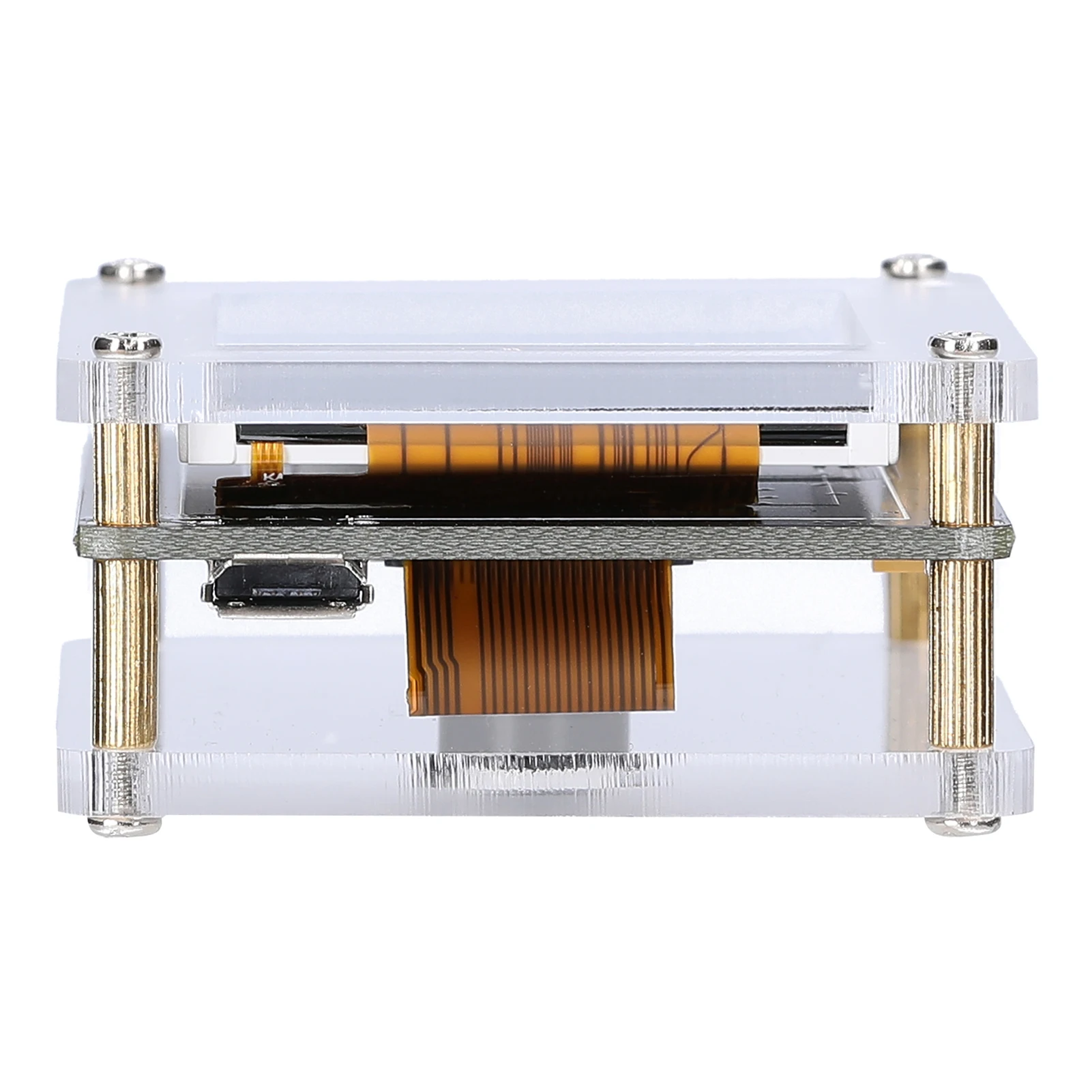

Power port: Micro USB 5V

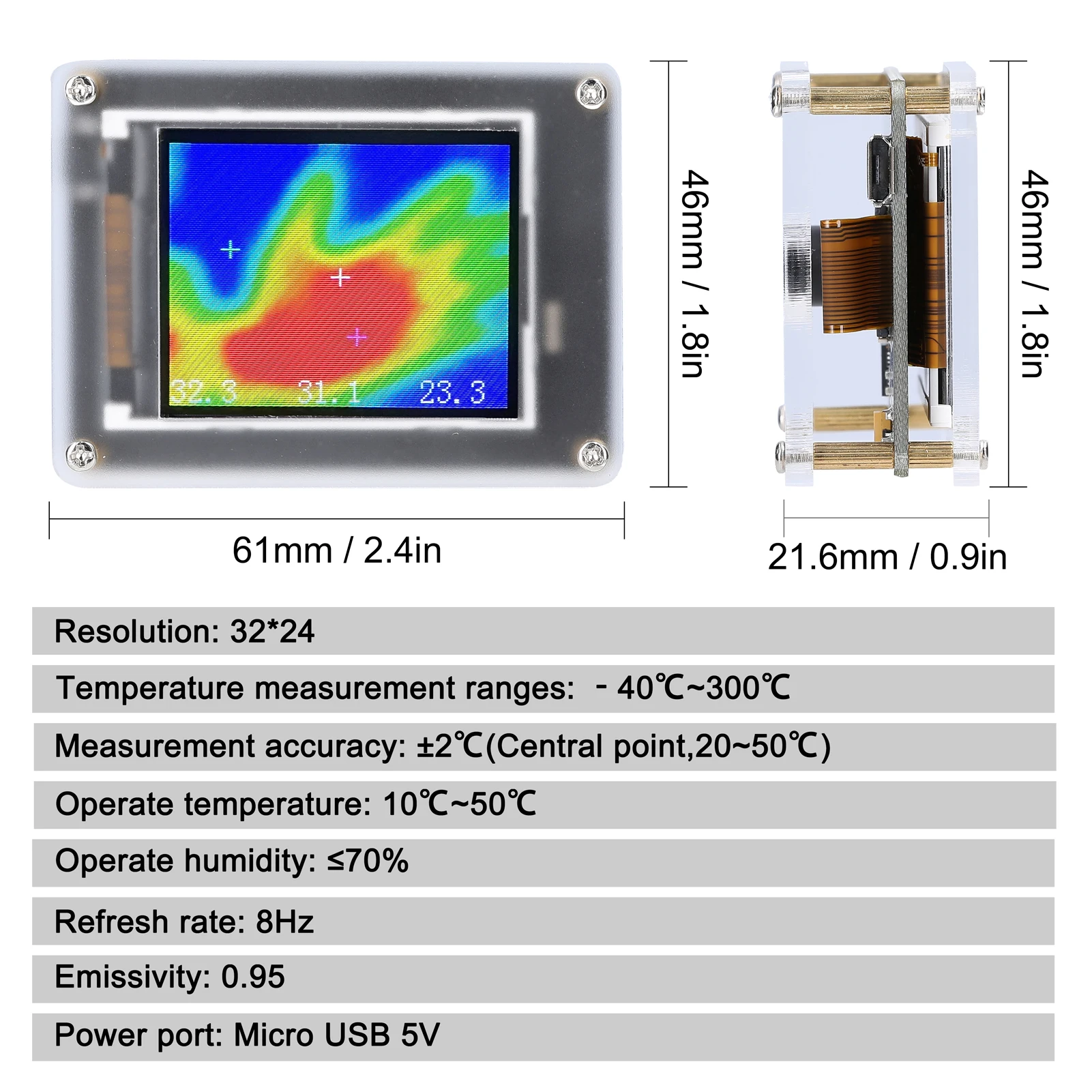

Item size: 61 * 47 * 21.6mm / 2.4 * 1.9 * 0.9in
Item weight: 35g / 1.2ounce
Package size: 85 * 60 * 30mm / 3.3 * 2.4 * 1.2in
Package weight: 48g / 1.7ounce

Packing list:
1 * Thermal Imager
