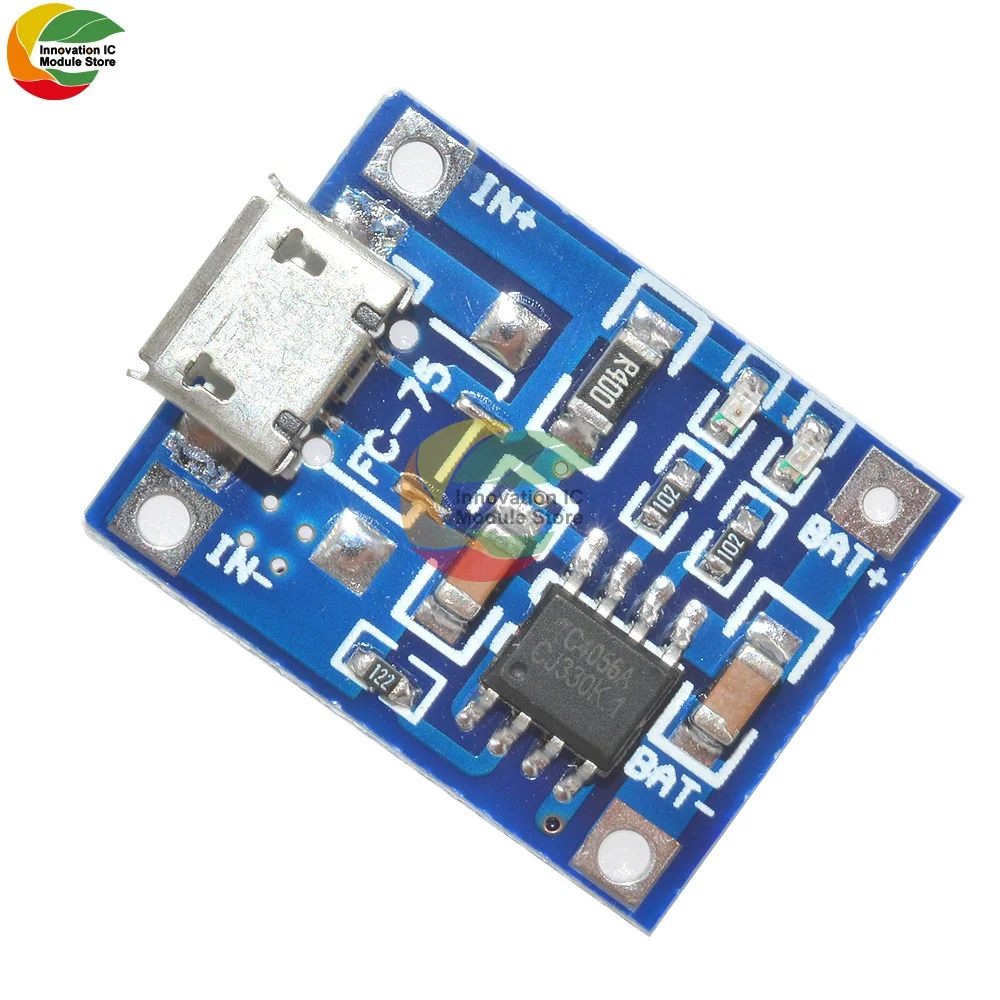

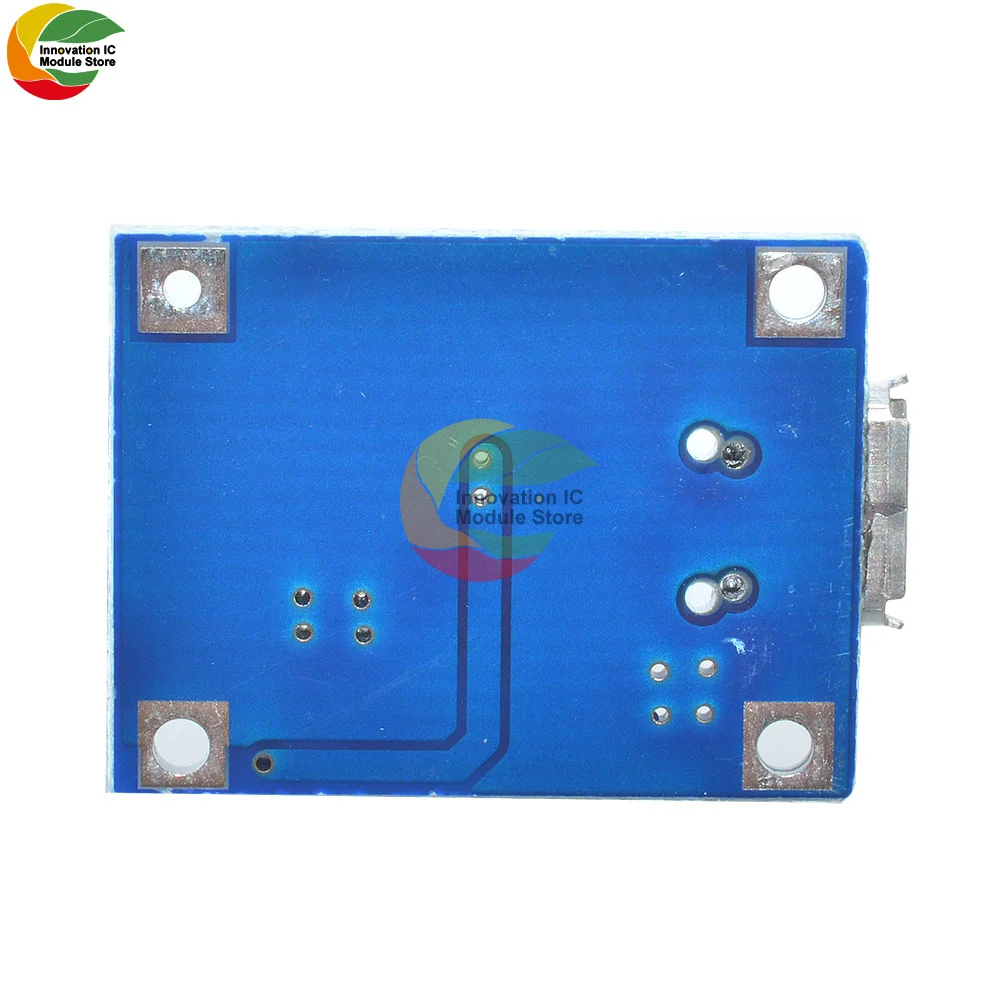

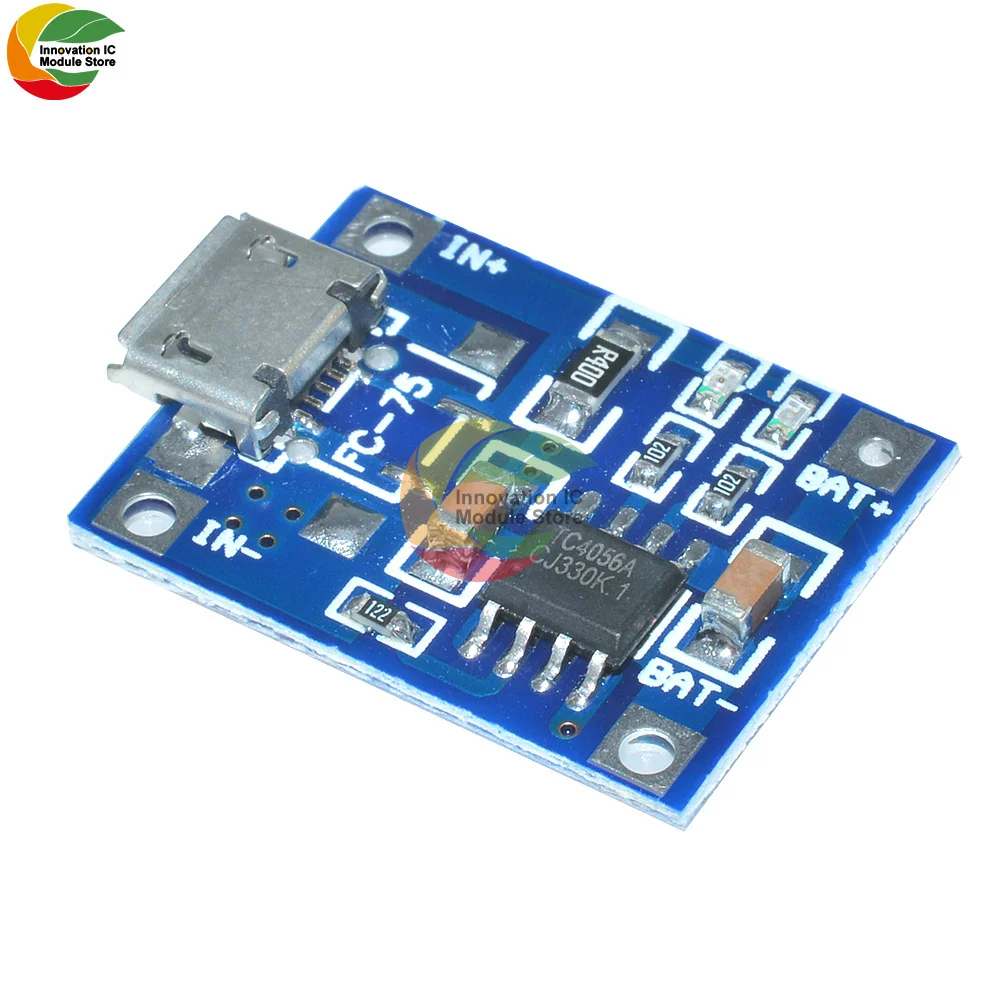

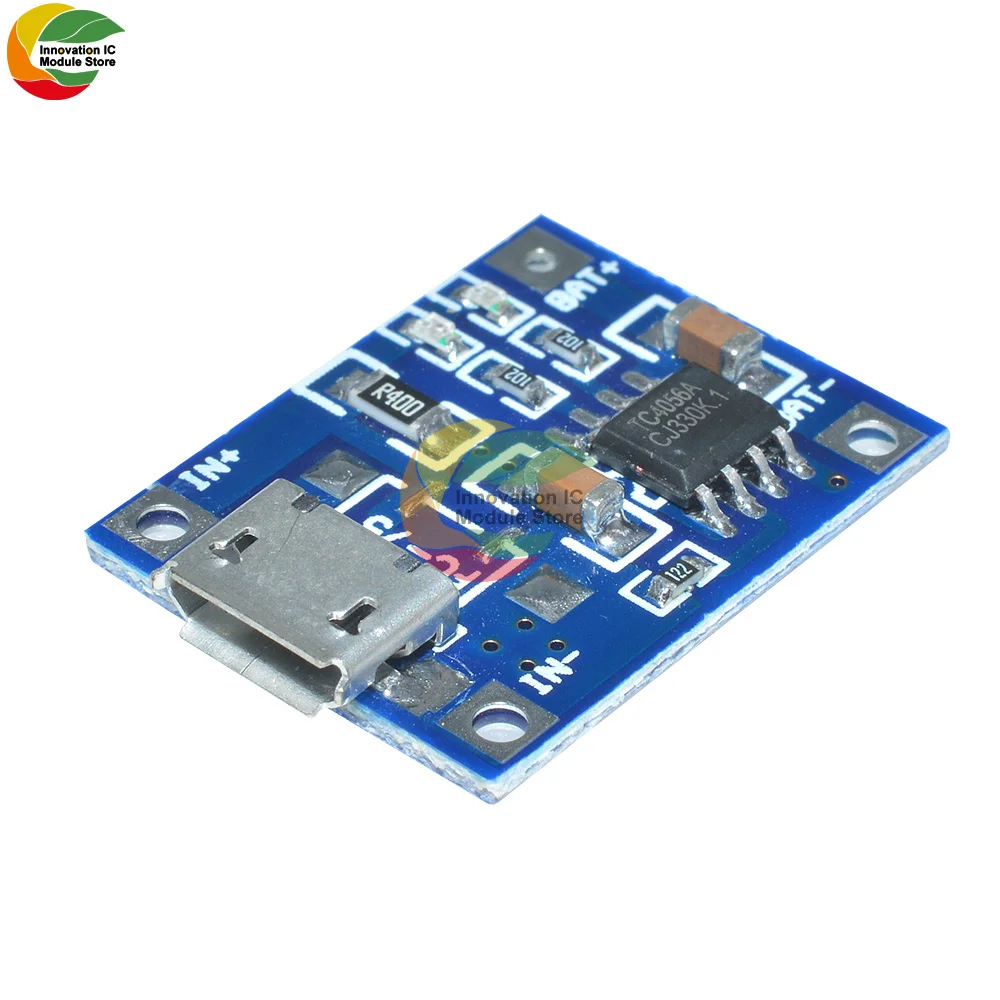

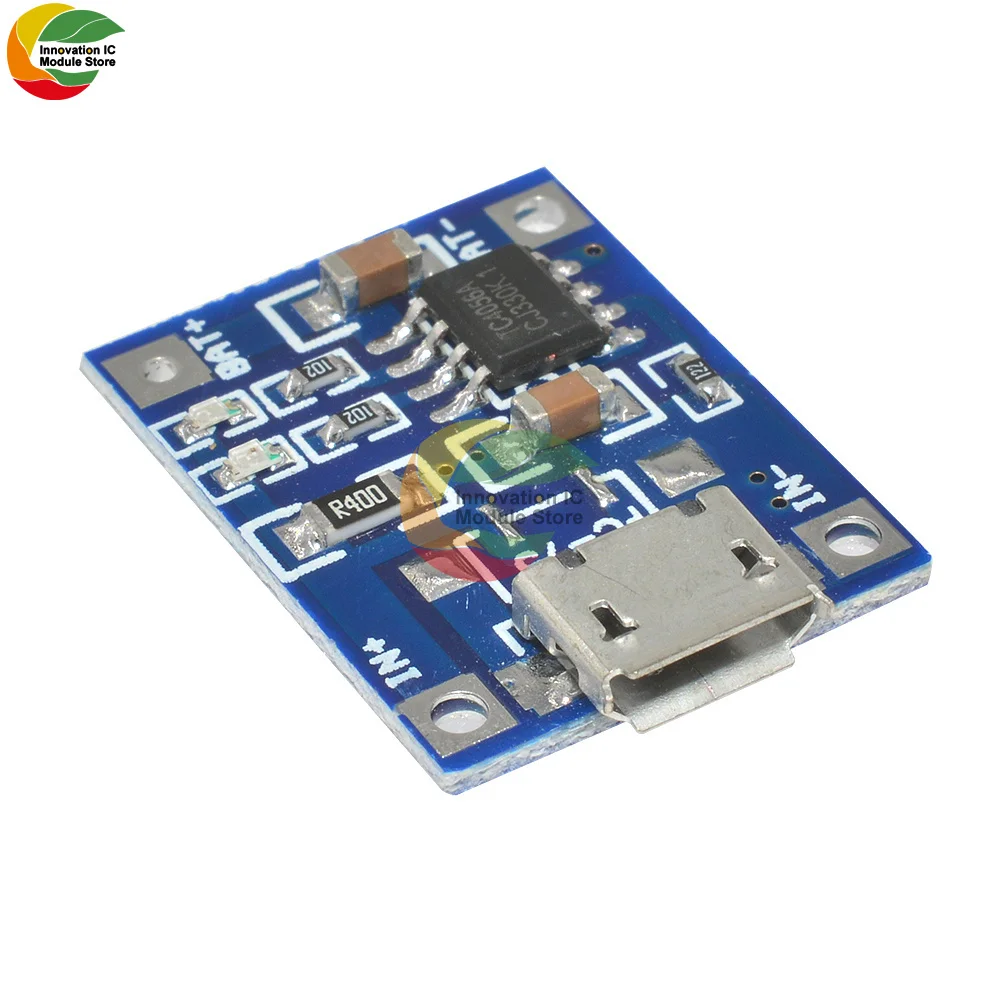

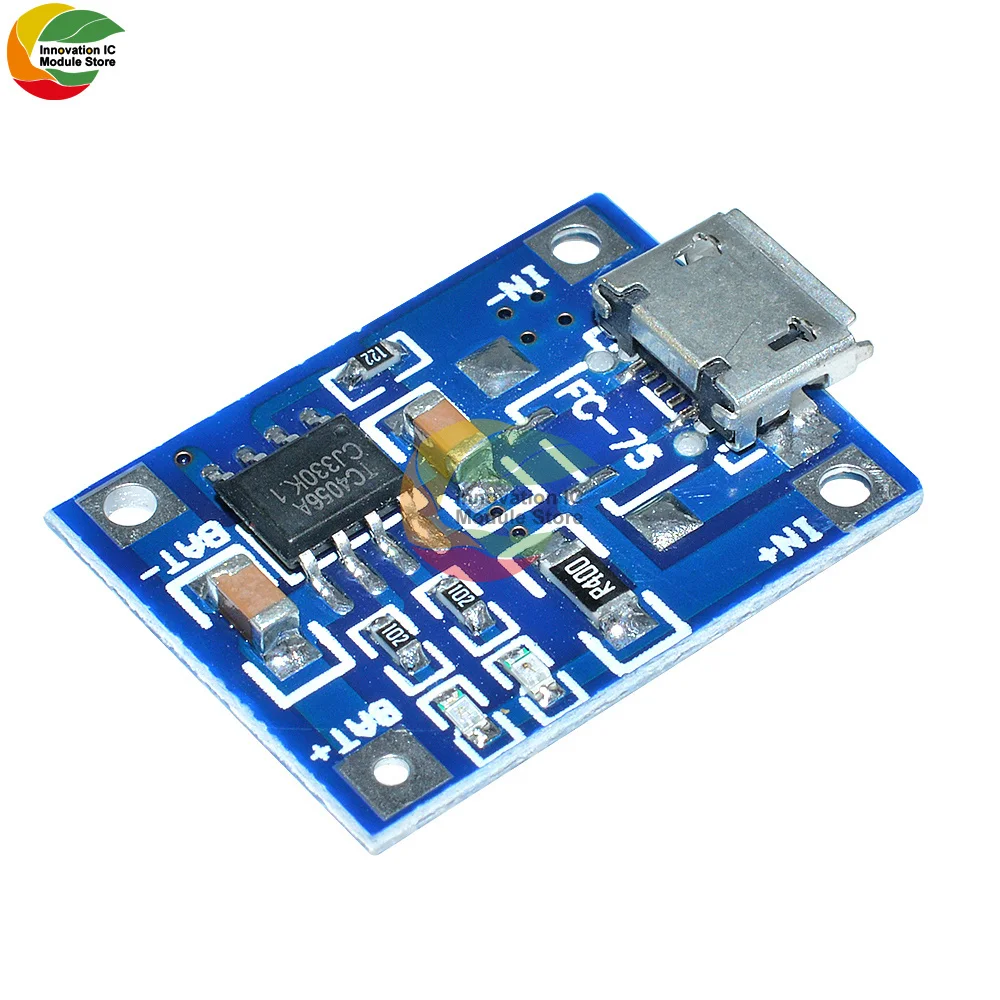

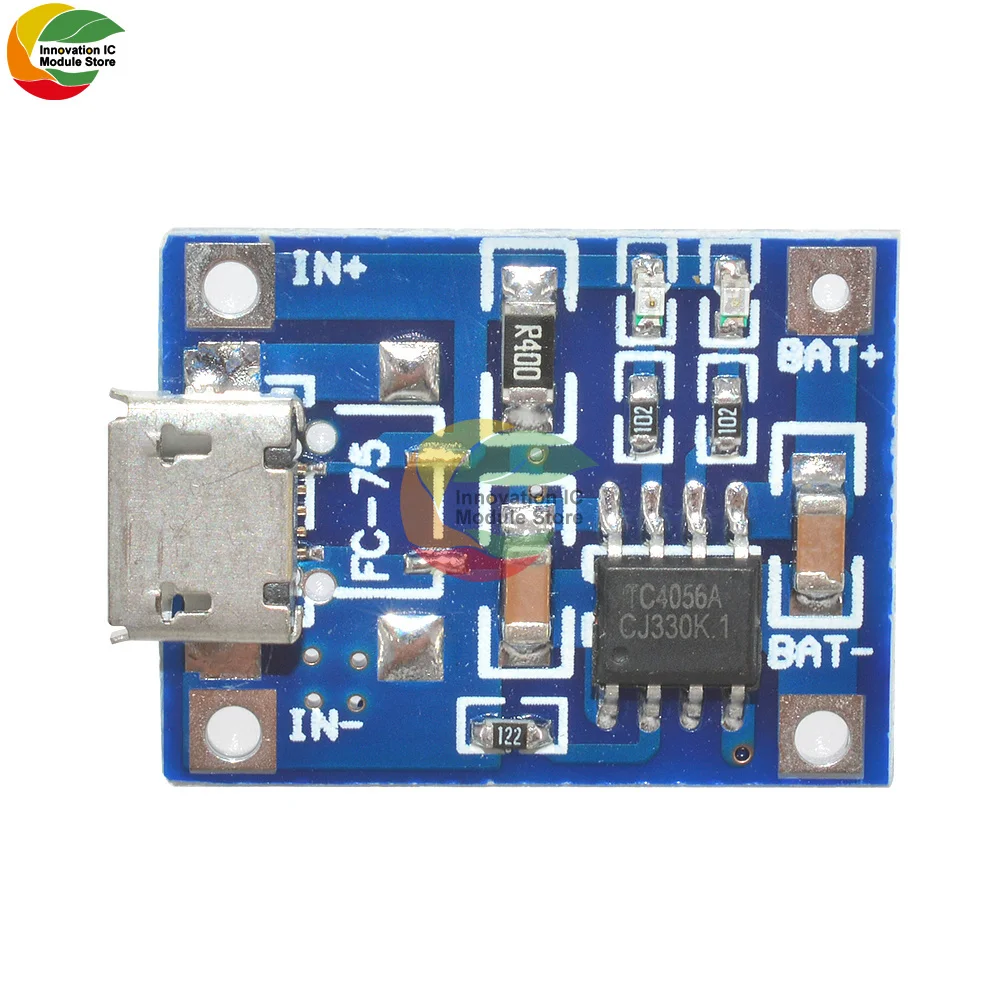

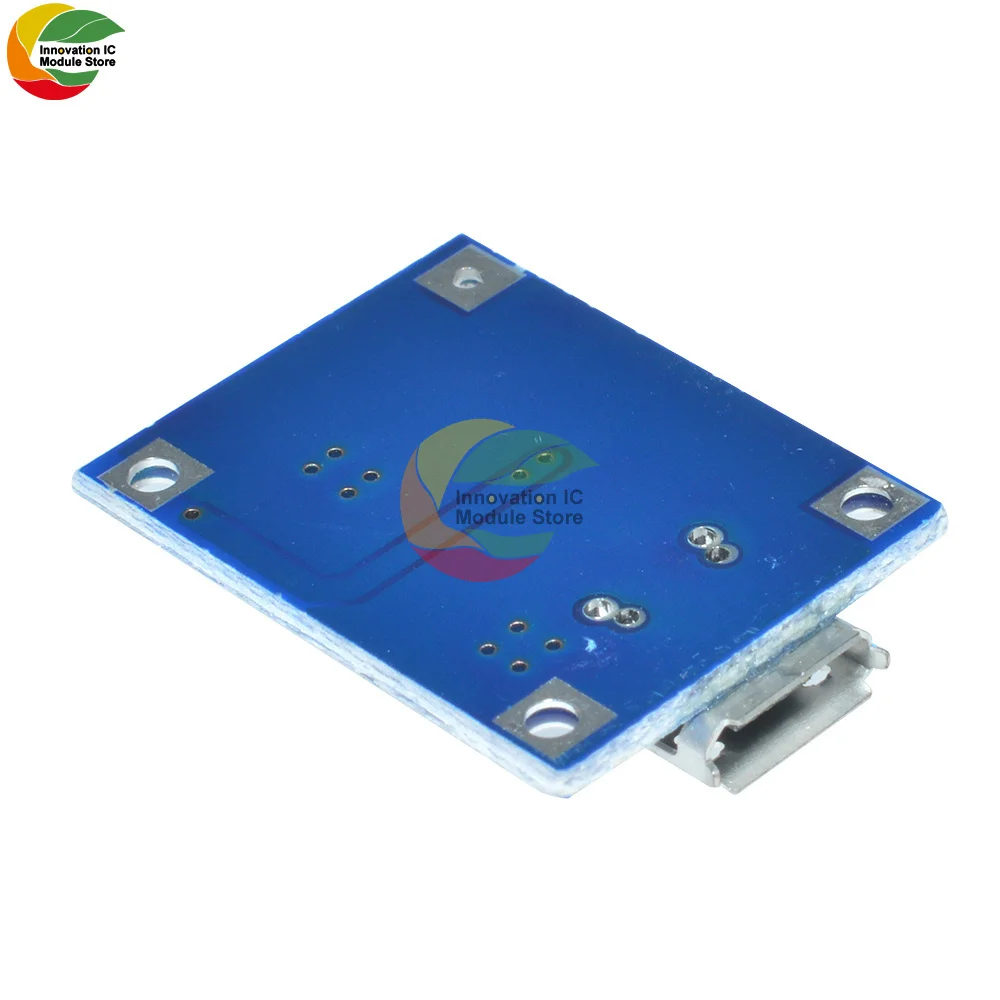

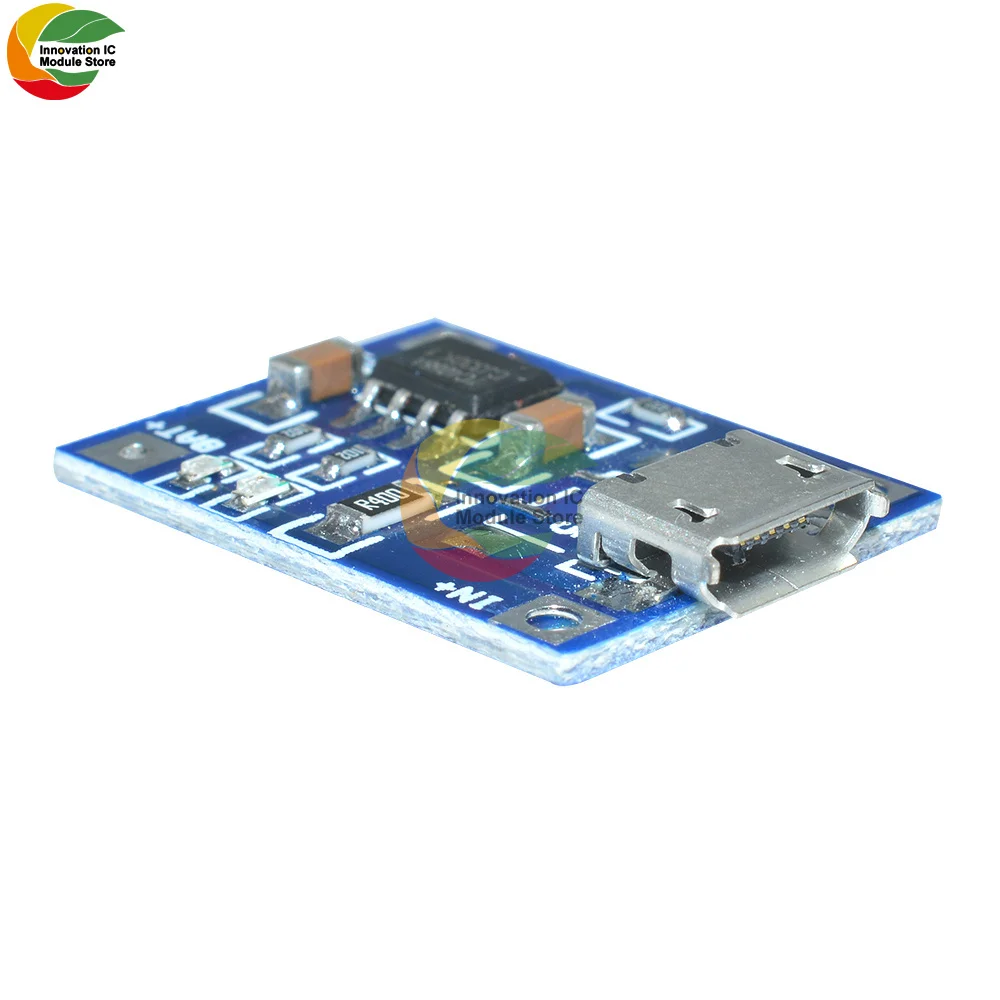

Микро USB TP4056 1А Приспособление для зарядки литий-ионных батарей на плате

Микро USB TP4056 1А Приспособление для зарядки литий-ионных батарей на плате

Feature

1). High quality charging Chip TP4056, simple circuit, good protective value, high charging precision.

2). Complete mechanical automation processing, High reliability.

3). Automaticlly adjust the output current from 100 to 1000ma by simply changing the fixed resistor on the circuit board.

Application

It can be used to charge for one pcs of lithium battery or serval parallel lithium batteries.

Parameter

Input Voltage: 4.5~5.5V

Full charging voltage: 4.2V

Max output current:1A

Power Indicator: Red stands for charging, Green stands for fullly charged.

Input interface: Micro interface

Item Size: 25mm*19mm.

The output current and the corresponding resistance

R1(K) I(mA)

30 50

20 70

10 130

5 250

4 300

3 400

2 580

1.66 690

1.5 780

1.33 900

1.2 1000

Notes:

1). The Ampere meter can only be connected to 5v input port of the module.

2). It is better that the charging current is 37% of the battery capacity. For example, the charging current should be 400 for the 1000mAH battery.

3). The connection wire should not be too thick.

4). Make sure the connect point is good.

5). If the input voltage is too high, For example 5.2V or even 5.5V, then the charging current will be less than 1000mA, it is normal. When the voltage is too high, the chip will automatically reduce the charging current to protect the chip from burnning damage. Besides, it is normal that the chip feel hot when the working temperature of the chip is around 60°.

Package Included :

5PCS x MICRO USB 1A Lithium Battery Charging Power Module TP4056 Precise
