type1:XC6SLX16 core board

Core board hardware resources:

1. FPGA XILINX SPARTAN6

Xc6slx16-2ftg256c logic unit, 526KB BLOCK RAM,32 multipliers;

2, SDRAM

256Mbit SDRAM, stable operation in 166M;

3, QSPI

8Mbit QSPI, used for FPGA configuration program, user data storage;

4, the clock

50M active crystal vibration;

5, JTAG

Single-row 6PIN 2.54mm spacing JTAG interface;

6, LED

4 user LED, 1 power LED, 1 FPGA configuration LED;

7, the KEY

4 keys, which can be used for reset or user input keys;

8. Expansion port

Standard 2.54mm spacing double row needles, 2 60stitches,

Each double row consists of: 1 5V, 1 3.3V, 4 GND, 26 pairs of differential IO (26*2 IO);

9. Power supply via USB-Micro interface or input via DC5V;

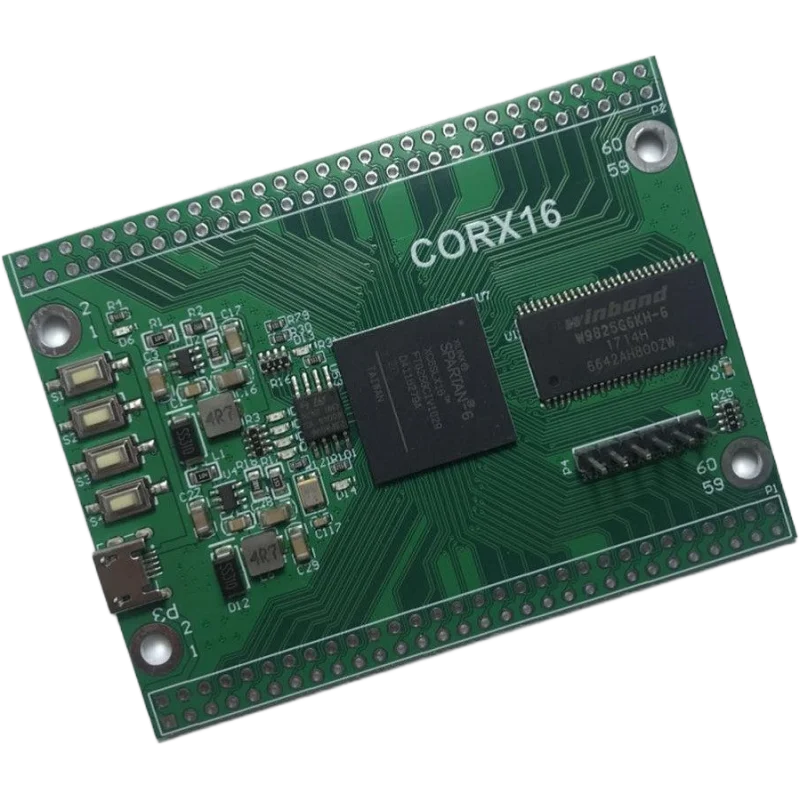

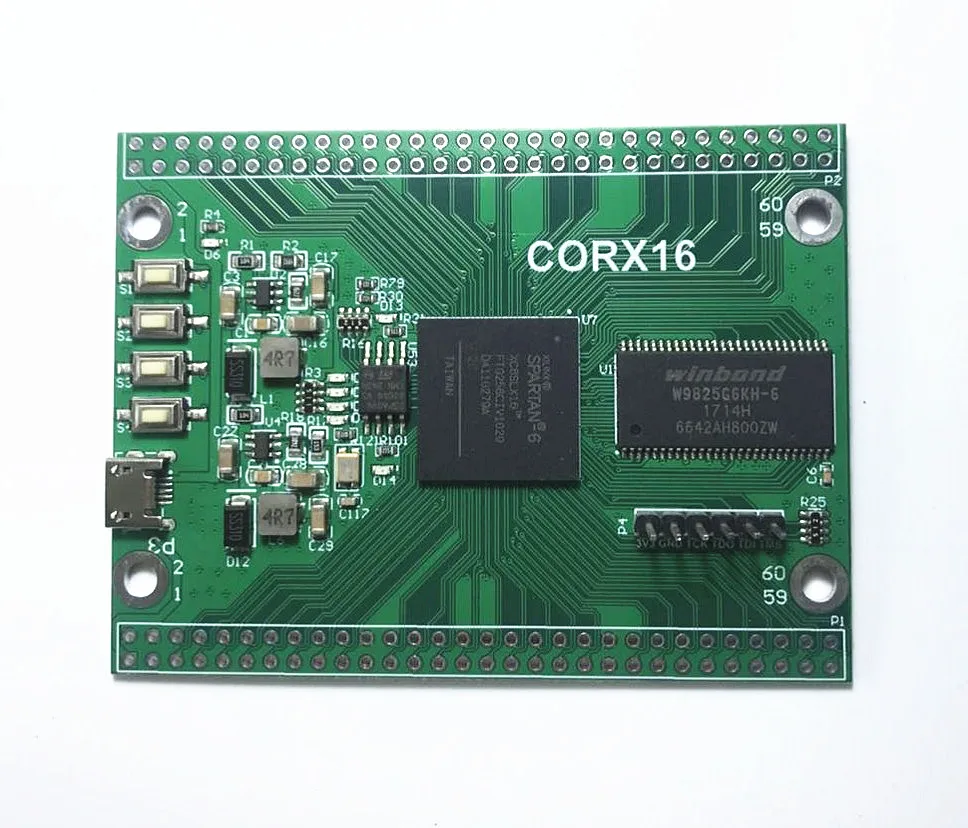

Front of the core plate:

\

\

\

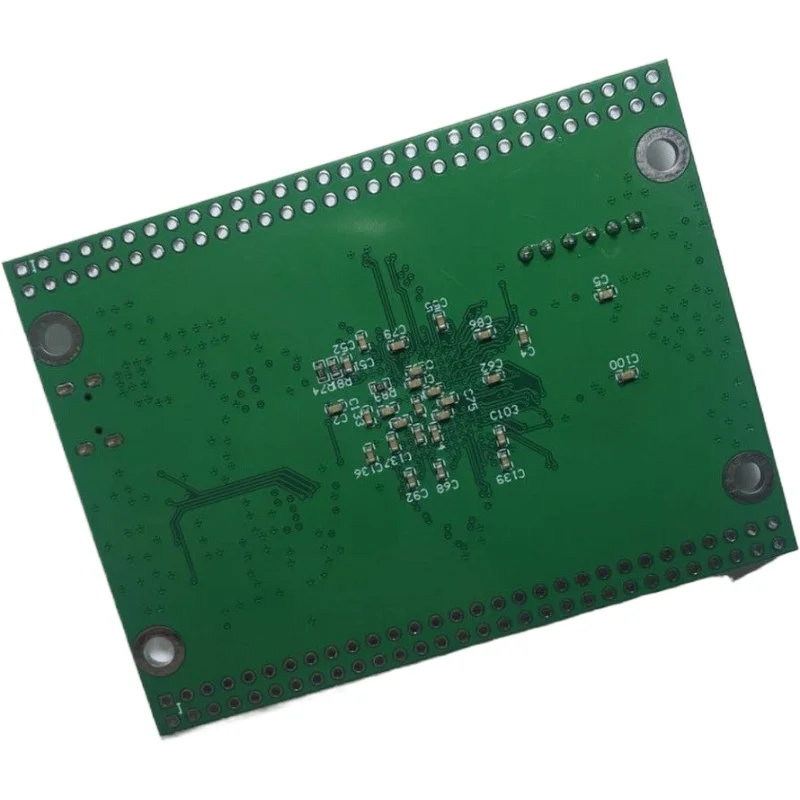

Back of core plate:

\

\

\

PCB size diagram :(6 layer board design)

Shipping list:

Single core board:

1 XC6SLX16 core board;

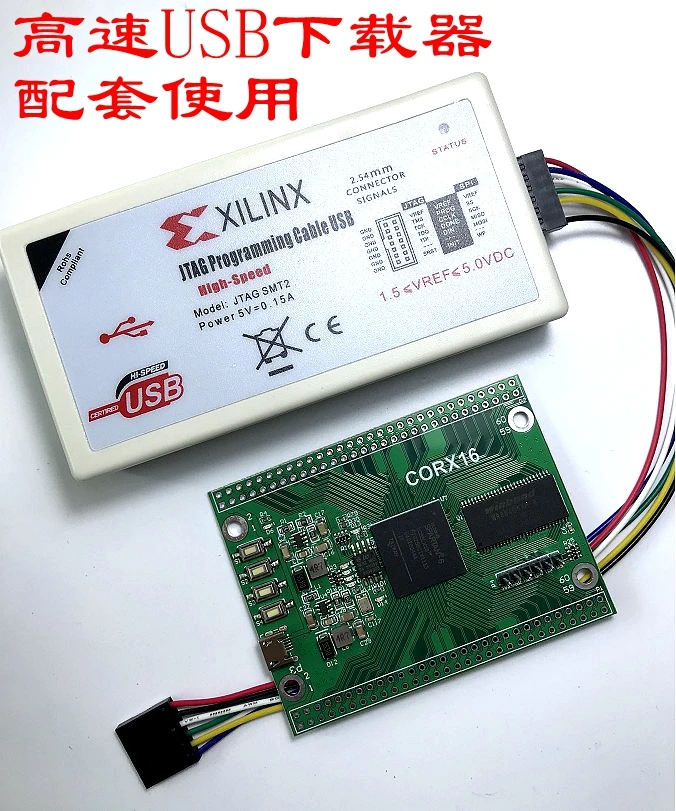

Core board + high speed download kit :(this kit is recommended)

1 XC6SLX16 core board;

1 HIGH-SPEED USB downloader SMT2 host;

1 high-speed USB communication line;

One 6P-JTAG communication line;
