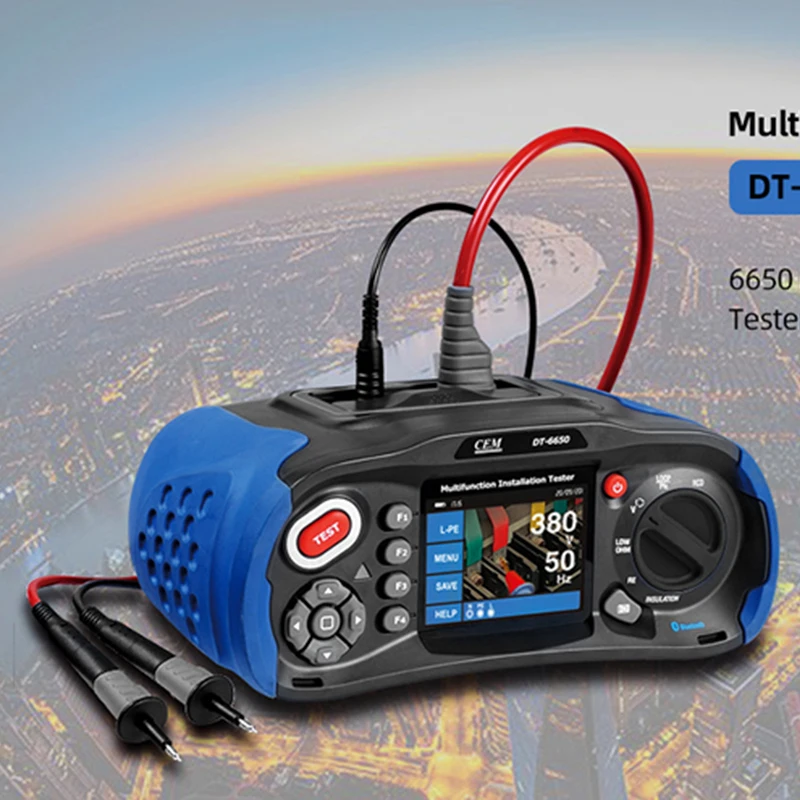

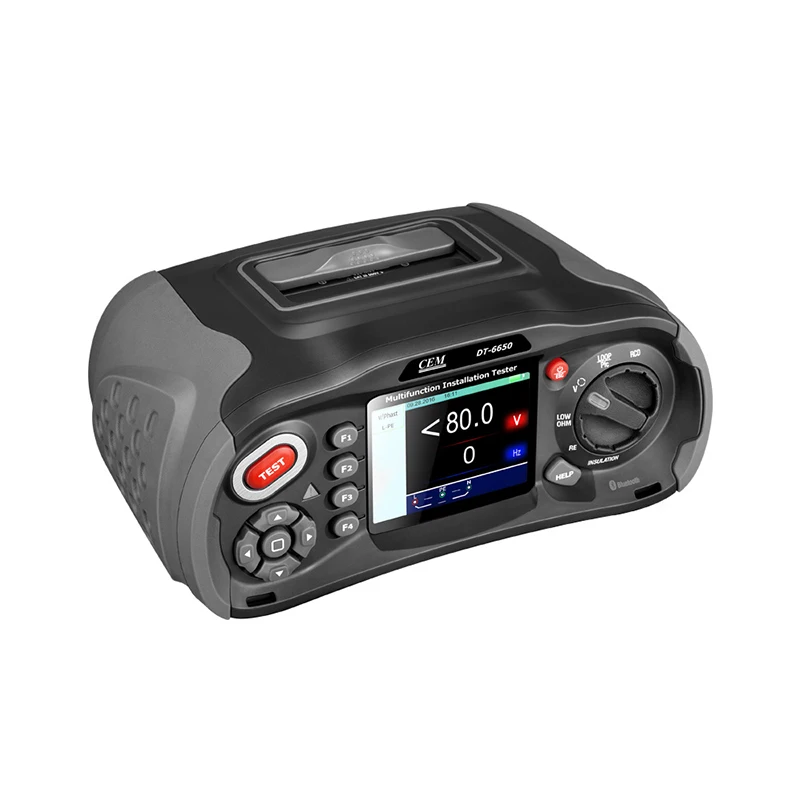

DT-6650

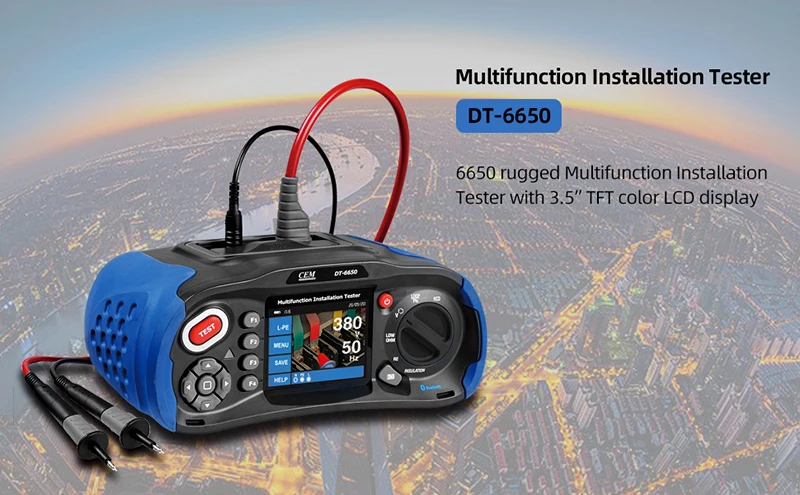

rugged Multifunction Installation Tester with 3.5" TFT color LCD
display, provides insulation resistance, earth resistance, loop
impedance, voltage, RCD, PFG and PSC testing. It is designed with
software system and ensure the safety of electrical installations in
domestic, commercial and industrial applications. 6650 series can ensure
the fixed wiring is safe and correctly installed. It's fast sampling
and dual display, clear symbols and exceptionally wide viewing angle are
for easy and safe read

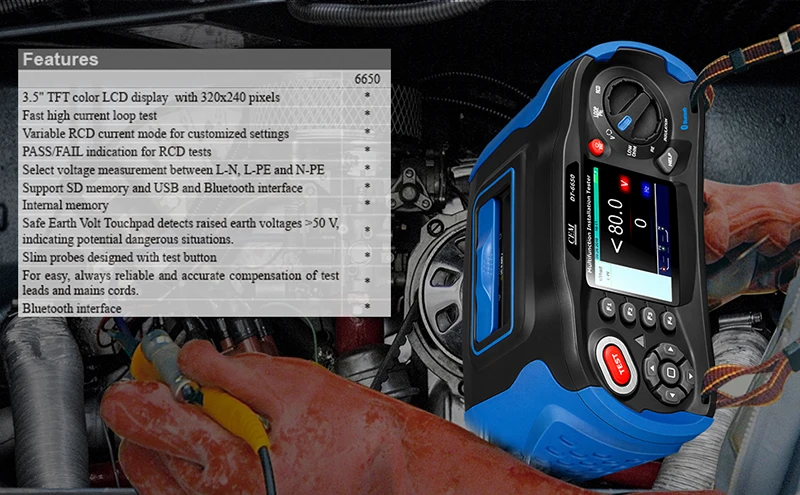

Features

3.5" TFT color LCD display with 320x240 pixels

Fast high current loop test

Variable RCD current mode for customized settings

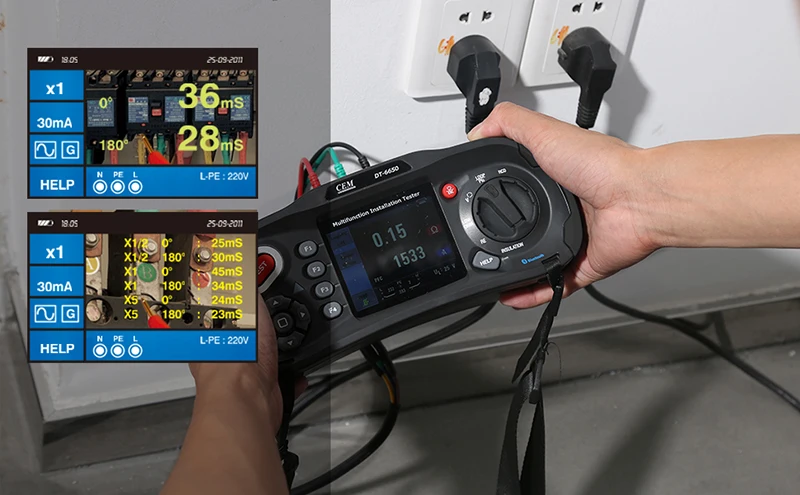

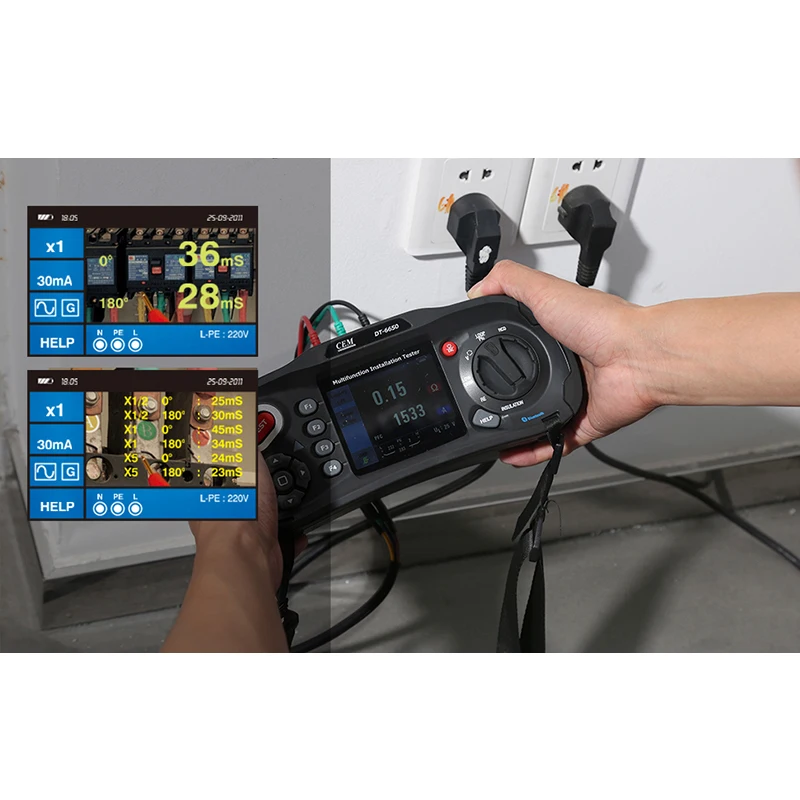

PASS/FAIL indication for RCD tests

Select voltage measurement between L-N, L-PE and N-PE

Support SD memory and USB and Bluetooth interface

Internal Memory

Safe Earth Volt Touchpad detects raised earth voltages >50 V, indicating potential dangerous situations.

Slim probes designed with test button

For easy, always reliable and accurate compensation of test leads and mains cords.

Size (H x W x D): 220mm x 96.5mm x 60.5mm

Weight: 631g

Specifications

Insulation

Terminal Voltage

Range

Max Resolution

Accuracy

Test Current

Short circuit current

125V (0% ~ +10)

0.125~4000MΩ

0.001MΩ

±(2%+10)

1mA@load 125kΩ

≤1mA

250V (0% ~ +10)

0.250~4000MΩ

0.001MΩ

±(2%+10)

1mA@load 250kΩ

≤1mA

500V (0% ~ +10)

0.500~4000MΩ

0.001MΩ

±(2%+10)

1mA@load 500kΩ

≤1mA

1000V (0% ~ +10)

1.000~4000MΩ

0.001MΩ

±(3%+10)

1mA@load 1MΩ

≤1mA

Low OHM

Range

Resolution

Accuracy

Max. open Circuit Voltage

Overload Protection

4.000Ω

0.001Ω

±(1.5%+30)

5.8V

250Vrms

40.00Ω

0.01Ω

±(1.5%+3)

400.0Ω

0.1Ω

Continuity Beeper

Range

Resolution

Operation Resistance

Max. open Circuit Voltage

Overload Protection

Continuity

0.01Ω

Resistance≤35Ω

5.0V±1VDC

250Vrms

Short circuit current

≥200mA

LOOP Resistance

L-PE (Hi-Amp)

Range (Ω)

Max. Resolution (Ω)

Accuracy

0.00~999

0.01

±(4% of reading+6 digits)

L-PE(No Trip): Measuring Current:15mA / Range of the Voltage Used: 195V a.c.~260V a.c.(56,60Hz)

Range (Ω)

Resolution (Ω)

Accuracy

0.00~999

0.01

±(5% of reading+6 digits)

L-N: Measuring Current:2.0A / Range of the Voltage Used:195V a.c.~260V a.c.(56,60Hz)

Range (Ω)

Max. Resolution (Ω)

Accuracy

0.00~999

0.01

±(4% of reading+4 digits)

RCD Testing

Test current

Accuracy

x1/2, x1, x2, x5

1.5%~ -9%

Voltage and Frequency

Measurement Range (V)/ AC-DC

Resolution

Accuracy

80-500V/(45-400Hz)

1V

±(2% of reading+2 digits)
