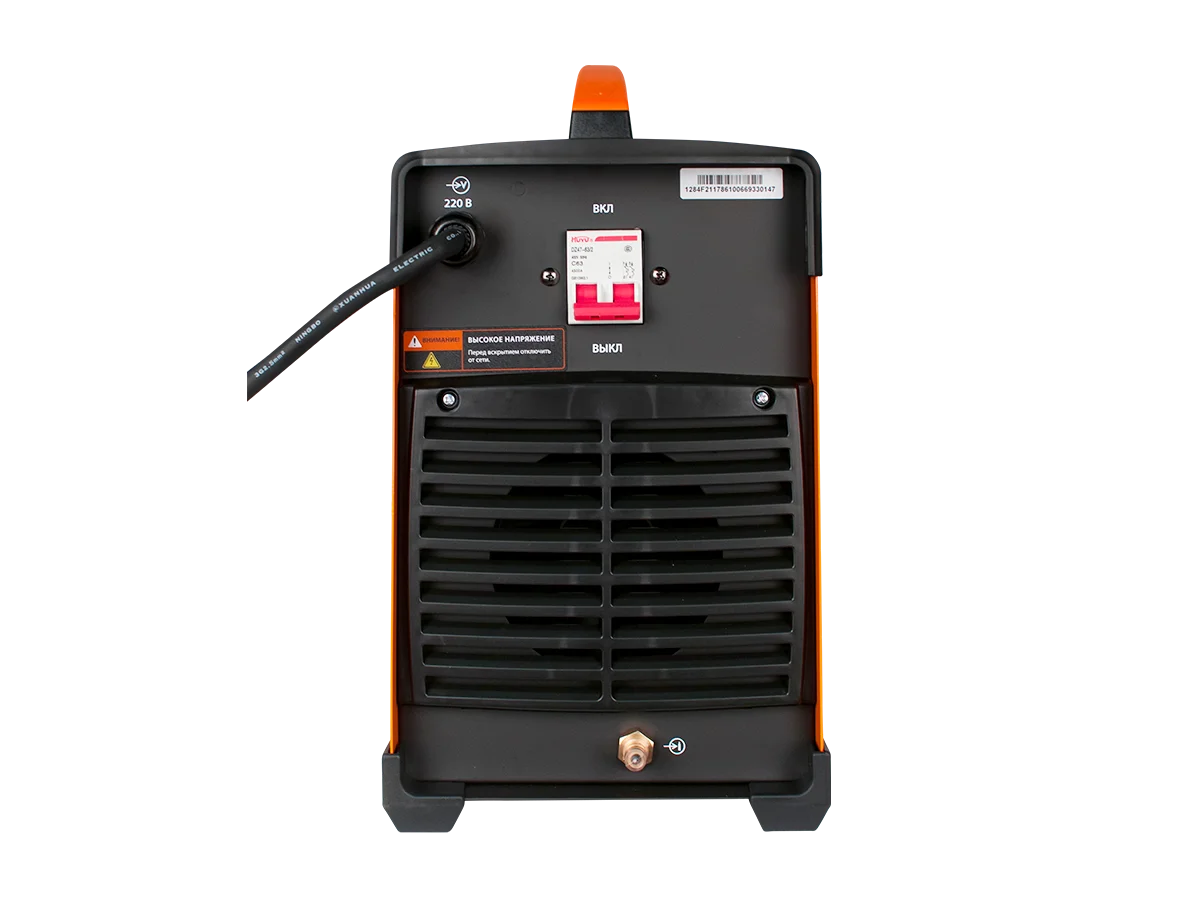

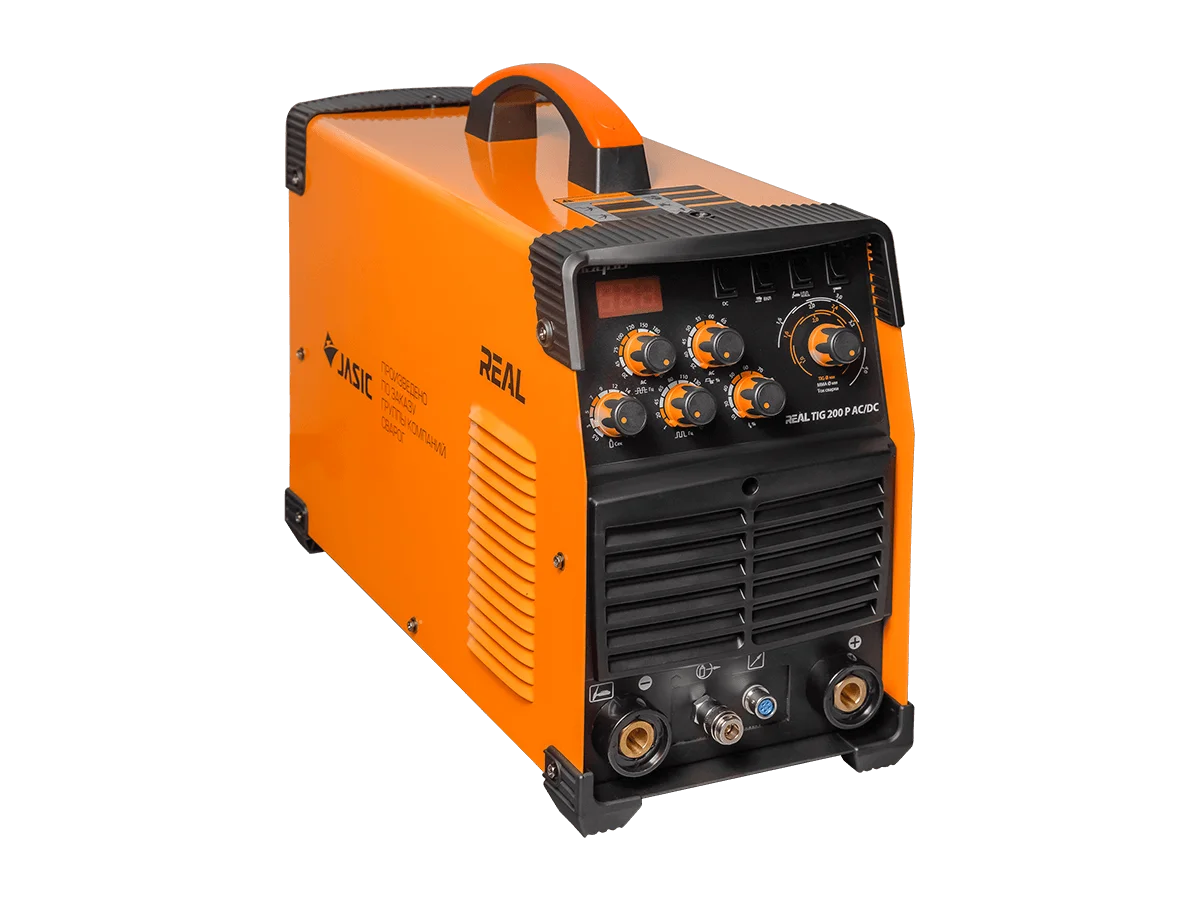

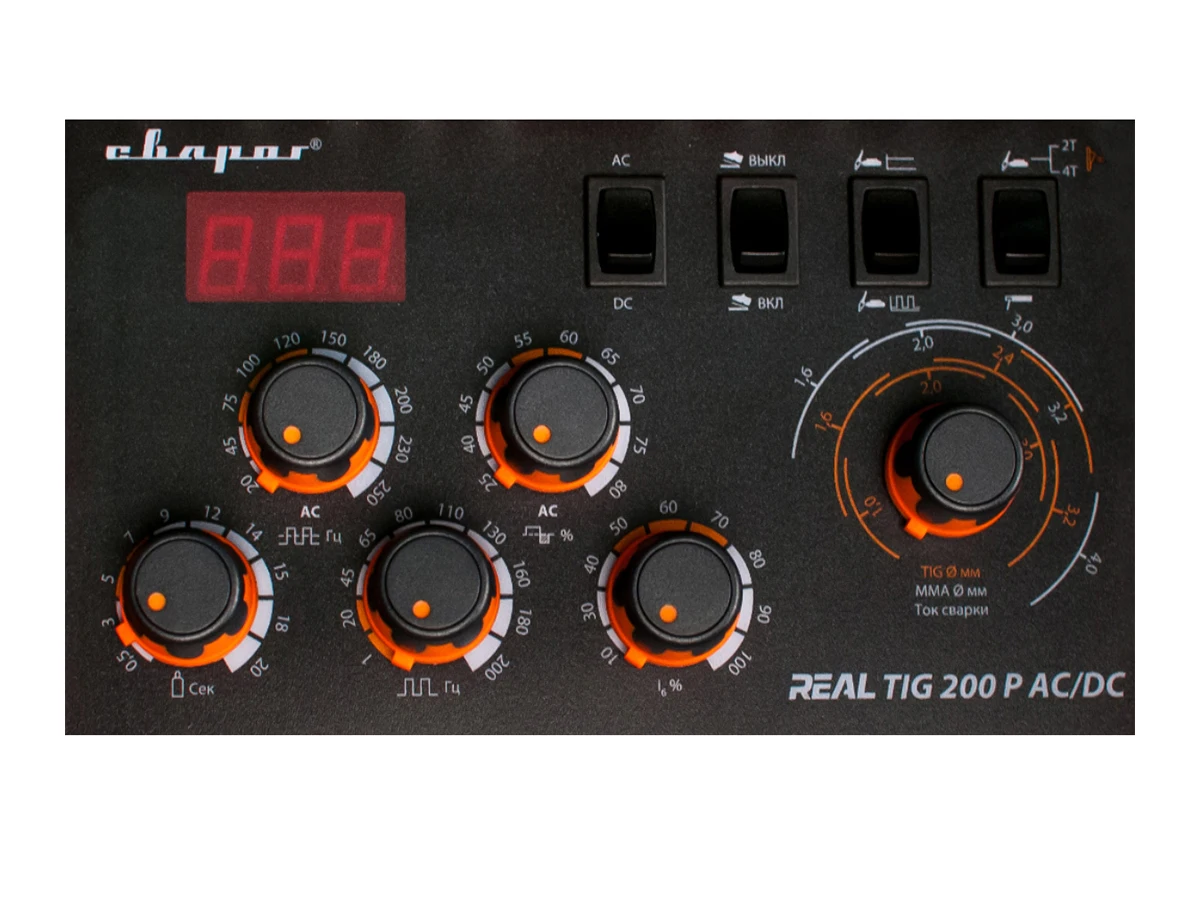

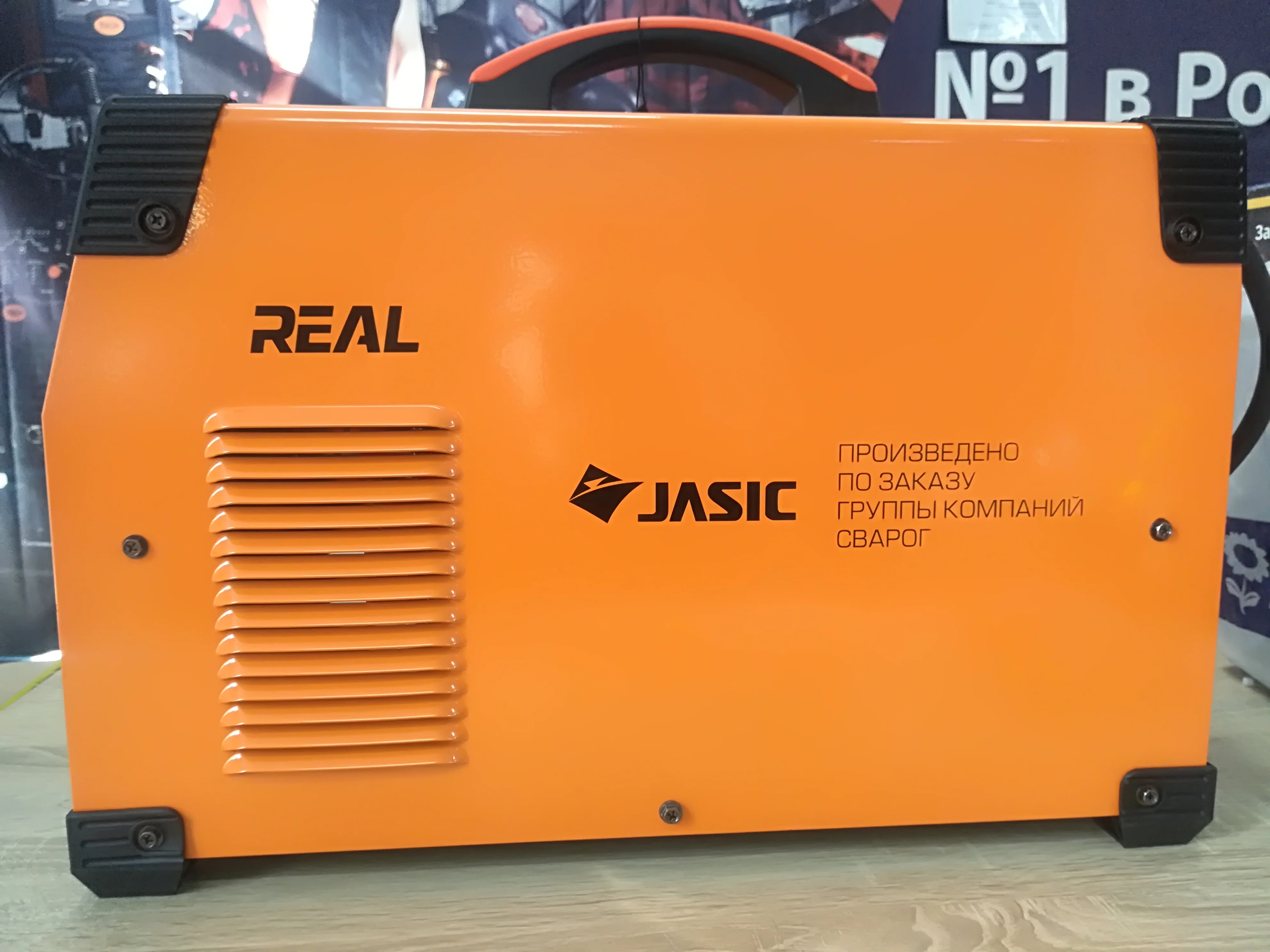

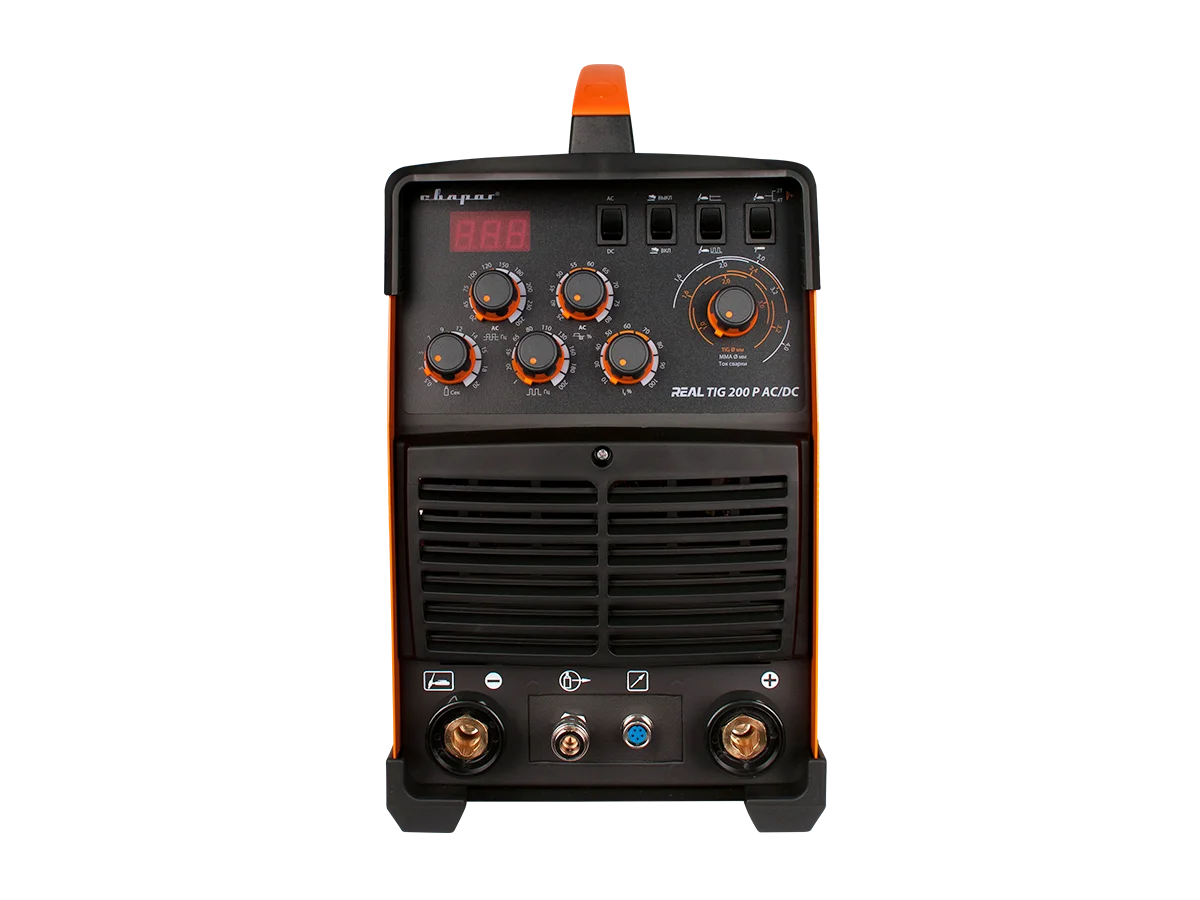

The machineReal Tig 200 p AC/DC (e20101)Allows to produce quality argon arc welding(TIG)On constant and variable current, and in normal and pulse mode. Inverter also can apply for manual arc welding coated electrode(MMA).

Advantages:

✅Steady operation at 160 V network voltage

✅Pulse welding mode with adjustable pulse frequency

✅Operating Mode 2T/4t

✅Quality welding from 5 A

✅Adjustable polarity balance and AC frequency up to 250Hz

✅Adjustable gas blowing time after welding

✅Intelligent cooling system

✅Connect the pedal

➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖

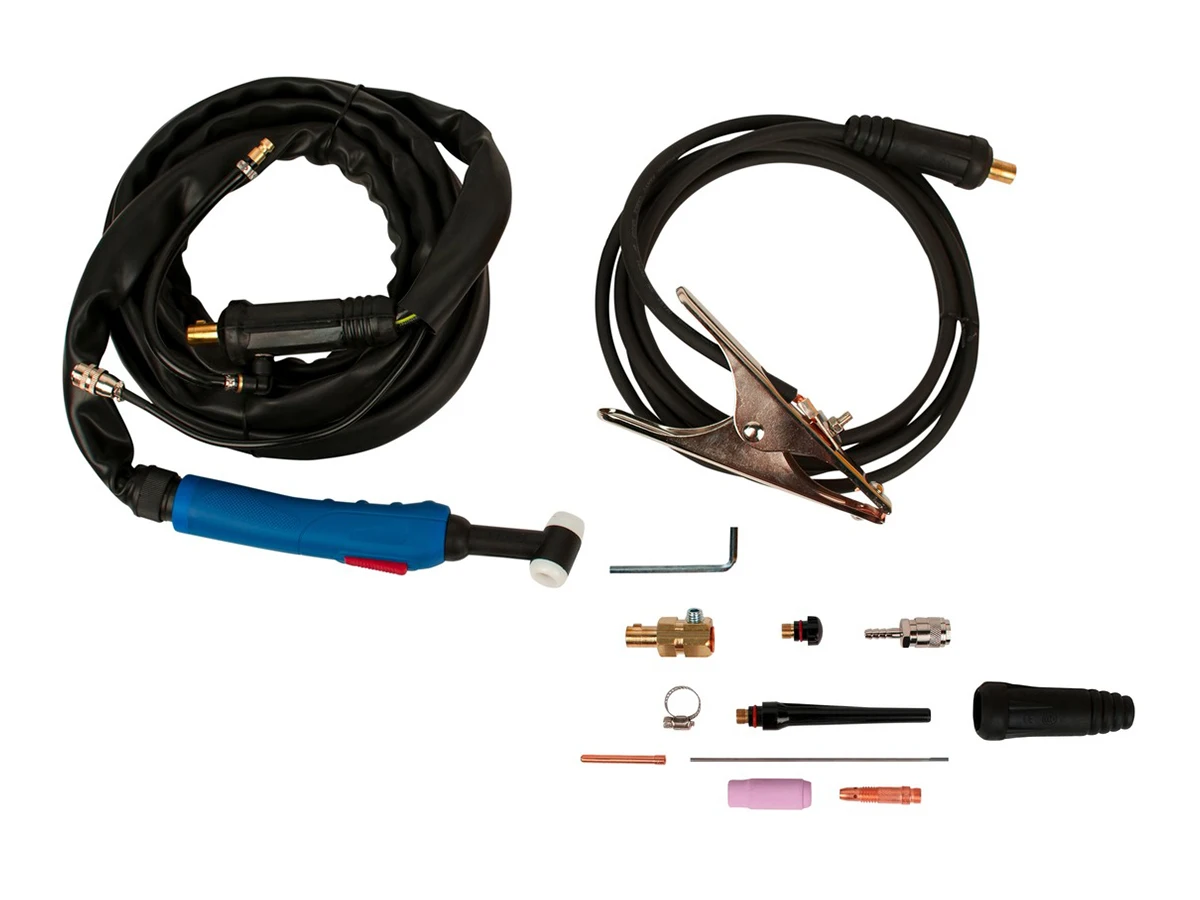

Package includes:

💥-Inverter welding machine-1 PCs

💥-Burner wp-26 assembly, 4 m-1 pc.

💥-Ground terminal assembly 200 A, 3 M-1 pc.

💥-Zip-1 PCs set

💥-Operating Manual-1 pc.

💥-Паспорт-1.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖

Features:

✔Power supply voltage: 160 - 270 V

✔Frequency of power supply network: 50Hz

✔Tig power consumption: 6 KVA

✔MMA power consumption: 7.1 KVA

✔Current consumption: 27.2 A

✔TIG welding current: 5-200 a

✔Welding current MMA: 10-160 A

✔Tig working voltage: 10.2-18.0 V

✔MMA working voltage: 20.4-26.4 V

✔Mon (40 °c): 60%

✔TIG welding current (Mon 100%): 129 A

✔Welding current MMA (Mon 100%): 114 A

✔No-load voltage Tig: 61 V

✔No-load voltage MMA: 61 V

✔TIG electrode diameter: 1.0-3.2mm

✔MMA electrode diameter: 1.5-4.0mm

✔Gas Blowing time before welding: 1 s

✔Gas Blowing time after welding: 1-20 s

✔Arc excitation method: High frequency

✔Power factor: 0.7

✔EFFICIENCY: 85%

✔Insulation Class: B

✔Protection class: IP 21s

✔Dimensions: 502 × 217 × 381mm

✔Weight (apparatus): 14 kg

✔Warranty: 5 years
