Черный выключатель и пульт для управления жалюзями с роликовыми жалюзи через Google Home Alexa Smart Life четвертого поколения QCSMART Tuya.

Черный выключатель и пульт для управления жалюзями с роликовыми жалюзи через Google Home Alexa Smart Life четвертого поколения QCSMART Tuya.

Note Before Order!

- This device just work with 4 wire motor.
- The switch connect with electric tubular motor, neutral wire is must for the motor, and the switch only work with 100-250VAC motor, can't work with 5-24VDC motor
- The neutral wire for the Motor is required to install the switch, otherwise, it can't work.

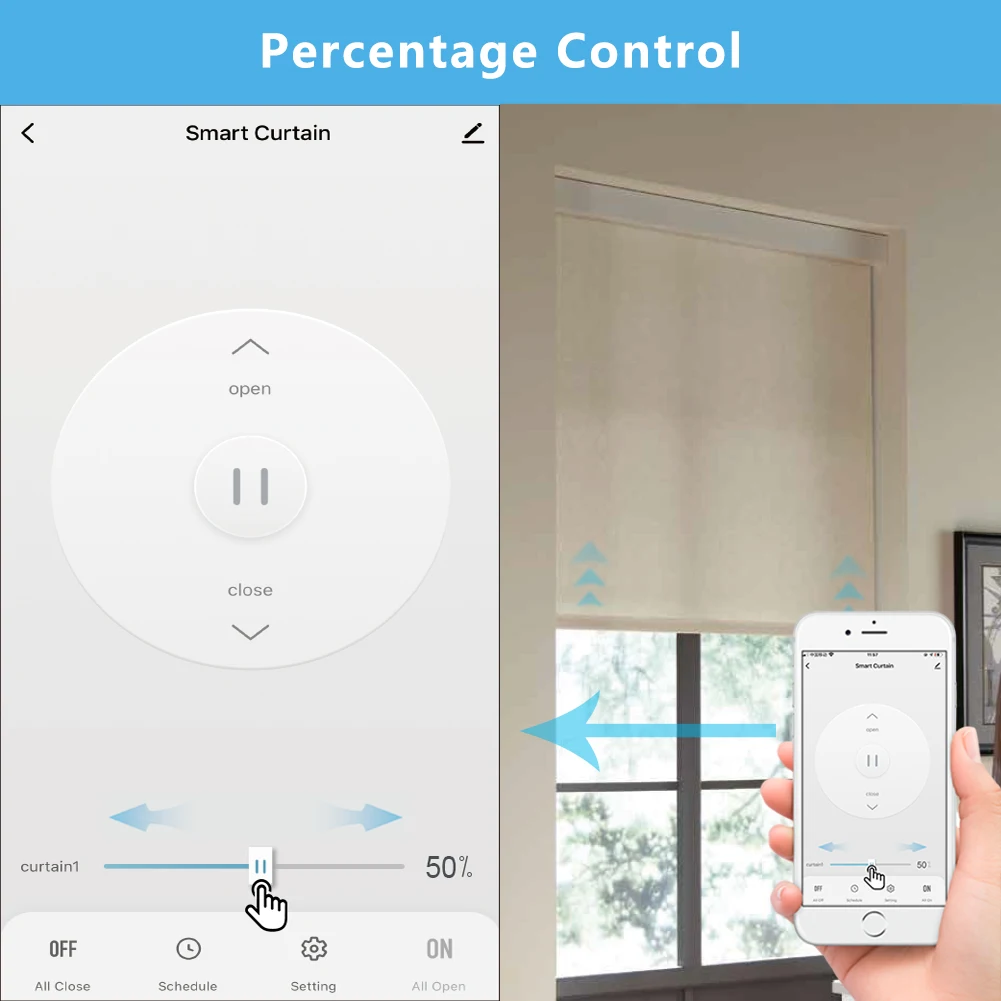

New Percentage Function

- You can set the percentage control on the App to adjust the brightness of the room.
- You can check the shutter status even you are not at home.

Hands-free Voice Control

- Compatible with Amazon Echo Alexa, Google Home.
- No need to go to the window, one sentence can make the curtains open and close automatically.
- App Name: Smart Life, Tuya.

Wireless RF Remote Control

- You can use the portable remote control to control the opening and closing of the curtains.
- There is a wall bracket in the box, which can make this remote control move or dock on the wall.
- You can also use a 2-channel or 4-channel remote control to control 2 or 4 curtain blinds respectively to facilitate room management.

Mobile App Control

- Free APP Name: Smart Life App, Tuya App.
- Support : Android and IOS.
- You can control your smart curtains by mobile phone anytime, anywhere as long as it's with network, Control Your Curtain Anywhere with Your mobile 2G, 3G, 4G network

Touch Panel Control

- You can use touch panel to control the opening and closing of curtains.
- No LED on panel always ON, not bother sleeping.

Timer Schedule

- You can set when the timer is turned on and when it is turned off, and it will work automatically.
- You can set its schedule, such as opening at 8:00 in the morning and closing at 22:00 in the evening, and then your blinds can be automatically opened and closed at the specified time.

Group Function and Device Sharing

- You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

Easy Installation

- The installation method can be installed in just a few minutes like the traditional switch.
-Please be noted that our smart shutter switch can just work with 4 wires classic AC motors. Please check it before you buy.

Description

RF & WiFi Touch Switch
Color: Black
Input voltage: 100-250 VAC, 50 / 60Hz
Wiring: Neutral Wire, Live Wire, L1, L2,
Max Load: below 600 W
Wireless Protocol: RF 868Mhz&Wi-Fi 2.4 GHz (Not support 5Ghz Wi-Fi)
Standby Consumption: below 0.5W
Touch Switch Dimensions: 86mm*86mm*35mm
Button Type: Touch Panel Button
Plastic Material: Fireproof ABS
Produced by ISO9001 Factory: Yes
Patent Design: Yes

RF Remote:
Color: Black
Wireless Protocol: RF 868Mhz
Control Distance: 30 meters indoor

We have all the accessories you need in the box, you don't need to pay extra cost.

What's in the Box?

1 * RF + WiFi Curtain Switch
1 * Single Channel or 4 Channel RF Remote
1 * Wall Bracket
1 * Lanyard
1 * Blue Wire
1 * English User Guide
2 * Screw Kits
1 * Terminal
1 * Double-Sided Adhesive Tape
