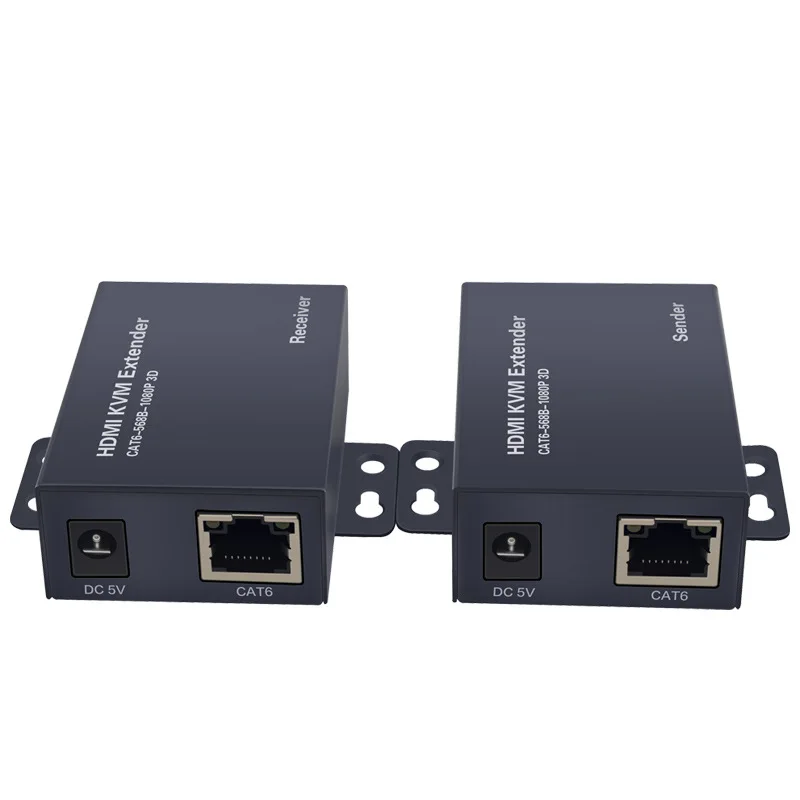

INTRODUCTION:

The Extender over CAT6 uses one piece of CAT6 cable to extend the HDTV display up to 60 meters for 1080p,  It not only breaks the limitation of the HDMI-compatible cable transmission length, but also CAT6 has more flexibility and convenience in cable construction.

It offers solutions for residential consumers: HDTV retail and show site, HDTV,STB,DVD and projector factories, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

BENEFITS:

1. The length of HDMI-compatible cable is fixed and unchangeable after it is produced. Because the HDMI-compatible connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves, however CAT6 cables are available everywhere and can be processed easily by the user or installer.

2. Because the head of the long HDMI-compatible cable is big, using it must in hidden method, what is more, it is not easy to bend the HDMI-compatible cable and to pull it through the in-wall tube or tray. However,CAT6 cables do not have such problems.

3. With this extender, the transmission distance can be up to 60 meters while using CAT6 cables, for the general HDMI-compatible cables, they must be customized when the length is over 10 meters.

FEATURES:

This Extender has many features that enable it to perform in superior manner, among those features and you will find:

1. One pair as a full functional module, no need of setting.

2. CAT6 cable can substitute HDMI-compatible cable to achieve long distance transmission.

3. CAT6 follow the standard of IEEE-568B

4. Transmission distance can be up to 60 meters for 1080p while using CAT6 cable.

5. POE function,only use one power supply to connect the transmitter

PARAMETERS LIST:

Input DDC signal : 5volts p-p(ttl)

Maximum single link range :1920*1080, 1080p

Output video : HDMI-compatible

Mouse/Keyboard Interface : USB

DTV/HDTV : 1080p/1080i/720p/576p/480p/576i/480i

HKE60 : 60meters

Interlaced(50&60hz) : 480i 576i 1080i

Progressive(50&60hz) : 480p 576p 720p 1080p

Power consumption : 5wattd(max)

Operating temperature : 0 to+70℃

Operating humidity : 10%to85%RH(no condensation)

Storage temperature : -10℃to+80℃

Storage humidity : 5%to95%RH(no condensation)

External power supply : DC5V @1A

Package Included:

1 x HD transmitter

1 x HD receiver

1 x DC5V power supply

1 x User manual
