4G LTE Modems EC25-EC LCC to USB2.0 Industrial Adapter W/SIM Card Slot/GPS FDD B1/B3/B5/B7/B8/B20 For EMEA | Компьютеры и офис

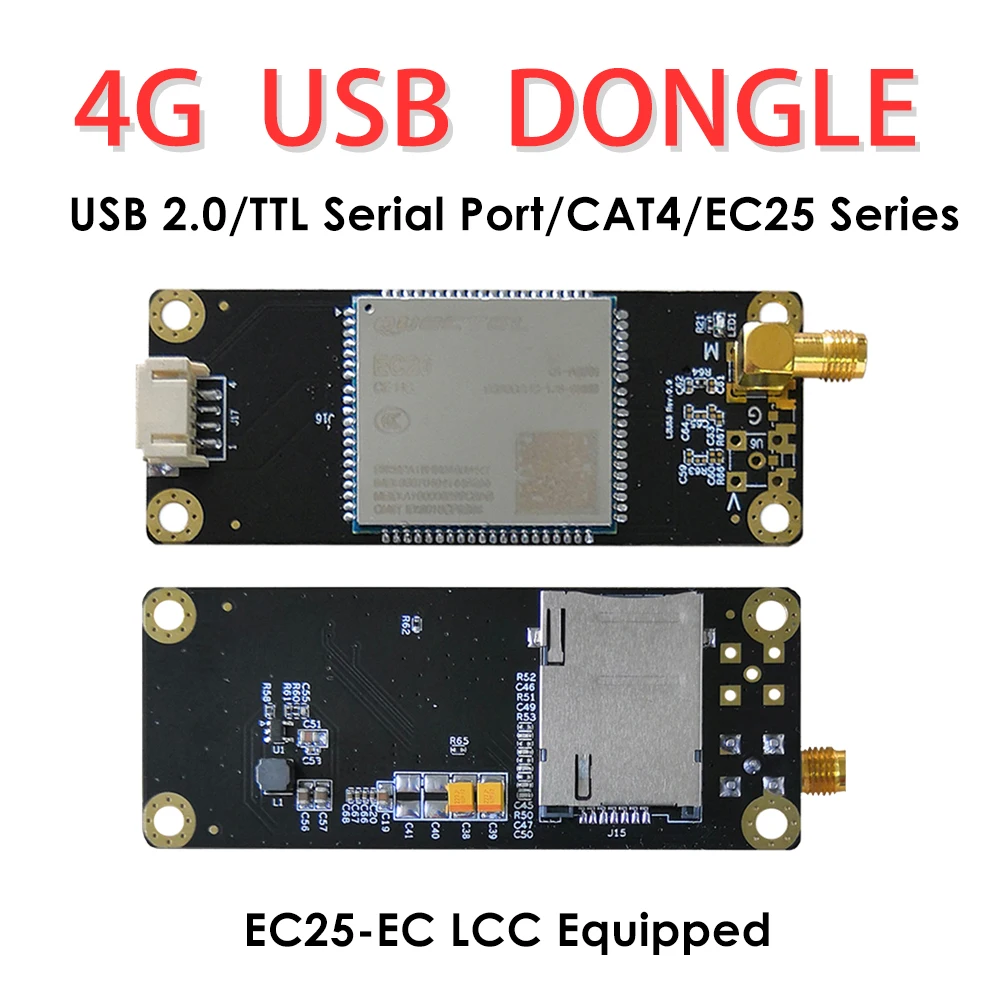

4G LTE Modems to USB2.0 Adapter W/SIM Card Slot/GPS Frequency EC25-EC LCC Equipped LTE FDD B1/B3/B5/B7/B8/B20 LTE TDD B38/B40/B41 WCDMA B1/B5/B8 GSM B3/B8 Carrier Vodafone/Deutsche Telekom/SKT/Telefónica/T-Mobile*/KT*/LGU+*(* Under Development) Region EMEA, Korea, Thailand, India Introduction of 4G LTE Modems to USB2.0 Adapter W/SIM Card Slot/GPS Low Cost 4G Data Transmission Solution. Saving costs for you, offering quick 4G communication solution.

Industrial level 3A(current), 3.6V(voltage), equipped with Quetel EC25 series 4G LTE FDD/TDD module, and USB 2.0 to quickly transmit data to make wireless communication realized.

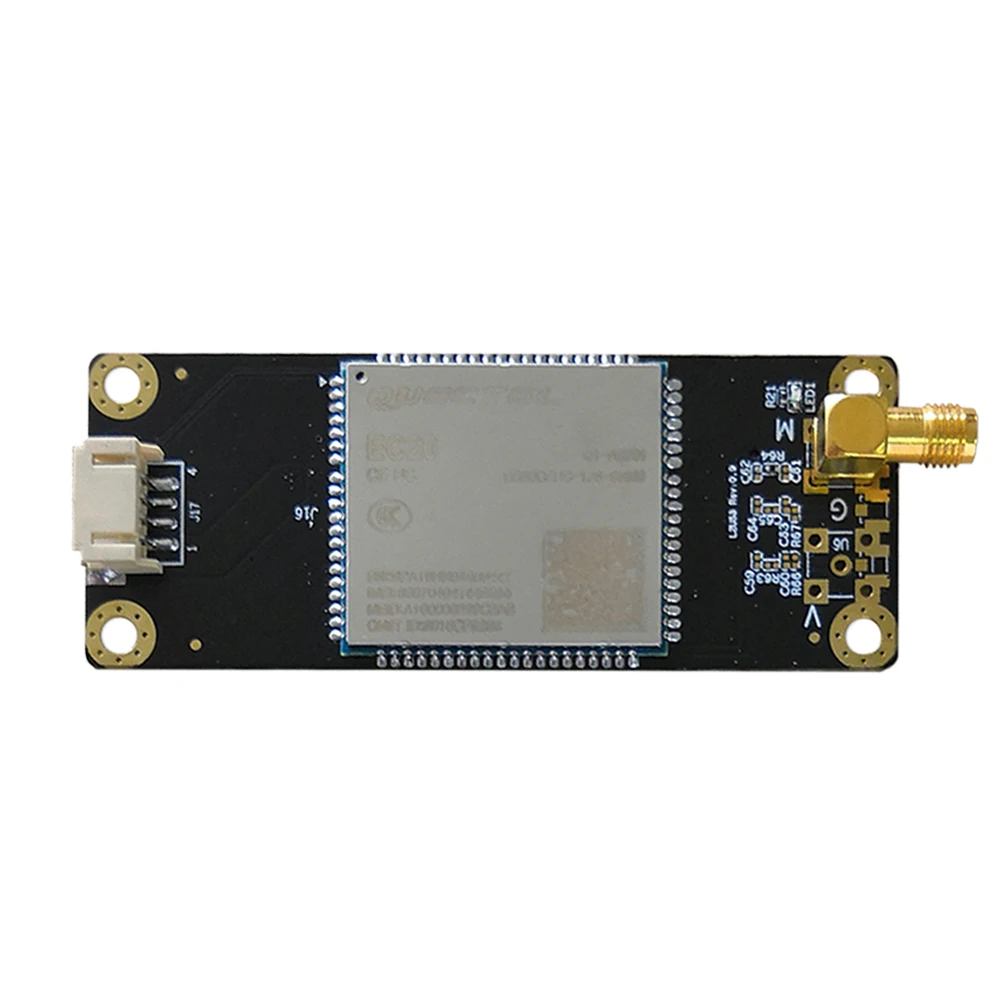

Includes 4PIN connector and GPS antenna connector (reserved): 4PIN connector is used for quick integration with industrial motherboard by USB connector to connect to 4G network. And it's better to improve your product line and reduce the costs.

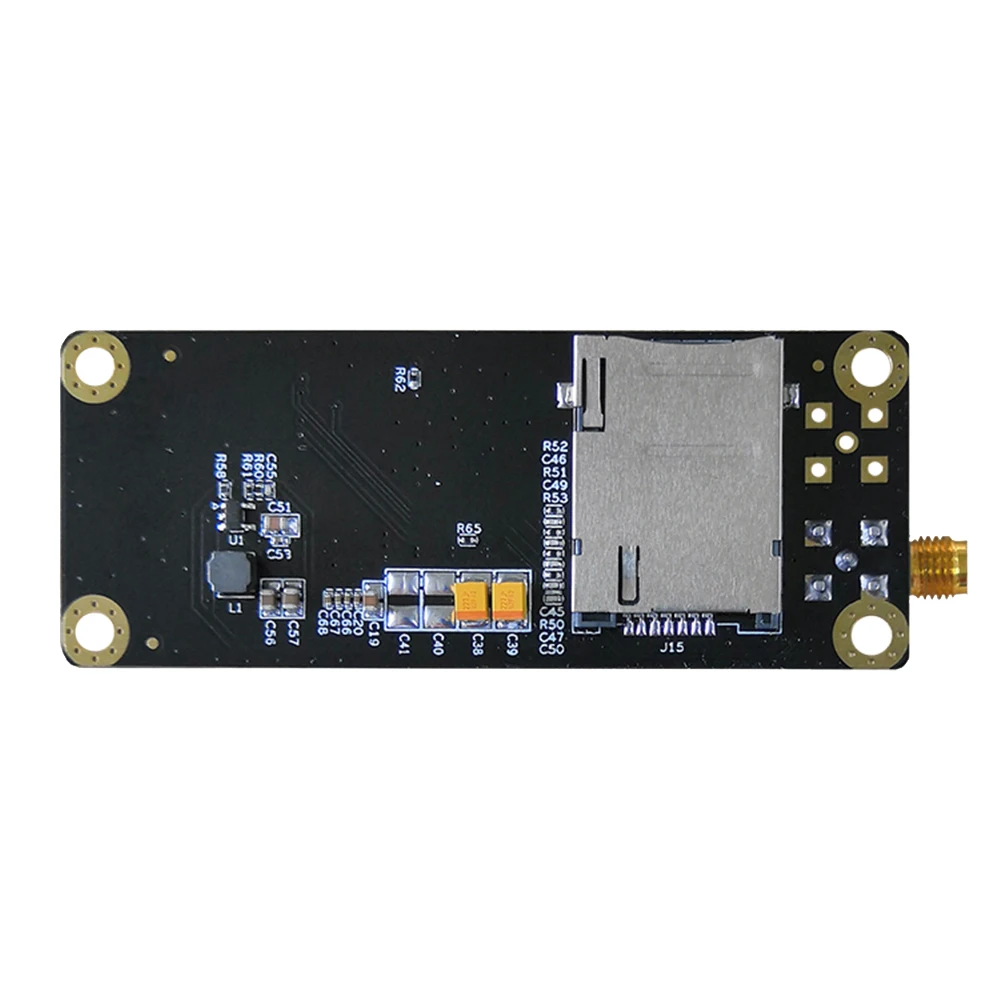

DC-DC chip adopted, it can use voltage 5V through USB 4PIN connectorto offer 4G module with 3A current and 3.6V voltage to gaurantee 4G module can be continuously working for a long time even under severe environment. SIM slot: Push-Push, USIM card: hot-plugging NOT supported.

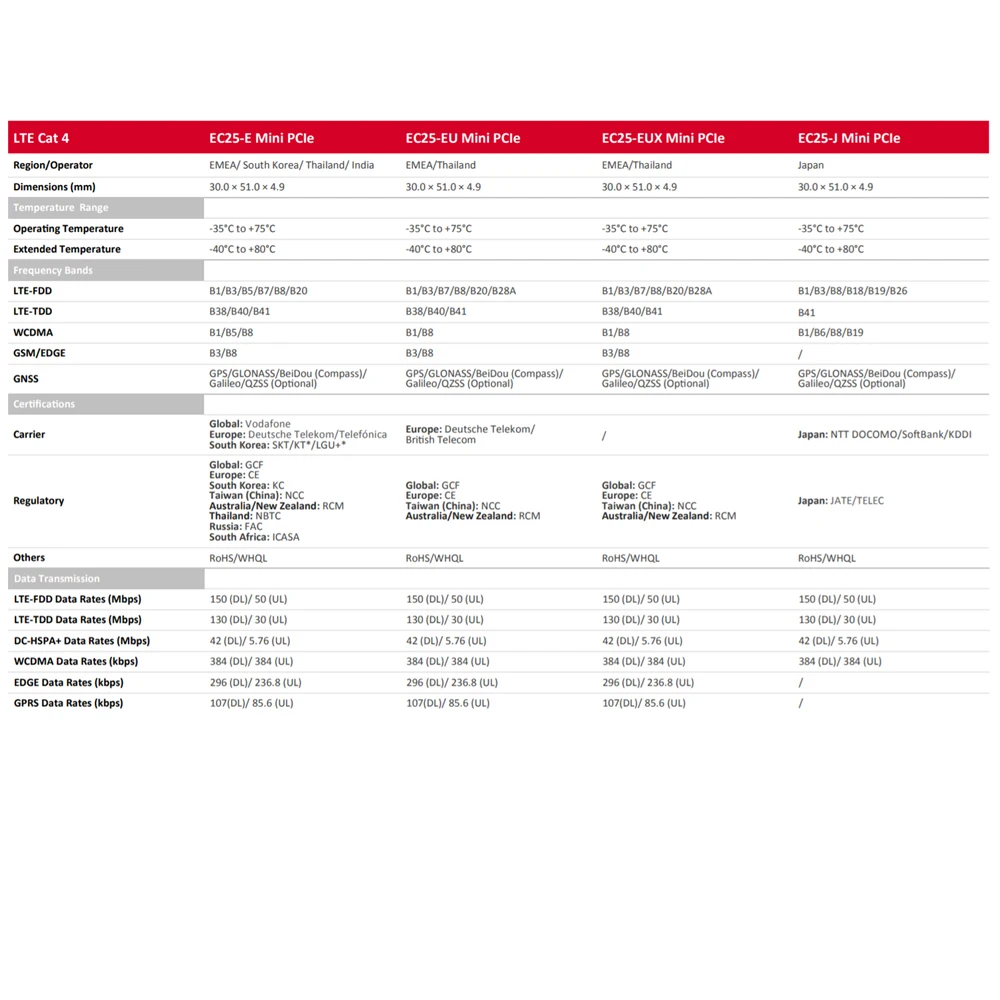

4PIN USB 2.0 connector: 1. VCC 5V, 2 USB D-, 3, USB D+, 4, GND Introduction of Quectel EC25 Mini PCIe Series IOT/M2M-Optimized LTE Cat 4 Module Quectel EC25 Mini PCIe is a series of LTE category 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates. EC25 Mini PCIe contains 11 variants: EC25-E Mini PCIe, EC25-EU Mini PCIe, EC25-EUX Mini PCIe, EC25-J Mini PCIe, EC25-A Mini PCIe, EC25-V Mini PCIe, EC25-AF Mini PCIe, EC25-AFX Mini PCIe, EC25-MX Mini PCIe, EC25-AU Mini PCIe and EC25-AUX Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage. EC25 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage. Key Benefits of Quectel EC25 Mini PCIe Series IOT/M2M-Optimized LTE Cat 4 Module 1 LTE category 4 module optimized for broadband IoT applications 2 Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage 3 Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices 4 MIMO technology meets demands for data rate and link reliability in modem wireless communication systems 5 Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment   NOTE SMA connector by default, if IPEX connector is required, please let us know after your order.



Package Contents 1x EC25-E LCC to USB2.0 Adapter(Packed in Antistatic Bag) 1x 3A Current Adapted Cable 1x 4PIN to USB Cable 1x 4G Wireless Antenna 1x GPS Antenna
