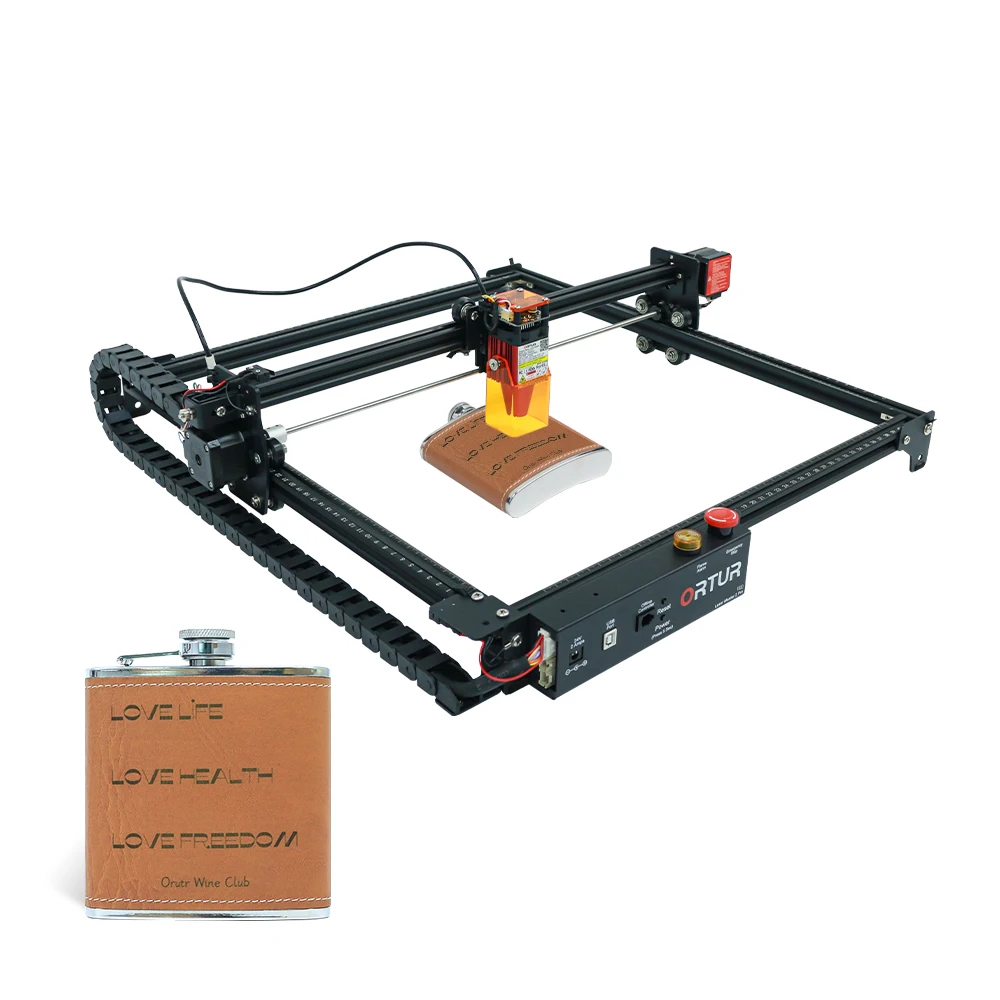

NEW Ortur 20W Mini Laser Engraver 400X400 Carving Area DIY Metal Cutting CNC with Safety Protection |

NEW Ortur 20W Mini Laser Engraver 400X400 Carving Area DIY Metal Cutting CNC with Safety Protection |

Welcome to Ortur Official Store, please note:
a. Freeshipping is not means free duty. As we all known, import high value goods would be charged import tax in each country;
b. Seller's shipping methods are shipping by express company, such as DHL/FedEx/ UPS/ TNT;
c. We have free DDP method to EU countries, but it is slow method, and need 30-45 days to delivery.
Any question, welcome to contact with us!

Main Features:
● Specialized OLM-MAXUP-V10 Motherboard with 32Bits MCU, ORTUR Laser 1.8 firmware
Smoother and More Delicate Carving, High Precision and Speed
● Support Flame Detection Function
● Support Emergency Stop Switch
● Support Ortur Offline Contrl Screen

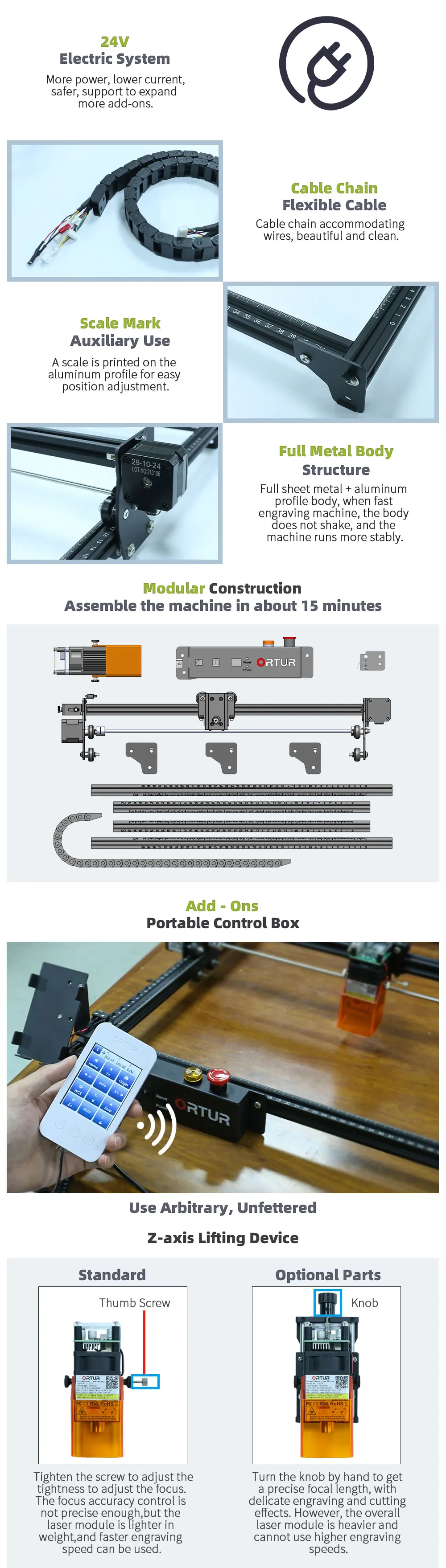

● The First Laser Engraver Machine with 24 Voltage, with Lower Current and Safter System.

Note:
● Please wear goggles when operating the laser engraver. Wear safety goggles to avoid blindness.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
● This product is not recommended for industrial cutting due to its high engraving speed.

Specialized Motherboard with 32Bits MCU It could preprocess 32 instructions, support baud rate as high as 921600, more powerful!

The Most Advanced 32Bits Laser Engraver Firmware Ortur laser master firmware, smarter, faster, higher precision and easier to use.

Laser power range could be S0 - S1000, compared to 8bits desktop laser engravers, which only has S0 - S255, Ortur Laser Master could control laser beam more accurately, could even use the high power laser unit to "draw" a picture on paper , that the 8bits high power laser engravers could not do.

Engraving speed could be as high as 3000MM/Min. ( If do not consider the laser carving result, the velocity of movement could be as high as 1000MM/S )

Active Position Protection There is a G-sensor on the motherboard, if the machine detects unauthorized movement, the laser beam will stop.

Laser Beam Safety Guard If your computer system halted or USB cable disconnected, led to that the laser engraver stops moving, the laser beam will stop, to prevent fire.

Exposure Duration Detection and Limitation If laser engraver is under control, but users forget to operate and keep the laser beam working, extra safety will cut off in case the motor stopped moving, to prevent fire.

LaserGRBL ( free software ) supports Windows XP, 7, 8, 10. LaserGRBL is the most popular carving software in the world, could import different format images, you could editing in PhotoShop, Inkscape, CAD, etc. and then connect to the engraver via laser LaserGRBL for engraving and cutting.

LightBurn ( paid software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux. It's the most popular paid carving software in the world, very easy to use.

This laser engraver supports PWM mode.

Pre-assembled parts, just need 10 - 20 minutes to install the machine.

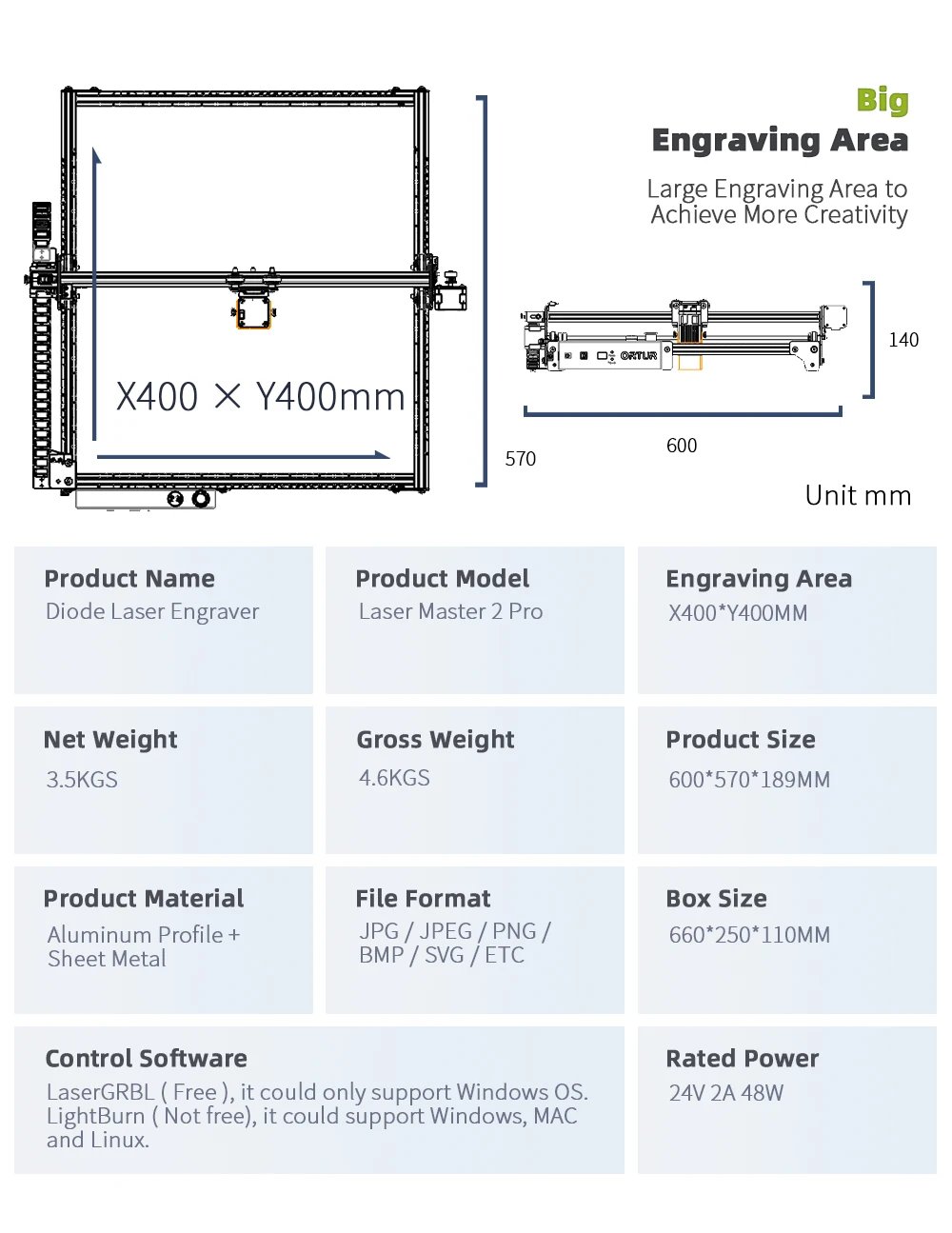

400 x 400 mm large engraving area.

Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance

Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.

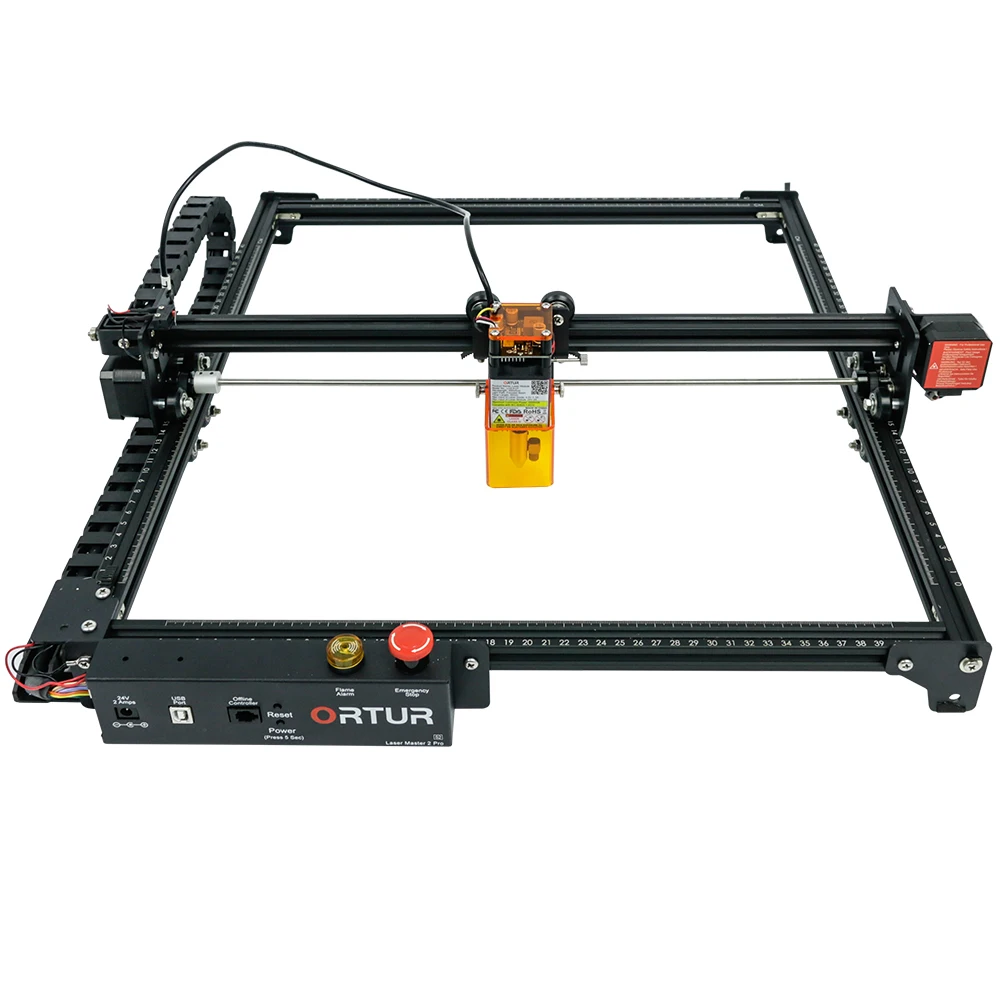

General

Brand: Ortur
Model Number: Laser Master 2  pro
Type: Laser engraving machine
Material: Aluminum + Powder Coated Steel

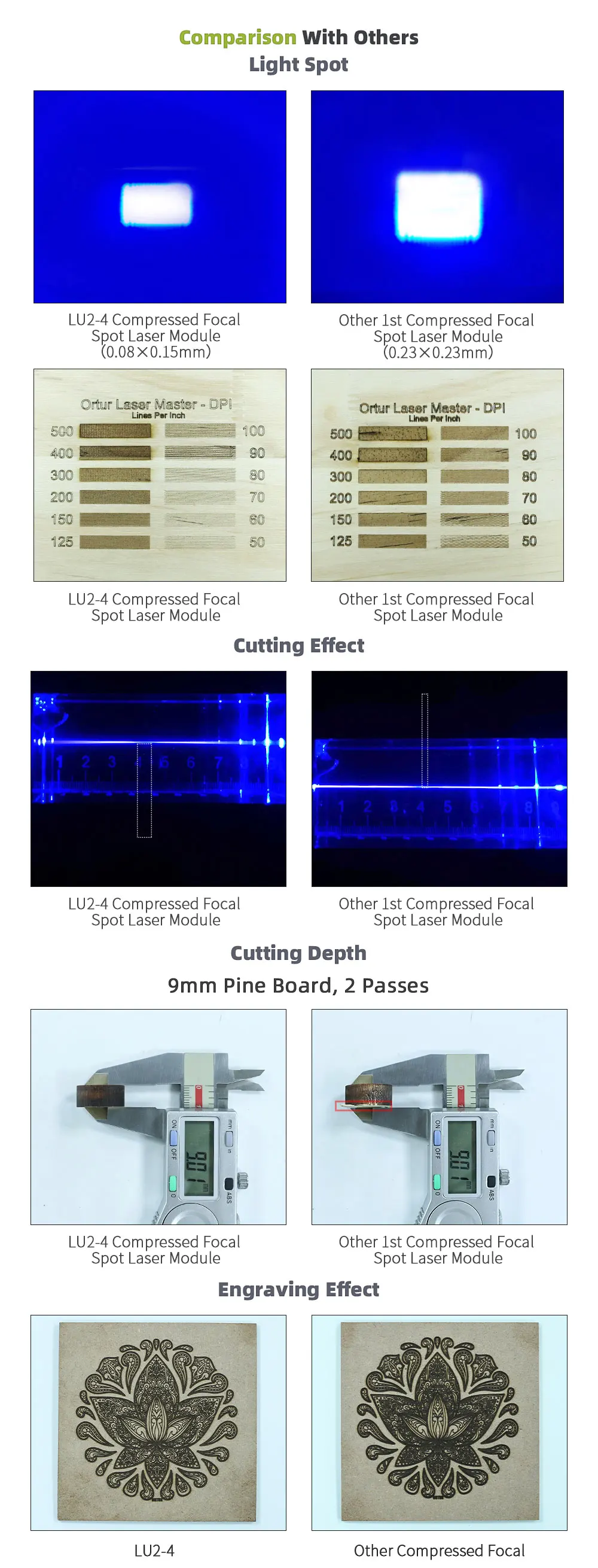

Laser Power: LU2-4 Compressed Focal Spot Laser Module 20w（Electrical Power：20W, Luminous Power: 5000-5500mw）
Laser Reaching Range: 445 ± 5nm
Power By: Power Adapter 24V 2A

Dimensions and Weight

Package weight: 4.6 000 kg
Product size (L x W x H): 600x570x189mm
Package size (L x W x H): 660x250x110mm

Package Contents

Package Contents: 1 x Laser Engraving Machine
