A high-performance RTK mobile station can provide the user with RTK centimeter-level accuracy. Through 4G universal wireless module, the user can connect the CORS base station in the qiahiro position to obtain real-time centimeter-level positioning accuracy and heading data

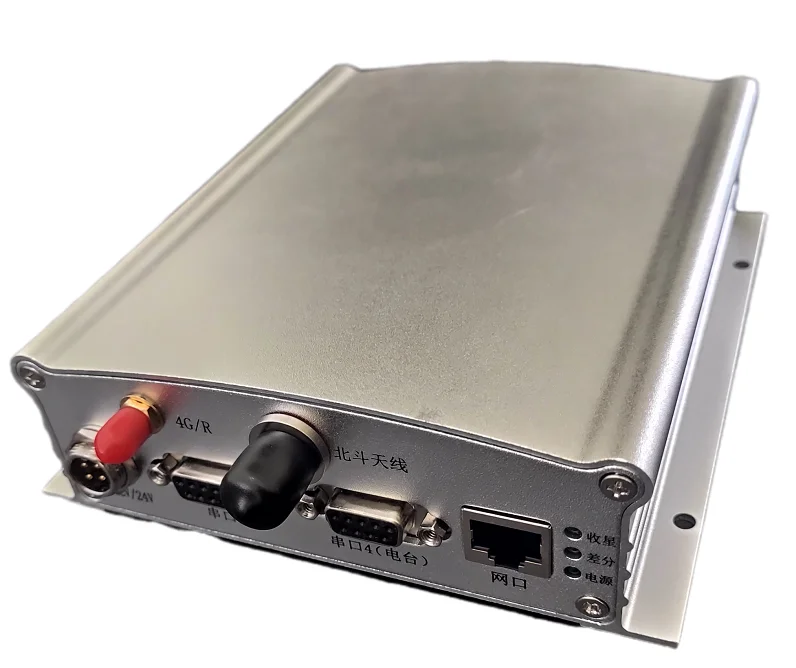

M16-l GNSS receiver is a GNSS product for positioning, navigation and raw data output. The product

Support for new GNSS signals and multi-system carrier phase differential functionality for remote base stations. This product not only supports GPS

L1 band and GLONASS L1 band signals can also provide Galileo compatible functions, while supporting China's Beidou

B1 spectrum.

The OmniSTAR VBS,XP, G2, and HP services provide different levels of GNSS performance.

Decimeter accuracy can be achieved without the need for reference stations.

GNSS measurement navigation system and 220 channel Trimble Maxwell 6 chip technology were adopted. The RTK baseline

Do the calculations. Through RS232, USB, Ethernet data monitoring, provide centimeter-level positioning.

Two, product features

Centimeter-level positioning accuracy;

Built-in 4G module, supporting downstream rate of 150Mbps and upstream rate of 50Mbps.

Supports TCPIP transparent transmission

NTRIP protocol is supported and can be connected to CROS networks, such as chihiro locations

GPS, GLONASS and BeiDou, GALILEO system support;

OMINISTAR VBS/XP/G2/HP Global Differential service;

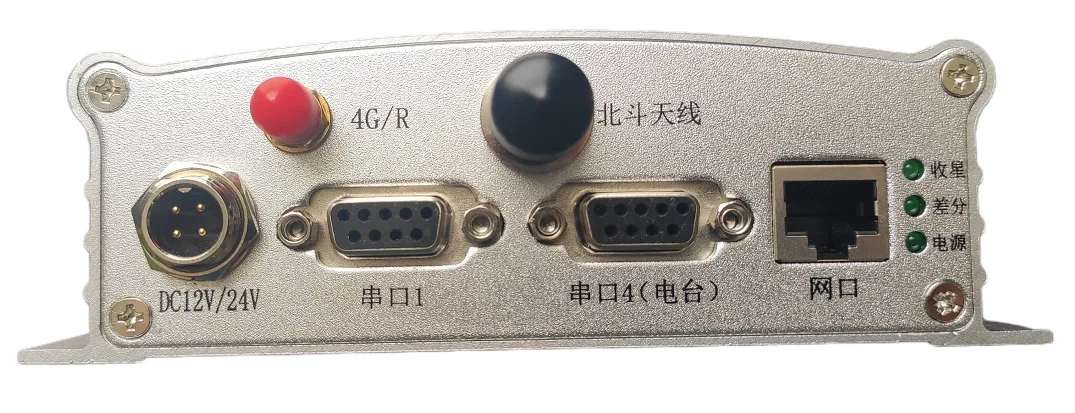

Flexible interface RS232,USB,ETHERNET, etc.

Waterproof and corrosion-resistant enclosure.

The work environment

Operating temperature: -40� 8C ~ +85� 8C

Working humidity: 10% ~ 90%

Power supply voltage: 9-24 (V) DC, 12VDC is recommended

Vibration: MIL810F, Random 6.2GRMS

Mechanical impact: MIL810D, ± 40g

The data parameter

1Hz, 2Hz, 5Hz, 10Hz, 20Hz positioning output

Raw measurement and position output up to 20Hz

Reference output: CMR, CMR+, SCMRx,RTCM 2.1, 2.2, 2.3, 3.0, 3.1

Navigation output:

ASCII: NMEA-0183: GBS, GGA, GGL, GRS, GSA, GST, GSV, HDT, PTNL,AVR,

PTNL,BPQ, PTNL,GGK, PTNL,PJK, PTNL,PJT, PTNL,VGK; PTNL,VHD, RMC, ROT,

Vacations, ZDA

Binary: Trimble GSOF

Location accuracy

Mode accuracy delay update rate

Single baseline positioning accuracy

(RTK< 5Km) 0.008m +1ppm < 20ms 20Hz

0.015m +1ppm (vertical)

DGNSS 0.25m+1ppm < 20ms 20Hz

0.50m +1ppm (vertical)

SBAS7 0.50m < 20ms 20Hz

0.85 m (vertical

The performance parameters

Positioning time (TTFF)

Cold start: < 45 seconds

Temperature start: < 30 seconds

Recapture: < 2 seconds Speed accuracy

Level: 0.007 m/ SEC

Vertical: 0.020 m/ SEC

Acceleration: 11 g

Application restrictions

Speed: 515 m/ SEC

Height: 18,000 m

Physical parameters

Dimensions: 160mm X 142mm X 42mm

Net weight: 0.4 kg

packing

The power cord.................................................................................... 1 the root

Tnc-tnc adapter cable 5 meters ………………………… 1 the root

The GNSS antenna.................................................................. 1

M16L host........................................................................ 1 the root

Suction cup bracket …………………………………………… 1
