TC66C USB Tester PD Trigger Power Meter BT Type-C Voltage Current Multimeter Ammeter Voltmeter Color LCD Display | Электроника
Описание товара
Features:

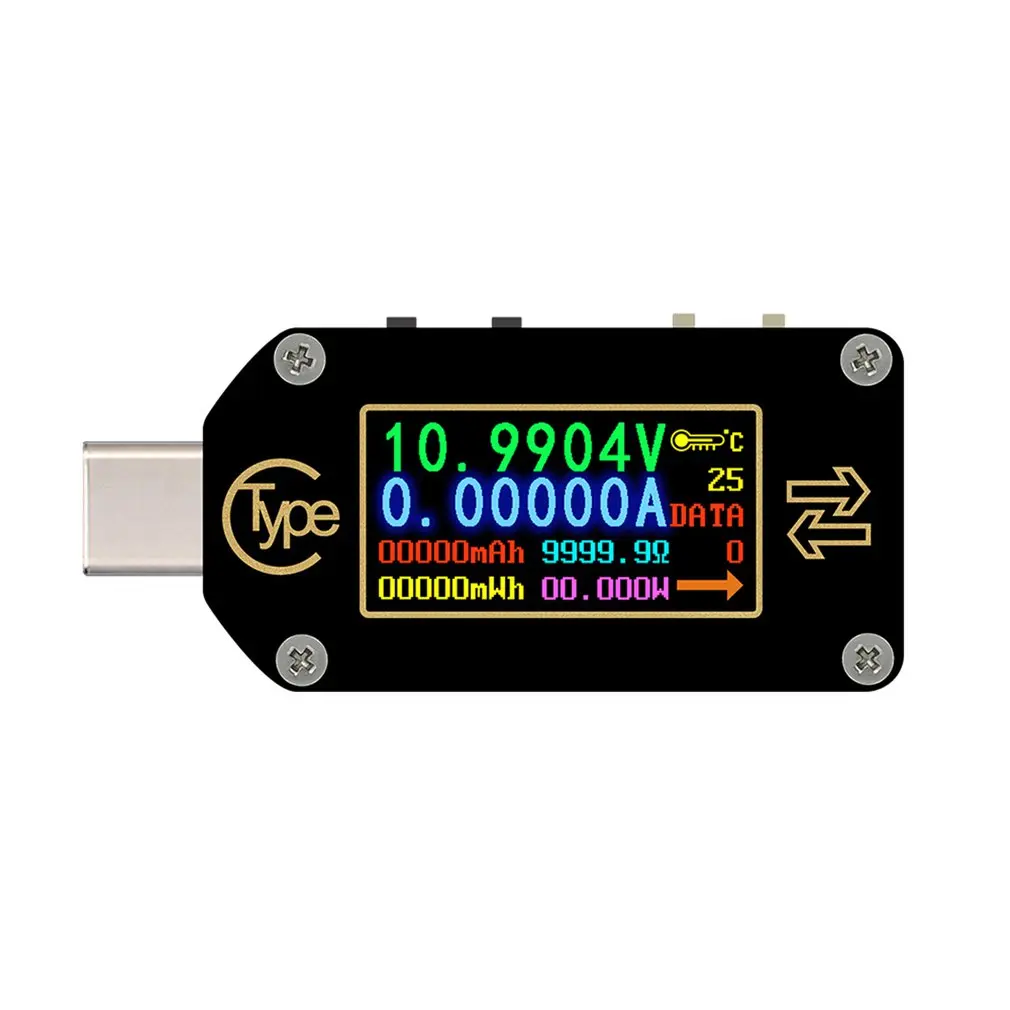

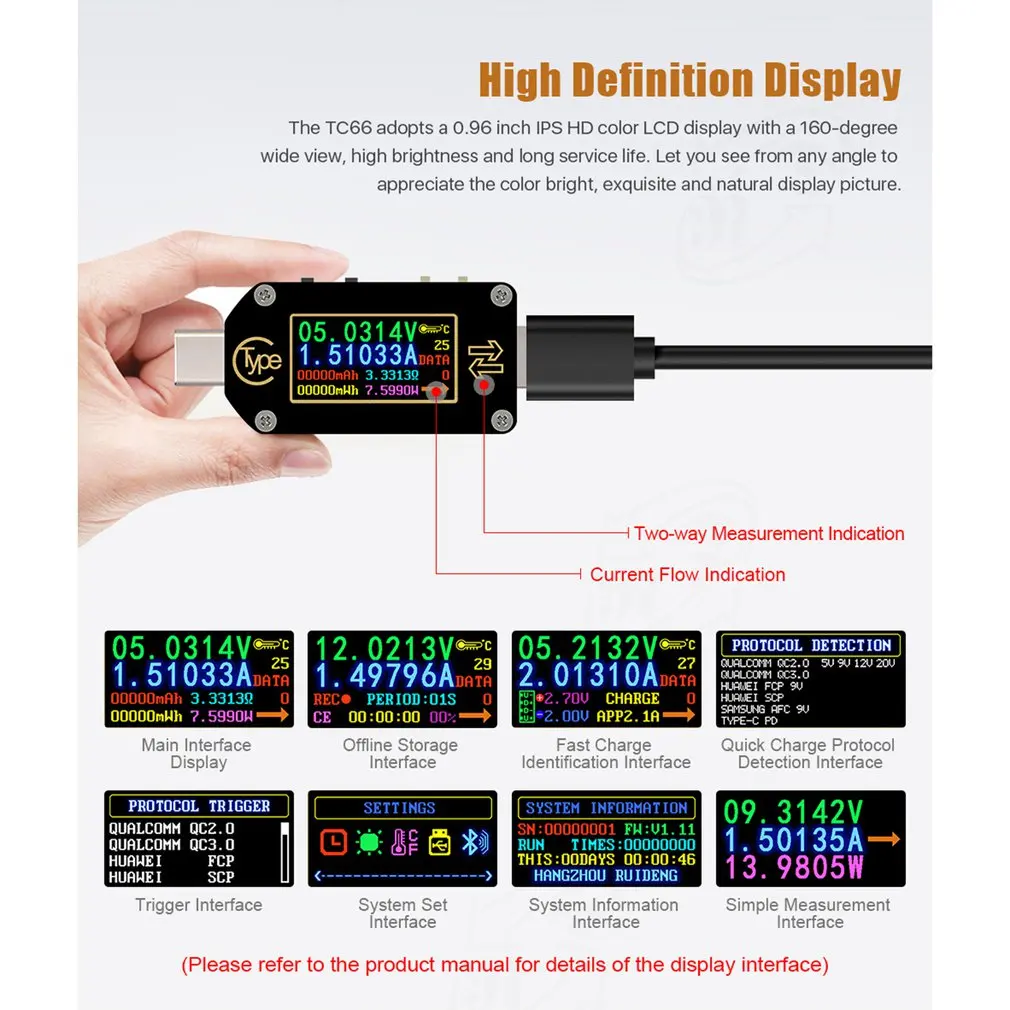

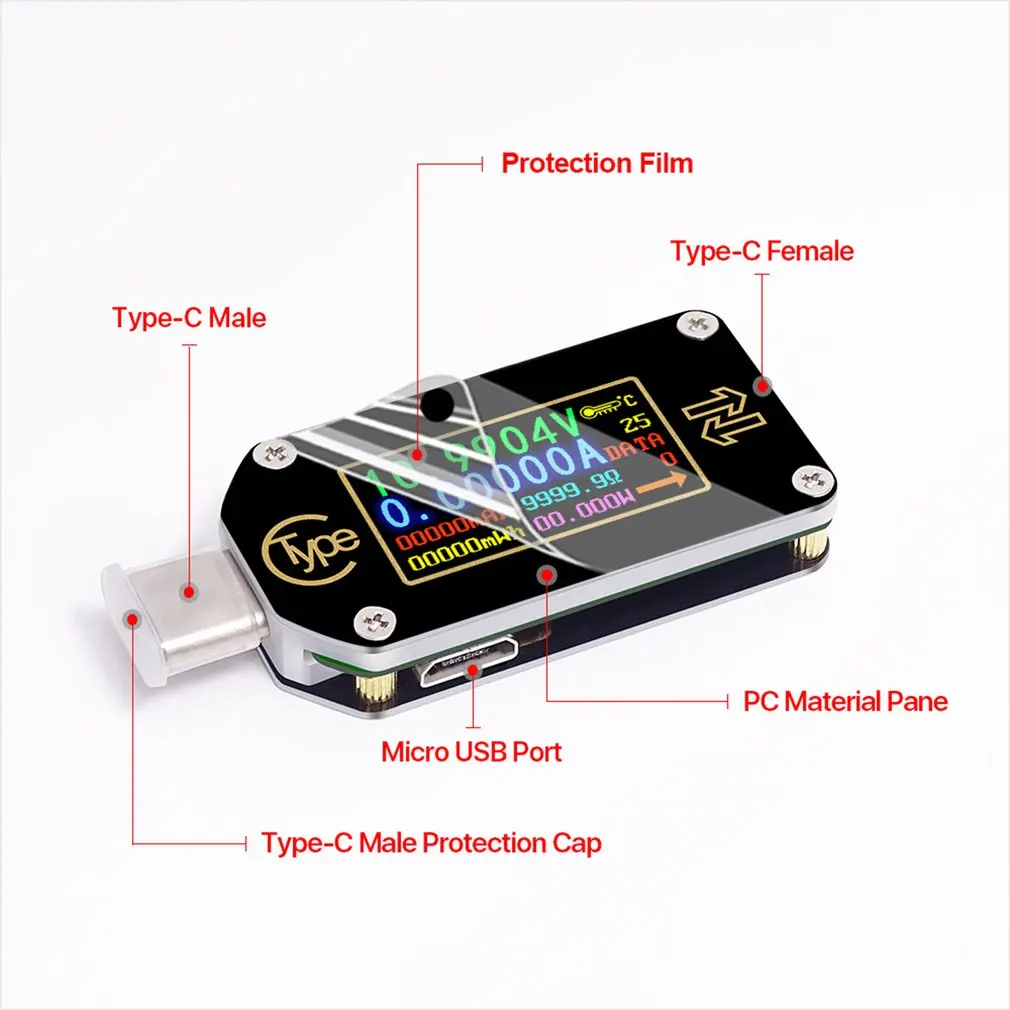

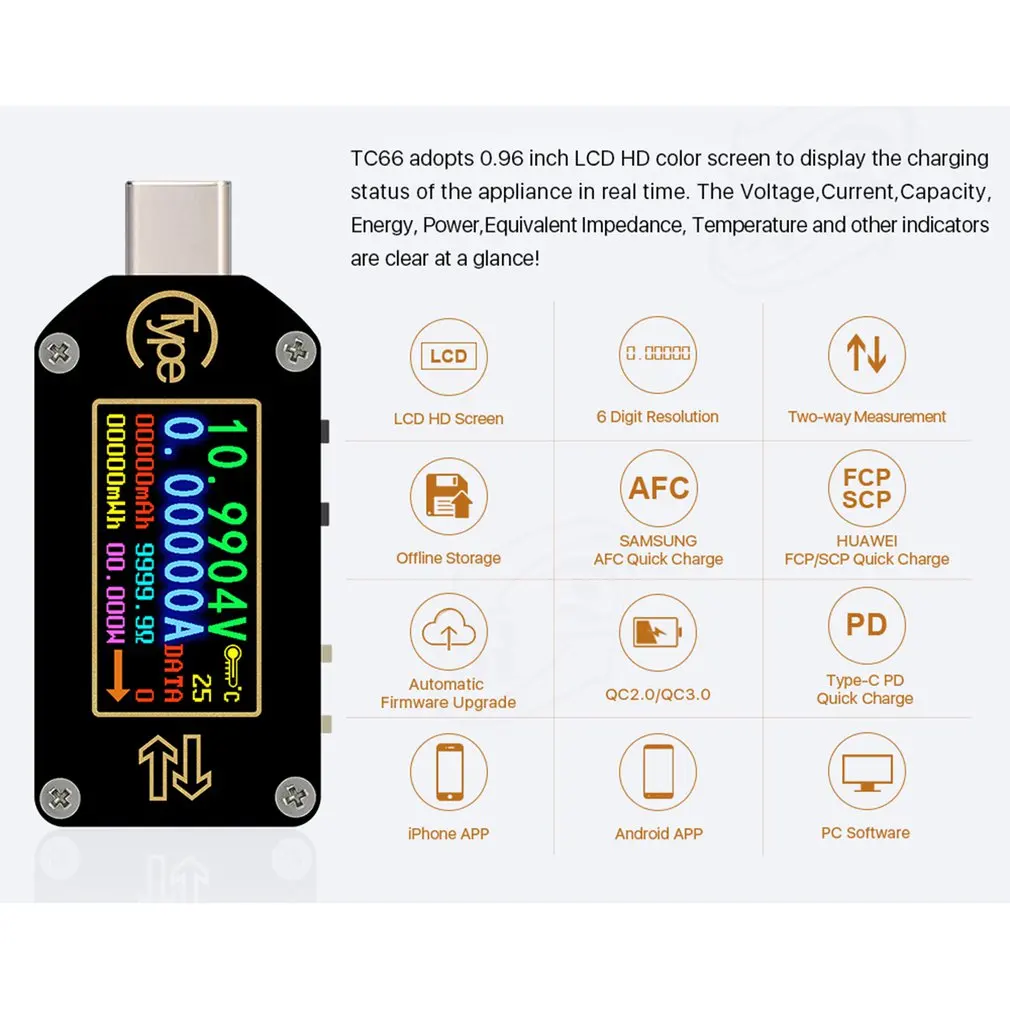

1.TC66C adopts 0.96 inch LCD HD color IPS screen to display the charging status of the appliance in real time.

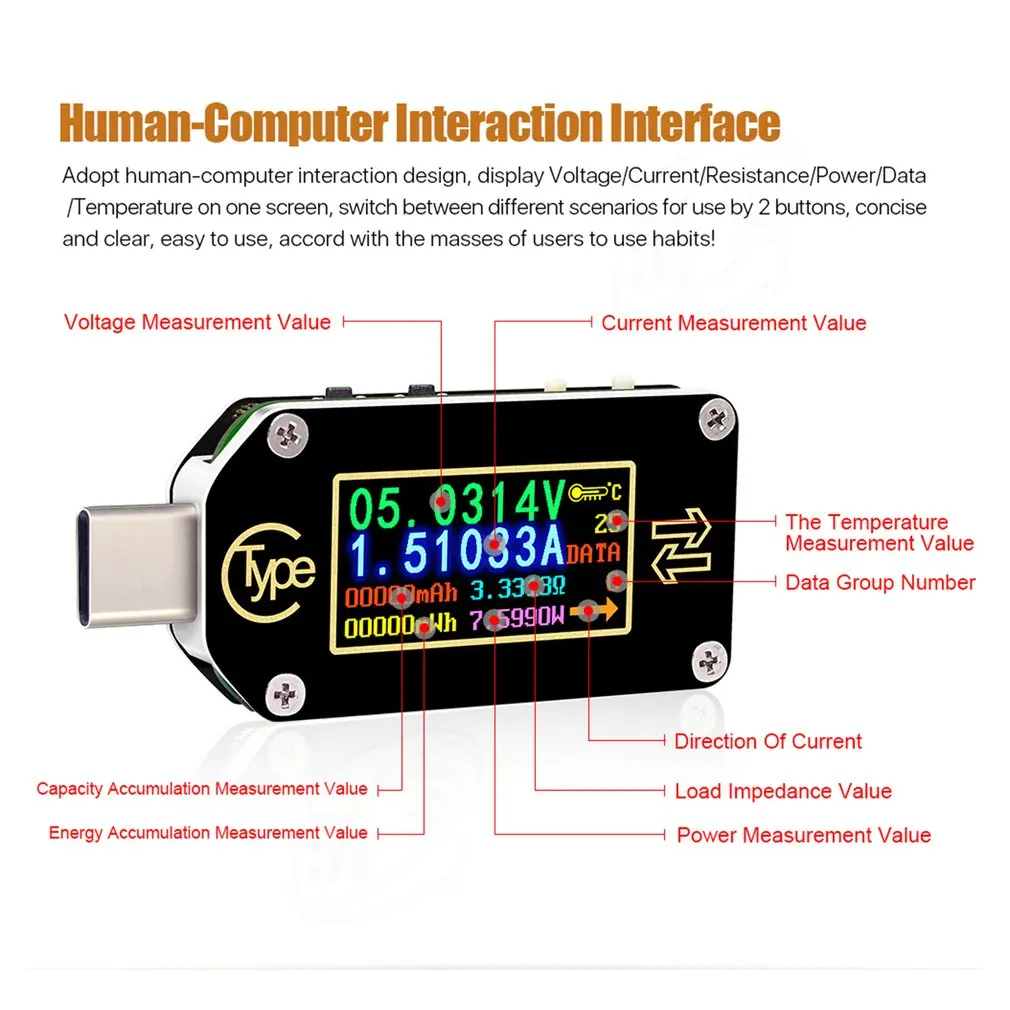

2.Human-Computer Interaction Interface. The voltage,current,capacity,energy, power,equivalent impedance, temperature and other indicators are clear at a glance.

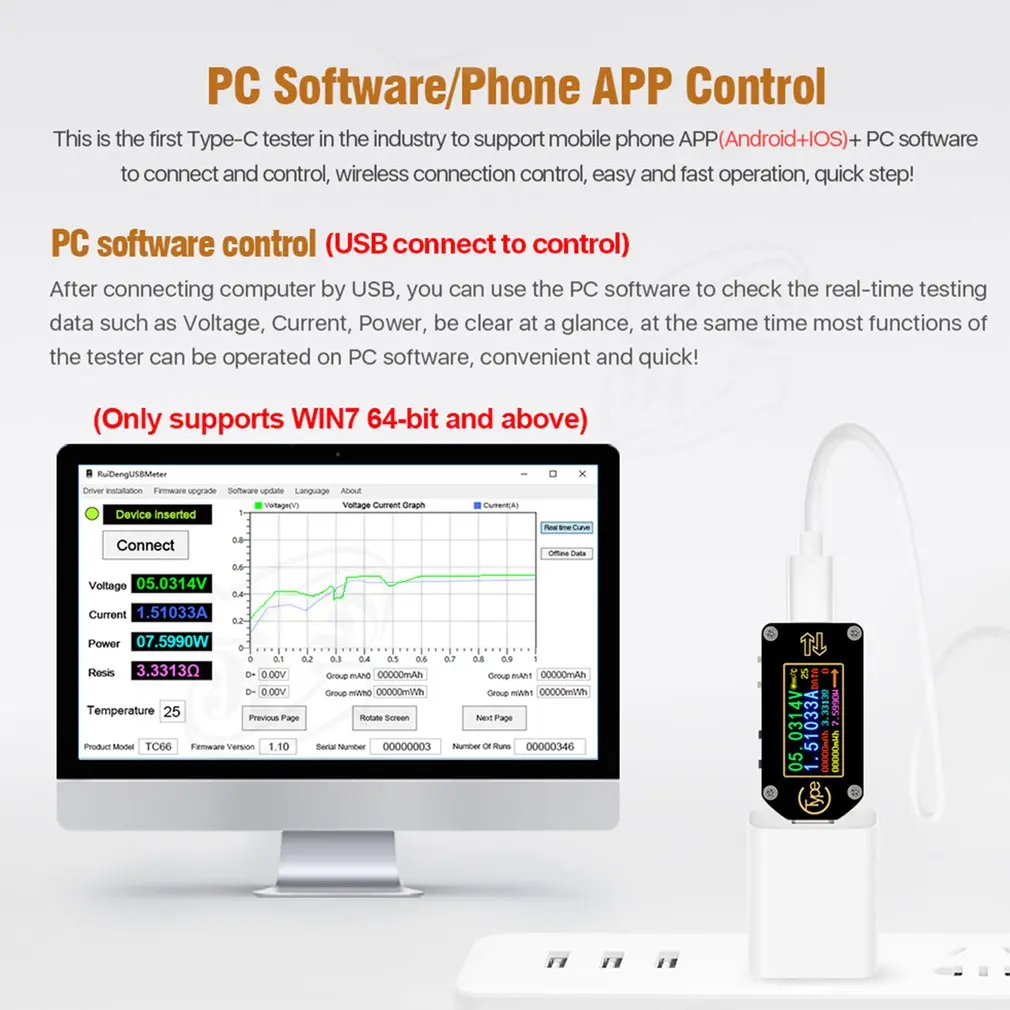

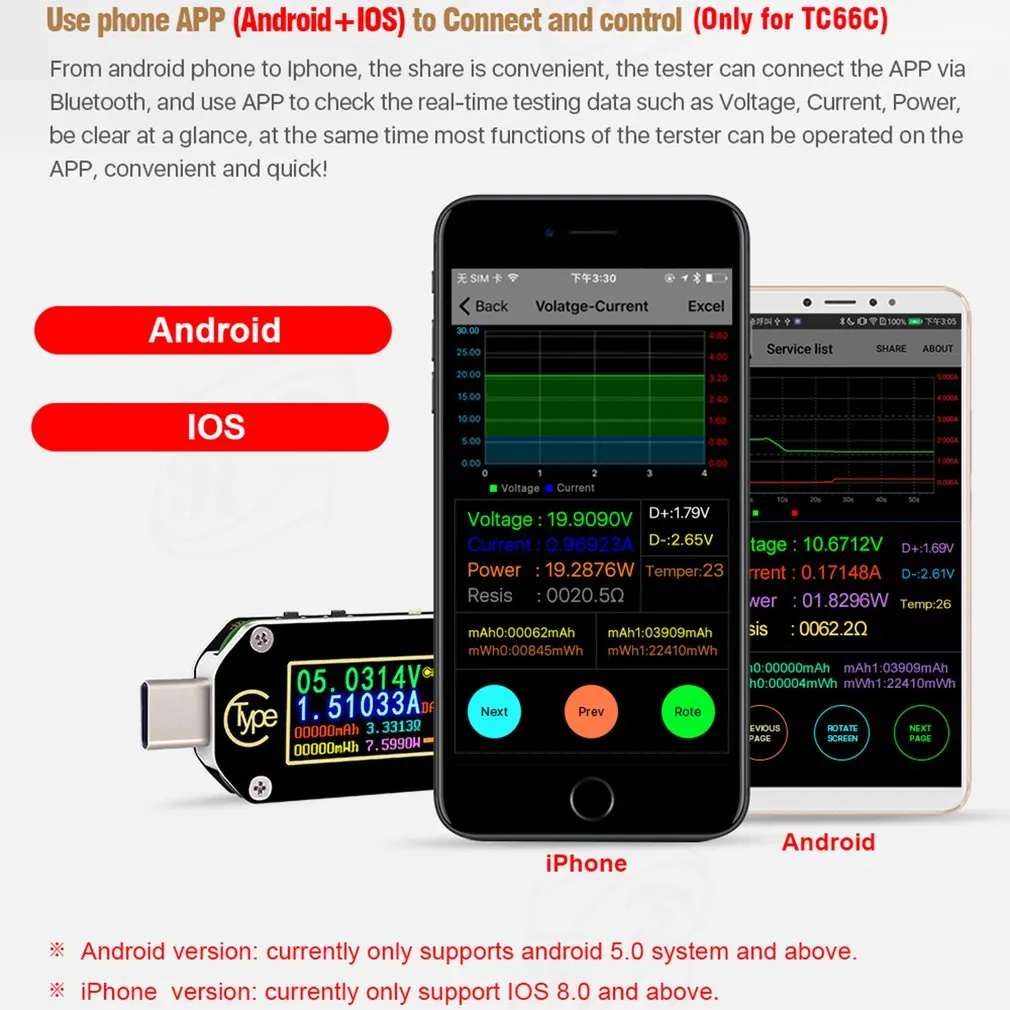

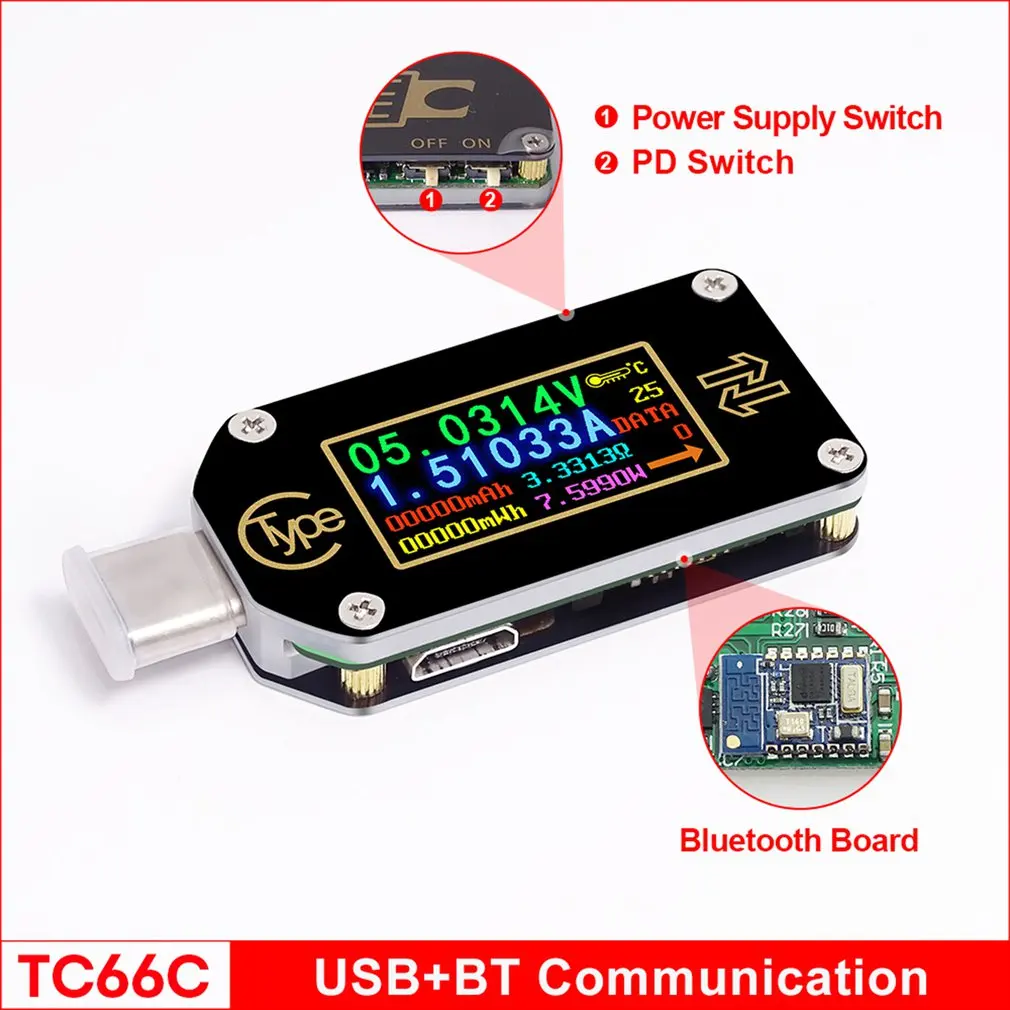

3.Support mobile phone APP(Android+IOS) and PC software to connect and control, wireless connection control(Only for TC66C).
Android version: currently only supports android 5.0 system and above.
IOS version: currently only support IOS 8.0 and above.

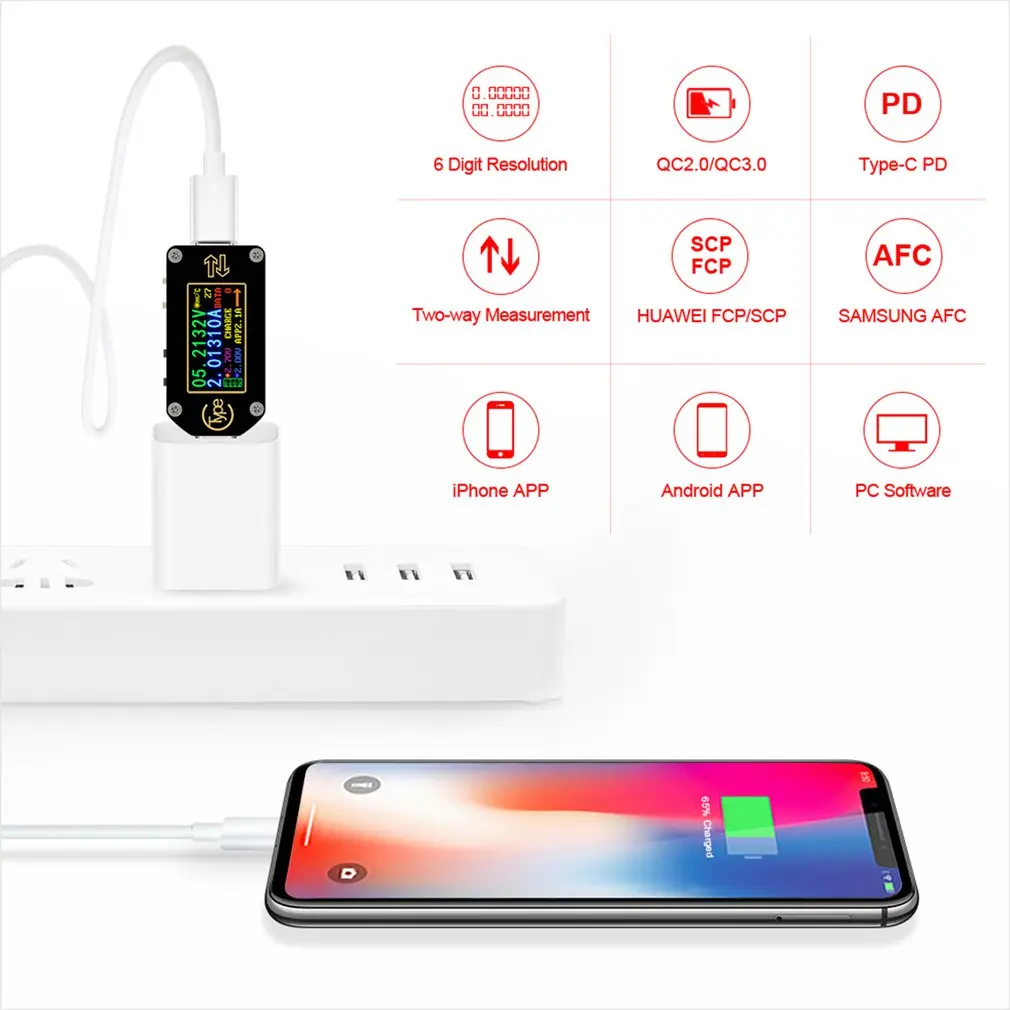

4.Fast load recognition mode: Support USB PD, QC2.0/3.0, Samsung AFC, Huawei FCP, Apple and other mainstream quick charge protocols, trigger 5V/9V/12V/20V and other quick charge voltage,making it convenient to test the performance of quick charge charger, data cables and other products.

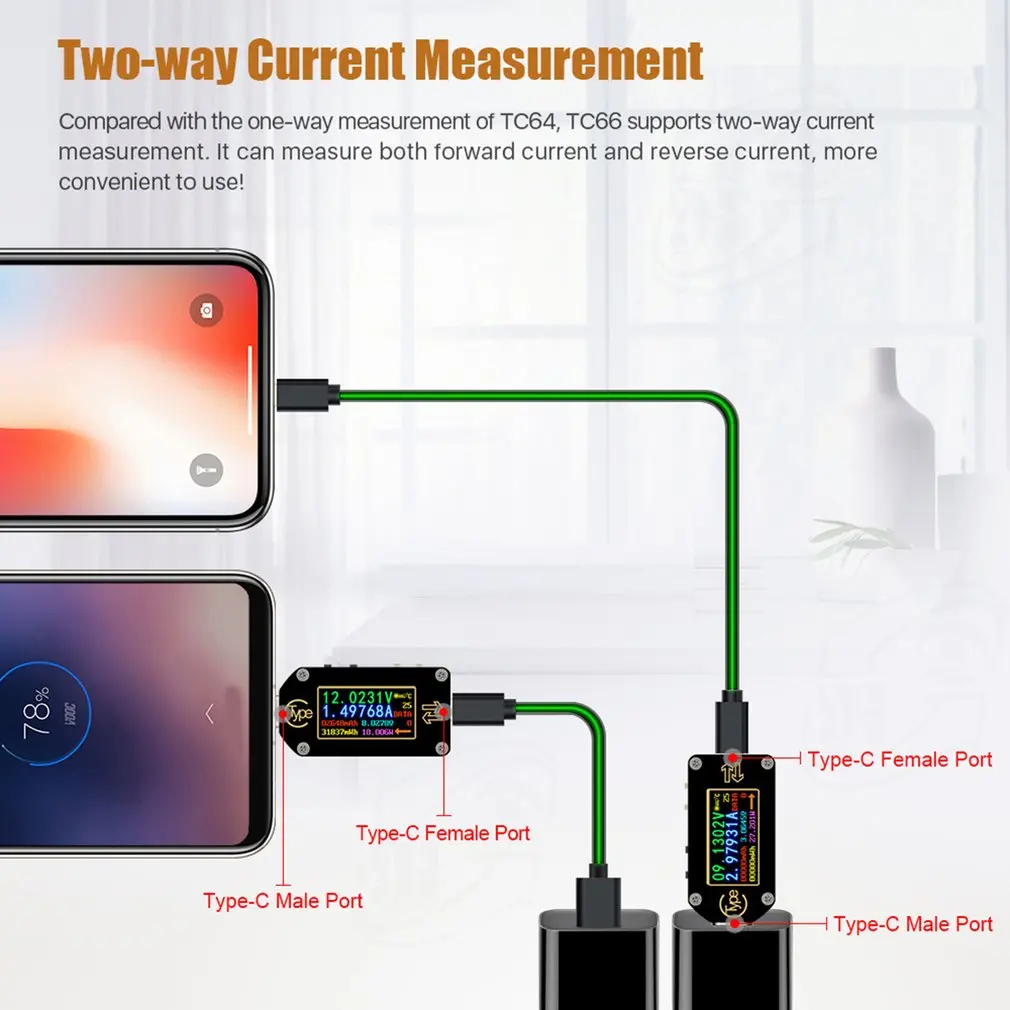

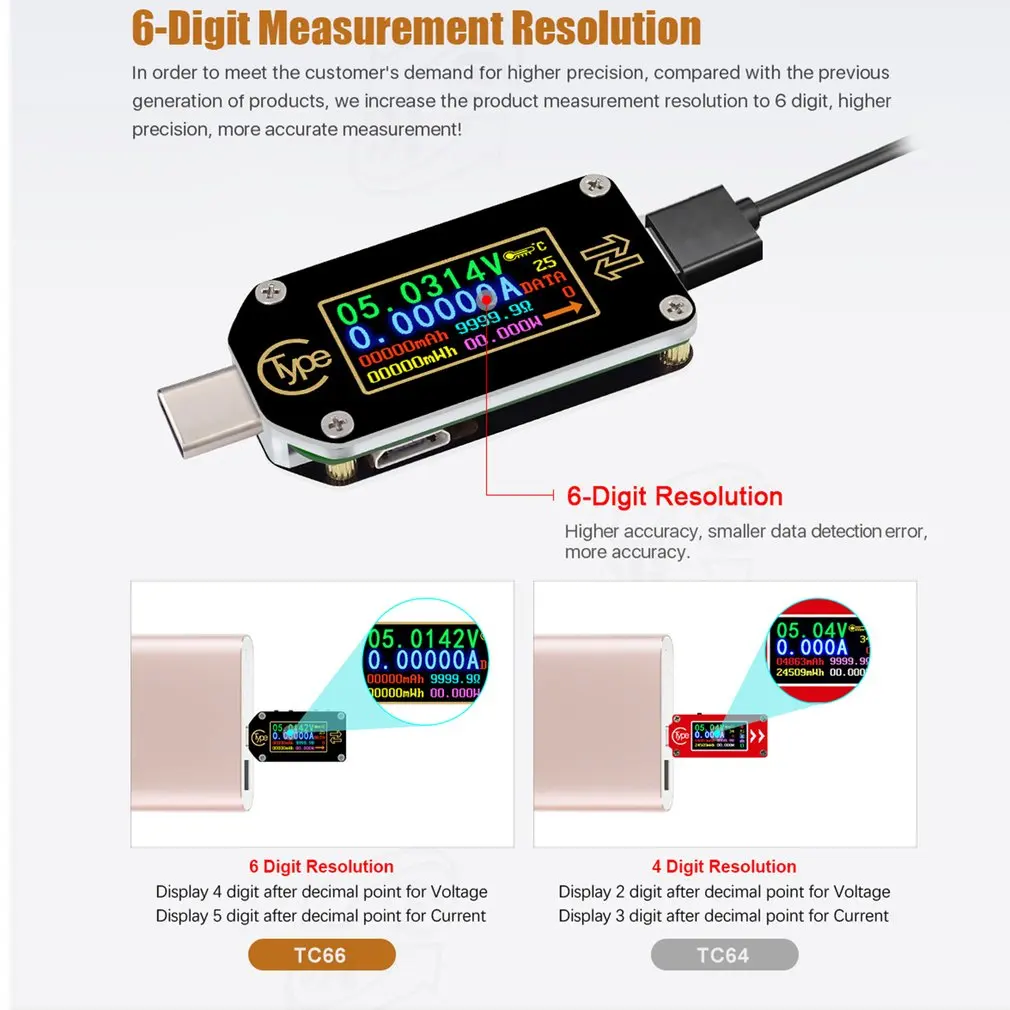

5.Supports Two-way current measurement, forward current and reverse current. 6-digit measurement resolution. Independent power supply, measurement from 0V, low voltage equipment detection necessary.

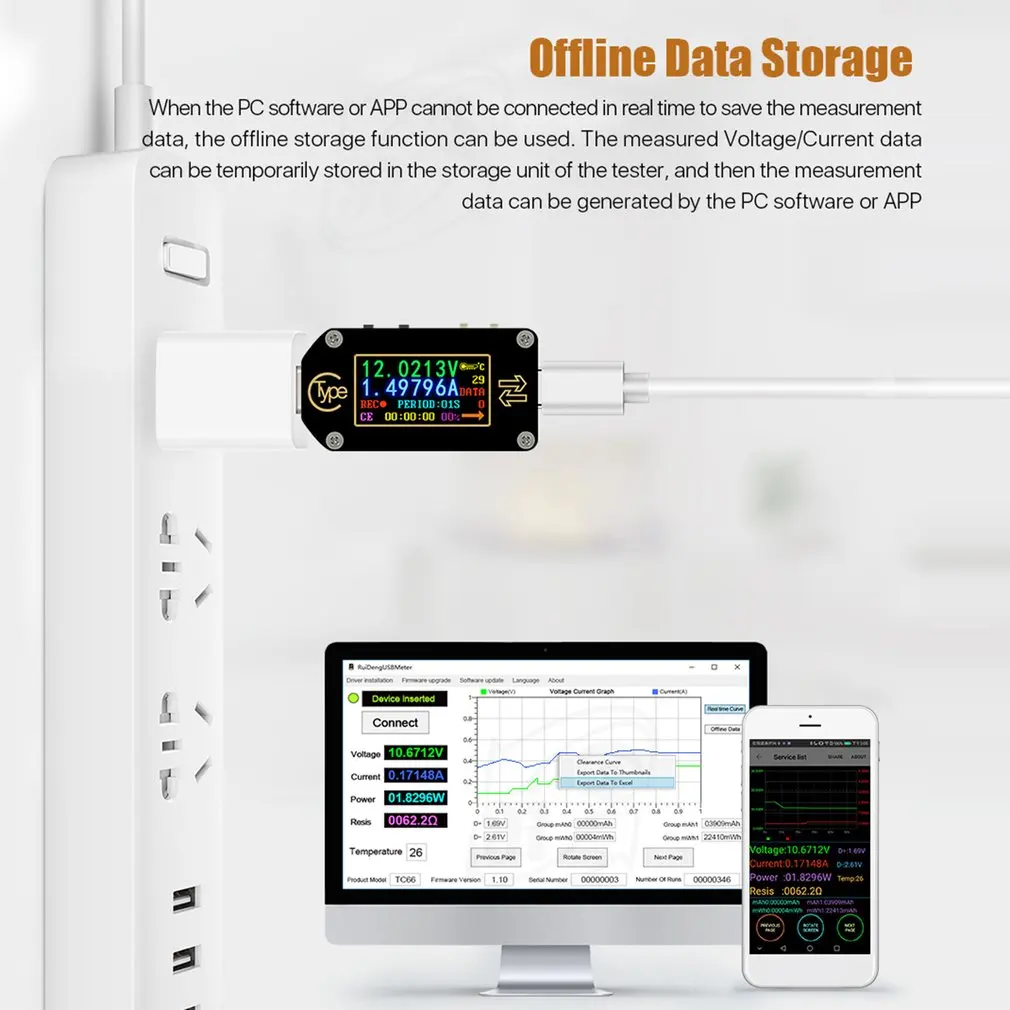

6.Offline Data Storage: When the PC software or APP cannot be connected in real time to save the measurement data, the offline storage function can be used. The measured Voltage/Current data can be temporarily stored in the storage unit of the tester, and then the measurement data can be generated by the PC software or APP.
Descriptions:

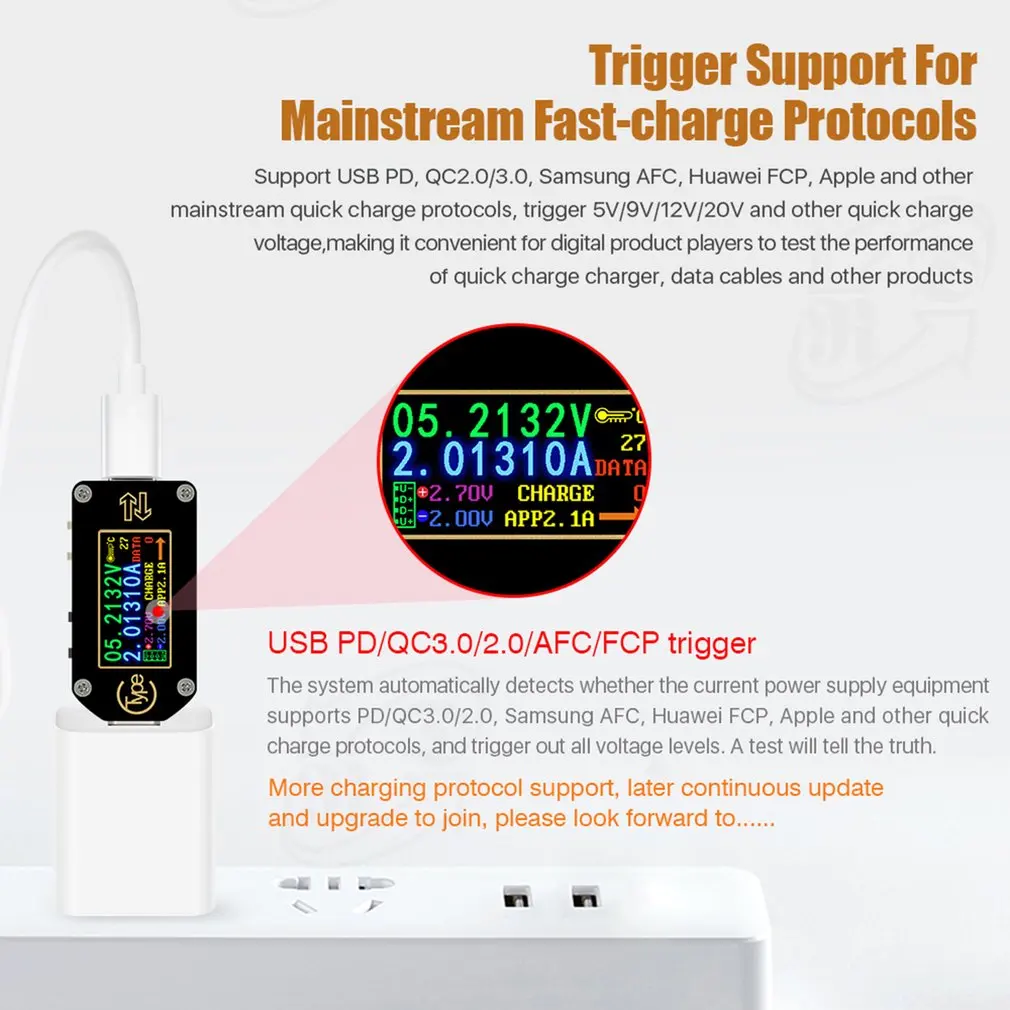

1.Trigger Support For Mainstream Fast-charge Protocols, Support for USB PD, QC2.0/3.0, Samsung AFC, Huawei FCP, Apple and othermainstream quick charge protocols, trigger 5V/9V/12V/20V and other quick charge voltage, making it convenient for digital product players to test the performance of quick charge charger,data cables and other products.

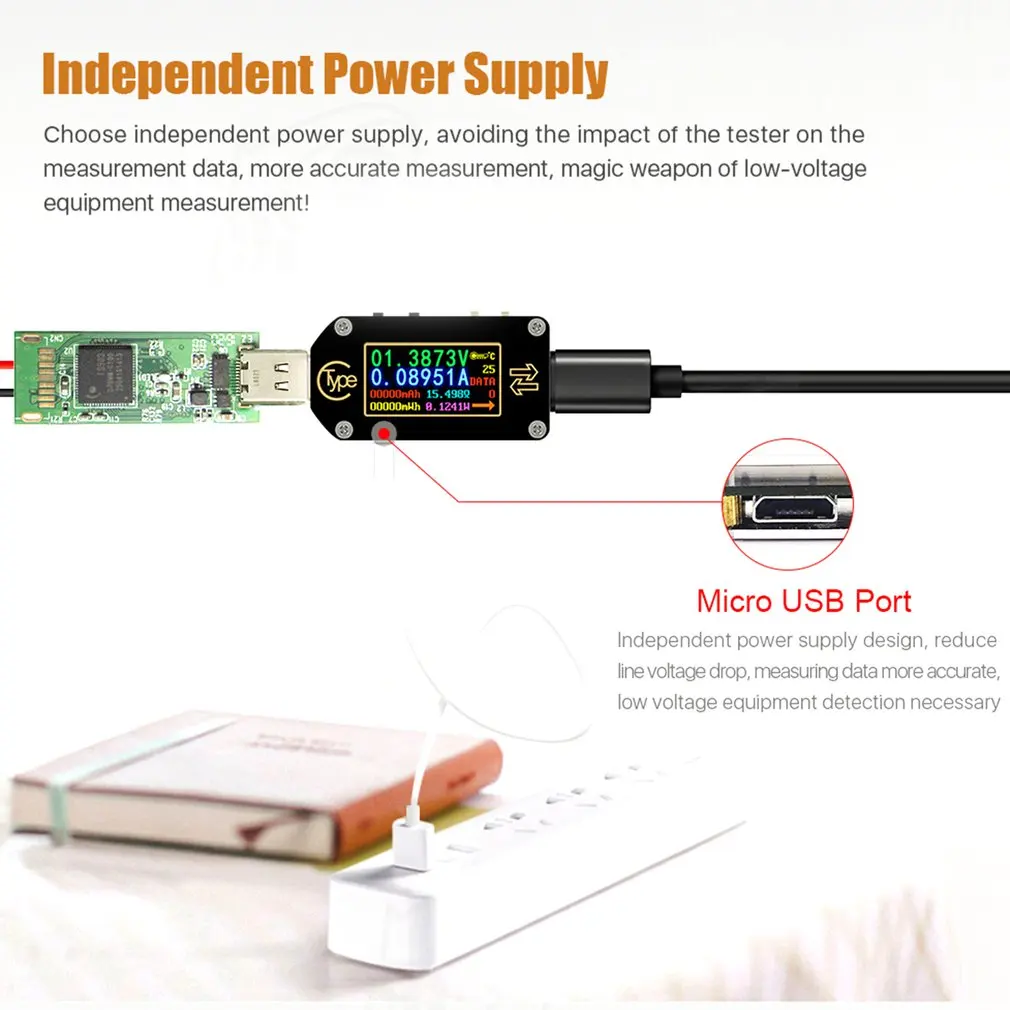

2.Independent Power Supply,avoiding the impact of the tester on the measurement data, more accurate measurement, magic weapon of low-voltage equipment measurement.

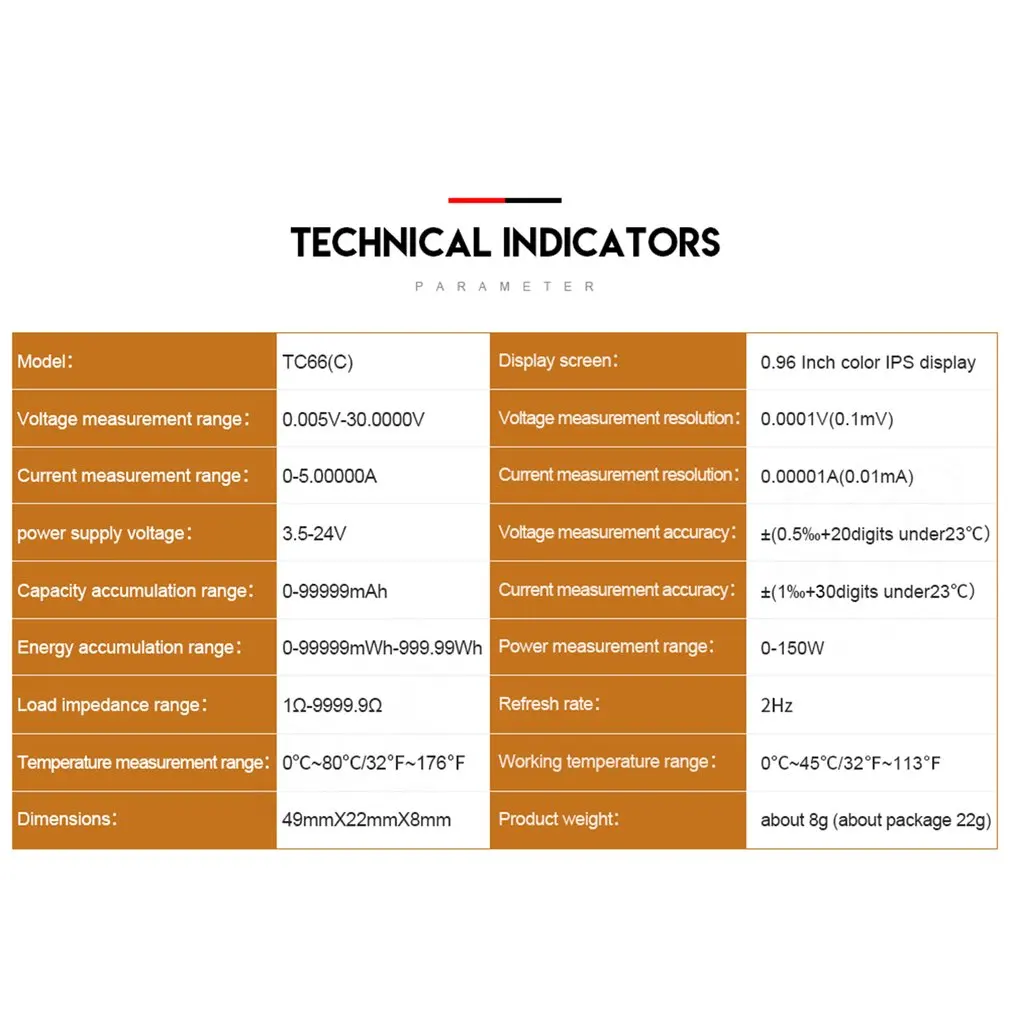

Specifications:

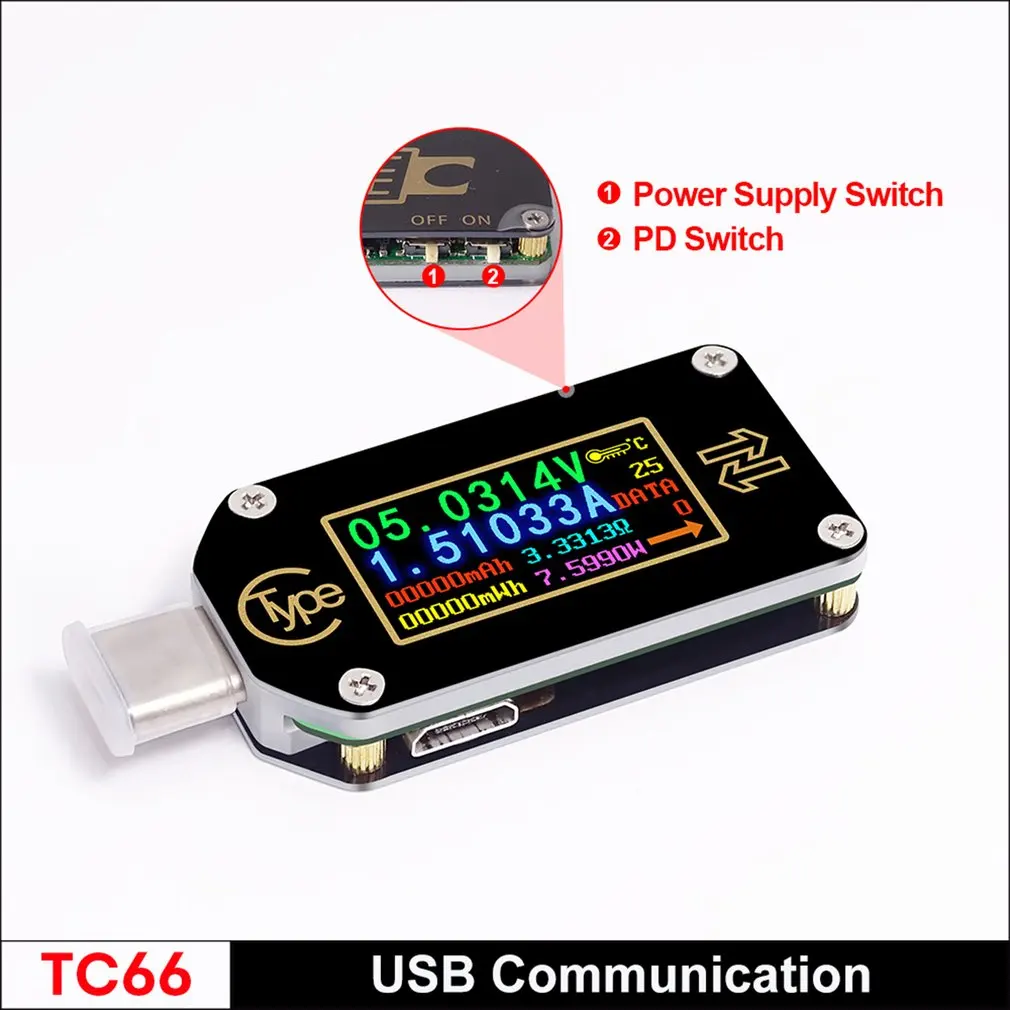

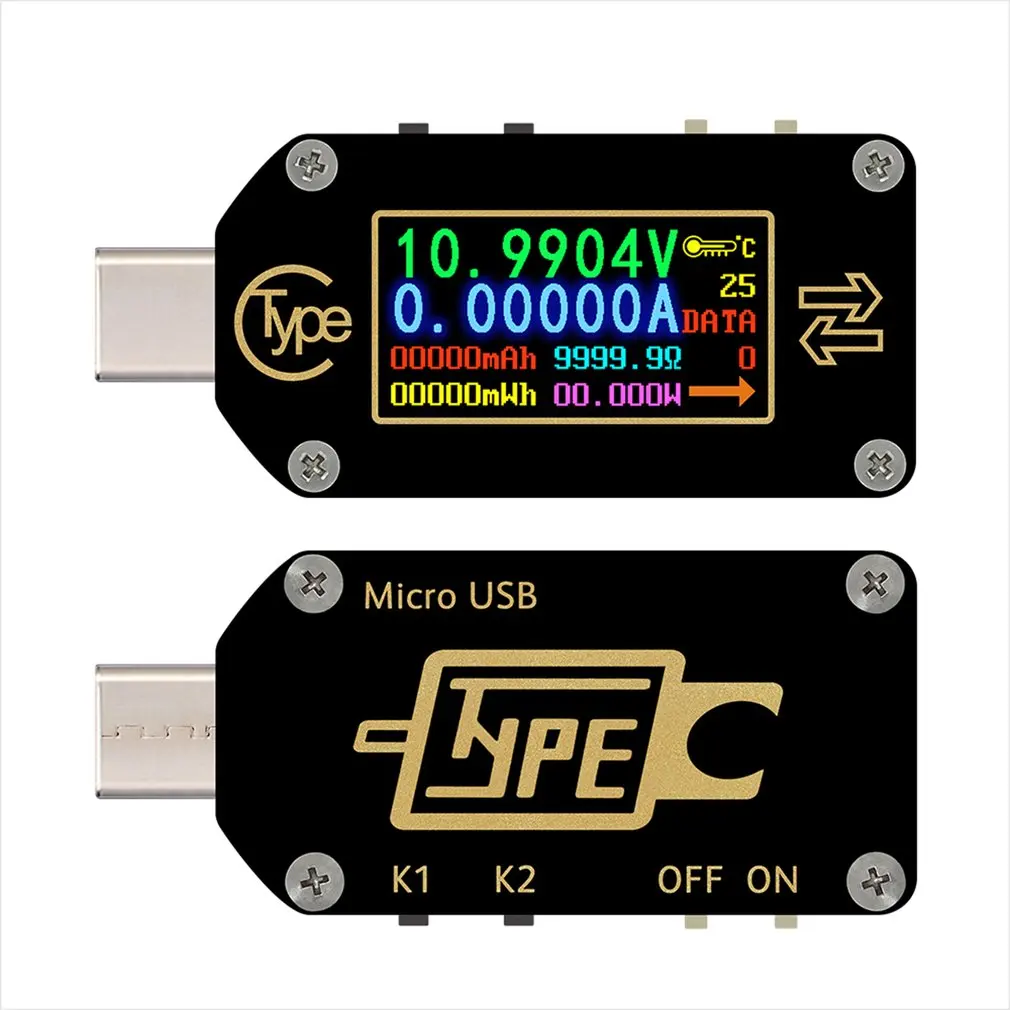

Model: TC66C
Display scree:0.96 Inch color display
Screen Resolution: 160x80
Voltage measurement range:0.005V-30.0000V
Voltage measurement resolution: 0.0001V(0.1mV)
Current measurement range: 0-5.00000A
Current measurement resolution:0.00001A(0.01mA)
Supply voltage:3.5-24V
Capacity accumulation range:0-99999mAh
Voltage measurement accuracy:±(0.5‰+20digits at 23℃)
Energy accumulation range: 0-99999mWh 999.99Wh
Current measurement accuracy: ±(1‰+30 digits, at 23℃)
Load impedance range: 1Ω-9999.9Ω
Power measurement range:0-150W
Temperature measurement range: 0℃~80℃/32℉~176℉
Refresh rate:2Hz
Working temperature range: 0~45℃/32℉~113℉
Screen auto off time: 0-9mins
Quick charge recognition mode：QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUN

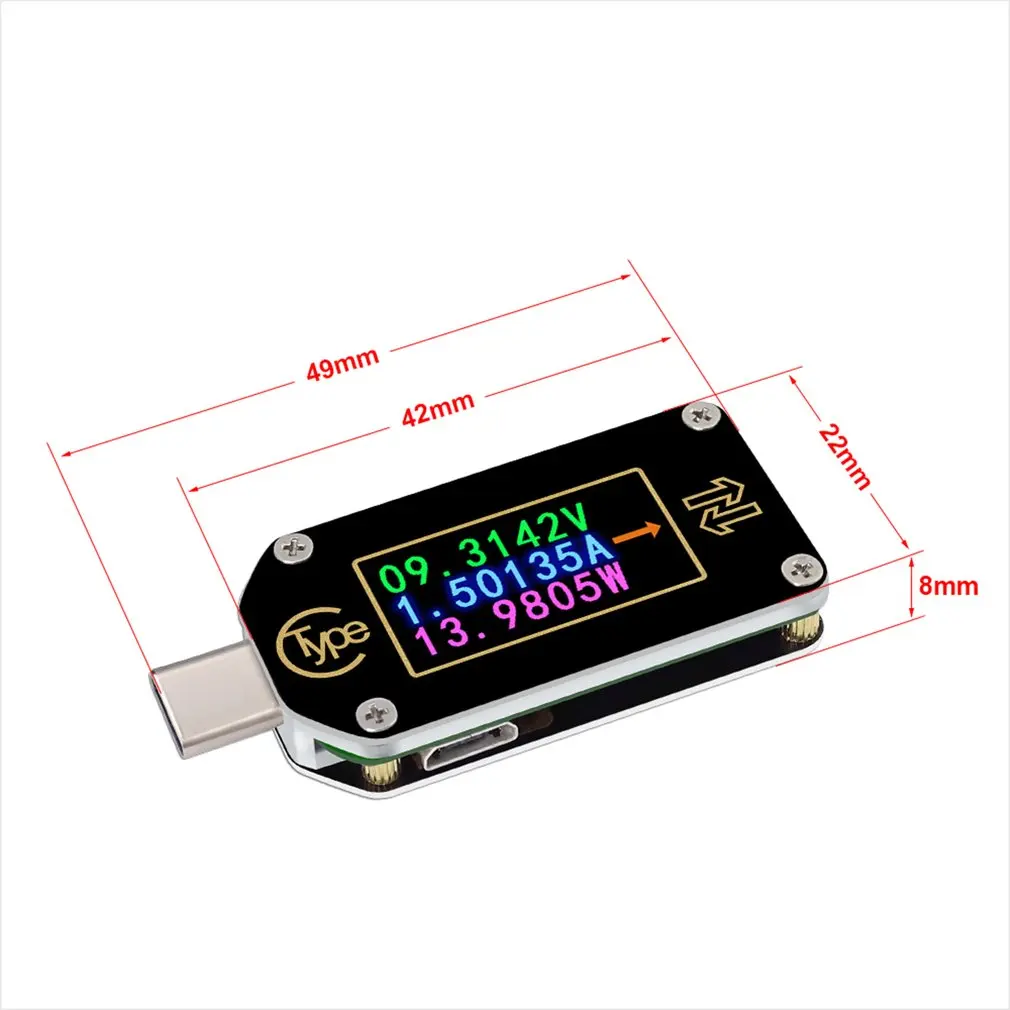

Size:49x22x8mm/1.91x0.86x0.31in
Product weight:about 8g/0.28oz

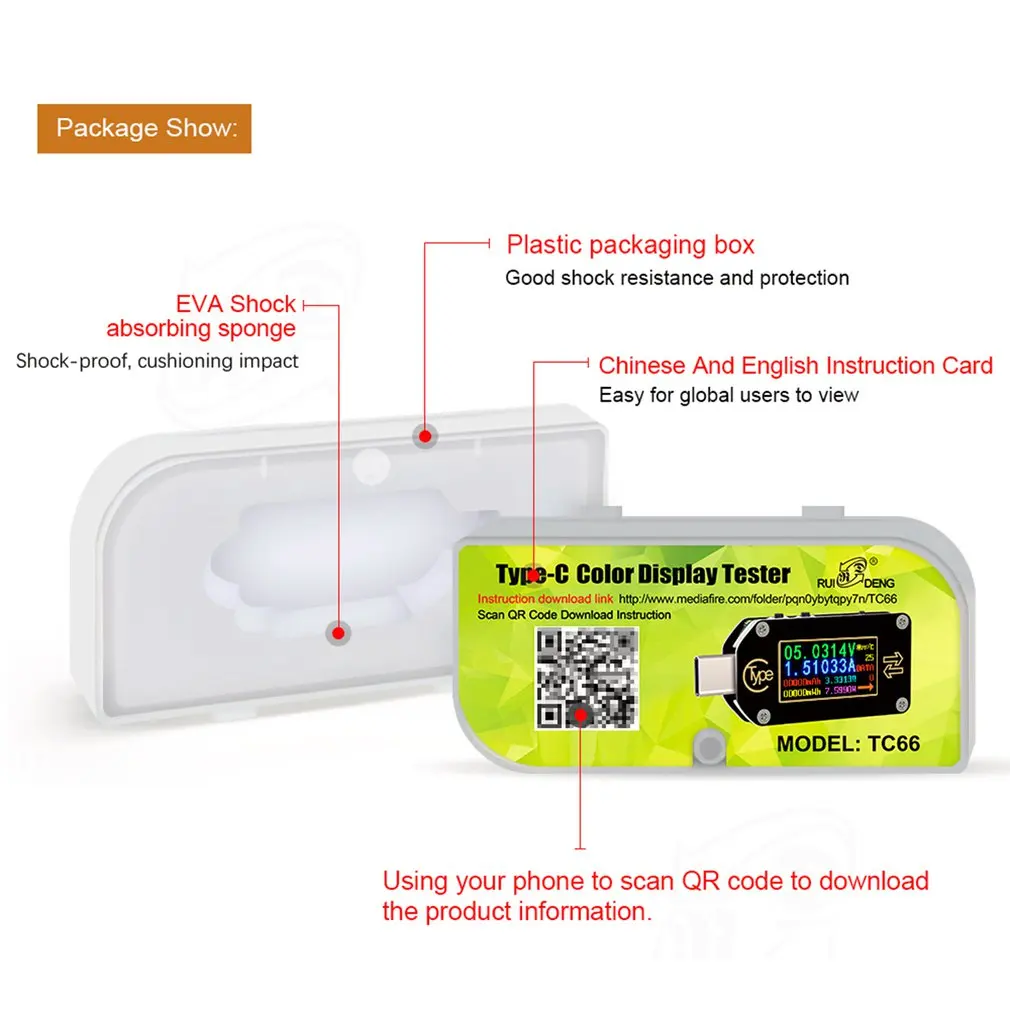

Package informations:
Package Size:70x30x20mm/2.73x1.17x0.78in
Package weight:20g/0.7oz

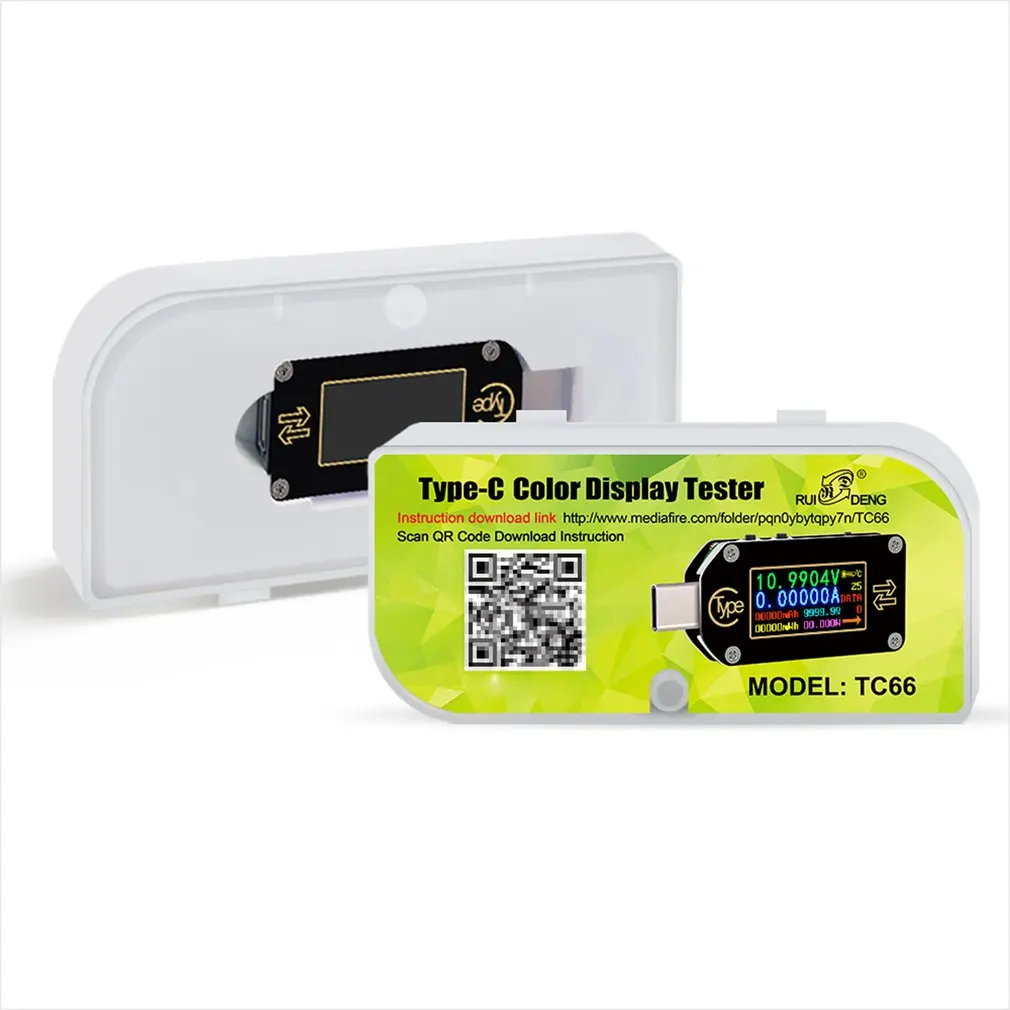

General Box Package
Package included:
1 x TC66C Type-C Tester
Note:
1.Due to lighting effects, monitor's brightness , contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item.
2.Please allow 1-2mm differs due to manual measurement, thanks.![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
