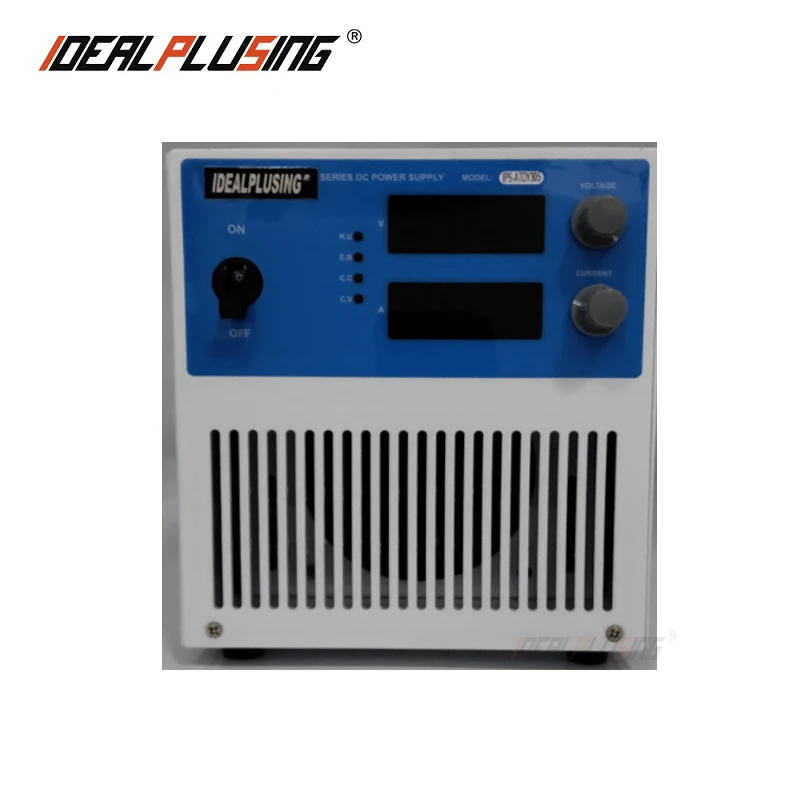

1500W Switching Power Supply Adjustable 200V 7.5A 250V 6A 300V 5A 600V 2.5A AC to DC LED Dispaly Power converter Module

Part 1: INTRODUCTIOLN

1

Advanced switching mode power supply technology and components, excellent design, small volume, lightweight, high efficiency, which ensures the stability and reliability of long-term full-load operation.

2

Max Output: 200V, 7.5A,max power: 1500W.

3

Constant voltage value and constant current value can be continuously adjustable within the range 0~100%

4

Digital display output voltage and output current

5

Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; start-up delay soft starting can avoid the overshoot voltage when startup.

6

Simple operation, convenient use

7

Store temperature: (-40~70)℃, Working temperature: (-20~50)℃

8

Relative humidity: 90% (40±2℃), atmospheric pressure (70-106)kPa

Model

IPS-ATDY2007.5

AC Input

1 phase 220VAC

Input Voltage Range

220VAC±15%

Input frequency

50Hz/60Hz

Output voltage

0~200VDC

Output current

0.1~7.5A

Output Power

1500W

Voltage Stabilization

≤0.3%+10mV

Load Stabilization

≤0.5%+30mV

Ripples and Noises

≤0.5%+10mVrms

Voltage Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Display Format

0.000V-9.999V;  0.00V-99.99V;  0.0V-999.9V

Current Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Remote Adjustment

(Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC

Remote Display

(Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC

Output Over Voltage Protection

Built-in O.V.P. protection, protection limited value is rated +5%

Output Over Load Protection

Overload, current limit, constant current output

Over Temperature Protection

Built-in O.T.P. protection, Protection value 85℃±5%heat sink temperature

Voltage Setting

10-turn precision potentiometer

Current Setting

10-turn precision potentiometer

Output Polarity

Output Positive(+) negative(- ) Can be grounded at will

Heat Dissipation Way

Forced fan cooling

Work Conditions

Indoor use design,Temperature:0℃~40℃; Humidity: 10%~85%RH

Storage Conditions

Temperature:-20℃~70℃;Humidity: 10%~90%RH

Machine Dimension

L150W350*H160(MM)

Net/Gross Weight

7KG/9KG

PART 3: APPLICATION

No.

Application

Detail range

#1

DC System

Sewage treatment system

#2

Laboratory

Laboratory research and development

#3

Charge Battery

All kind of Lead acid battery / lithium battery

#4

Motor Fields

Electric Vehicle Motor, Electric Vehicle Controller, DC Motor Test

#5

Electrical Appliance

LED Test&Aging, Energy Saving Bulb Test&Aging, Lamp Test, Tungsten Wire Gasification

#6

Electronic Devices

Capacitors, Resistors, Relays, Transistors, Sensors

#7

Electrochemistry

Electrolysis, Electroplating, Nonferrous Metal Research

#1

Before connecting with loads, please preset the needed output voltage, or check the output voltage is suitable or not, or adjust the voltage potentiometer and current potentiometer to a minimum.

#2

Please connect with loads when POWER OFF. Then turn Power ON. Turn the Voltage potentiometer, a current potentiometer to a minimum at first. After the power supply machine works steadily, then adjust the needed output voltage which can avoid the overshoot voltage to damage the load's equipment.

#3

In-running status, you can adjust the voltage potentiometer, a current potentiometer to change the output voltage and output current as you need.

#4

Internal fan is temperature-control, only when high temperature, the fan will work when low temperature the fan will stop.

#5

Internal radiating wind hole: left-in and right-out, please make sure there is no barrier in the left and right wind hole.

Q2. What about the lead time?

A: Most of the model in the stock, sample lead time after receive payment 1-3 working days

Q3. Do you have any MOQ limit?

A: Low MOQ, 5 pieces for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange production.

Q6. Is it acceptable to print the buyer logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: How to deal with the flaw?

A: Our products are produced in a strict quality control system and the percent of pass is often maintained over 99.8%.

Q8: Do you offer a guarantee for the products?

A: Yes, we offer a 1-year warranty for all power supply.

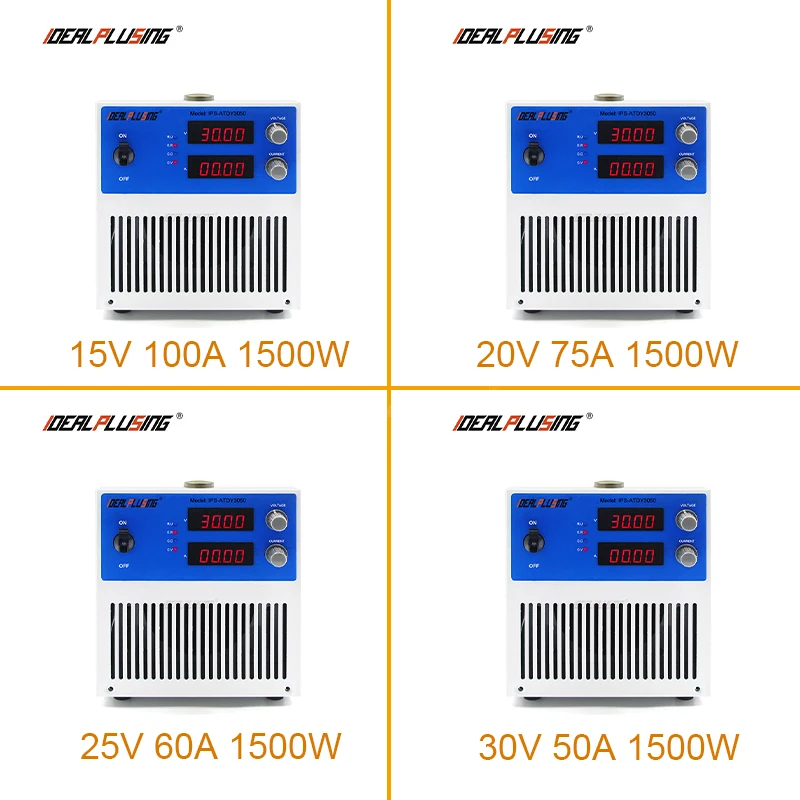

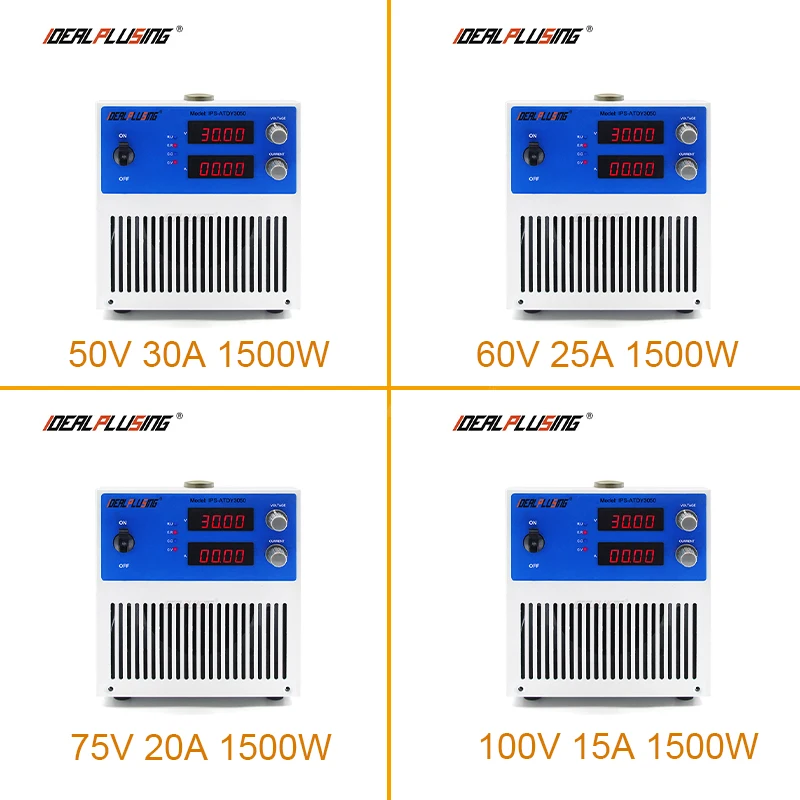

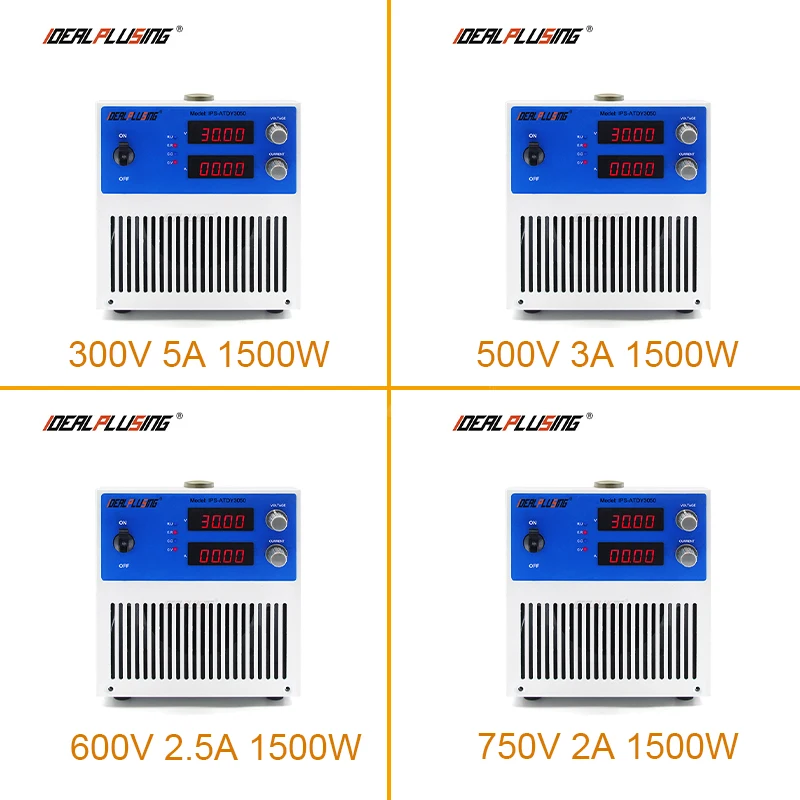

MODEL

OUTPUT VOLTAGE

OUTPUT CURRENT

OUTPUT POWER

IPS-ATDY15100

15VDC

100A

1500W

IPS-ATDY2075

20VDC

75A

1500W

IPS-ATDY2560

25VDC

60A

1500W

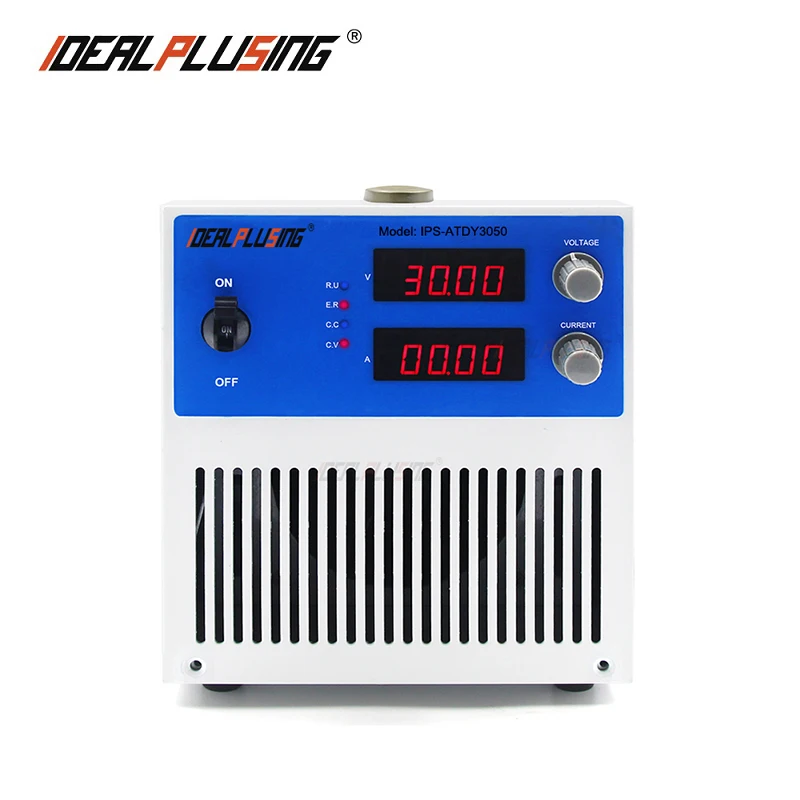

IPS-ATDY3050

30VDC

50A

1500W

IPS-ATDY5030

50VDC

30A

1500W

IPS-ATDY6025

60VDC

25A

1500W

IPS-ATDY7520

75VDC

20A

1500W

IPS-ATDY10015

100VDC

15A

1500W

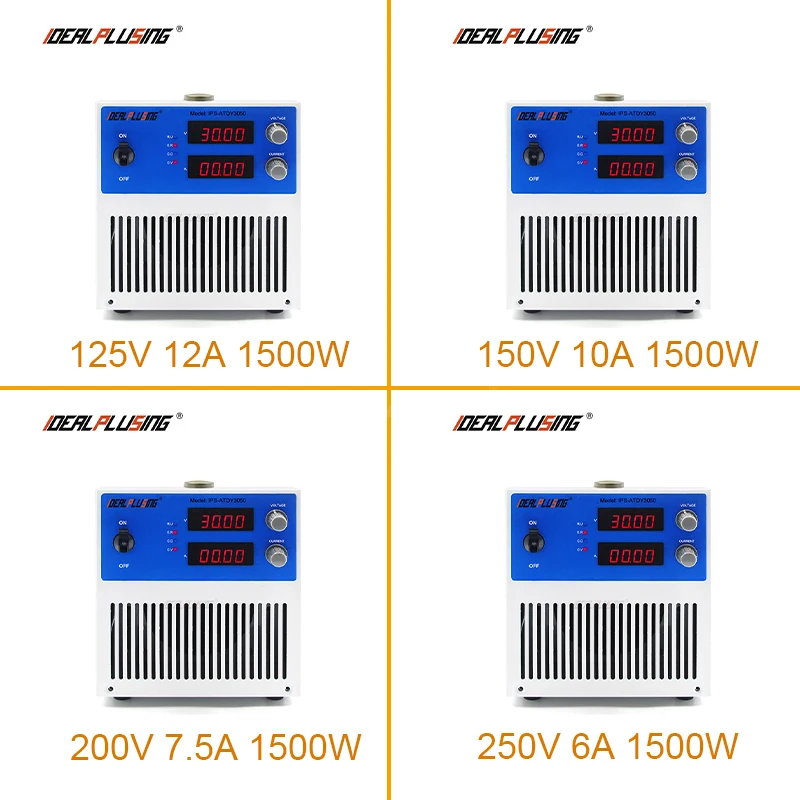

IPS-ATDY12512

125VDC

12A

1500W

IPS-ATDY15010

150VDC

10A

1500W

IPS-ATDY2007.5

200VDC

7.5A

1500W

IPS-ATDY2506

250VDC

6A

1500W

IPS-ATDY3005

300VDC

5A

1500W

IPS-ATDY5003

500VDC

3A

1500W

IPS-ATDY6002.5

600VDC

2.5A

1500W

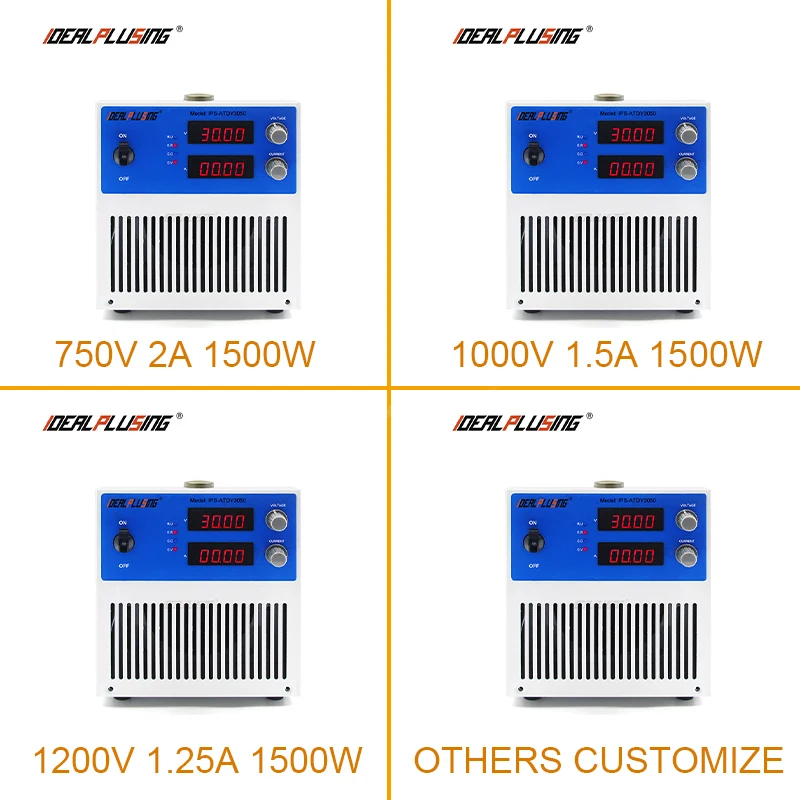

IPS-ATDY7502

750VDC

2A

1500W

IPS-ATDY10001.5

1000VDC

1.5A

1500W
