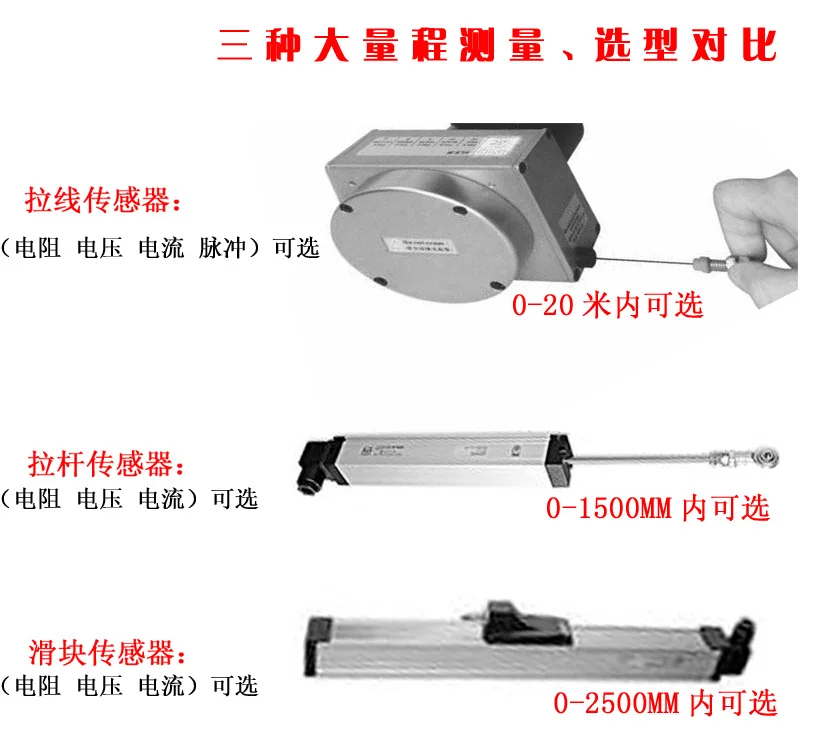

If the travel is required to be long, you can directly select from the following three models：

working principle

BOSOSeries displacement sensor[BOSOPull wire displacement sensor(BOSOPull rope displacement sensor)]Convert mechanical displacement into measurable、Linearly proportional electrical signal。When the measured object is displaced，Pull the steel rope connected to it，The steel rope drives the sensor transmission mechanism and the sensor element to rotate synchronously；When the displacement moves in the opposite direction，The swing device inside the sensor will automatically retract the rope，And keep the tension constant during the extension and retraction of the rope，Thus, an electrical signal proportional to the amount of rope movement is output。The sensor wire rope is arranged automatically and evenly、Ensure high independent linear accuracy and long sensor service life。

main features

BOSOSeries sensor[BOSOPull wire displacement sensor(BOSOPull rope displacement sensor)]The design is precise and reasonable，High precision sensing elements are used，The sensor has a small volume，Easy to use，Good sealing，High measurement accuracy，temperatureSmall degree error，Long service life and other advantages。The sensor is not only suitable for measuring the displacement of mechanical objects moving in a straight line，It is more suitable for the displacement measurement of mechanical objects moving in a curve。

application area ：

It has a wide range of applications,haveStage screen,injection molding machine,Bottle blowing machine,hydraulic press,Shoe machine,Rubber machine,Tire vulcanizing machine,calender,Hardware machinery(Monitor the thickness change and balance of abrasive tools),Leather machinery，tbm ，Long stroke pipe drill，Spring machinery，Woodworking machinery，Plate equipment，Printing machinery，manipulator，Automatic Door，Cutting bed，Elevator leveling control，elevator，Sluice opening，Reservoir water level，Driving，Engineering vehicle，Gantry crane，Port equipment，Coal equipment，Water treatment level，Storage equipment，Address monitoringetc.，Sensors play an important role in the industrial field。

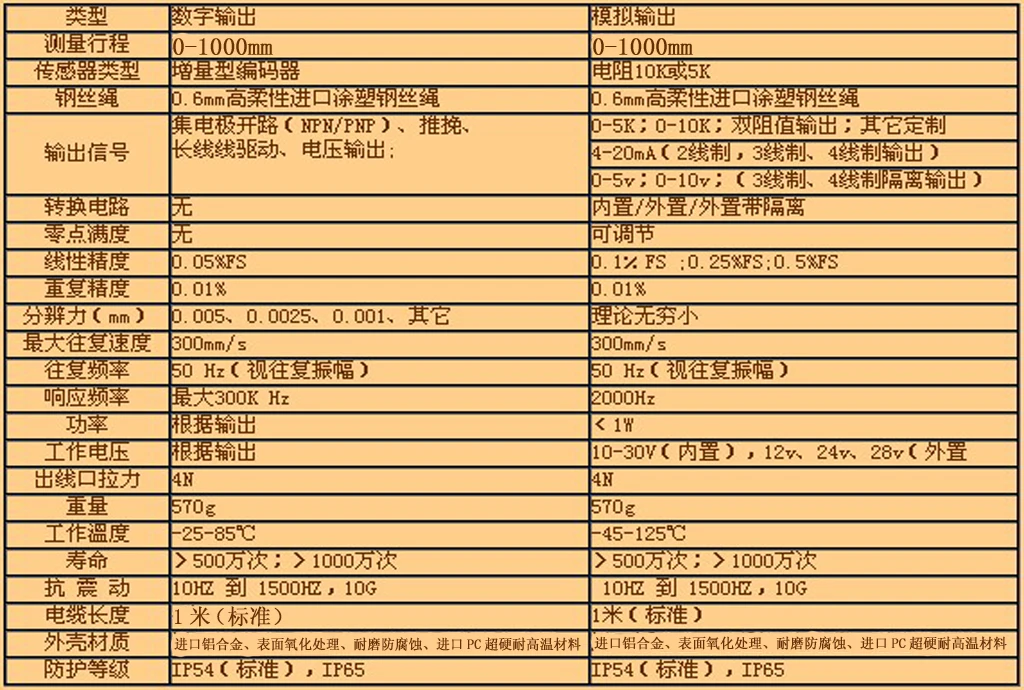

technical parameter：

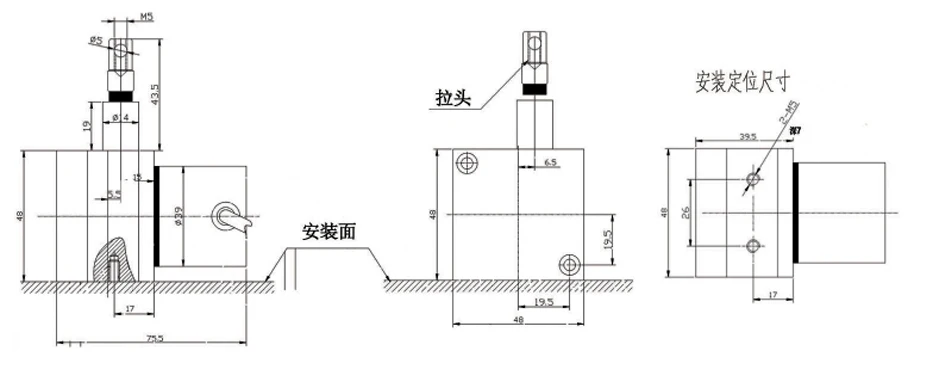

Mounting dimensions：

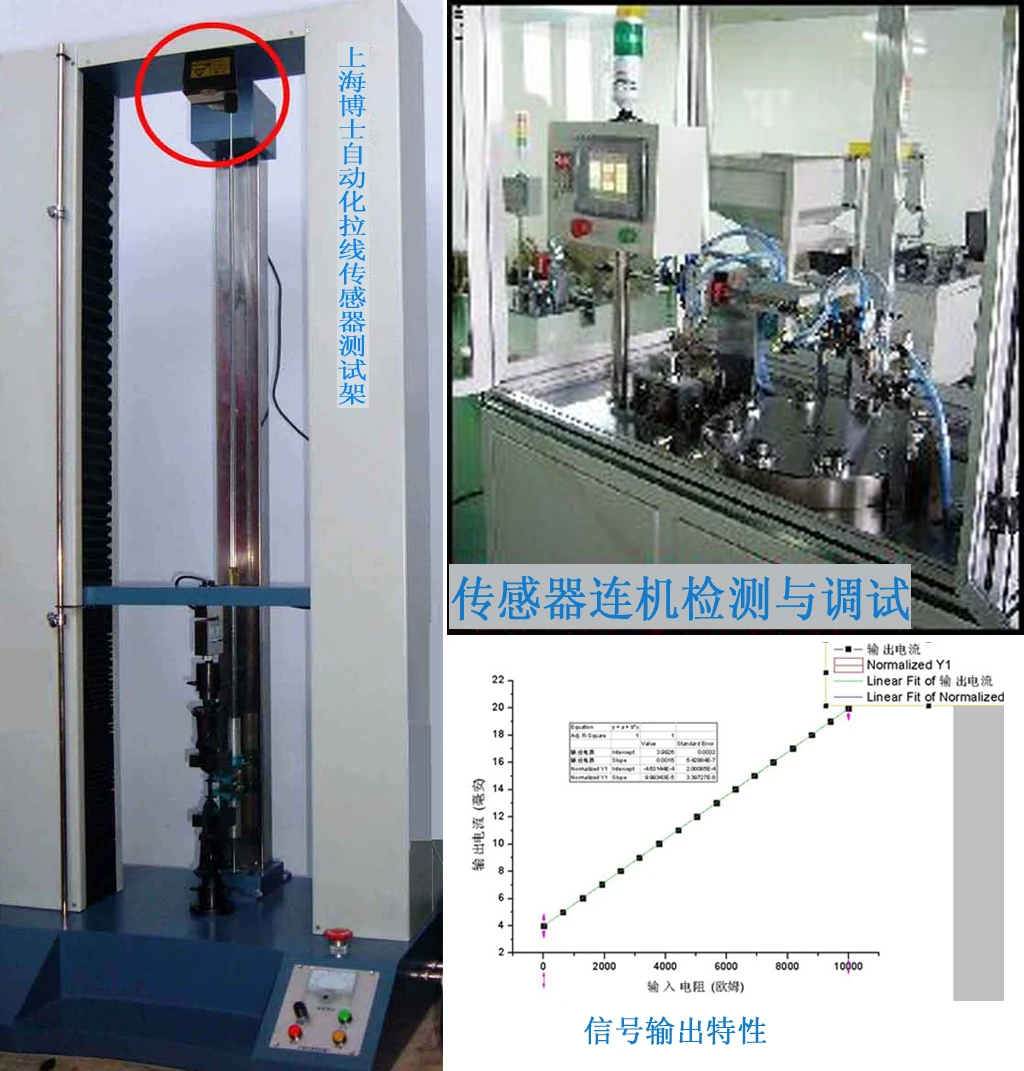

Sensor finished product delivery test bench：

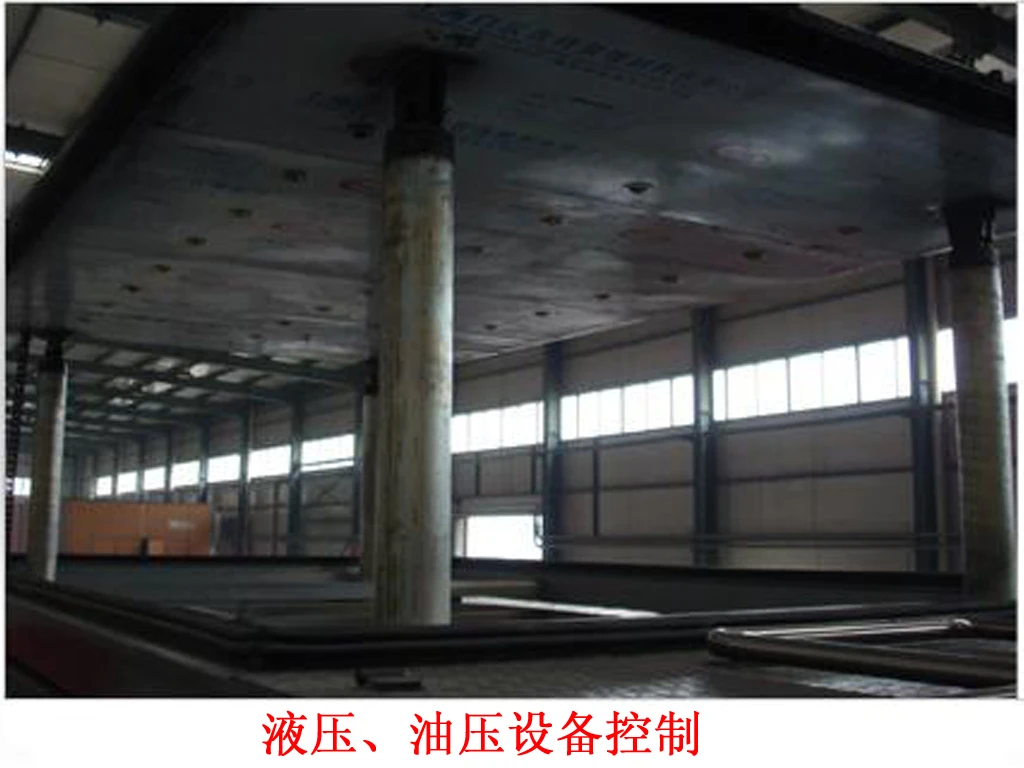

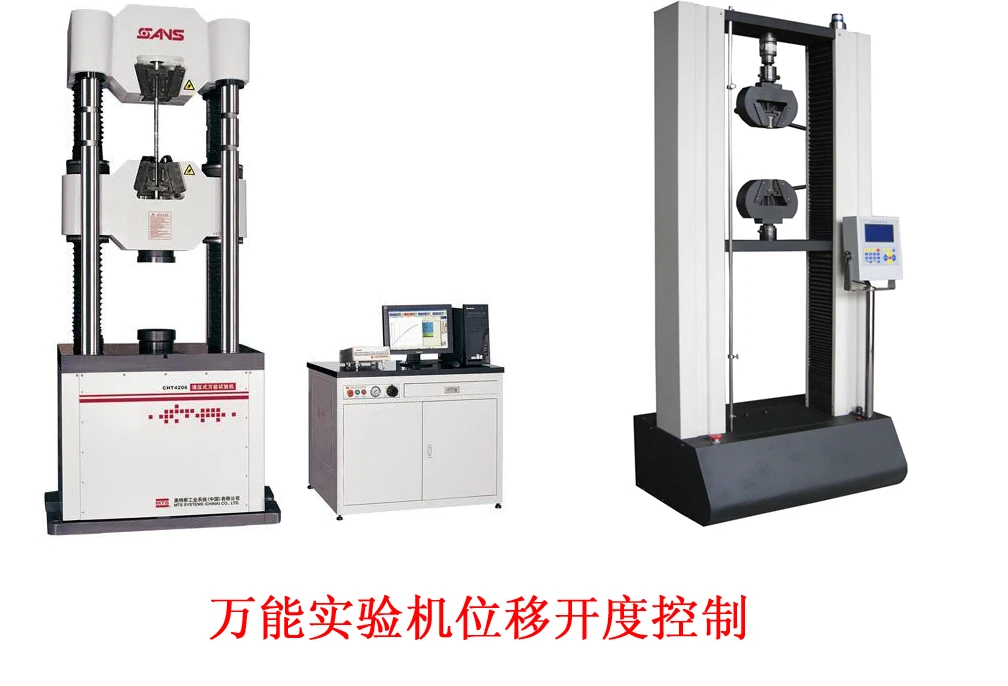

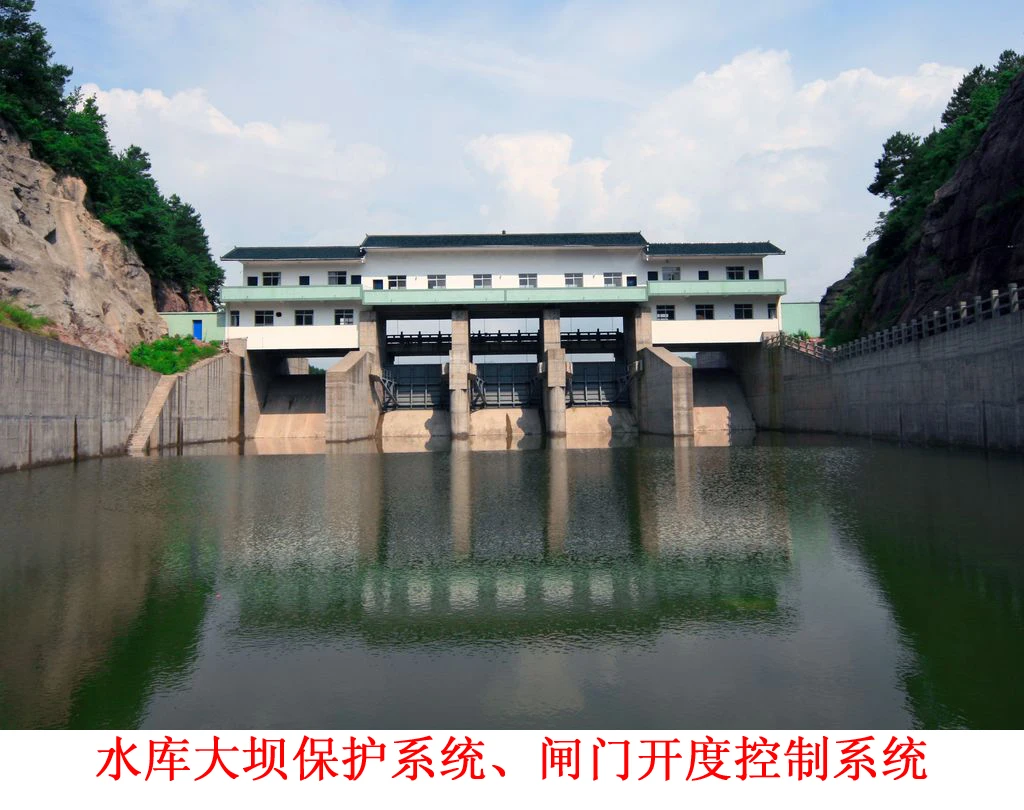

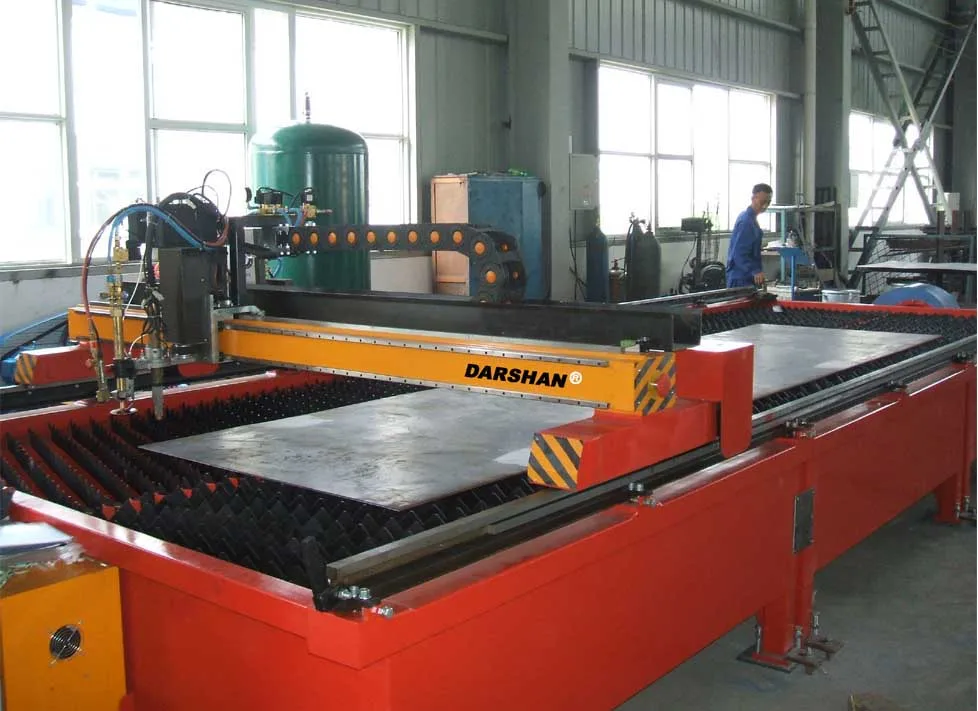

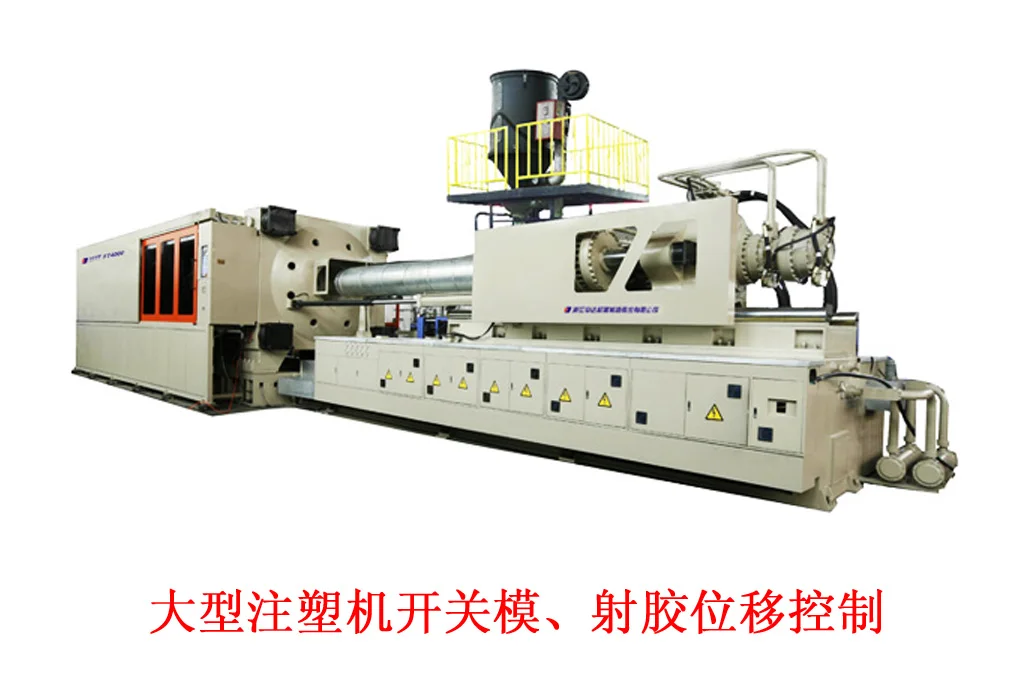

Examples of product application：

linear guide rail、Slide position control
