Low-Cost DWIN T5L0 3.5 Inch 320*480 Resolution UART Display 262K Colors IPS-TFT-LCD COF Structure Easy Secondary Development |

Low-Cost DWIN T5L0 3.5 Inch 320*480 Resolution UART Display 262K Colors IPS-TFT-LCD COF Structure Easy Secondary Development |

Unavailable in

5,0

All stars

Color: Capactive Touch   Ships From: China

Color: 7 INCH DISPLAY PGT05   Ships From: China

Color: WT and Accessory   Ships From: China

Features:

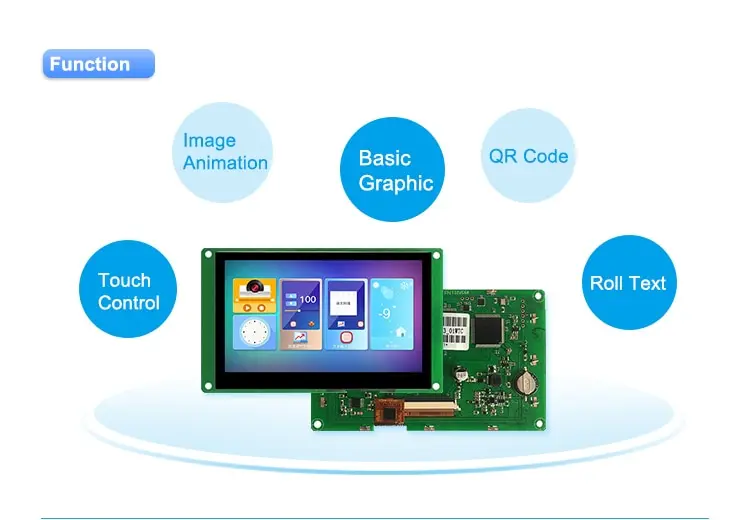

● Based on T5L0, running DGUS II system.

● 3.5 inch, 320*480 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle.

● Smart LCD with/without TP, product thickness of only 2.1mm.

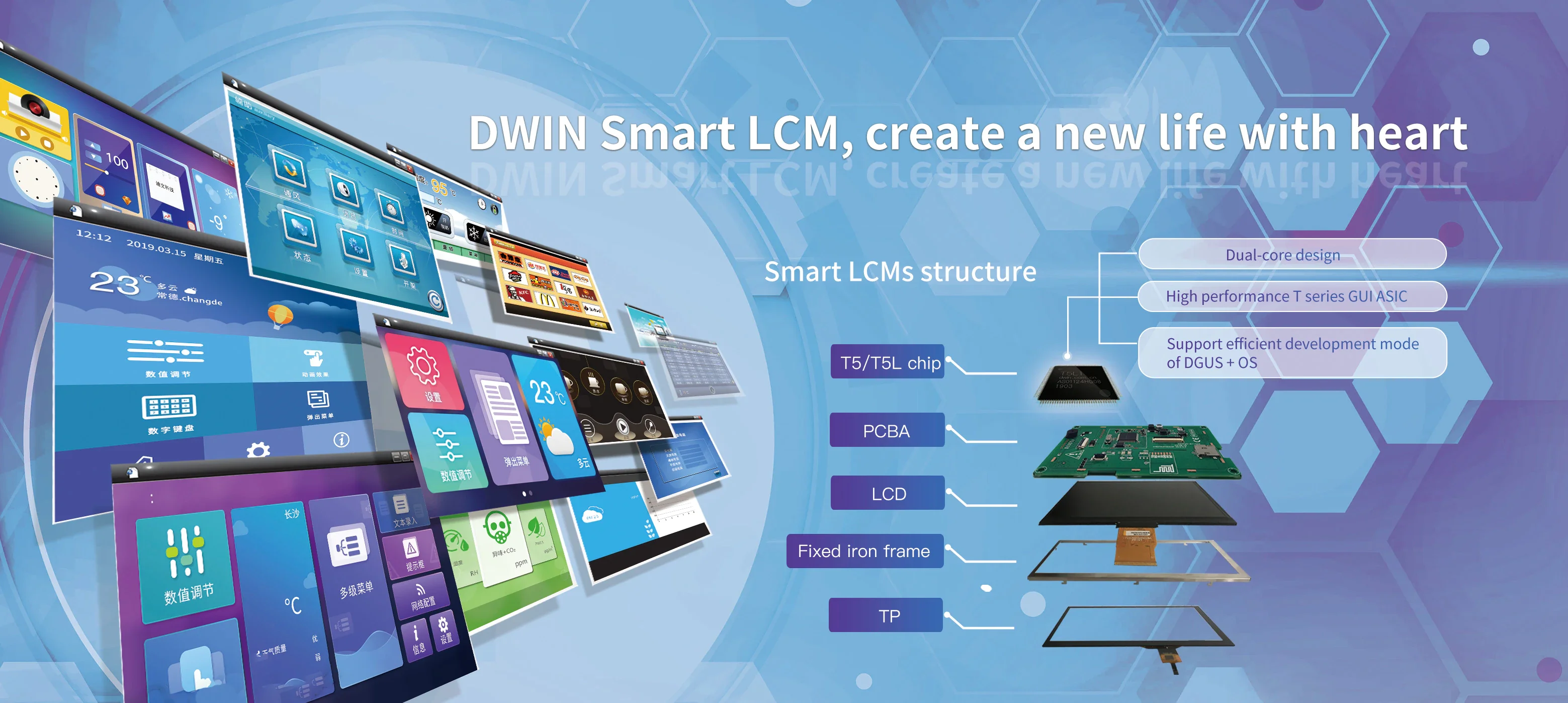

● COF structure. The entire core circuit of the smart screen is fixed on the FPC of LCM, featured by light and thin structure, low cost and easy production.

● 50 pins, including IO, UART, CAN, AD and PWM from user CPU core for easy secondary development.

Display

Color

262K colors

LCD Type

IPS, TFT LCD

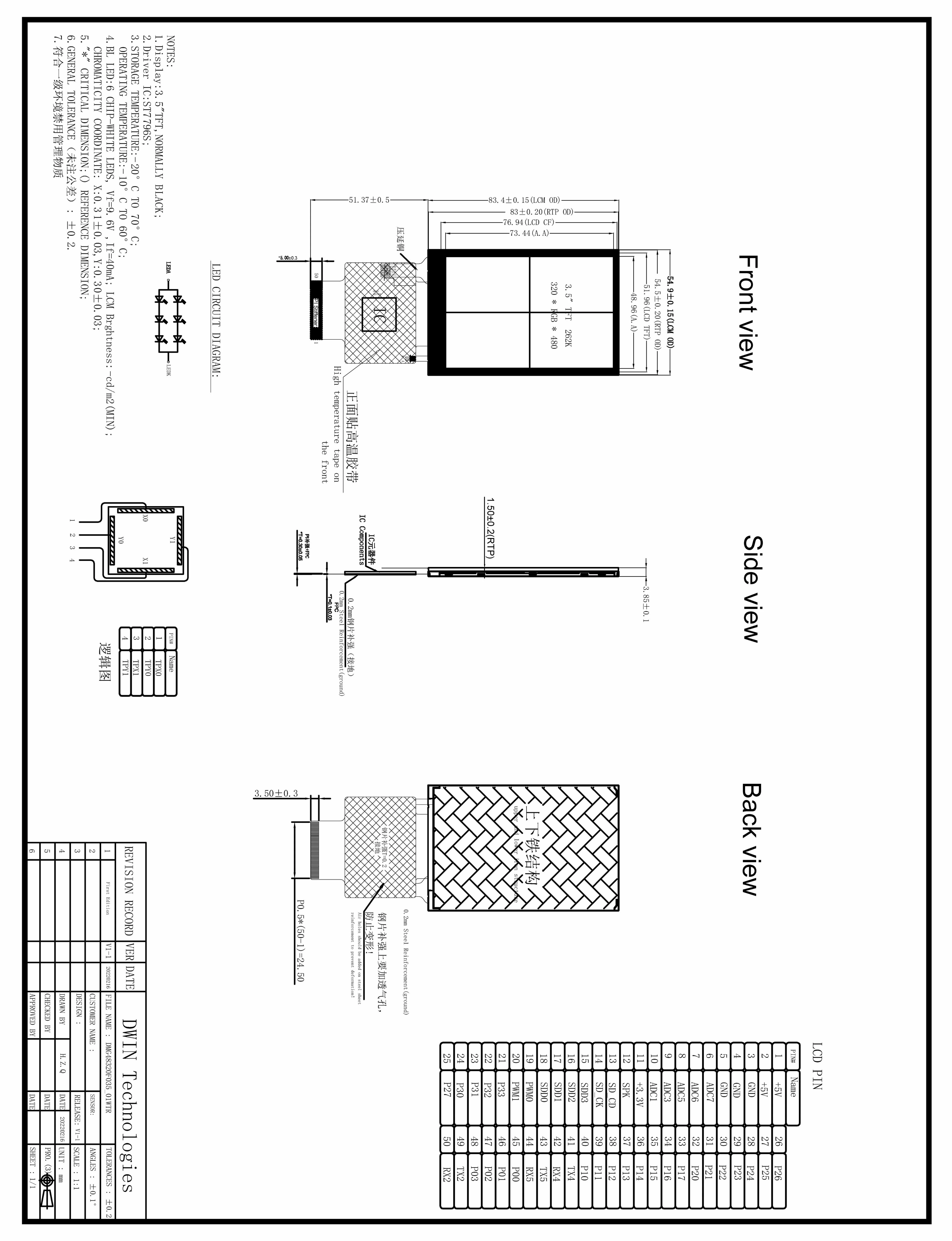

Display Area（A.A）

48.96mm (W)×73.44mm (H)

Resolutio

320×480

Backlight

LED

Brightness

DMG48320F035-01WN: 300nit

DMG48320F035_01WTC:280nit

Voltage & Current

Power Voltage

4.5~5.5V

Operation Current

165mA  VCC=5V, max backlight

70mA  VCC=5V, backlight off

Reliability Test

Working Temperature

-10℃~60℃

Storage Temperature

-20℃~70℃

Working Humidity

10%~90%RH, typical value of 60% RH

Interface

User interface

50Pin_0.5mm FPC

Baudrate

3150~3225600bps

Output Voltage

Output 1, Iout = 1mA;3.0~3.3 V

Output 0, Iout =-1mA;0~0.3 V

Input Voltage

Input 1， Iin = 1mA；0~3.3V

Input 0， Iin = -1mA；0~0.5V

Interface

UART2: TTL;

UART4: TTL;（Only available after OS configuration

UART5: TTL;（Only available after OS configuration）

Data Format

UART2: N81;

UART4: N81/E81/O81/N82;4 modes (OS configuration)

UART5: N81/E81/O81/N82;4 modes (OS configuration)

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.

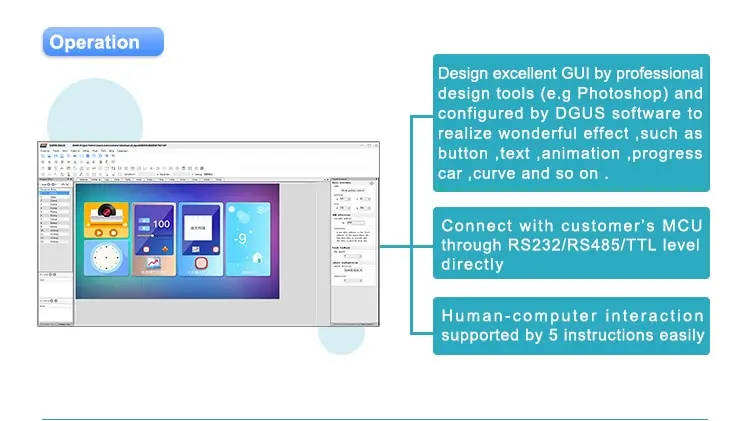

Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.
- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum: //forums.dwin-global.com/

International website://www.dwin-global.com/
- Leave messages to us on Aliexpress.
