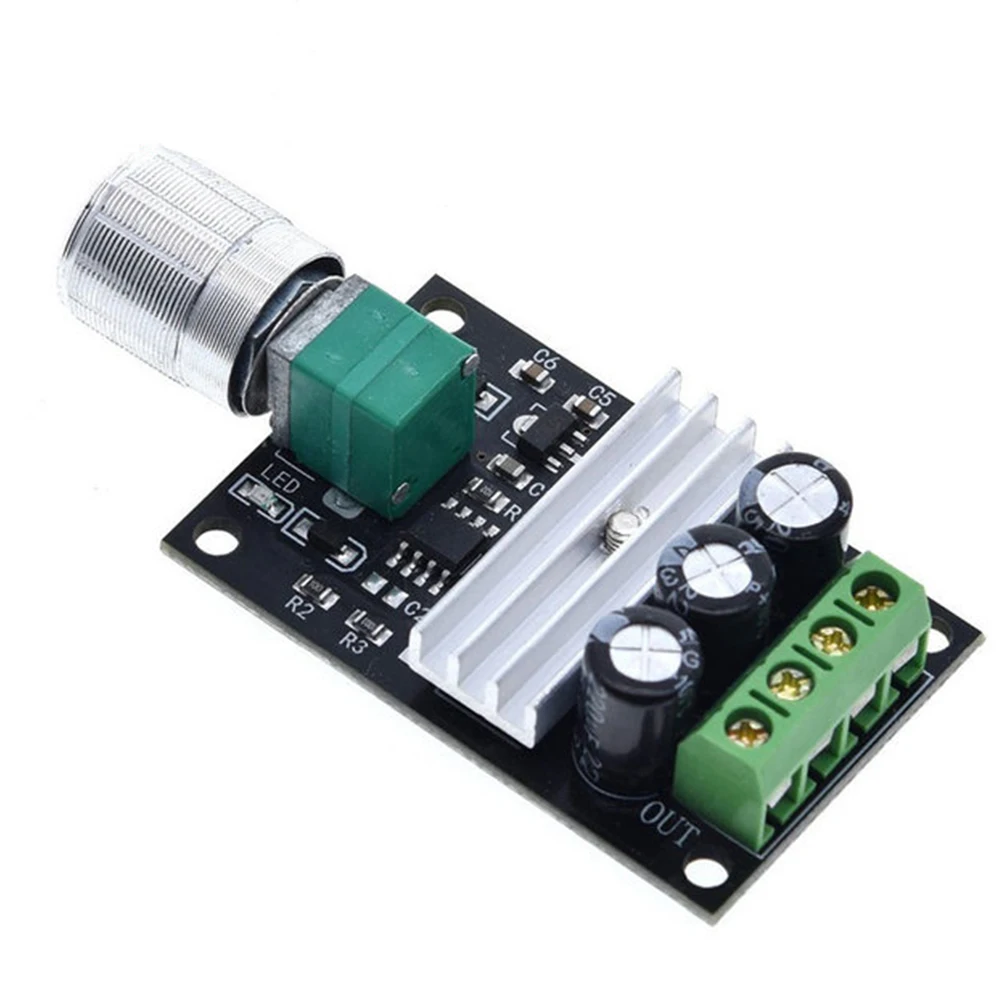

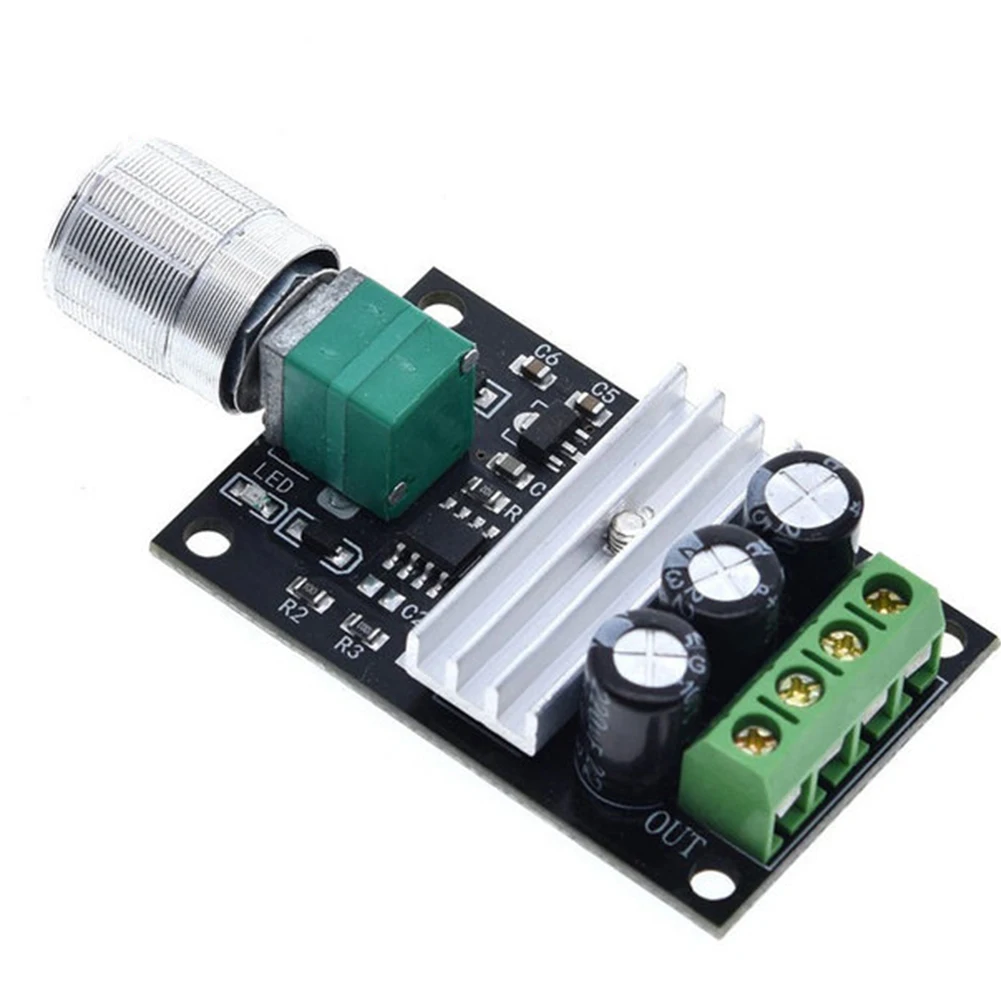

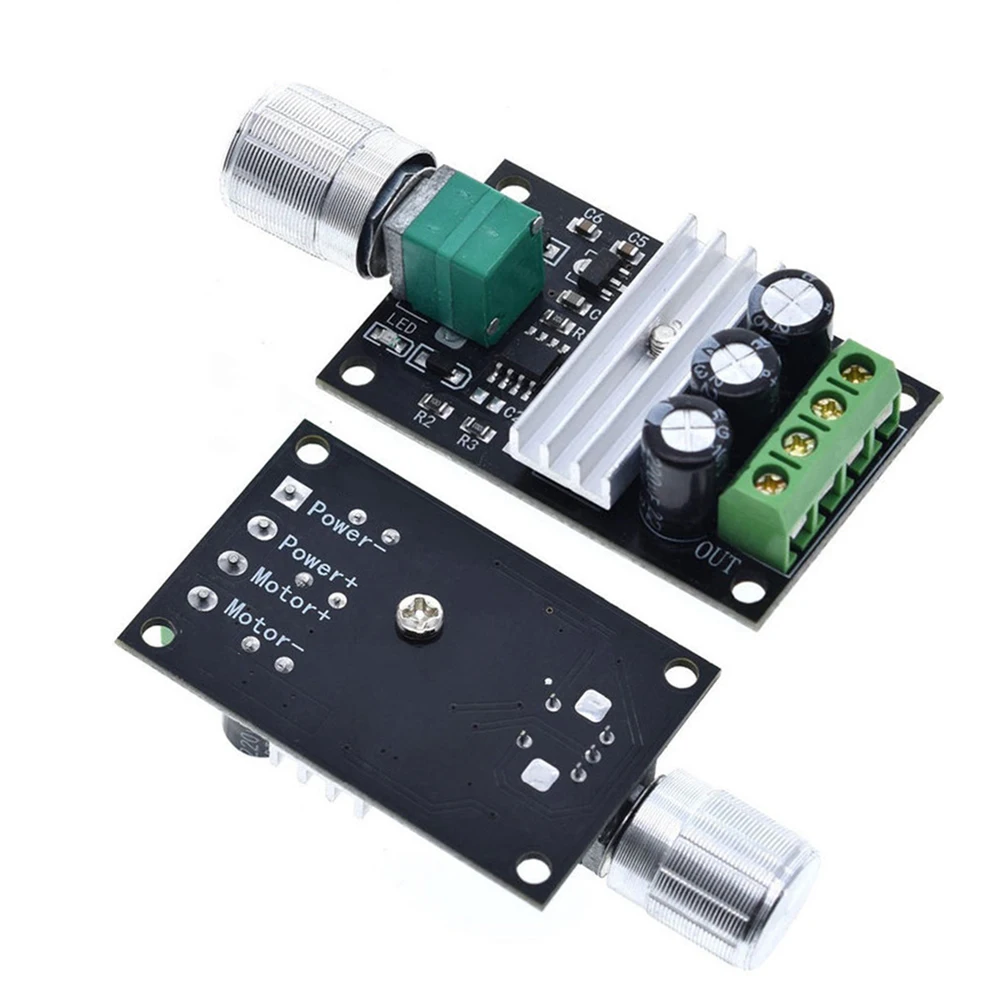

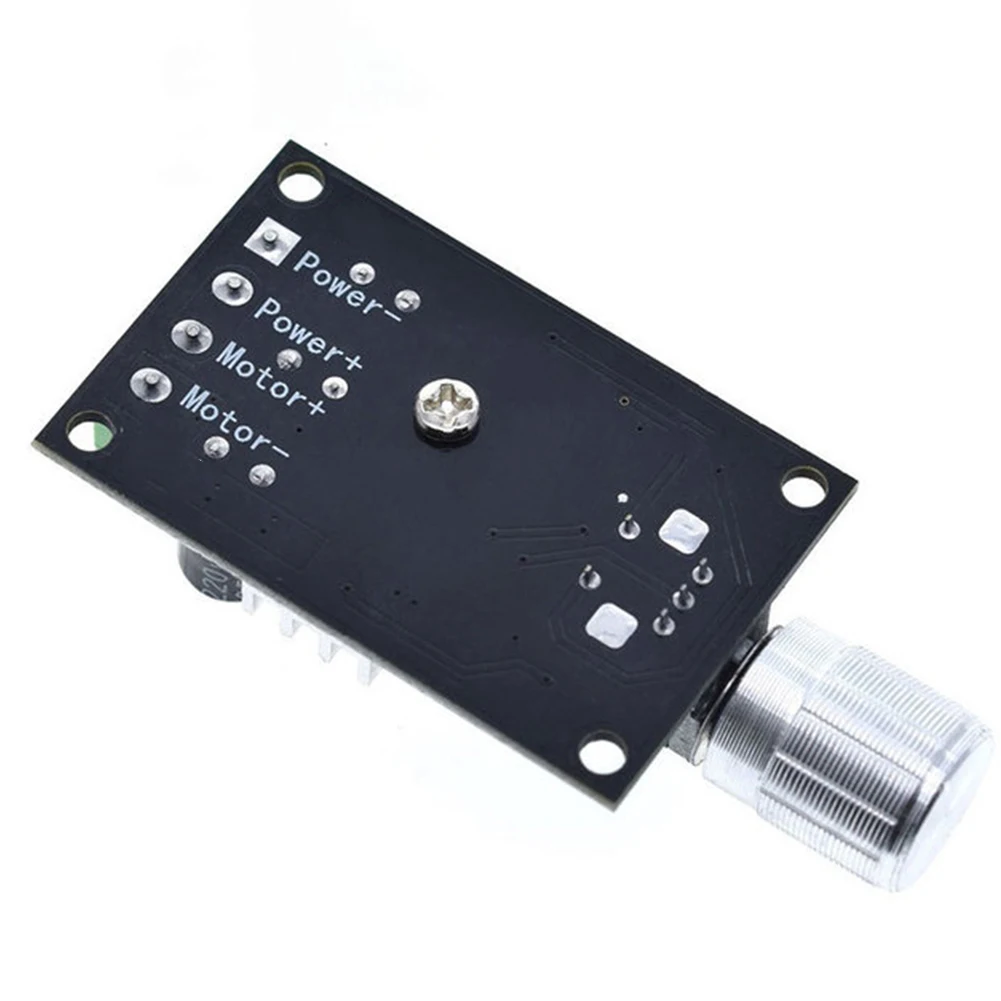

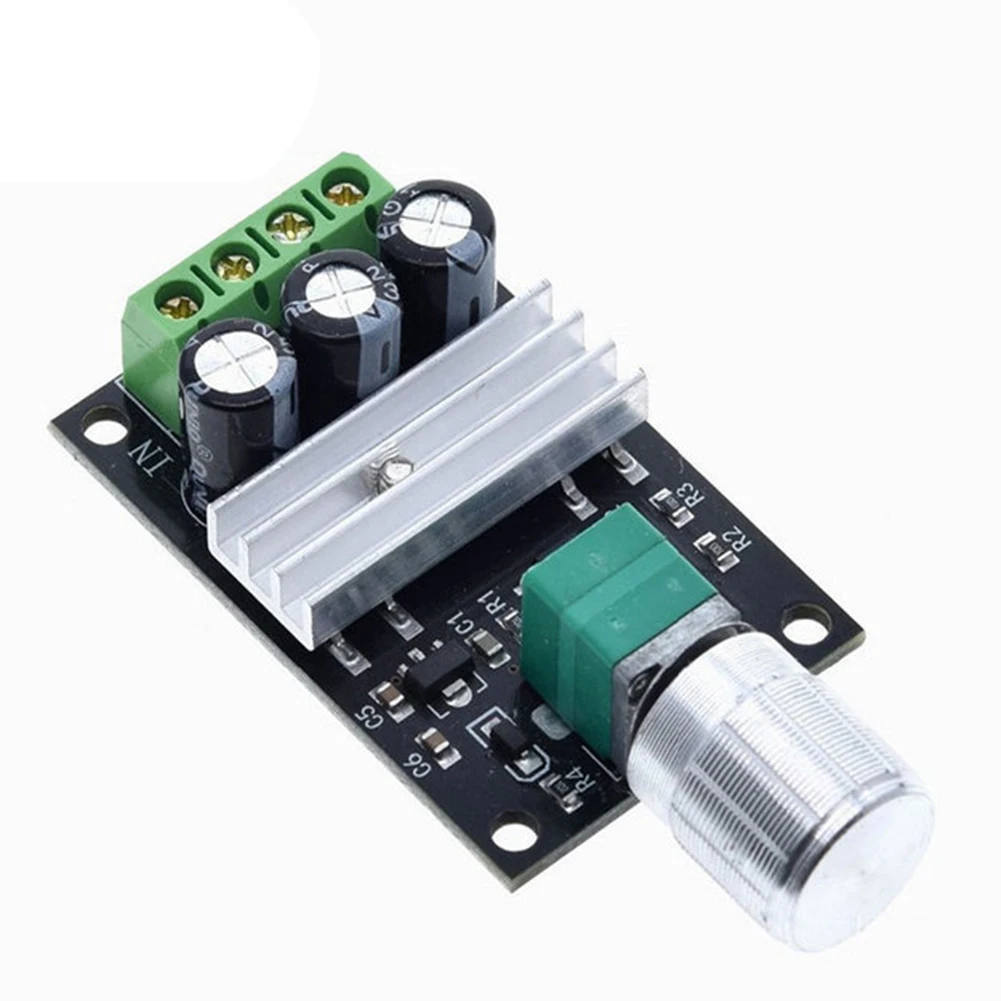

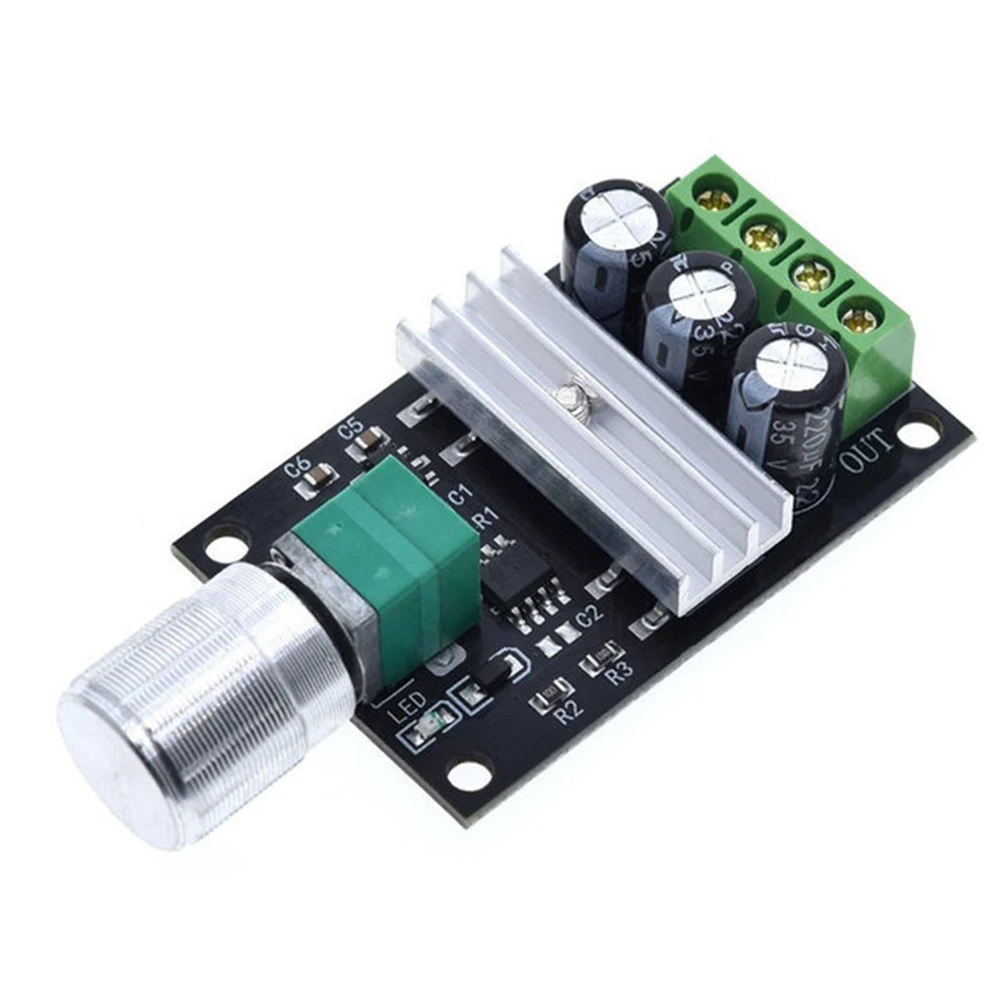

Product Description：

100% brand new and high quality

Made of high-quality materials, durable

This DC motor controller can control the direction of the DC motor, and the pulse width modulation (PWM) DC voltage has a fully adjustable duty cycle of 0-100%.

The motor controller can easily provide 3A continuous current for your DC motor or other DC loads.

Specification:

Power input voltage: 6V-28VDC

Maximum output power: 80W

Current maximum continuous output: 3A

Adjustable duty cycle: 0-100%

Product size: about 70*32*17mm/2.75*1.25*0.66''

Net weight: about 23g

Quantity: 1 piece

Operation Manual:

1. Connect the DC motor (or DC load) to the motor terminals as shown in the circuit diagram.

2. Connect the 10V-36V DC voltage to the circuit, making sure that the polarity of the connection is correct. Note that the voltage applied to the motor power supply voltage will be applied to the circuit. It is recommended that you add an appropriately rated fuse to the positive power supply voltage to protect the circuit from any possible short circuits.

3. You can now use the potentiometer to control the speed of the motor.

Delivery content:

1 x PWM motor speed control switch controller

Note:

Due to manual measurement, please allow an error of 1-5mm.

Since the monitors are not calibrated the same, the colors of the items shown in the photos may be slightly different on your computer monitor.
