MG995 SG90 Привод управления рулевым механизмом для настройки отладочной платы двусторонней платы с поворотным регулятором и модулем управления последовательным портом.

MG995 SG90 Привод управления рулевым механизмом для настройки отладочной платы двусторонней с поворотным регулятором и модулем последовательным портом.

Unavailable in

5,0

All stars

Color: 1PC

it works well✌️

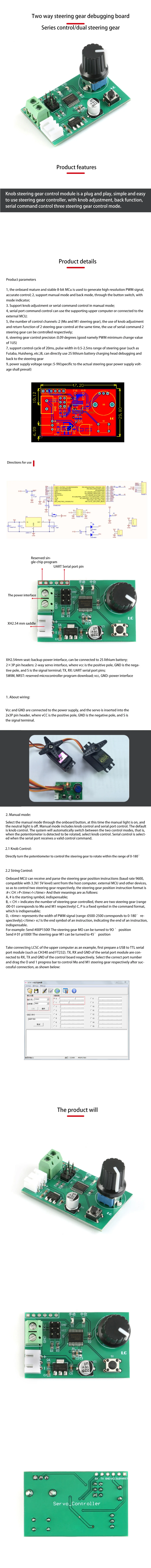

The onboard mature 8-bit MCU is used to generate high-resolution PWM signals with precise control.

Support manual mode and return mode, switch by button, with mode indicator;

Support knob adjustment or serial command control in manual mode;

The serial port command control can use the matching host computer or connect to the external MCU;

Number of control channels: 2 channels (MO and M1 servos). When using the knob adjustment and return function, the 2 servos are controlled at the same time. When using the serial command, the 2 servos can be controlled separately.

Steering gear control accuracy: 0.09 degrees (that is, PWM minimum change value 1us);

Support steering gear with a control period of 20ms and a pulse width of 0.5-2.5ms;

The 2S lithium battery charging head can be directly used to debug the well back in the middle;

Power supply voltage range: 5- 9V (specifically based on the actual servo supply voltage used).

XH2.54mm carrier: backup power interface, can be connected to 2S lithium battery;

2X3P pin header: 2-way servo interface, where VCC is positive, GND is negative, and S is signal terminal;

TX, RX: UART serial port pins;

SWIM, NRST: reserve the MCU program download port;

VCC, GND: power interface.
