Intelligent Cabinet Lock With Override For Electric Motorcycle Trunk

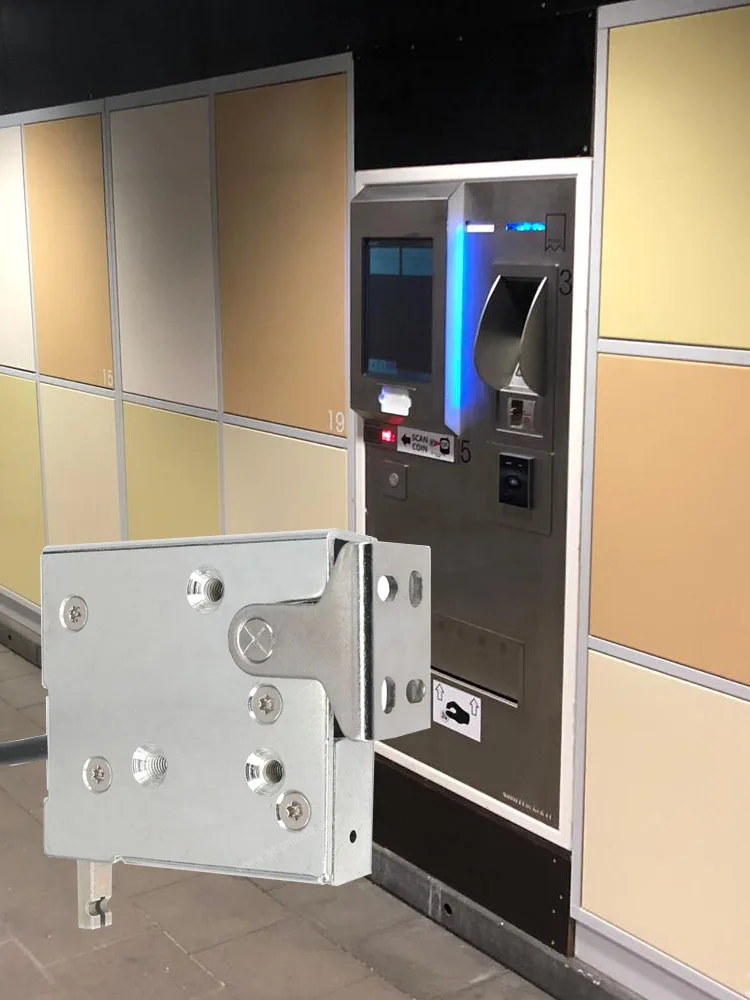

Intelligent Cabinet Lock MD1220L-915 is a high security access control solution for cabinets, drawers, safe and Electronic Storage Smart Lockers and Electric Motorcycle Trunk. Robust all metal construction allows MD series lock operate against heavy mechanical load. An optional built-in door sensor provides reporting of open/ close status and mechanical kits for manual override in case of power failure.
Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any access control system or standalone cabinet locking. With easy push-to-close operation, the lock is designed with internal spring rod to push door open when electrified. It simplifies the access control of enclosures in a wild variety of applications.

Electromechanical Lock

 Superior heavy duty metal construction
 Zinc-plated steel housing
 Surface-mounted compact electric lock
 Convenient mechanical override enables manual release during power failure
 Operates against heavy mechanical load
 Optional internal microswitch for latch open/close output signal
 Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,
 Can be fitted to locker, mail box and drawers etc

Specifications

Operation Voltage: 9VDC intermittent ±10%
Power Consumption: 9VDC 1500mA
Operation Mode: Fail Locked
Solenoid Type: Intermittent
Holding Force: 600KG
Max. Power on: 1 second
Cycle Rating: More than 1,000,000
MS Contact Rating: 5A @125V
Working Temperature: -20ºC ~ +60ºC
Dimensions LxWxH: 72mm*67mm*18mm
Weight: 360g
Protection Class: IP20

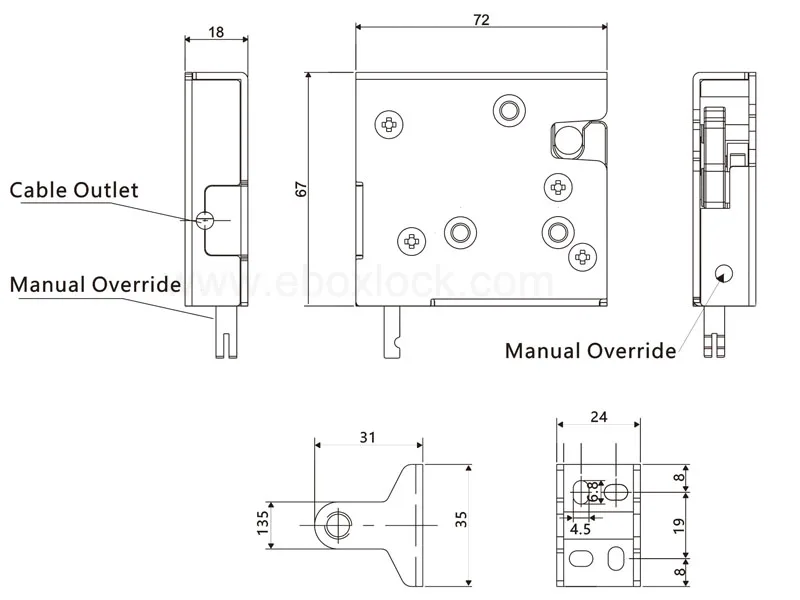

Dimension

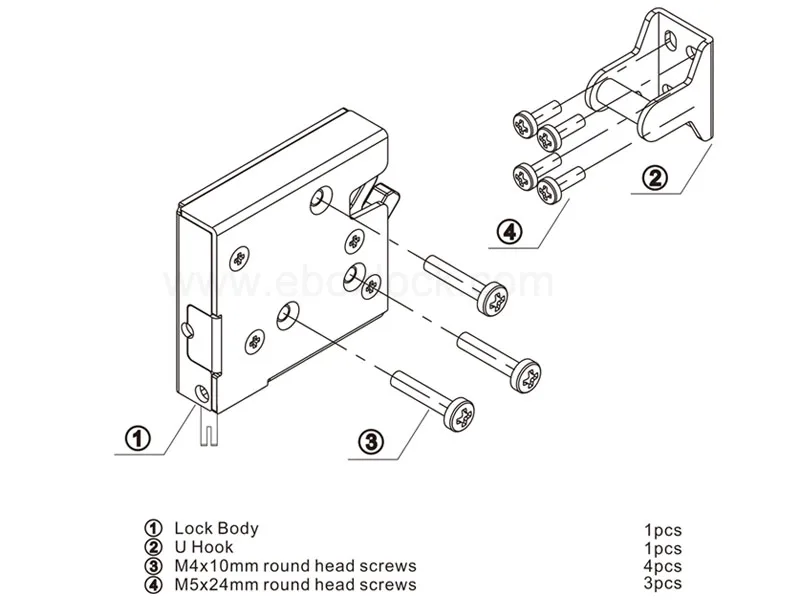

Installation

Packing list:

Lock body
Hook
Installation Screws

Override kit is not included, need to order separately.

Delivery Parcel Lockers System Diagram

Parcel Delivery Lockers
Smart Lockers
Vending Machine Lockers
Telecommunication Kiosks
Bank Locker Kiosks and Cash Drawers
Electronic Mailboxes
Electronic Motorcycle Trunk
Smart Bike& Scooter station Lockers
pharmaceutical cabinets, cash drawers and display cases
Beverage Freezers And Keyless Refrigerator Lockers
