POWMR Support WIFI Module MPPT 80A Solar Charger 1500W 12V High Frequency Hybrid Inverter 230V Output Max PV 450V Battery Charge

To European Union Countries: You also can choose from China we will help you send from the EU warehouse if we have stock in the EU warehouse, when you order before, please contact us first, thank you.

Inverter Use Note:The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

Introduction

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.

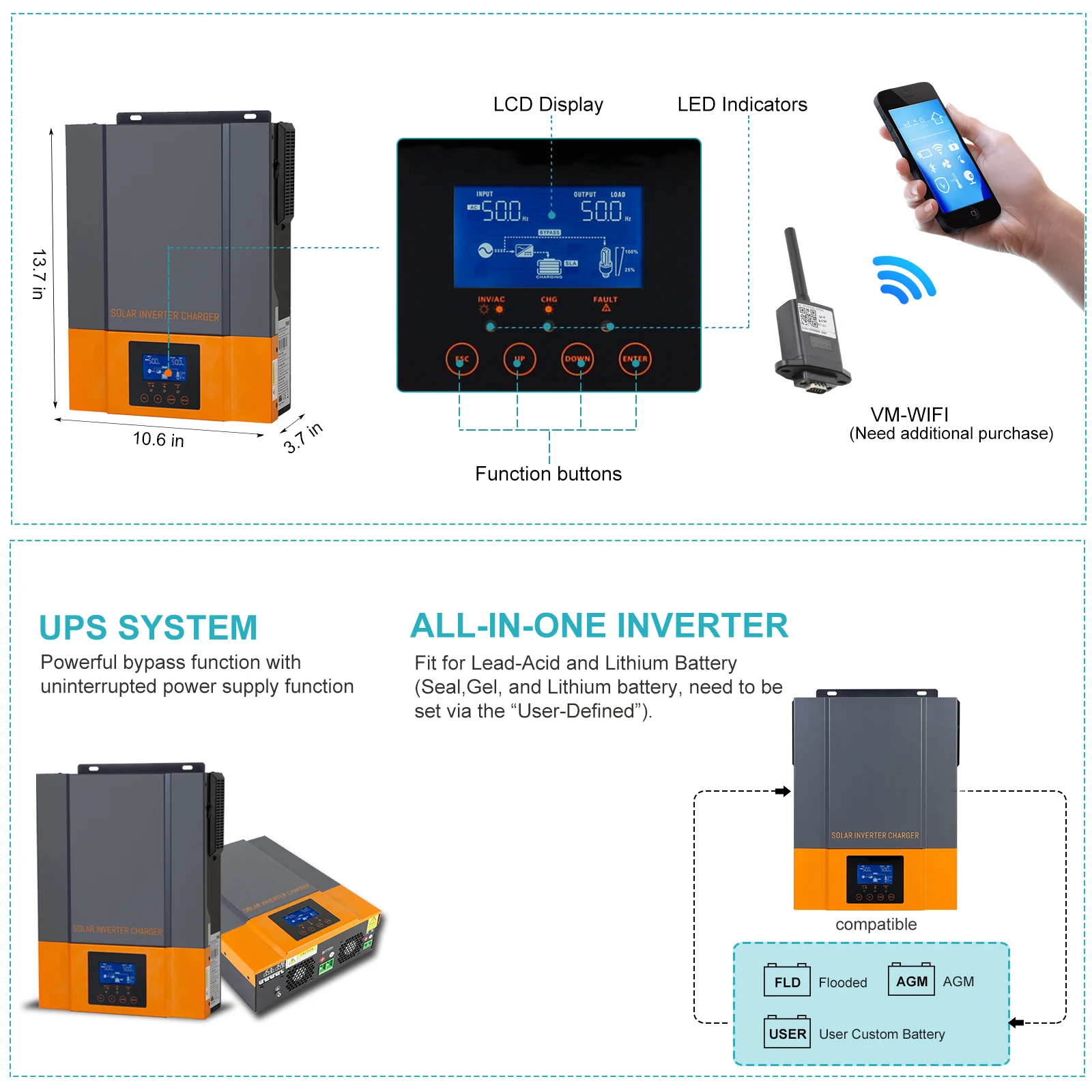

Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Feature

1.Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting

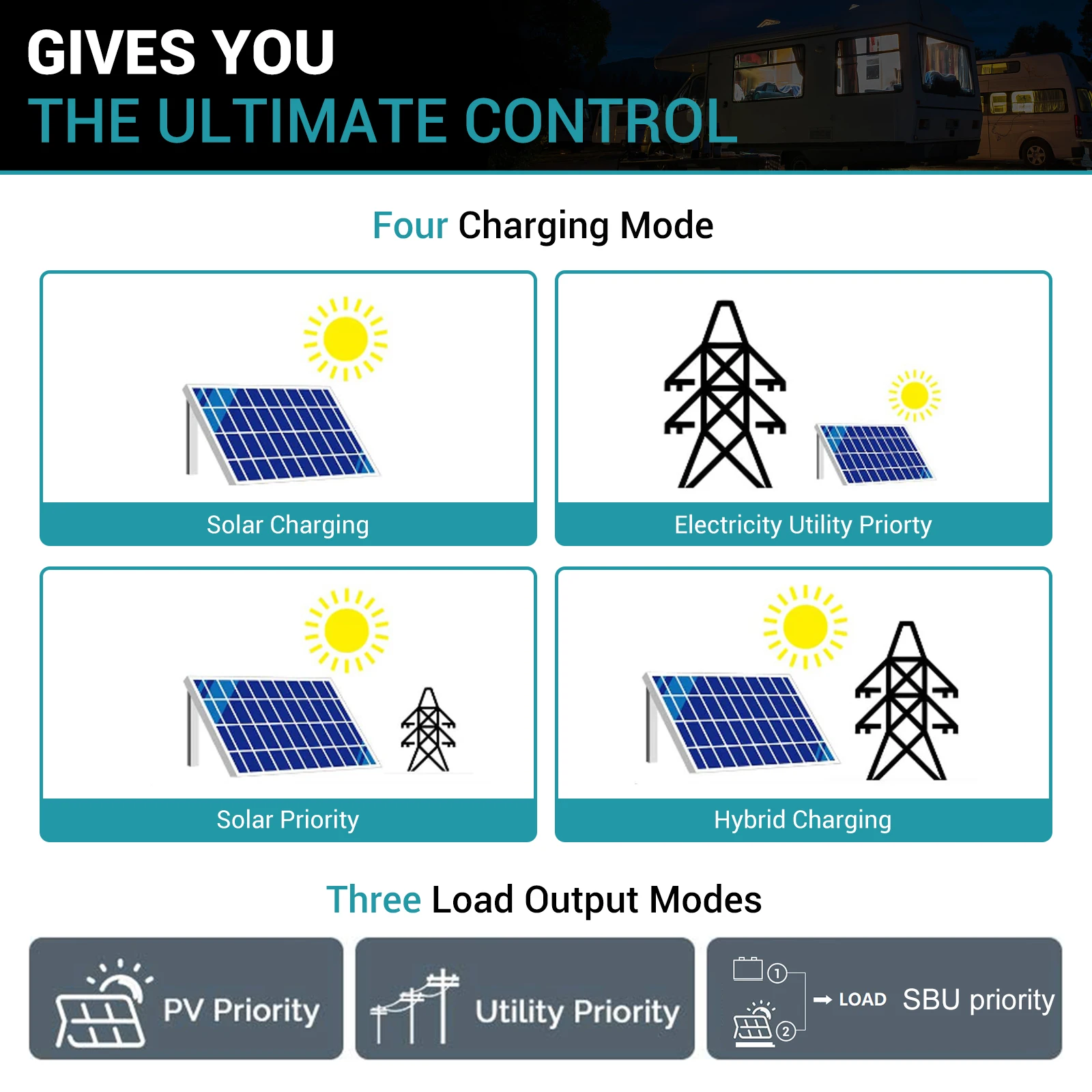

4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible with mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function

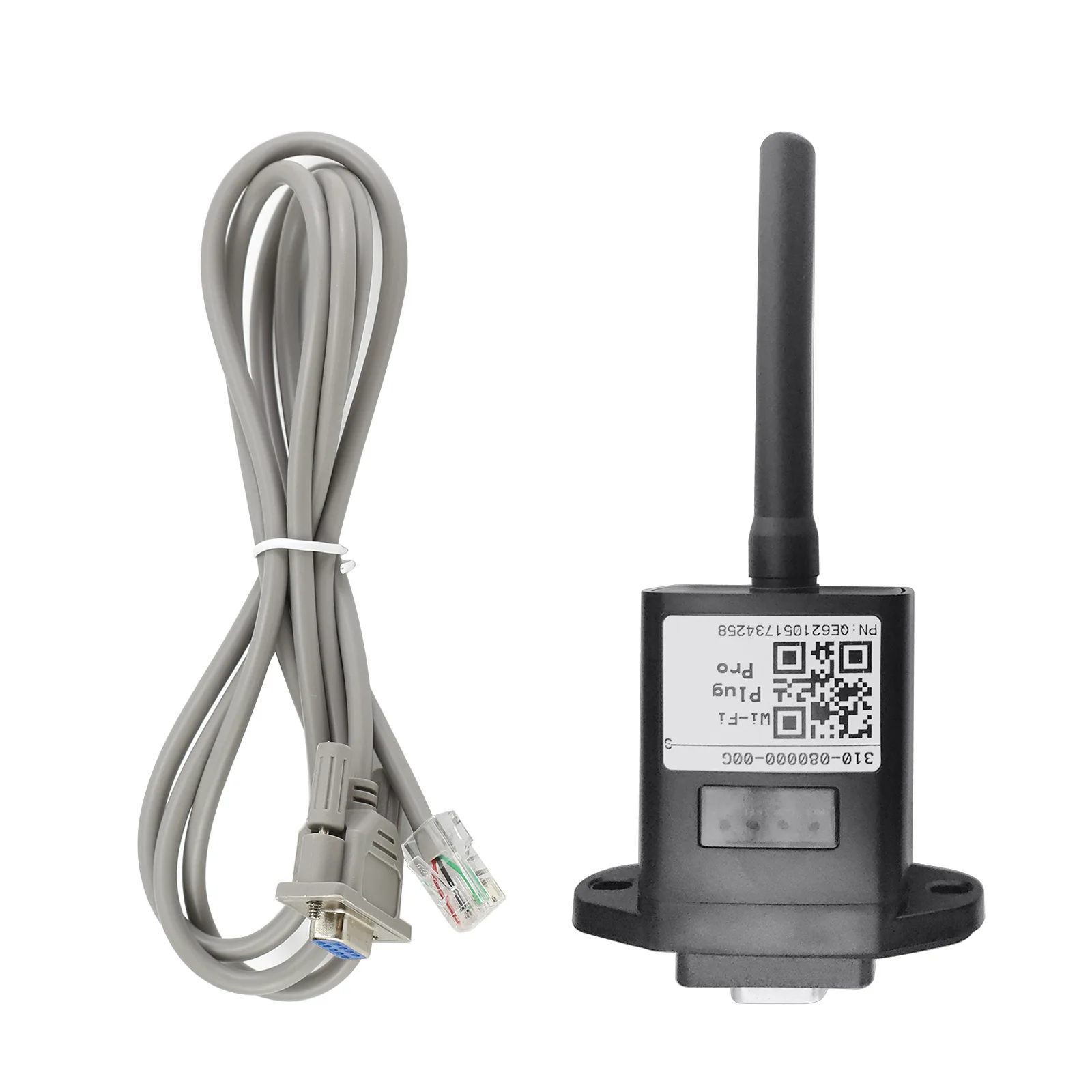

10.WIFI/GPRS(Option)

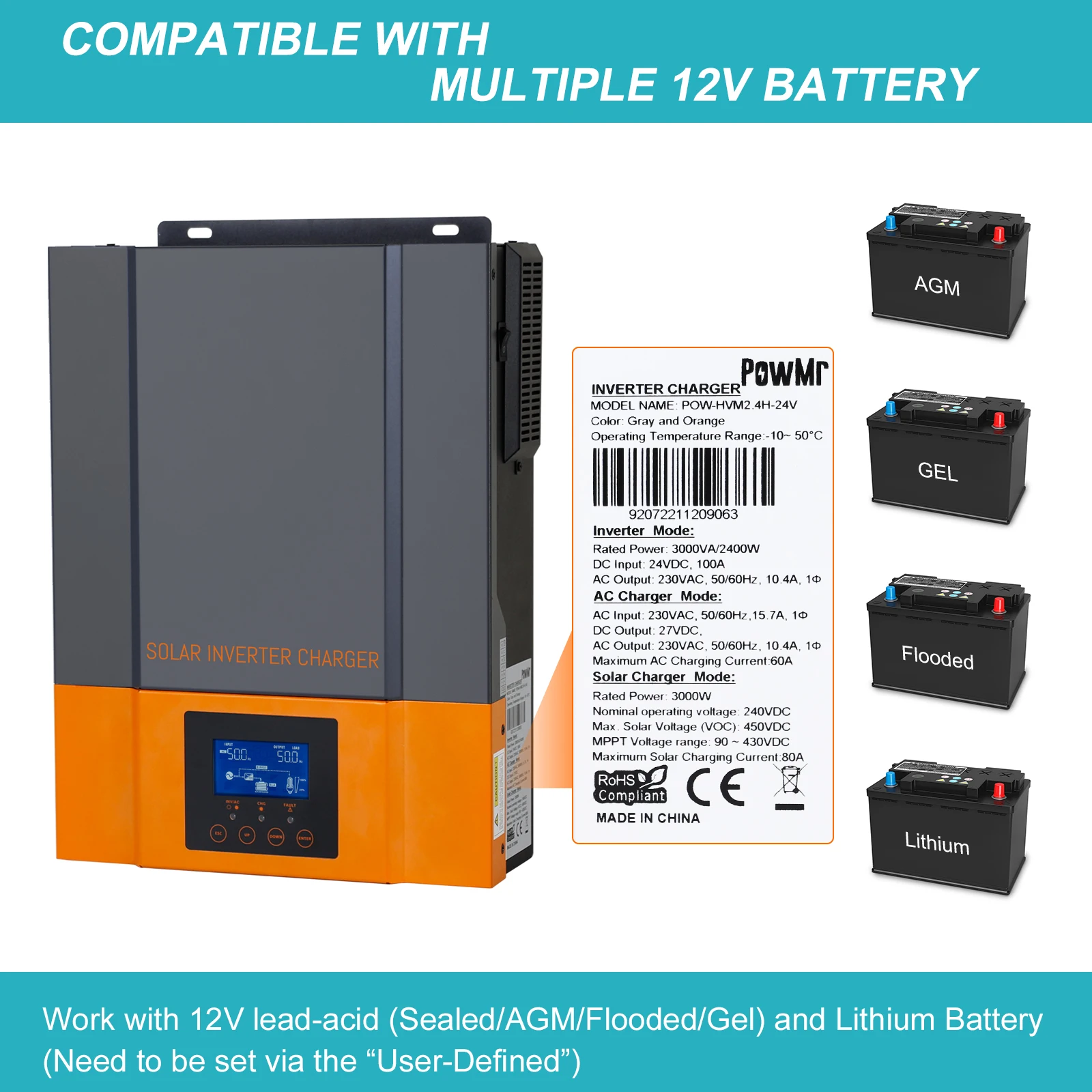

11.Can connect to lithium battery

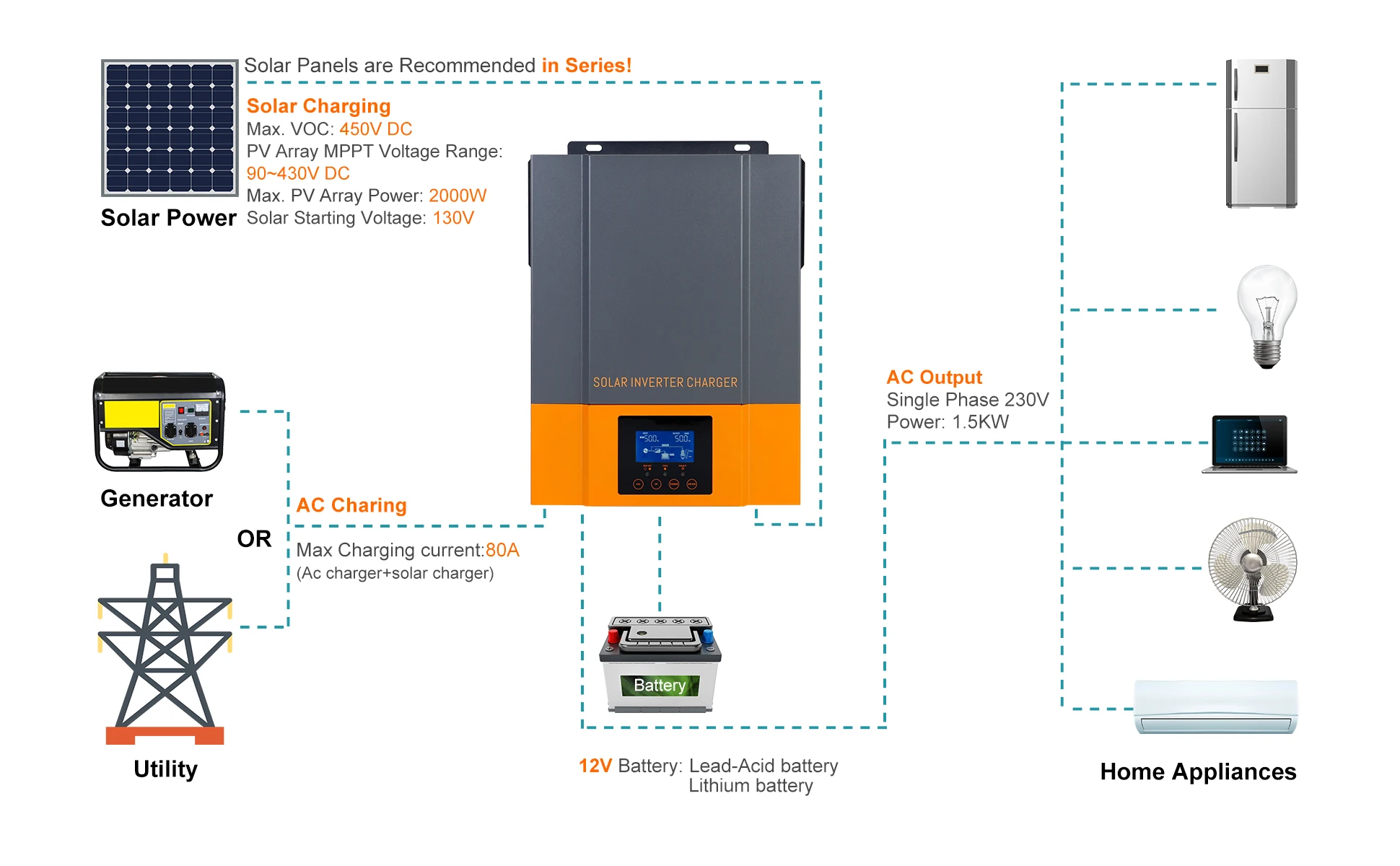

Basic System Architecture

The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:
• Generator or Utility.
• PV modules
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.

Specification

INVERTER MODEL

1.5KW 12V

2.4KW 24V

Rated Output Power

1.5KW

2.4KW

Output Voltage Waveform

Pure Sine Wave

Output Voltage Regulation

230Vac±5%

Output Frequency

50Hz/ 60Hz

Peak Efficiency

91%

Overload Protection

5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad

Surge Capacity

2* rated power for 5 seconds

Nominal DC Input Voltage

12Vdc

24Vdc

Utility Charging Mode

Charging Algorithm

3-Step

AC Charging Current (Max)

60 Amp

Bulk Charging Voltage

Flooded Battery

14.6

29.2

AGM / Gel Battery

14.1

28.2

Floating Charging Voltage

13.5Vdc

27.0Vdc

MPPT Solar Charging Mode

Max. PV Array Power

2000W

3000W

Nominal PV Voltage

240Vdc

240Vdc

PV Array MPPT Voltage Range

90~430Vdc

Max. PV Array Open Circuit Voltage

450Vdc

Max Charging Current (AC charger plus solar charger)

80Amp

Safety Certification

CE

Operating Temperature Range

-10°C to 50°C

Storage temperature

-15°C~ 60° C

Humidity

5% to 95% Relative Humidity (Non-condensing)

Dimension (D*W* H), mm

348X270X95

Weight( kg)

11.5

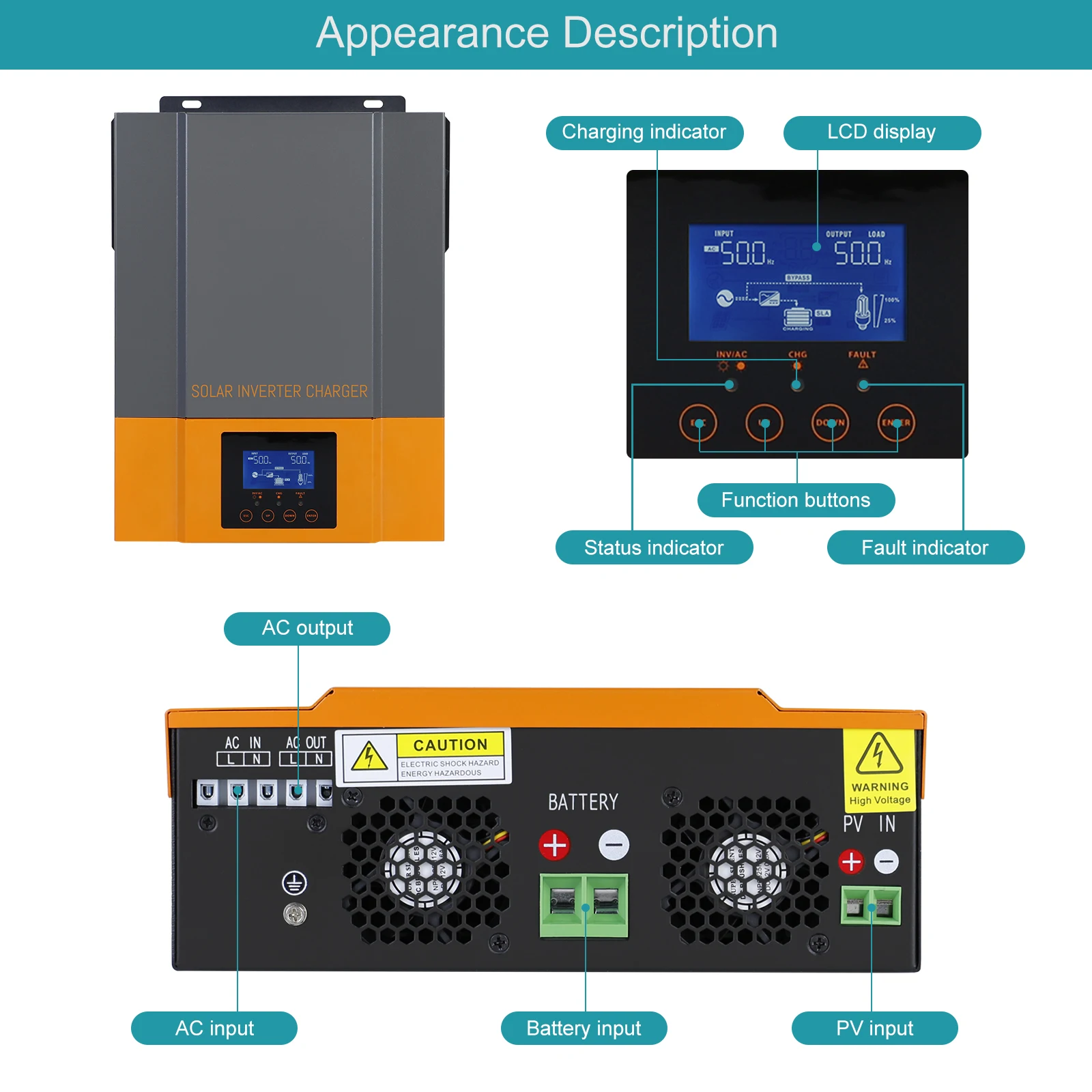

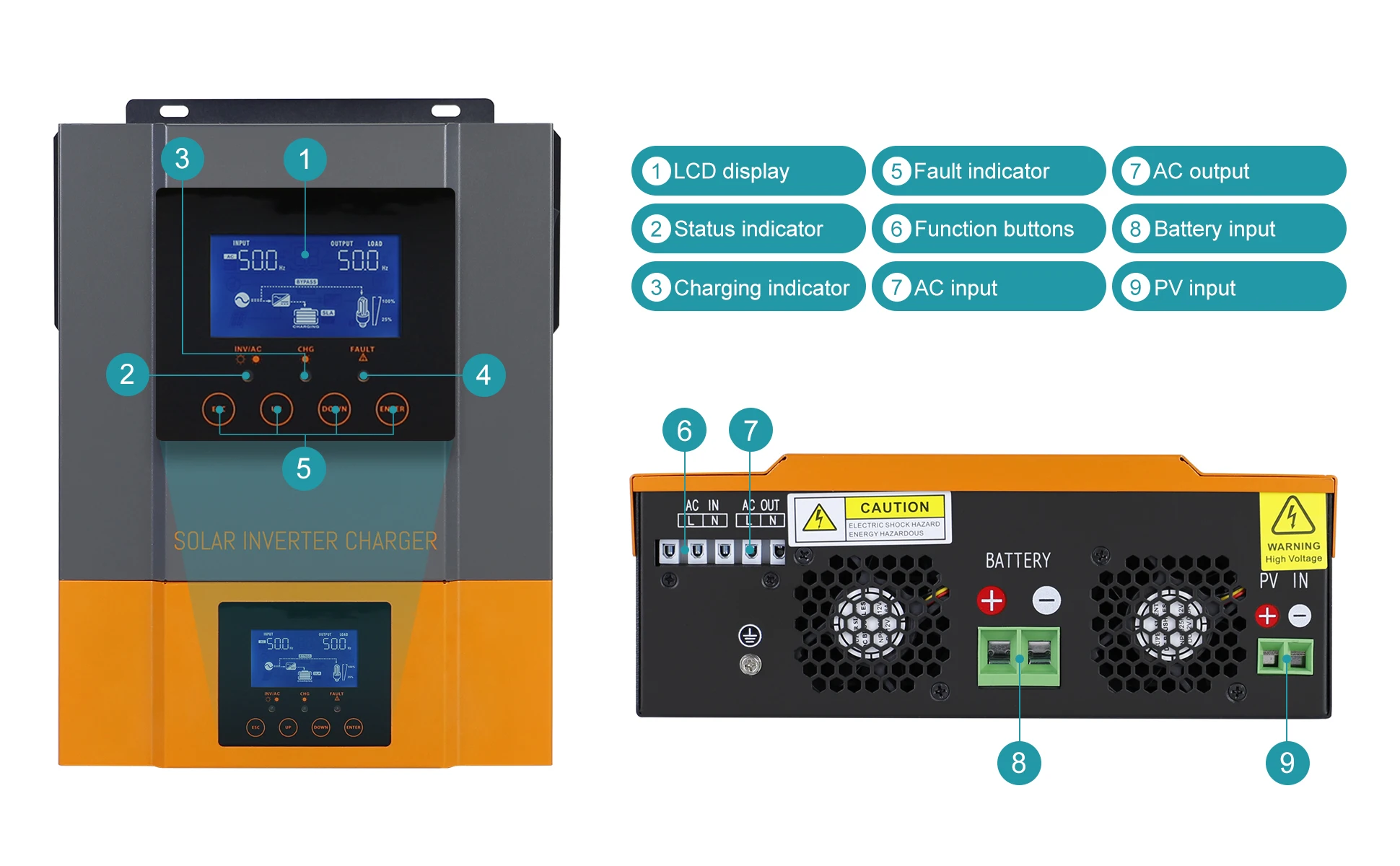

Product Overview

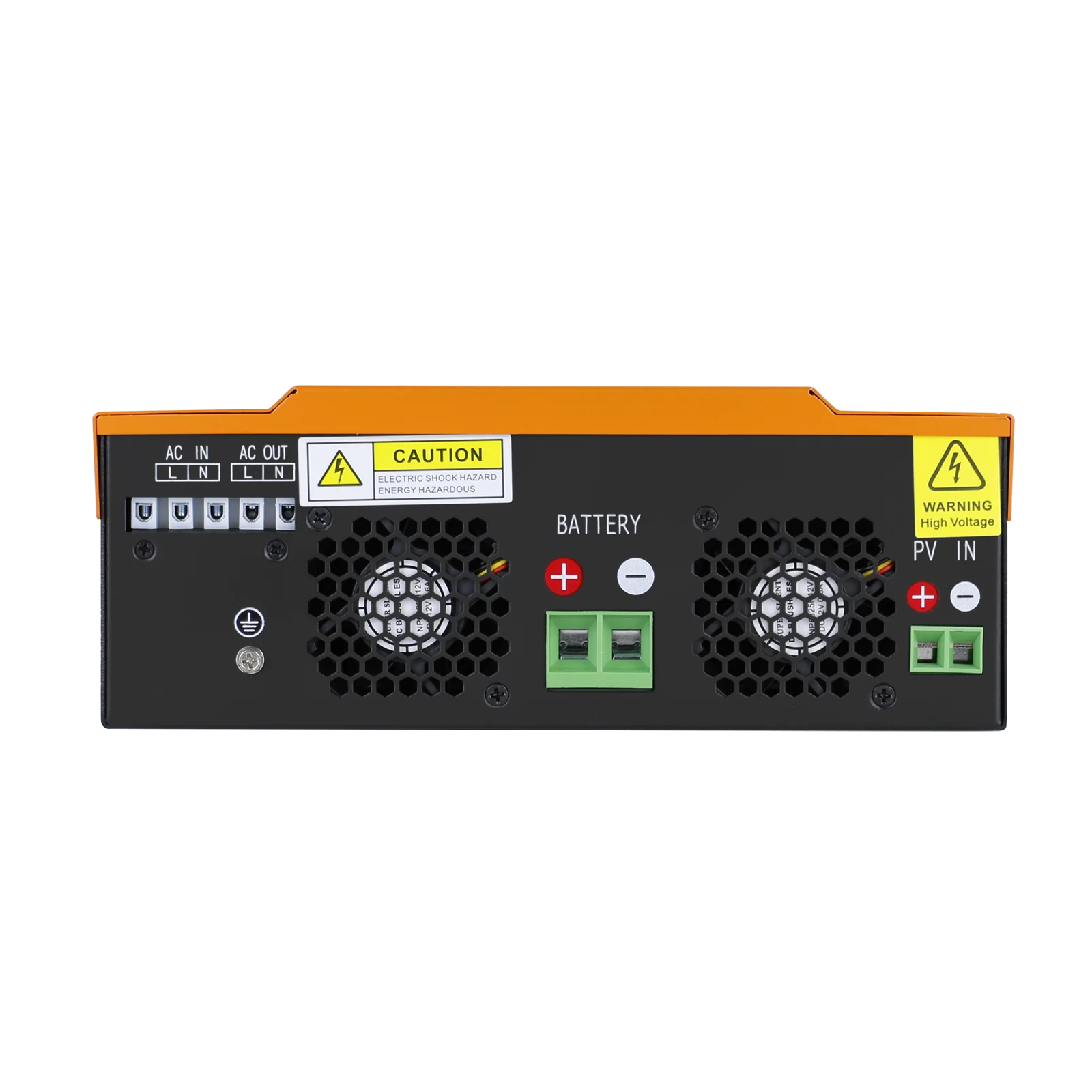

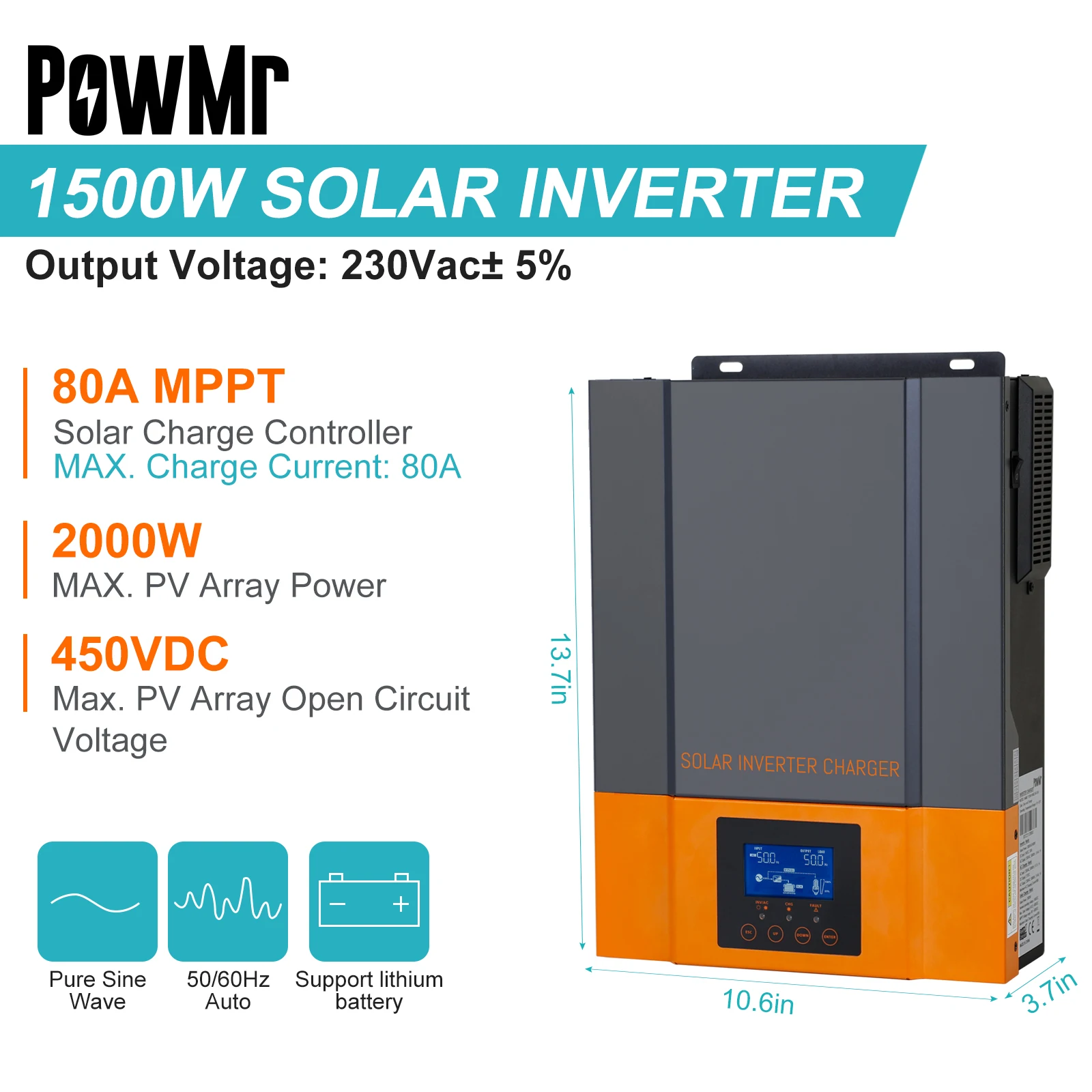

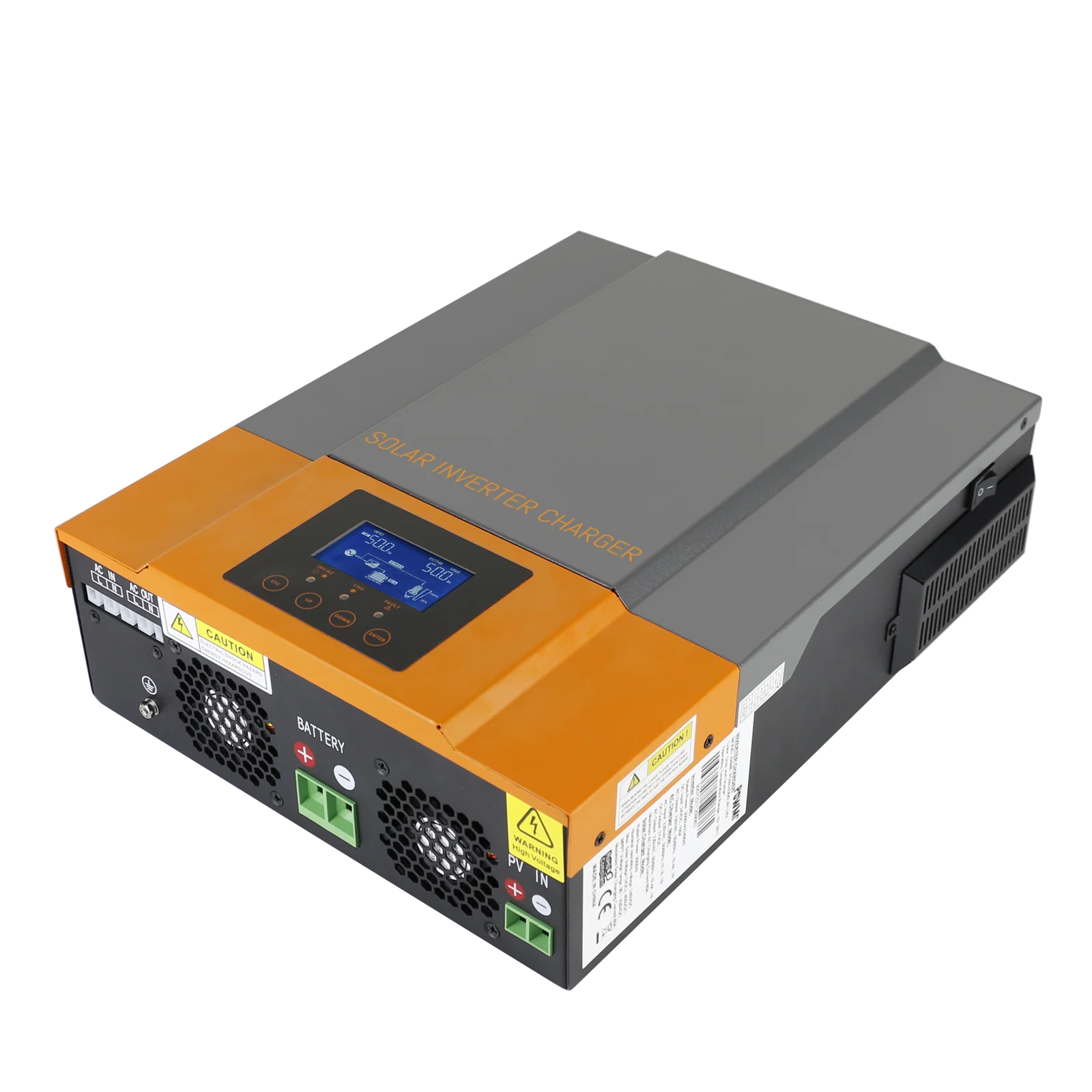

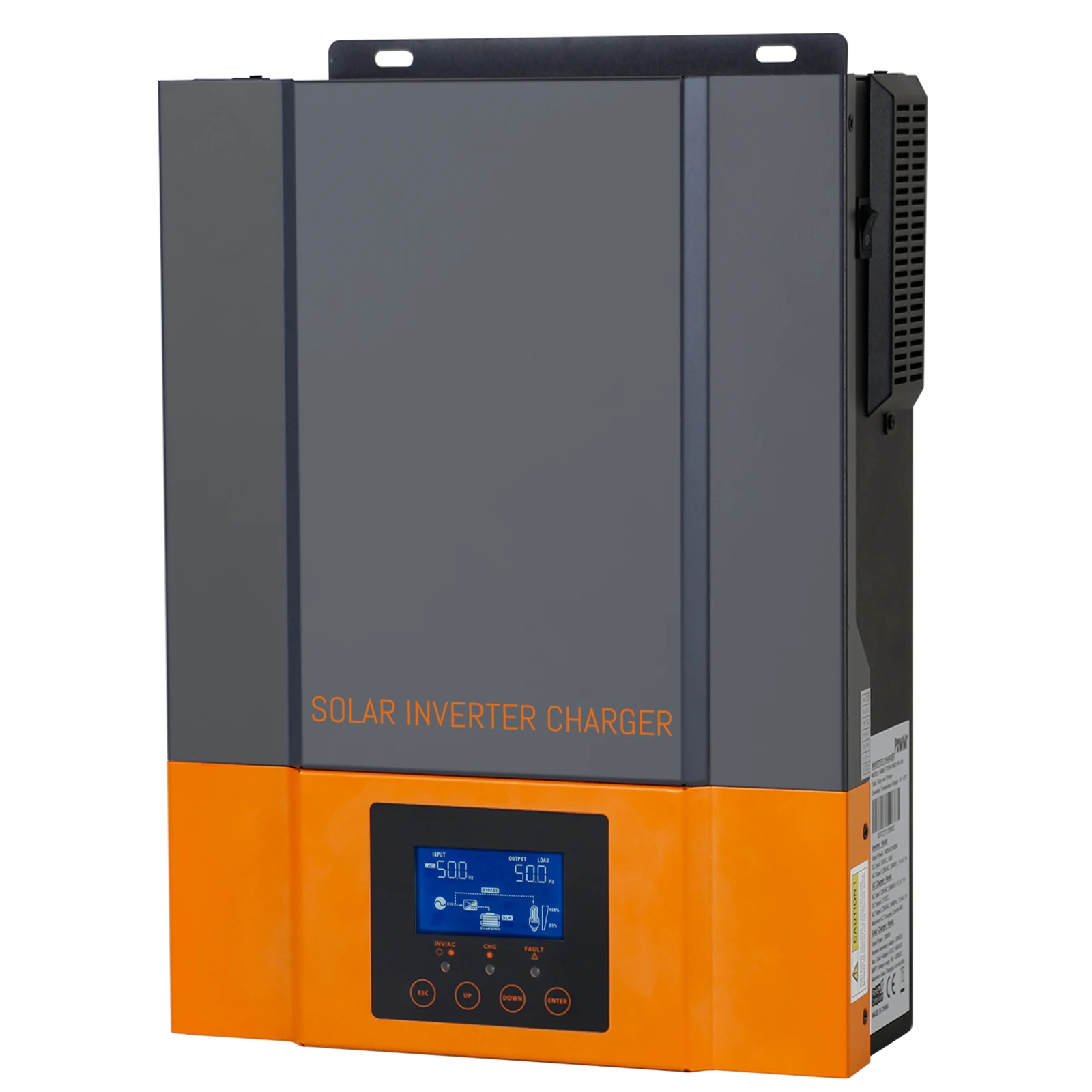

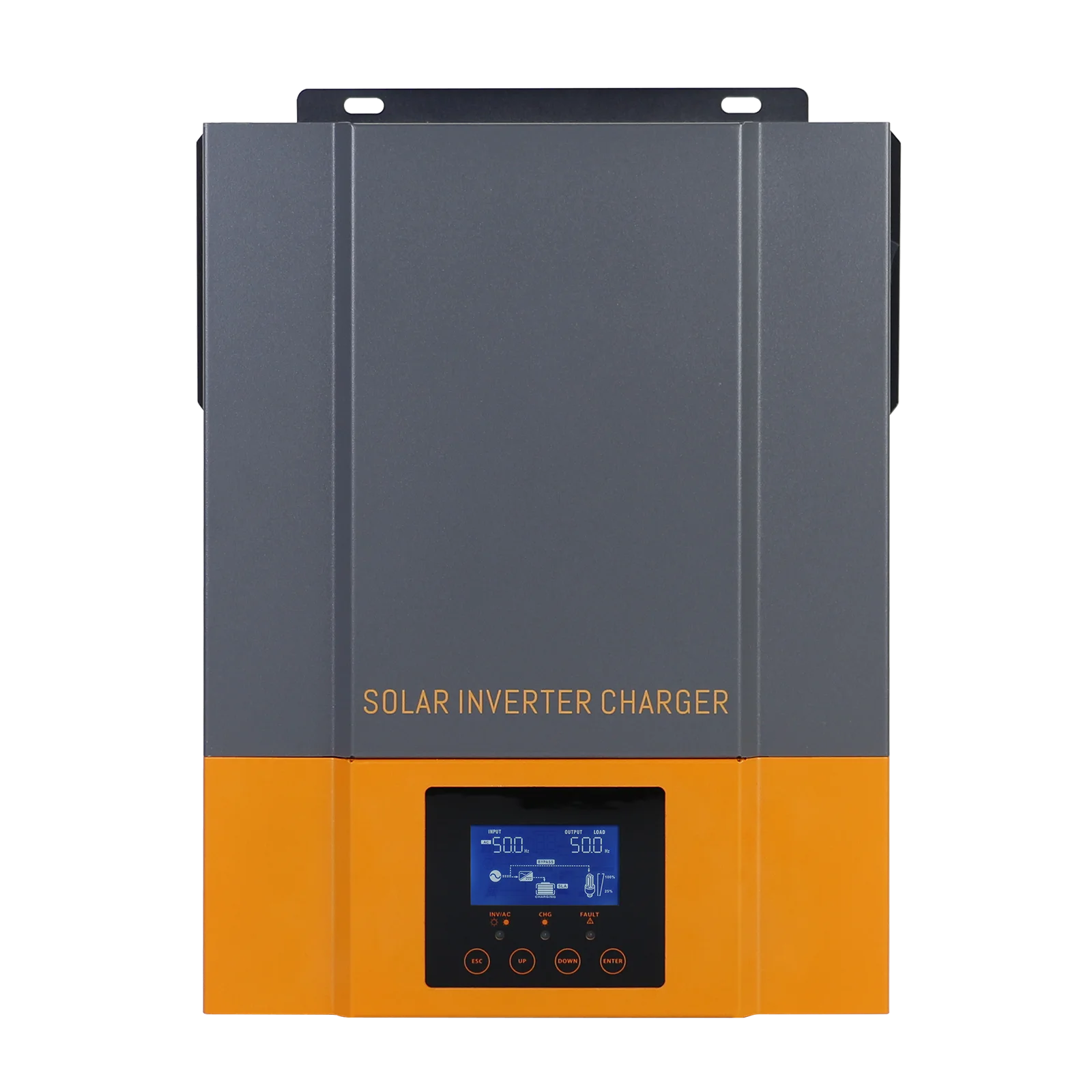

Product Picture
