About DWIN:Beijing DWIN Technology Co., Ltd.; often referred to as DWIN Technology, is a large manufacturer, as well as a global leader in 2 inch to 21.5 inch TFT LCD Module, HMI Display and Touch Screen, LCD panel. Also provide the whole product line solution, technical consultation and after sale service for all kinds of display module, offer HMI Panel, Industrial Displays, interactive touch panel,capacitive/resistive touch screens.

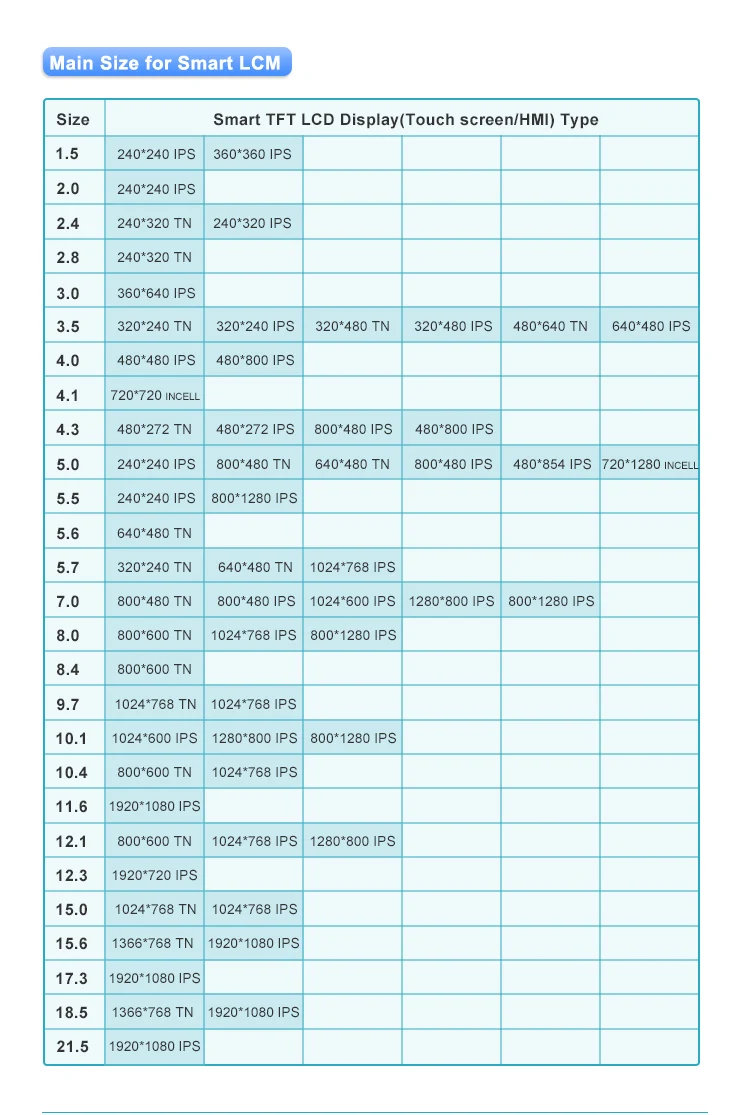

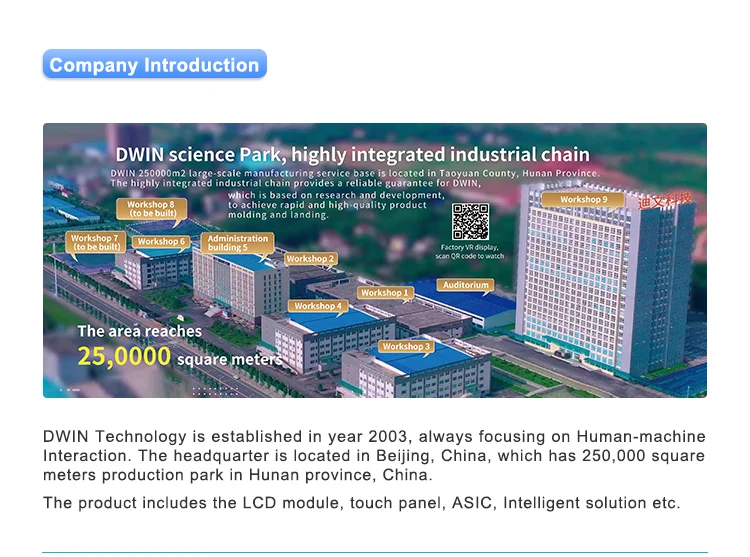

DWIN Technology was founded in 2003. Since its inception, the company has sustained an astounding rate in recent years of some 80% year-over-year growth, to become "the world's leading manufacturer of high-quality Human-Machine Interaction (HMI) products and solutions".Main products including:-Smart LCD Modules/HMI intelligent touch screens: 2.8", 3", 3.5", 4", 4.3", 5", 5.6", 7", 8", 8.88", 9.7", 10.1", 11.6", 10.4", 12.1", 15",15.6", 18.5", 21.5". Could be controled by any MCU through TTL/RS232/RS485 serial port by simple HEX commend.-Andriod HMI touch screens: 7", 10.1".-Multi media smart LCD modules / HMI intelligent touch screens, support video & audio play, support 1 way digital USB camera: 7", 8", 10.1",10.4",15".-Hot selling and most welcomed TFT LCD display and optional touch panels: 3.5", 4.3", 7", 8",10.4".-LCD + HDMI adaptor board+ optional touch panel solutions: 7", 8.88", 10.1", accept customization for any size LCD we have.-Color TFT LCD screen wall mounted panels, thermostats for smart home/hotel/residential/building control systems: 2.8", 3.5", 4",4.1", 4.3",7".
Products DescriptionModel number:DMG80480C040_03WMain Features:* DWIN T5L ASIC HMI intelligent HMI LCD touch screen for commercial grade applications* 4.0 inch, 800x480 IPS TFT LCD, 16.7M Colors* G+G capacitive touch panel for indoor using, support finger touch, pen touch, glove touch, water proof tocuh, sensitivity adjustable for the use of front tempered glass or acrylic panel* Industrial grade 4 wire resistive touch panel for option* Reserved WIFI module, build in buzzer* T5L ASIC support DWIN OS or C++ language secondary development* DWIN T5L DGUS II development software kit and development guidance neededProduct SpecificationDisplayItemParameterDescriptionColor16.7M（16777216）colors24 bit color 8R8G8B（A.A）51.8mm (W) ×86.4mm (H)480x800Resolution480x800Support 0°/90°/180°/270°rotated displayBacklightLED≥10000H（Continuous working with maximum brightness, time of brightness halves）

Brightness

350nit
TA system:64 levels adjustment;
DGUSⅡsystem:100 levels adjustmen
(It's not recommend to set brightness to 1%~30% of the maximum,which may lead a flicker)Note: Displaying of high-contrast still images for more than 30 minutes may result in residual images. Please add screen saver to
avoid this problem.Voltage & CurrentItemConditionsMinTypMaxUnitPower Voltage-4.55.05.5V
Operation CurrentVCC = +5V, Backlight on-200-mAVCC = +5V, Backlight off-70-mARecommended power supply: 5V 1A DCReliability TestItemConditionsMinTypMaxUnitWorking Temperature60%RH at 5V voltage-202570℃Storage Temperature--302585℃Working Humidity25℃10%60%90%RHProtective Paint--None--InterfaceItemConditionsMinTypMaxUnitBaudrateUser Set31501152003225600bpsOutput Voltage
（TXD）Output 1, Iout =-4mA4.785.0-VOutput 0, Iout = 4mA--0.4VInput Voltage
（RXD）Input 12.55.0-VInput 0--1.0VInterfaceUART2：N81，3.3V & 5V TTL/CMOS UART4：N81/E81/O81/N82 ，3.3V & 5V TTL/CMOSUART4：Optional N81/E81/O81/N82 four
mode，3.3V & 5V TTL/CMOS（Be used after OS configuration）Socket10Pin_1.0mm FCC SocketUSBNoneSD SlotYES (SDHC/FAT32 Format) MemoryItemTypical valueFeaturesTyp valueUnitDescription


FLASH

（TA/DGUSⅡ）16MbytesSpace of Font4-12Mbytes
A single font of 256Kbytes,store font, icon libraries,and other binary filesPicture Storage
（.ICL file)12-4MbytesJPEG format(Picture quantity relate to JPEG size，size of a single JPEG image file should not exceed 256Kbytes)RAM
（DGUSⅡ）128KbytesVariable Storage Space//Data is not saved when power downNor Flash（DGUSⅡ）320KbytesUser database//Data is saved when power downUI & PeripheralUI & PeripheralUI VersionTA / DGUSⅡ ( DGUSⅡ pre-installed )PeripheralCapacitance touch screen, BuzzerPacking Capacity & Dimension.DimensionDimension61.8(W) × 119.5(H) ×12.1 (T) mmNet Weight85gPacking CapacityModelSizeLayerQuantity/LayerQuantity(Pcs)Carton1：220mm(L)×160mm(W)×47mm (H)122Carton2：250mm(L)×200mm(W)×80mm (H)224Carton3：320mm(L)×270mm(W)×80mm (H)248Carton4：450mm(L)×350mm(W)×300mm(H)22550Carton5：600mm(L)×450mm(W)×300mm(H)260120
