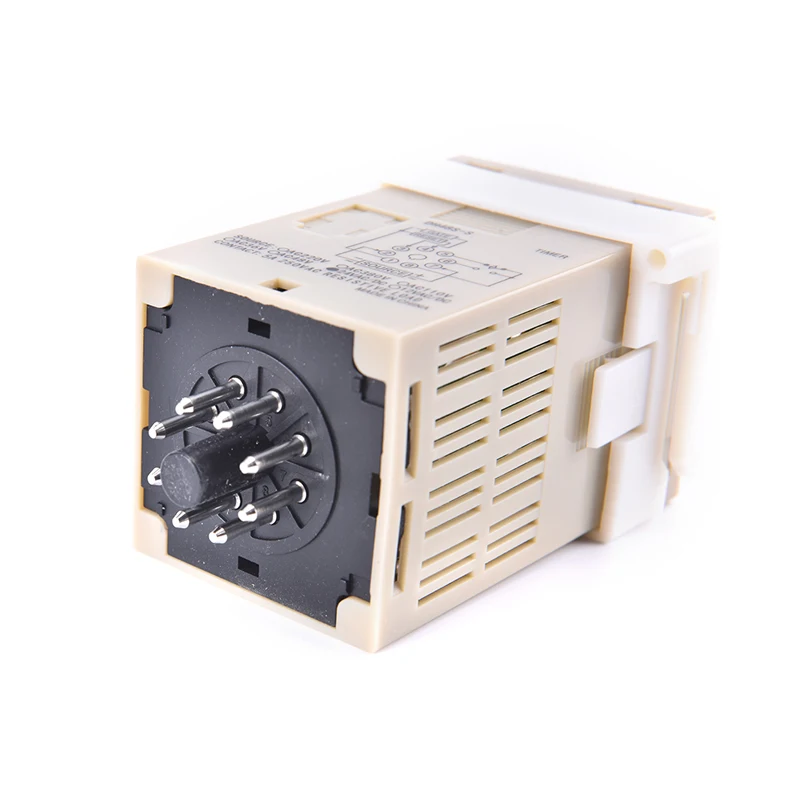

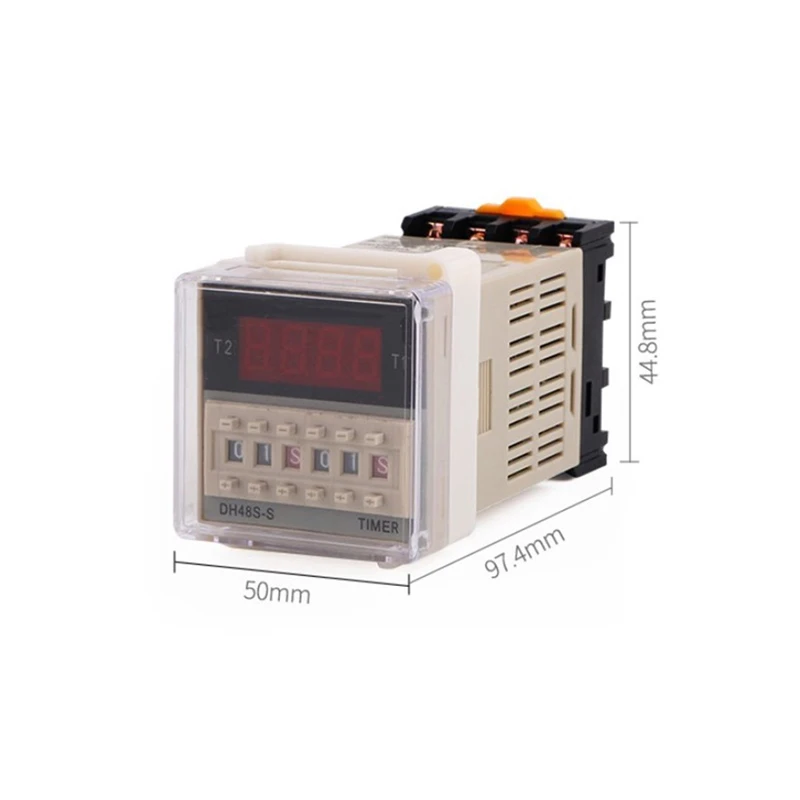

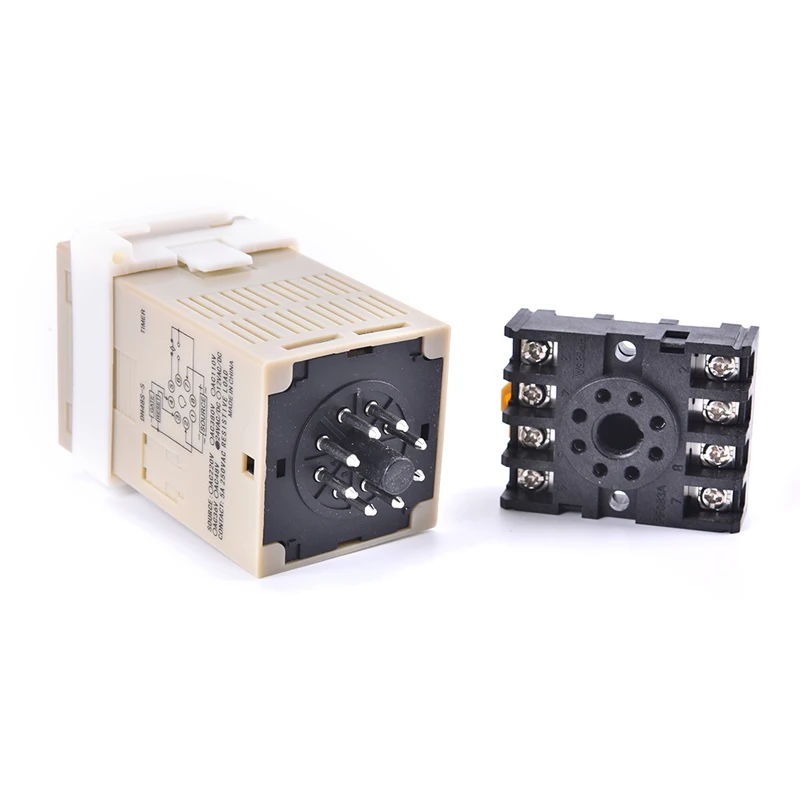

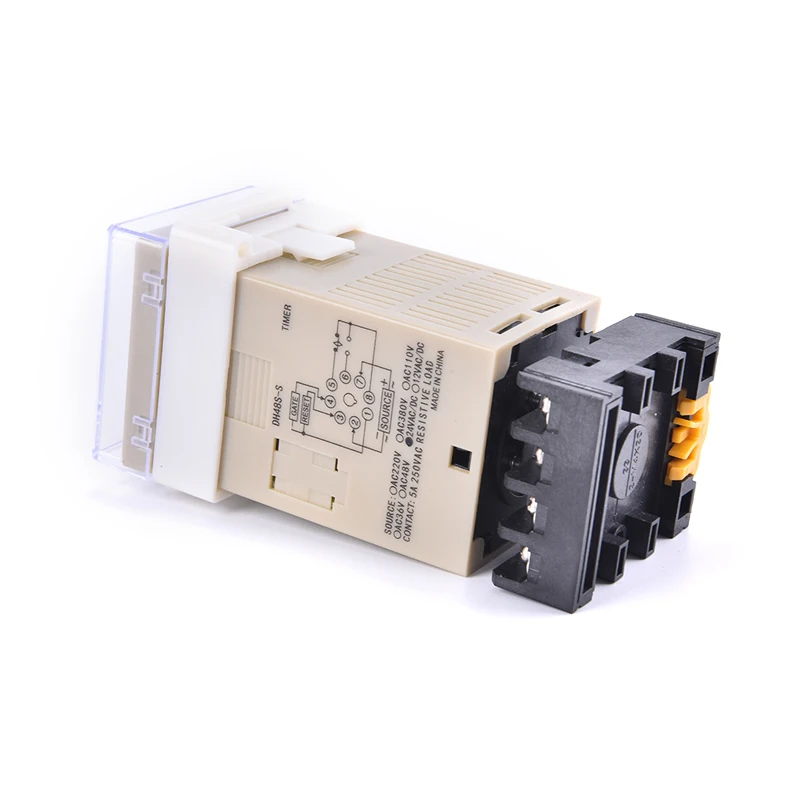

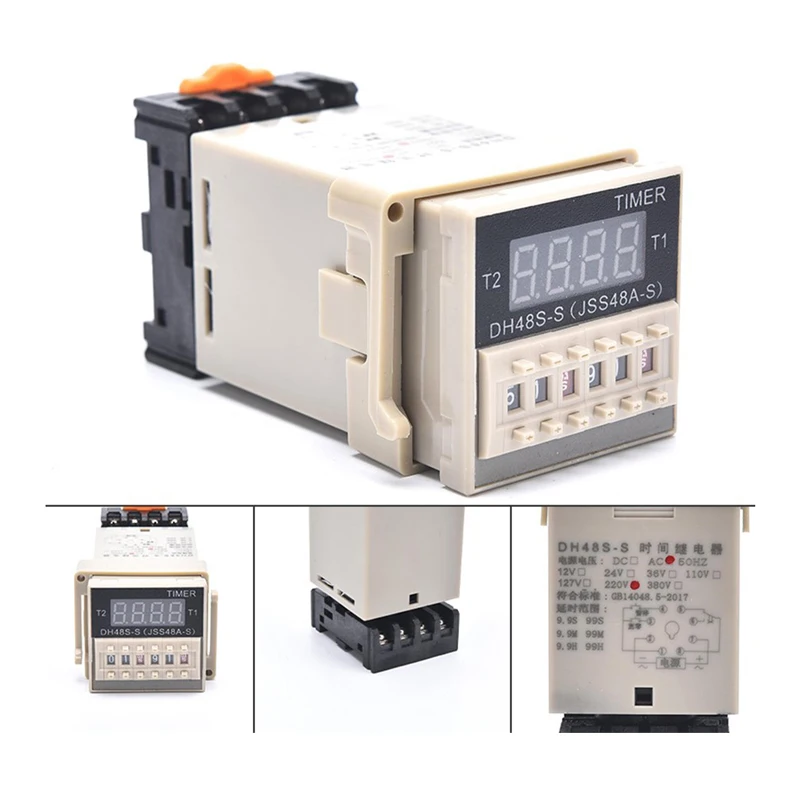

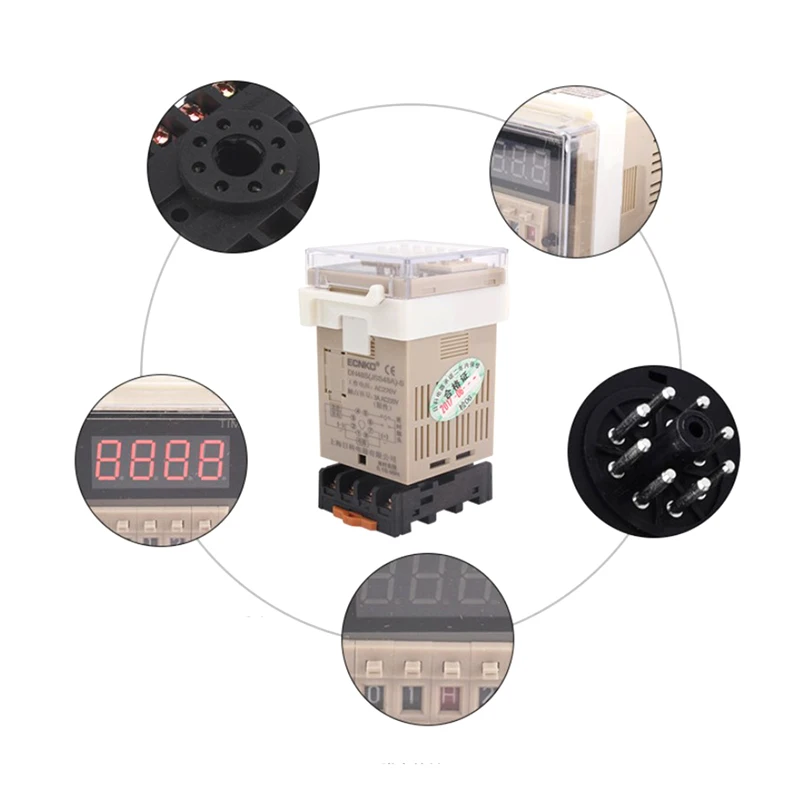

1PC AC/DC 24v-240v DH48S-S Programmable Digital display time relay cycle control Time Delay Relay Socket with Base Voltage | Обустройство

1PC AC/DC 24v-240v DH48S-S Programmable Digital display time relay cycle control Time Delay Relay Socket with Base Voltage | Обустройство

Features:
The use of advanced large-scale integration and LED digital tube display, beautiful
appearance, wide range of time delay, high precision, low power consumption, long
life, high contact capacity, etc., suitable for automatic control system.

Model:DH48S-S
Power supply: 85-110% rated voltage
AC: 220V
DC: 24V
Delay control accuracy: Less than equal 0.3% 0.05s.
Ambient temperature: -10-50 Celsius
Power consumption: Less than equal 5W
Altitude: Less than 2000m
Contact capacity: 5A DC30V / 5A AC220V (resistance)
Material: Plastic / Metal

Instructions
Preset delay value, and then the use of power
When the preset is finished, the cover is covered with a protective cover.
Drive larger current to be used with AC contactor
At any time when the reset function is connected to the 1,3 terminal, the contact
will be restored to its original position, and it will start from 0 after disconnection.
Reset and pause wire, please use the shielded wire
Pause and reset terminal voltage

Package include:
1 x Delay device

Note:
1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color which is showed on the pictures.
2.Please forgive 1 cm/0.39"-3 cm/1.18" measuring deviation due to manual measurement.
