DN40 1-1/2'' 3-Way UPVC True Union Motorized Ball Valve With Manual Override NO/NC Capacitor Auto Return Electric Motor |

DN40 1-1/2'' 3-Way UPVC True Union Motorized Ball Valve With Manual Override NO/NC Capacitor Auto Return Electric Motor |

Specifications:

1. Valve Body: 3-Way NPT/BSP 1-1/2'' DN40 UPVC. Orifice Size: 38mm.

* Connection Standard: ISO5211 F03、F05
* Output axis specification：Male square or Female octagonal 9*9 or 11*11

2. Actuator: Rated voltage: 12-24VDC, 24VAC or 110-230VAC
* Fail Safe=capacitor auto return when power off (CR202 & CR502)
Please specify a FAIL POSITION (OPEN or CLOSED) when ordering!!!

The default setting is Normally CLOSED ( i.e. valve auto return to close when power off )
#Please contact us or leave a message if you want Normally Open(i.e. valve auto return to OPEN when power off).

* Fail last position (CR303 & CR703).

3. Working current: ≤1.5A
4. Open/close time: ≤12S
5. Life time: 70000 times
6. Max. torque force: 15Nm.
7. Cable Length: 0.5m. Please contact me if you want custom length!
8. Maximum working pressure: 1.5 MPa
9. Environment temperature: -15℃～50℃
10. Liquid temperature: 5℃～55℃
11. Actuator Material: Engineering Plastics PPO
12. Sealing Material: EPDM & PTFE
13. Actuator Rotation: 360 Degree
14. Protection class: IP67
15. Manual override: YES
16. Indicator window: YES

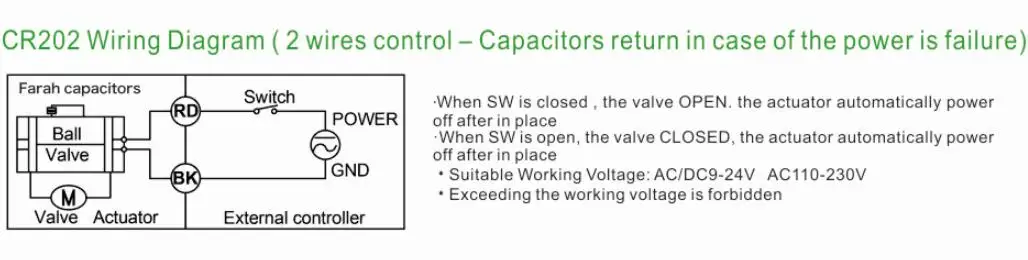

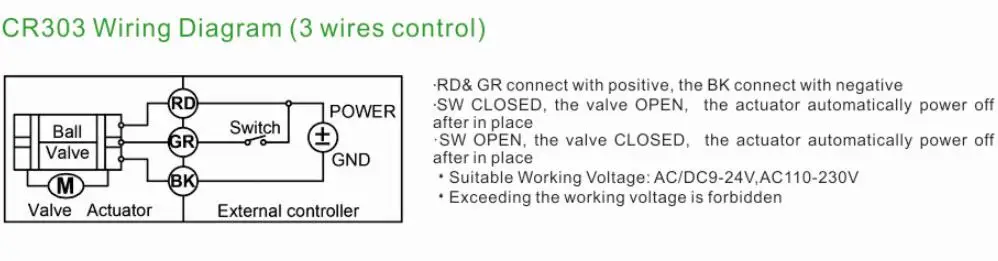

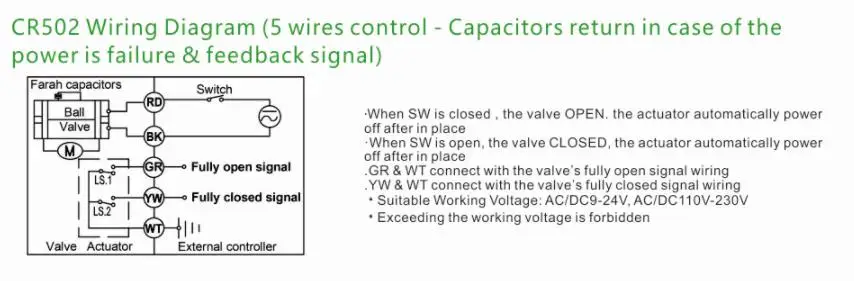

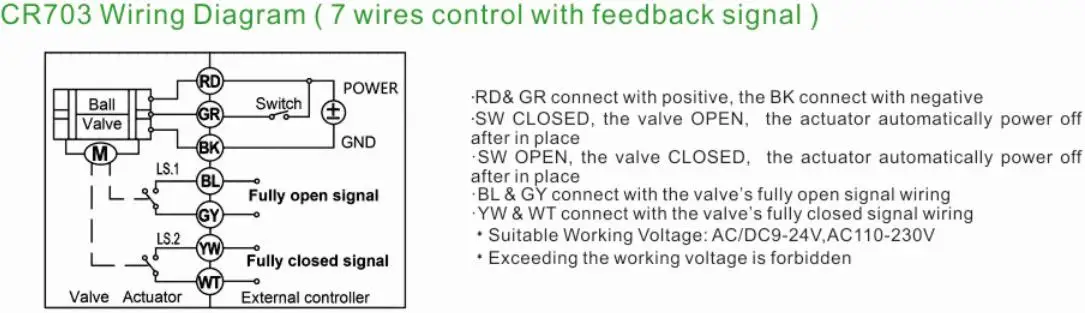

Wiring Diagrams:

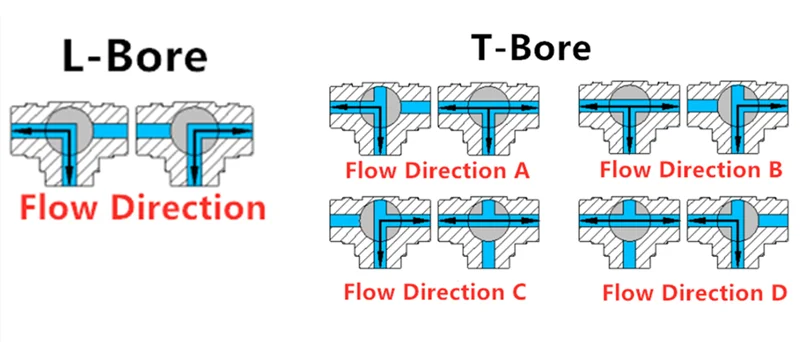

Flow Directions:

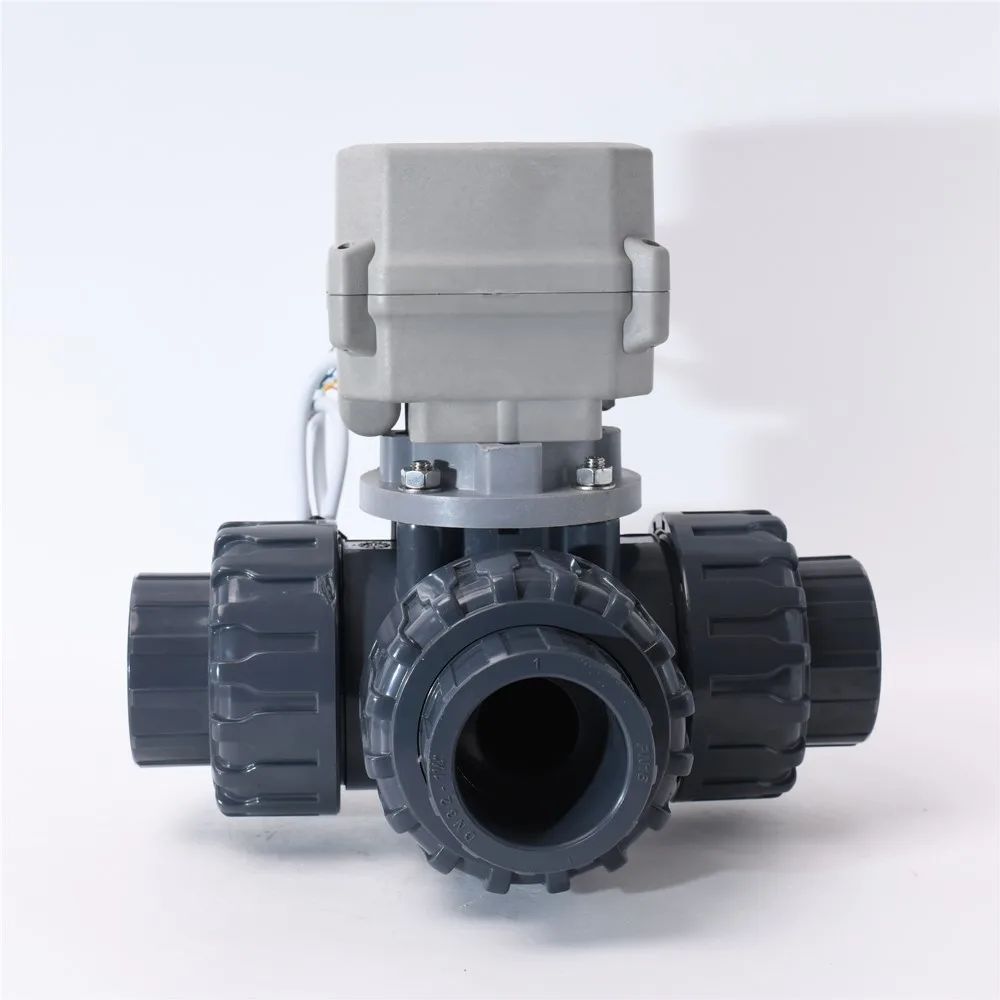

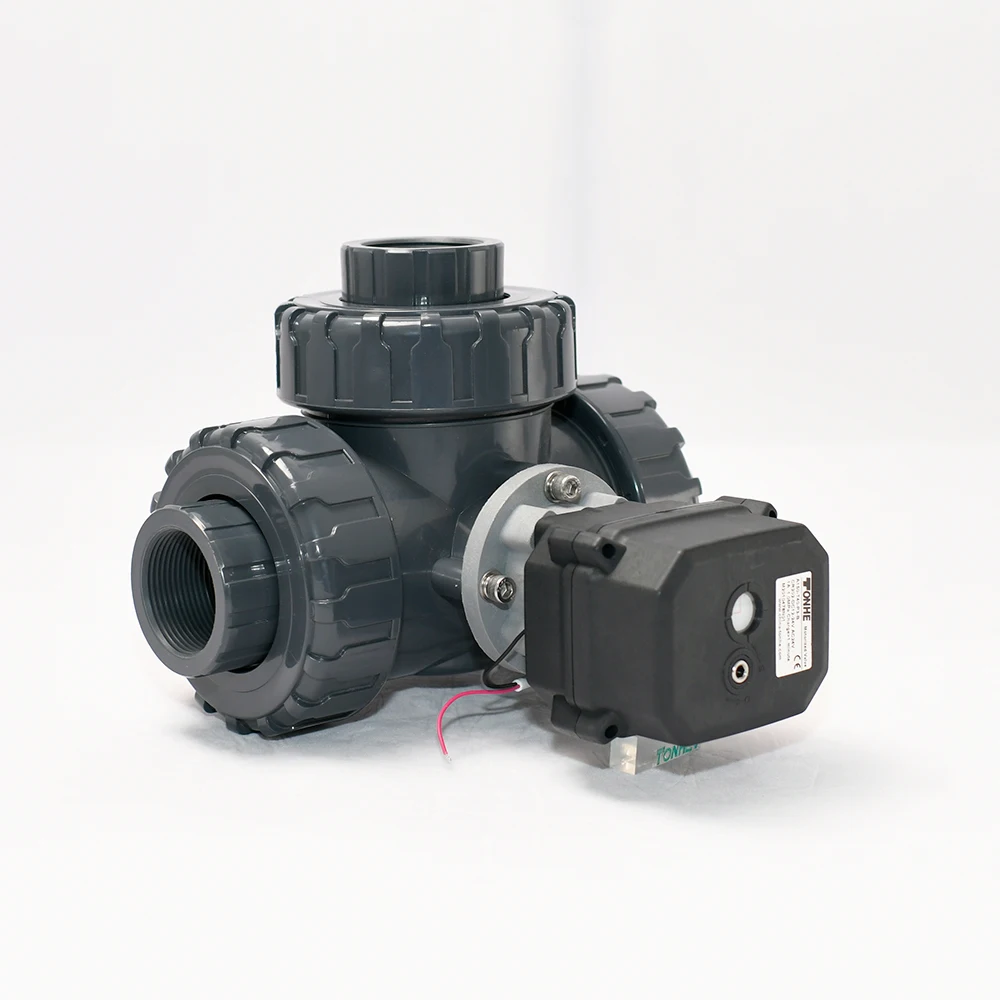

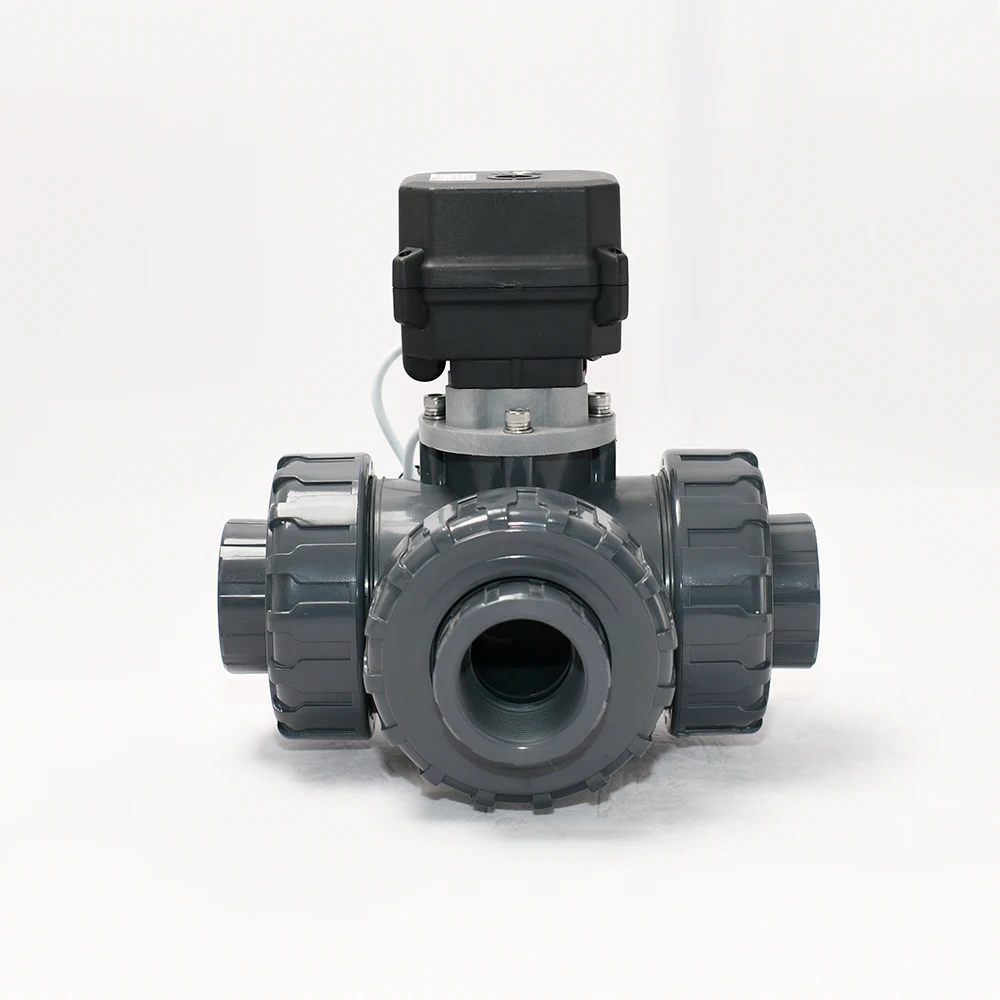

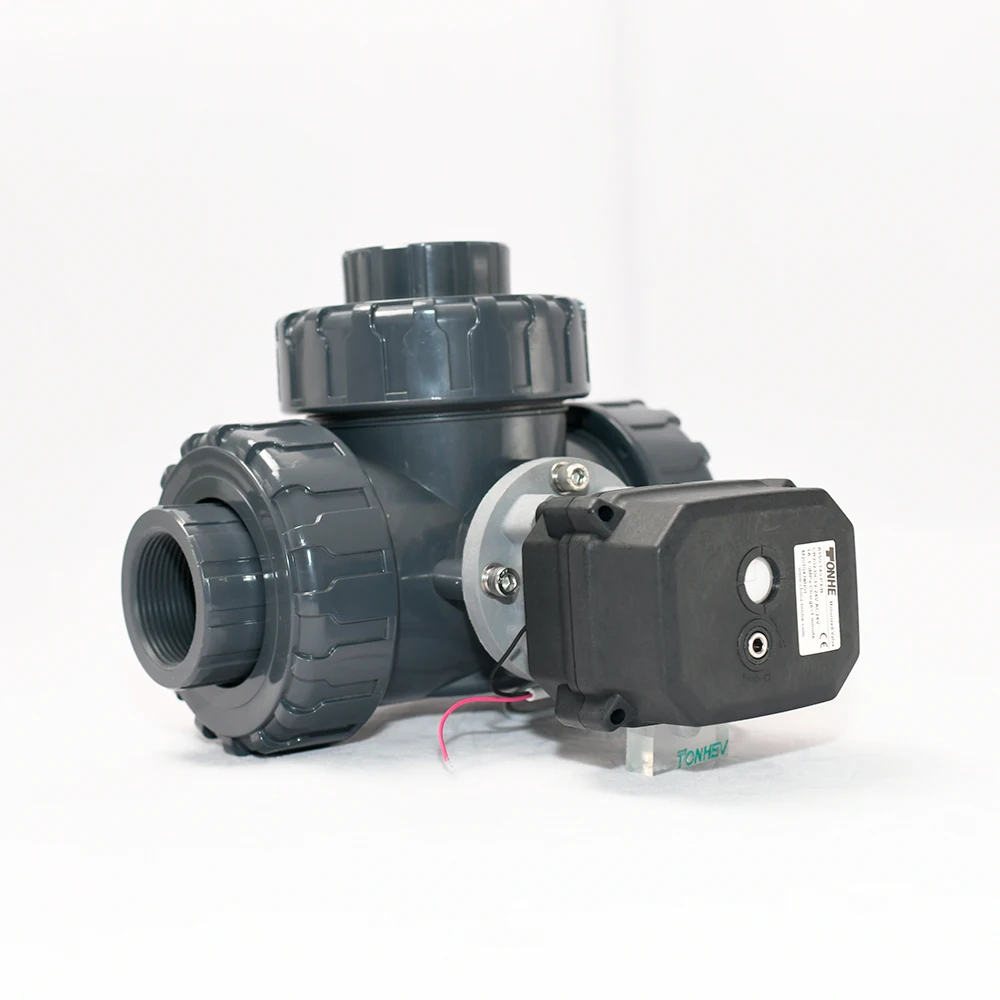

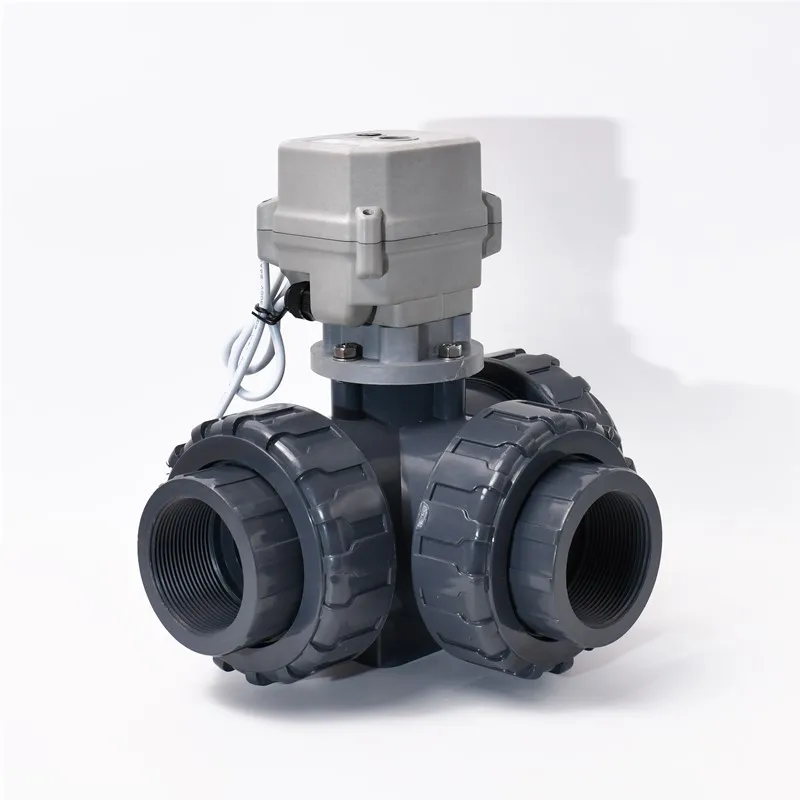

Product Photos:

SHIPPING POLICY:

1. If you find the shipping FREIGHT is UNREASONABLE when ordering, please contact us for checking, we may revise the freight.
2. After the payment is confirmed, we will process the order and ship your item as soon as possible.
3. The buyers should be responsible for tax or duty charged by their country.
4. Please check your address carefully before you process the order.

Advantages:

1). This unique compact motorized valve is used for specific applications in air or geothermal heat pumps, drinking water systems, solar water heaters and other industrial equipment.
2). This unique floating ball construction type ball valve requires very low torque and can be controlled with a small compact actuator.
3). Automatically reduces power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time.

Lead Free, Safe for Drink Water and Food.

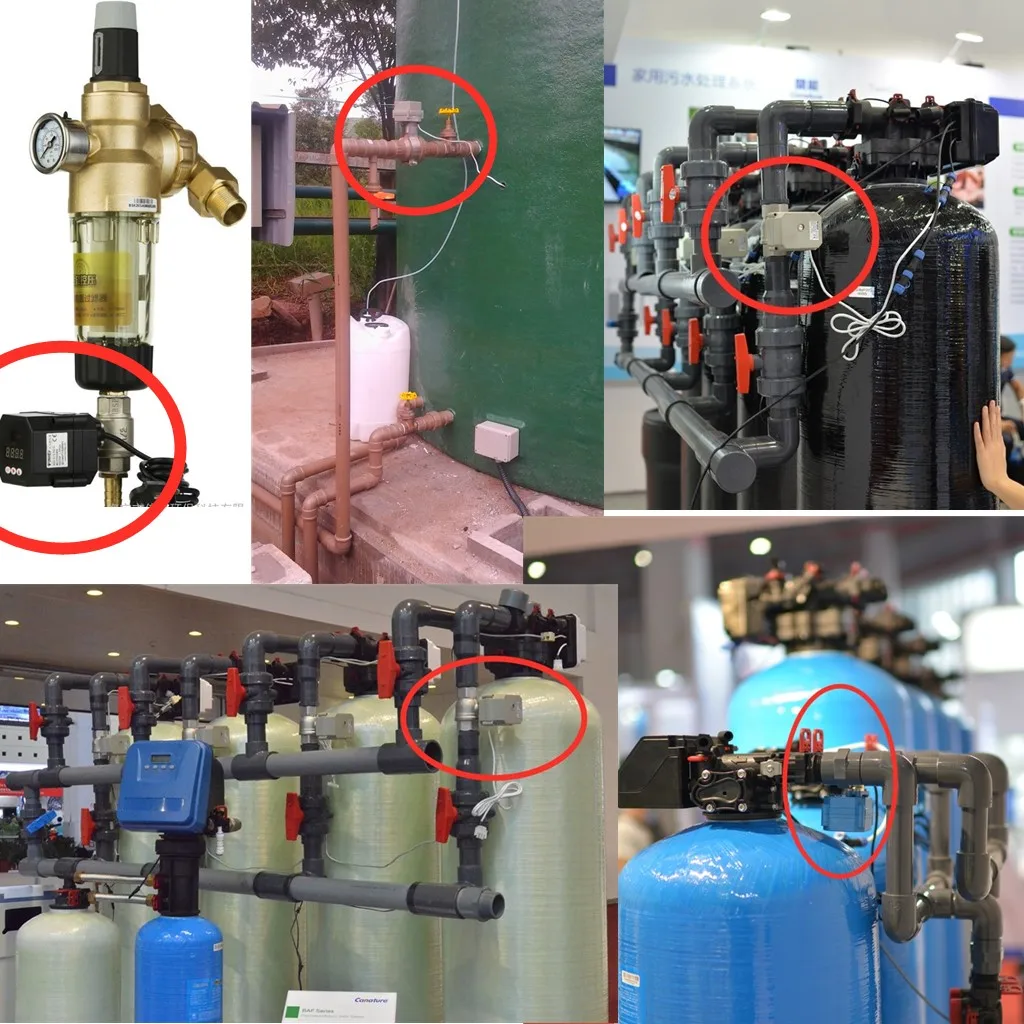

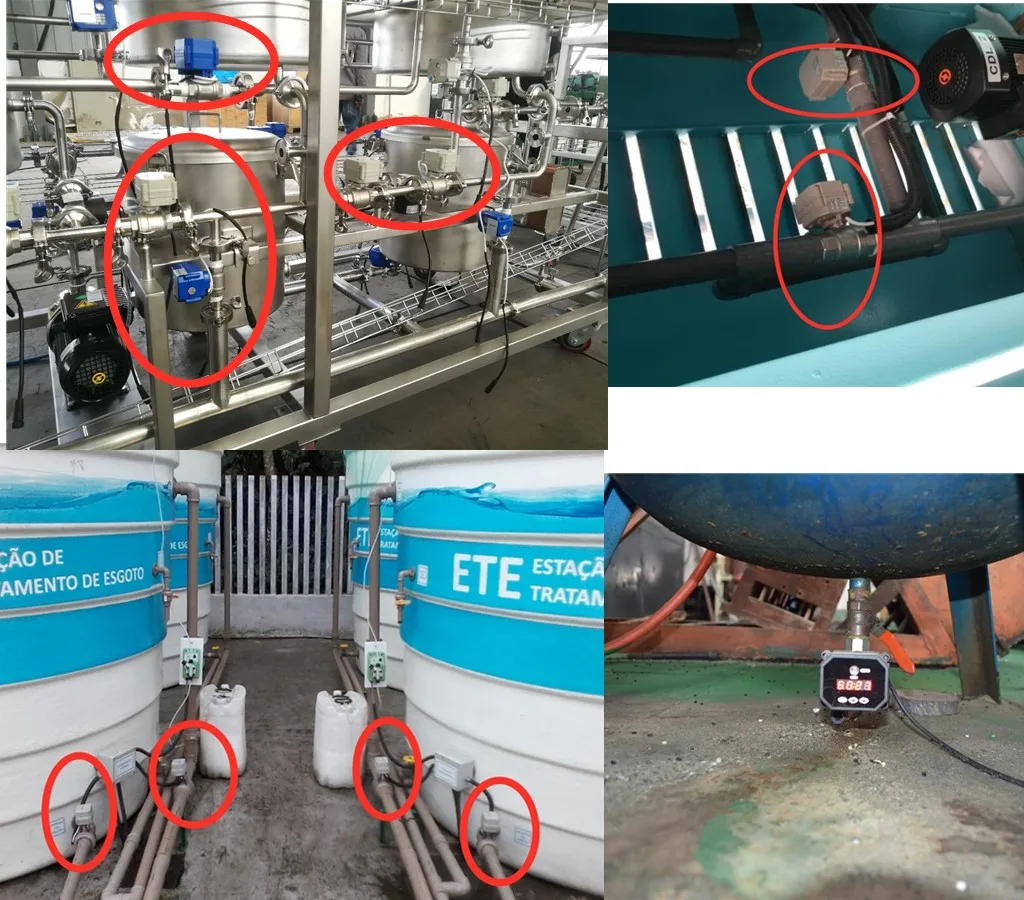

Applications:
