Dwin IPS 8.8" 1920X480 LCD Module Screen T5L HMI Intelligent Display Resistive Capacitive Touch Panel |

Dwin IPS 8.8" 1920X480 LCD Module Screen T5L HMI Intelligent Display Resistive Capacitive Touch Panel |

About DWIN

DWIN Technology is the world's leading provider of high-quality human-machine interaction (HMI) products and solutions. Relying on the leading and competitive advantages of products in terms of functions, quality, services, and prices, DWIN Technology's HMI products and solutions are widely used in industries such as smart appliances, new energy, financial machinery, engineering machinery, artificial intelligence, export mechanical and electrical products and medical, beauty and health care, etc.

Screen‘s Features

DMG19480C088_03WN

Based on T5L2, running DGUS II system, commercial grade.

8.8-inch, 1920*480 Pixels resolution, 16.7M Colors, IPS-TFT-LCD, Wide viewing angle.

Non-touch screen.

32MB memory, cost-effective.

DMG19480C088_03WTR

Based on T5L2, running DGUS II system, commercial grade

8.8-inch, 1920*480 Pixels resolution, 16.7M Colors, IPS-TFT-LCD, Wide viewing angle.

Capacitive touch screen.

32MB memory, cost-effective.

DMG19480C088_03WTC

Based on T5L2, running DGUS II system, commercial grade.

8.8-inch, 1920*480 Pixels resolution, 16.7M Colors, IPS-TFT-LCD, Wide viewing angle.

Resistive touch screen.

32MB memory, cost-effective.

Display parameters

LCD Type

IPS, TFT LCD

Viewing Angle

Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)

Resolution

480×1920 pixels (0°/90°/180°/270°)

Color

24-bit 8R8G8B

Active Area (A.A.)

218.88mm (W) ×54.72mm (H)

View Area (V.A.)

WTC:219.7mm (W) ×55.5mm (H)
WTR&WN:-

Backlight Mode

LED

Backlight Service Life

>20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

WTC:250nit
WTR:250nit
WN:300nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Serial interface parameters

Mode

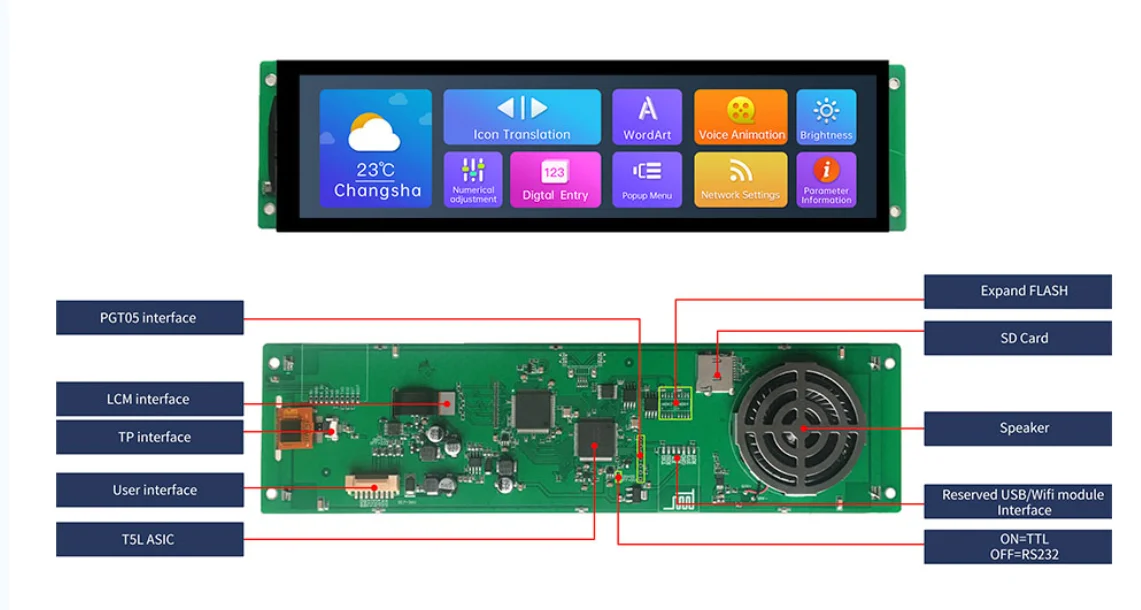

UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232 (Only available after OS configuration)

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

2.7

3.2

-

V

Output 0, Iout = 4mA

-

0.1

0.4

V

Input 1

2.4

3.3

5.5

V

Input 0

0

-

1.0

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 ,4 modes (OS configuration)

Interface Cable

8Pin_2.0mm
If user use the optional accessory cable HDL65011 of DWIN for communication，needto exchange TX & RX pins of the cable.

Electrical specifications

Rated Power

<5W

Operating Voltage

6~36V, typical value of 12V

Operating Current

280mA

VCC=12V, max backlight

140mA

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Operating environment

Operating Temperature

-20℃~70℃(12V @ 60% RH)

Storage Temperature

-30℃~80℃

Conformal coating

None

Operating Humidity

10%~90%RH, typical value of 60% RH

ESD Test

Test temperature: 25°C.
Test process: the product was placed on the test bench to perform contact and air discharge in turn of the serial screen iron frame and display area . During the experimental process, it was observed whether the screen is dead, black, white, splash, or reboot. According to the experiment results,the performance is in line with the criteria GB/T 17626.2 B level and above.

Discharge Type

Discharge Value

Result

Contact discharge

±4KV

Normal operation

Air discharge

±4KV

Normal operation

Dimensions

Form Factor

WTC:252.0(W) ×65.4(H) ×17.0(T) mm
WTR:252.0(W) ×65.4(H) ×16.8(T) mm
WN:252.0(W) ×65.4(H) ×15.2(T) mm

Installation Dimensions

Positioning hole: 232.40（+0.3mm）×65.40（+0.3mm）

Net Weight

WTC:261g
WTR:246g
WN:197g

Packaging &shipping

Anti-static bag+Foam box+Paper Carton packing materials for international air freight shipment.

Finished stocks for quick delivery in 7 days for samples.

No MOQ requirement for any standard product.

FAQ

Question 1:

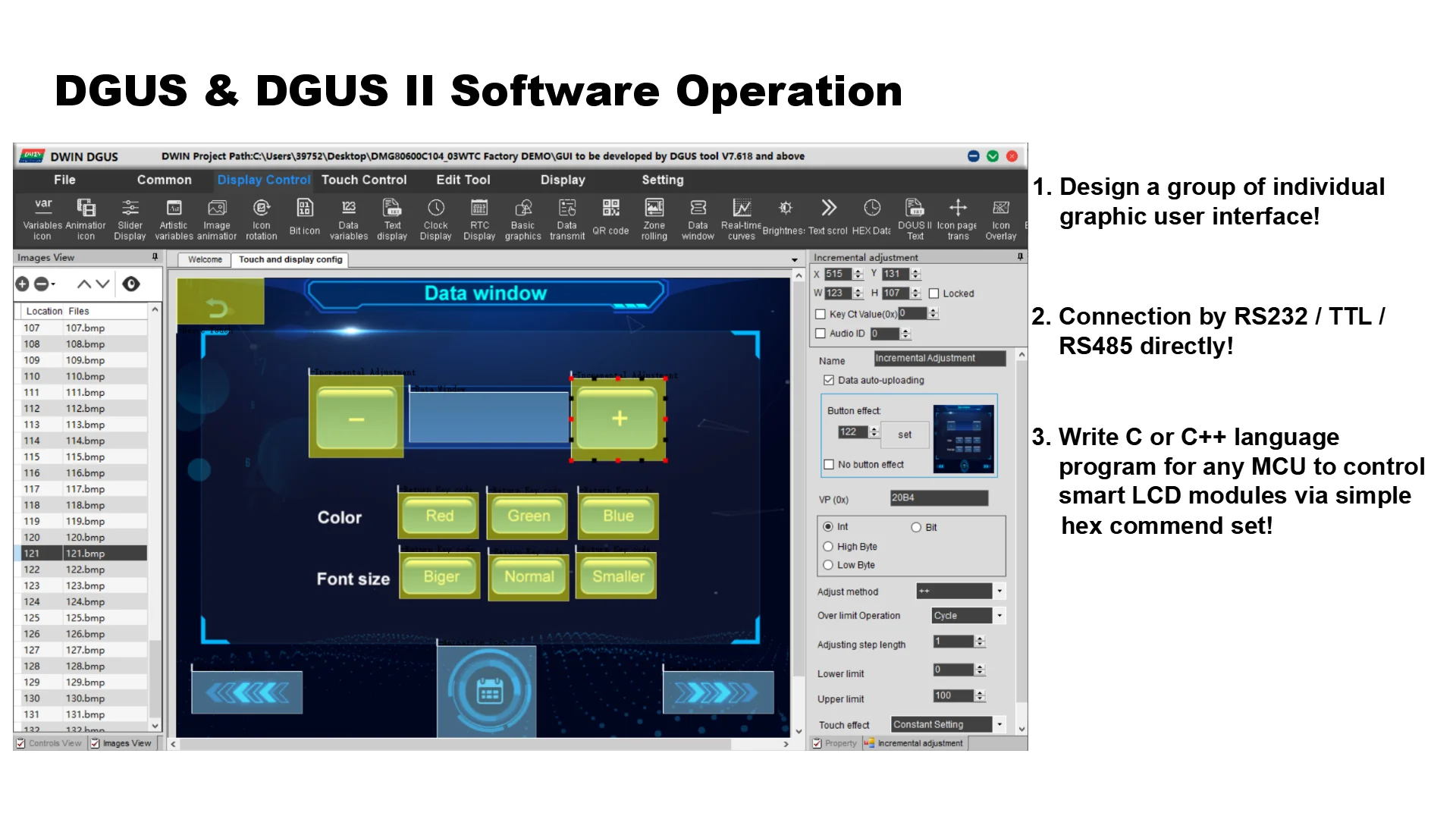

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum://forums.dwin-global.com/

- International website://www.dwin-global.com/

- Development tool://www.dwin-global.com/tool-page/

- Development guide://www.dwin-global.com/development-guide/

- DGUS video tutorial://www.dwin-global.com/t5l-dgus-v7-6-video-tutorial/
- Leave messages to us on Aliexpress.
