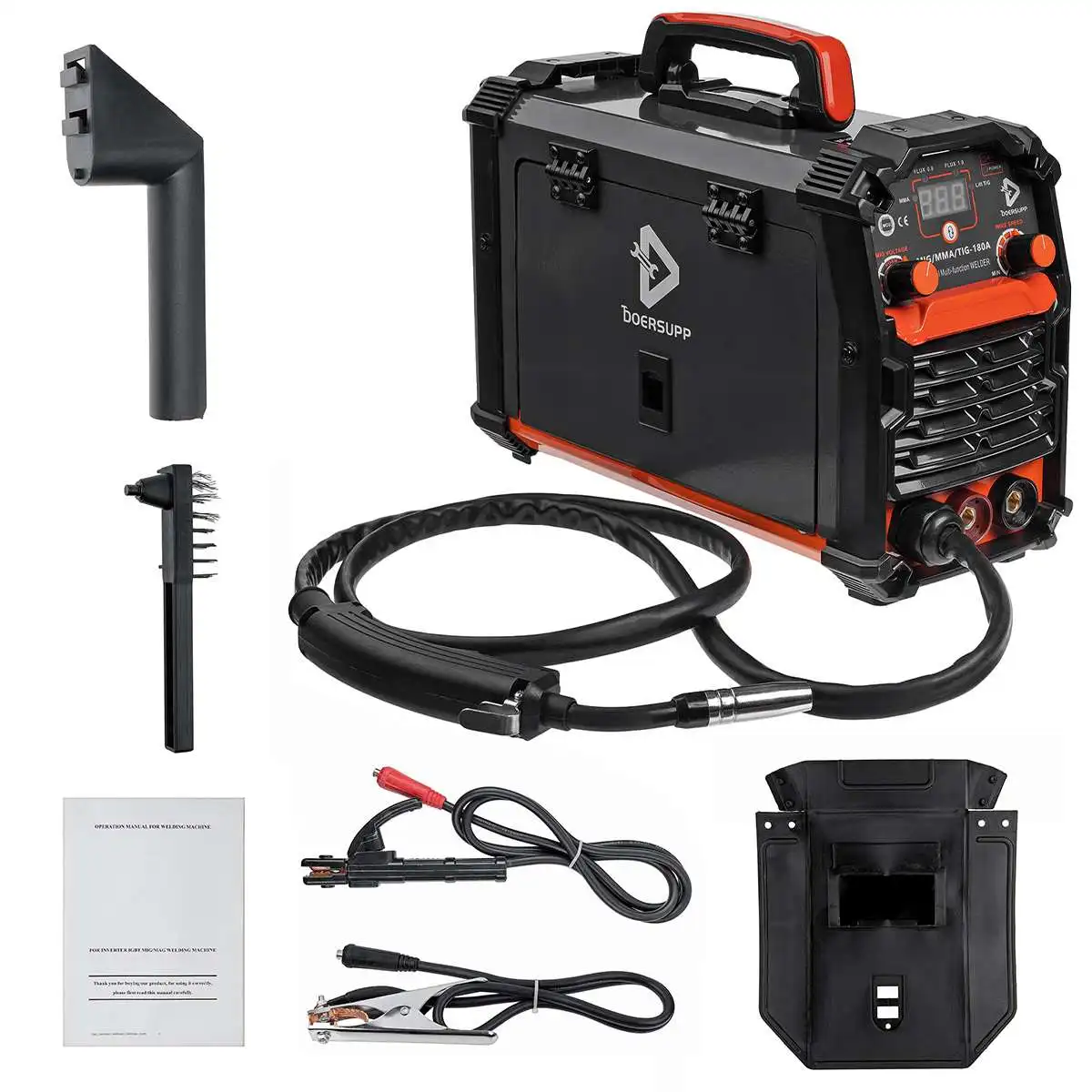

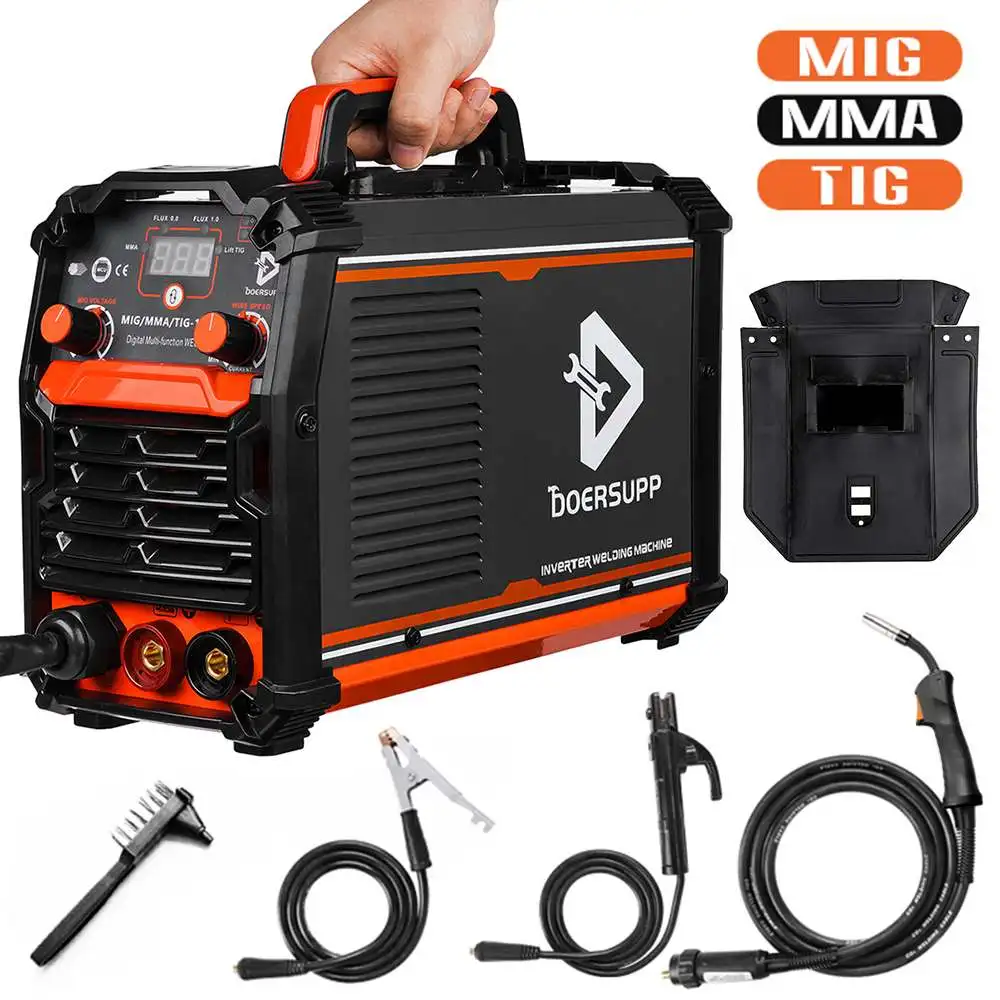

Package Included:
1*Welding Machine

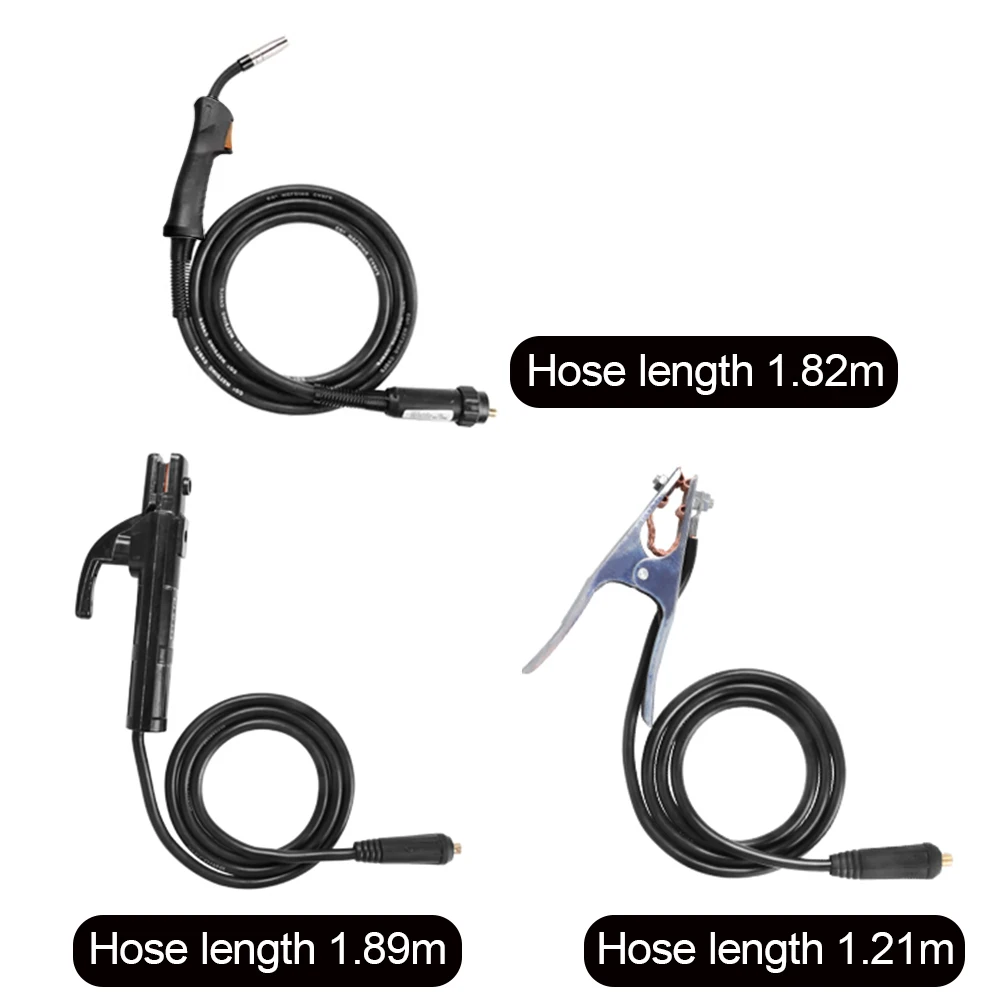

1*1.82m MIG Torch
1*1.21m 16mm² 300A Earth Clamp
1*1.89m 16mm² 200A Electrode Holder
1*Mask
1*Brush
1*Manual
Item Specifics:
Input Power Voltage : AC220V±15%, 50/60Hz
No-load Voltage (V) : 68V
Rated Input power : (KVA) 5.7KVA
Rated Input Current(A) : 23.8A
Output Current Range (A) : 20A-180A
Duty Cycle(%)(25℃) : 60%
Efficiency (%) : 85%
Power Factor (COS) : 0.93
Insulation Class: F
Suitable thickness(mm): 0.8above
Electrode Diameter (MM) : 1.6-3.2mm
Housing IP grade: IP21

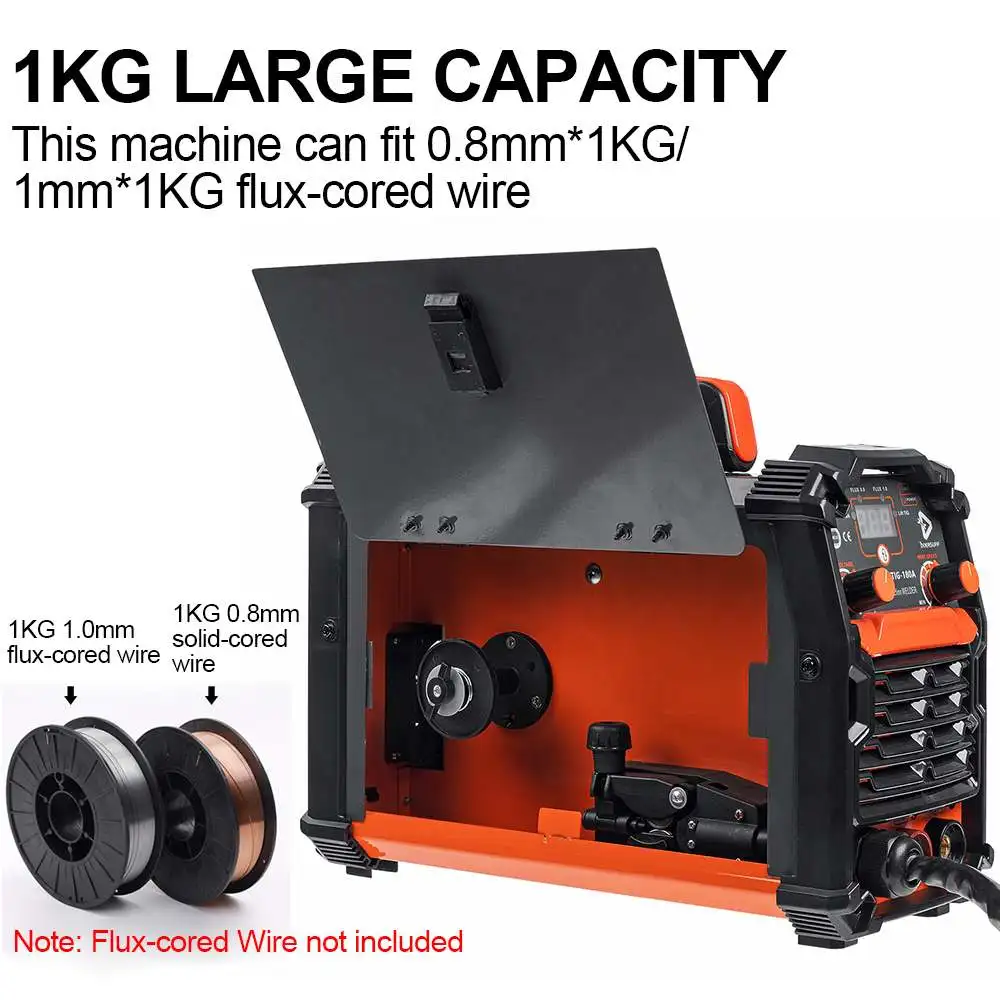

Wire diameter(mm): 0.8/1.0mm
Puick joint Size(mm): 10-25

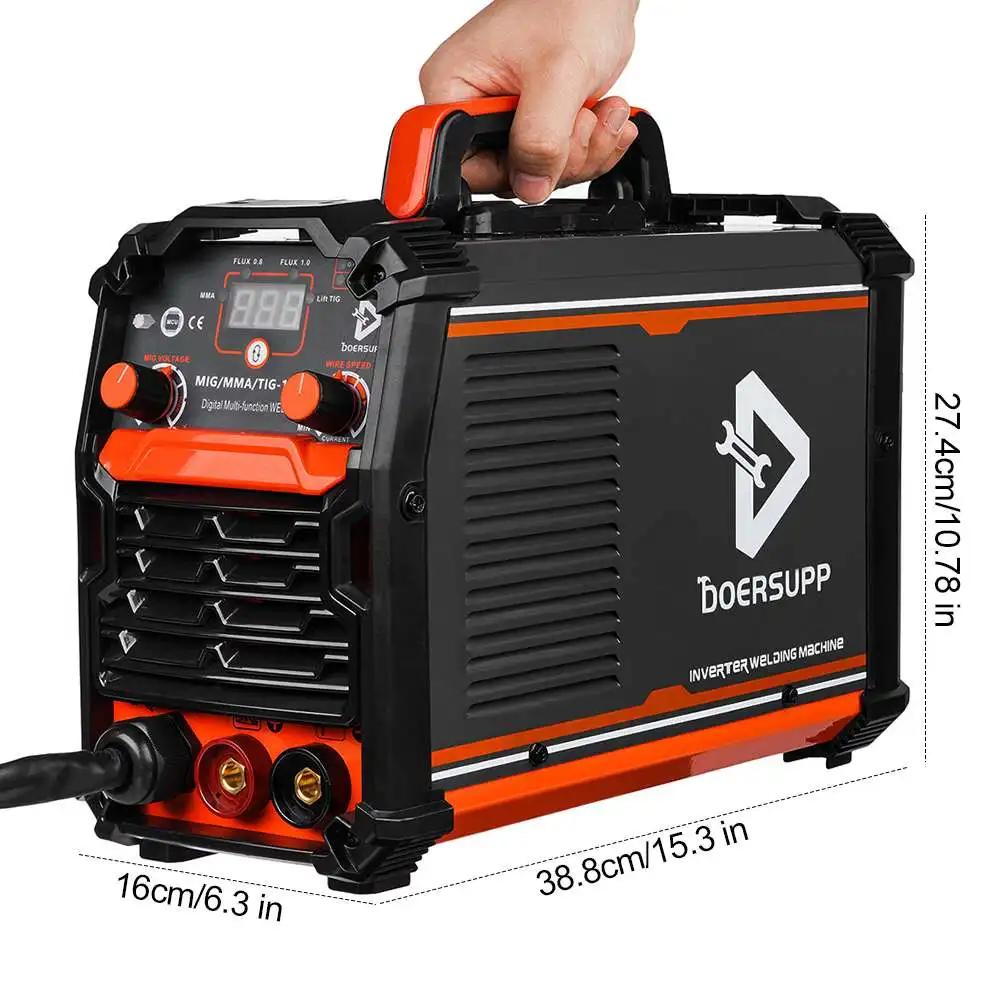

Machine Size(LxWxH): 540x255x415mm/21.3x10x16.34 in
Fit For:Carbon Steel/Galvanized Steel/Stainless Steel
Product Function:

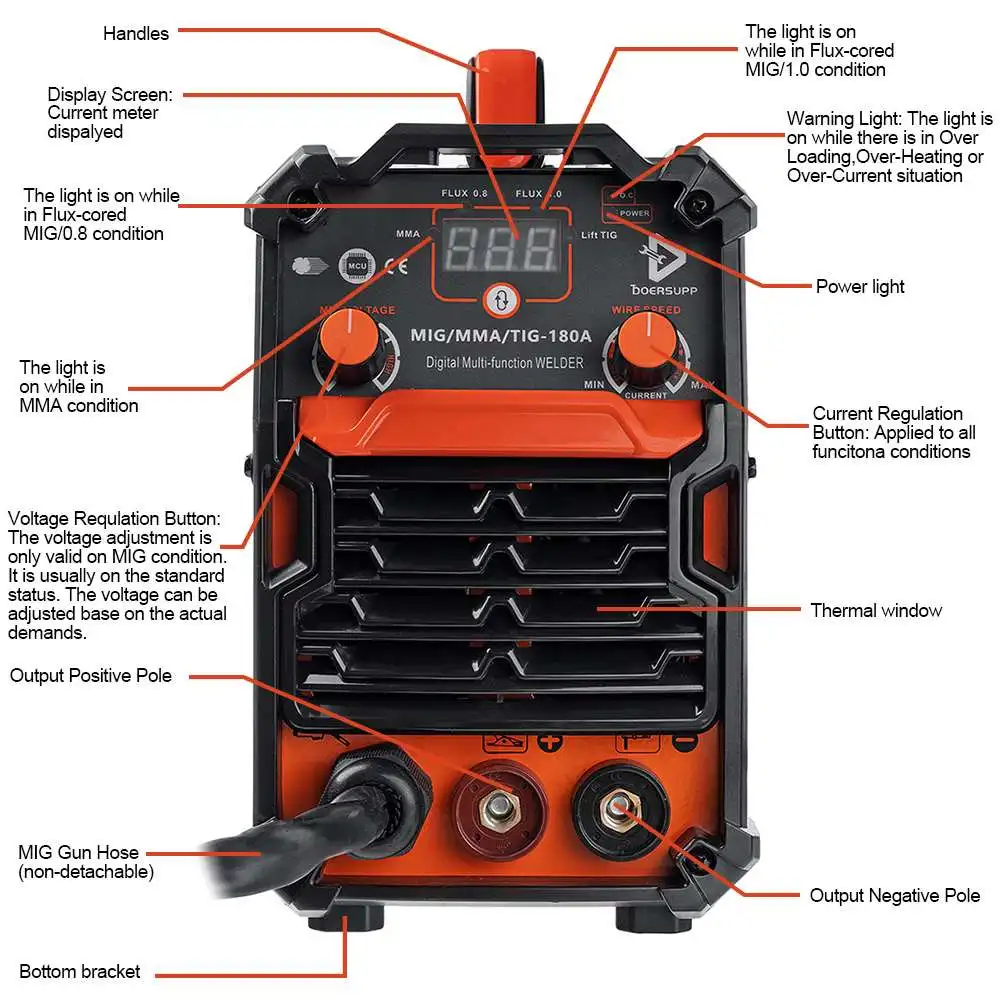

When you need to use the MMA function, you first connect the soldering handle to the- negative electrode and the alligator clip to the + Positive pole, then open power button, find the function button on the panel and adjust it to MMA and the green light will turn on can start work.
When you need to use the FLUX CORE function, you first connect the soldering handle to the MIG hole and the alligator clip to the +Positive pole ,The other connector on the machine is connected to the- negative pole， then open power button, find the function button on the panel and adjust it to FLUX CORE 1.0 and the green light will turn on can start work.
When you need to use the TIG function, you first connect the TIG gun to the - negative pole ，and alligator clip to the +Positive pole , then open power button and the green light will turn on can start work.
Features:

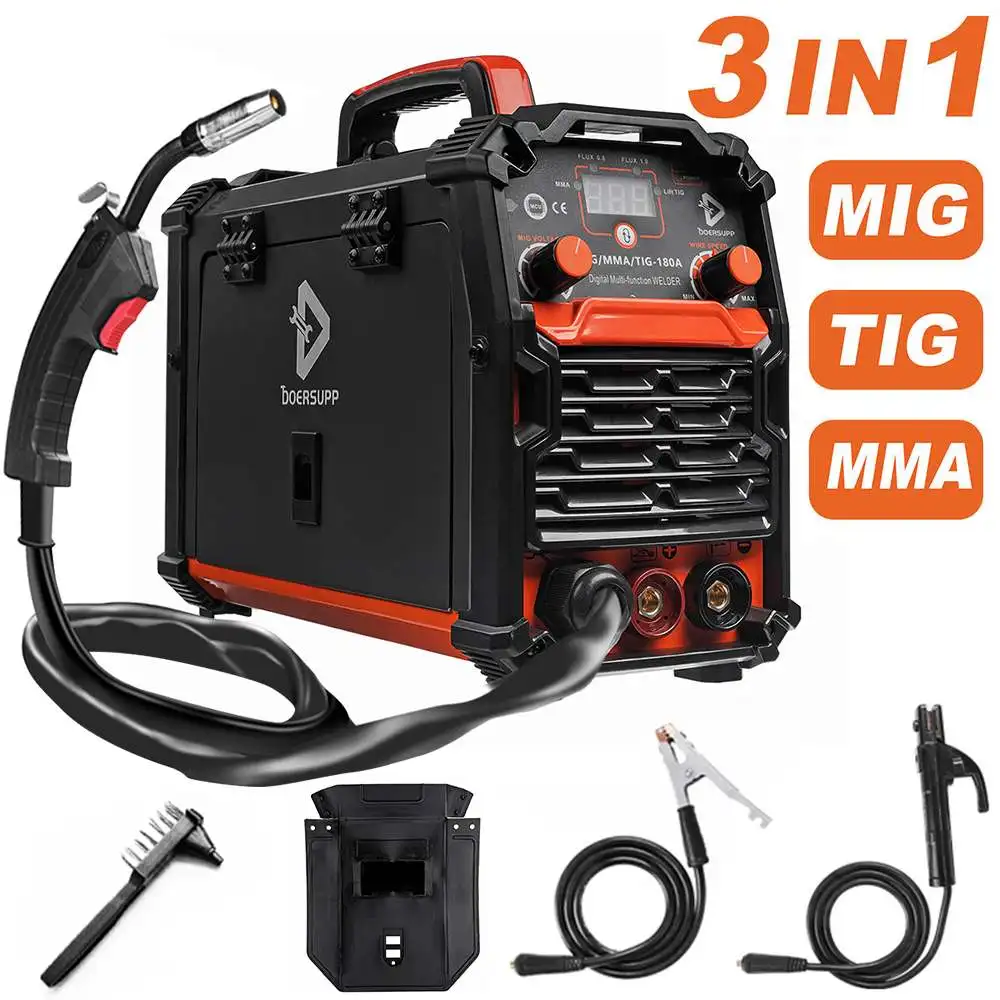

1.With Multiple Welding Function And Welding Mode
2.With Large Colorful Digital Screen,Made the Welding Parameters more intuitional
3.With Unified Function,It can One key to adjust the current, automatically match the wire feeding speed and welding voltage
4.Fit Gas&Gasless Welding,Stable welding wire, deep molten pool, small spatter
5.Full Set.It is Avaliable When Powered
