Конвертер HDMI 2.0b 4K 60 Гц с экстрактором аудио и поддержкой канала Dobly 7.1 ATMOS Surround, HD-MI на оптический TOSLINK SPDIF.

Конвертер HDMI 2.0b 4K 60 Гц с экстрактором аудио и поддержкой канала Dobly 7.1 ATMOS Surround HD-MI на оптический TOSLINK SPDIF.

4K 60HZ HDMI 2.0b Converter HDMI Audio Extractor with Dobly 7.1 ATMOS Surround channel Support HD-MI to Optical TOSLINK SPDIF

Product Introduction:

The digital to analog audio converter is designed for home or professional audio switching, converting coaxial or Toslink digital audio signal to analog L / R audio, and can be connected to external devices such as amplifiers through standard RCA-type jack, you can also 3.5mm headphone jack output, connected to high-fidelity headphones, the converter is compact and easy to install, built-in high-fidelity amplifier chip, headset headphones and RCA output port can easily launch 16-300 Ohm hi-fi headphones, the product supports power off, volume adjustment, easier to adapt to different sources, different environments, the product also supports Toslink input to Toslink, coaxial output, coaxial input to Toslink, coaxial output, can adapt to more digital audio amplifier interface.

Product Features:

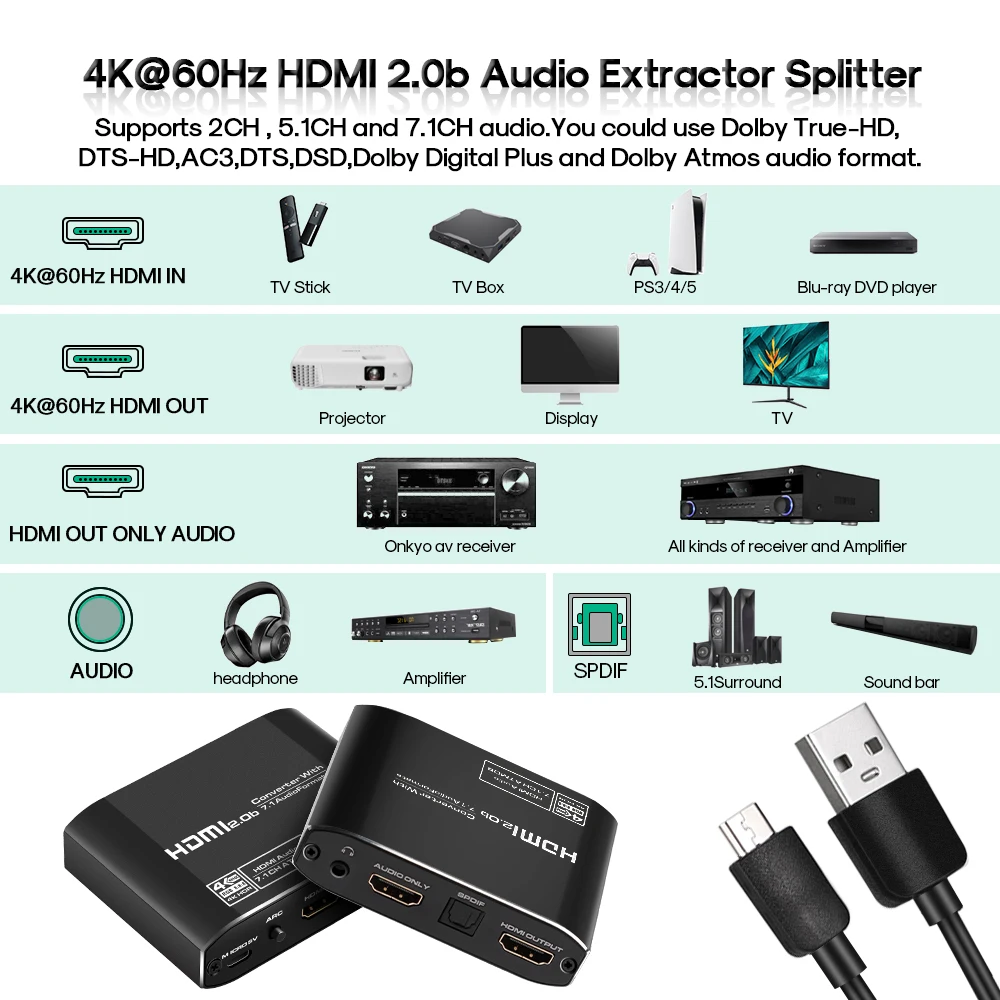

 One HDMI input converted to one HDMI video + one HDMI 7.1CH audio +Audio (SPDIF+3.5mm)output
 Output audio support: HDMI 7.1CH+SPDIF+3.5mm analog Audio Output
 Input Resolution: up to 2160p60
 HDMI to achieve the synchronization of audio signal separation. There are
2.0CH / 5.1CH/7.1CH three kinds of audio mode options
 LED indication: when source or sink is working, LED relative to is light.
 No loss of quality
 Installs in minutes
 Need DC5V power supply
 Support ARC

NOTE:

1.When you use ARC Function, please make sure the spdif port light is red on, that’s means the converter get signal. And the TV need support ARC.
2.When you open the ARC, then the TV remote will can’t control the volume, you can only adjust the volume on your speaker/sounder/home theater.

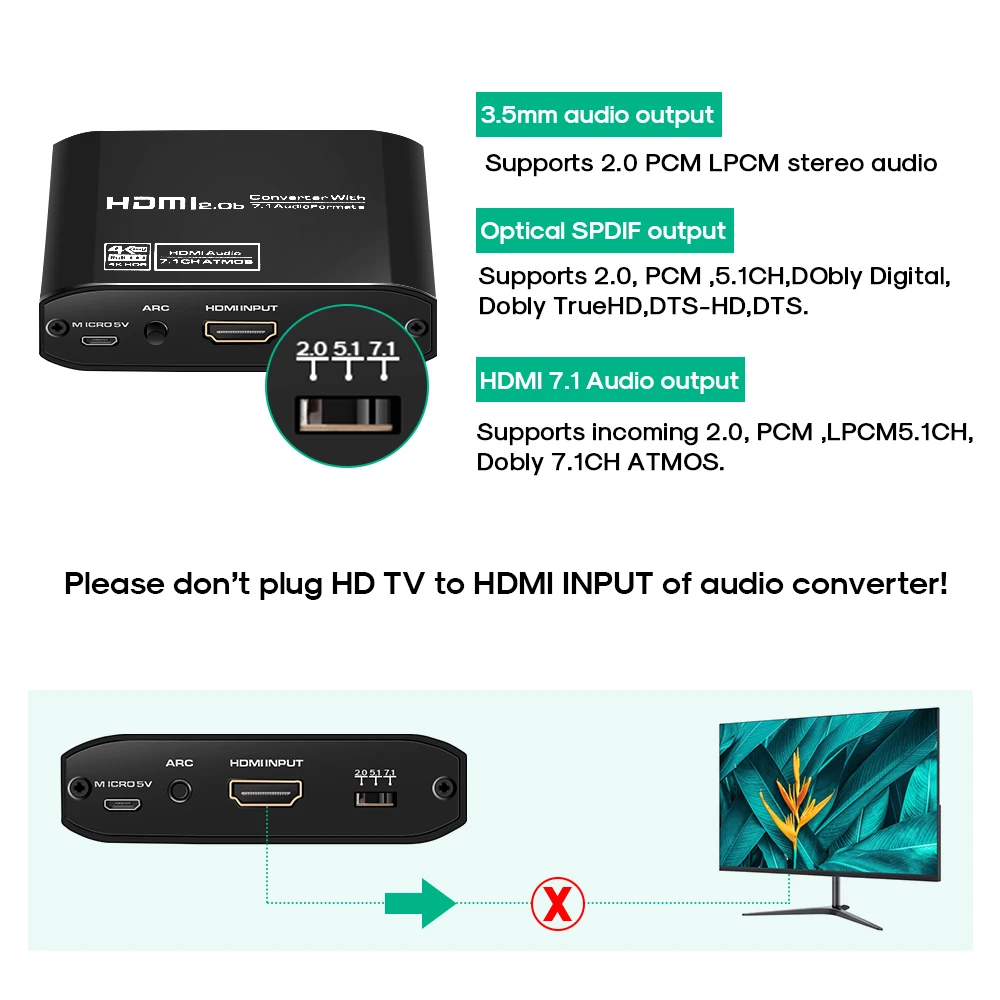

3.Please do not plug HD TV to HDMI input of converter otherwise you could not get any signal.

SPECIFICATIONS:

HDMI resolution …………………………...2160P/1080p/1080i/720p/576p/576i/480p
Audio output……………………………………………………………………………. L/R+SPDIF
Max baud rate…………………….………………….………………….………………..18Gbps
Input/Output TMDS signal ………….……………………………….……0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ………………………. ….…..≤15m AWG26 HDMI standard cable
Output cable distance……………………………….…...≤20m AWG26 HDMI standard cable
Max working current…………………………………………………………………………500mA
Operating Temperature range……..…………….………………………………… (-15 to +55℃)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

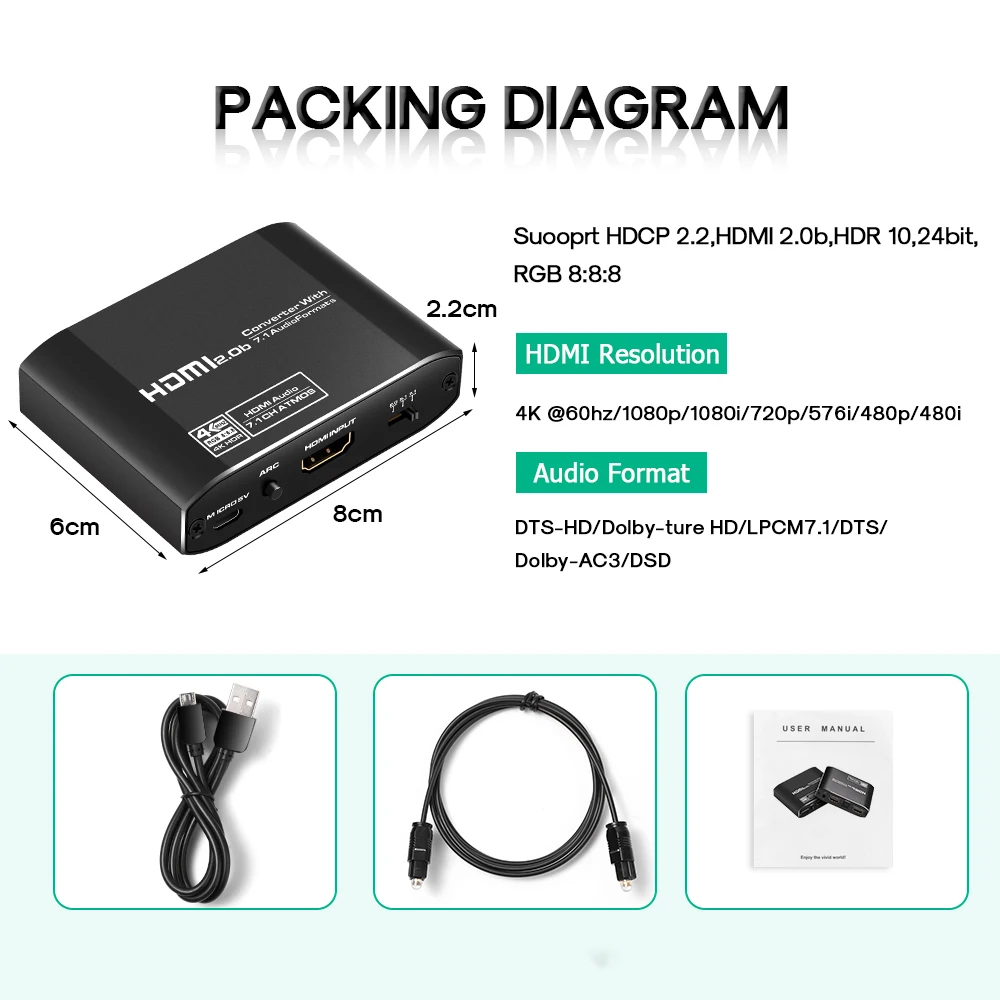

Dimension (L x W x H) ……………………………….…………………… 80x60x20(mm)
Weight…..………………………………………………………..…….……………………..…88g

Package Include:

Fiber optic audio splitter*1
USB power supply cable*1
Power cord*1
Instruction manual*1

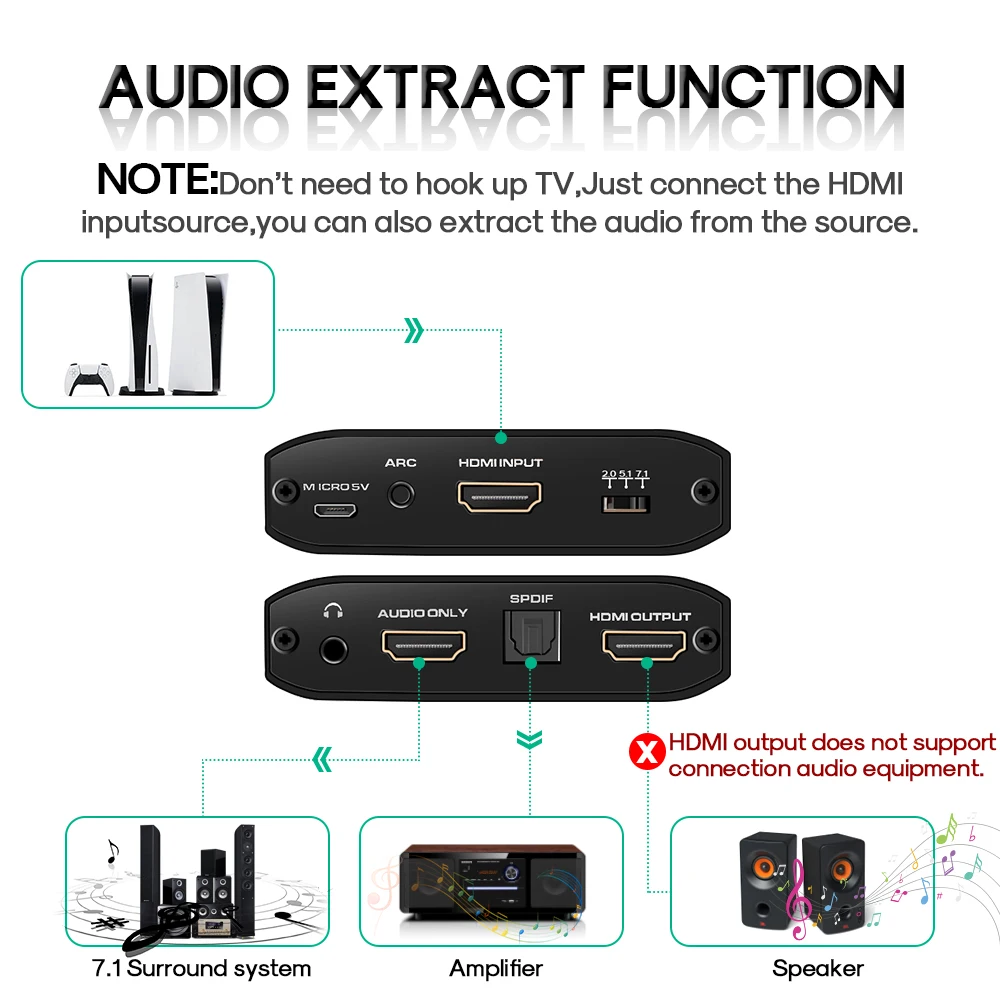

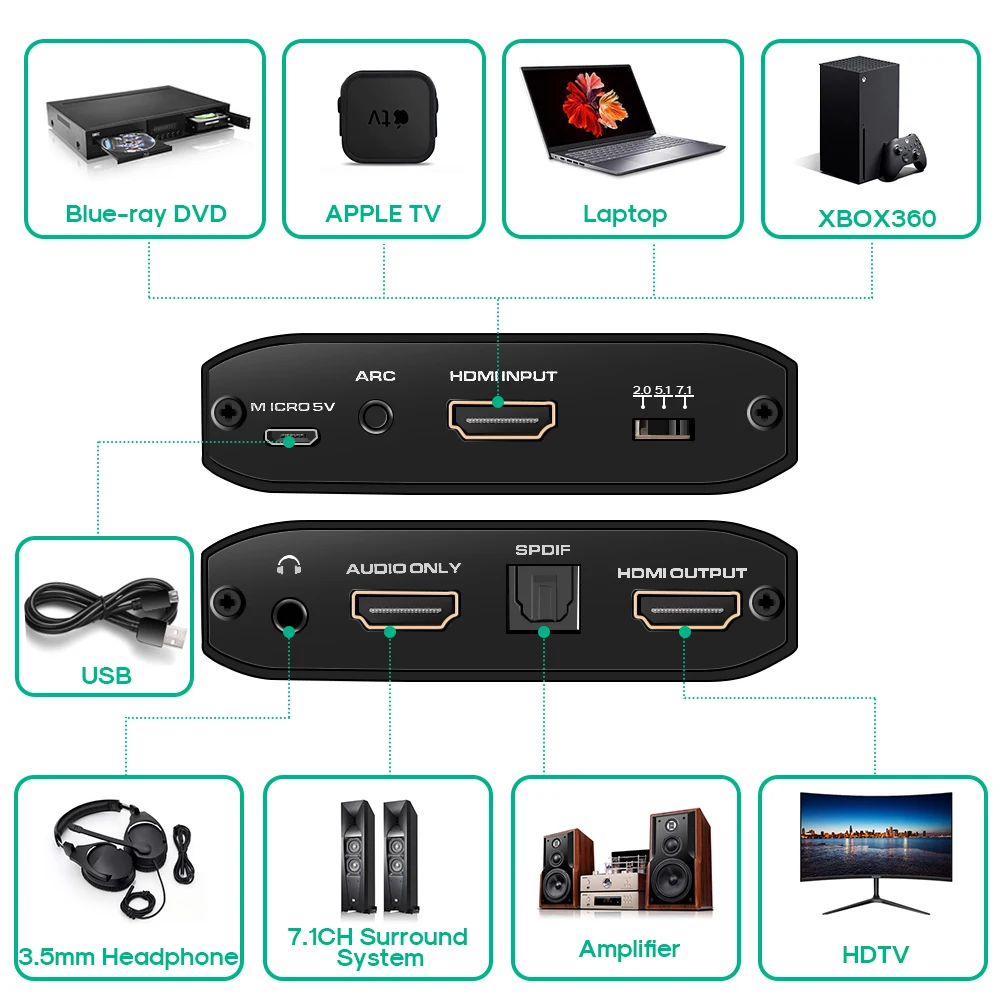

Operating and Connecting：

1. To use one hdmi cable to connect the HD Source with the input HDMI port.
2. To connect the converter hdmi output port with the HD Display.
3. To use one audio cable to connect the converter R/L port with the audio equipment.
4. To use the optical cable to connect the SPDIF port with the audio equipment.
5. To connect the converter with 5V DC power adaptor.

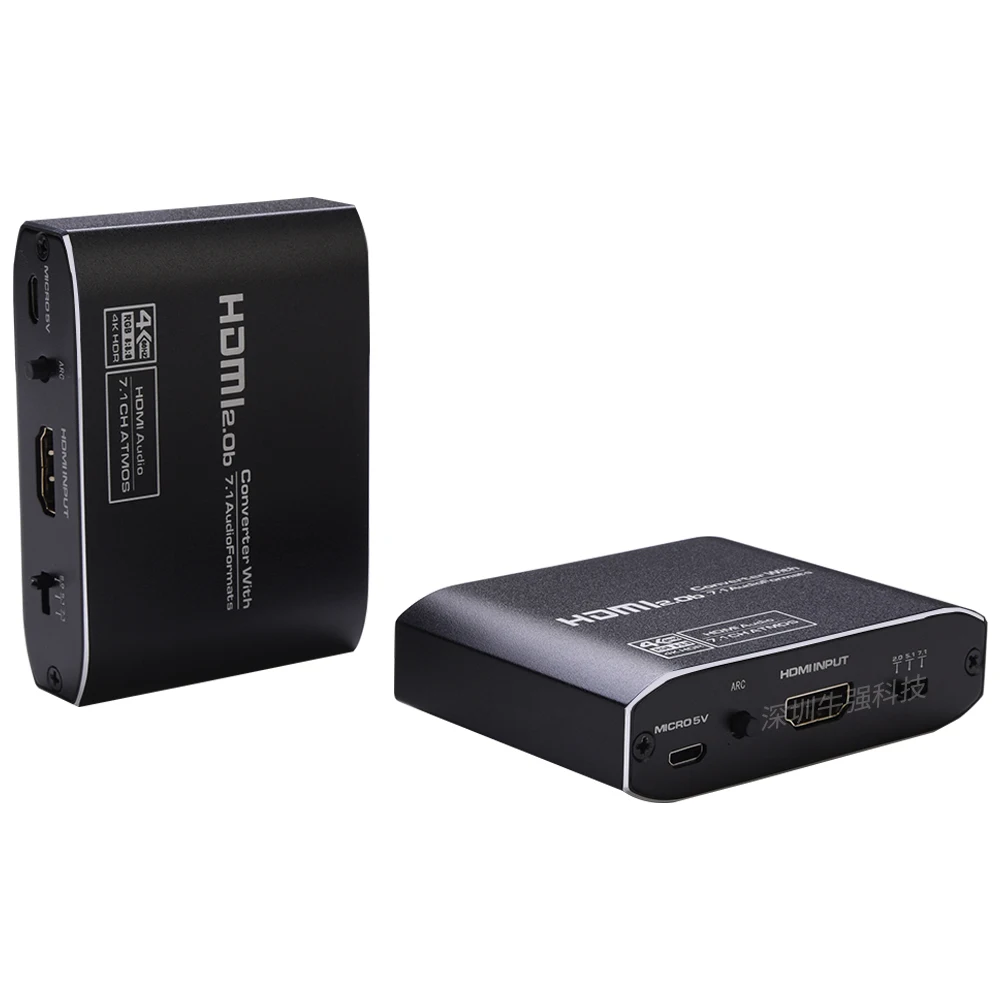

MICRO 5V : DC5V Power Input
ARC : ARC ON/OFF
HDMI INPUT：HDMI input interface
SWITCH：Audio mode switch
2.0: 2 channel stereo mode. The HDMI / SPDIF and L/R output stereo audio.
5.1: 5.1 channel mode. The HDMI / SPDIF output 5.1 channel audio
7.1: 7.1 channel mode. The HDMI output 7.1 channel audio

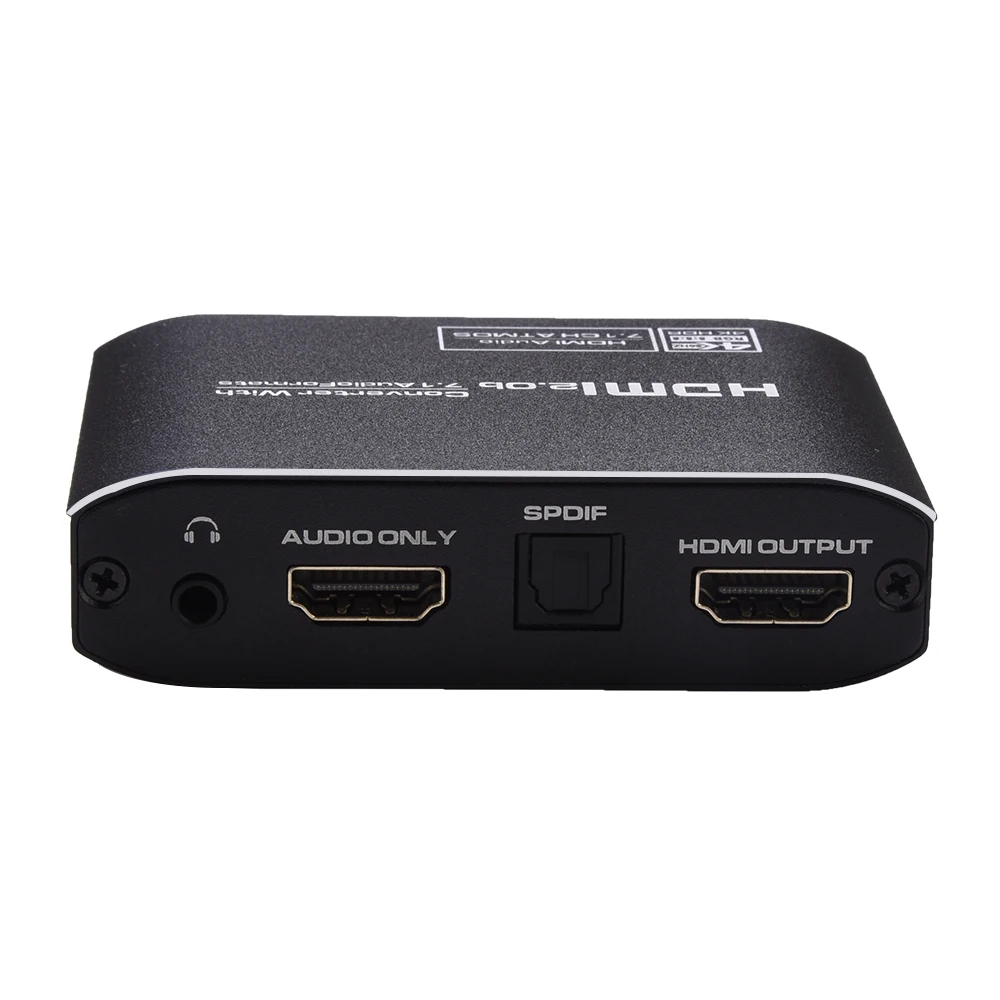

3.5mm Audio Output
AUDIO ONLY : Output 7.1ch Audio
SPDIF ：SPDIF optical Output
HDMI OUTPUT: HDMI output interface

Notes:

Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
5. Pls turn the power off when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
