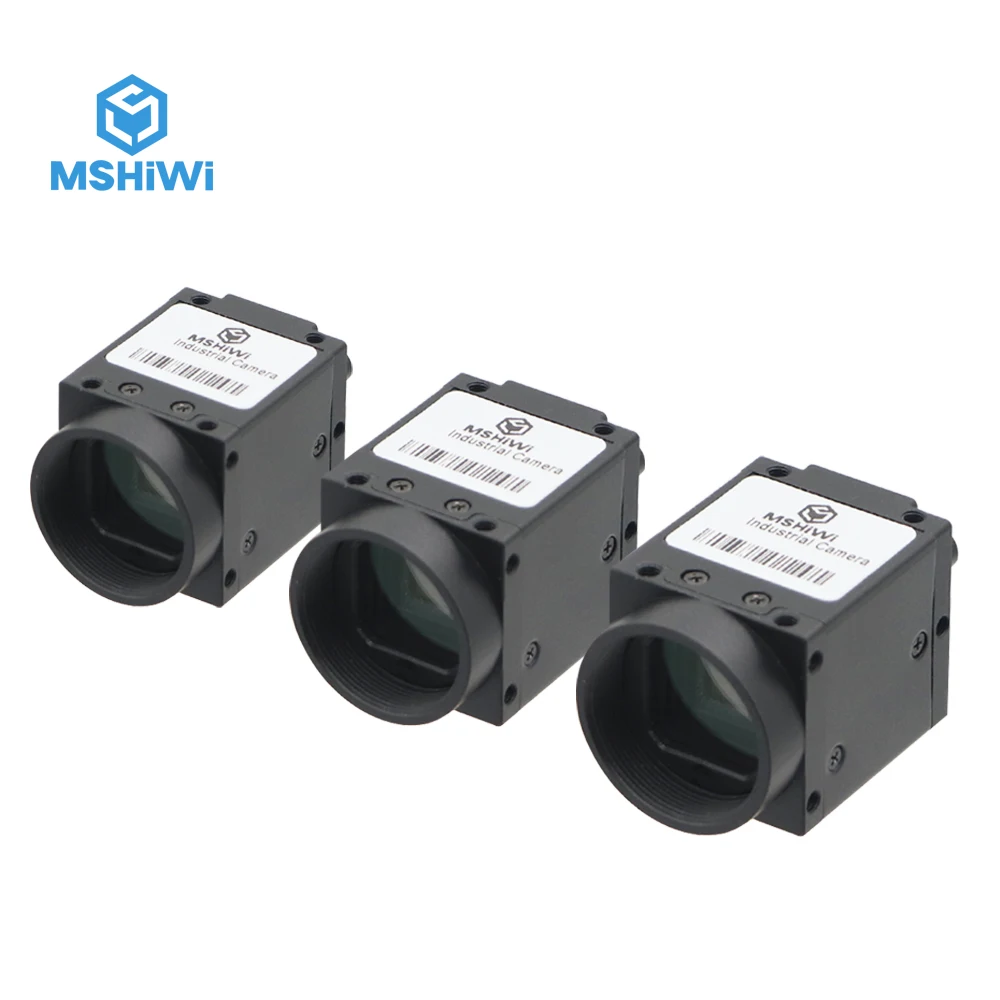

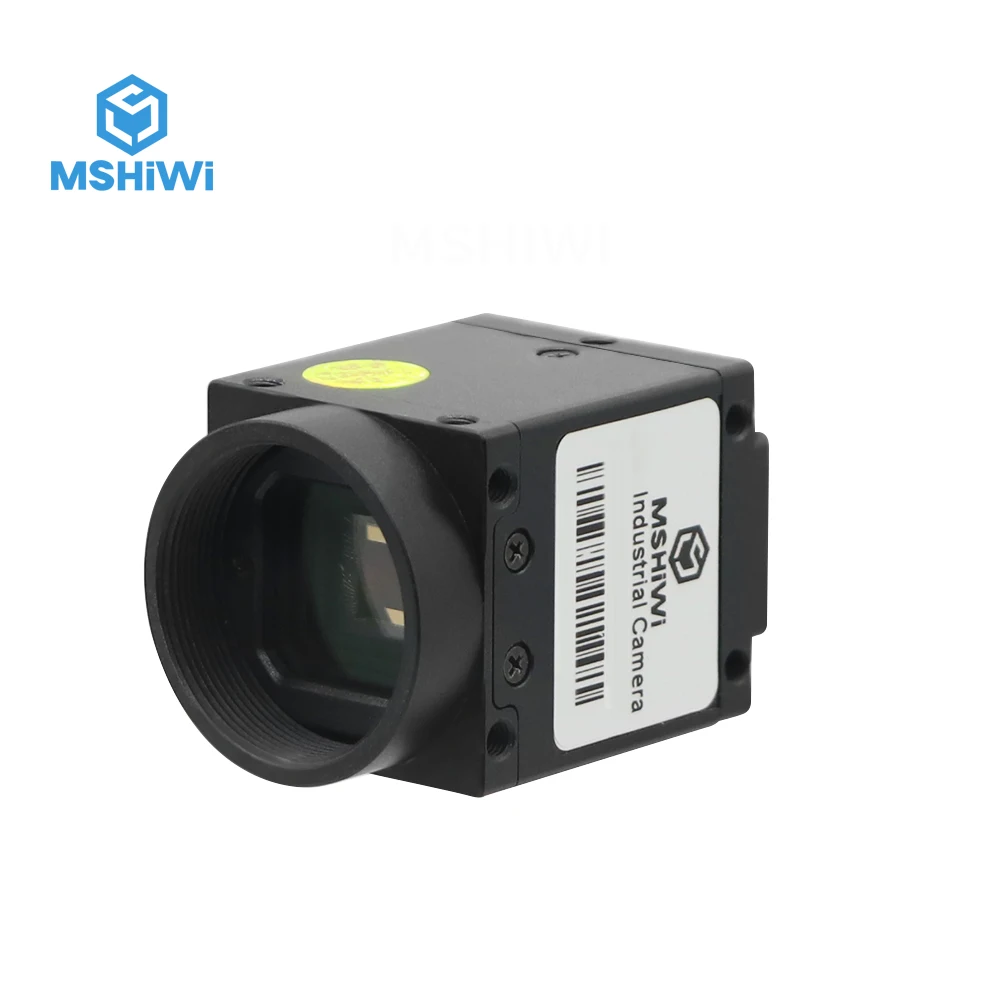

USB3 Vision камера 1/1.8" CMOS Mono 6.3МП 60FPS Rolling Shutter Industrial для инспекции, локализации и автоматизации.

Brand NameMshiwiOriginMainland ChinaCertificationCECertificationNONEProduct TypeOtherMagnificationNONEMeasurement unitpiece/piecesEach pack1Model NumberIndustrial cameraModelMS-SUA630M-THD Support6.3 MegapixelsConnection MethodUSB 3.0ColourMonochromeShutter TypeGlobal ShutterResolution3088X2064@60FPSLens InterfaceCS / C MouthPhotosensitive ComponentsIMX178Chip TypeCMOSChip size1/1.8Product nameIndustrial camera machine visionApplications 1Vision Inspection / detectionApplications 2Visual LocalizationApplications 3Visual recognition, visual identityApplications 4Robot automation, industrial automation

Unavailable in

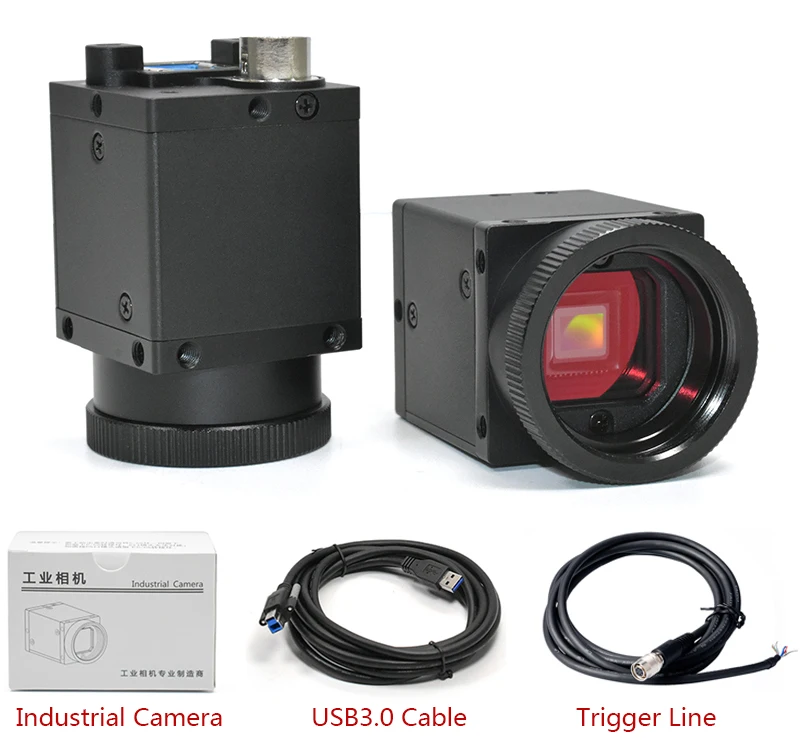

Description USB 3.0 1/1.8" CMOS Monochrome 6.3MP 60FPS Rolling Shutter Industrial Camera Automated Optical Inspection Machine Vision Cameras Machine vision camera distinguishes itself by superior image quality, high frame rate and high resolution of 3088X2046 (6.3  Mega Pixel) . This industrial camera is suitable for various visual applications such as mobile phone screen detection, defect detection, electronic components manufacturing, wafer positioning applications and so on. Vision industrial camera, Mono, resolution of 3088X2046 (6.3 MP), 1/1.8" CMOS, pixel size 2.4μm x 2.4μm, max. frame rate 60fps, rolling shutter, 12 bit with long transmission distance, high cost performance, use advanced indsutrial image sensor, superior image quality and high resolution. Description:   This series all comes with hardware cache, which is very suitable for one computer to connect multiple cameras. It only needs one ordinary USB3.0 HUB to realize four 5MP cameras to 15FPS frame rate at the same time, effectively reducing system cost! Support PC linux system, can be integrated in the embedded device. Support external trigger flash sync. A computer connected to a number of cameras can work stably, do not drop the line for a long time, do not lose frame. The camera comes with an editable IO. Dimensions: SUB Series 29 x 29 x 51 mm SUB full range support U3VISION agreement, can seamlessly support HALCON, Labview and other visual software.       Standard Equipment:   Camera, CS / C adapter, trigger line. WDM drivers, Directshow, TWAIN, Halcn, OCX, Labview components. Camera presentation software, measurement software for 32 / 64WINDOWS XP, WIN7, WIN8 and Linux systems, embedded Linux system. SDK package, including VC / C ++, C ++ builder, VB6, VB.NET, Delphi, C # development routines. Offline RAW to RGB program. Measurement software, permanently free to use.       Features:   Support multi-camera work at the same time, stable and reliable, and GIGE camera SDK is fully compatible, can be replacedseamlessly. Camera parameters are saved in file form, easy to mass production release, development is simple, cross-platform compatible.Support 8bit, 24bit, 32bit image data format output. Support for small resolution high frame rate preview, large resolution capture function, seamless switching. Support for resolution customization. View cutting (ROI), BIN, SKIP pumping point, zoom function can be freely combined set,match the different aspect ratio and field requirements. The body comes with up to 16K bytes of user data storage space.       Package includes:   1 x Industrial Camera ( Not include lens ) 1 x 3 Meters Cable 1 x Trigger line   Machine Vision Software: Support Halcon, OpenCV, LabView, Matlab, Python, etc.   //ae01.alicdn.com/kf/H4888d55abeea4a899615f7c51b461cb39.jpg Industrial Camera Parameters:

Model

MS-SUA630M-T

Sensor

1/1.8"CMOS

Shutter Type

Rolling Shutter

Camera Type

Monochrome

Pixel Size

2.4X2.4μm

Effective Pixels

6.3 MP

Resolution @FPS

3088X2046@60FPS

2592X1944@63FPS

640X480 @281FPS

Pixel Bit Depth

12bit

Sensitivity

425mV 1/30s

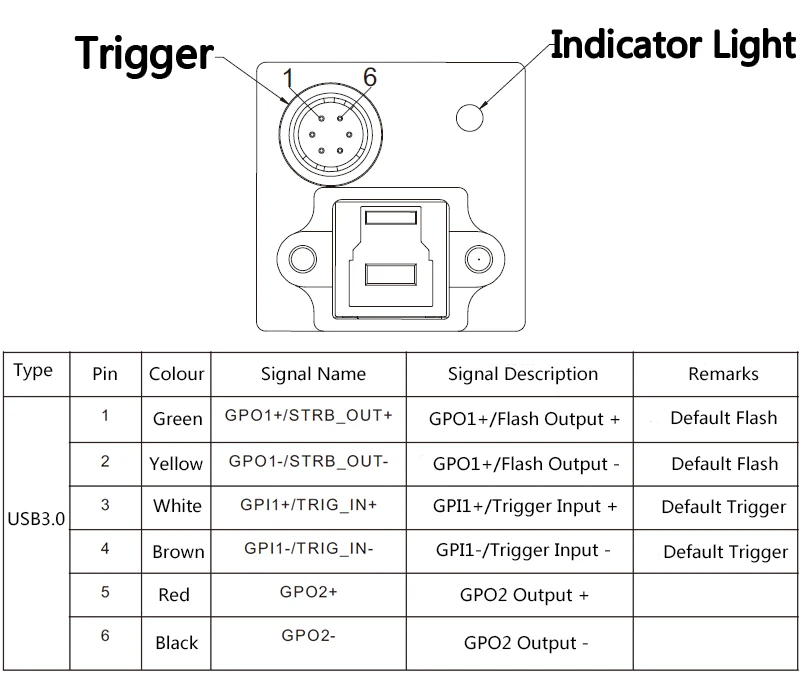

GPIO

6-pin Hirose Connector

Acquisition

Continuity/Soft Trigger/Hard Trigger

Maximum Gain (multiple)

32

Exposure Time (ms)

0.0049~10188

Filters

None

Frame Buffer

128M Bytes

Custom Data

2K Bytes

Video Output Format

Bayer8

Visual Standard Protocol

USB3Vision 1.0,GenICam

Lens Interface

C/CS mouth

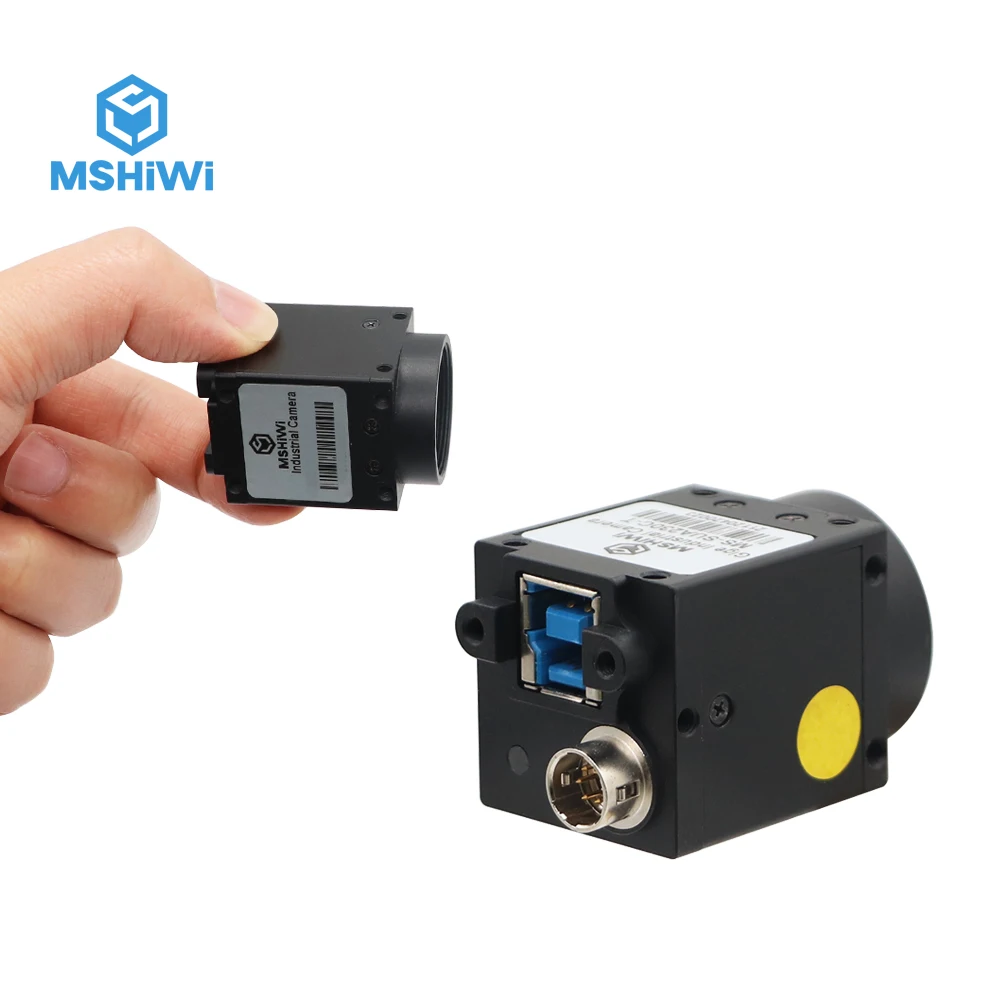

Data Interface

USB3.0 Type B

Power Supply

5V, USB Powered

Power

<2W

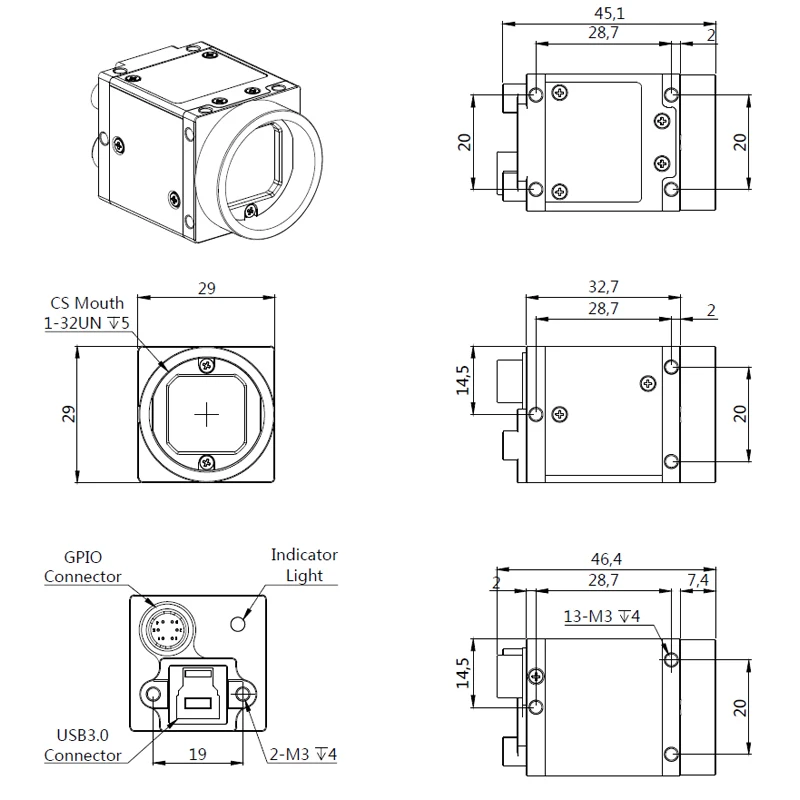

Dimensions

29(mm)X29(mm)X32.7(mm),

Weight

< 70g

Operating Temperature

0~50 Degrees

Operating System

Support WIN7/8/10 32&64 System; PC Linux System

Driver

Directshow; Halcon; Labview; OCX; TWAIN Component

Programming Ianguage

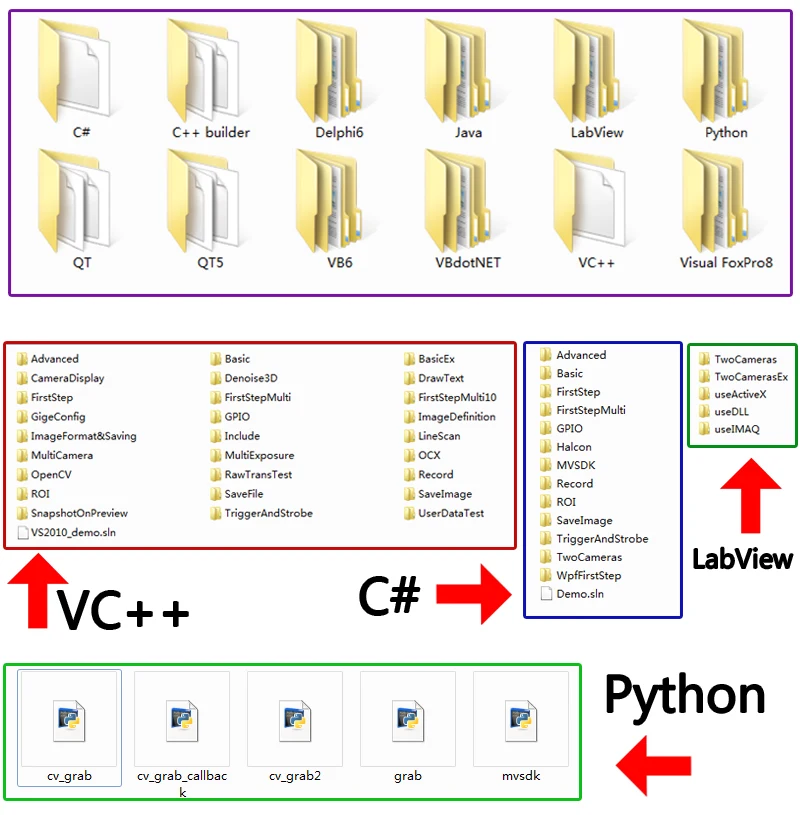

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV

Other Functions

Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.

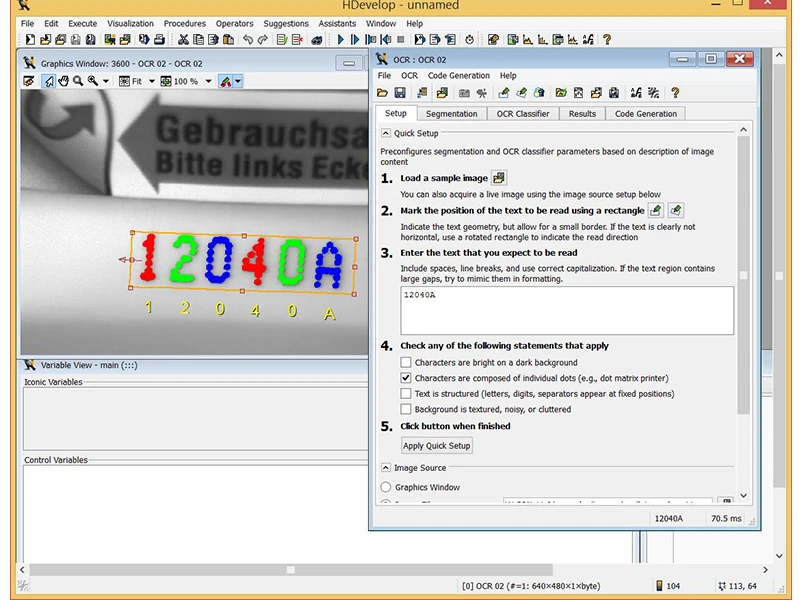

    Machine Vision Software: Support Halcon, OpenCV, LabView, Matlab, Python, etc.


---
