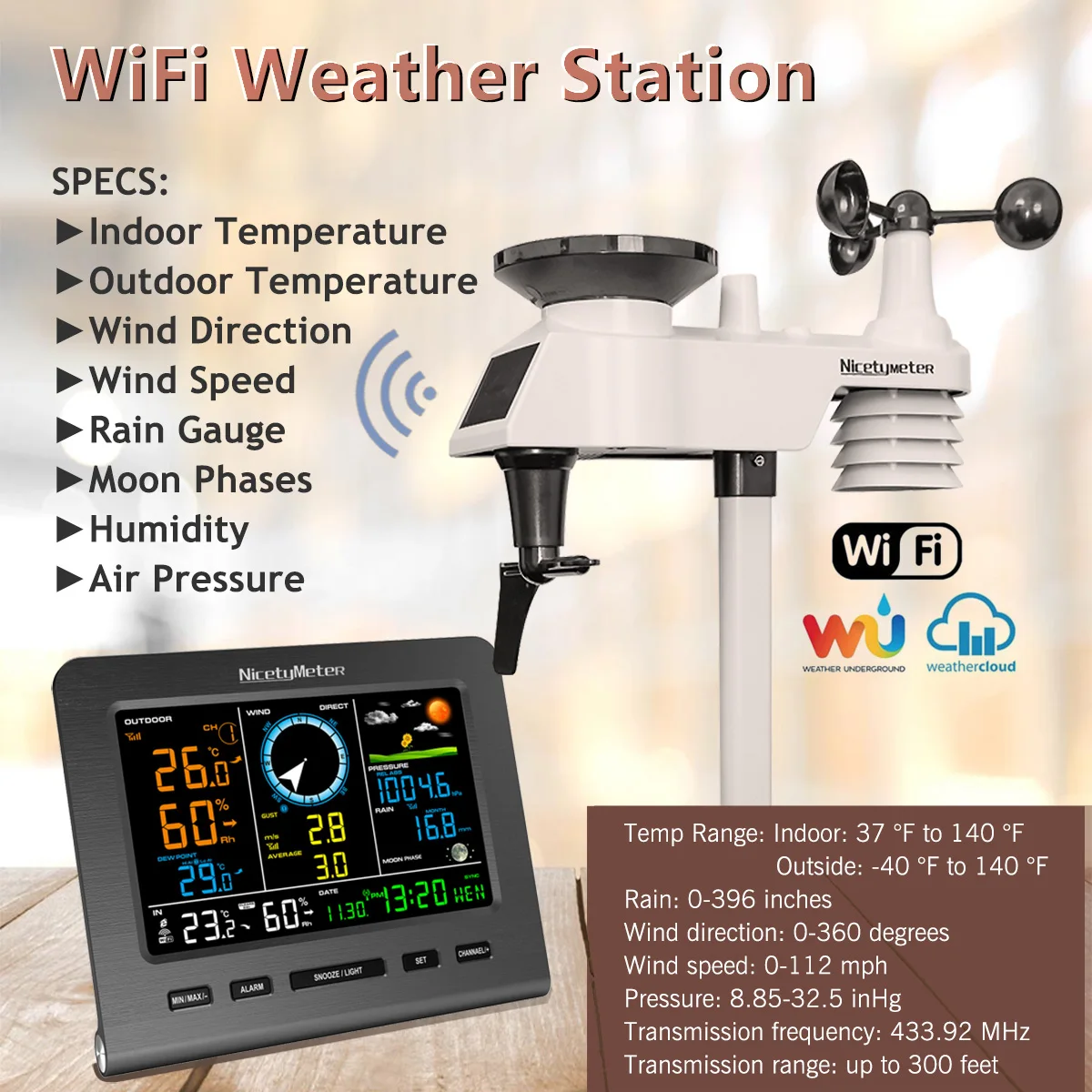

EXACT MEASUREMENTS: Easily call up information on temperature and more. The reception range of the device has been improved. This means that the weather station measures the temperature and humidity more precisely. Experience the comfort of your personal weather station. The weather station measures indoor temperature and humidity, outside temperature and humidity, wind speed and direction.

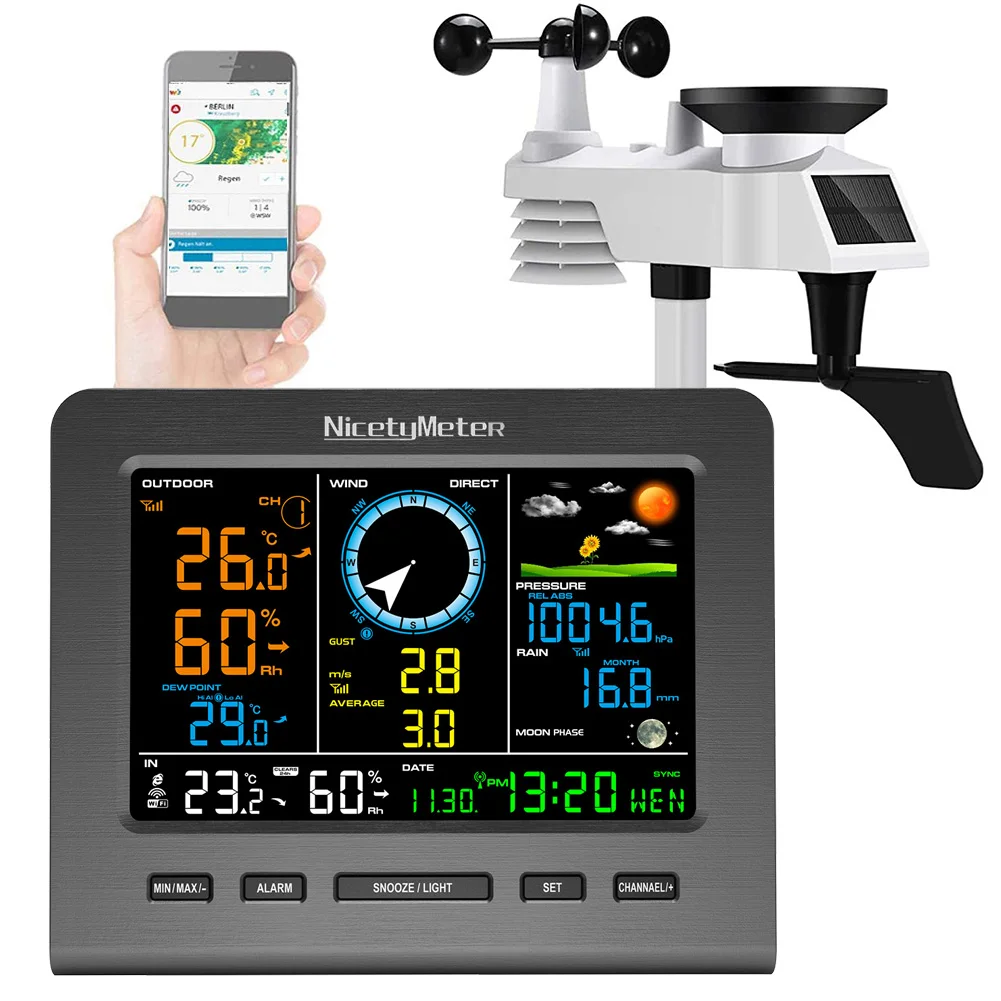

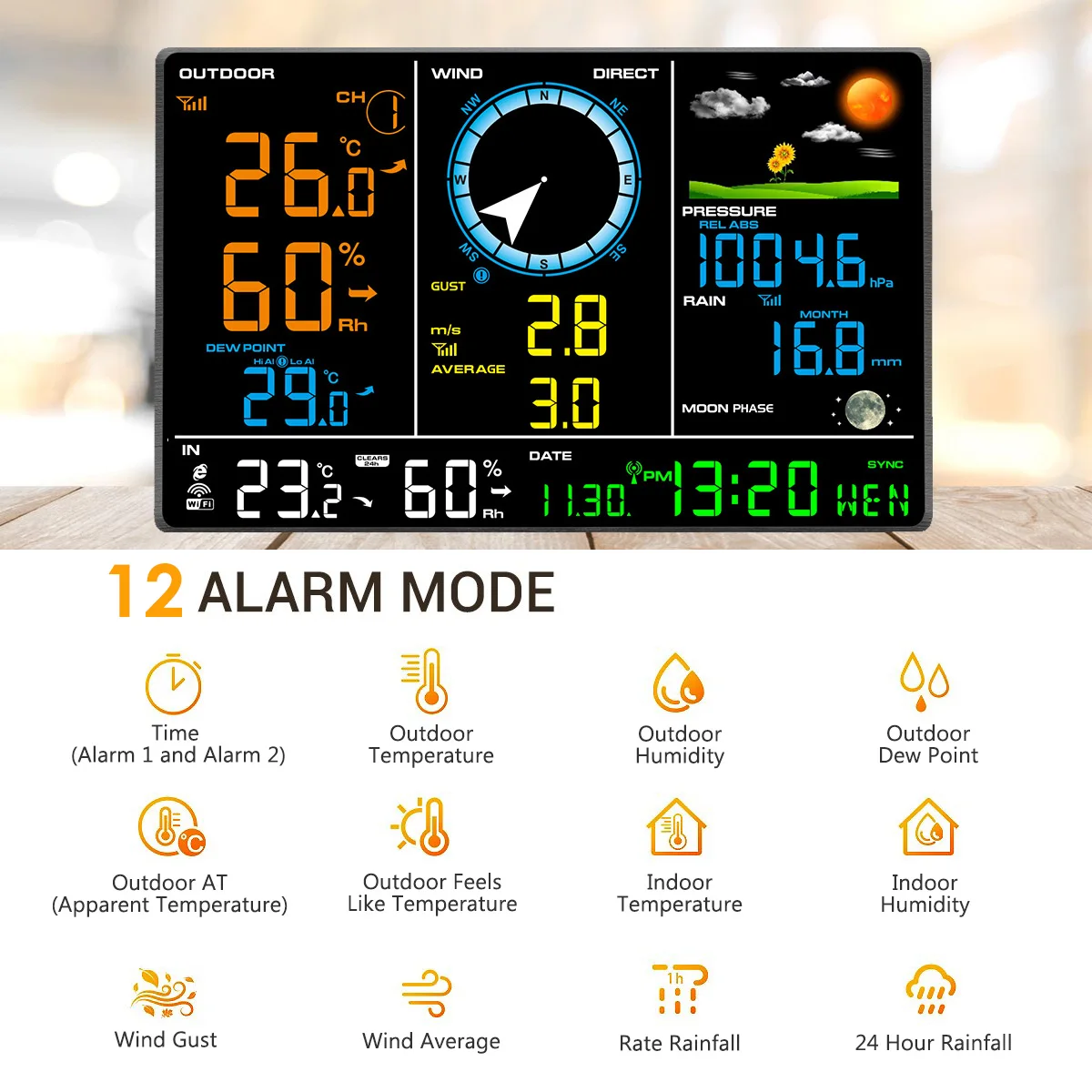

CLEAR COLOR DISPLAY: Easily monitor the weather conditions in your house and garden. The large colour display is easy to read. The data can also be easily seen from many different angles. Even if you look a little sideways, all the data can still be read and you can see all the important functions and information. The information areas are separated and organised in different ways.

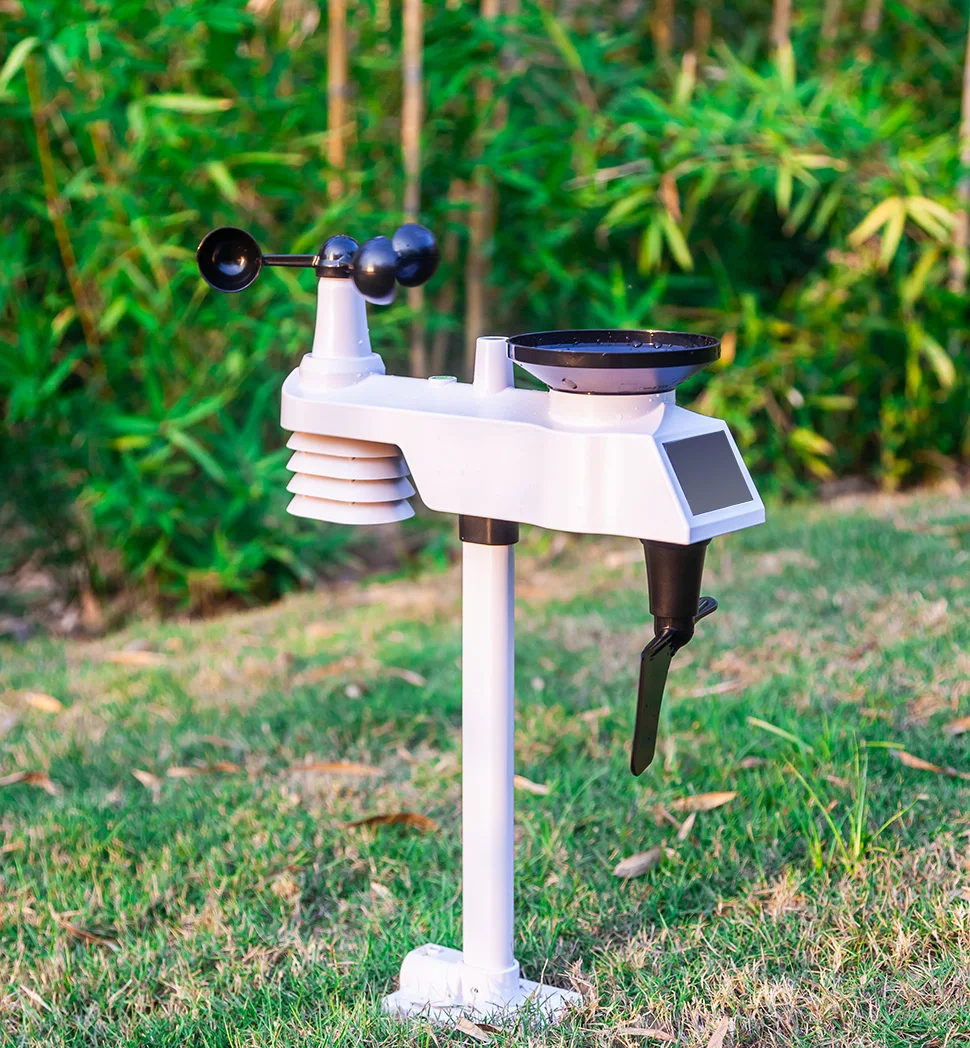

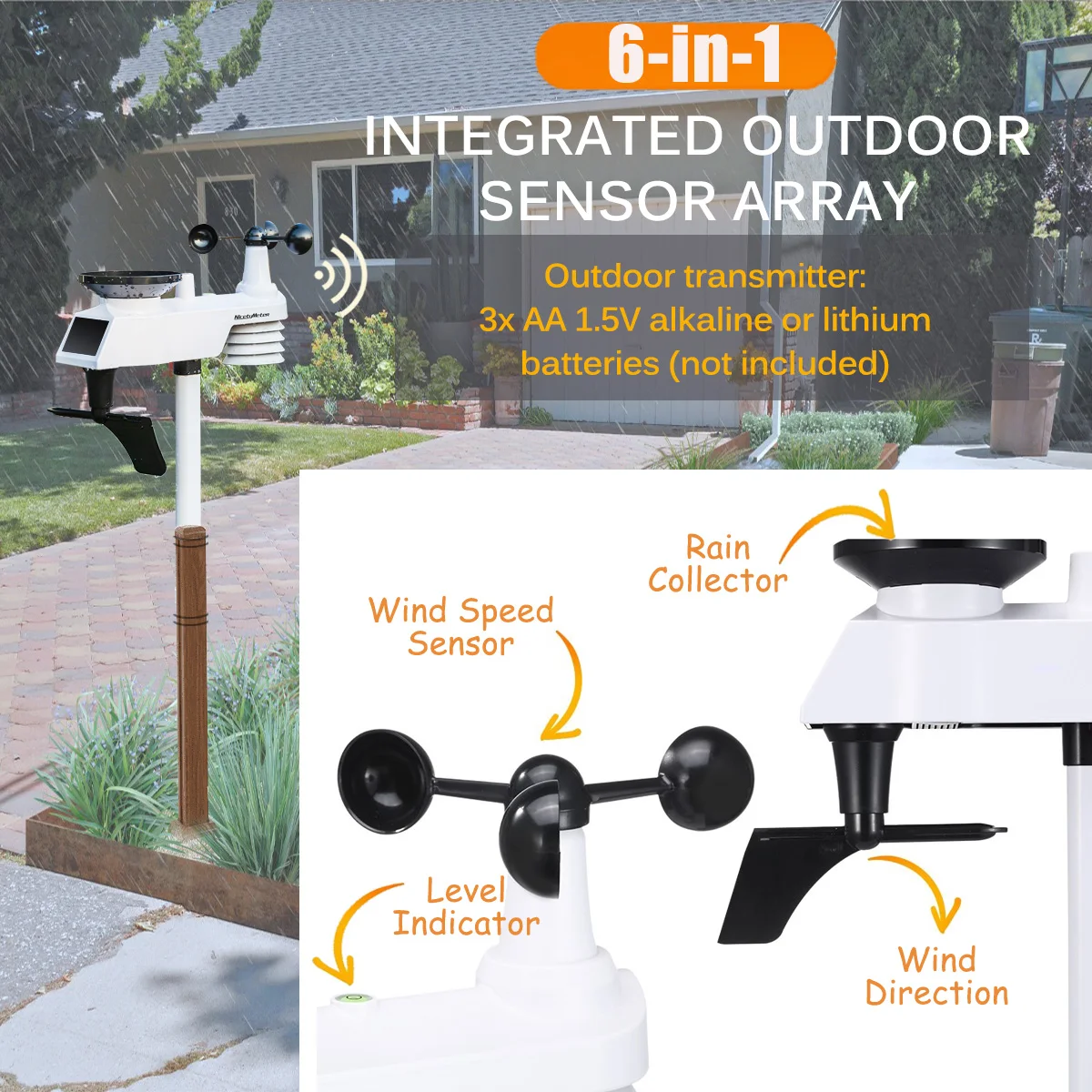

6-in-1 OUTDOOR SENSOR: The 6-in-1 outdoor sensor consists of rain funnel, solar panel and transmission module, wind vane and high-speed anemometer, and transmits current information about temperature, humidity, air pressure, wind speed and wind direction, as well as the amount of precipitation and much more. Assembly is easy, please use the instructions provided.

SCOPE OF DELIVERY: - Base station (display) with stand - Outdoor sensor / multi-sensor with mounting material - Operation manual

Indoor Temperature

0 to 60 °C; ±1 °C

Outdoor Temperature

-40 to 60 °C; ±1 °C

Indoor Humidity

10 to 99 %RH; ± 5% (only guaranteed between 20 to 90%)

Outdoor Humidity

10 to 99%RH; ± 5% (only guaranteed between 20 to 90%)

Rain

0 to 9999mm; <15mm:±1 mm; 15mm to 9999mm:±7%

Wind Direction

0 - 360 º; ± 10º (8 point compass)

Wind Speed

0 to 50 m/s; ±3m/s (2m/s~10m/s); ±10% (10m/s~50m/s)

Barometric Pressure

300 -1100 hpa; ± 3 hpa

Transmission interval

60s

Transmission distance

100m in open area

Transmission frequency

433MHz

Max. transmission power

0.5mW

WIFI

802.11 b/g/n, 2.4GHz (Only 0366-WF)

WIFI transmission distance

20m

Power supply

Receiver: 3 x AAA alkaline batteries

Transmitter: 3 x AA alkaline batteries

Power Adaptor: 5V/1A or 5.9V/0.5A

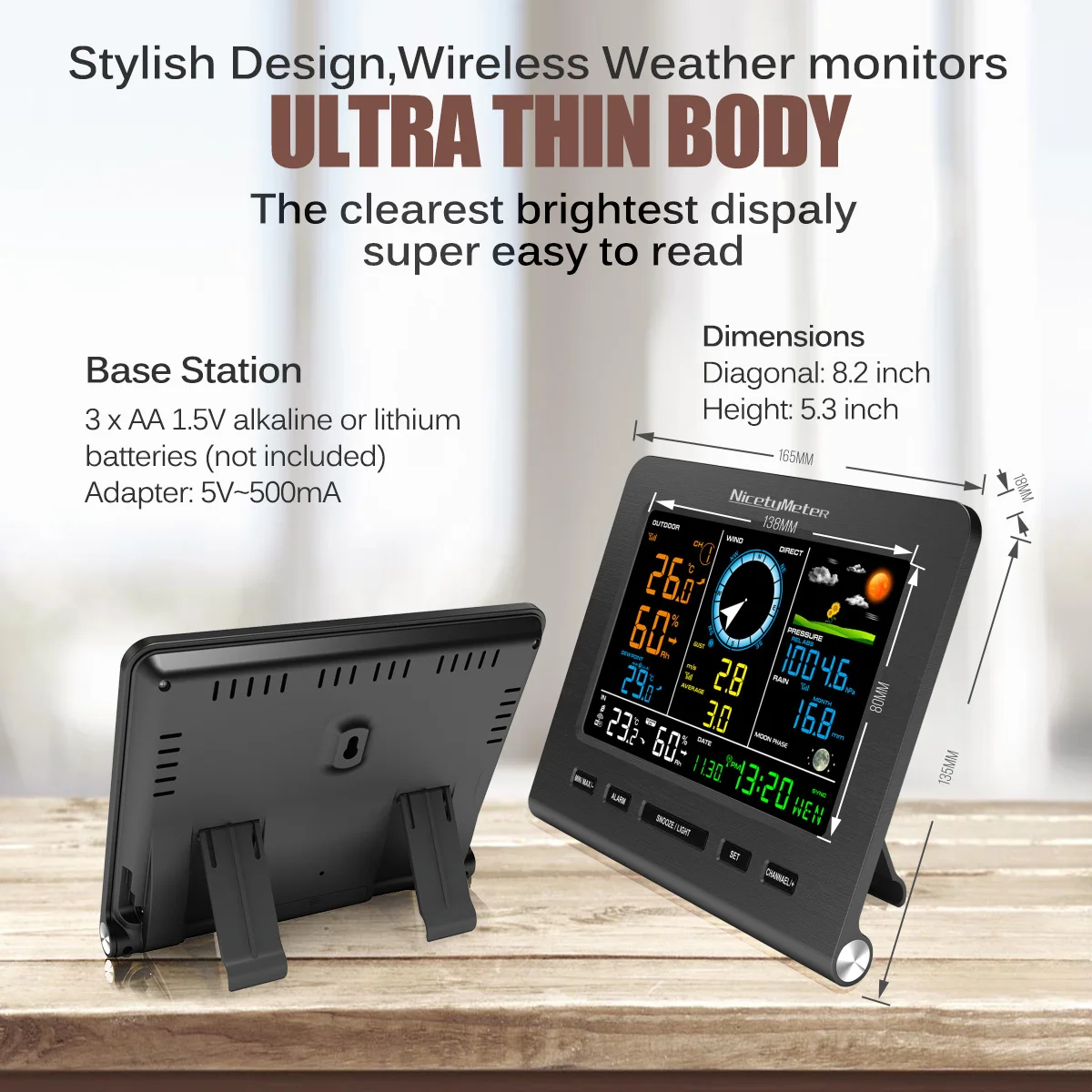

Dimensions

0366 Receiver: 6.5X 5.32X 0.71inch; LCD Dimensions: 5.12 x 316inch

Integrated Outdoor Transmitter: 13x11x5.9 inch

Product weight

Receiver:200g

Transmitter : 1000g

Standard accessories

Receiver x 1
Transmitterx1
Foot Mounting x 1
Mounting Bracket x1
Mounting Pole x 1
Mounting Nuts (M3) x 2
Mounting Nuts (M5) x 4
Tapping Screws x 4
Manual x 1
Power adapter x 1

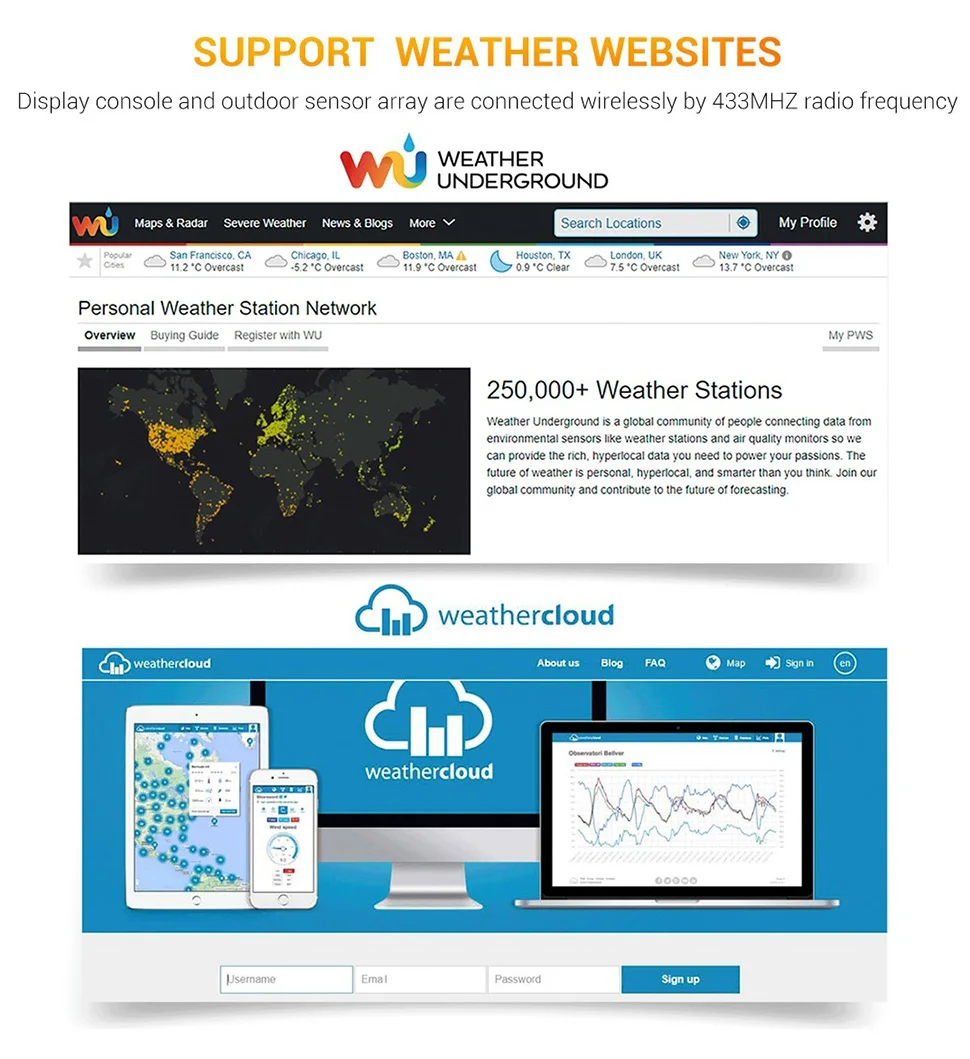

Upload real time weather data to www.wunderground.com or www.weathercloud.net

Heed help?
Please view: WiFi Simple Setup Guide.

1. Wireless remote not reporting in to console.There are dashes (--.-) on the display console.

If any of the sensor communication is lost, dashes (--.-) will be displayed on the screen.

To reacquire the signal, press and hold the CHANNEL/+ button for 3 seconds, and the remote search icon  will be constantly displayed. Once the signal is reacquired, the remote search icon  will turn off, and the current values will be displayed.

2. Sensor Operation Verification

a. Verify proper operation of the rain gauge. Tip the sensor array back and forth several times. You should hear a “clicking”sound within the rain gauge. Verify the rain reading on the display console is not reading 0.00. Each “click” represents 0.3mm of rainfall.

b. Verify proper operating of the wind speed. Rotate the wind cups manually or with a constant speed fan. Verify the wind speed is not reading 0.0.

c. Verify proper operation of the indoor and outdoor temperature. Verify the indoor and outdoor temperature match closely with the console and sensor array in the same location

(about 3m apart). The sensors should be within 2°C  (the accuracy is ±1°C). Allow about 30 minutes for both sensors to stabilize.

d. Verify proper operation of the indoor and outdoor humidity. Verify the indoor and outdoor humidity match closely with the console and sensor array in the same location (about 3m apart). The sensors should be within 10% (the accuracy is ± 5%). Allow about 30 minutes for both sensors to stabilize.

3. Indoor and Outdoor Temperature do not agree.

Allow up to one hour for the sensors to stabilize due to signal filtering. The indoor and outdoor temperature sensors should agree within 2 °C (the sensor accuracy is ± 1 °C).

4. Indoor and Outdoor Humidity do not agree.

Allow up to one hour for the sensors to stabilize due to signal filtering. The indoor and outdoor humidity sensors should agree within 10 % (the sensor accuracy is ± 5 %).

5. Display console contrast is weak.

Replace console batteries with a fresh set of batteries.

6. WiFi does not display on console.

a. Check WiFi symbol on the display.  If wireless connectivity is successful the WiFi icon  will be displayed in the time field.

b. Make sure your modem WiFi settings are correct (network name, and password).

c. Make sure the console is plugged into AC power. The console will not connect to WiFi when powered by batteries only.

d.The console only supports and connects to 2.4 GHz routers. If you own a 5 GHz router, and it is a dual band router, you will need to disable the 5 GHz band, and enable the 2.4 GHz band.

e. The console does not support guest networks.

7.Final Installation of Sensors.

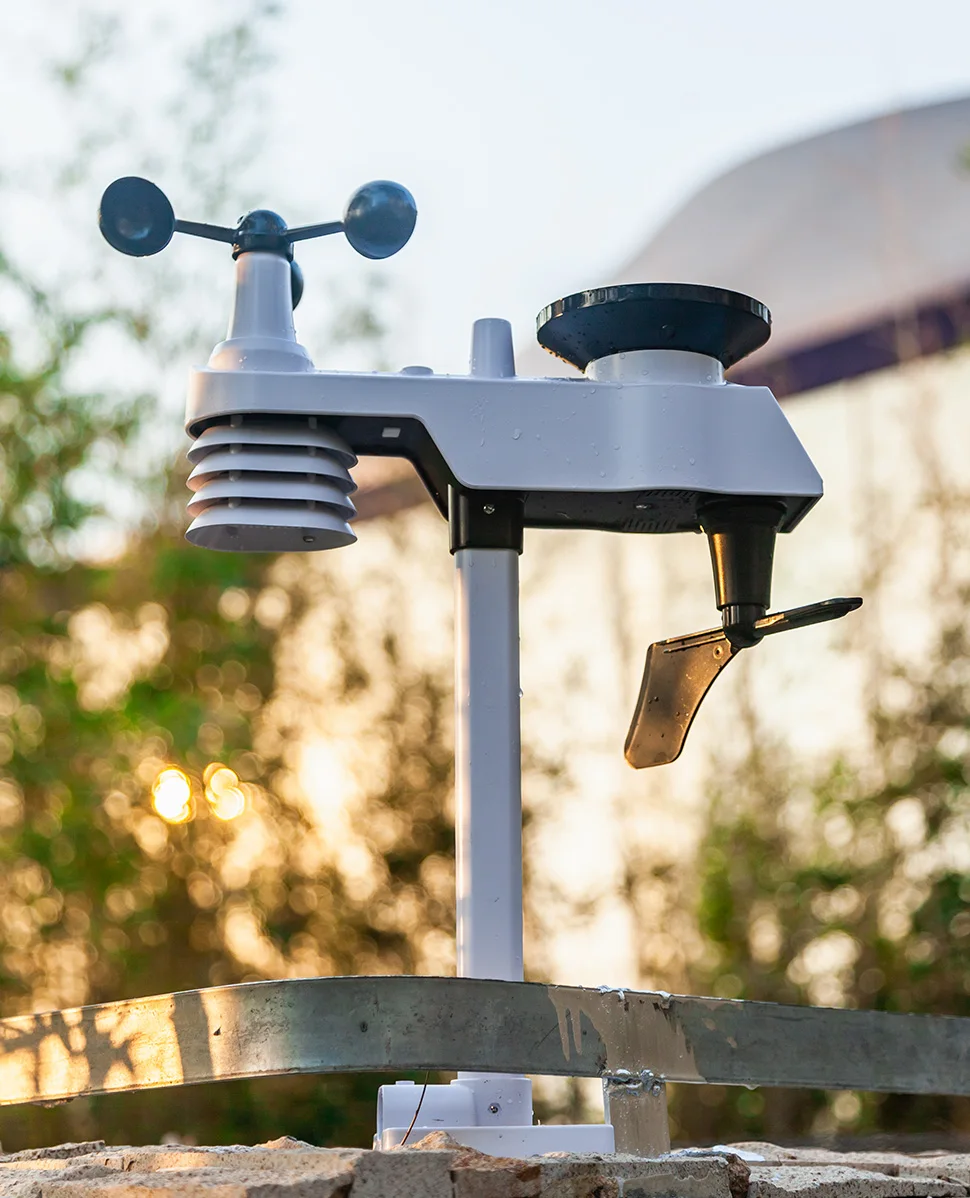

Integrated outdoor transmitter installation.

Professional Wireless Weather Station can be used in both the Northern and Southern Hemispheres. Prior to installation, you will need to calibrate the wind direction.

8. Recommend web browser.

Web browser support of HTML 5, such as the latest versions of Chrome, Safari, IE, Edge, Firefox or Opera.
