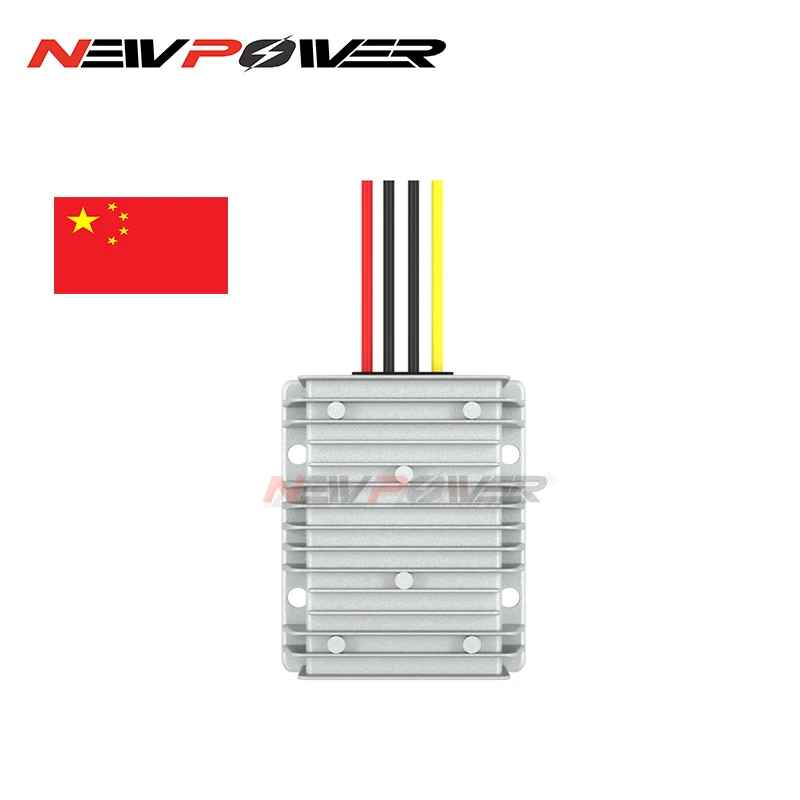

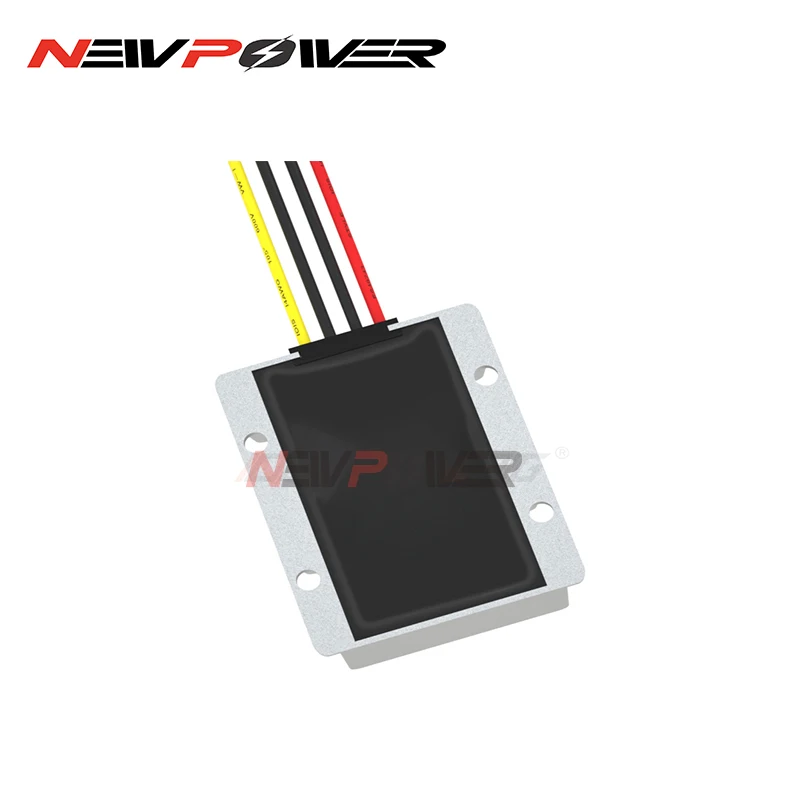

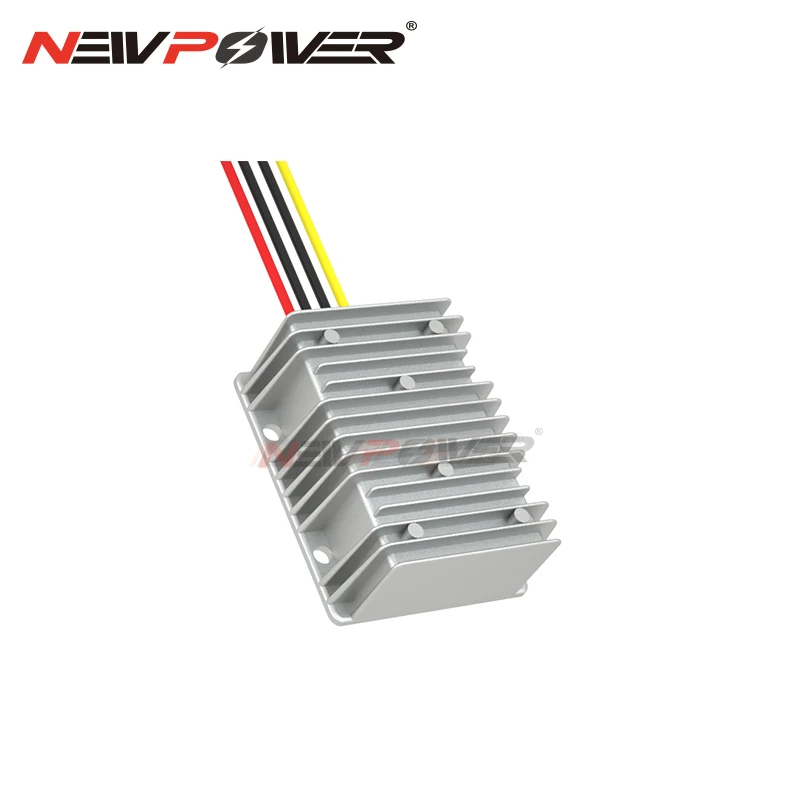

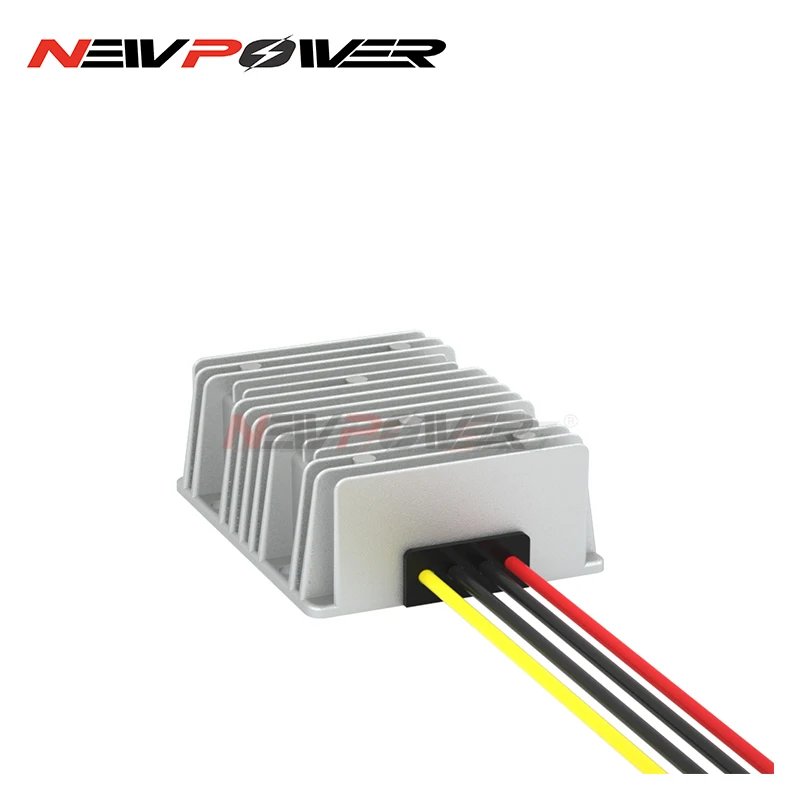

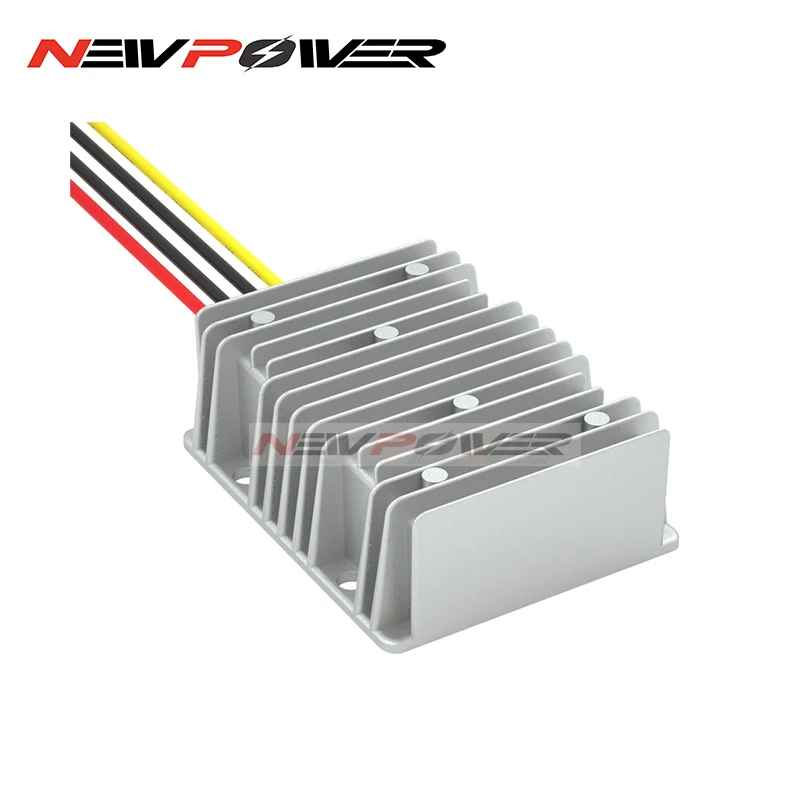

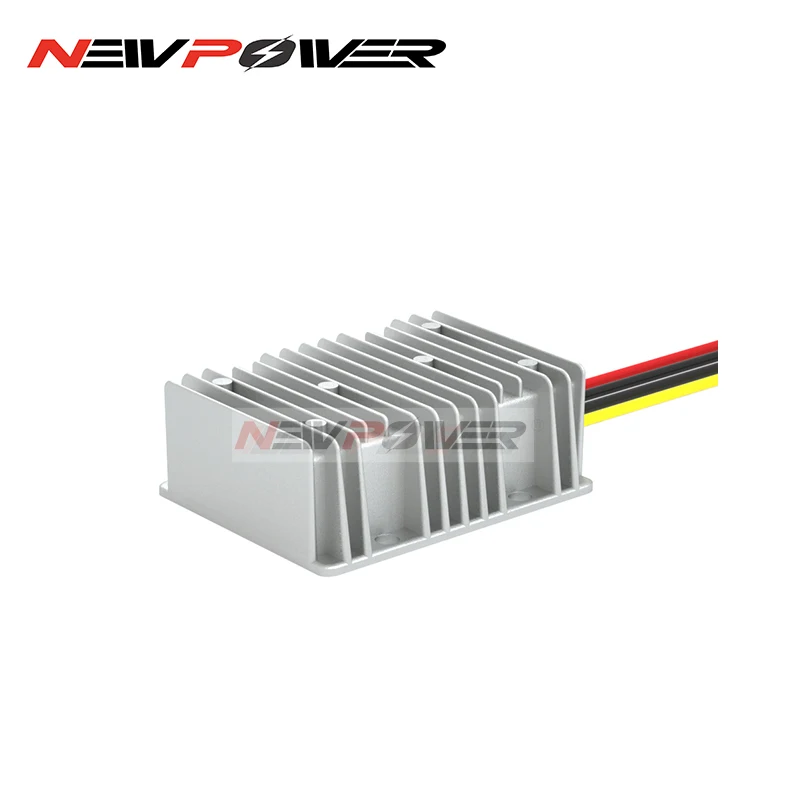

Made in China 24v to 15a 20a 25a 30a DC Voltage Power 9-36v 10v 12v 13.8v 16v 19v 28v 34v Automatic Boost Buck Converter |

Made in China 24v to 15a 20a 25a 30a DC Voltage Power 9-36v 10v 12v 13.8v 16v 19v 28v 34v Automatic Boost Buck Converter |

1.The company can customize various types of power supply.

2. We will have corresponding discount on price and logistics.

3. If you have any questions, please contact customer service.

I.  INTRODUCTION

DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories:Boost type,boost&buck type, and buck type.

Three kinds of control can be adopted according to the demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load.

PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs. At present, DC-DC converters are widely used in mobile phones, MP3, digital cameras, portable media players and other products. It belongs to chopper circuit in the classification of circuit types.

II.TECHNICAL PARAMETER

Brand

NEW POWER

Product Name

9-36v to 24v Stable DC Converter

Type

Non Segregated

Model

NP-DTD9-36S2415

NP-DTD9-36S2420

NP-DTD9-36S2425

NP-DTD9-36S2430

Output current

15A

20A

25A

30A

Output rated power

360W

480W

600W

720W

Input rated voltage

9-36VDC

Input voltage range

9-36VDC

Output voltage

24VDC

Machine size

100*80*39(MM)

Net weight

500G

Material of shell

Aluminum

Working temp

-20~80℃

Waterproof Level

96%

Certifications

CE，ROHS

Conversion Efficiency

IP 65

Customize

Support

Sample order

Support

OEM & ODM

Support

TEL

+86-15914089745

Wechat

+86-15914089745

QQ

2524550484

E-mail

Newpowersupply@outlook.com

Protection function

Short circuit protection、Output over current、Chip over-heat protection
