Machine Vision GigE Industrial Camera, 2/3" CCD , 5.0 MP, Mono

high-speed GigE Machine Vision Industrial Camera, resolution of 2448*2048(5.0 Megapixel), 2/3" CCD, pixel size 3.45μm*3.45μm, max. frame rate 15.0fps, Monochrome, Global Shutter, optional 8/10/12bit depth, GigE interface with long transmission distance, SmartVision Controller Vision Solutions for Automated Inspection Measuring, use advanced indsutrial image sensor, superior image quality and high resolution.

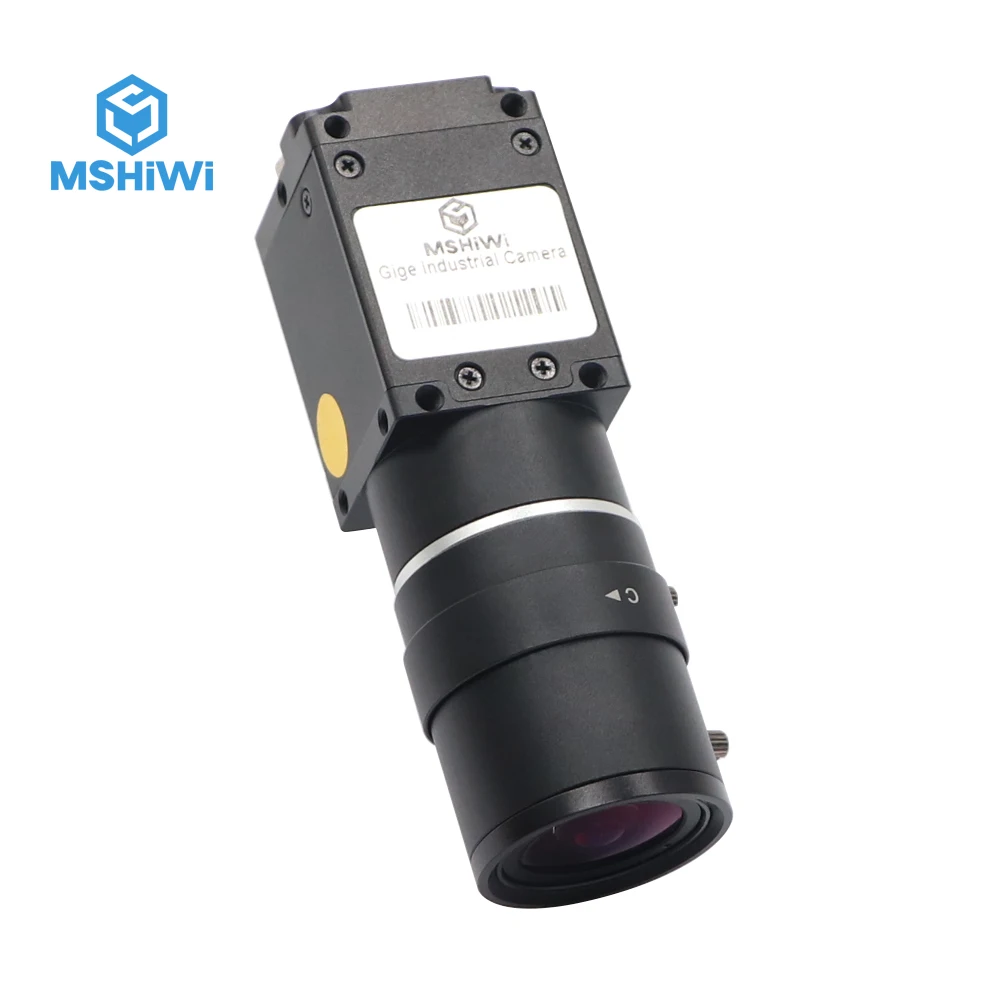

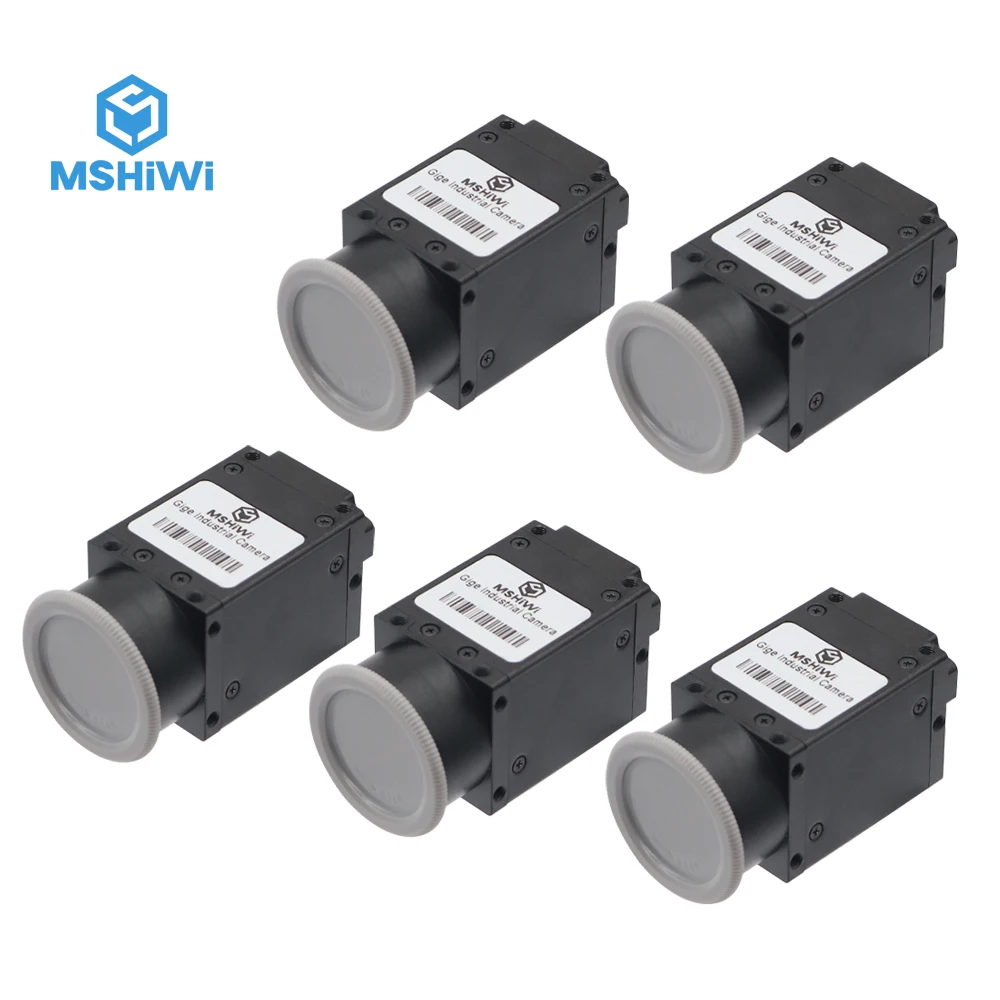

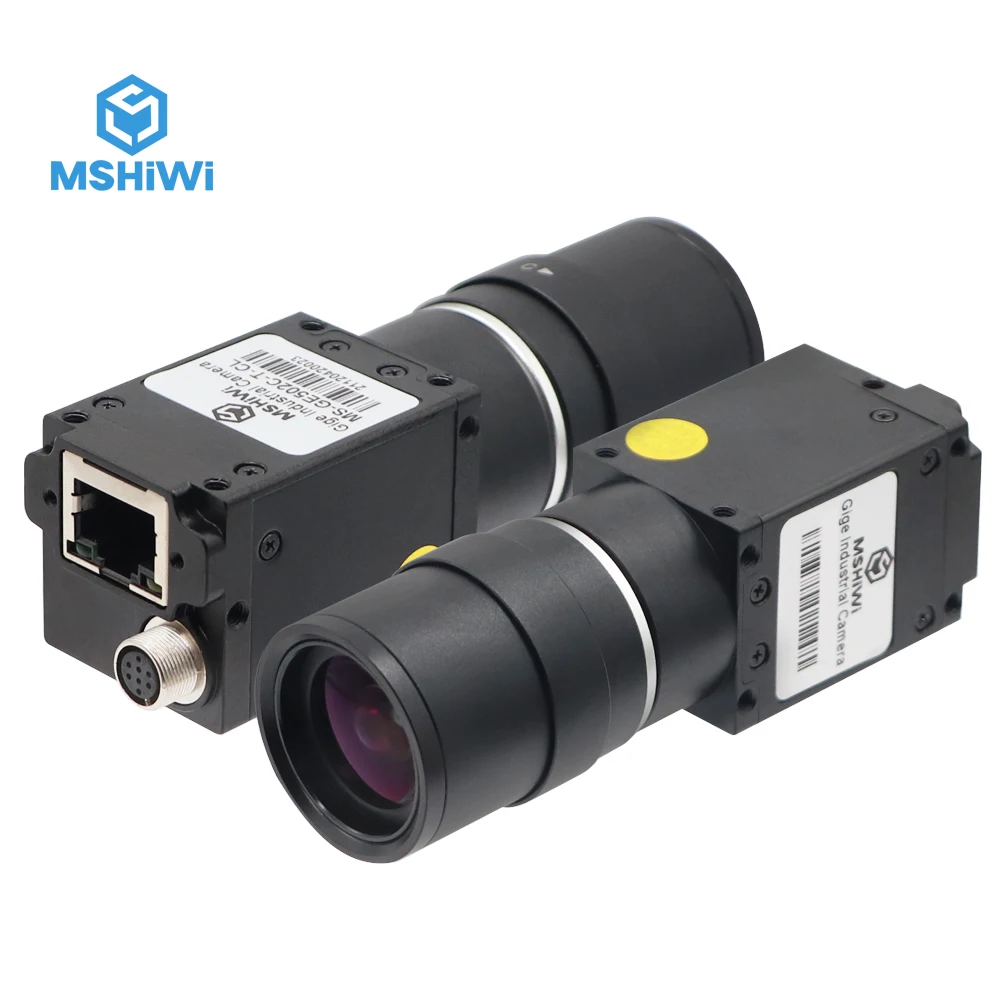

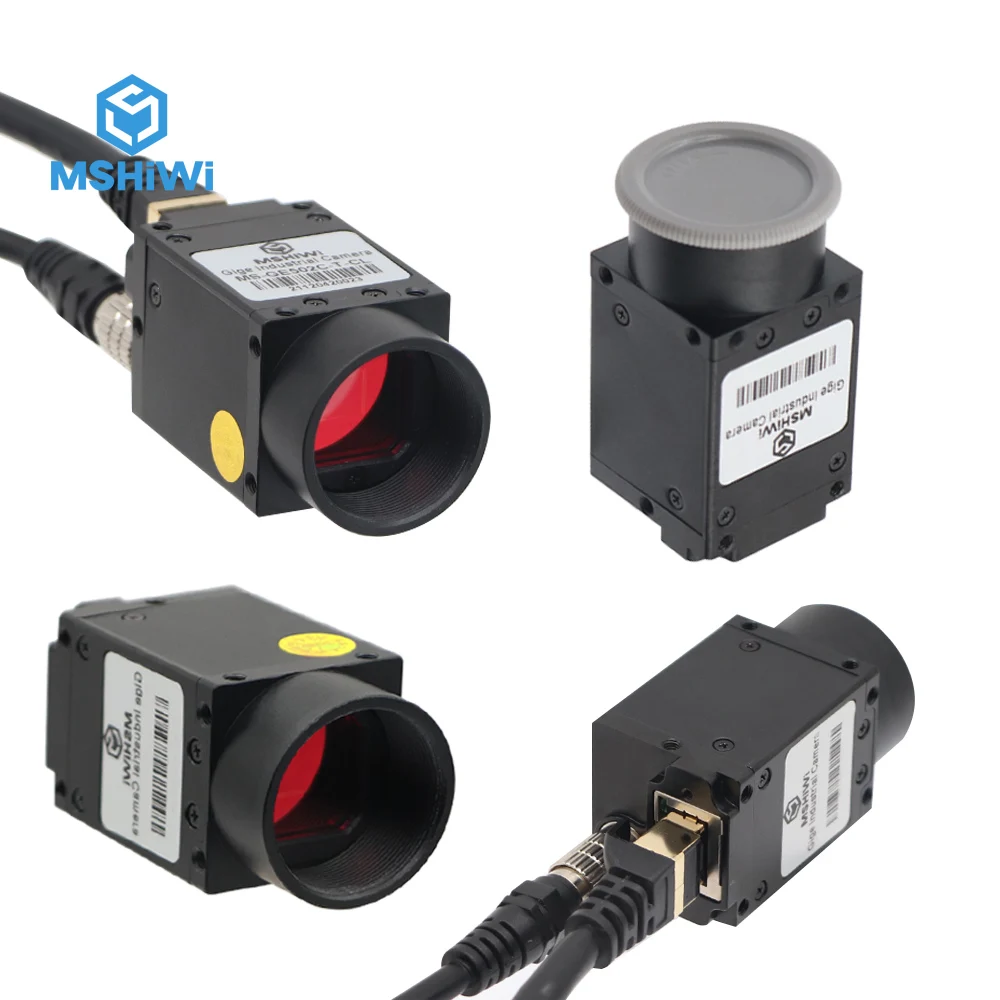

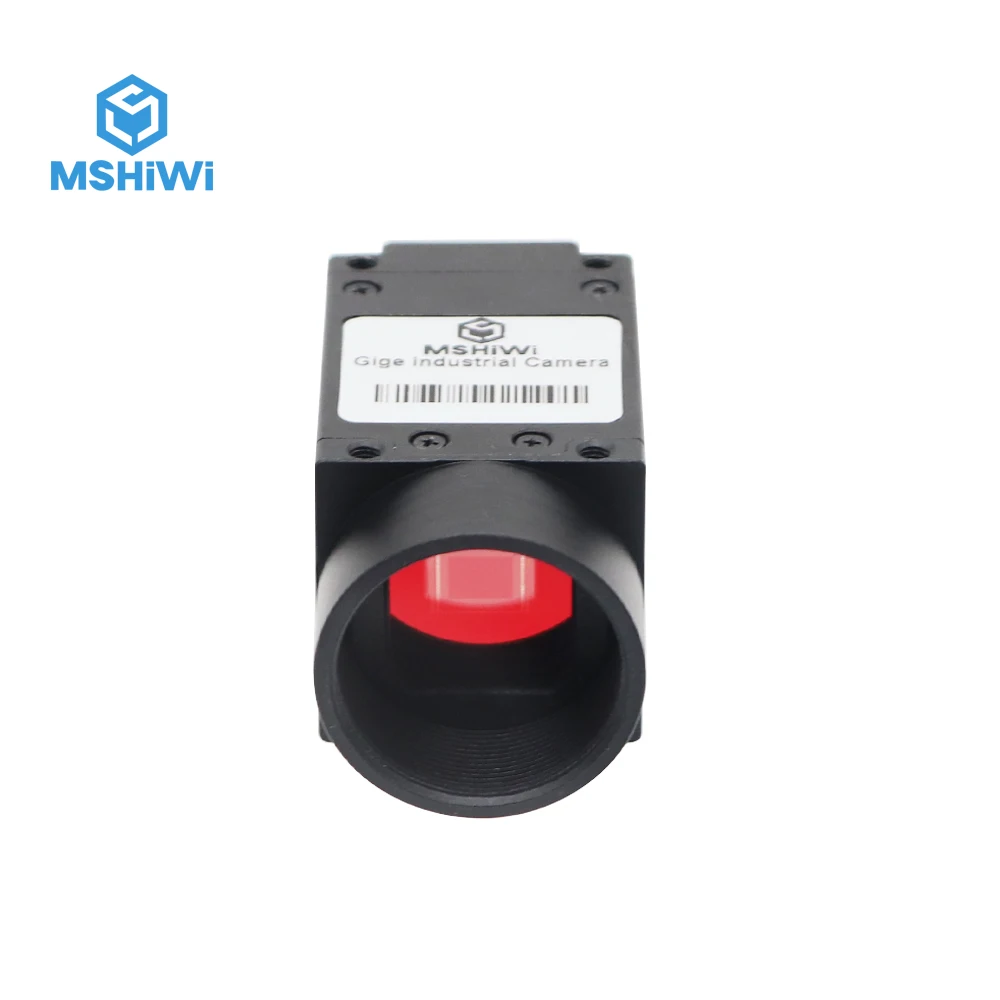

5.0MP GigE Monochrome CCD Industrial Camera

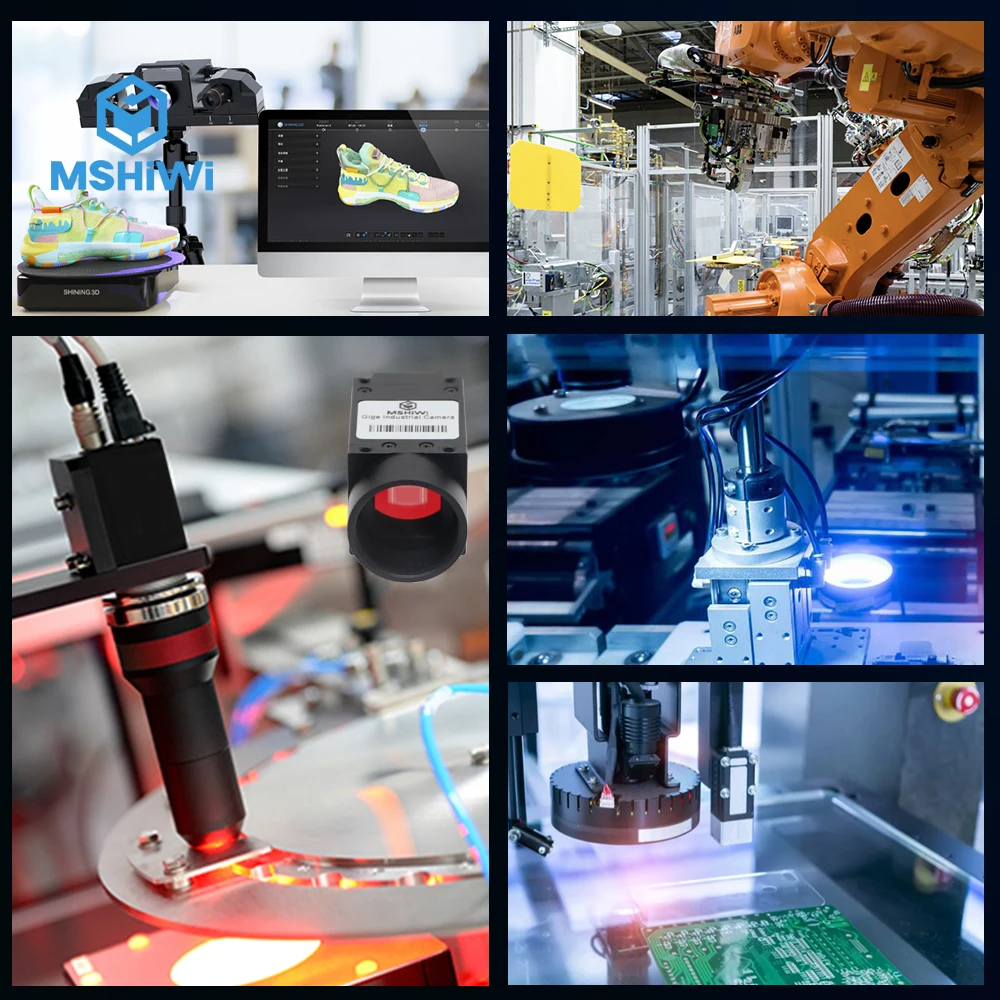

Automation, robotization, industry 4.0, integration of quality control in the running production or at the end of the production line, increasingly faster cycle and throughput times with a growing number of product variants, zero-error tolerance, digital networking, artificial intelligence, deep learning systems - these are some of the developments that are increasingly determining the industrial working environment.

GigE Series Features:

1) 100 meters long distance stable transmission, support POE power supply (default does not support POE);

2) Compatible vision standard, direct support Halcon, VisionPro and other software;

3) Pixels from 0.3MP to 14MP, CCD and CMOS;

4) Comes with hardware image processing acceleration, reduce the host side CPU occupancy rate;

5) Support multi-camera at the same time, the number is not limited, any network;

6) Unique packet retransmission technology; to ensure reliable transmission of data;

7) Excellent SDK design, like the use of USB camera as simple, plug and play;

8) Support external trigger and flash sync, up to seven GPIO, all optical isolation;

9) Dimensions are 29x29x40 mm.

Standard Equipment:

1) Camera, CS / C adapter ring, Trigger line.

2) WDM driver, Directshow, TWAIN, Halcn, OCX, Labview components.

3) Camera demonstration software, Measurement software for 32 / 64WINDOWS XP, WIN7, WIN8 and WIN10 operating system.

4) SDK package, including VC / C + +, C + + builder, VB6, VB.NET, Delphi, C # development routines.

5) Offline RAW to RGB program.

6) For a number of color cameras at the same time high-speed preservation of RAW image data offline converted to bmp or jpg formatimages.

Feature Of Product:

1) Support multi-camera work at the same time, stable and reliable, fully compatible with the USB camera SDK, can be seamlessreplacement.

2) Camera parameters archived in the form of preservation, easy production release, the development of simple, cross-platformcompatible.

3) Camera name can be modified to easily distinguish between multi-camera.

4) Support 8bit, 24bit, 32bit image data format output.

5) Support small resolution high frame rate preview, large resolution capture function, seamless switching.

6) Support for resolution customization. View cut (ROI), BIN, SKIP point, zoom function can be freely combined set, match thedifferent aspect ratio and visual field requirements

7) The fuselage comes with up to 16K bytes of user data storage space.

8) Comes with hardware acceleration module, to achieve LUT, color correction and other functions, effectively reduce the host CPUoverhead.

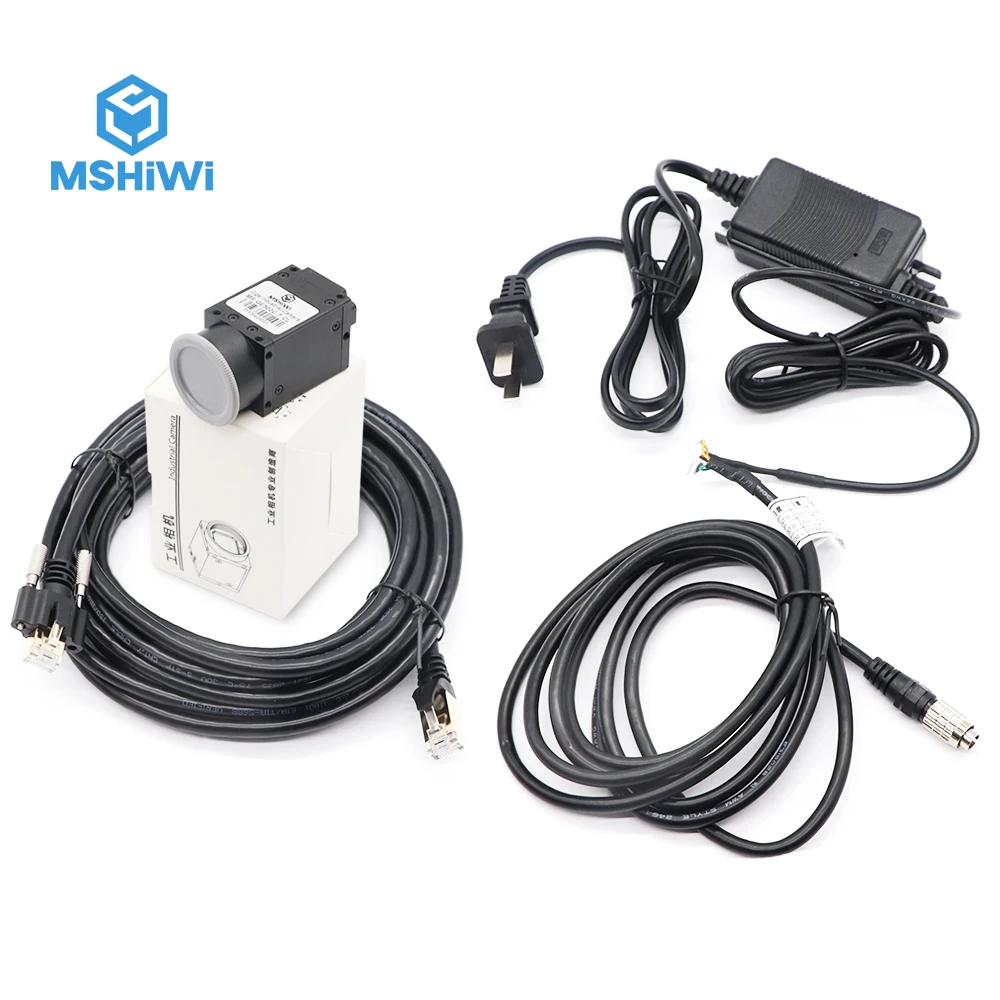

Package incluede:

1 x Industrial Camera (No Include Lens)

1 x Trigger line

1 x 5 Meters Gigabit Ethernet Cable

1 x 12V Power Supply

Industrial Camera Parameters：

Model

HT-GED501M-T-CL

Sensor

2/3' CCD

Shutter Type

Global Shutter

Camera Type

Monochrome

Pixel Size

3.45*3.45μm

Effective Pixels

5.0 MP

Resolution @FPS

2448*2048@15FPS

Pixel Bit Depth

12bit

Sensitivity

530mV1/30s

GPIO

6-pin Hirose Connector

Acquisition

Continuity/Soft Trigger/Hard Trigger

Maximum Gain (multiple)

32

Exposure Time (ms)

0.0002~10000

Filters

None

Frame Buffer

32M Bytes

Custom Data

2K Bytes

Video Output Format

Bayer8、Bayer12、Mono8、Mono12

Visual Standard Protocol

GigE Vision 、GenICam

Lens Interface

C Mouth

Data Interface

RJ45 Gigabit Ethernet interface

Power Supply

12V(Optional POE Power Supply)

Power

<2.5W

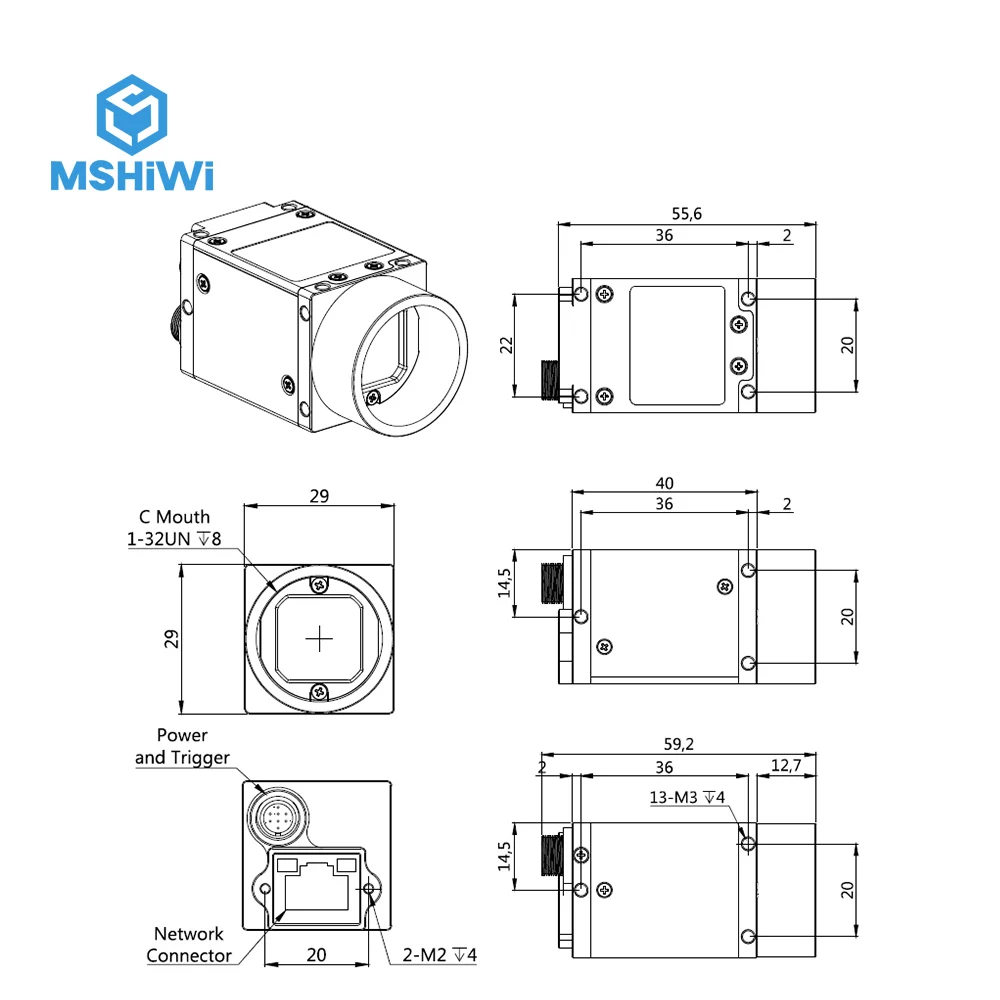

Dimensions

29(mm)X29(mm)X40(mm)

Weight

< 75g

Operating Temperature

0~50 Degrees

Operating System

Support WIN7/8/10 32&64 System; PC Linux System

Driver

Directshow; Halcon; Labview; OCX; TWAIN Component

Programming Ianguage

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV

Other Functions

Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
