characteristic：

Higher order，Small volume，Low insertion loss，high selectivity ，High power processing

application：

Designed for removal from broadband RF signals 144MHz ISM interference signal

Laboratory and other highly selective applications

model：KFBR-144

impedance：50 Ohms

center frequency ：144 MHz

Center frequency insertion loss： > 50 dB

40 dB Stopband: 130 ～ 160 MHz

3 dB Passband edge：110 ～ 190 MHz

Passband insertion loss：< 1.0 dB @ DC ～ 90 MHz & 250 ～ 500 MHz

                < 2.0 dB @ 500 ～ 1000 MHz

Maximum carrying power：10 W（40 dBm）

Interface：SMA-F， SMA-F

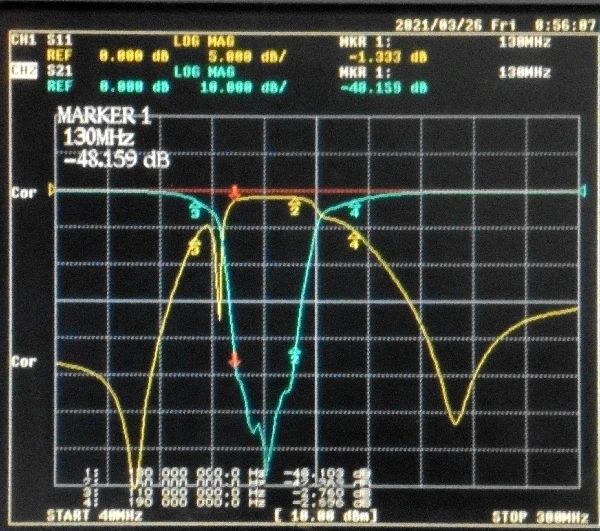

Frequency response diagram（Sweep bandwidth：40-300MHz。The blue line is the transmission loss，Vertical scale per grid 10dB。The yellow line is the reflection loss，Vertical scale per grid 5dB）：

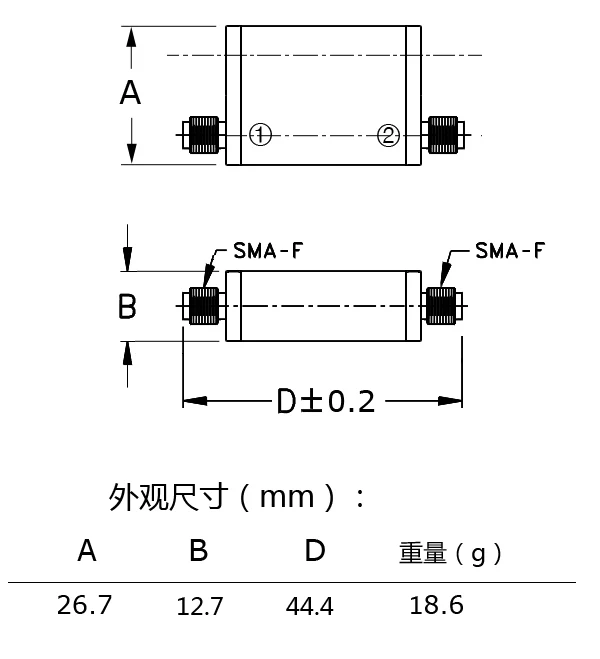

Overall dimension：
