FUNSHION 433.92Mhz DC 6V 12V 24V 10A 4CH Relay Module Receiver EV1527 Wireless Remote Control Switch 433Mhz for Motor DIY |

FUNSHION 433.92Mhz DC 6V 12V 24V 10A 4CH Relay Module Receiver EV1527 Wireless Remote Control Switch 433Mhz for Motor DIY |

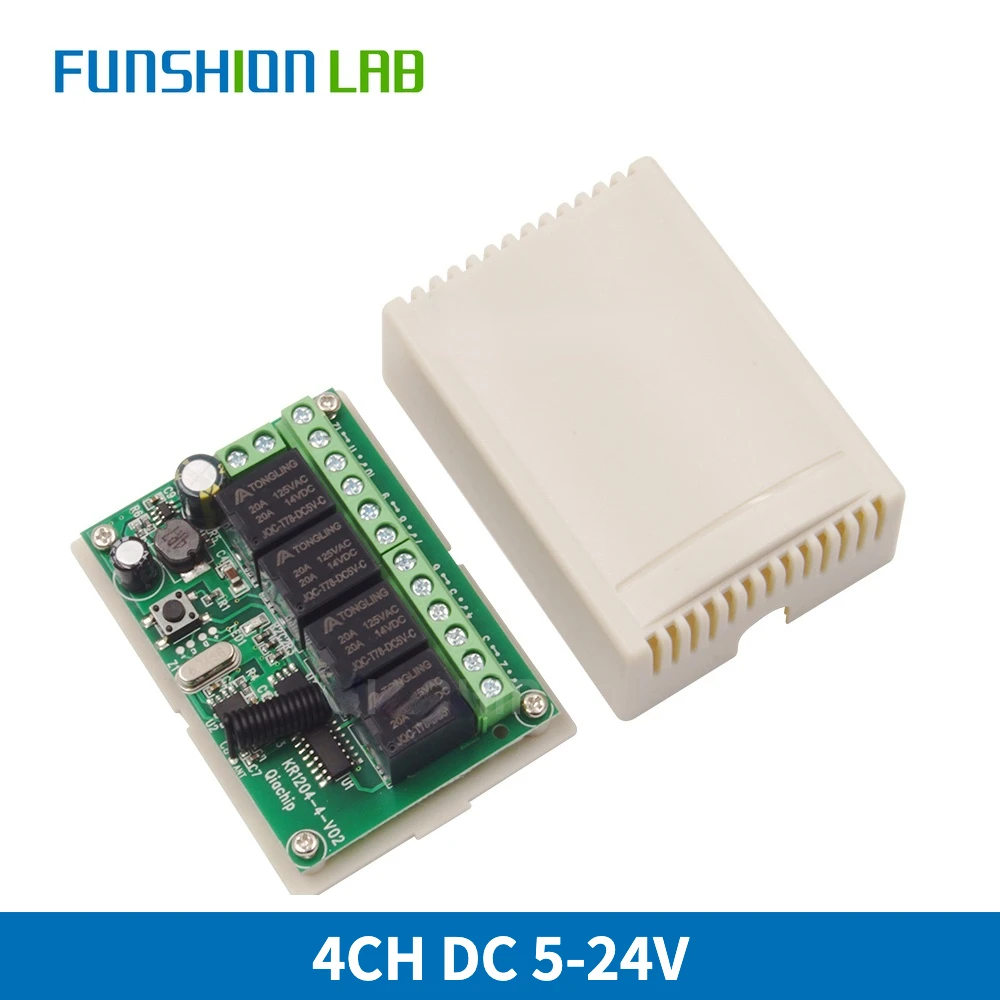

Model: KR1204B-4
Working Voltage: DC 6-30V
Product Type: 4-Channel Remote Control Switch
RF Working Mode: ASK Superheterodyne Reception
Modulation Mode:ASK
Working Mode: Momentary/Toggle/Latched, etc.
Matching Mode: Intelligent Learning Code.

Quiescent Current:5mA
RF Frequency: 433MHz
Output Current: ≤10A
Receiving Sensitivity: >104dbm

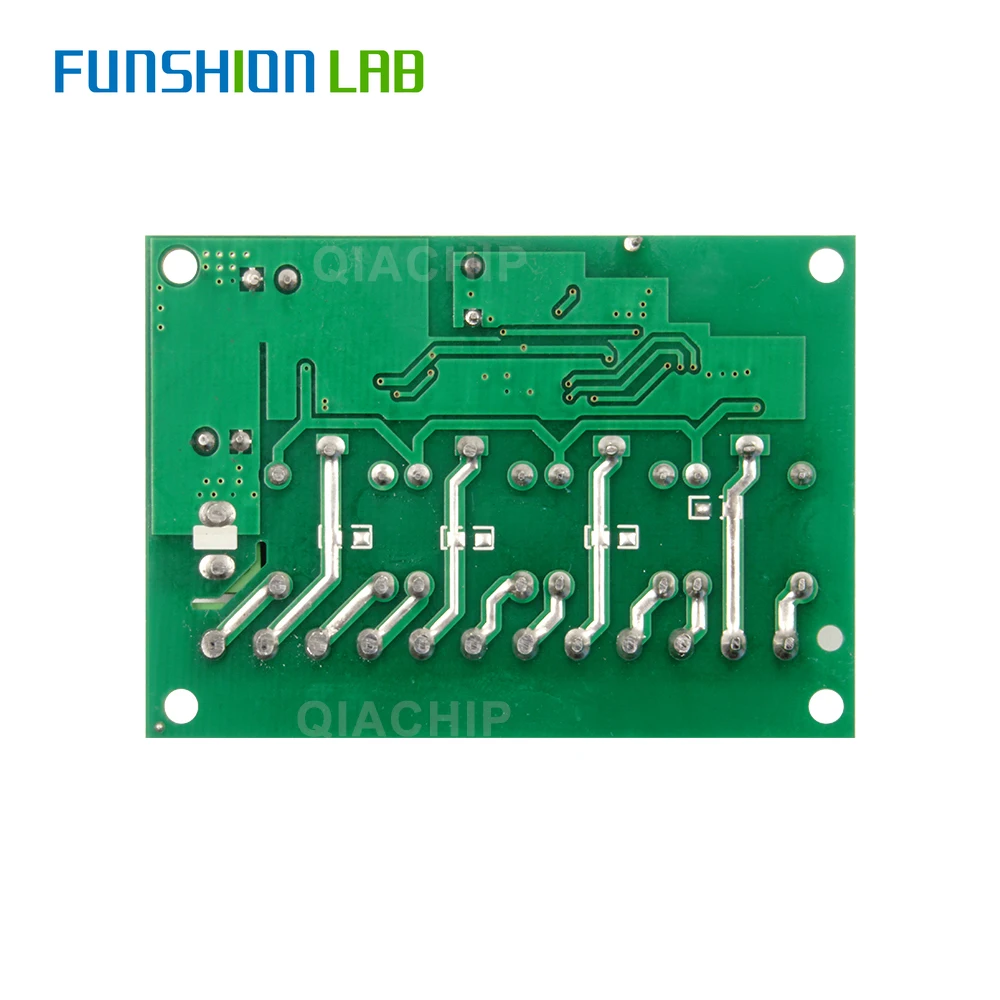

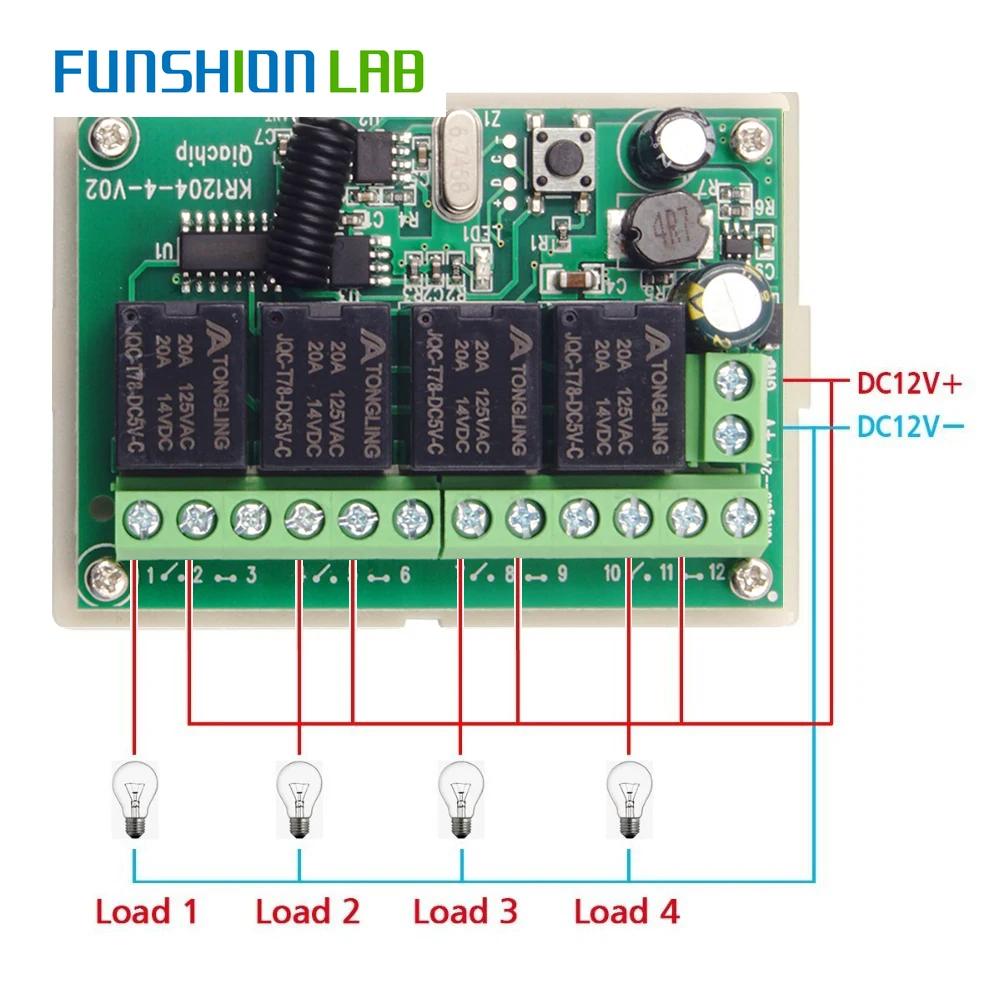

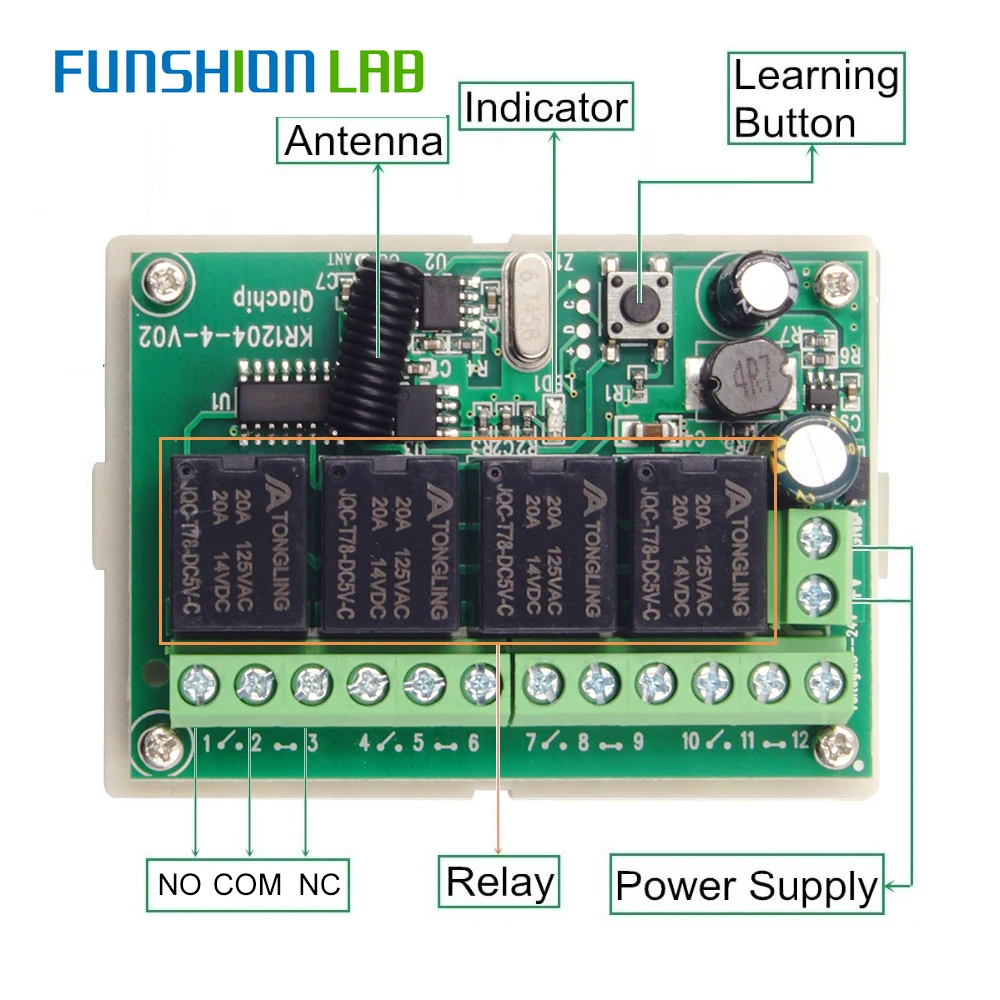

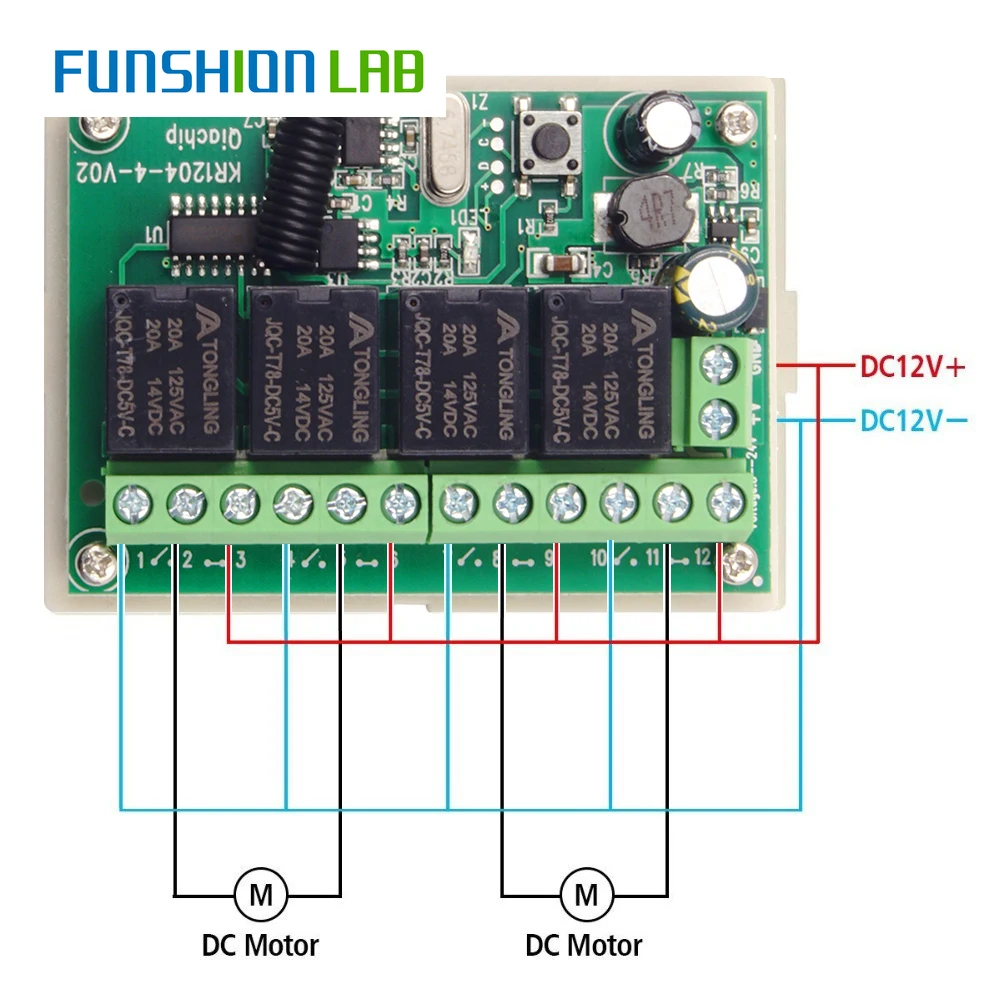

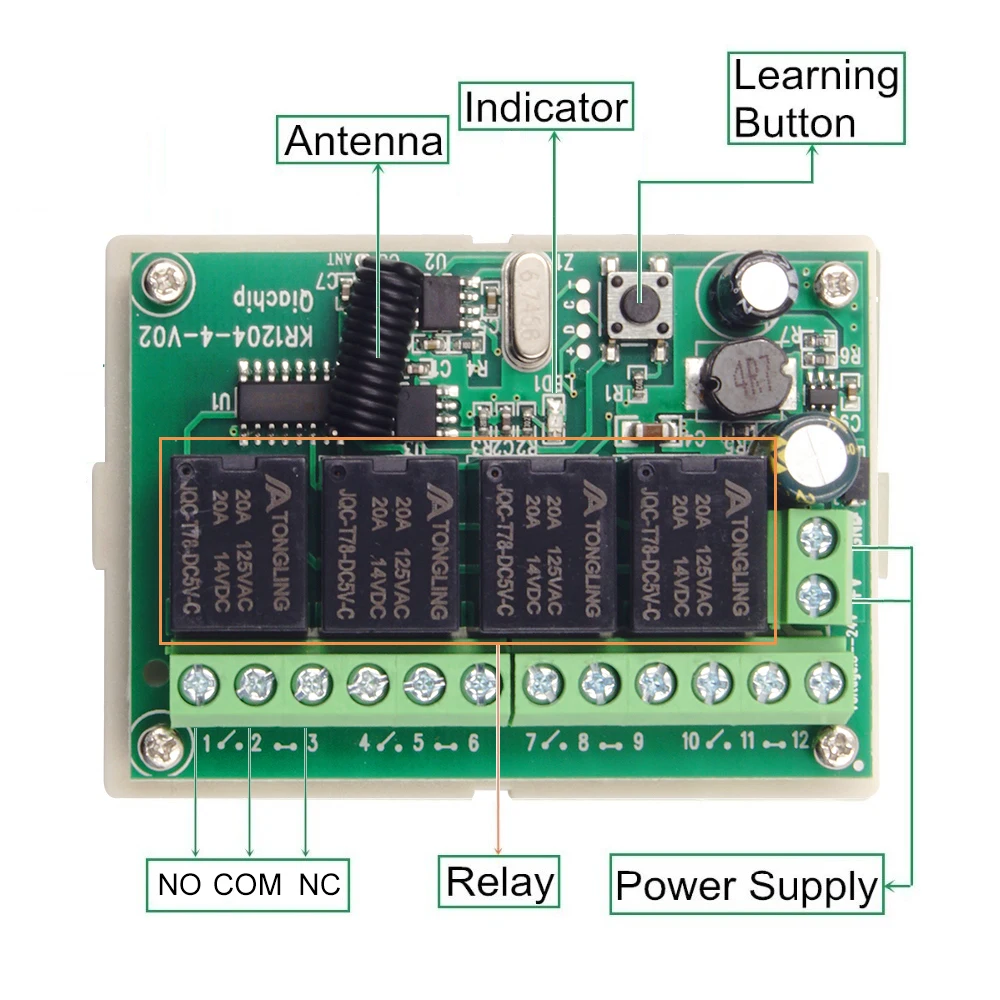

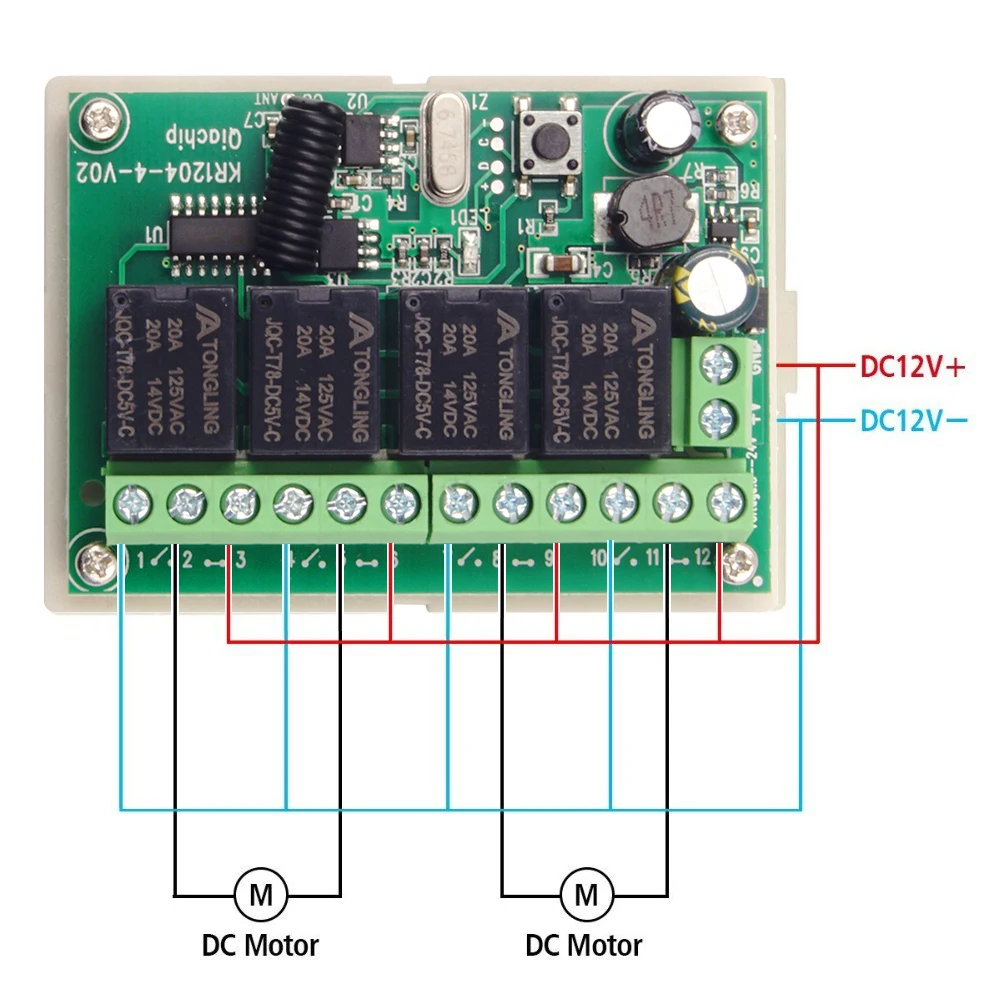

Wiring instructions:
1, +: Connect to the positive 12V power supply
2. - : Connect to the negative electrode of 12V power supply
3, A: output; normally open end of the relay
4, B: output; relay common;
5, C: output; normally closed relay

Operation Introduction:

About Working Mode:
1. Momentary/Joggle: Press and hold->On; Release->Off
Keep pressing one button, the corresponding channel is working /on; Release your finger is stop/OFF. (4 channel switch(receiver) need 4 button remote control (transmitter )
2. Toggle/Self-Lock: Press->On; Press again->Off
Press one button for one time, the corresponding channel is working/on; Press the same button again to stop/OFF. (4 channel switch(receiver) need 4 button remote control (transmitter).
3. Latched/Inter-Lock: Press->on; Press other button->Off
Press one button for one time, the corresponding channel is working/on; Press another button is stop/OFF(At the same time, another corresponding channel works). (4 channel switch( receiver) need 4 buttons remote control (transmitter).

The Setting of Working Mode:

1.Momentary Mode: Pressing the learning key button on the receiver board once (LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting Momentary Mode successfully.

2. Toggle Mode: Pressing two times the learning key button on the receiver board twice(LED Indicator on receiver board will signaling simultaneously),then press any of the remote button , signaling three times by remote's LED means setting Toggle Mode successfully.

3.Latched Mode: Pressing the learning key button on the receiver board three times (LED Indicator on receiver board will signaling simultaneously), then press first remote button, follow on second remote button, signaling three times by remote's LED indicator means setting Latching Mode successfully (first button stands for on, second button stands for off ).

4.2CH Momentary + 2CH Toggle: Pressing the learning key button on the receiver board four times(LED Indicator on receiver board will signaling simultaneously),then press any of the remote button , signaling three times by remote's LED indicator means setting successfully.

5. 2CH Momentary + 2CH Latched: Pressing the learning key button on the receiver board five times(LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting successfully .

6. 2CH Toggle + 2CH Latched: Pressing the learning key button on the receiver board six times(LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting successfully.

7. 2CH Latching + 2CH Latched: Pressing the learning key button on the receiver board seven times(LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting successfully.

8. Deleting Existing Remote Controls Data: Pressing the learning key button on the receiver board eight times, the LED Indicator on receiver board will flash for eight times, it means that the existing remote controls are deleted successfully.
