Комплект двигателя для спицевой рамы QS 205 50H V3 с Fardriver ND72360 150A программируемый

Комплект двигателя для спицевой рамы QS 205 50H V3 с Fardriver ND72360 150A программируемый

24x4.0" 26x4.0" Motorcycle Rim Laced QS 205 48V 1500W 135mm Dropout Rear Wheel Hub Motor Set for Electric Fat Bike Bicycle

For 205 E-Bike spoke hub motor, it could be used for electric bike, high power electric bicycle.

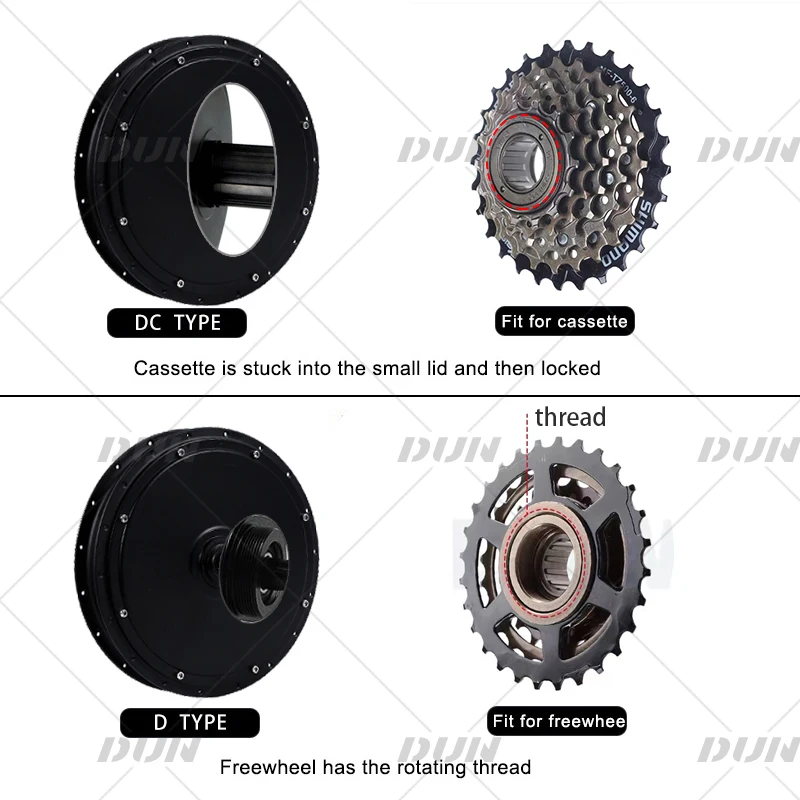

This motor with rotating thread for 6/7 speed freewheel.

Especially suit for electric bicycle, max. speed for 40-65km/h, depends on the tire.

- Package Including -

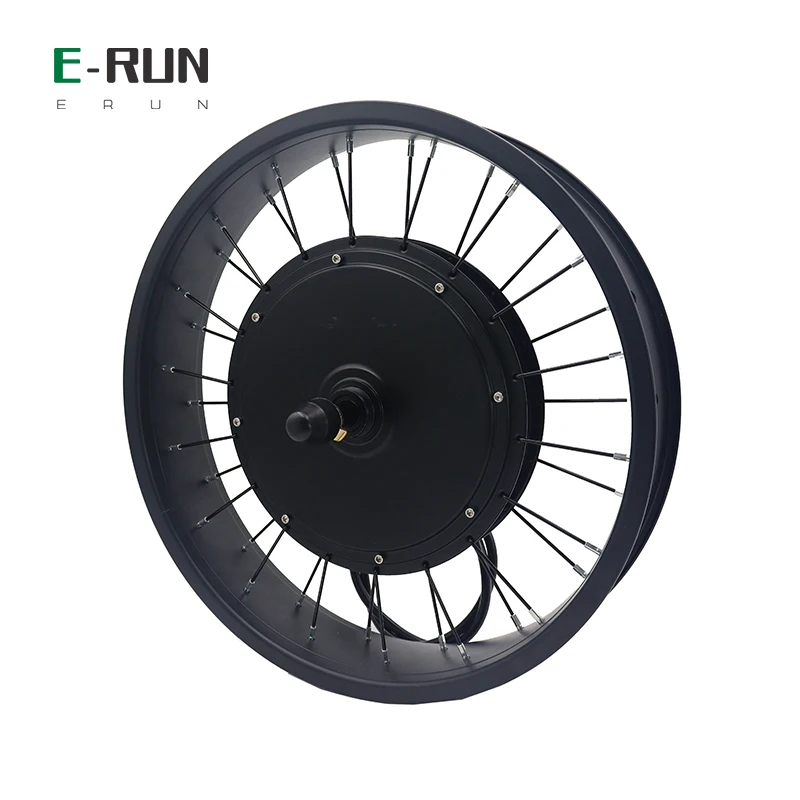

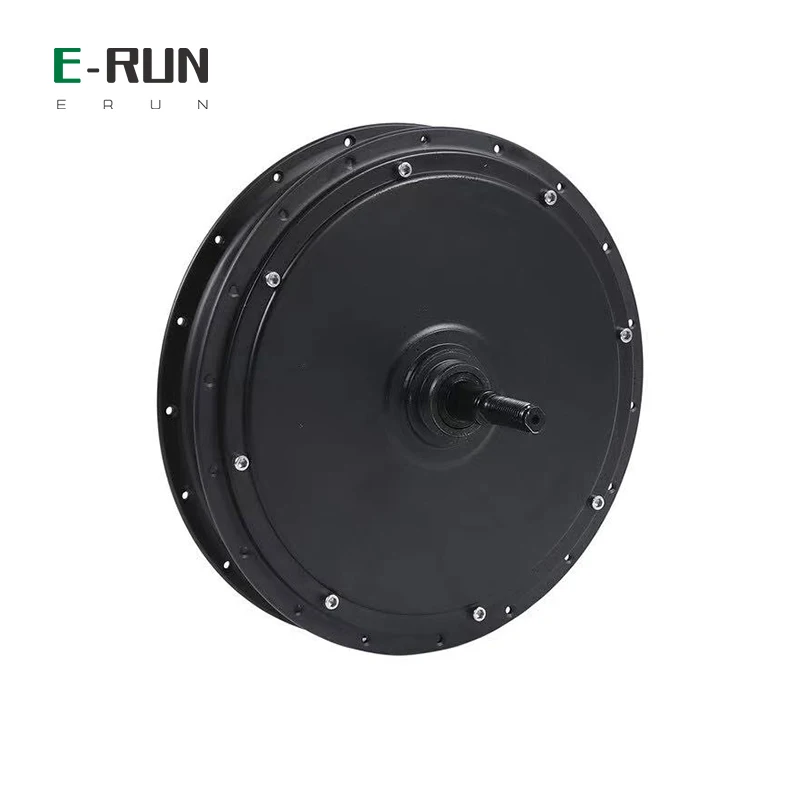

1pc x 205 spoke hub motor 48v 1500w 135mm drop-outs (suitable for 6/7 speed freewheel design)

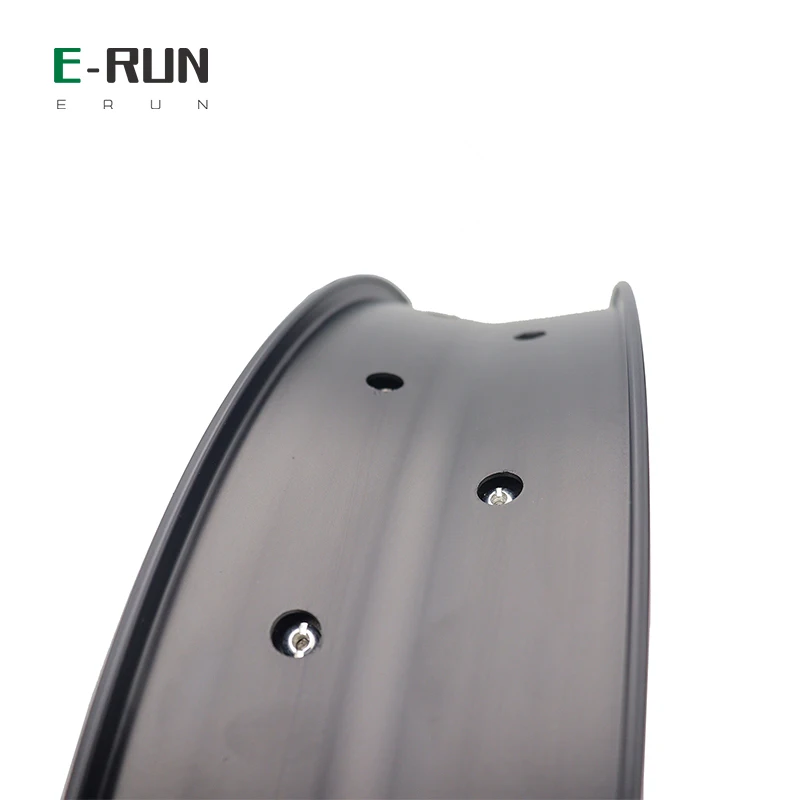

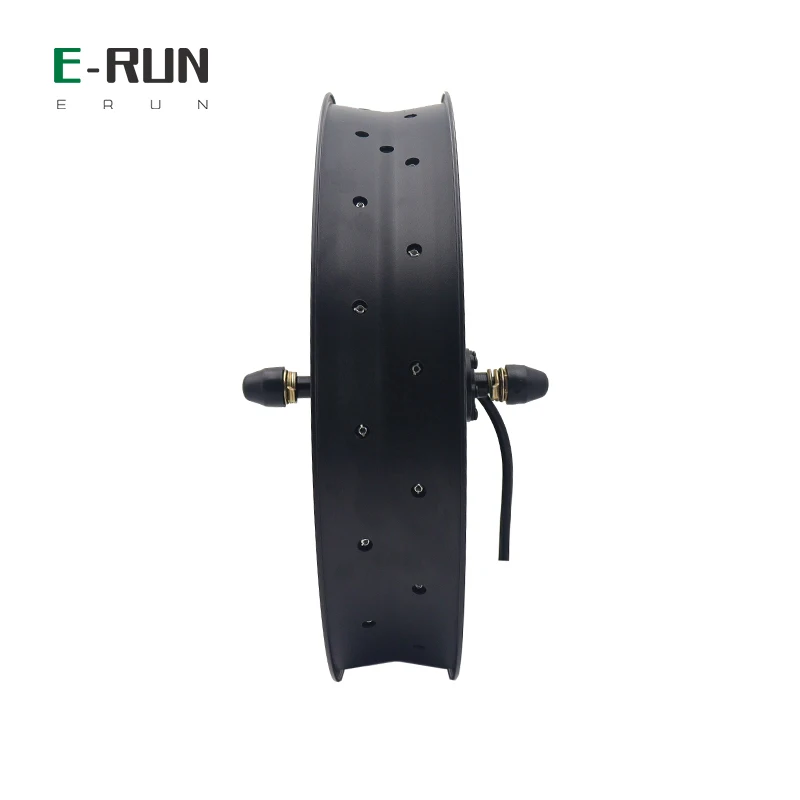

1set x Laced wheels & spokes (24x4.0"/26x4.0" optional)

- Key Feature -

1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%

- Order Guide -

1). Make sure the motor drop-outs 135mm suitable for your bicycle fork install.
2). It's no freewheel design, which suitable for front wheel drive.

- Motor SPEC -

1)Motor power: 1500w (no temp sensor)

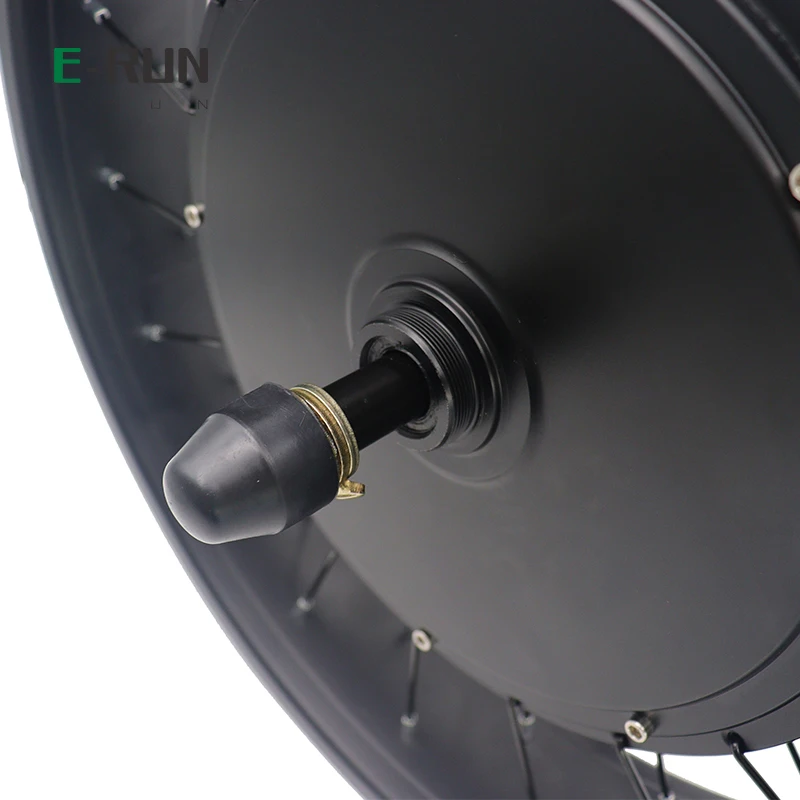

2)Axle: 10mm*14mm
3)Type: rear or front motor
4)Voltage & rpm: 48v 550rpm
5)Magnet height: 35mm
6)Windings: 14*4T
7)Waterproof grade: IP54
8)Cable size: 2.5mm²
9)Max. Torque: 50N.m
10)Max. Efficiency: ≥88%
11)Drop-outs: 100mm for front motor(no freewheel design), 135mm for rear motor
12)Wheel size: 16-28inch optional for match
13)Hall: 120 degree
14)Brake: bicycle disc brake
15)N.W.: 7kg

- Motor Drawing -
