3X CKCS Type-C USB 5V 2A 1S Single String Lithium Battery Charge Discharge Module Charging Board Boost Converter POWER |

Brand NameNoneOriginMainland ChinaCertificationNONECertificationNONEMeasurement unitpiece/piecesEach pack1Product featuresTypeC input, high charging voltage accuracy.NoteAdjusting the charging voltage setting requires poweroff operation; thInput voltage range55.5VCharging cutoff voltage(4.2V4.35V) 0.5Charging current2.4A5Boost output voltage5V5.15V (wire loss compensation)Boost output voltage ripple100mVBoost output current2ABoost conversion efficiency92.5 (3.6V input, 5V2A output)Battery end quiescent currentLess than 30uA

Unavailable in

Reviews

4,0

2 reviews02000Top reviewsWith photosFrom Russia

All stars

All starsAdditionalDmitry D.9 May 2022

Show moreDmitry D.9 May 2022

Show moreOpen 2 reviewsDescription



The output will be turned off when the load current is continuously less than 50mA.

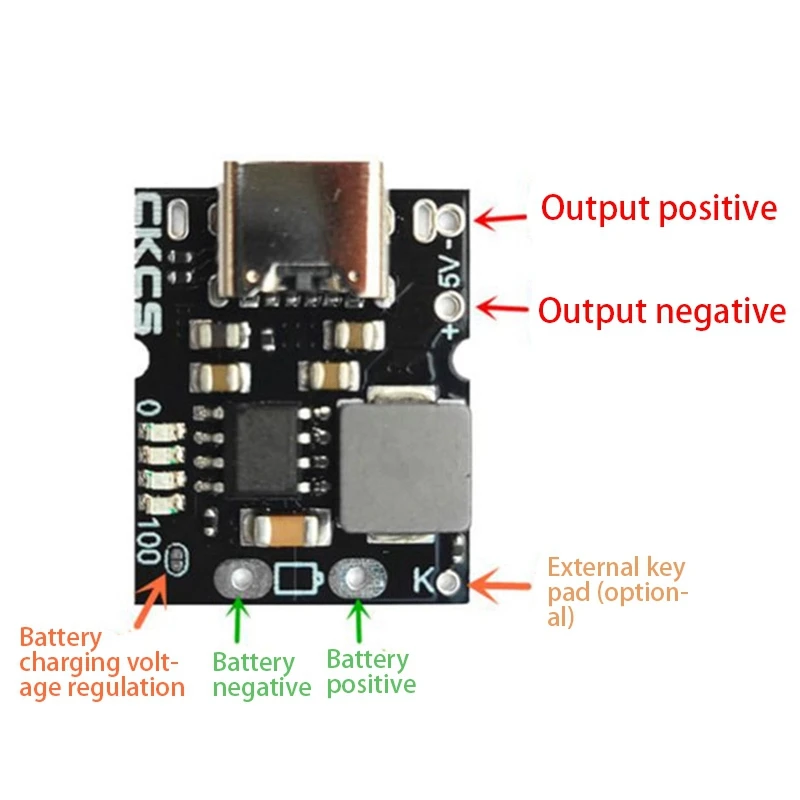

Support external buttons, connect the button to K point and output negative pole, short press to turn on the power display and turn on the 5V output, two consecutive short presses will turn off the power display and turn off the 5v output.
When the charging current drops to 100mA after reaching the final float voltage, the charging cycle will be automatically terminated.When the battery voltage drops below 4.1V, the charging cycle restarts.When the battery voltage is lower than 2.8V, the battery will be precharged with a current of 180mA.

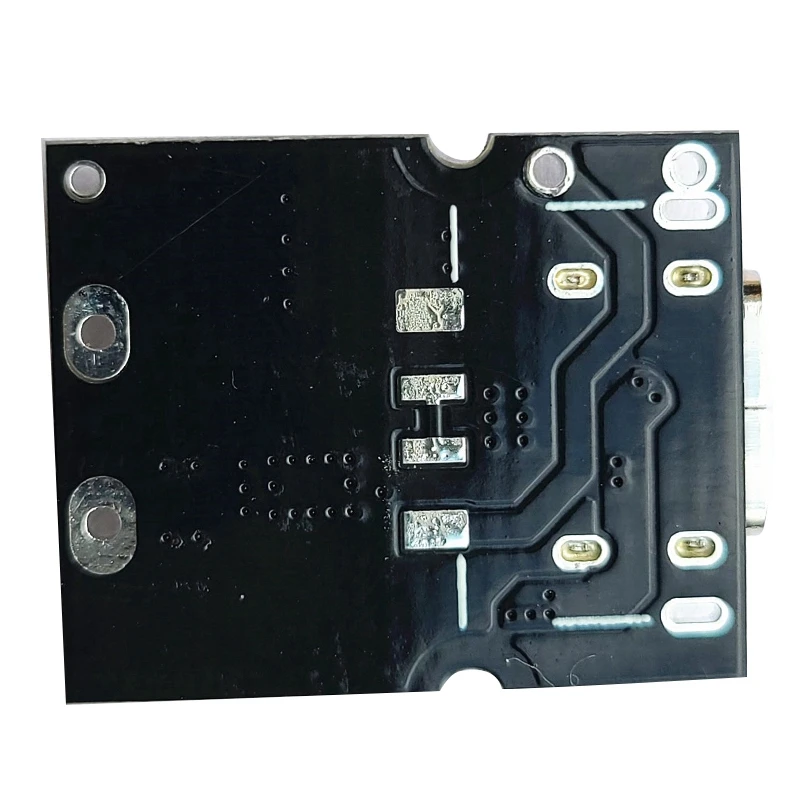

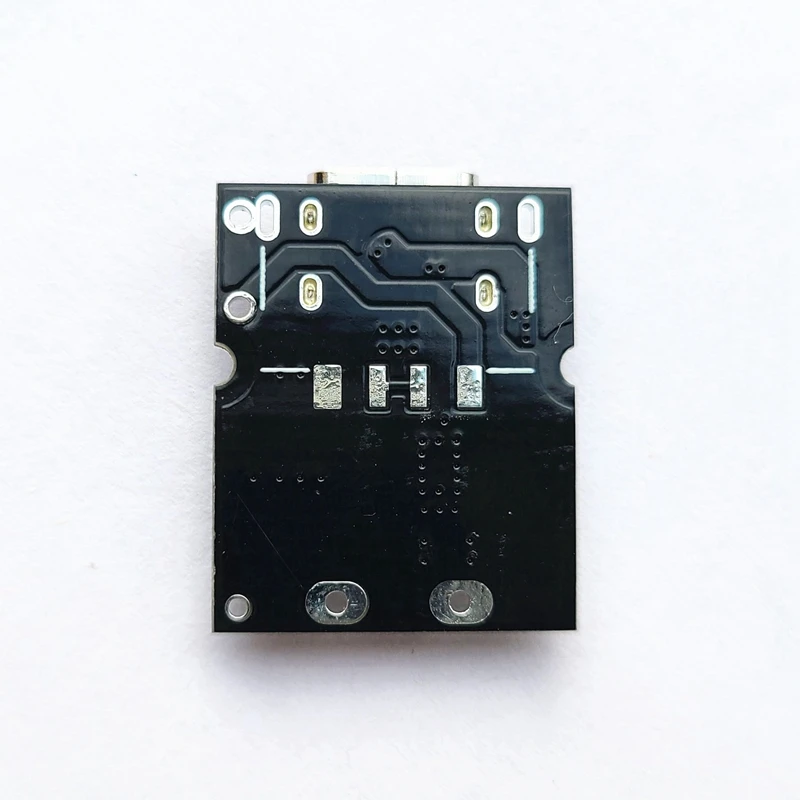

The USB-A female socket welding position is provided on the back of the product, and the female socket can be manually installed.
Support charging and discharging.

This model is the second edition, which reduces the size under the same performance and is convenient for installation in small spaces.
Product features: Type-C input, high charging voltage accuracy.
Note: Adjusting the charging voltage setting requires power-off operation; the USB-A female socket on the back of the module is a 5V output terminal and needs to be soldered by the user. We will provide a female socket with the product.
Basic parameters
Input voltage range: 5~5.5V
Charging cut-off voltage: (4.2V/4.35V) +/-0.5%
Charging current: 2.4A+/-5%
Boost output voltage: 5V~5.15V (wire loss compensation)
Boost output voltage ripple: 100mV
Boost output current: 2A
Boost conversion efficiency: 92.5% (3.6V input, 5V2A output)
Battery end quiescent current: Less than 30uA
colour:Black
Material:Electronic component

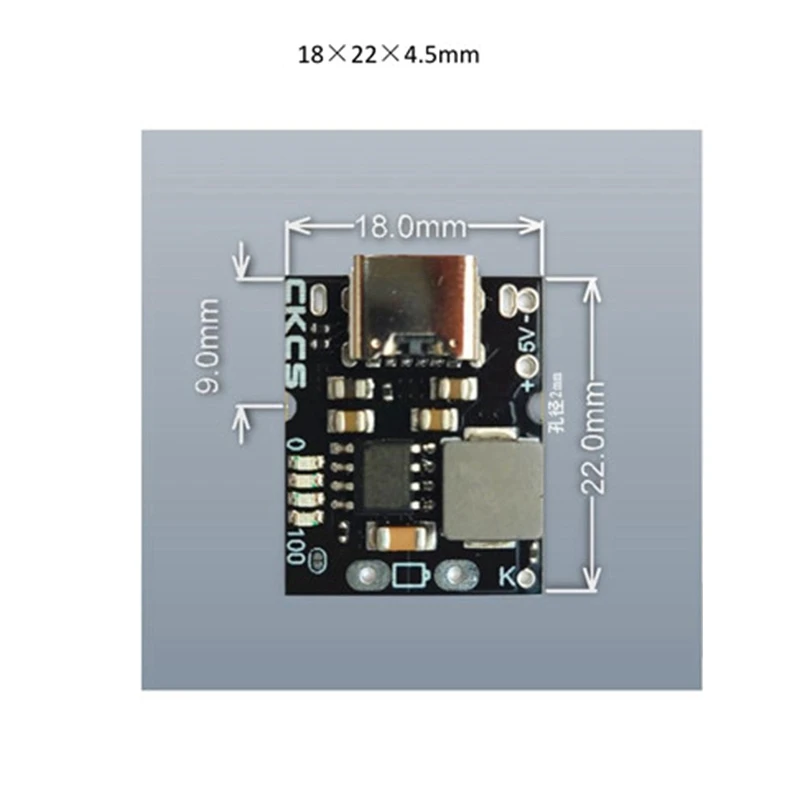

size:18x22x4.5mm

Package Contents:

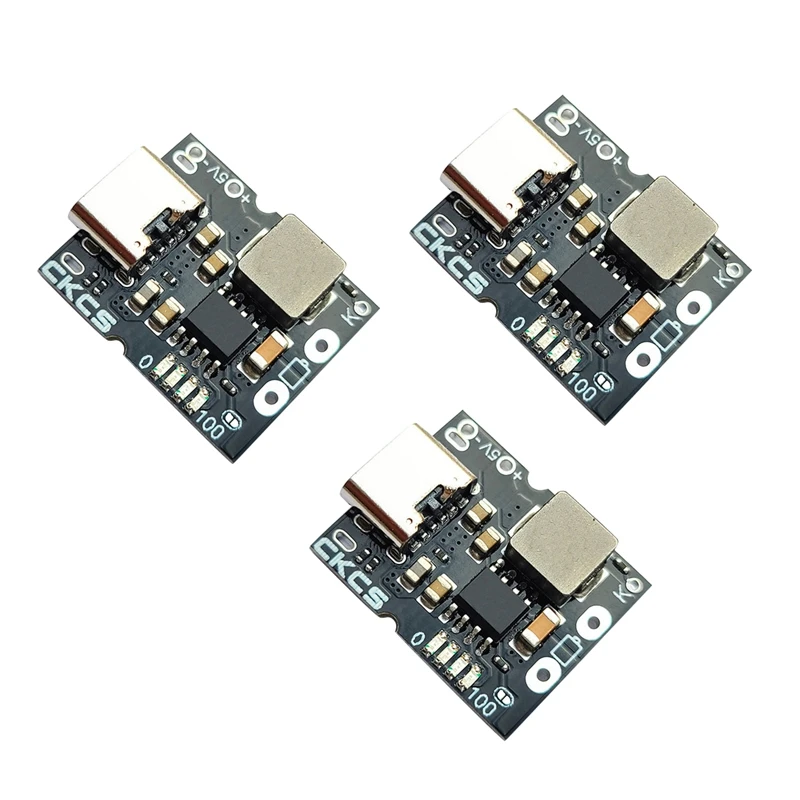

3 x Lithium battery charge and discharge module

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.







---
