What is THINKSCAN S05

Thinkscan S05 product is a new generation of portable diagnostic products for professional and individual users from THINKCAR. Its main functions include not only OBD/EOBD standard protocol diagnosis, but more importantly, it has professional vehicle diagnostic software and maintenance software. Part of the electronic control system is fully diagnosed.

Support All System Diagnostic:

With superior all systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ECU information to facilitate the vehicle diagnosis.The complete systems vary from different cars and they usually include engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.
* Examinate your car like a professional mechanical technician
*Read DTCs from the vehicle’s all electronic control systems to locate problem areas, and offer solutions; *Erase the codes easily after DTCs retrieving and certain repairs have been carried out and turn off fault Indicator lamp;
*Live data shows each sendor parameter item displayed in analog, text, waveform graph modes etc.;
*The active test used to access vehicle-specific subsystem and component tests.

Oil/Brake/SAS/ETS/DPF Reset

1.Free Oil Service Light Reset
allows you to perform reset maintenance mileage and data intervals for a new calculation of Engine Oil Life system once changed the oil.
2.Free EPB Electronic Park Brake Reset
it is important in the maintenance of electronic braking systemrsquos safety and efficiency when replace brake pad or motor
3.Free Tire Pressture System Reset
service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors
4.Free TPMS, Tire Pressure Monitoring System Programming
allows you to check the tire sensor IDs from the vehicle ECU and to perform TPMS programming and reset after tires and/or TPM sensors are replaced and/or tires are rotated.
5.Diesel Particulate Filter (DPF) Regeneration
Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance

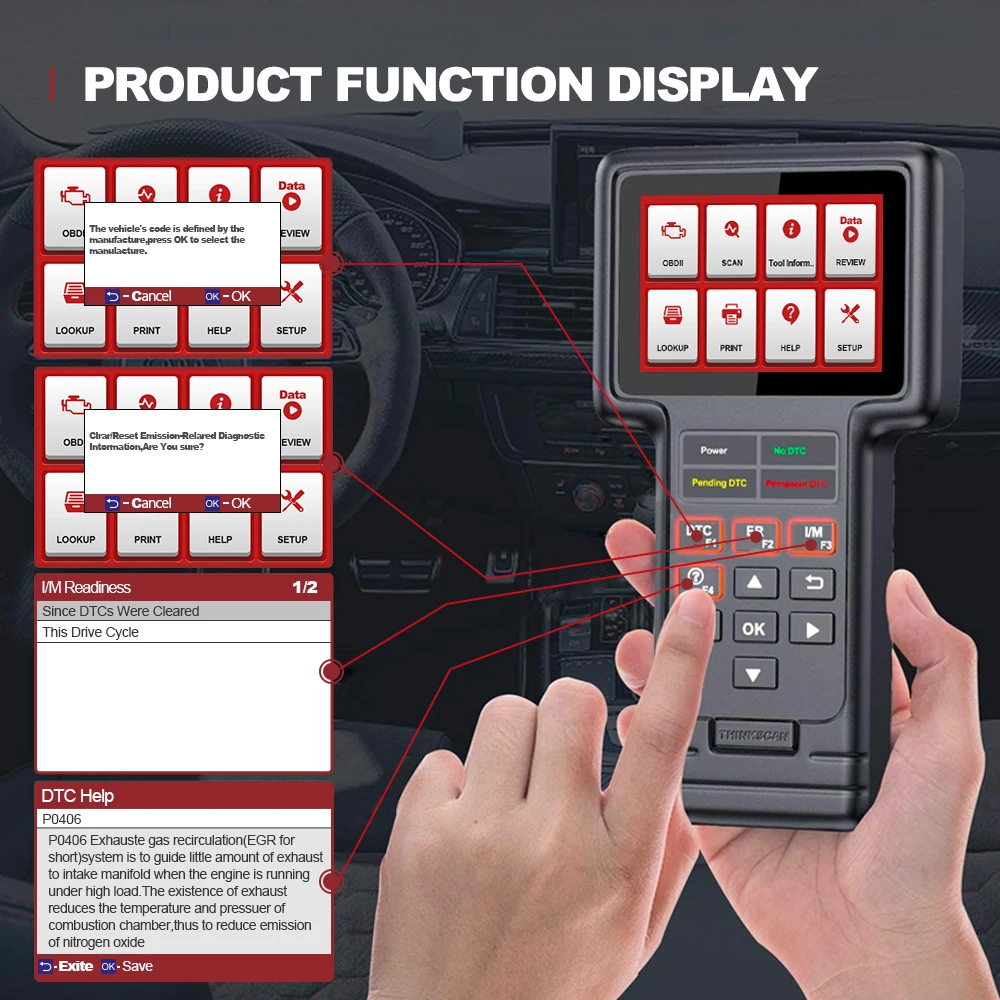

Full OBD2 Diagnosit Modes

●Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)
●Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes and resets monitors.
●Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
●I/M Readiness Status
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
●Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
●View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
●O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
●On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.
●Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
●Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability

4 IN 1 Scientific Data Management

The professional vehicle scanner tool can scientific graph data, record data, play back data, freeze frame,and print reports.

In the real-time diagnosis process, important diagnosis information can be instantly stored in the memory, including reading of fault codes and frozen frames and real-time data streams.
After real-time diagnosis is completed, Diagnosis function record playback, the diagnosis information and process previously saved in the memory can be replayed to facilitate the analysis of various data information.
One-click generation of a diagnosis report after diagnosis will help users quickly solve problems, avoid blind maintenance, and save money/time.

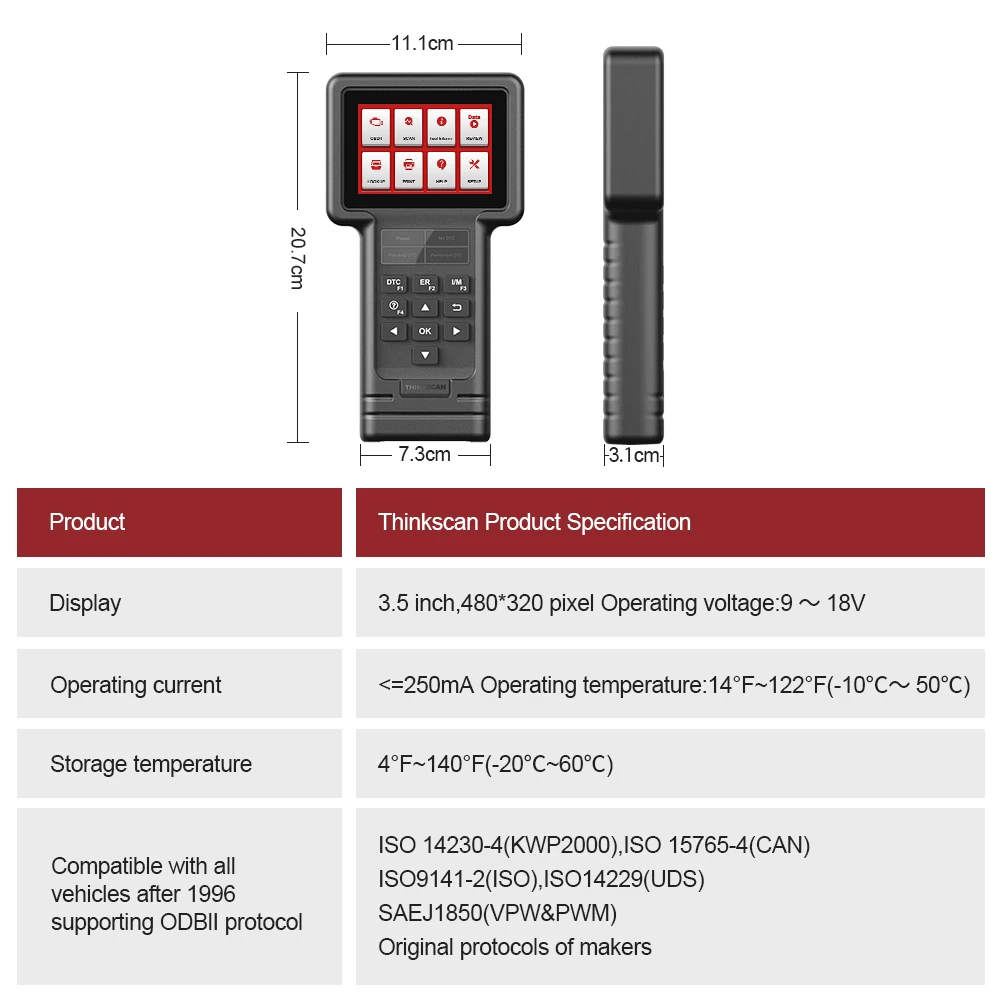

Specification:

Display: 3.5""LCD with good visual effect
Operating Temperature: 0 to 60 (32 to 140)
Storage Temperature: -20 to 70 (-4 to 158)
Power: 8 to 18 V provided via vehicle
Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898
Weight: 0.8Kg

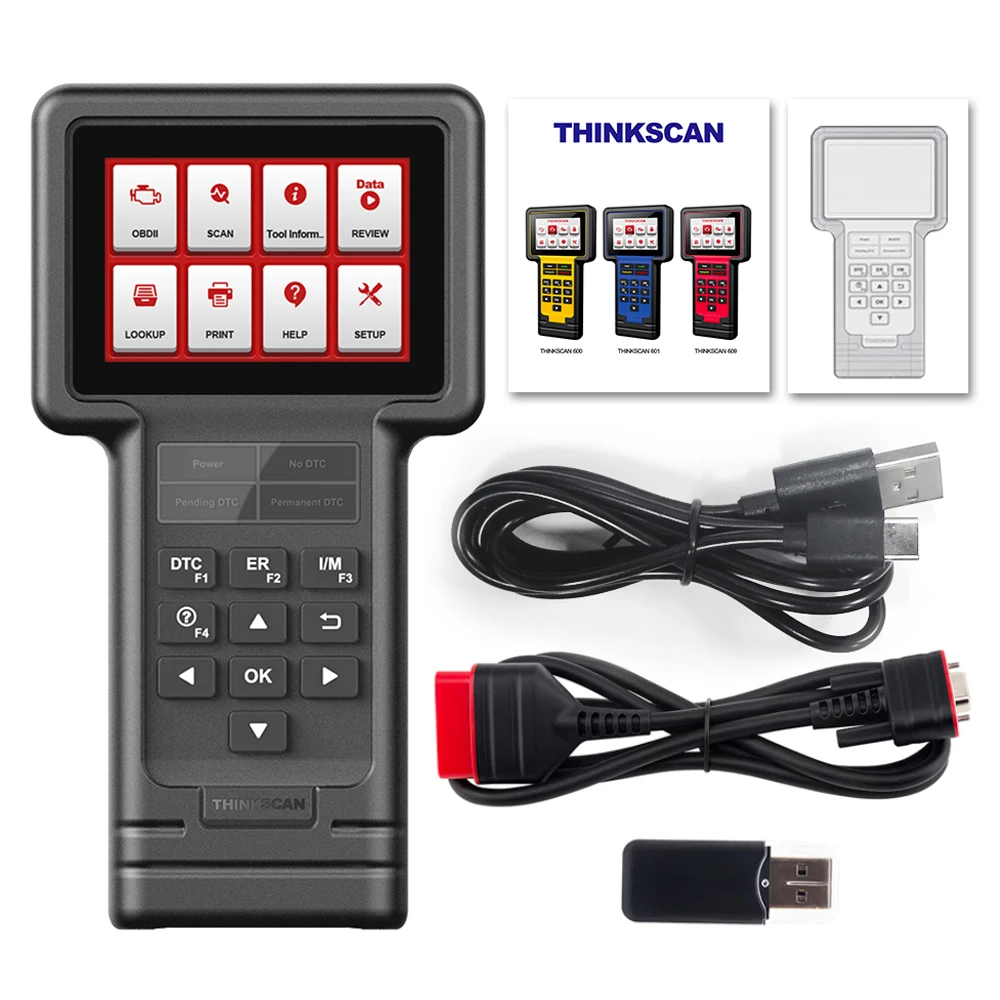

Packing list

Thinkscan S05*1
OBD2 cable*1
Card reader*1
Manual book*1

How to register & update:

Step 1: Connect the scanner with PC by type C cable. Enter the device menu ""Help--Tool Information"" and take a photo to record the information displayed.
Step 2: Download update software from office website on computer.
Step 3: Click the ""Update Tool Setup.exe"" and follow the message to install the client software on computer.
Step 4: Insert the TF card into the card reader and insert the card reader into your PC port. It will read the product ""Serial Number"" automatically.
Step 5: Hit ""Device Upgrade"" to enter the register page, type your email info , check the ""Register Code"" on the photo you take before.
Step 6 : Very Very important !!! After upgraded on computer, insert the tf card to scanner, then using the type c cable to charge a while. Now the update finished.
Prerequisite conditions:
1. Go to http://www.mythinkcar.com to download the update tool and install it on the computer.
2. System requirements: Windows XP, 7, 8 or Windows 10.

Follow the steps below to update the tool:

1. Note down the Serial Number and Register code.
1).Connect one end of the USB cable to your tool, and the other end on the computer.
2).After the tool has powered up and entered the main menu screen, move the highlight bar on the ""Help"" icon and press [OK].
3). Highlight the ""Tool Information"" in Fig. 1 and press [OK].
4). Write down the Serial Number and Register code for later use.

2. Register the scanner on the update tool (for initial use).
1).Launch the update tool, a screen similar to Fig. 3 will appear
*Note: Once the S/N is entered, “Restore System” becomes activated, which is used to restore system if a new memory card is replaced.
2).Select the target language and enter the Product Serial Number, click [Device Upgrade], a screen similar to Fig. 4 will appear.
3).Enter the required E-mail address and Register Code, click [Submit] to finish the sign-up.
*Note: For initial use, user needs to go through a registration process. Once you finished it, the registration screen will not appear again each time you click the [Device Upgrade] button in the future.

3. Copy the update package into the memory card.
1).Install the memory card from the tool into the supplied memory card adaptor and insert into the USB port of the computer.
2).Reopen the update tool, select the updates you would like to performor click ""Select All"", and then click [Download] to start downloading the update package into the memory card.

4. Reinsert the memory card into the tool and start update.
1).Once all steps are complete, find the mem
2). Connect the tool to the computer via USB cable.
3).The tool starts verifying the consistence of the local files with the files in the memory card. If difference exists, the tool will automatically start updating and a green update progress bar will appear on the bottom of the screen. Be patient to wait until the update is completely finished.
*Statement: All information and illustrations in this Quick Start Guide are based on the latest information available at the time of printing. Due to continuing improvements, actual product may slightly differ from the product described herein, and this
Quick Start Guide is subject to change without prior written notice.
