Leaf Audio USB DAC Amplifier Dual 9038Q2M Decoder CSR8675 Bluetooth 5.0 Receiver SPDIF Coaxial Optical IIS APTX-HD LDAC |

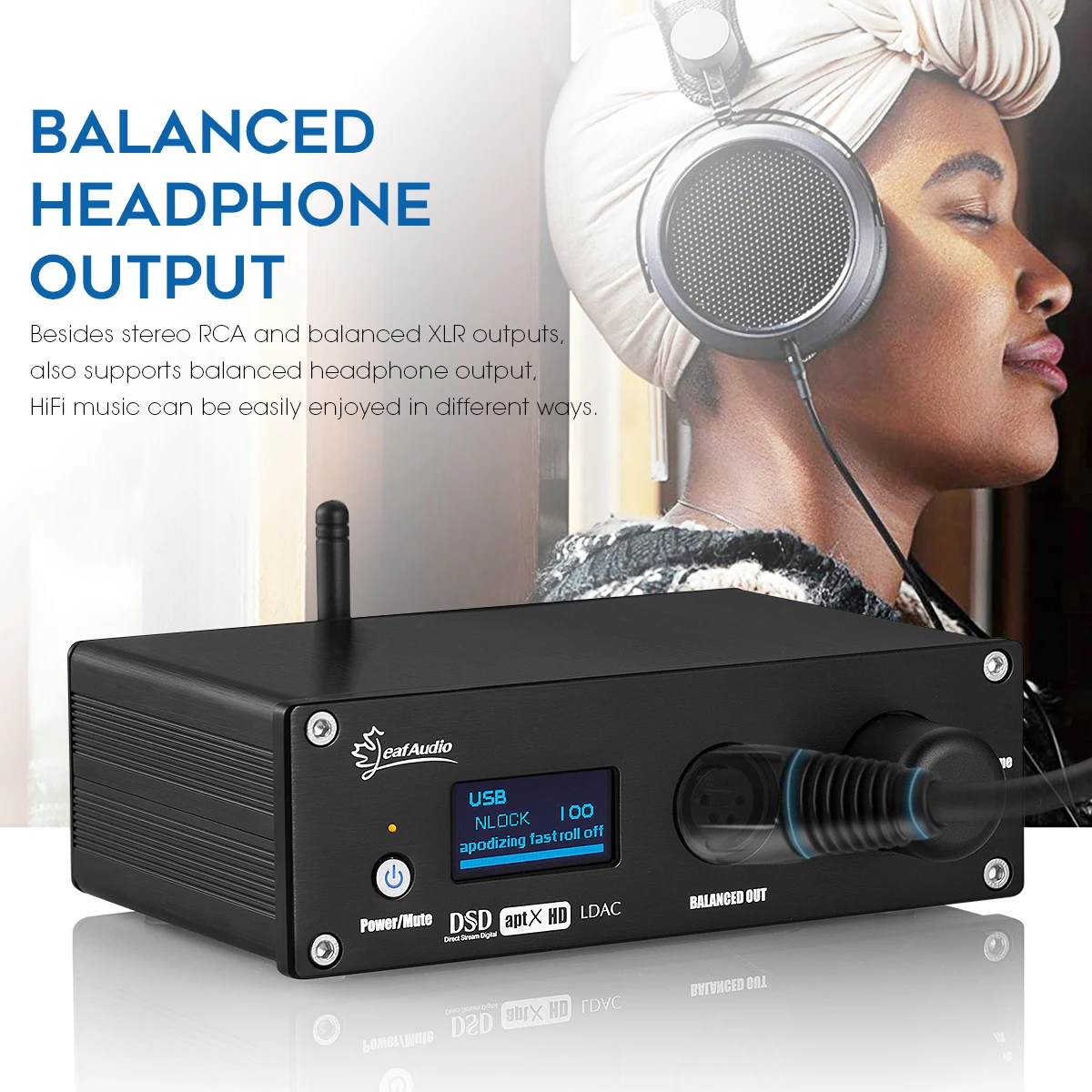

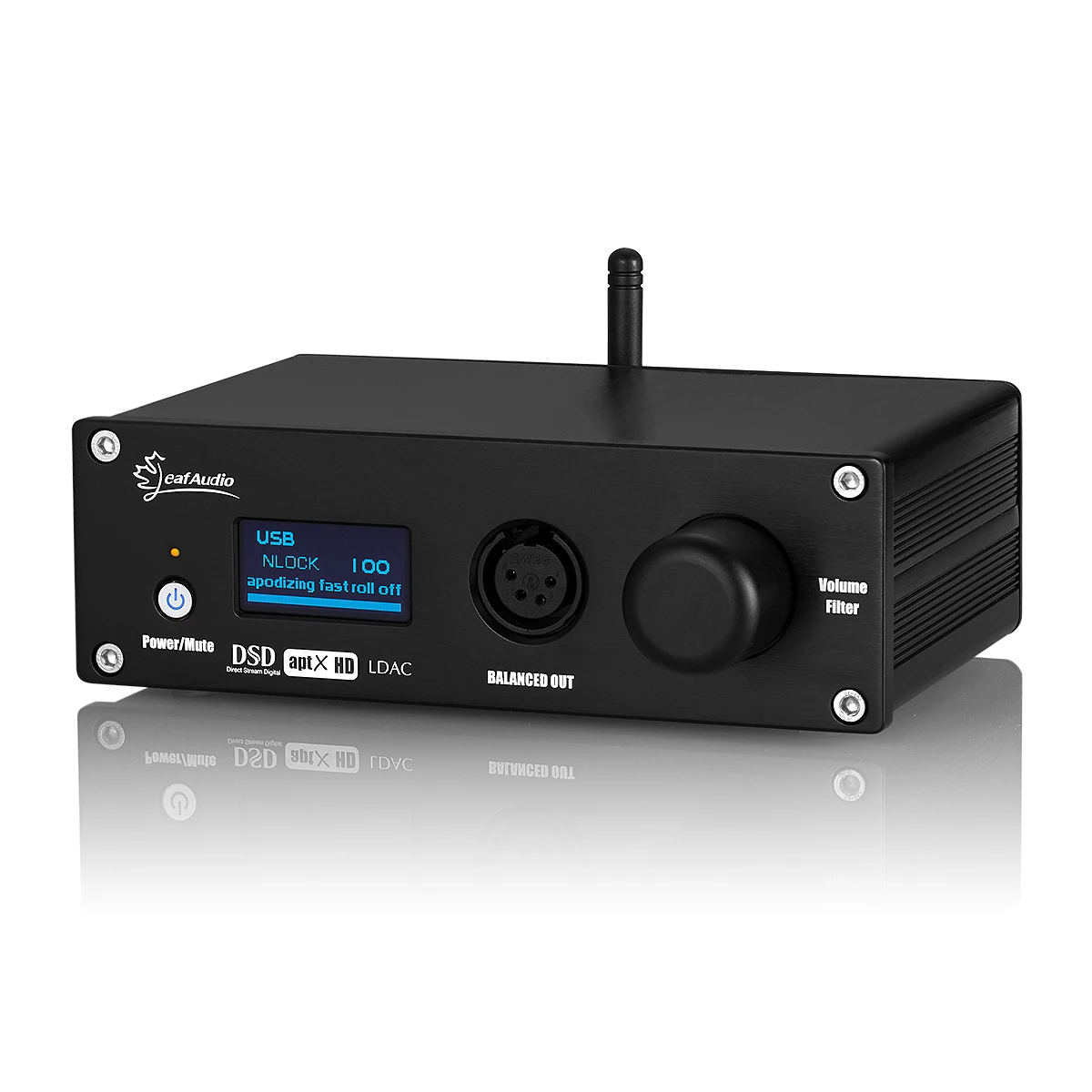

CMD23 is not only a multi-function DAC with many kinds of digital inputs but also a balanced headphone amp, adopting unique design and high-end chip architecture to achieve much better sound quality than the similar products in the market.

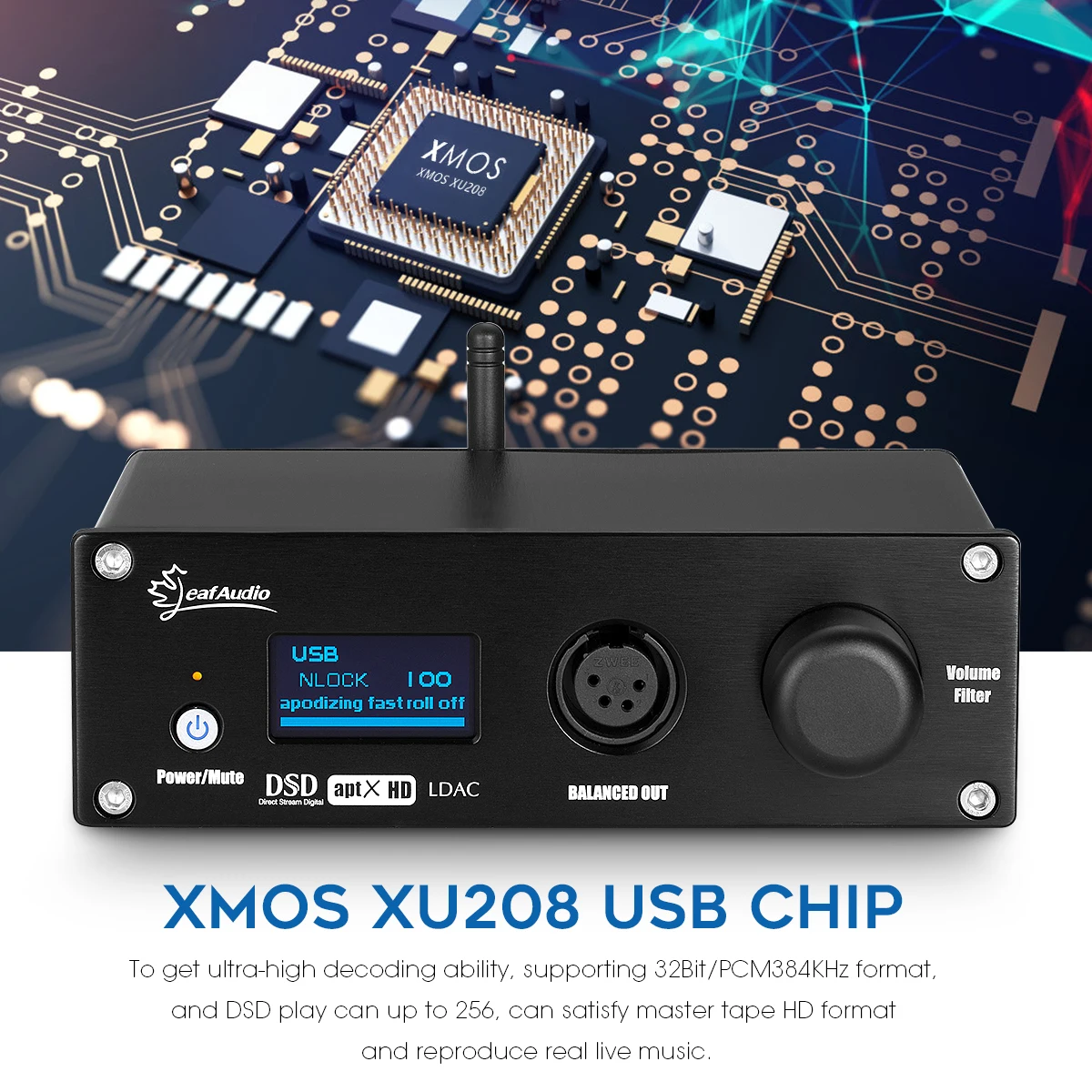

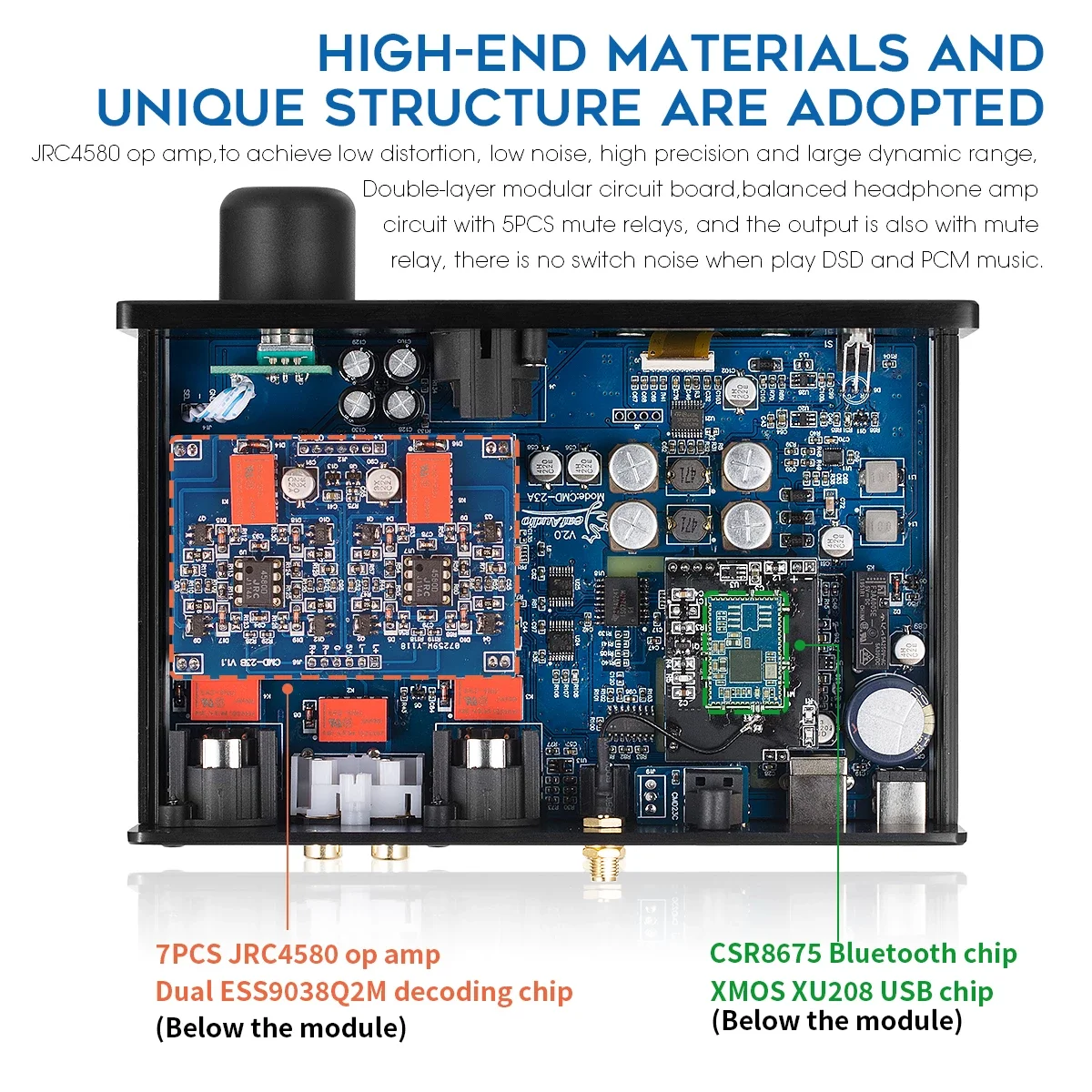

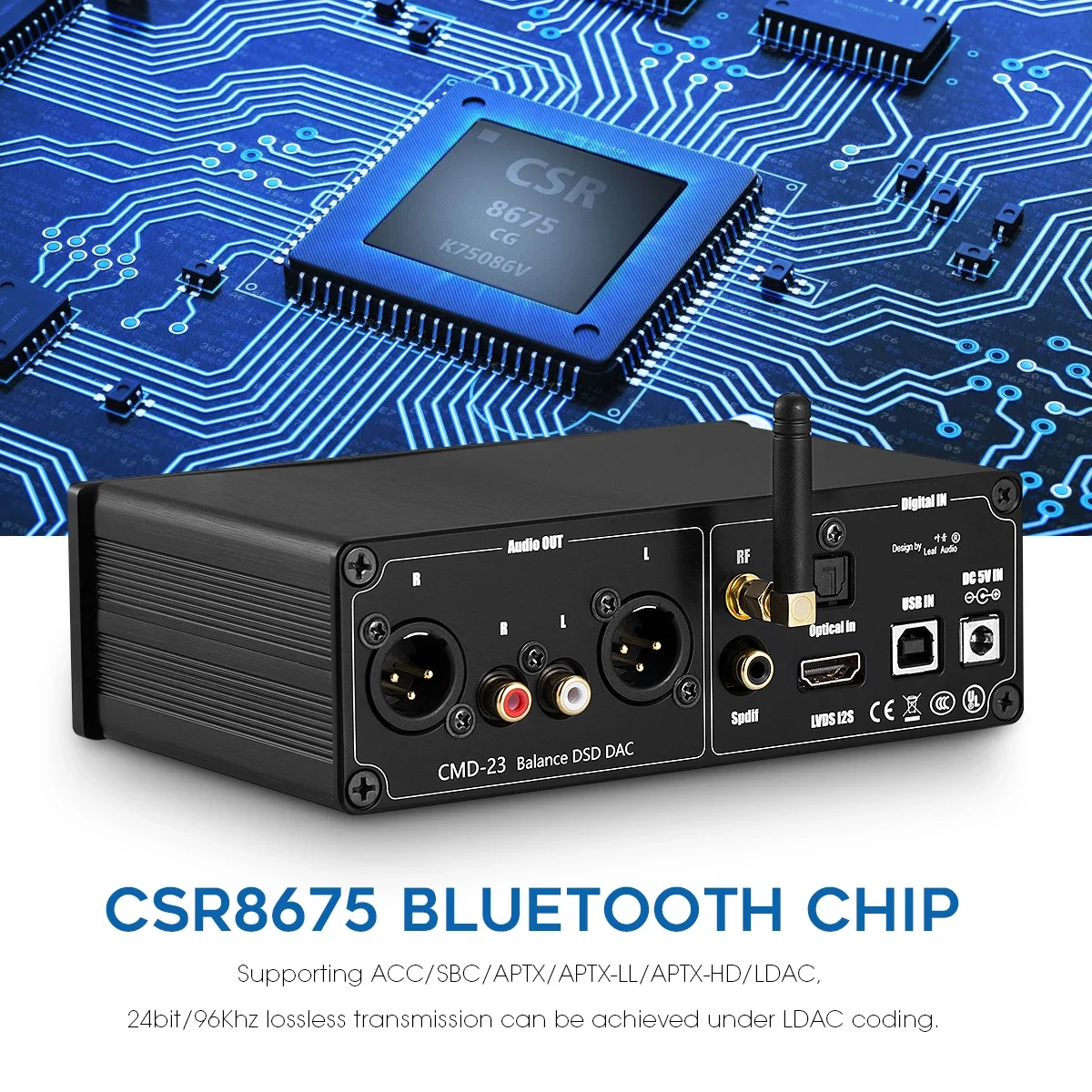

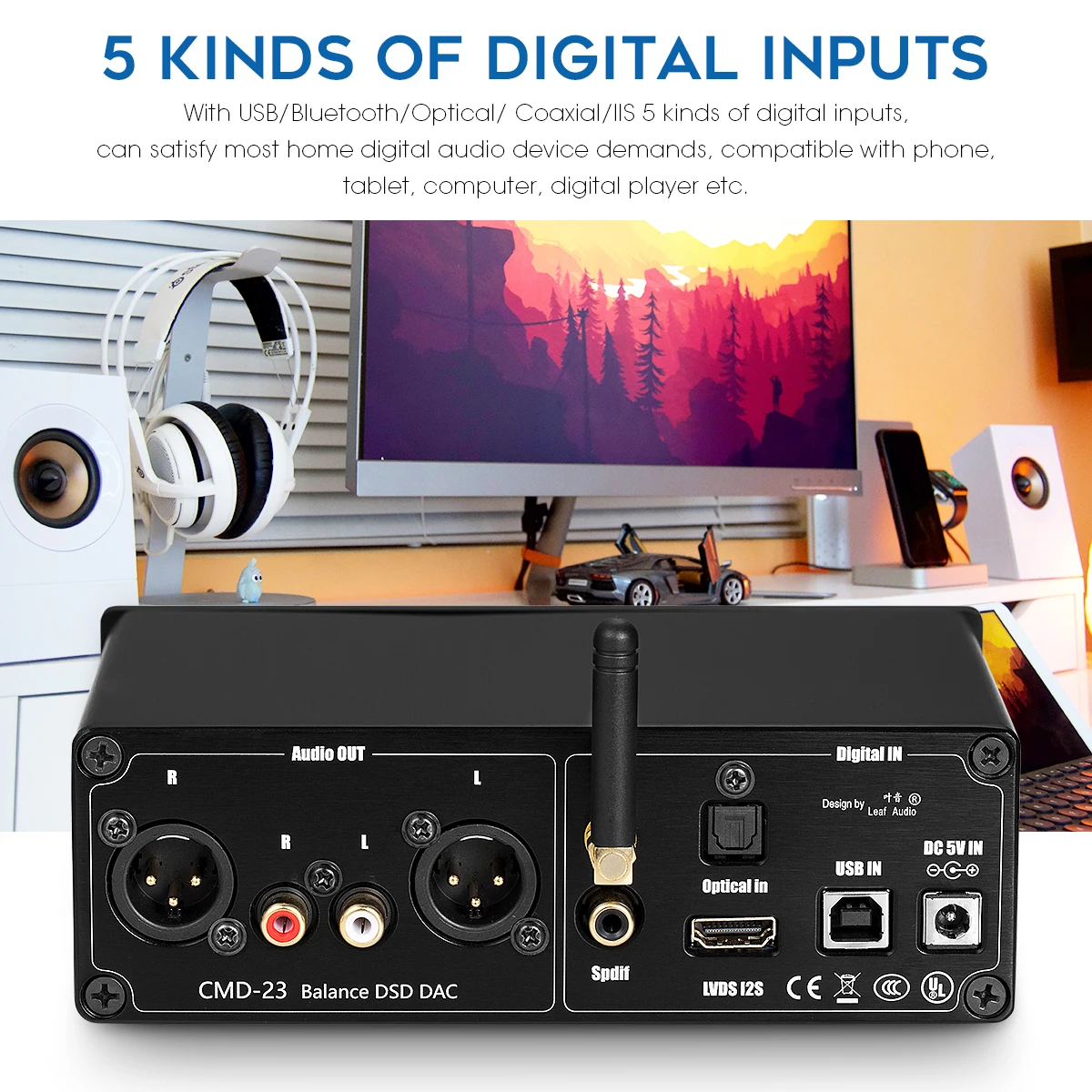

...................................................................................................................................................................................................FeaturesHigh-end materials are used and unique structure are adopted:CSR8675 Bluetooth chip, supporting ACC/SBC/APTX/APTX-LL/APTX-HD/LDAC, 24bit/96Khz lossless transmission can be achieved under LDAC coding.Dual ESS9038Q2M decoding chip, with unique design and adjustment, 0.00055% ultra-low distortion and 119dB high SNR are realized to reproduce HiFi music. And support digital control to switch inputs and filter format selection to enjoy different sound styles.XMOS XU208 USB chip, to get ultra-high decoding ability, supporting 32Bit/PCM384KHz format, and DSD play can up to 256, can satisfy master tape HD format and reproduce real live music.JRC4580 op amp, adopting 7PCS to achieve low distortion, low noise, high precision and large dynamic range, and pluggable socket design makes it easier to change different op amps, adding much fun and higher playability.Double-layer modular circuit board, the top is balanced headphone amp circuit with 5PCS mute relays, and the output is also with mute relay, there is no switch noise when play DSD and PCM music.With USB/Bluetooth/Optical/ Coaxial/IIS 5 kinds of digital inputs, can satisfy most home digital audio device demands, compatible with phone, tablet, computer, digital player etc. Besides stereo RCA and balanced XLR outputs, also supports balanced headphone output, HiFi music can be easily enjoyed in different ways.Proper size and attractive appearance, with remote control convenient to operate from the distance, also with clear OLED display, soft-touch power switch with power-on and standby indicator, very easy to show the working status at real-time. Aluminum alloy chassis looks attractive and durable, very suitable for home desktop digital players use....................................................................................................................................................................................................System Compatibility1. 32/64 bit Win 7, Win 8 and Win 10 systems need to install driver, please enter website: //drive.google.com/drive/folders/1ZjWBDD5Te-a8O64fCstuOKIwGRo766wD?usp=sharing to download and install.2. USB input supports OTG function, while Android system needs OTG cable and IOS system needs large current camera kit....................................................................................................................................................................................................Warm tips:1. All outputs (stereo RCA / balanced XLR / balanced headphone jack) can output at the same time.2. Want to play DSD music need to set the volume of system to 100. And if you want play DSD music on the phone please use Hiby player.3. IIS supports 32bit/384Khz DSD64-DSD512, USB supports 32bit/384Khz DSD64-DSD256, while coaxial and optical support 192KHz and DOP DSD64 at highest....................................................................................................................................................................................................ParametersAudio input: Bluetooth / USB / LVDS IIS / Optical / CoaxialAudio output: Stereo RCA / XLR / Balanced headphone jackTHD+N: 0.00055%SNR: 119dBLVDS IIS supported: PCM 44.1K-384K/32bit, DSD64-DSD512USB supported: PCM 44.1K-384K/32bit, DSD64-DSD256Bluetooth supported: APTX-HD / LDAC / APTX-LL / APTX-L / AAC / SBCCoaxial supported: PCM 44.1K-192K/24bit, DSD64 DOPOptical supported: PCM 44.1K-192K/24bit, DSD64 DOPOutput level: 2V RMS (RCA/XLR)Headphone amp output power: 1.5W/32Ω, 200mW/300ΩMatched headphone impedance: 16-300ΩWorking voltage: DC 5V/2A (cannot over 5V)Dimensions(W*D*H): 168*110*55mm / 6.61*4.33*2.17inPackage dimensions(W*D*H): 260*210*80mm / 10.24*8.27*3.15inNet weight: 732g / 1.61lbPackage weight: 1400g / 3.09lb...................................................................................................................................................................................................Packing List1*Audio DAC1*USB Cable1*Power Supply1*Remote Control (Optional)1*XLR Adapter (Optional)
