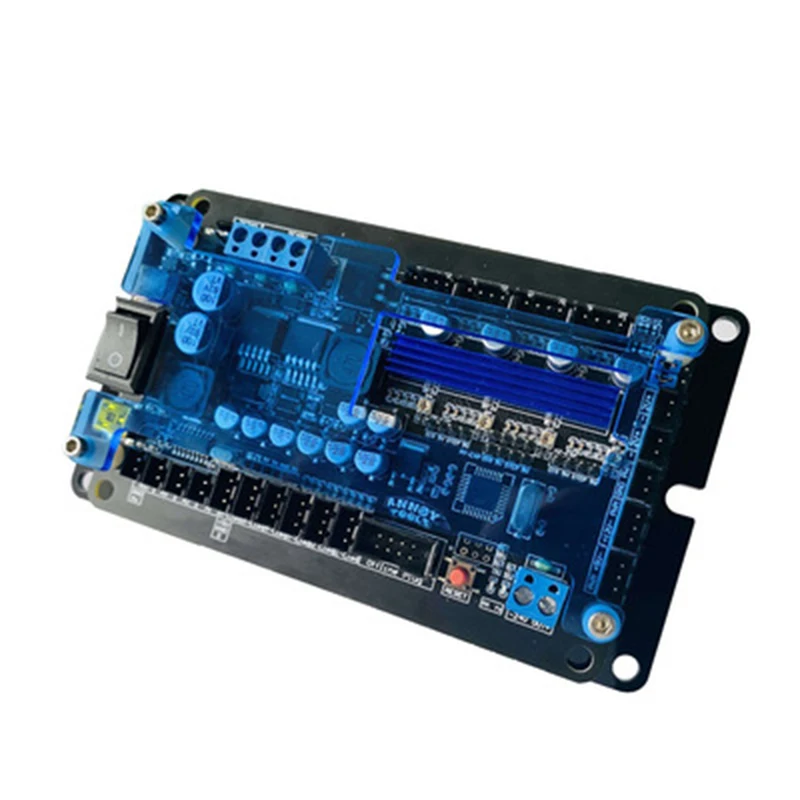

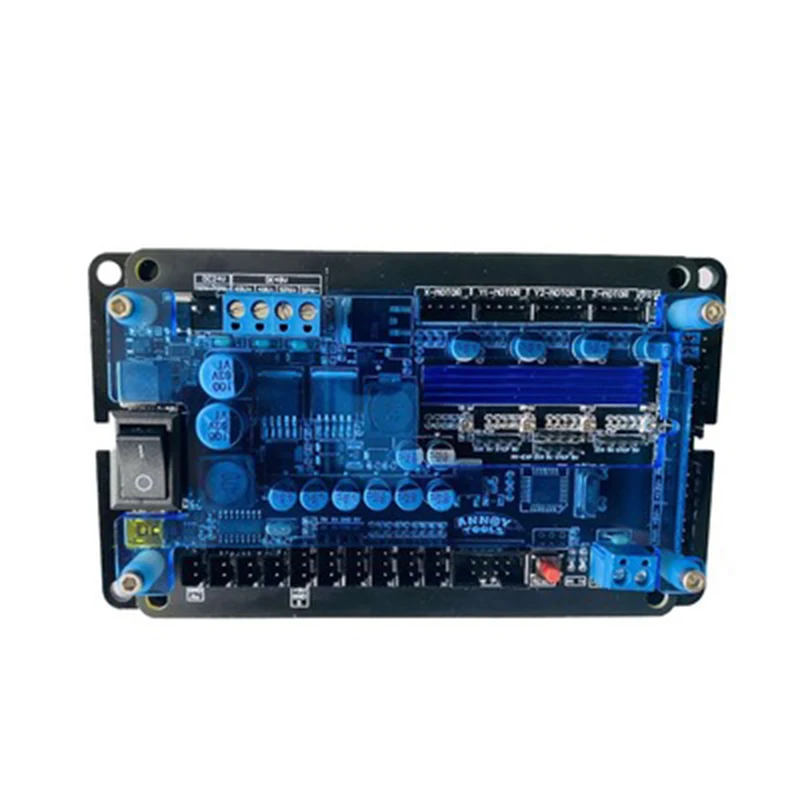

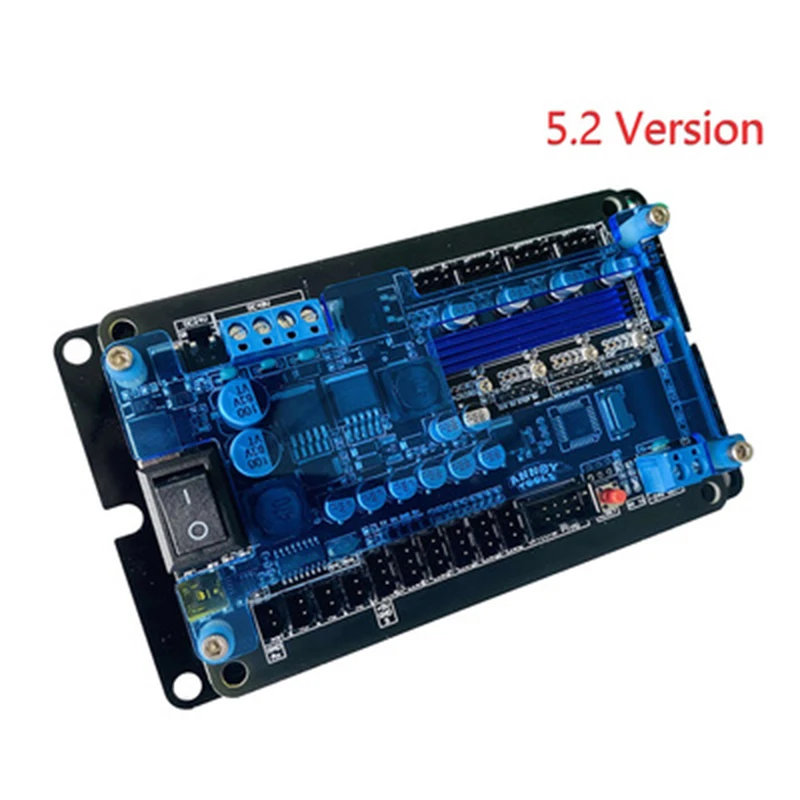

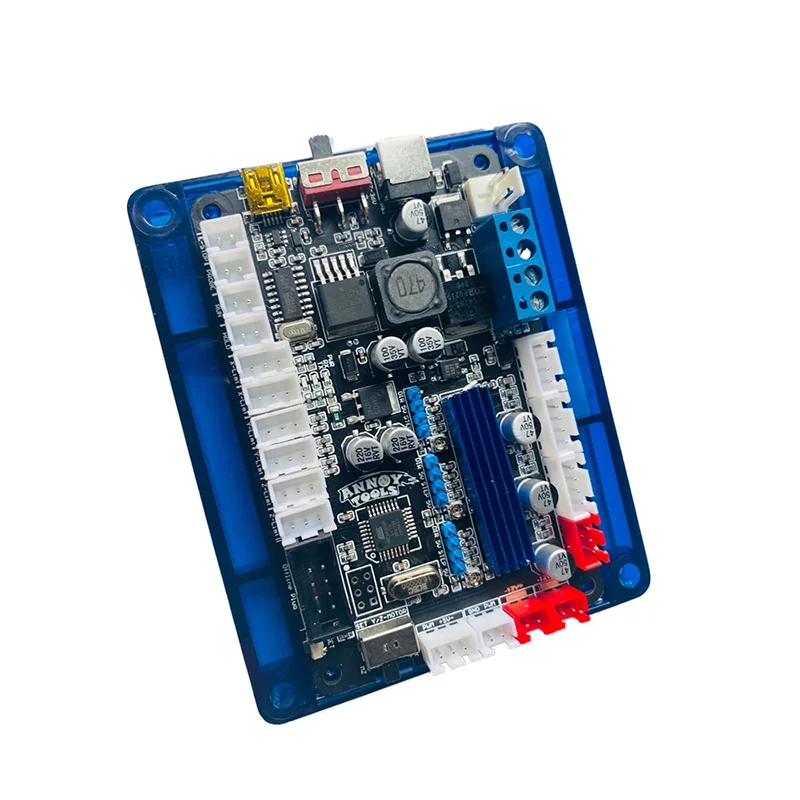

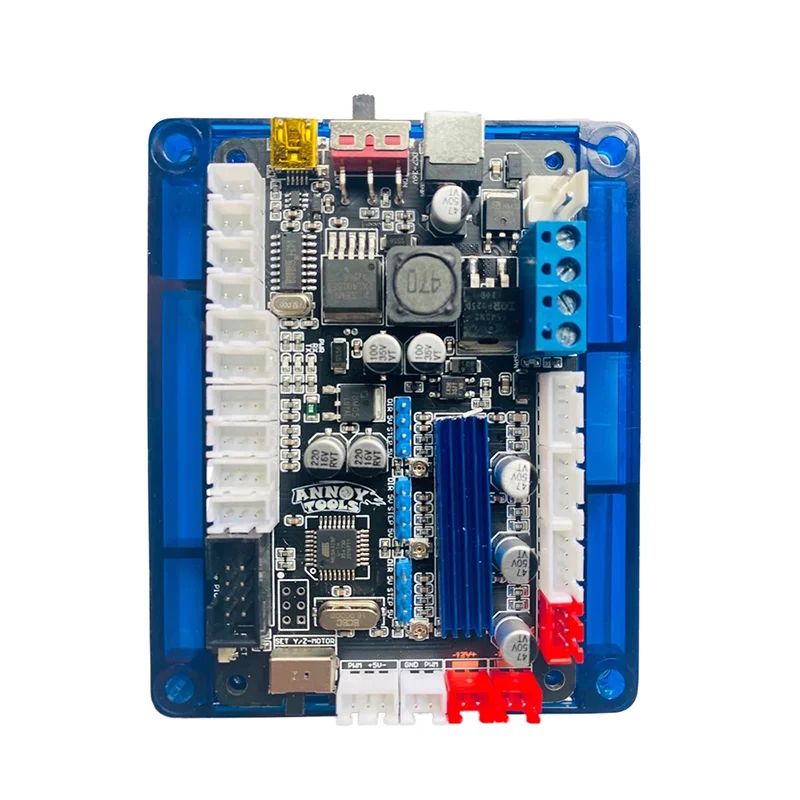

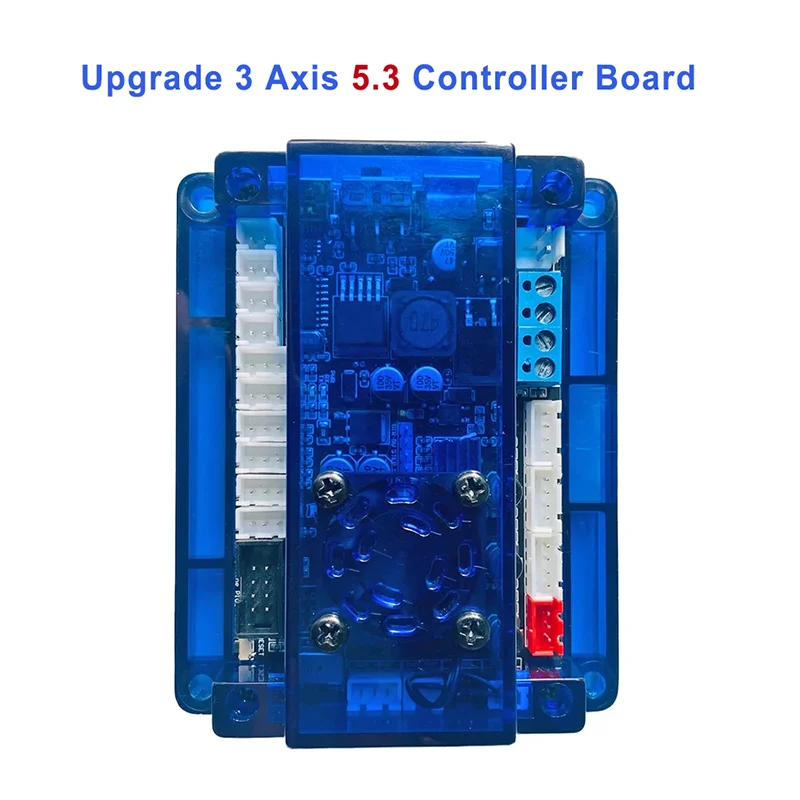

GRBL 1.1 USB Port Laser CNC Engraving Machine Control Board New Upgrade 3-Axis Control Board Integrated Driver Controller Card

Feature:

Toggle to switch XYY/XYZ axis work, toggle the power switch, safe and efficient.

Integrated drive to prevent short circuit of the chip, integrated heat sink.

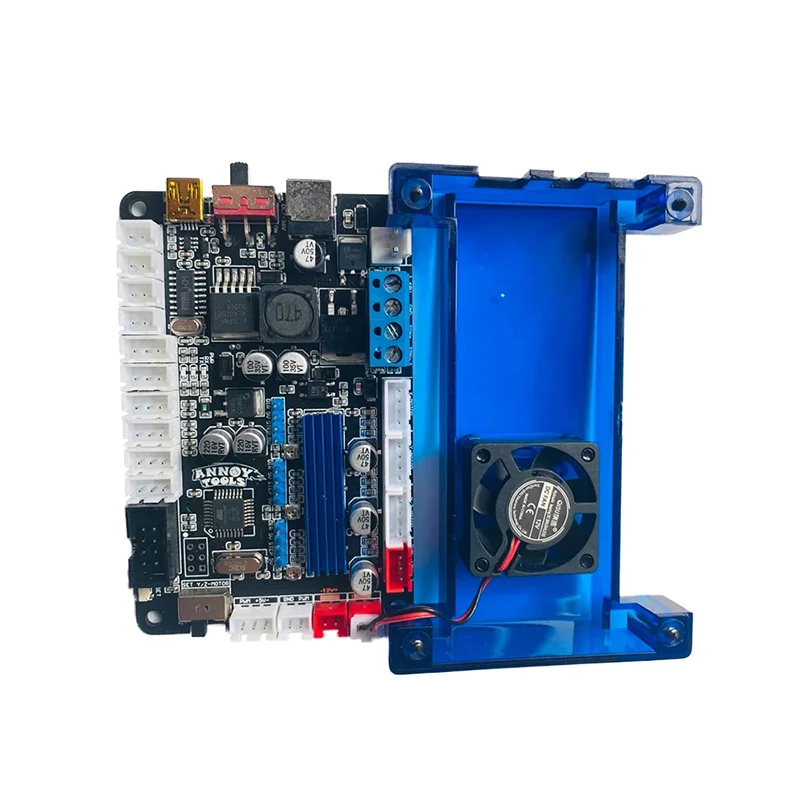

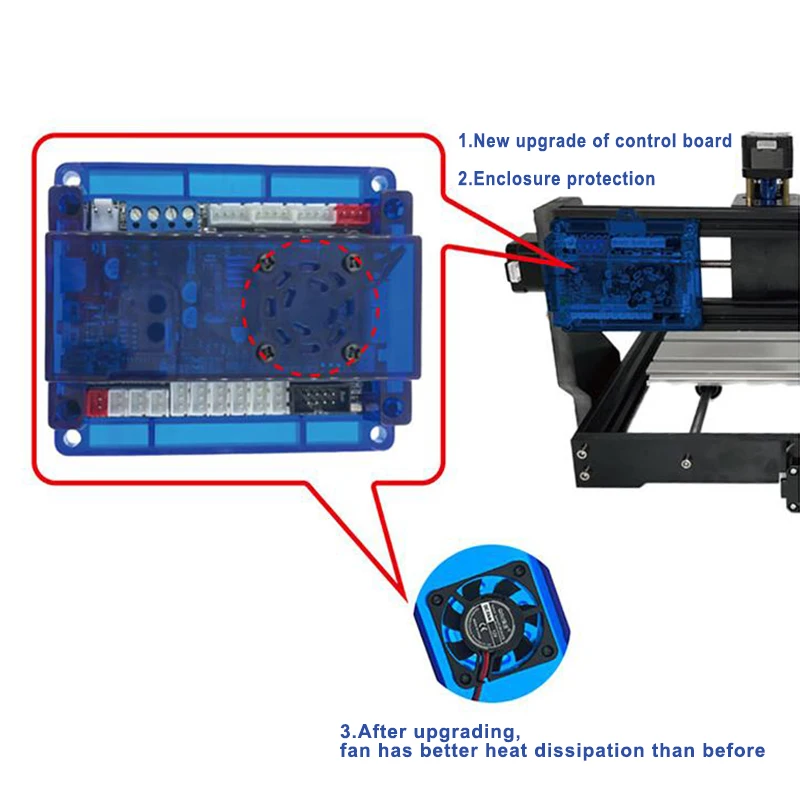

With Fan, have better heat dissipation.

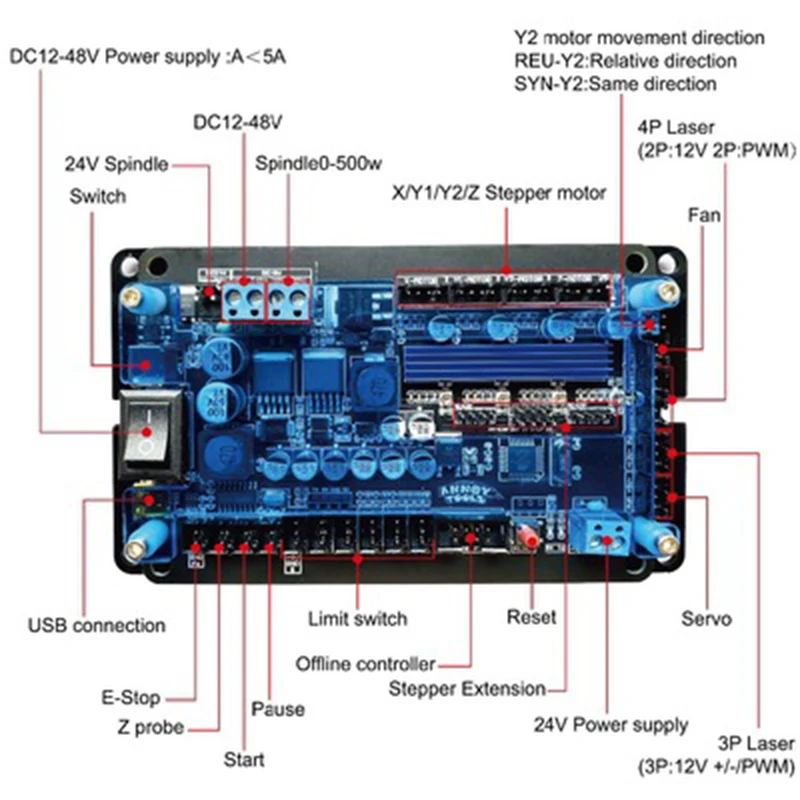

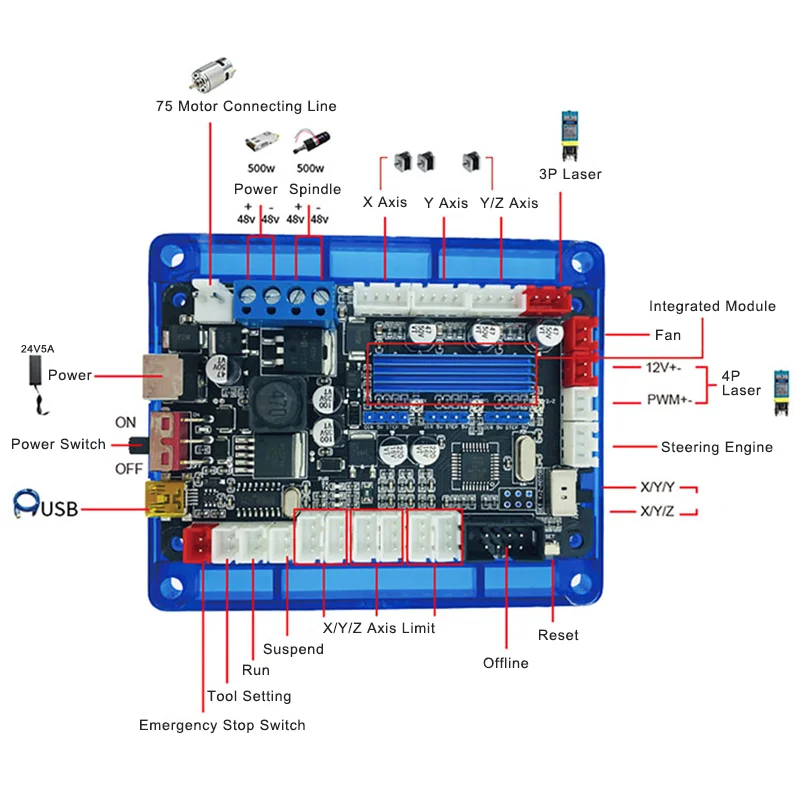

Support: offline controller, external high-power drive, emergency stop, reset, continue, pause, limit switch interface, which can meet different needs.

Both the data transmission chip and the main control chip use an external crystal oscillator, the transmission operation is more stable.

Acrylic shell, beautiful appearance, protect the motherboard.

Can be used for Laser Engraving Machine, Drawer Machine, CNC Engraving Machine, etc.

Specification:

Control system: GRBL

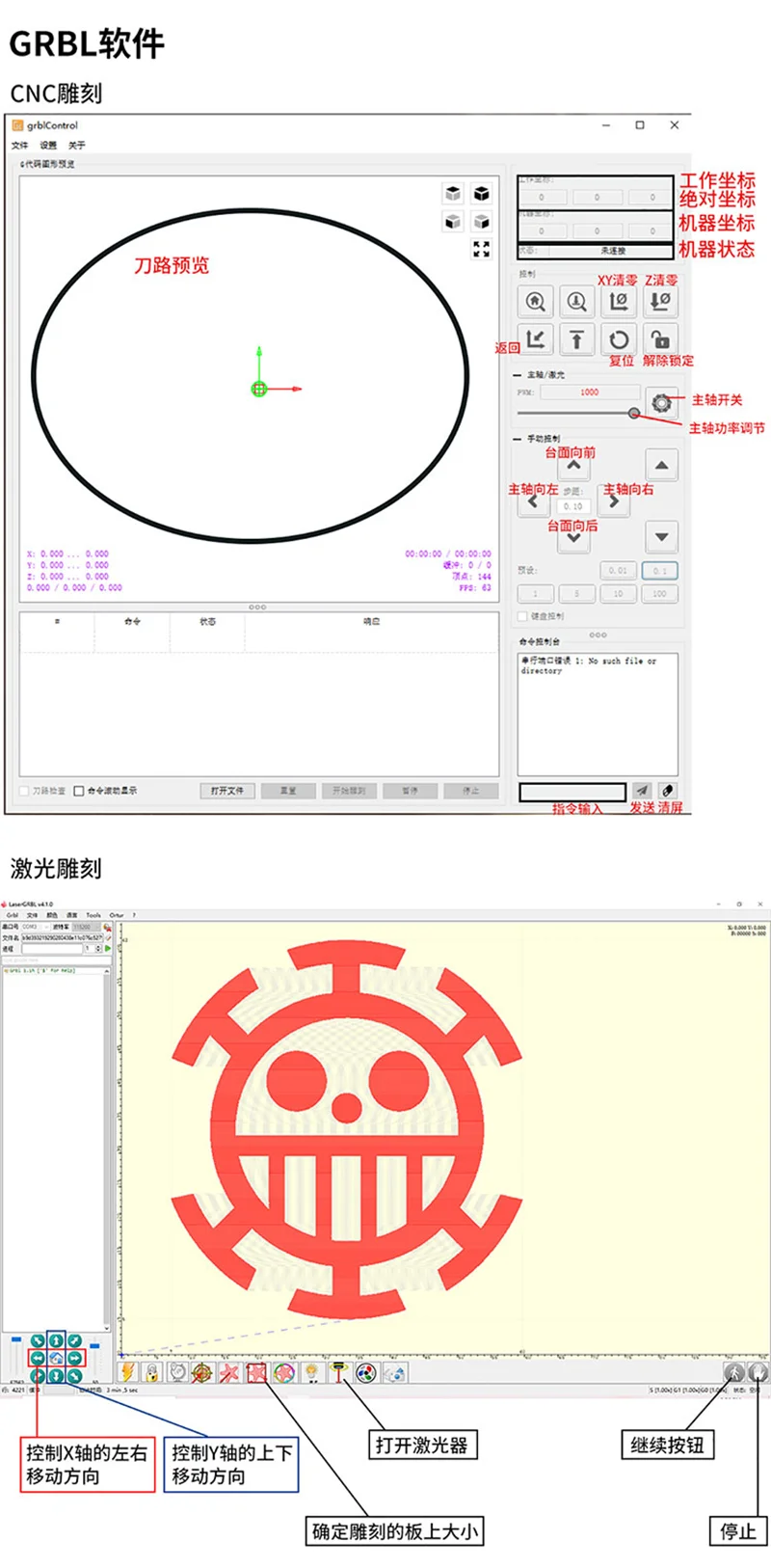

Support software: Candle (3 axis); laserGRBL (laser)

System support: Windows XP; 7/8/10

Port: USB port

Laser: 12V 0-5A, Optional 3P/4P, 12V TTL/PWM interface.

Spindle: 0-48V 0-500W

Power input: DC7-36V

Friendly Reminder:

1. The spindle motor and laser cannot be connected at the same time

2. The offline control board and the SUB data cable cannot be connected at the same time

3. Turn on the power after the electrical connection is completed

4. The positive and negative of the input power must not be reversed, and the reverse connection will burn

5. The 48VDC interface cannot be connected to the switching power supply, and the voltage that can be passed through the DC seat of the control board cannot be greater than 5A.
