Инвертор ЦП 4000 Вт для солнечной панели или разряда аккумулятора 4 кВт 85-138 в 170-275 В

Инвертор ЦП 4000 Вт для солнечной панели или разряда аккумулятора 4 кВт 85-138 в 170-275 В

1.The company can customize various types of power supply.

2. We will have corresponding discount on price and logistics.

3. If you have any questions, please contact customer service.

LOW FREQUENCY INVERTERFT-

1KW/1.5KW/2KW/3KW/4KW5KW/6KW

●Double CPU intelligent control technology, excellent performance

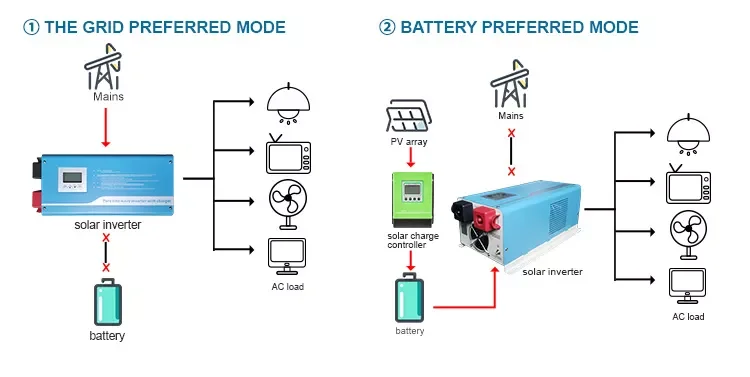

● Solar priority、Grid power priority mode could be set, application flexible

●  Charge current/battery type could be set, convenient and practical

●  Intelligent fan control, safe and reliable

●  Pure sine wave AC output, and be adapt to all kinds of loads;

●  LCD display equipment parameter in real-time, operation status be clear at a glance

● Output overload, short circuit protection, Battery over voltage/low voltage protection, over temperature protection(85℃),

● AC charge voltage protection

Type：NP-FT-

1KW

1.5KW

2KW

3KW

4KW

5KW

6KW

Rated power

1000W

1500W

2000W

3000W

4000W

5000W

6000W

Battery

Rated voltage

12V/24VDC

12V/24V/48VDC

24V/48VDC

24V/48V/96VDC

48V/96VDC

Charge current

30A（default）-C0-C6can be set

Battery type

U0-U7 can be set

Input

Voltage range

85-138VACor 170-275VAC

Frequency

45-65Hz

Output

Voltage range

110VAC/220VAC/230VA C；±5%( Inverter mode)

Frequency

50/60Hz±1%( Inverter mode)

Output wave

Pure sine wave

Switching time

＜10ms( typical load)

Efficiency

＞85%（80% Resistance load）

Overload

110-120%/30S；＞160%/300ms；

Protection

Battery overvoltage/lowvoltage, overload, short circuit protection, overtemperature protection, etc.

Operating ambient temperature

0-40℃

Storage ambient temperature

-15 - +50℃

Operating/Storage ambient

0-90% No condensation

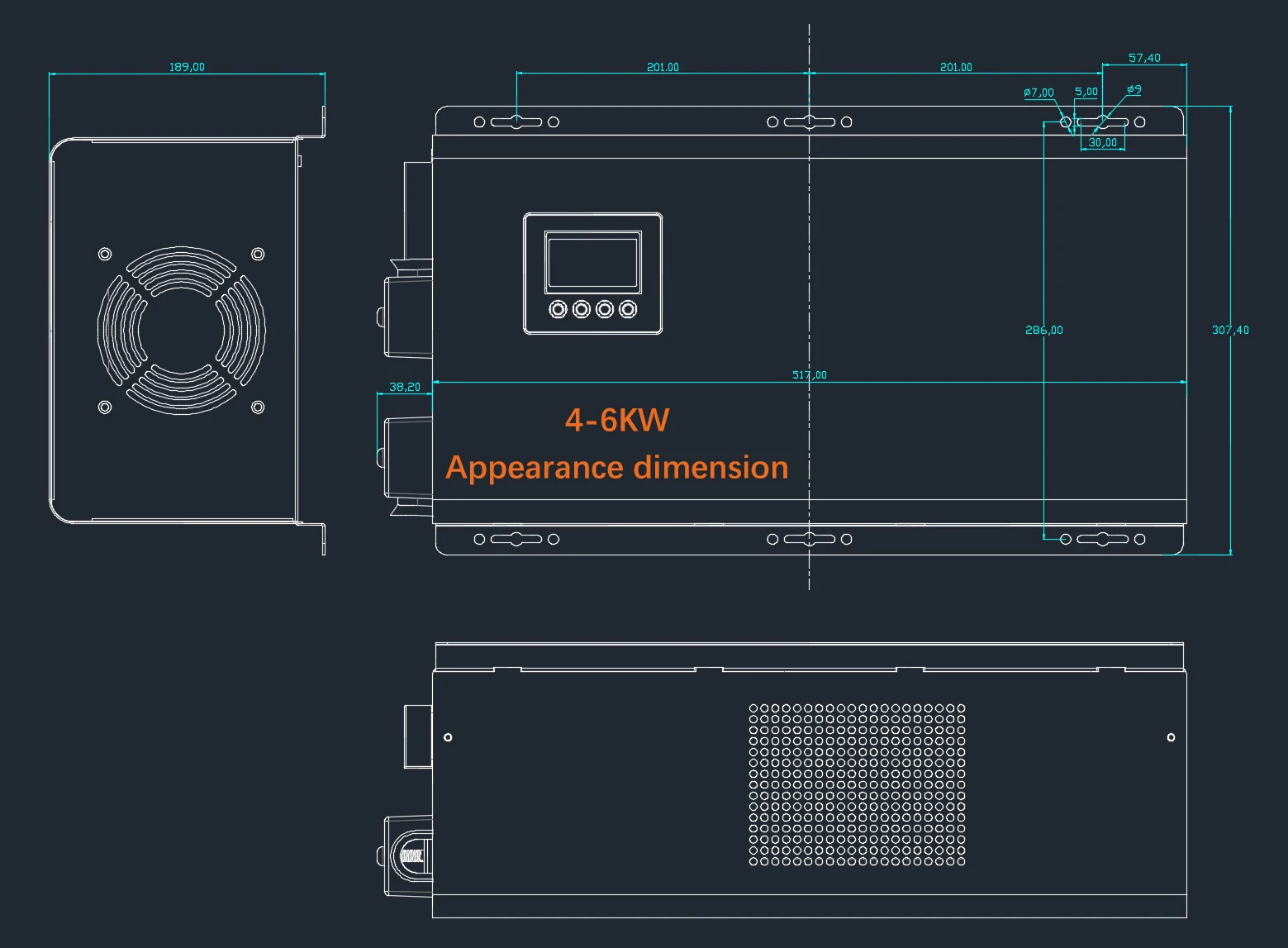

Machine Size: L*W*H (mm)

486*247*179

555*307*189

Package size: L*W*H（mm）

550*310*230

640*370*240

Net weight/Gross weight(Kg)

11/13

12/15

15/18

18/21

23/27

26/30

30/34
