60V DKP6012 DC-DC Step Down Boost Buck Converter Module 12A Digital Control Voltage And Current Display 24V |

60V DKP6012 DC-DC Step Down Boost Buck Converter Module 12A Digital Control Voltage And Current Display 24V |

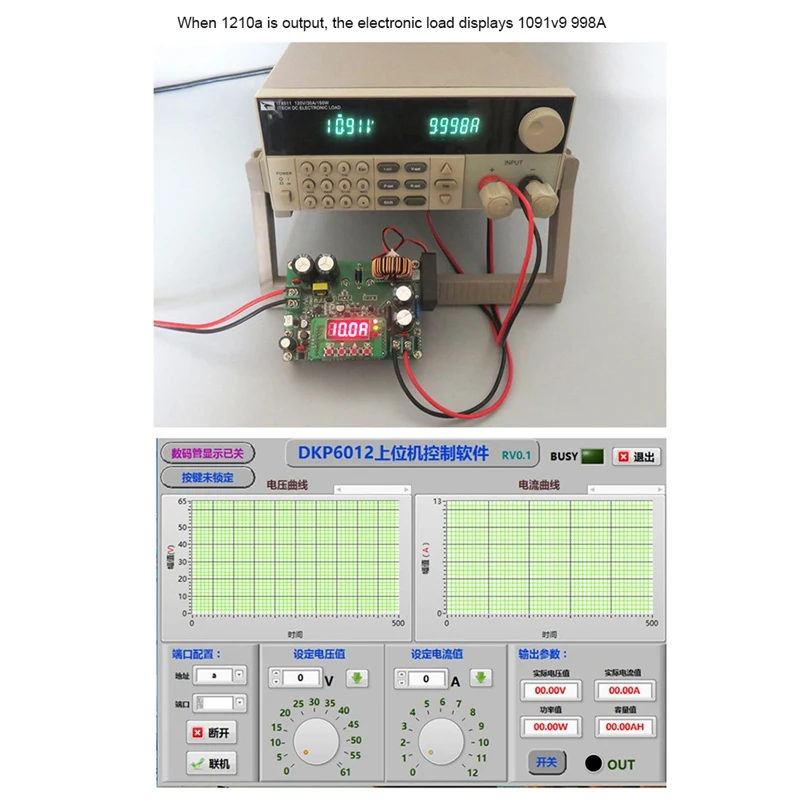

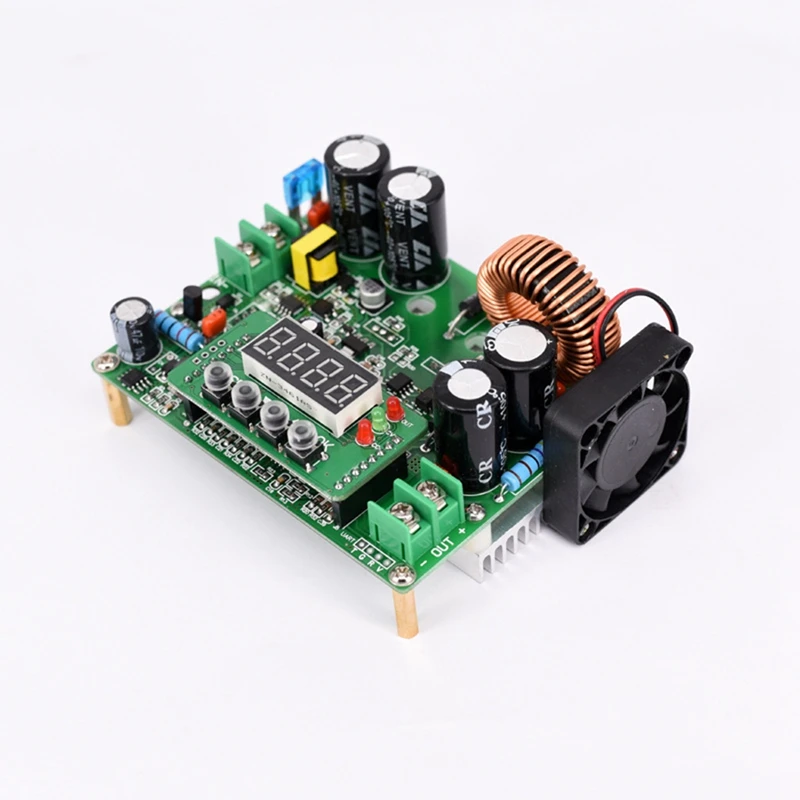

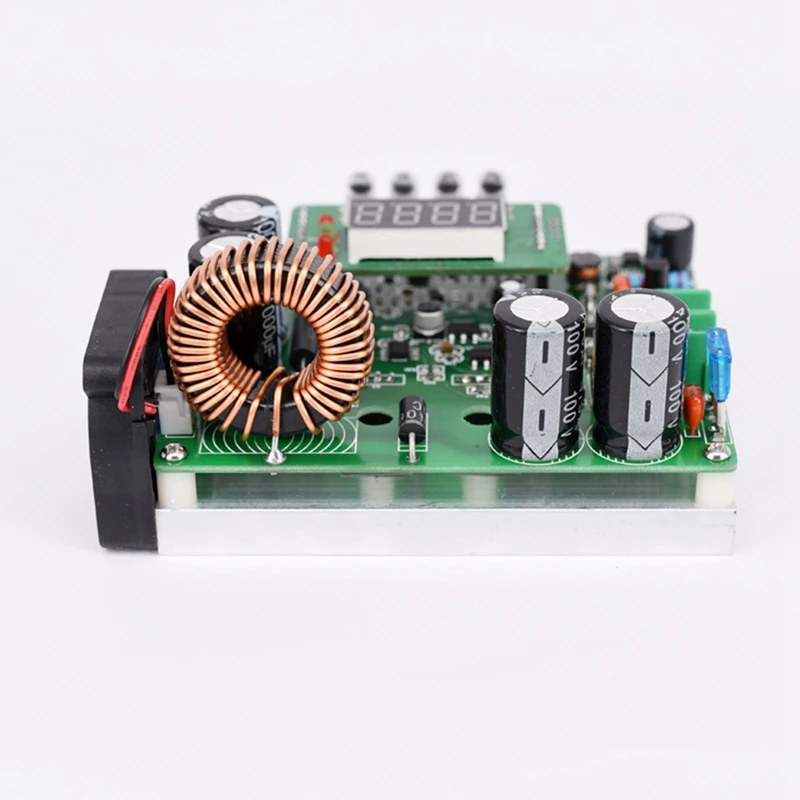

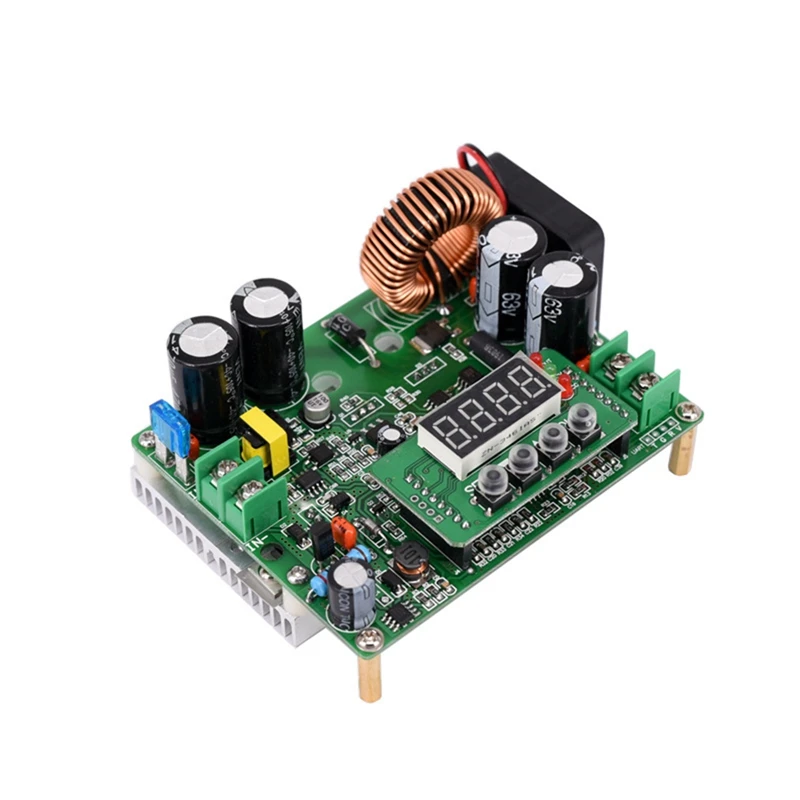

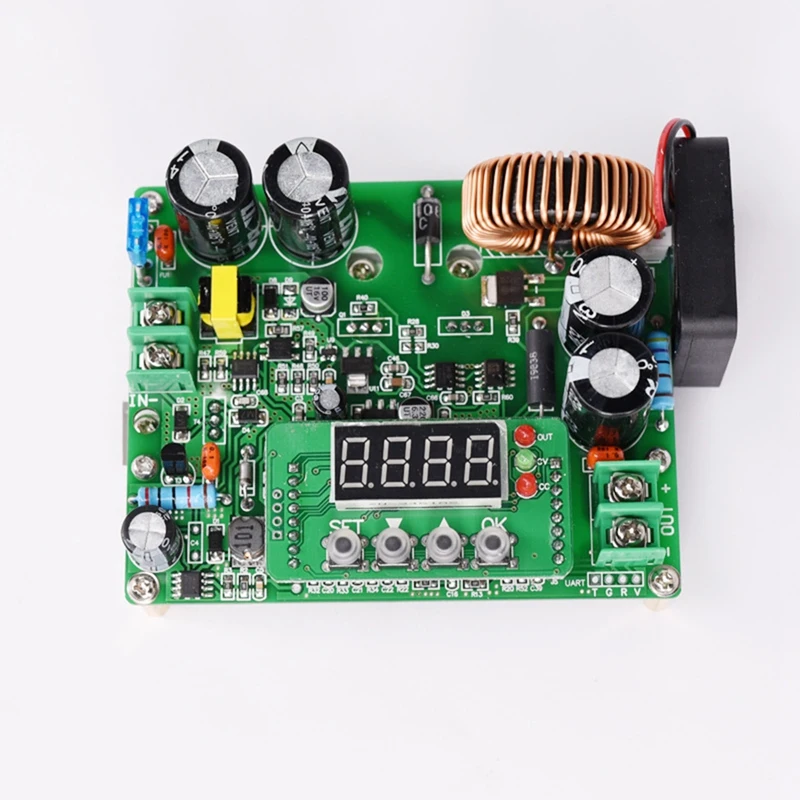

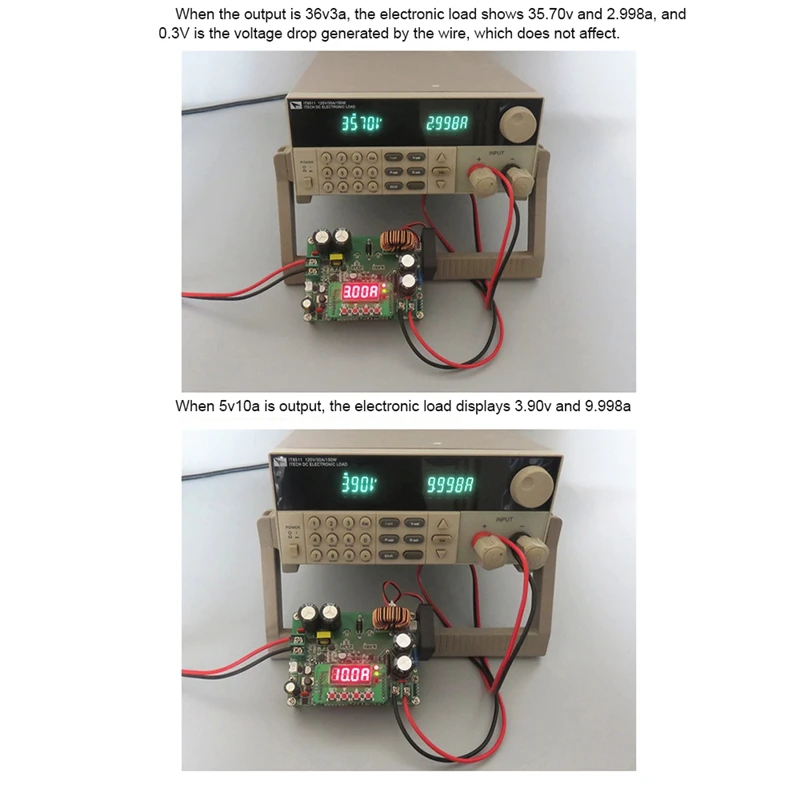

DKP6012 DC-DC digital step-down module is a programmable step-down module with full digital display, small size, high power Large, efficient and stable. It is controlled by advanced microprocessor, and the voltage and current are precisely adjusted by buttons.
Voltage and constant current output, can communicate with microcontroller or computer through the reserved port to facilitate secondary development. Equipped with four eight-segment
LED digital tube can display the output voltage and current in real time. At the same time, this numerical control step-down module has a working status indication light, you can view the working status in real time. After the machine is powered on, it has an automatic output function, which can be turned on or off as needed.
In addition, the machine also has a key lock function, which can lock the parameter adjustment keys to prevent misadjustment of the output voltage and current parameters.

Color: green
material: plastic
Input voltage range
10V~75V
Output voltage regulation range
0-60V
Output current adjustment range
0~12A
Output Power
0-720W
Output voltage setting resolution
10mV
Output current setting resolution
10mA
output ripple
≤50mVpp (input 54V, output 12V, current 5A)
Voltage and current display accuracy
10mV, 10mA
Response time
Less than 50ms
storage operation
M0-M9 has a total of 10 sets of parameter storage
Cooling method
On-board radiator, air-cooled
Operating ambient temperature
0-40C
Storage ambient temperature
-20-70°C
Use environment
Indoor use design, maximum humidity 80%
Dimensions (LxWxH)
101 x 75 x 48mm

Package Contents:
1 x Step down power supply module

Only the above package content, other products are not included.
