Комплект телескопического линейного привода с регулятором скорости 12 В/24 В

Комплект телескопического линейного привода с регулятором скорости 12 В/24 В

1: What are the components of this reciprocating mechanism?

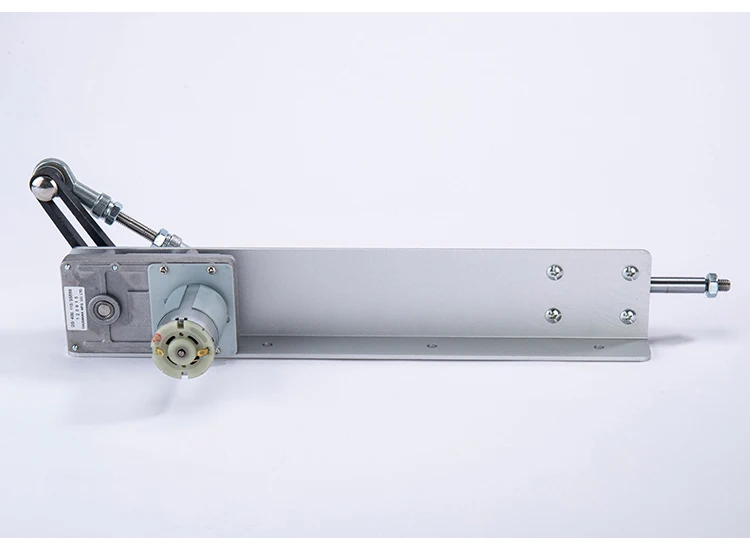

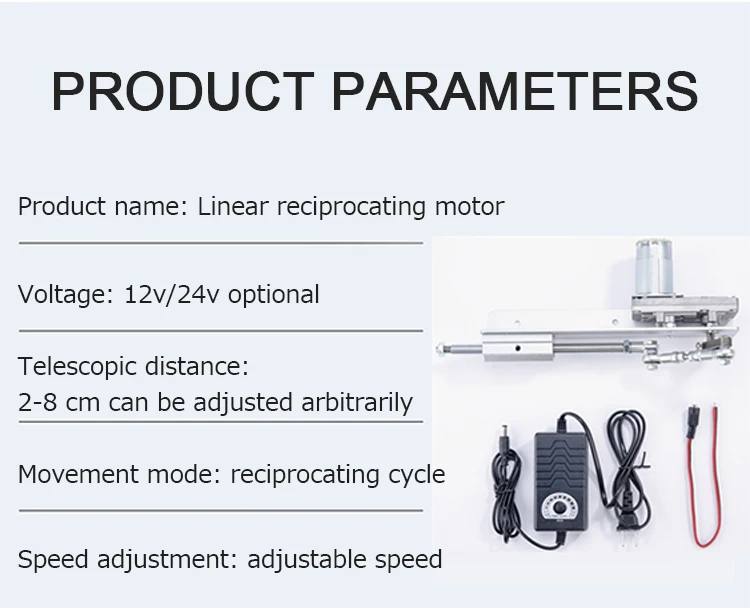

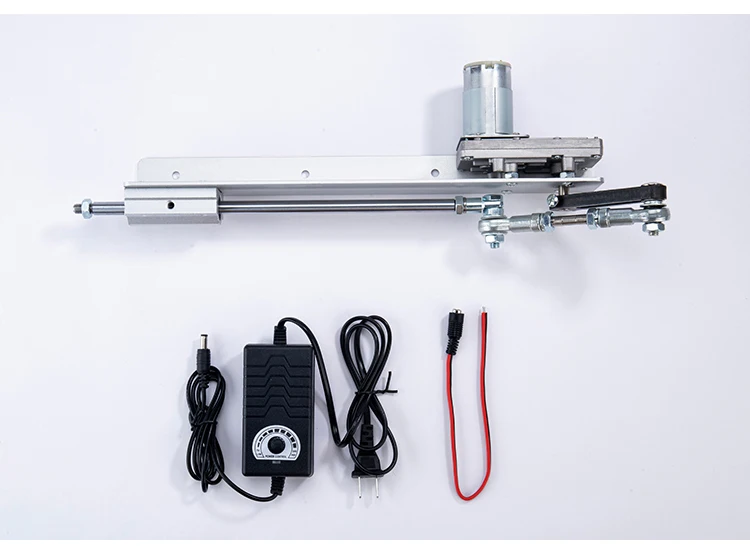

The reciprocating mechanism includes a geared motor, an adjustable speed power supply, and a reciprocating mechanism. The equipment is installed and shipped, and you can go back and plug in the 220v household electricity to run.

2: Reciprocating mechanism stroke selection

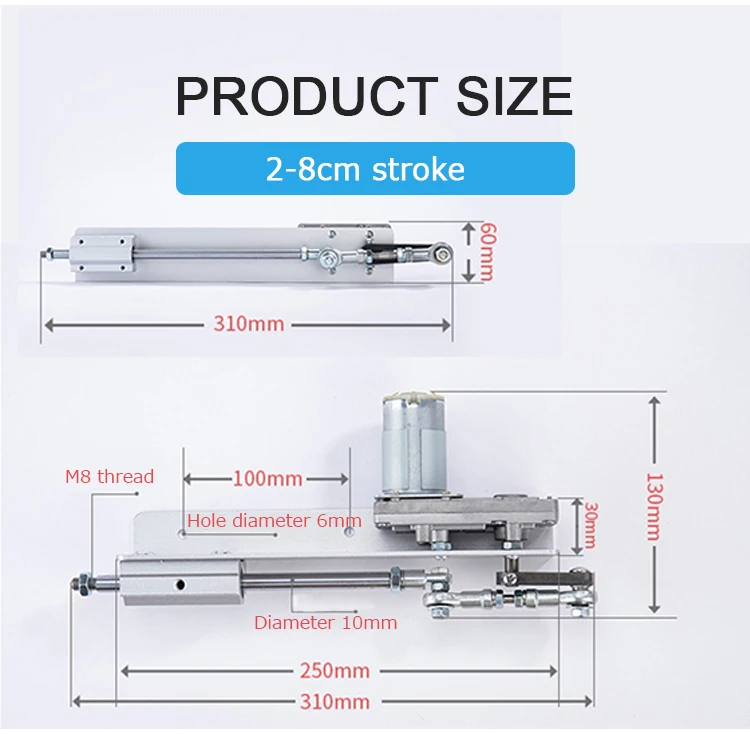

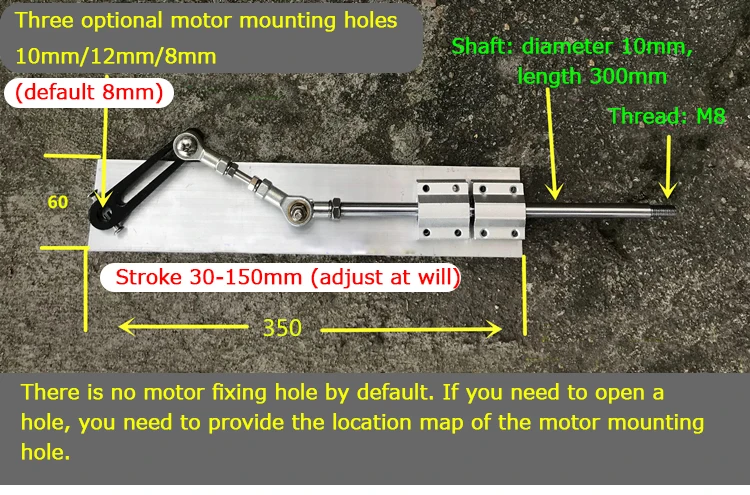

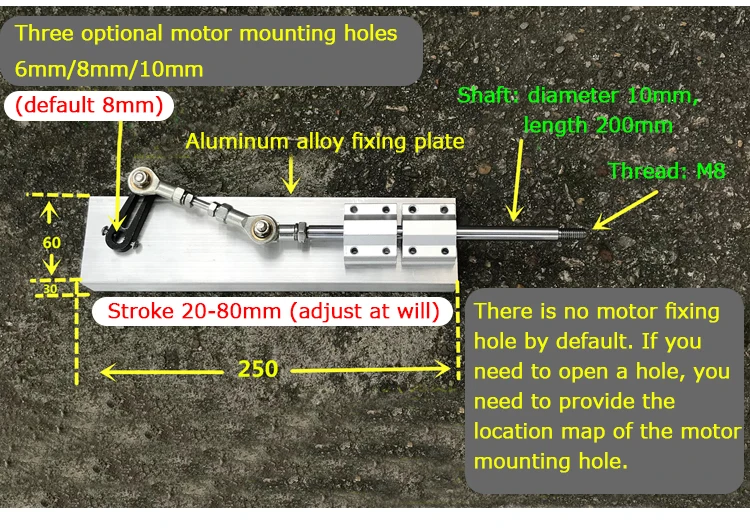

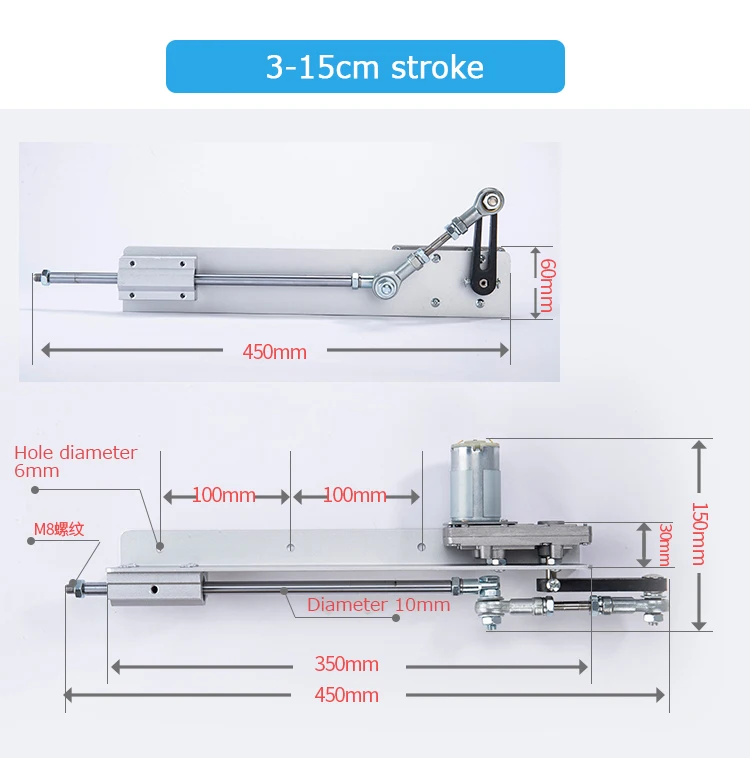

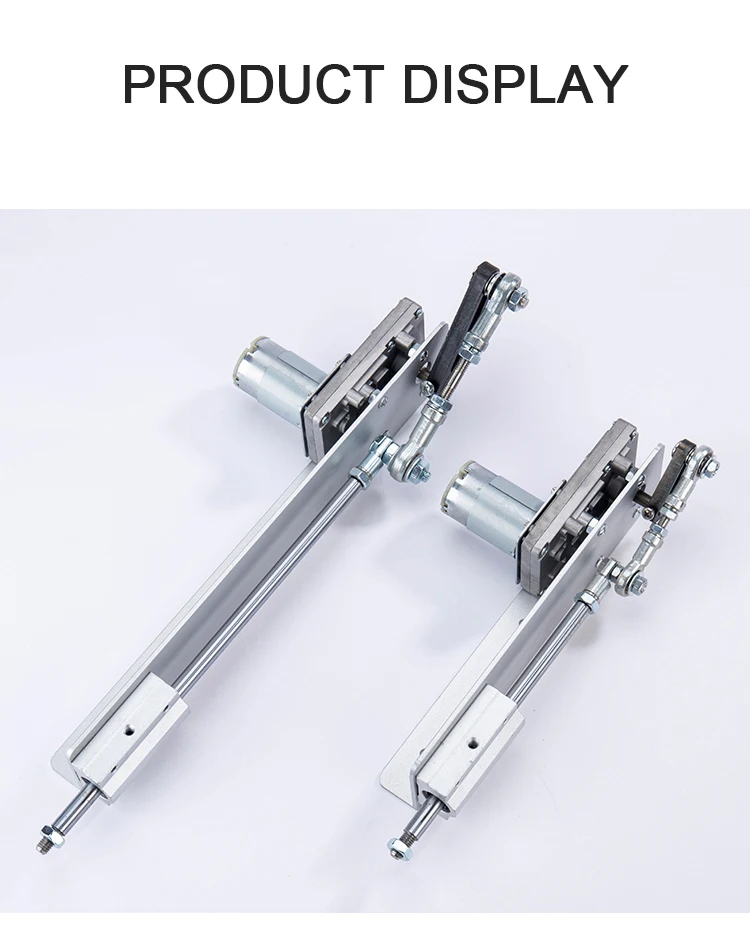

There are two types of reciprocating mechanisms, 1: the stroke is 2cm~8cm (can be adjusted freely) The other type has a stroke of 3cm~15cm (can be adjusted freely), you can choose the stroke you need within the adjustable range.

3: The number of times of reciprocating expansion and contraction per minute

The option marked in the option is the maximum speed of the motor with no load. For example: 24v100 rpm, which means: the fastest can be stretched 100 times per minute under this voltage. 12v45 rpm, which means: the fastest can be stretched 45 times per minute under this voltage.

(Through the speed control power supply, you can arbitrarily adjust the speed you need within the maximum speed)

4: How big is this push and pull?

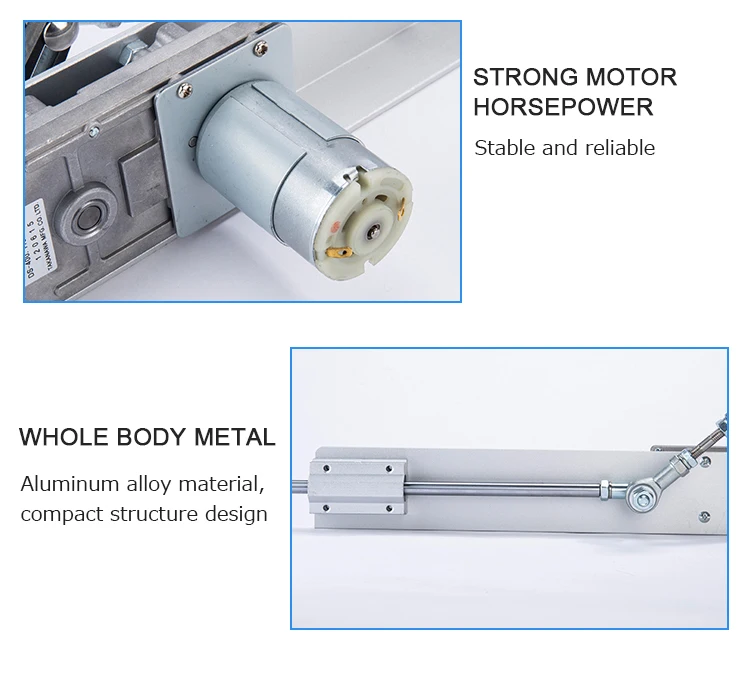

The push-pull force is mainly powered by the motor. The smaller the stroke, the greater the thrust. For details, please refer to the test data below.

24v stroke 2 cm, thrust about 25 kg

24v stroke 4cm, thrust about 10kg

24v stroke 6 cm, thrust about 7 kg

24v stroke 8 cm, thrust about 5 kg

24v stroke 10cm, thrust about 4kg

24v stroke 12cm, thrust about 3kg

24v stroke 15cm, thrust about 2kg

12v stroke 2 cm, thrust about 15 kg

12v stroke 4 cm, thrust about 7.5 kg

12v stroke 6 cm, thrust about 5 kg

12v stroke 8 cm, thrust about 4 kg

12v stroke 10cm, thrust about 3kg

12v stroke 12cm, thrust about 2.5kg

12v stroke 15cm, thrust about 1.5kg

(The above parameters are tested in a flat state, there may be a little error in different use environments, please be aware!)
