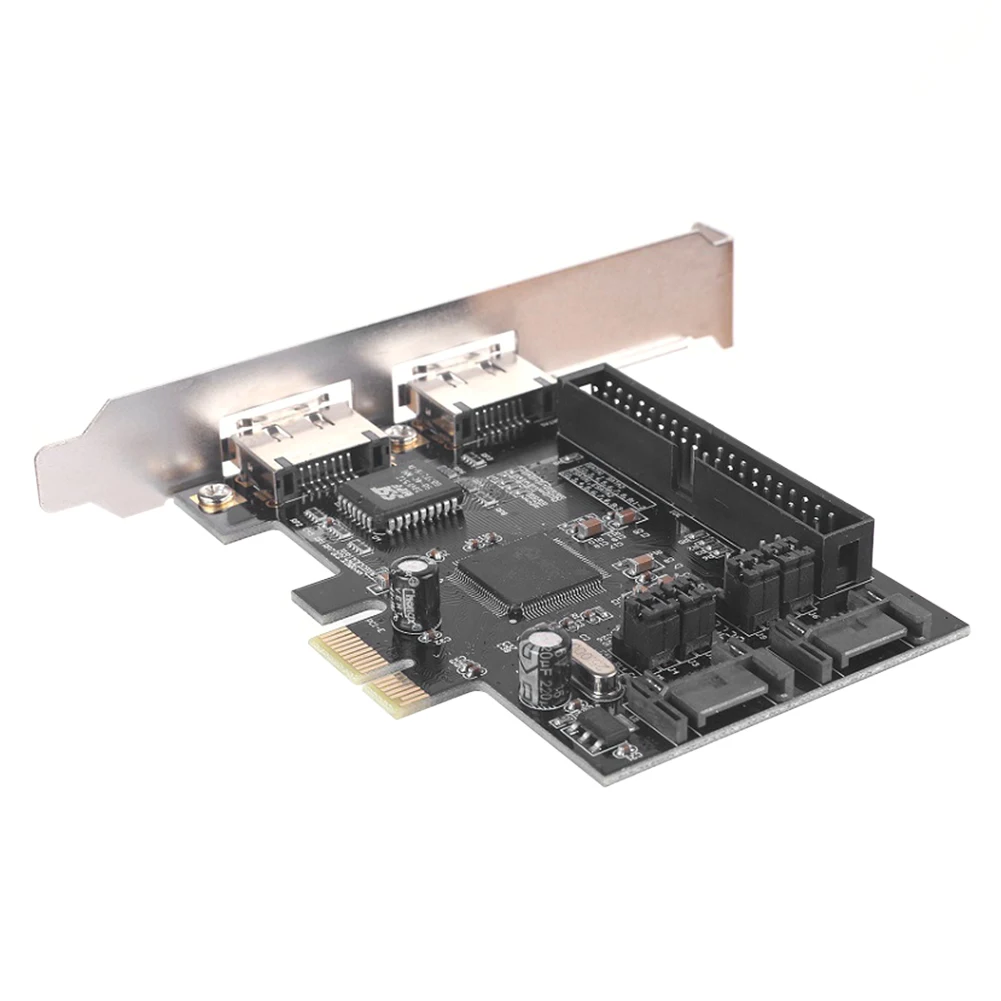

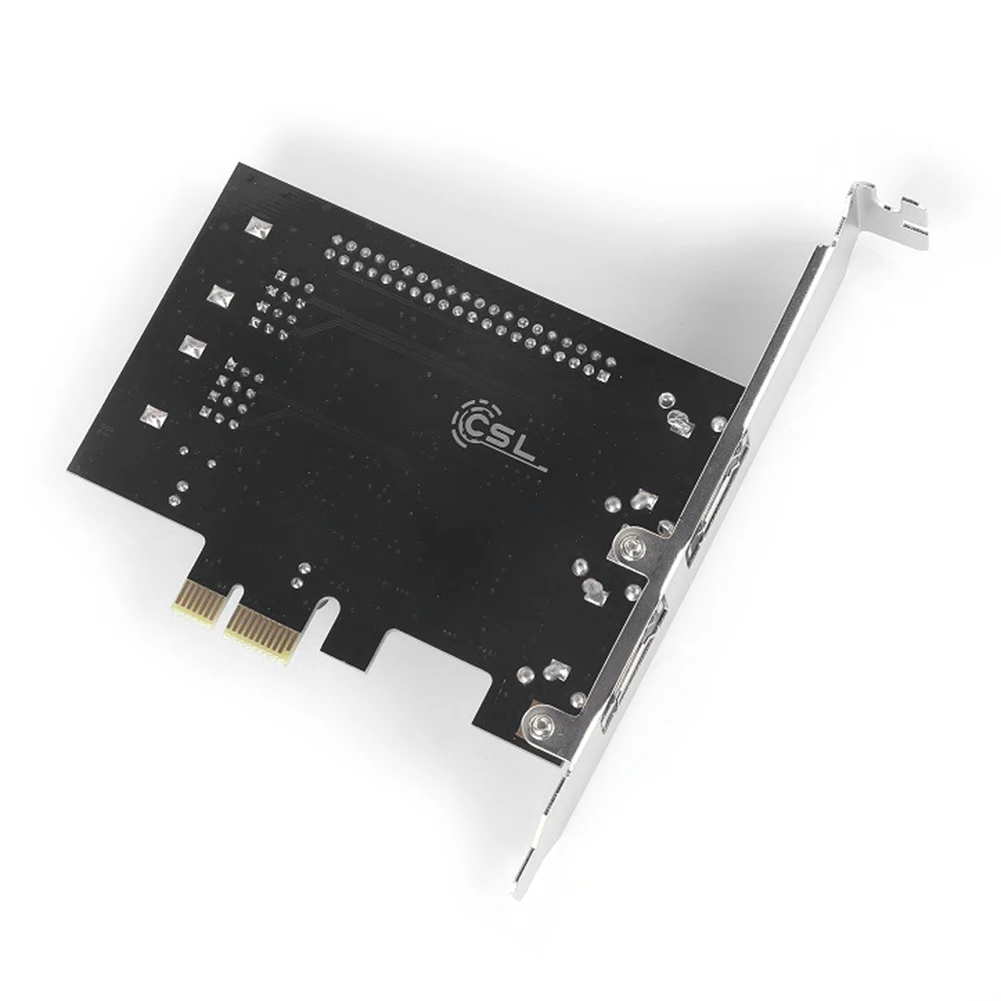

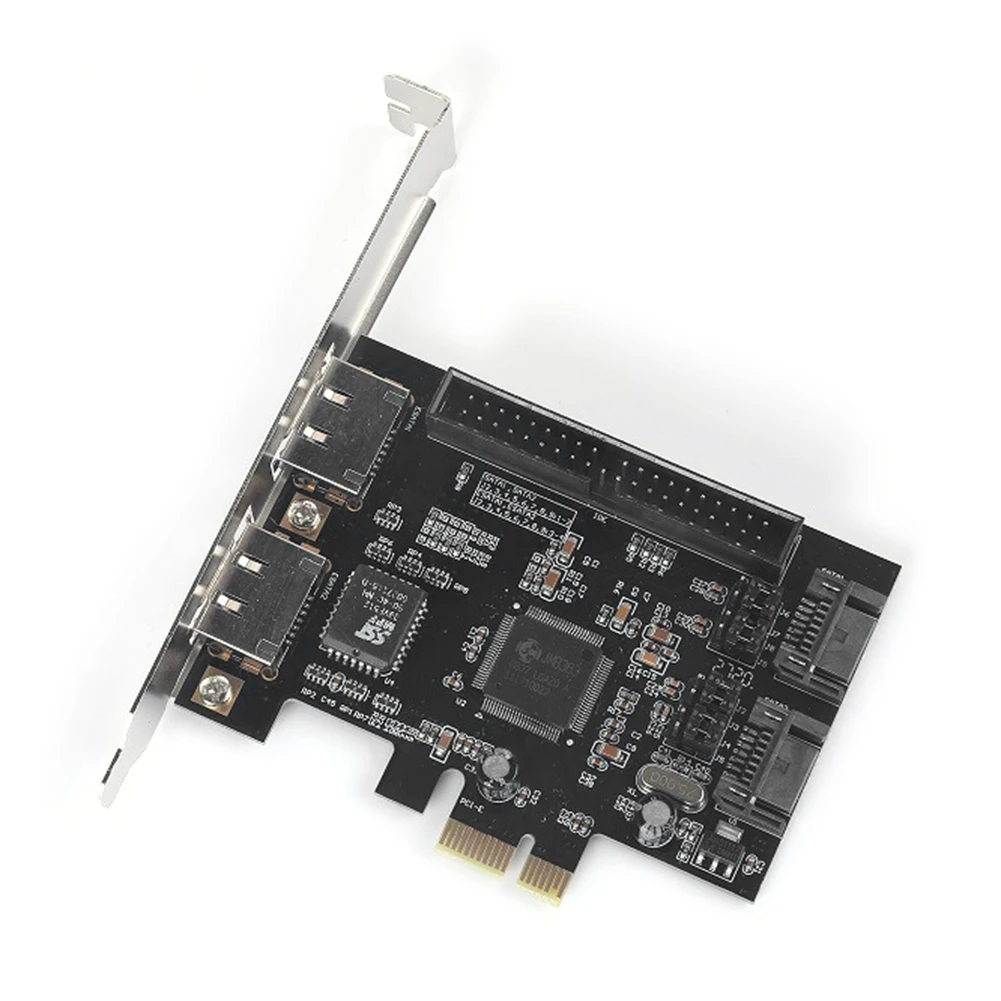

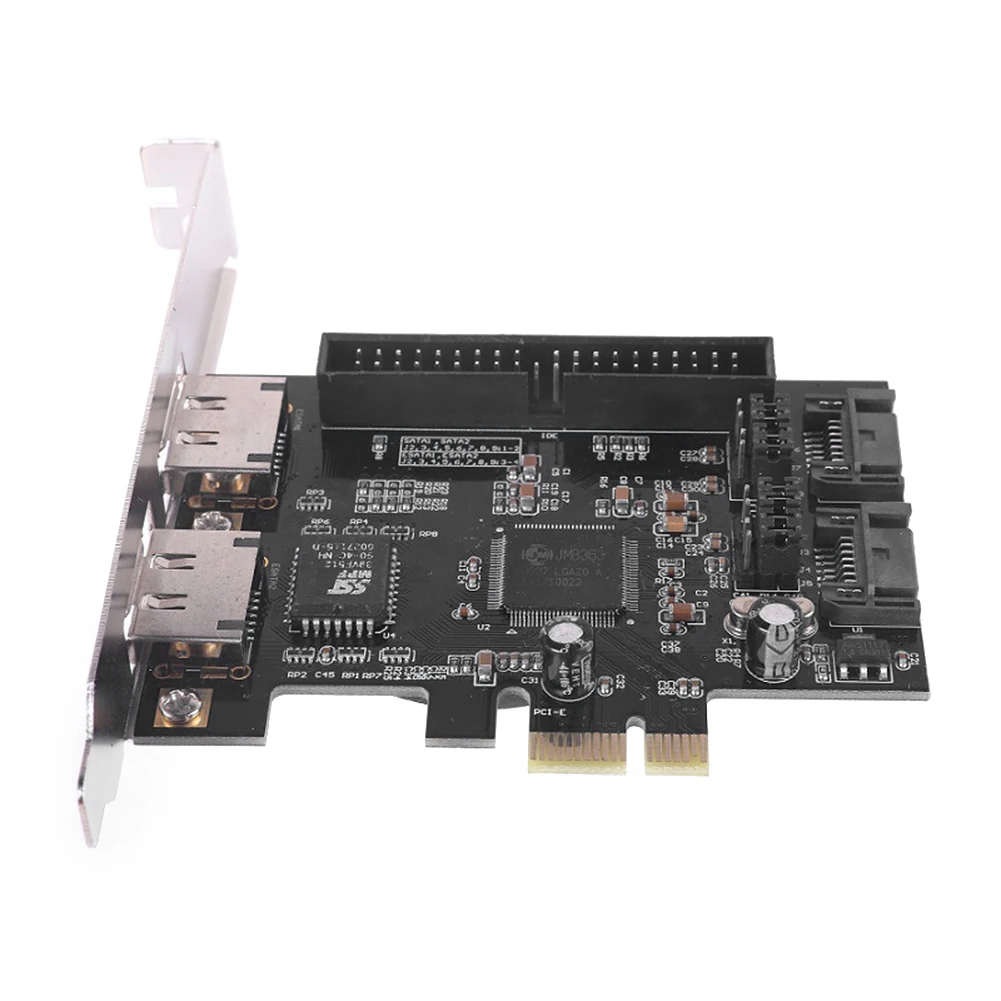

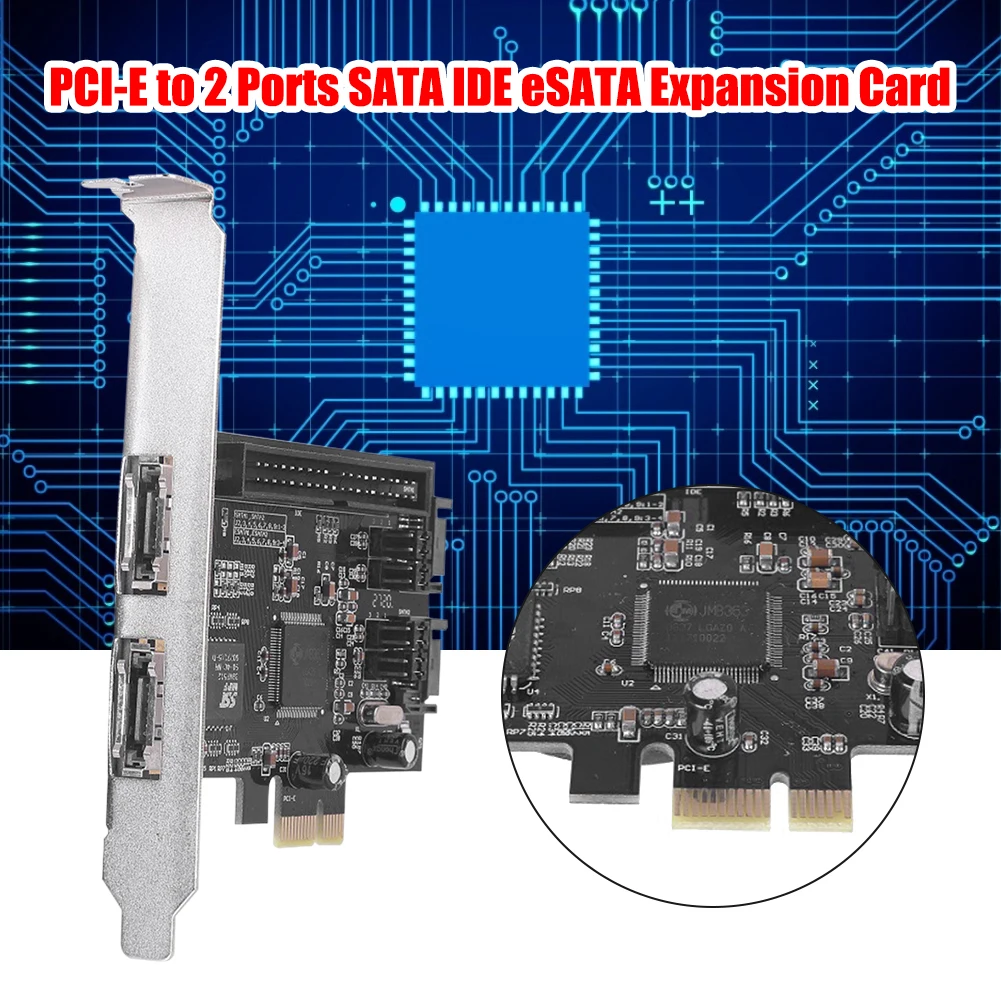

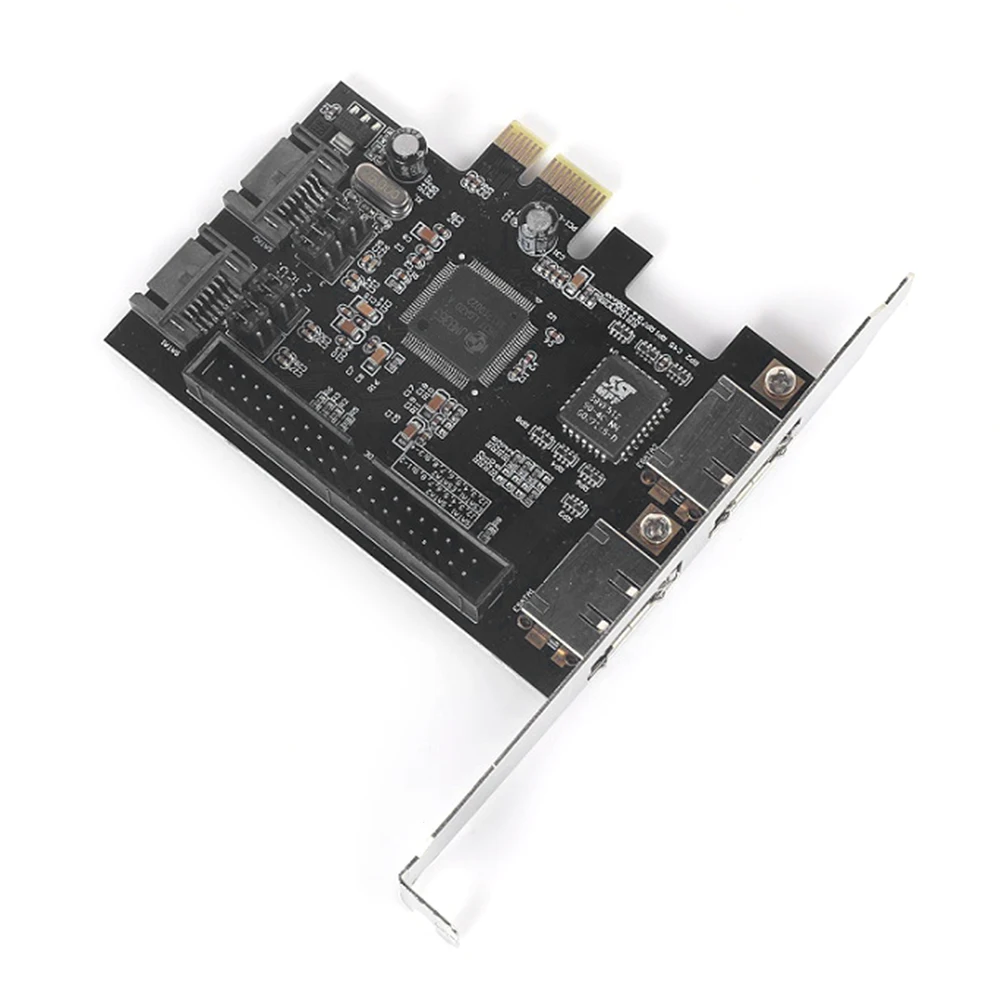

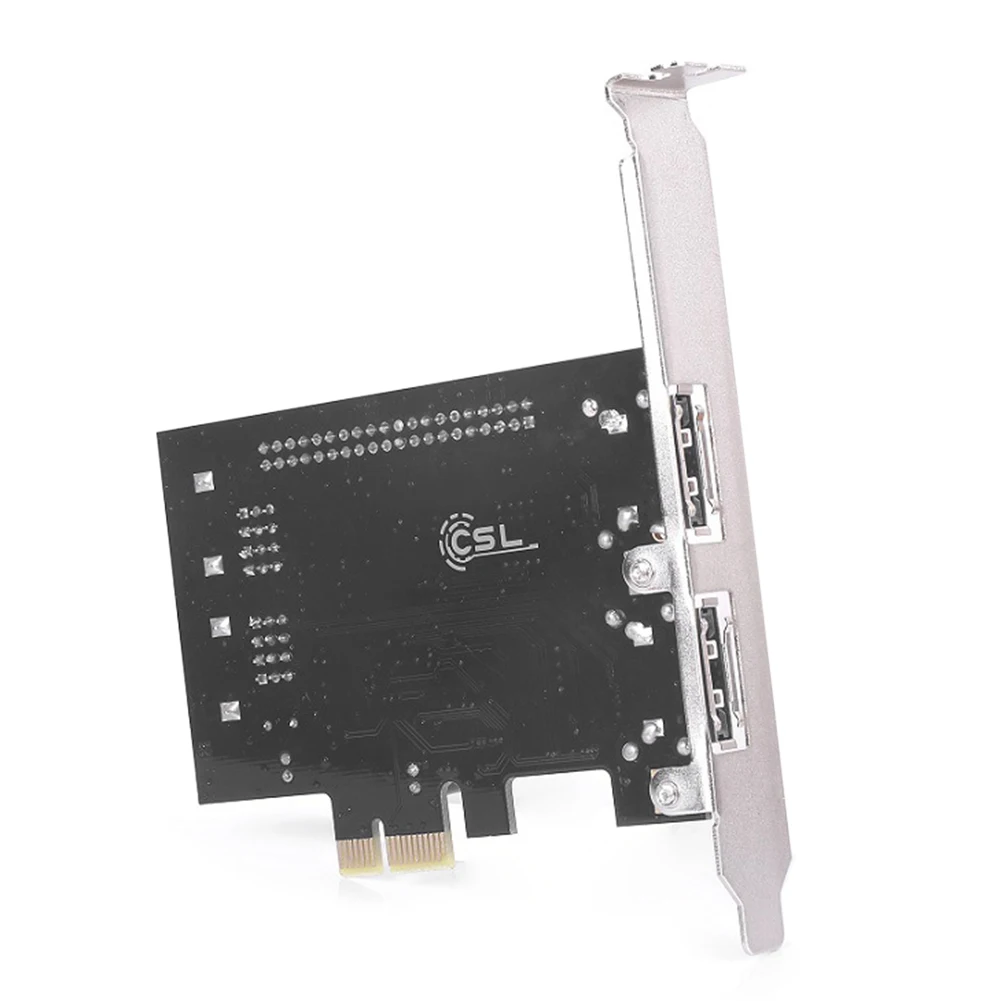

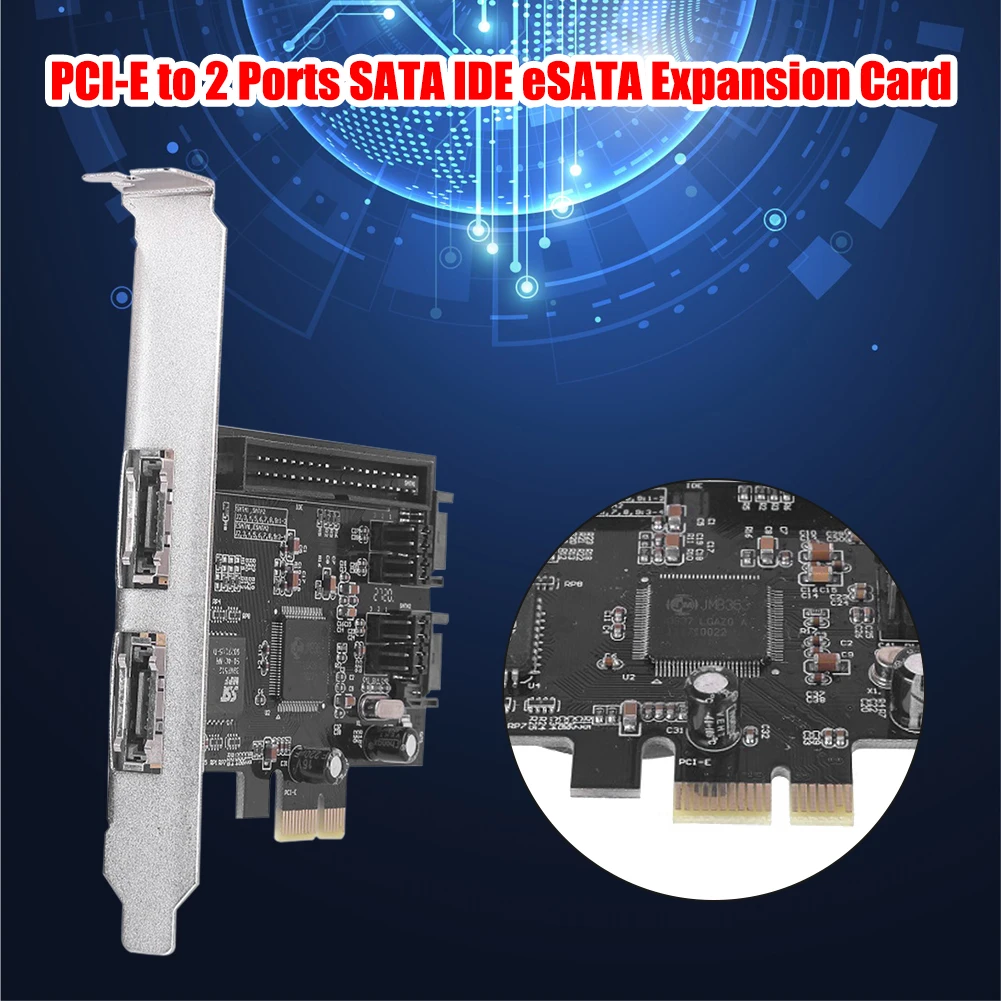

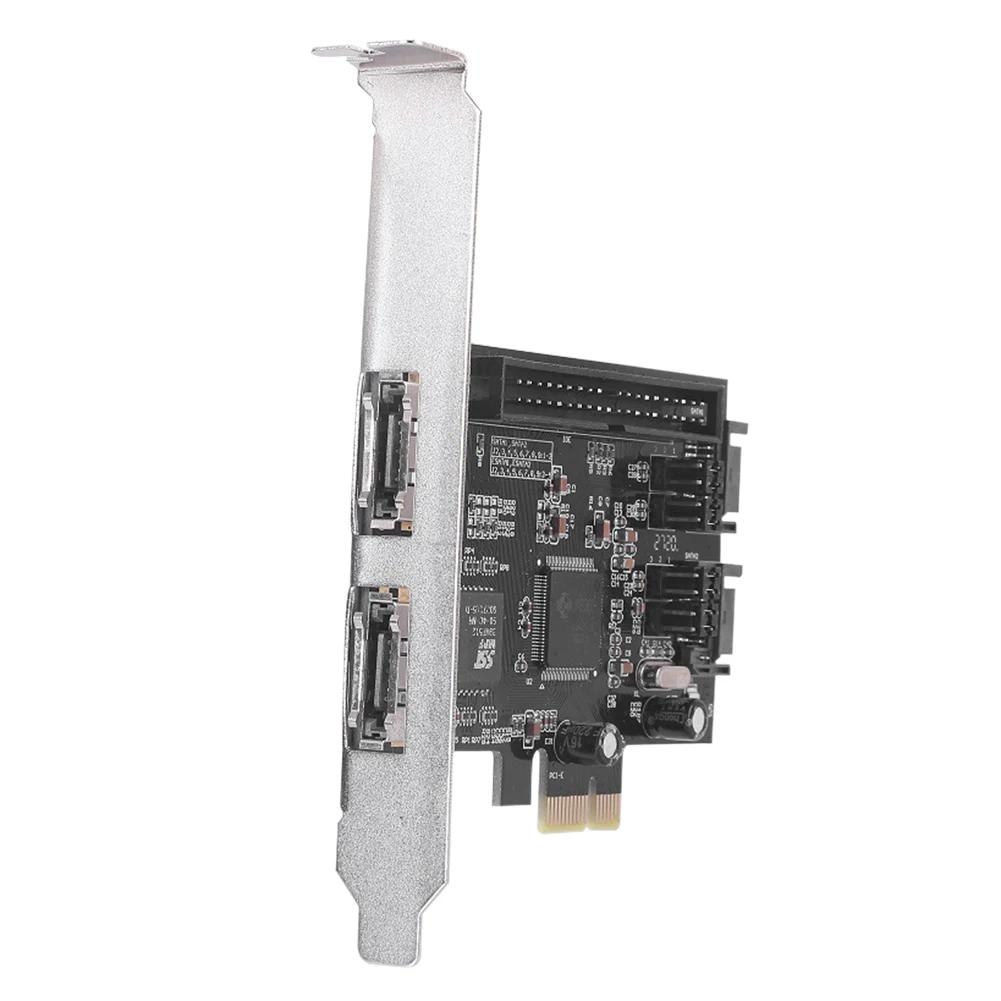

Контроллер расширения Pro JMB363 PCI-E PCIe на 2 порта SATA IDE eSATA адаптер конвертер RAID.



PCI Express Expansion Card JMB363 PCI-E PCIe to 2 Ports SATA IDE eSATA Adapter Converter RAID Controller Cards
Feature:
Interface: 2 internal SATA interfaces, 1 ATA133 interface, 2 external ESATA interfaces (external ESATA and internal SATA can only use 2 at the same time, select through jumpers, the default is 2 internal SATA interfaces)
Chip: JMB363

Ordinary:
Compliant with PCI-Express 1.0 a standard
PCI-Express speed 2.5/s full duplex channel
Support plug and play
Driver support for Windows 2000/xp/7/8/server 2003/xp 64bit/ Vista, for Linux, for Mac, for Dos

PATA
Support Ultra ATA 133 hard drives, and down support Ultra ATA 100/66/33 standards
Transmission rate 133MB/sec, ATA133
Supports hard drives with a capacity of 137 GB or more (48-bit LBA mode)
1 IDE interface supports up to 2 IDE devices

SATA II
Support 1 external ESATA interface 1 internal SATA interface, transfer rate up to 3Gb/s
Support SATA 1.0 standard
256-byte FIFO port fast read/write operation

RAID array
Support RAID 0, RAID 1, RAID 0+1 mode, support JBOD

Specification:
Product weight: 70g
Product size: 150x120x30mm/5.91x4.72x1.18in

Product description:
JMB363-PCIe to SATAII x2 and PATA disk array card.
PCI-Express to ATA133, SATA II disk array card.
Support RAID 0, RAID 1, RAID 0+1 mode, support JBOD.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 X Expansion Card

---
