90-Day Buyer ProtectionDescription body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Fuel Injector Leak Test Check Kit For Cummins ISX/Signature Engine 3164001 APPLICATION -- Replaces for CUMMINS Tool Number 3164001. Works on Cummins ISX, Cummins Signature Engines.
MATERIAL -- High Quality Test Adapter Plate and Flexible tube (Crude Oil Resistant).
FUNCTION -- This test checks for combustion gas leaks back through the injector rail check valve or other conditions that will allow gas leakage through the injector into the fuel rail.
SAVE MONEY -- Use this tool to check the Fuel Injector before replacing injectors or metering actuators.
ADVANTAGES -- Used to test injectors for leaks that cause an engine to exhibit slow shutdown or excessive run-on after a key-off condition.

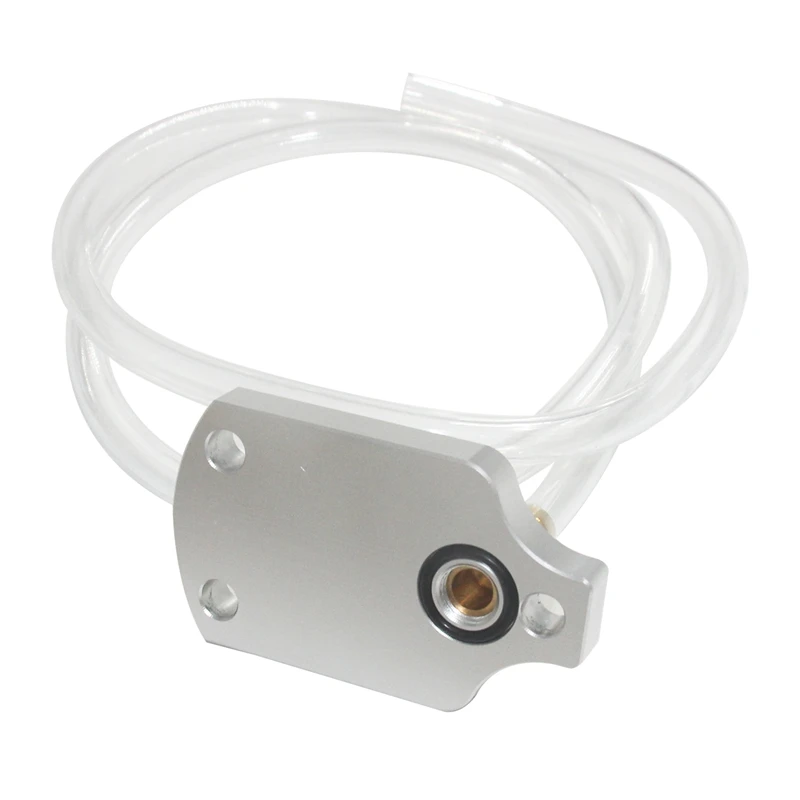

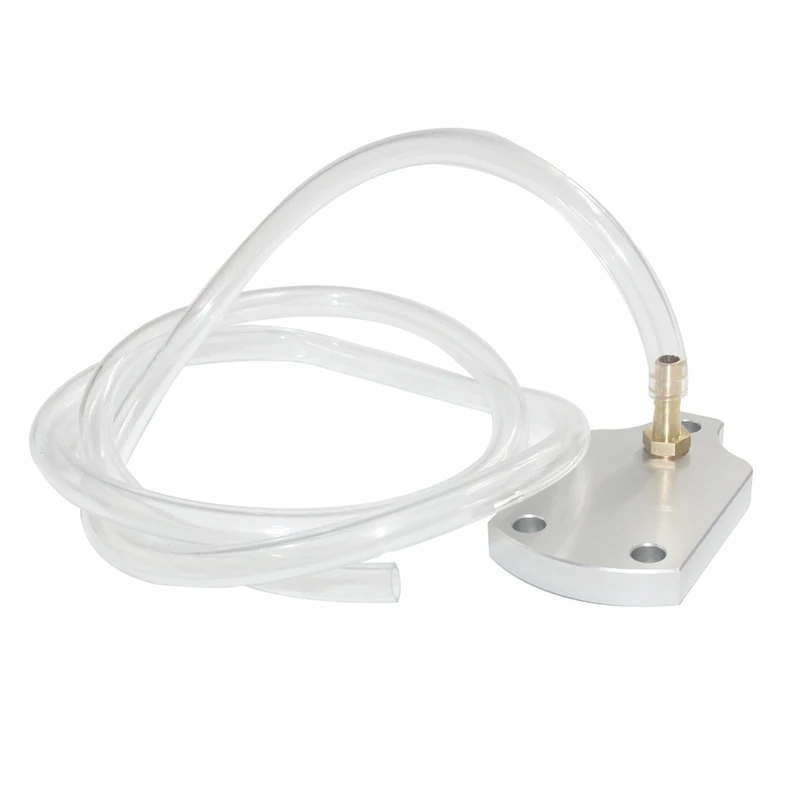

Name:Fuel Injector Leak Test Check Kit
Tube length: 1M

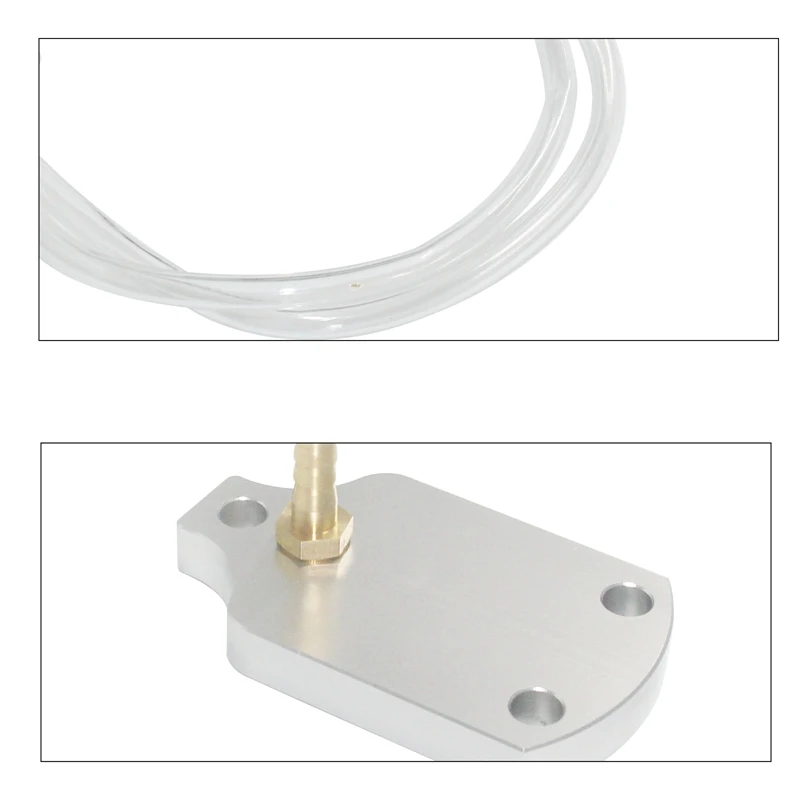

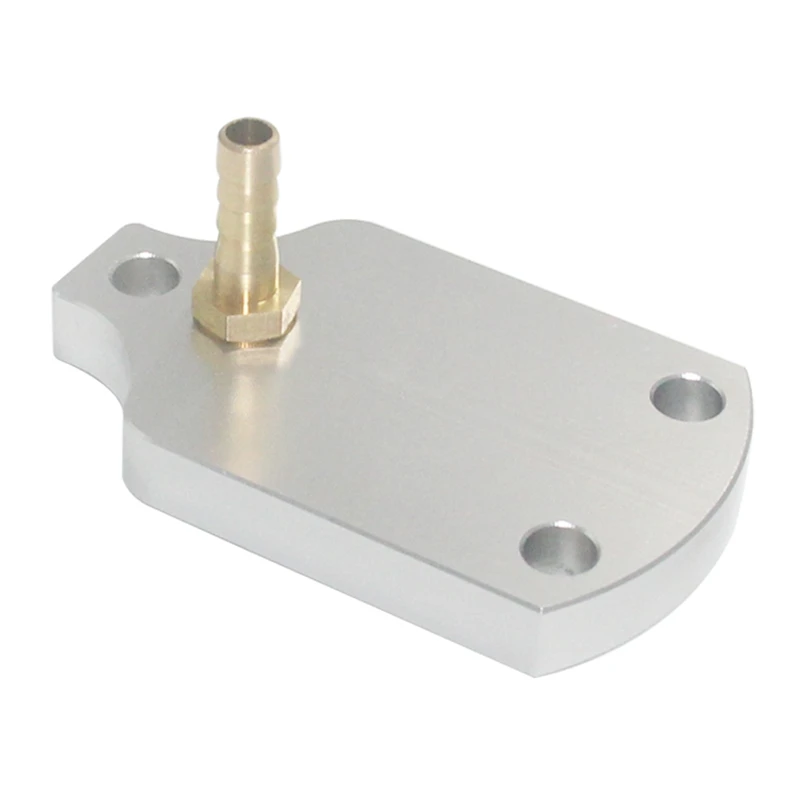

Test Adapter Plate - 3164002
Brass Hose Fitting - 3164009

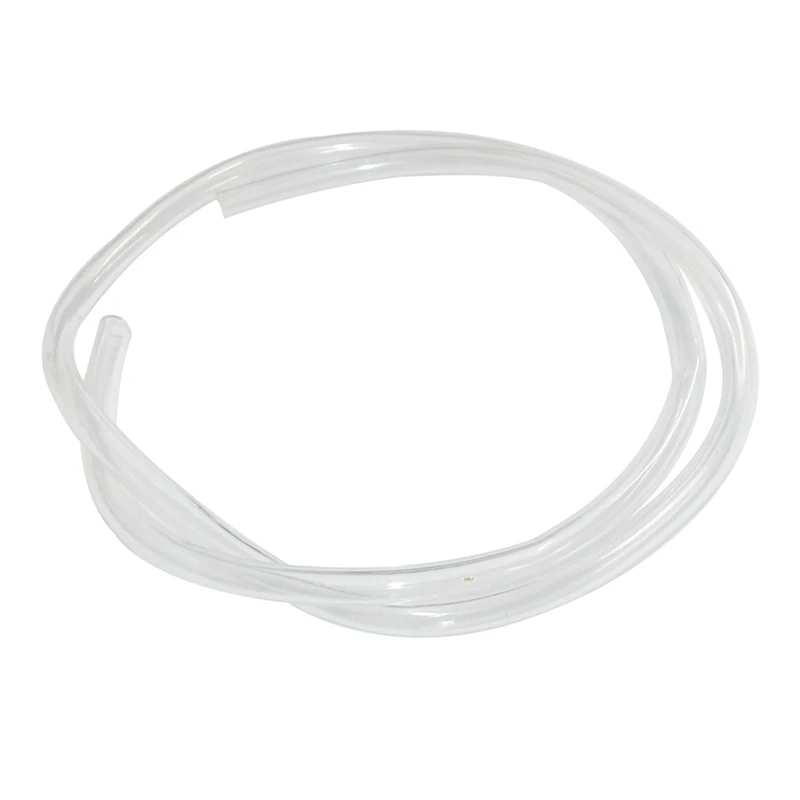

Flexible PVC Tube (Crude Oil Resistant) - 3163527
NOTE FOR USING:
This test kit checks for combustion gas leaks back through the injector rail check valve or other conditions that will allow gas leakage through the injector into the fuel rail.
When the engine is barred over, back pressure is created against the injector by the piston coming up on the compression stroke.
During the test, if the rail check valve is leaking, air is pushed through the rail check valve and into the fuel rail. Pressure is sensed at the test fixture, which is in place of the metering actuator. If a manometer is connected to the test fixture, pressure will be measured as air escapes through the leaking rail check valve. If a container of water is used instead of a manometer, bubbles will be seen as air escapes through the leaking rail check valve.
The overhead set marks on the damper are used to identify
color:As shown
Material:Metal + Plastic
size:11.43 x 8.13 x 1.02 cm

Package Contents:
1 set x Fuel Injector Leak Test Check Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

---
