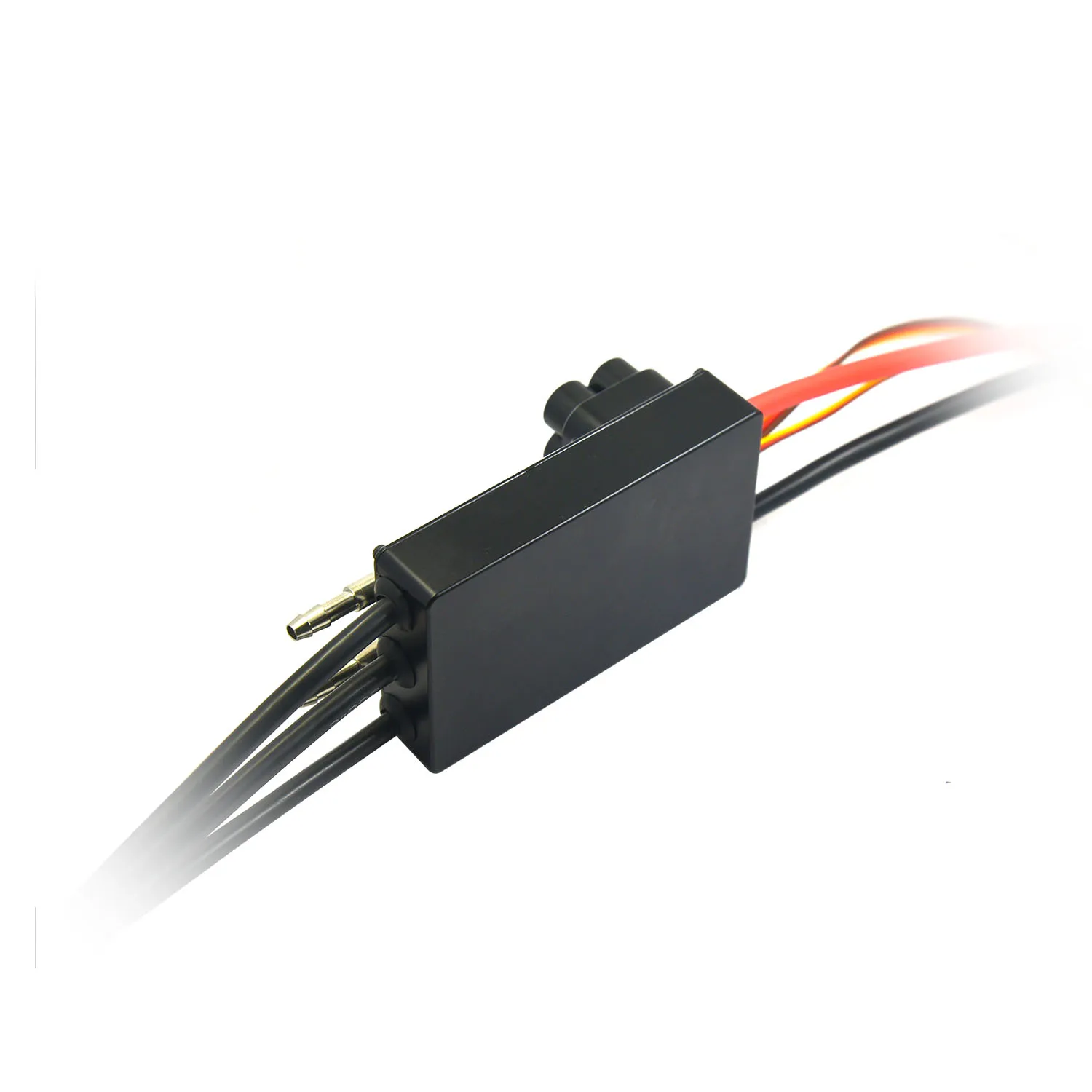

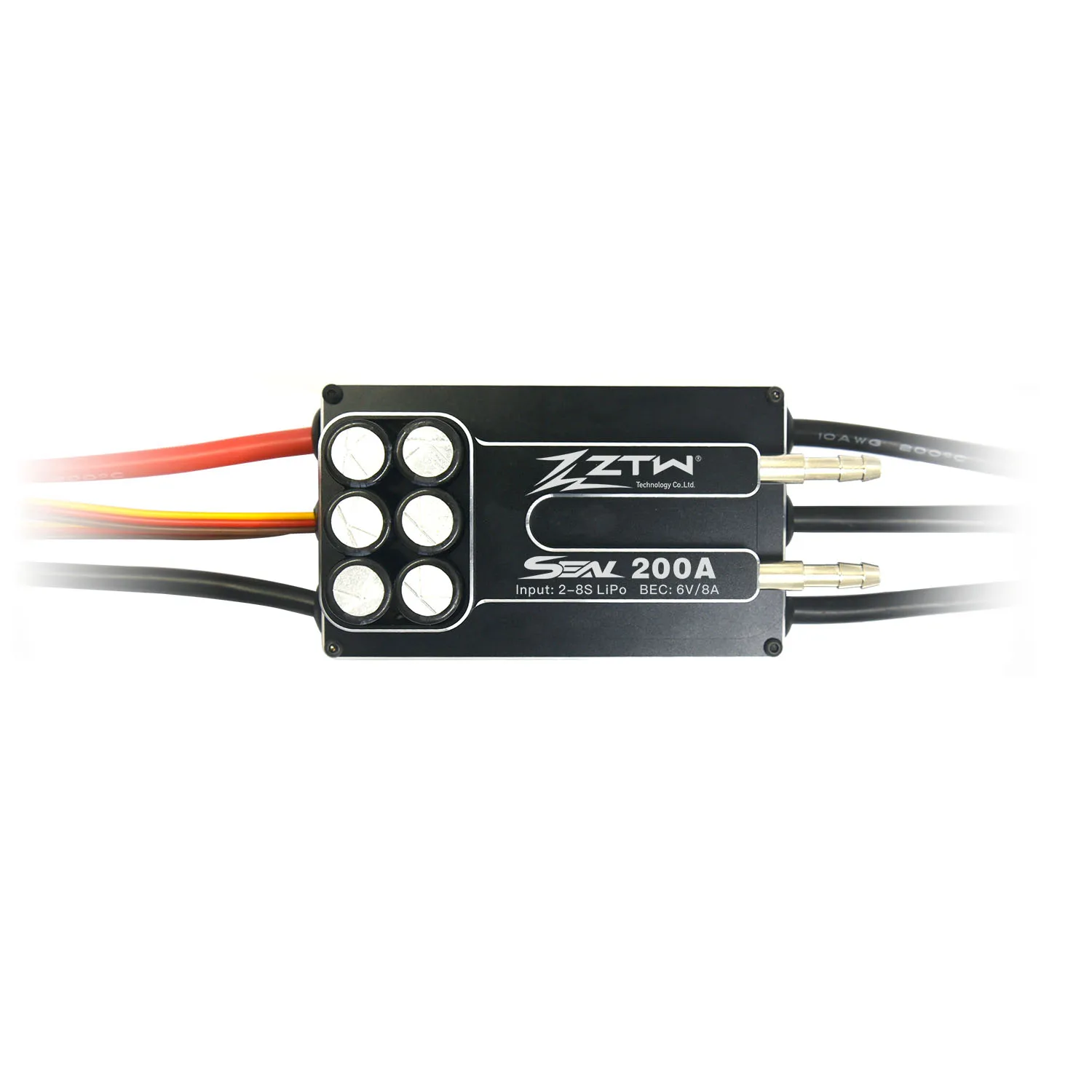

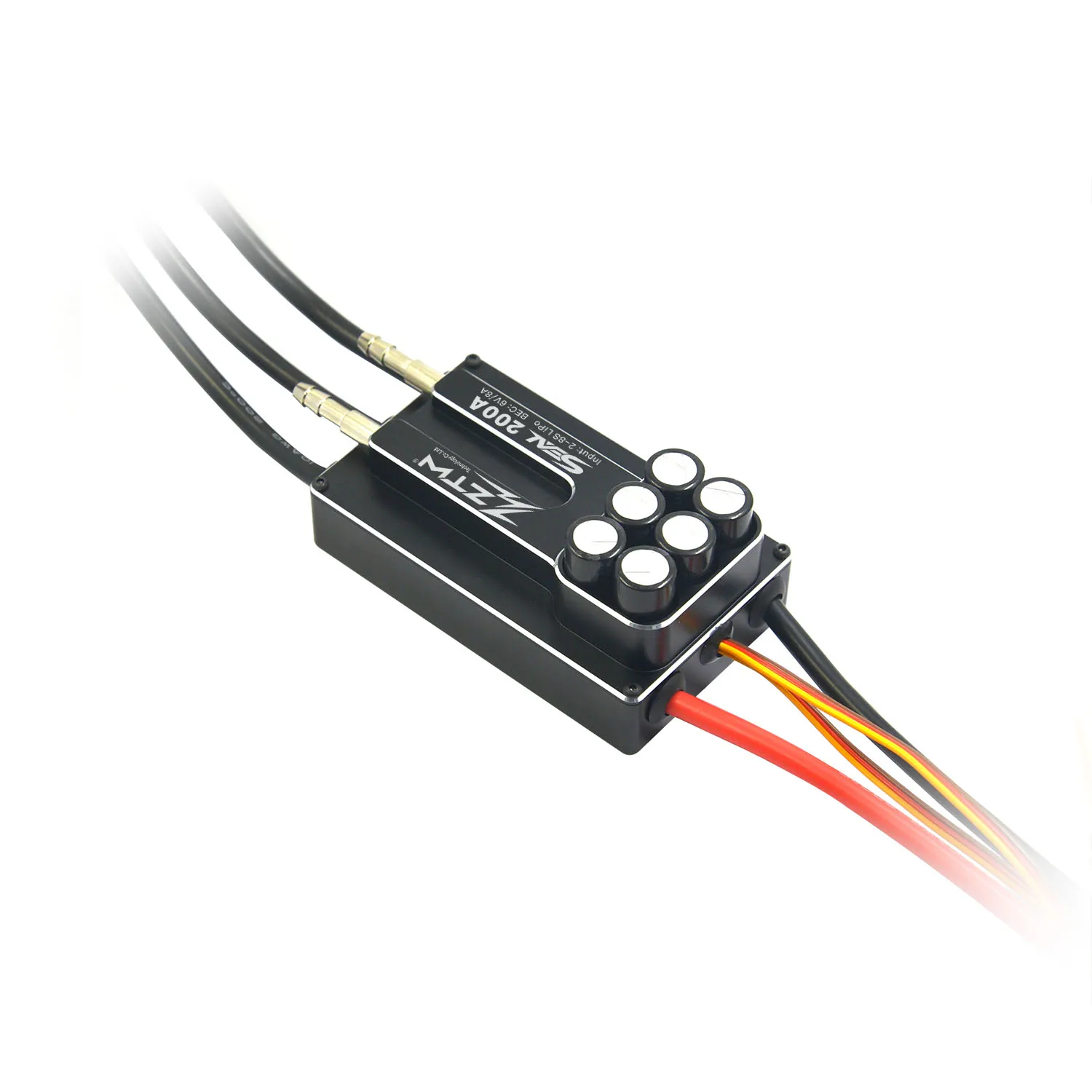

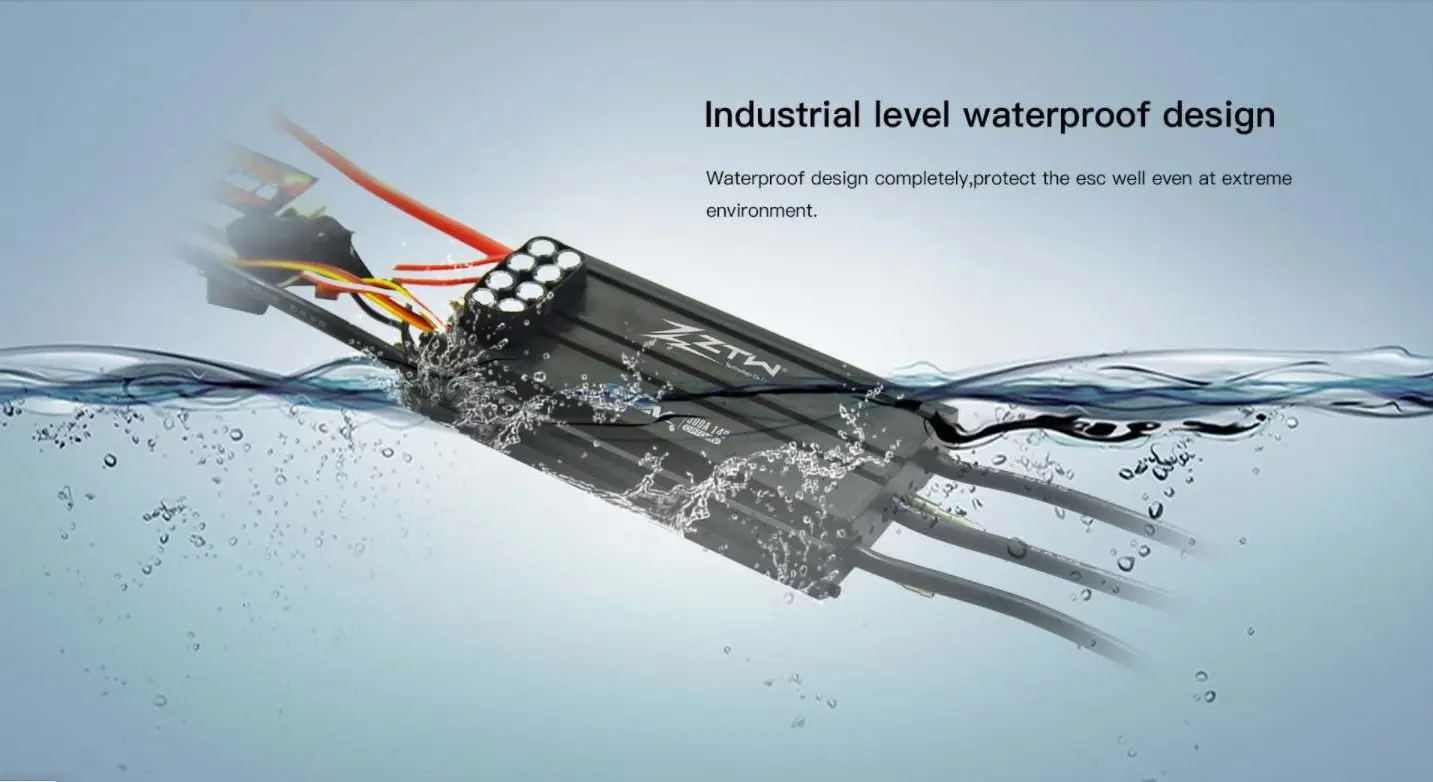

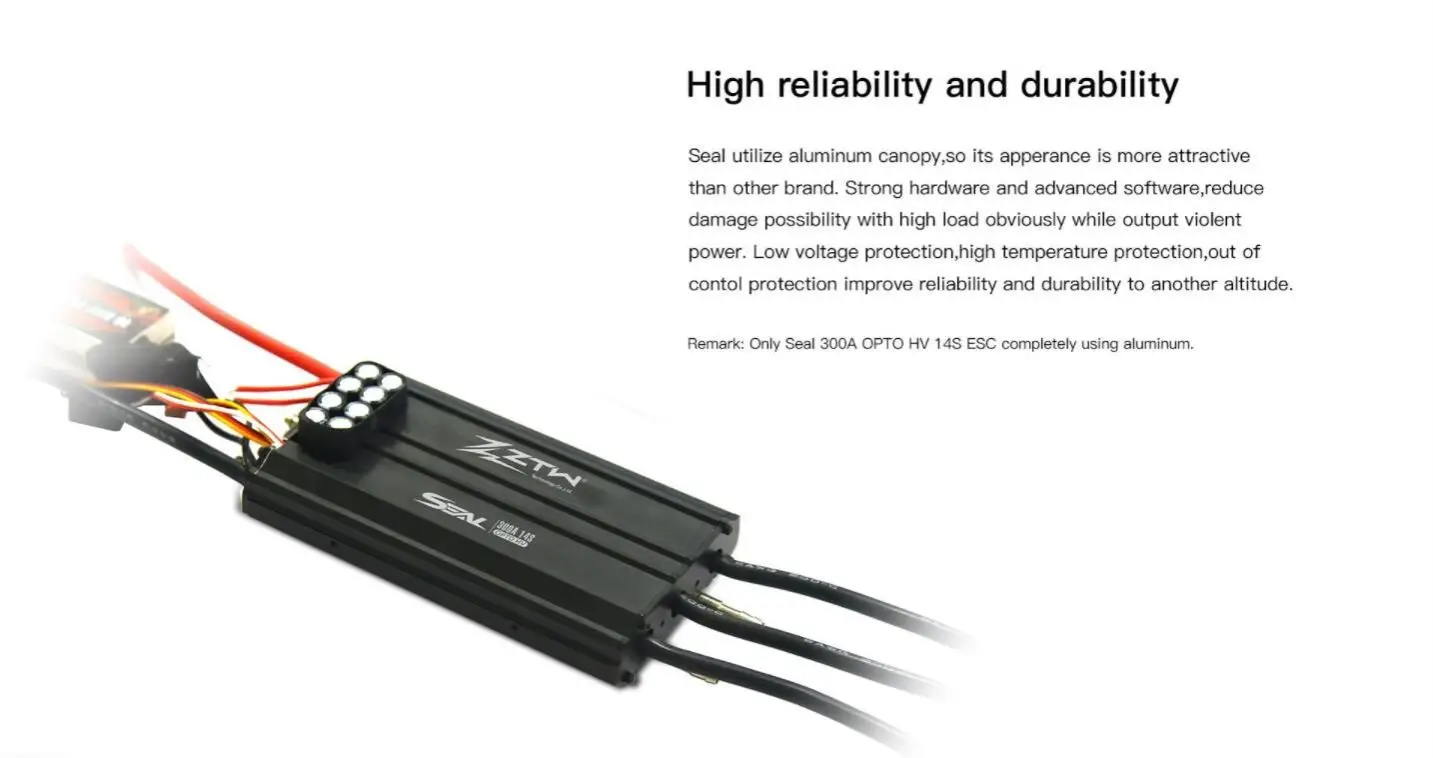

ZTW Seal 200A Brushless ESC Waterproof All Metal Case Speed Controller for RC Boat Model

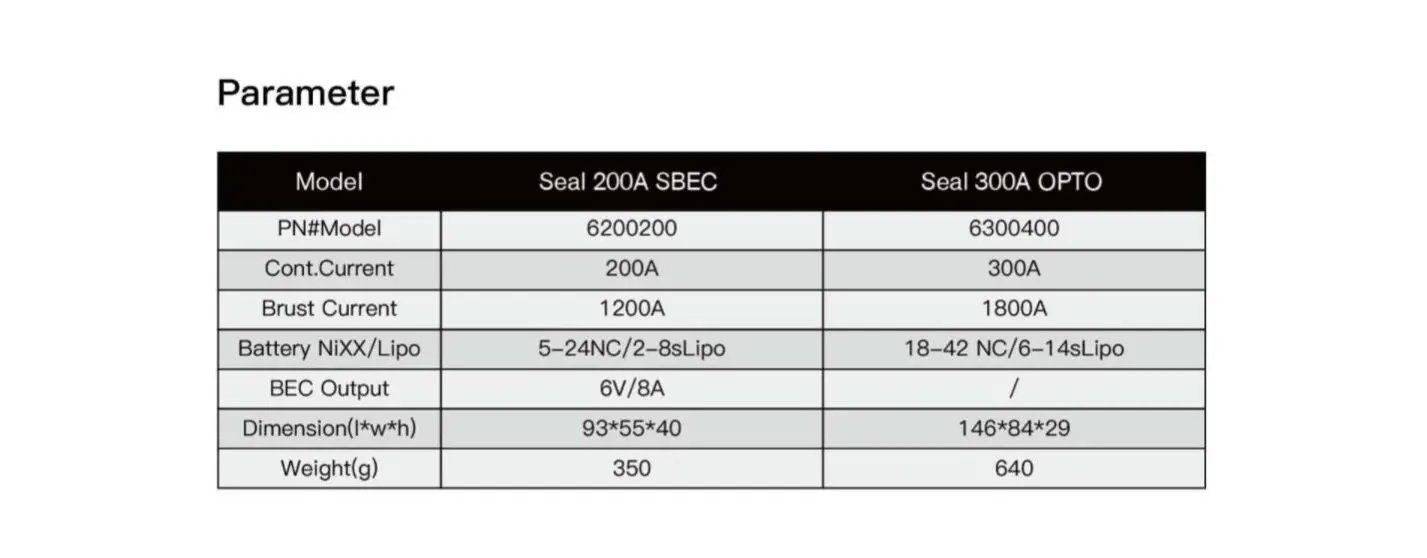

Specification: SEAL 200A ESC

Item Brand:ZTW
Item Name: SEAL 200A V2 ESC
Material:Metal and plastic
Color:Black
Product Size:91*55*41mm(L*W*H)
Product Weight:About 350g
Fit For:RC Boat
Continuous current(A):200A
Brust current(10s):1200A
Battery NiXX/Lipo:8-24NC/3-8Lipo

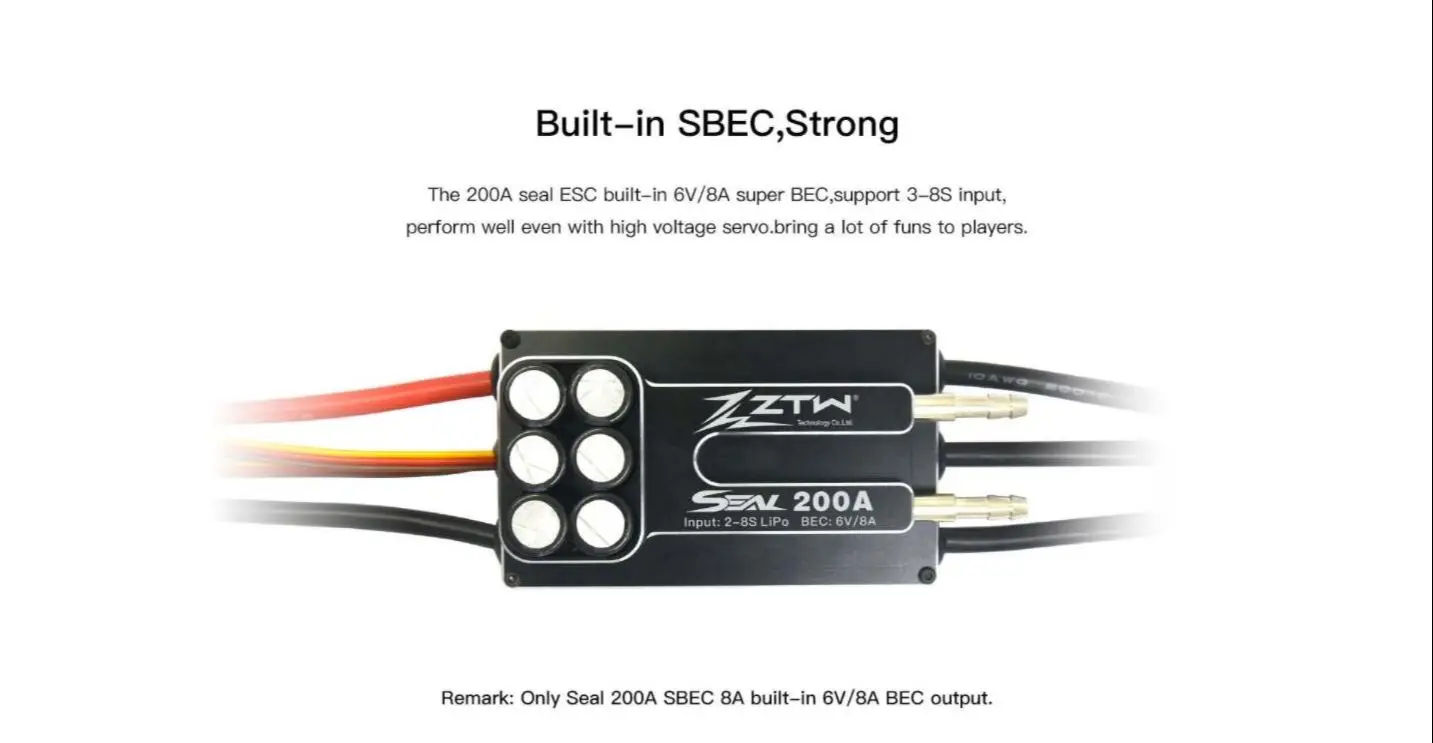

BEC Output:6V/8A
User Program:Yes
Power Cable:10#silicone line,160mm-red /160mm-Black
Motor Cable:10#silicone line,160mm-Black
Signal Wire 1:(Brown red orange)60C,330mm with JR Male

Specification: Program Card

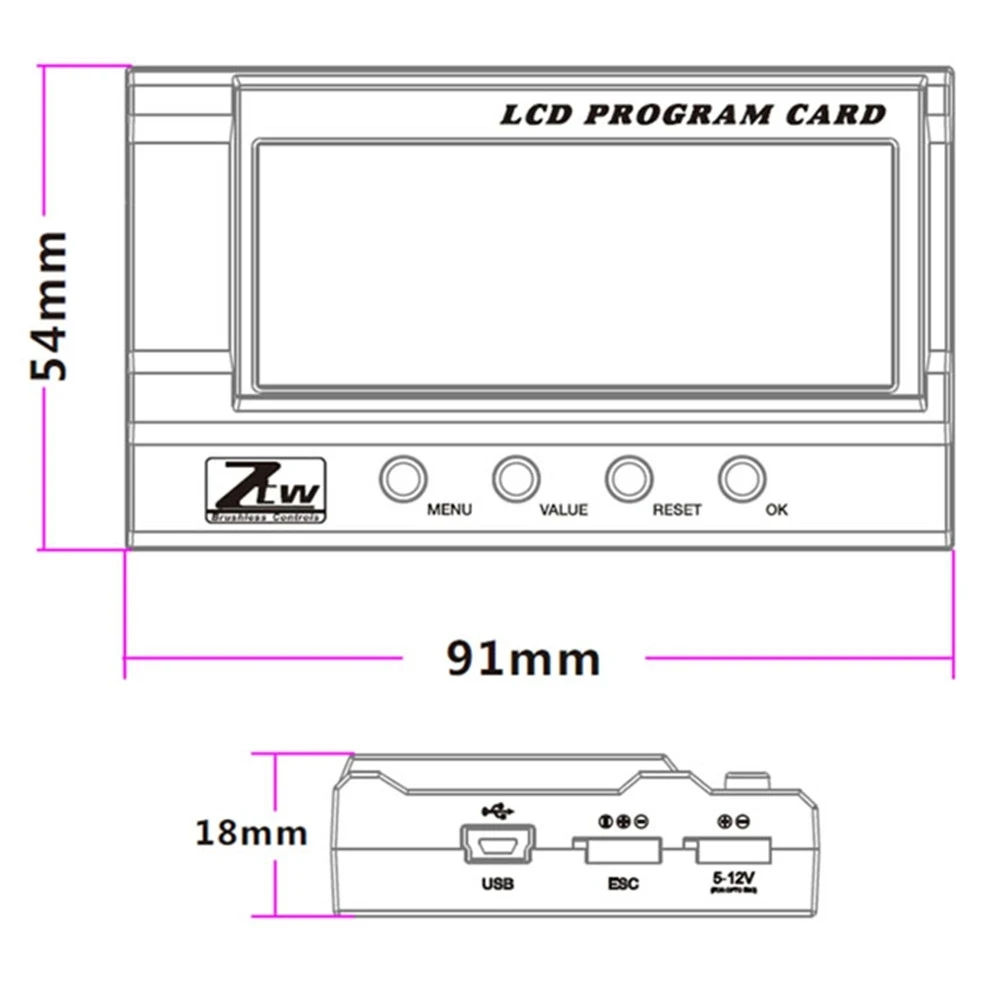

Dimensions: 91mm*54mm*18mm (L*W*H)
Weight: 68g
Power supply: DC 5V~12V
Upgrade Firmware online (Yes/No):yes(Use theTurbo/Gecko software to interchange,please click here to download

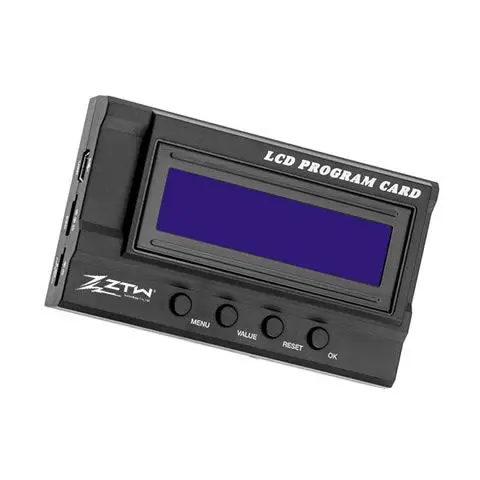

How To Use The LCD Program Card:

The LCD Program card can be used to set up the Gecko series brushless ESC produced by ZTW Model for RC aircraft and RC cars.
Users can choose their desired parameter at any time.
It has 2 user methods as follows:
a) Working as an individual device to set the parameters of ESC.
b) Working as an USB adapter to link the ESC with PC, to update the firmware of ESC and set the parameters of ESC on PC.

Package included: There have 3 Options

Option 1. 1X ZTW LCD Program Card
Option 2. 1X ZTW ZTW 200A SEAL ESC
Option 3: 1 X Program card+ 200A ESC

Pictures:
