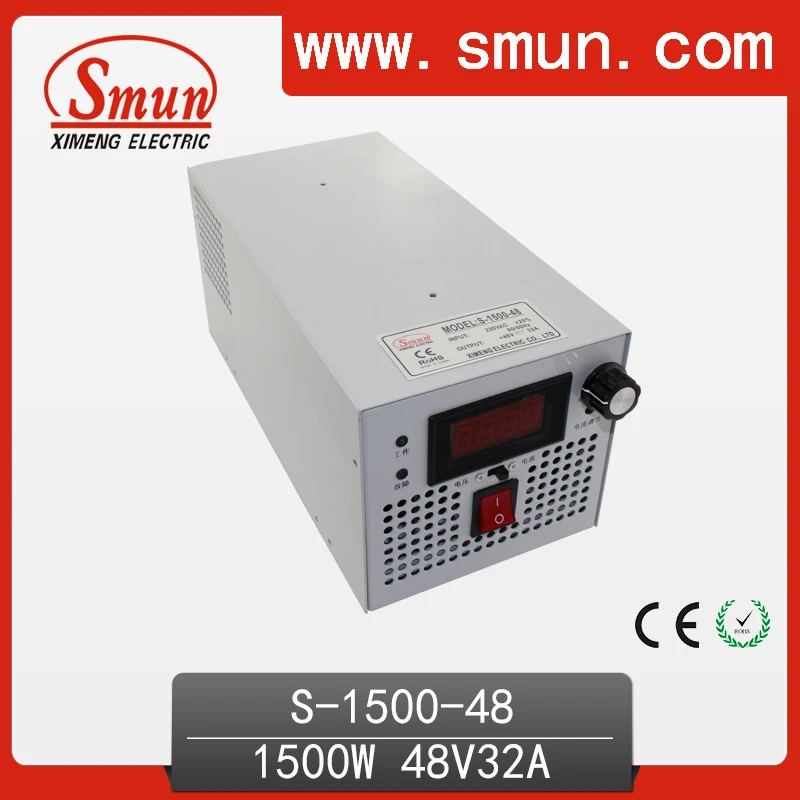

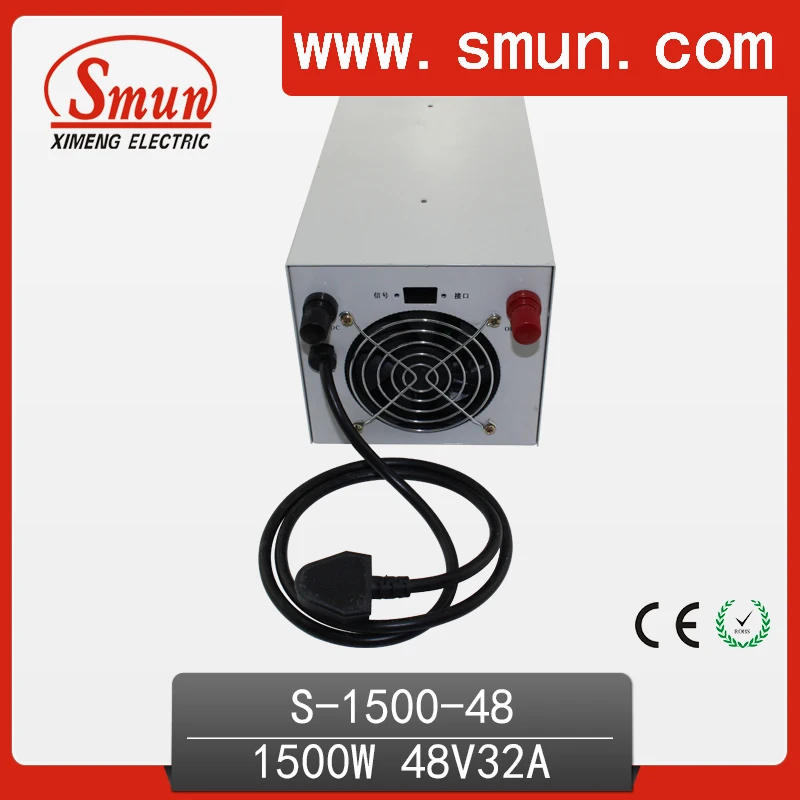

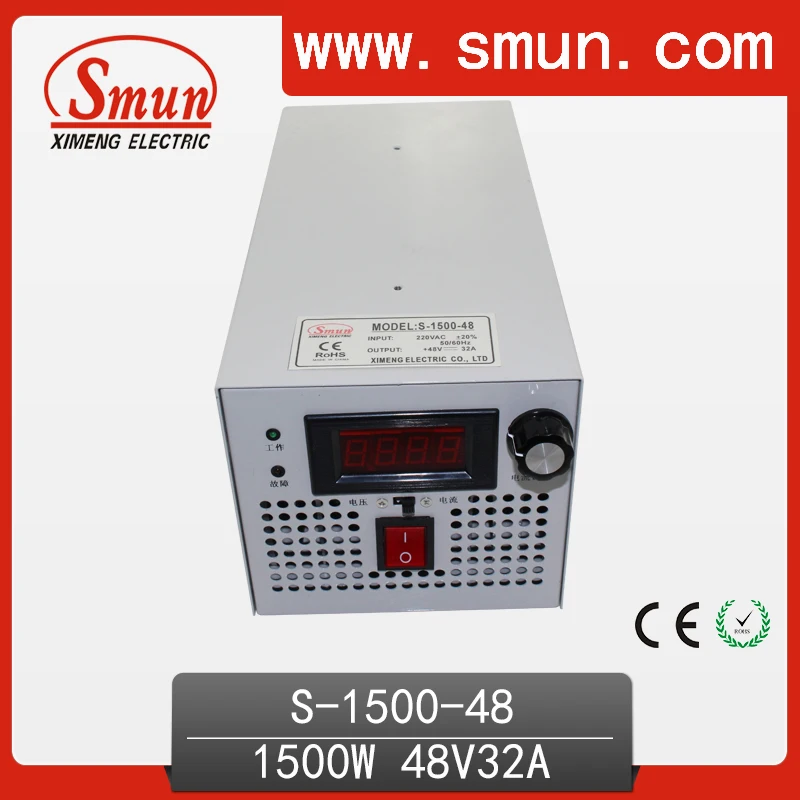

1500W 48V 32A SIngle Output DC Power Supply S-1500-48



Welcome



Instruction

Features

· 1. AC input voltage range

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit/over load/over voltage/over temp

· 4. Built-in cooling DC fan

· 5. Cooling fan ON-OFF auto control
· 6. LED indicator for power on

· 7. 100% full load burn-in test

· 8. 2 years warranty

Product Description

Model
  S-1500-12 S-1500-15 S-1500-24 S-1500-48 Output DC output Voltage 12V 15V 24V 48V Voltage tolerance ±1.0% ±1.0% ±1.0% ±1.0% Rated Current 125A 100A 62A 32A Related Power 1500w 1500w 1500w 1500w Wave&Noise 240mVp-p 240mVp-p 240mVp-p 300mVp-p Adjustable range for DC Voltage ±10% ±10% ±10% ±10% Set up,rise,hold up time 1000ms  50ms  20ms Input Voltage Range 170-264VAC  47-63HZ 120-370VDC Input Current 8A/230VAC Efficiency 83% 84% 85% 87% AC inrush current Cold start current 50A /230VAC Leakage current <3.5mA/240VAC Protection Overload Related output power 105-150% start overload protection Protection type: cutoff output, recovery after restart power Over voltage 13.8V-16.2V 17.2V-20.2V 27.6V-32.4V 55V-64.8V Hiccup mode,recovers automatically after fault condition Environment Working temp humidity -10~+60°C 20%~90%RH Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing Safety Withstand voltage I/P-O/P:1.5KVAC  1min I/P-FG:1.5KVAC 1min O/P-FG:0.5KVAC 1min Standard Safety standard Fit UL1012 Refer Design refer to GB4943,UL60950,EN60950 EMC standard Design refer to GB9254,EN55022 Class A Size size L295*W145*H155mm Package 6.4kg, 4pcs/25kg



Inner Structure

Certifications

Our Services

1.Your email will be replied with 24 hours

2.All qustions will be answered by our power supply engineer.

3.We have strictly management on the production and quality control.

4.We are real factory and have professional engineer team,can provide cust service.

>More than 500 pieces,can print logo on the products.

>More than 2000 pieces,can customize the package.

5.We have independent IMP&EMP rights.

6.Sample available.

7.Warranty Clarify:

>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.

>We will send a new one to you if product can't work as quality problem in first year after comfirmation.

>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.

8.Shipping methods:By sea,by air,by express.

9.Customized accepted.

>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.

>Output voltage:5V,9V,12V,15V,24V,36V,48V.

>Frequency:47-63Hz
