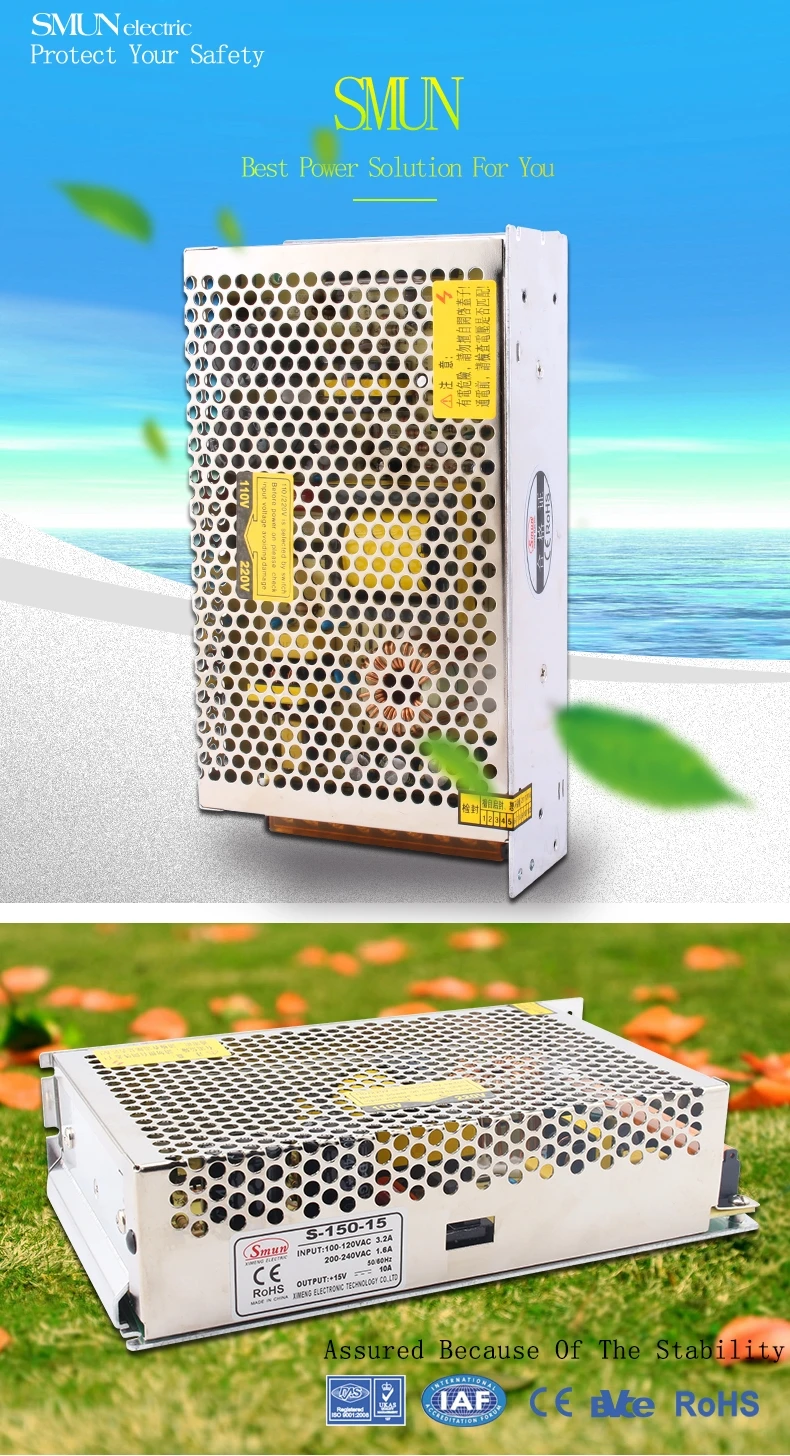

SMUN S-150-15 110VAC/220VAC to 15V 10A Single Output 150W Switching Power Supply | Обустройство дома

Model

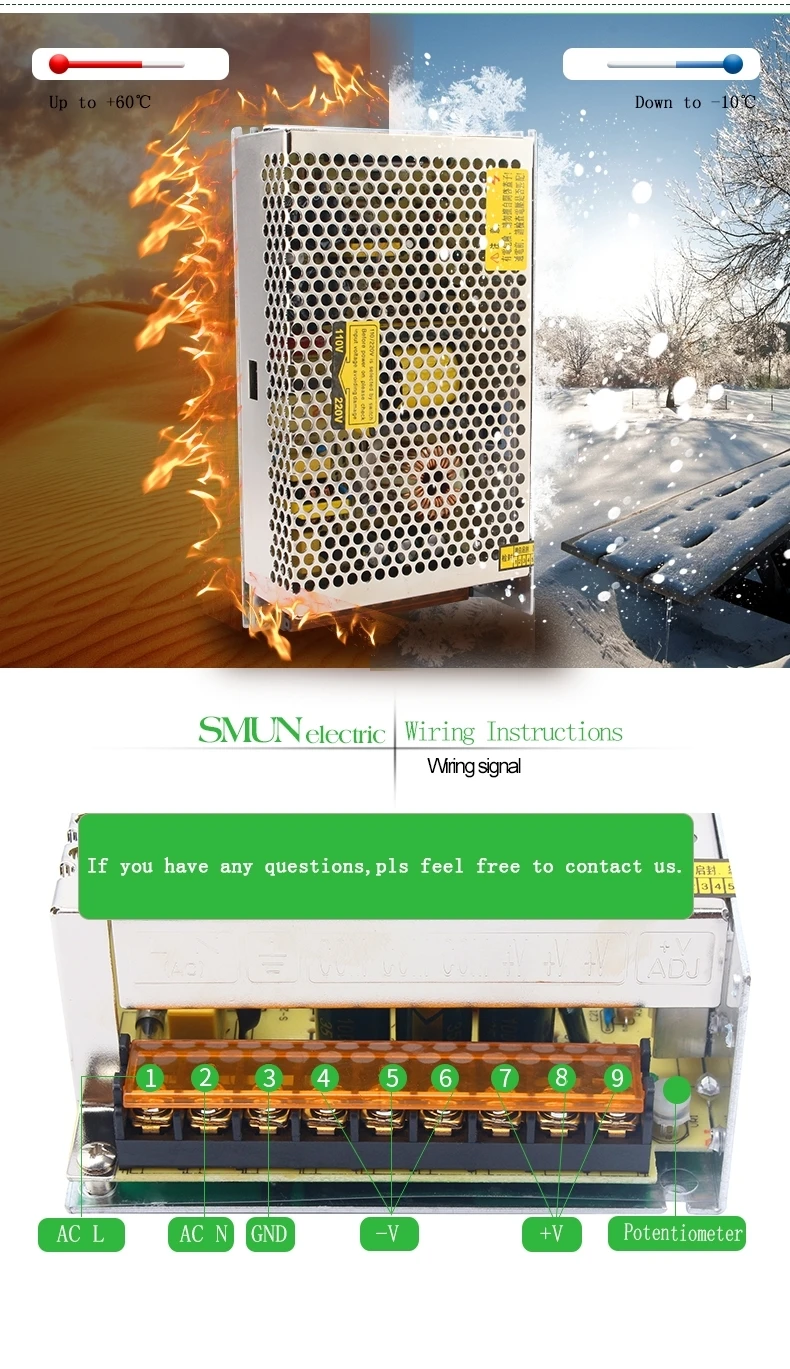

  S-150-5 S-150-12 S-150-15 S-150-24 S-150-48 Output DC output Voltage 5V 12V 15V 24V 48V Voltage tolerance ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% Rated Current 30A 12.5A 10A 6.5A 3.2A Related Power 150w 150w 150w 150w 150w Wave&Noise 180mVp-p 180mVp-p 180mVp-p 240mVp-p 240mVp-p Adjustable range for DC Voltage ±10% ±10% ±10% ±10% ±10% Set up,rise,hold up time 200ms  100ms  20ms Input Voltage Range 85~132VAC 170-264VAC selected by switch 47-63HZ 240-370VDC Input Current 2.4A/115VAC 1.2A/230VAC Efficiency 82% 82% 84% 85%% 87% AC inrush current Cold start current  30A/115V 60A/230VAC Leakage current <0.5mA/240VAC Protection Overload Related output power 105-150% start overload protection Protection type: cutoff output, recovery after restart power Over voltage 5.75V-6.75V 13.8V-16.2V 17.2V-20.2V 27.6V-32.4V 55V-64.8V Hiccup mode,recovers automatically after fault condition Environment Working temp humidity -10~+60°C 20%~90%RH Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing Safety Withstand voltage I/P-O/P:1.5KVAC  1min I/P-FG:1.5KVAC 1min O/P-FG:0.5KVAC 1min Standard Safety standard Fit UL1012 Refer Design refer to GB4943,UL60950,EN60950 EMC standard Design refer to GB9254,EN55022 Class A Size size L199*W98*H38mm Package 0.68kg, 30pcs/20kg Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25  degree  of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.
