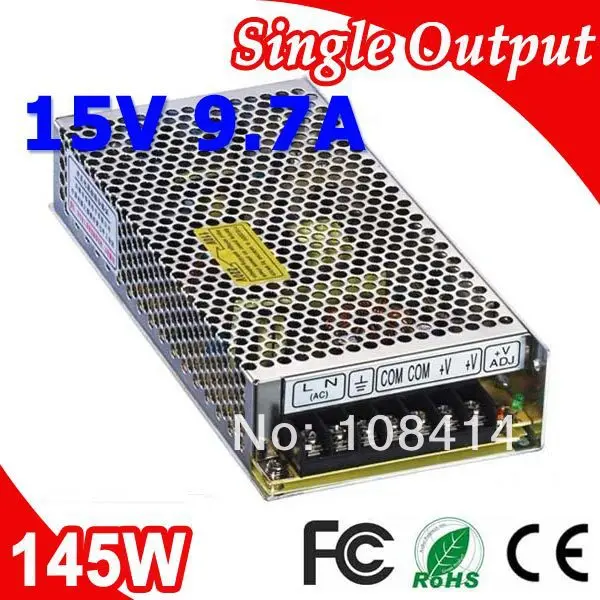

 S-145-15 LED Switching Power Supply 145W 15V 9.7A Output

Model: S-145-15

Input Power points: 110V AC and 220V AC ( Switch Select )
Output Voltage: 15V DC

Output Current: 0~9.7A

Output Power: 145W

Input voltage range :85-132VAC / 170-264VAC
                                    Select from the switching power supply 47-63Hz 240-370VDC
Input Current: 3.2A/115V 1.6A/230V
Inrush Current: Cold start 35A/115V 60A/230V current
Leakage Current: <1mA/240VAC
:125-165% overload protection type: cut output, reset, automatic recovery.
Temperature Coefficient: ± 0.03% / °C (0-50 °C)

Start, rise, hold time: 100ms, 50ms, 20ms
Earthquake resistance :10-500Hz, 2G 10min, / 1 cycle, a total of 60 minutes, each axis
Pressure resistance: between input and output: 15KVAC input and shell: 1.5KVAC
                                     Output and shell: 0.5KVAC
Isolation resistance: input and output, the input and Waikou,
                                    output and shell: 500VDC/100MΩ
Temperature, humidity: -10 °C +60 °C, 20% -90% RH

Storage temperature and humidity: -20°C +85 °C, 10% -95% RH

Dimension: (L × W × H) mm 199 × 98 × 38mm

Note: this link is for 145W,15V power supply. If you need other specifications,  pls leave messages to us before payment or find the other correct links from our online Store.  Thank you.
