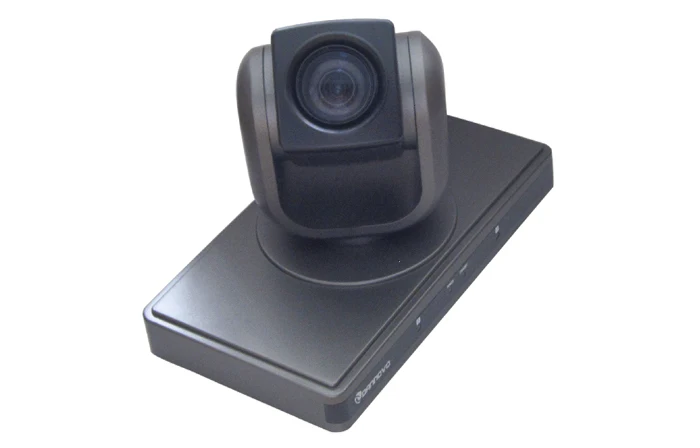

DANNOVO Lowest Cost 20x Optical Zoom Video Conference Camera Full HD DVI HDMI Ypbpr Desktop and Ceiling Mount | Компьютеры и офис

Please Make Sure You are ordering DANNOVO Brand Products!

Cameras we sell are in high quality with competitive price, professional technical support and perfect service!

We have tested all Cameras before delivery, please feel free to order from us! Don't miss!!!

Lowest Cost 20x Optical Zoom Video Conference Camera Full HD Production Description It’s a Full HD 1080P/60 PTZ Video Conference Camera, With 1/2.8’’, 2.0 Mega CMOS Sensor, Supports 20x Optical Zoom, 355 degree Pan Rotation,135 degree Tilt Rotation, PELCO-D, VISCA Control Protocol, with DVI Video Output, Support HDMI, Ypbpr Output Convertible. Lowest Cost 20x Optical Zoom Video Conference Camera Full HD Features

>Adopting With 1/2.8’’,2.0 Mega CMOS Sensor; Total Pixel: 2.0 Megapixels;
>China 20x Optical Zoom;
>Support Full HD 1080P/60 Video Output Mode;
>Video Format: 1080P/60, 1080P/50, 1080P/30, 1080P/25, 1080i/60, 1080i/50, 720P/60, 720P/50, 720P/30, 720P/25;
>Field of View: 70.96°(W)~4°(T), Focal Length: f=4.7-94MM F1.6-3.5;
>Support Image Flip Function;
>Pan/Tilt Rotation Angle: Horizontal 355 degree, Vertical 135 degree;
>Pan Speed:1-200 degree/s; Tilt Speed: 1-150degree/s;
>Standard DVI Video Output, Support HD-SDI,HDMI Convertible;
>PTZ Controlling Protocol: PELCO-D, VISCA;
>Remote Controller for controlling PTZ, Zoom, Preset Position and OSD etc;
>Desktop and Ceiling Mount.

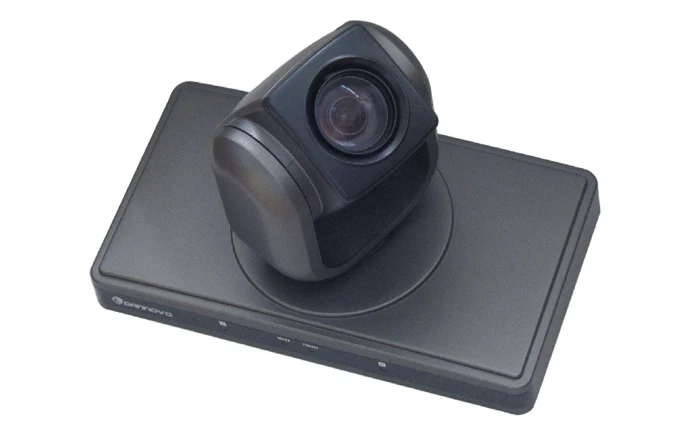

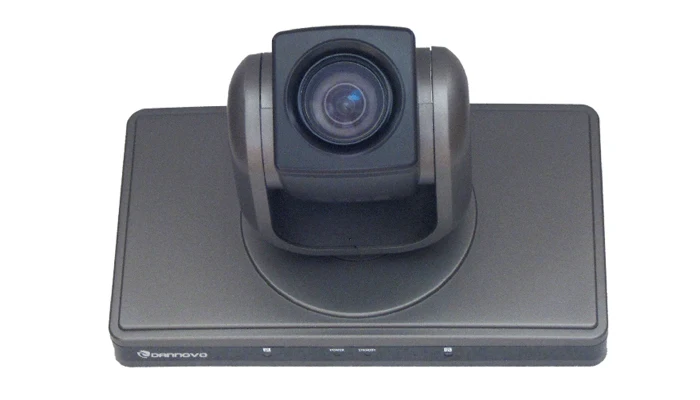

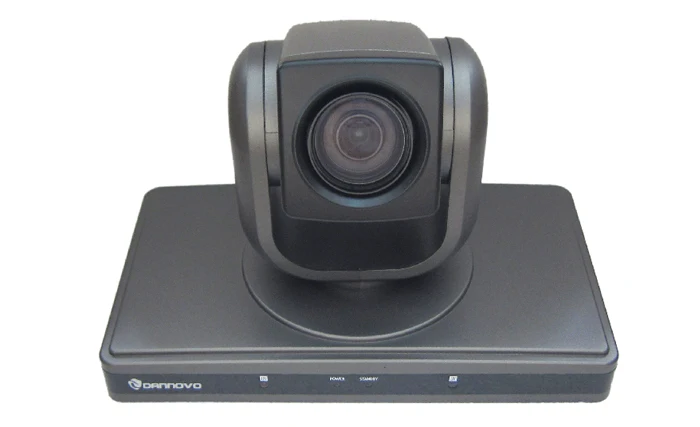

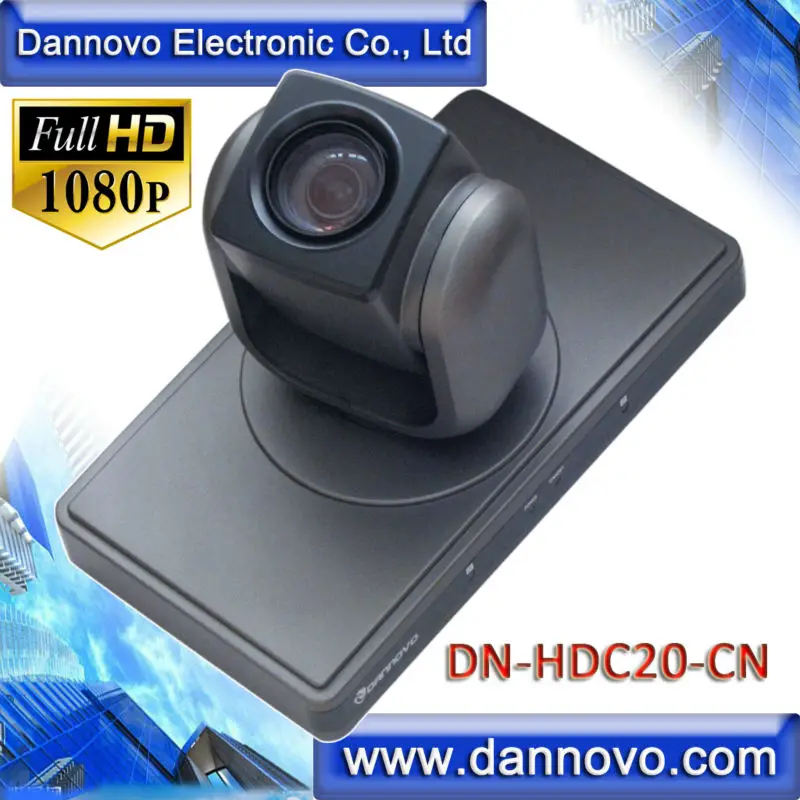

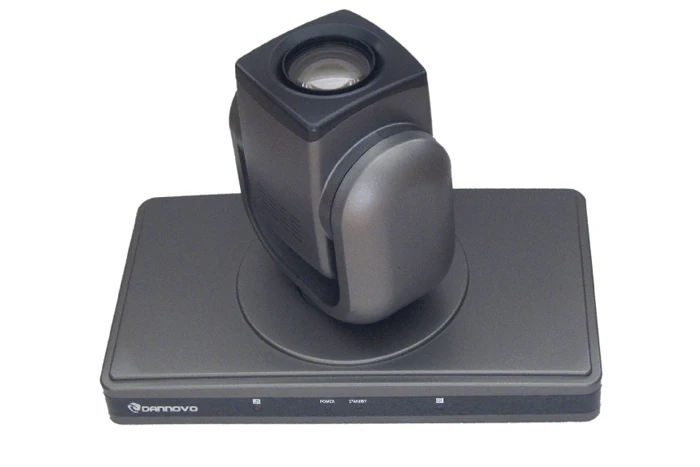

Lowest Cost 20x Optical Zoom Video Conference Camera Full HD Pictures









Remote Control

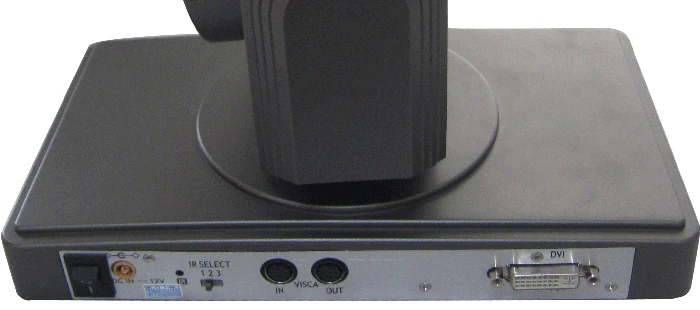

Interface

Size

Main Application

DANNOVO PTZ Cameras Widely used in Video Conferencing, Remote Teaching, Traning Meeting, Remote Medical, Church, accident, Court, Multimedia etc

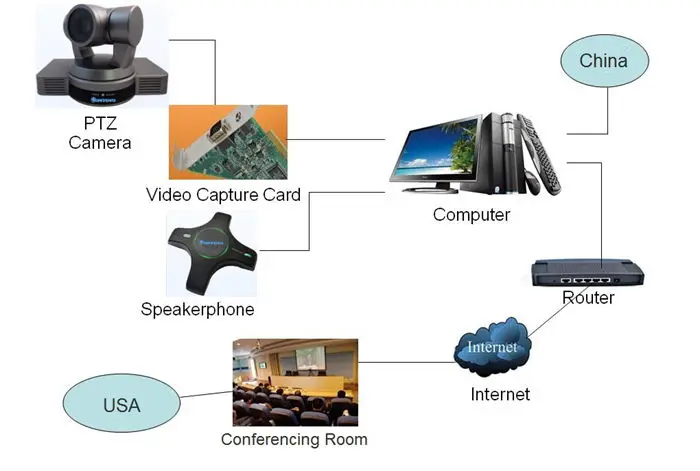

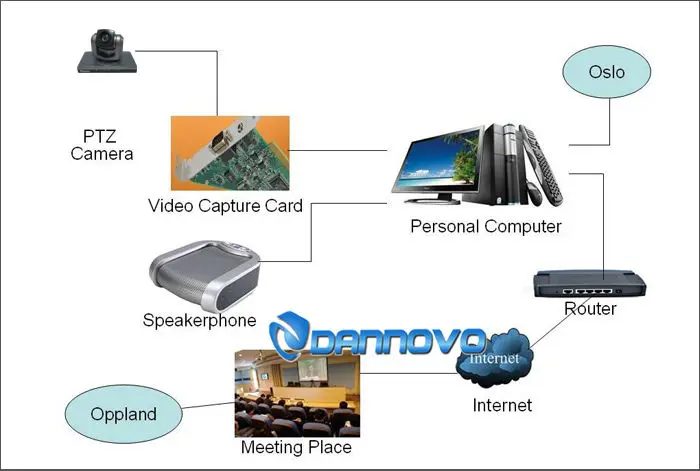

Diagram

Lowest Cost 20x Optical Zoom Video Conference Camera Full HD Specifications



Model No. DN-HDC20-CN   Image Sensor Sensor 1/2.8’’, 2.0 Mega CMOS Sensor   Effective Pixels 2.0 Megapixel   Illumination 0.1 Lux (F1.6, ICR ON)   White Balance Auto/Manual   Gain Control Auto   Back-light compensation On / Off   E-Shutter 1/1~1/10000S   S/N Ratio > 50db   Lens Focus F=4.7-94.0mm F1.6-3.5   View Angle 70.96°(W)~4°(T)   Iris Auto/Manual   Zoom China 20x Optical Zoom   Video Output DVI, DVI-HDMI, DVI-Ypbpr   Video Output Mode 1080P/60, 1080P/50,1080P/30,1080P/25,1080I/60,1080I/50,720P/60,720P/50,720P/30,720P/25     Communication Interface EIA/RS232C,RS485 (Bidirectional)   Communication Control Protocol PELCO-D, VISCA   Baud Rate 9600/38400bps   Tour 4 Line   Preset 64   Power-off Protection Saved scanning or patrol line settings Automatically Before power off   Speed Matching Slow down camera Pan/Tilt movement speed while camera zooming in   OSD Menu To change parameters of camera or camera module from OSD Menu   Image Auto Flip When tilt movement over 90 degree(Option)   Pan Speed 1-200 degree per second   Tilt Speed 1-150 degree per second   Pan Rotation Angle 0~355 degree   Tilt Rotation Angle 135 degree   Auto Pan Scan Support   Boundary Scan 0-359 degree (programmable)   Remote Controller IR wireless control P/T/Z   Dimensions 250x140x154mm   Weight 1380g   Power Supply DC12V±10%,2A   Working Temperature 0-50 degree   Environment Humidity 0-95%RH
